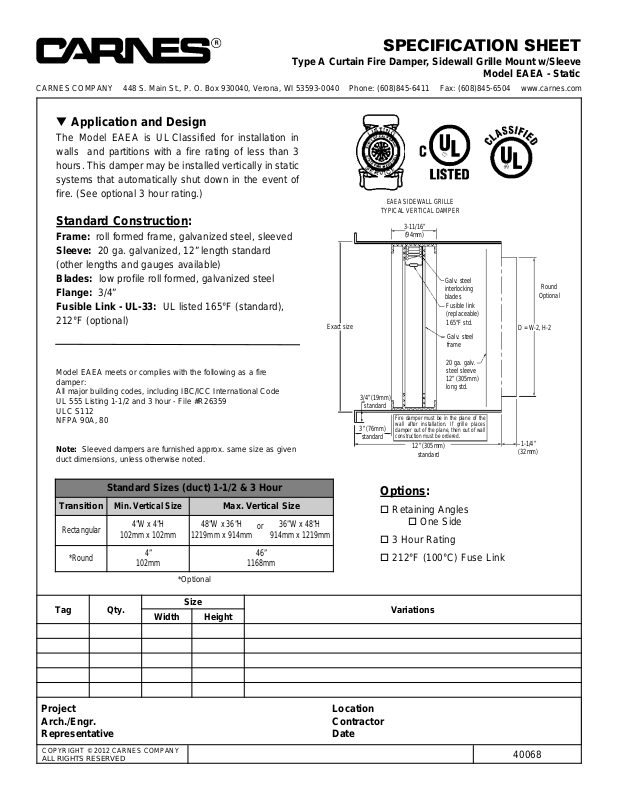

SPECIFICATION SHEET
Type A Curtain Fire Damper, Sidewall Grille Mount w/Sleeve
Model EAEA - Static
Tag Qty.
Size
Variations
Width Height
Project Location
Arch./Engr. Contractor
Representative Date
t Application and Design
The Model EAEA is UL Classified for installation in
walls and partitions with a fire rating of less than 3
hours. This damper may be installed vertically in static
systems that automatically shut down in the event of
fire. (See optional 3 hour rating.)
Standard Construction:
Frame: roll formed frame, galvanized steel, sleeved
Sleeve: 20 ga. galvanized, 12” length standard
(other lengths and gauges available)
Blades: low profile roll formed, galvanized steel
Flange: 3/4”
Fusible Link - UL-33: UL listed 165°F (standard),
212°F (optional)
Model EAEA meets or complies with the following as a fire
damper:
All major building codes, including IBC/ICC International Code
UL 555 Listing 1-1/2 and 3 hour - File #R26359
ULC S112
NFPA 90A, 80
Note: Sleeved dampers are furnished approx. same size as given
duct dimensions, unless otherwise noted.
Options:
Retaining Angles
One Side
3 Hour Rating
212°F (100°C) Fuse Link
3-11/16”
(94mm)
Galv. steel
interlocking
blades
Fusible link
(replaceable)
165°F std.
Galv. steel
frame
20 ga. galv.
steel sleeve
12” (305mm)
long std.
3/4” (19mm)
standard
1-1/4”
(32mm)
Exact size
3” (76mm)
standard
12” (305mm)
standard
D = W-2, H-2
Fire damper must be in the plane of the
wall after installation. If grille places
damper out of the plane, then out of wall
construction must be ordered.
Round
Optional
Standard Sizes (duct) 1-1/2 & 3 Hour
Transition
Min. Vertical Size
Max. Vertical Size
Rectangular
4”W x 4”H
102mm x 102mm
48”W x 36”H
or
36”W x 48”H
1219mm x 914mm 914mm x 1219mm
*Round
4”
102mm
46”
1168mm
*Optional
EAEA SIDEWALL GRILLE
TYPICAL VERTICAL DAMPER
