CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI. 53593-0040 Phone: 608/845-6411 Fax: 608/845-6470 E-Mail: carnes@carnes.com www.carnes.com

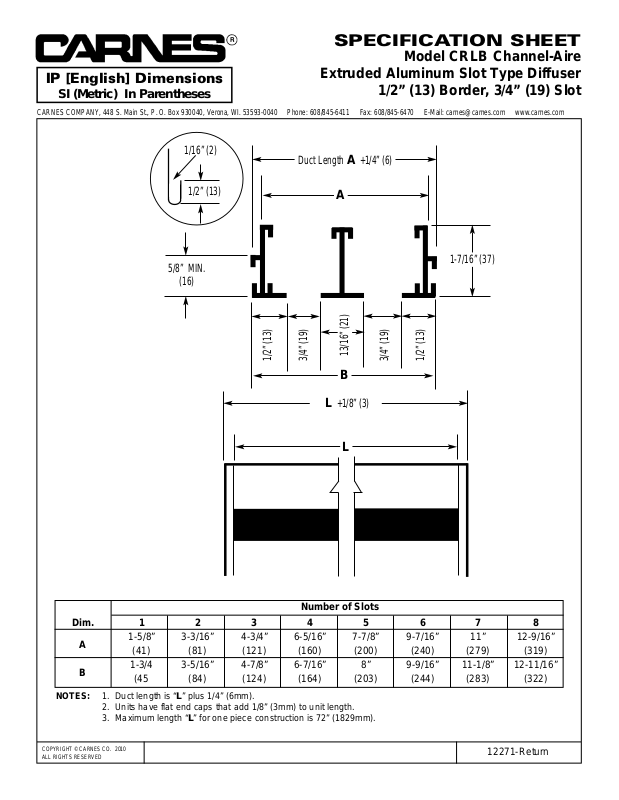

SPECIFICATION SHEET
Model CRLB Channel-Aire
Extruded Aluminum Slot Type Diffuser
1/2” (13) Border, 3/4” (19) Slot
IP [English] Dimensions
SI (Metric) In Parentheses
5/8” MIN.
(16)
Duct Length A +1/4” (6)
13/16” (21)
3/4” (19)
1/2” (13)
3/4” (19)
1/2” (13)
B
A
L
L
+1/8” (3)
1/2” (13)
1/16” (2)
1-7/16” (37)
Number of Slots
Dim. 1 2 3 4 5 6 7 8
A
1-5/8” 3-3/16” 4-3/4” 6-5/16” 7-7/8” 9-7/16” 11” 12-9/16”
(41) (81) (121) (160) (200) (240) (279) (319)
B
1-3/4 3-5/16” 4-7/8” 6-7/16” 8” 9-9/16” 11-1/8” 12-11/16”
(45 (84) (124) (164) (203) (244) (283) (322)
NOTES: 1. Duct length is “L” plus 1/4” (6mm).
2. Units have flat end caps that add 1/8” (3mm) to unit length.
3. Maximum length “L” for one piece construction is 72” (1829mm).
