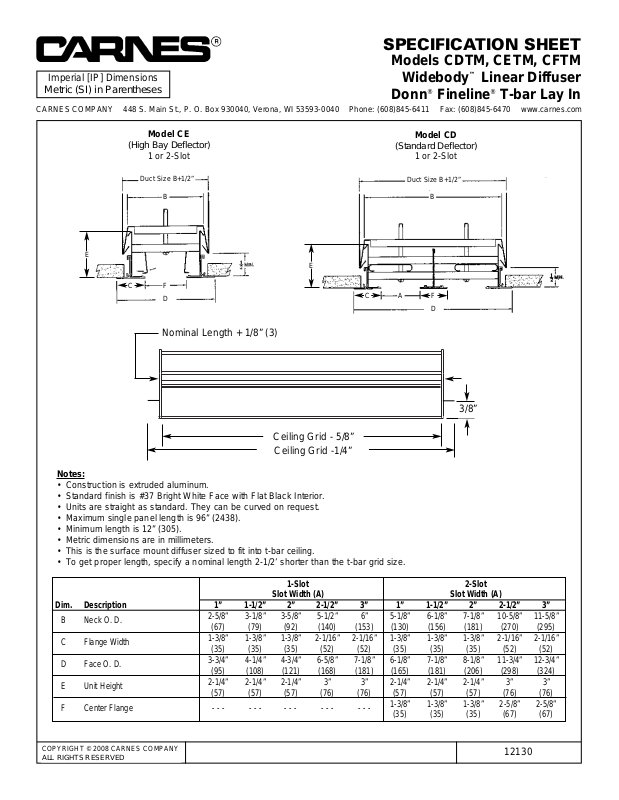

SPECIFICATION SHEET

Models CDTM, CETM, CFTM

Widebody™Linear Diffuser

Donn

®

Fineline®T-bar Lay In

Ceiling Grid - 5/8”

Ceiling Grid -1/4”

Notes:

• Construction is extruded aluminum.

• Standard finish is #37 Bright White Face with Flat Black Interior.

• Units are straight as standard. They can be curved on request.

• Maximum single panel length is 96” (2438).

• Minimum length is 12” (305).

• Metric dimensions are in millimeters.

• This is the surface mount diffuser sized to fit into t-bar ceiling.

• To get proper length, specify a nominal length 2-1/2’ shorter than the t-bar grid size.

1-Slot 2-Slot

Slot Width (A) Slot Width (A)

Dim. Description 1” 1-1/2” 2” 2-1/2” 3” 1” 1-1/2” 2” 2-1/2” 3”

B Neck O. D.

2-5/8” 3-1/8” 3-5/8” 5-1/2” 6” 5-1/8” 6-1/8” 7-1/8” 10-5/8” 11-5/8”

(67) (79) (92) (140) (153) (130) (156) (181) (270) (295)

C Flange Width

1-3/8” 1-3/8” 1-3/8” 2-1/16” 2-1/16” 1-3/8” 1-3/8” 1-3/8” 2-1/16” 2-1/16”

(35) (35) (35) (52) (52) (35) (35) (35) (52) (52)

D Face O. D.

3-3/4” 4-1/4” 4-3/4” 6-5/8” 7-1/8” 6-1/8” 7-1/8” 8-1/8” 11-3/4” 12-3/4”

(95) (108) (121) (168) (181) (165) (181) (206) (298) (324)

E Unit Height

2-1/4” 2-1/4” 2-1/4” 3” 3” 2-1/4” 2-1/4” 2-1/4” 3” 3”

(57) (57) (57) (76) (76) (57) (57) (57) (76) (76)

F Center Flange - - - - - - - - - - - - - - -

1-3/8” 1-3/8” 1-3/8” 2-5/8” 2-5/8”

(35) (35) (35) (67) (67)

Nominal Length + 1/8” (3)

Duct Size B+1/2”

B

F

C

D

E

Duct Size B+1/2”

B

C

A

F
D

E

Imperial [IP] Dimensions

Metric (SI) in Parentheses

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com

3/8”

Model CE

(High Bay Deflector)

1 or 2-Slot

Model CD

(Standard Deflector)

1 or 2-Slot
