COPYRIGHT © 2011 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 12123-H
12123-I

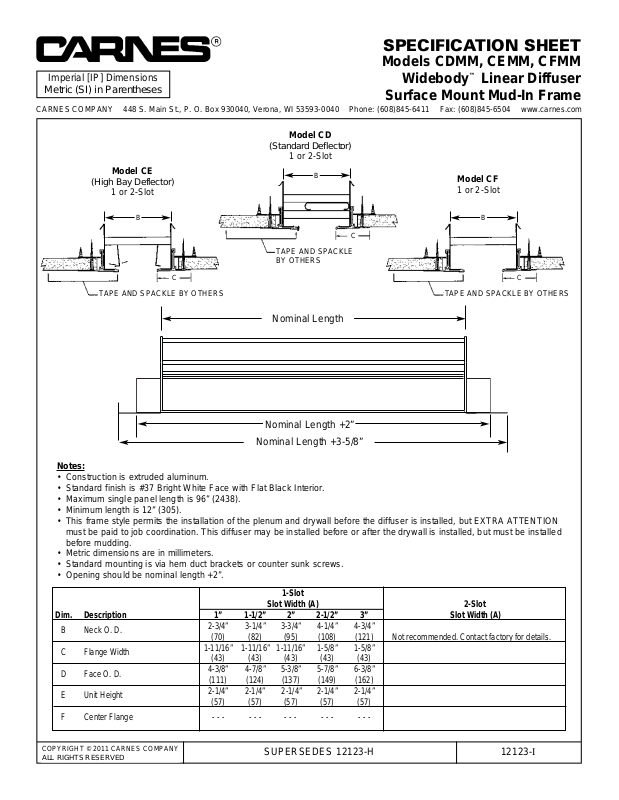

SPECIFICATION SHEET
Models CDMM, CEMM, CFMM
Widebody™Linear Diffuser
Surface Mount Mud-In Frame
Notes:
• Construction is extruded aluminum.
• Standard finish is #37 Bright White Face with Flat Black Interior.
• Maximum single panel length is 96” (2438).
• Minimum length is 12” (305).
• This frame style permits the installation of the plenum and drywall before the diffuser is installed, but EXTRA ATTENTION
must be paid to job coordination. This diffuser may be installed before or after the drywall is installed, but must be installed
before mudding.
• Metric dimensions are in millimeters.
• Standard mounting is via hem duct brackets or counter sunk screws.
• Opening should be nominal length +2”.
Nominal Length
Nominal Length +3-5/8”
1-Slot
Slot Width (A) 2-Slot
Dim. Description 1” 1-1/2” 2” 2-1/2” 3” Slot Width (A)
B Neck O. D.
2-3/4” 3-1/4” 3-3/4” 4-1/4” 4-3/4”
(70) (82) (95) (108) (121) Not recommended. Contact factory for details.
C Flange Width
1-11/16” 1-11/16” 1-11/16” 1-5/8” 1-5/8”
(43) (43) (43) (43) (43)
D Face O. D.
4-3/8” 4-7/8” 5-3/8” 5-7/8” 6-3/8”
(111) (124) (137) (149) (162)
E Unit Height
2-1/4” 2-1/4” 2-1/4” 2-1/4” 2-1/4”
(57) (57) (57) (57) (57)
F Center Flange - - - - - - - - - - - - - - -
C
C
B
Imperial [IP] Dimensions
Metric (SI) in Parentheses
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
B
TAPE AND SPACKLE
BY OTHERS
TAPE AND SPACKLE BY OTHERS
Nominal Length +2”
Model CE
(High Bay Deflector)
1 or 2-Slot
Model CD
(Standard Deflector)
1 or 2-Slot
C
B
TAPE AND SPACKLE BY OTHERS
Model CF
1 or 2-Slot
