Imperial [IP] Dimensions

Metric (SI) in Parentheses

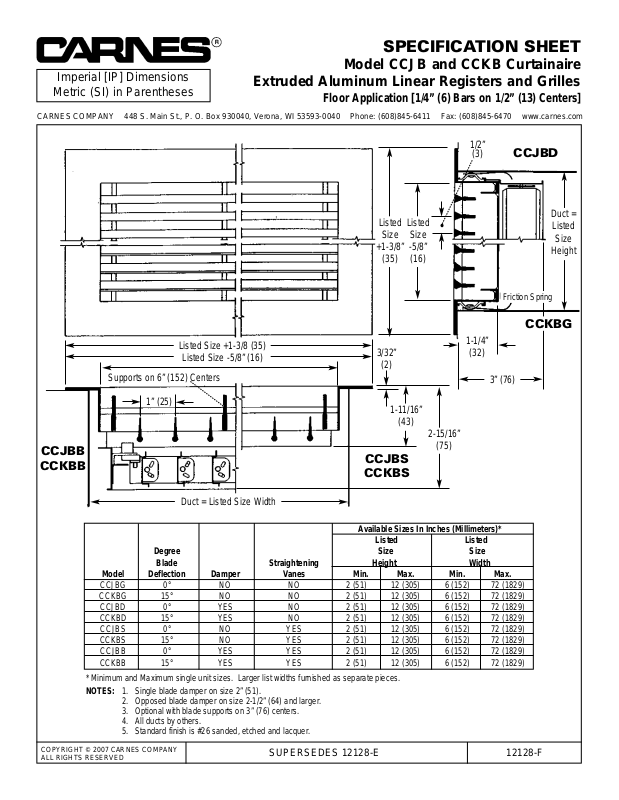

SPECIFICATION SHEET

Model CCJB and CCKB Curtainaire

Extruded Aluminum Linear Registers and Grilles

Floor Application [1/4” (6) Bars on 1/2” (13) Centers]

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com

COPYRIGHT © 2007 CARNES COMPANY

ALL RIGHTS RESERVED

SUPERSEDES 12128-E 12128-F

Available Sizes In Inches (Millimeters)*

Listed Listed

Degree Size Size

Blade Straightening Height Width

Model Deflection Damper Vanes Min. Max. Min. Max.

CCJBG 0° NO NO 2 (51) 12 (305) 6 (152) 72 (1829)
CCKBG 15° NO NO 2 (51) 12 (305) 6 (152) 72 (1829)
CCJBD 0° YES NO 2 (51) 12 (305) 6 (152) 72 (1829)
CCKBD 15° YES NO 2 (51) 12 (305) 6 (152) 72 (1829)
CCJBS 0° NO YES 2 (51) 12 (305) 6 (152) 72 (1829)
CCKBS 15° NO YES 2 (51) 12 (305) 6 (152) 72 (1829)
CCJBB 0° YES YES 2 (51) 12 (305) 6 (152) 72 (1829)
CCKBB 15° YES YES 2 (51) 12 (305) 6 (152) 72 (1829)

* Minimum and Maximum single unit sizes. Larger list widths furnished as separate pieces.
NOTES: 1. Single blade damper on size 2” (51).

2. Opposed blade damper on size 2-1/2” (64) and larger.

3. Optional with blade supports on 3” (76) centers.

4. All ducts by others.

5. Standard finish is #26 sanded, etched and lacquer.

CCJBD

CCJBB

CCKBB

CCJBS

CCKBS

1” (25)

3/32”

(2)

1-11/16”

(43)

1/2”

(3)

Listed

Size

+1-3/8”

(35)

Listed

Size

-5/8”
(16)

Listed Size +1-3/8 (35)

Listed Size -5/8” (16)

Duct = Listed Size Width

Duct =

Listed

Size

Height

2-15/16”

(75)

1-1/4”

(32)

3” (76)

Supports on 6” (152) Centers

•

Friction Spring

CCKBG
