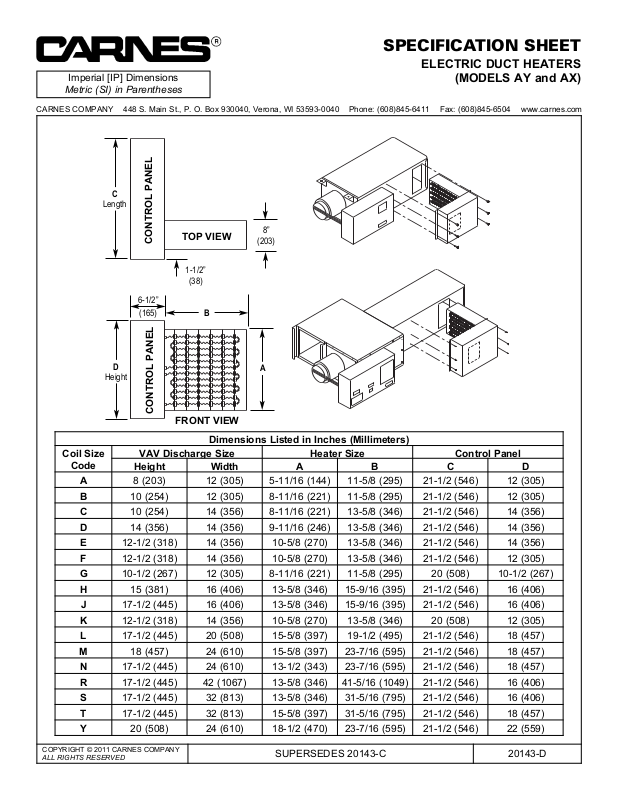

SPECIFICATION SHEET

ELECTRIC DUCT HEATERS

(MODELS AY and AX)

COPYRIGHT © 2011 CARNES COMPANY

ALL RIGHTS RESERVED

SUPERSEDES 20143-C 20143-D

Dimensions Listed in Inches (Millimeters)

Coil Size

Code

VAV Discharge Size Heater Size Control Panel

Height Width A B C D

A 8 (203) 12 (305) 5-11/16 (144) 11-5/8 (295) 21-1/2 (546) 12 (305)

B 10 (254) 12 (305) 8-11/16 (221) 11-5/8 (295) 21-1/2 (546) 12 (305)

C 10 (254) 14 (356) 8-11/16 (221) 13-5/8 (346) 21-1/2 (546) 14 (356)

D 14 (356) 14 (356) 9-11/16 (246) 13-5/8 (346) 21-1/2 (546) 14 (356)

E 12-1/2 (318) 14 (356) 10-5/8 (270) 13-5/8 (346) 21-1/2 (546) 14 (356)

F 12-1/2 (318) 14 (356) 10-5/8 (270) 13-5/8 (346) 21-1/2 (546) 12 (305)

G 10-1/2 (267) 12 (305) 8-11/16 (221) 11-5/8 (295) 20 (508) 10-1/2 (267)

H 15 (381) 16 (406) 13-5/8 (346) 15-9/16 (395) 21-1/2 (546) 16 (406)

J 17-1/2 (445) 16 (406) 13-5/8 (346) 15-9/16 (395) 21-1/2 (546) 16 (406)

K 12-1/2 (318) 14 (356) 10-5/8 (270) 13-5/8 (346) 20 (508) 12 (305)

L 17-1/2 (445) 20 (508) 15-5/8 (397) 19-1/2 (495) 21-1/2 (546) 18 (457)

M 18 (457) 24 (610) 15-5/8 (397) 23-7/16 (595) 21-1/2 (546) 18 (457)

N 17-1/2 (445) 24 (610) 13-1/2 (343) 23-7/16 (595) 21-1/2 (546) 18 (457)

R 17-1/2 (445) 42 (1067) 13-5/8 (346) 41-5/16 (1049) 21-1/2 (546) 16 (406)

S 17-1/2 (445) 32 (813) 13-5/8 (346) 31-5/16 (795) 21-1/2 (546) 16 (406)

T 17-1/2 (445) 32 (813) 15-5/8 (397) 31-5/16 (795) 21-1/2 (546) 18 (457)

Y 20 (508) 24 (610) 18-1/2 (470) 23-7/16 (595) 21-1/2 (546) 22 (559)

D

Height

B

A

6-1/2”

(165)

FRONT VIEW

CONTROL PANEL

C

Length

8”

(203)

TOP VIEW

CONTROL PANEL

Imperial [IP] Dimensions

Metric (SI) in Parentheses

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com

1-1/2”

(38)
