Imperial [IP] Dimensions

Metric (SI) in Parentheses

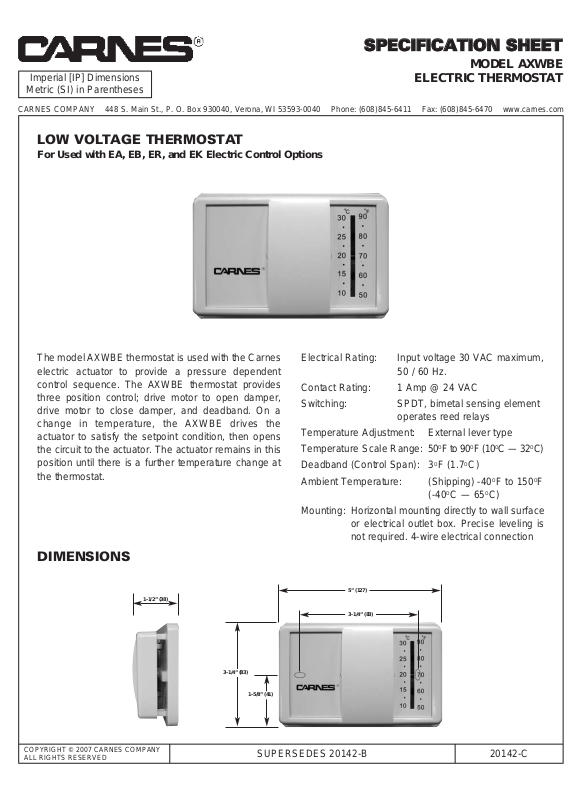

SSPPEECCIIFFIICCAATTIIOONN SSHHEEEETT

MODEL AXWBE

ELECTRIC THERMOSTAT

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com

COPYRIGHT © 2007 CARNES COMPANY

ALL RIGHTS RESERVED

SUPERSEDES 20142-B 20142-C

LOW VOLTAGE THERMOSTAT

For Used with EA, EB, ER, and EK Electric Control Options

The model AXWBE thermostat is used with the Carnes
electric actuator to provide a pressure dependent
control sequence. The AXWBE thermostat provides
three position control; drive motor to open damper,
drive motor to close damper, and deadband. On a
change in temperature, the AXWBE drives the
actuator to satisfy the setpoint condition, then opens
the circuit to the actuator. The actuator remains in this
position until there is a further temperature change at
the thermostat.

Electrical Rating: Input voltage 30 VAC maximum,

50 / 60 Hz.

Contact Rating: 1 Amp @ 24 VAC
Switching: SPDT, bimetal sensing element

operates reed relays

Temperature Adjustment: External lever type
Temperature Scale Range: 50OF to 90OF (10OC — 32OC)
Deadband (Control Span):3OF (1.7OC)
Ambient Temperature: (Shipping) -40OF to 150OF

(-40OC — 65OC)

Mounting: Horizontal mounting directly to wall surface

or electrical outlet box. Precise leveling is
not required. 4-wire electrical connection

DIMENSIONS

1-1/2” (38)

5” (127)

3-1/4” (83)

1-5/8” (41)

3-1/4” (83)
