Carnes AXAC User Manual

COPYRIGHT © 2012 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 20119-F 20119-G

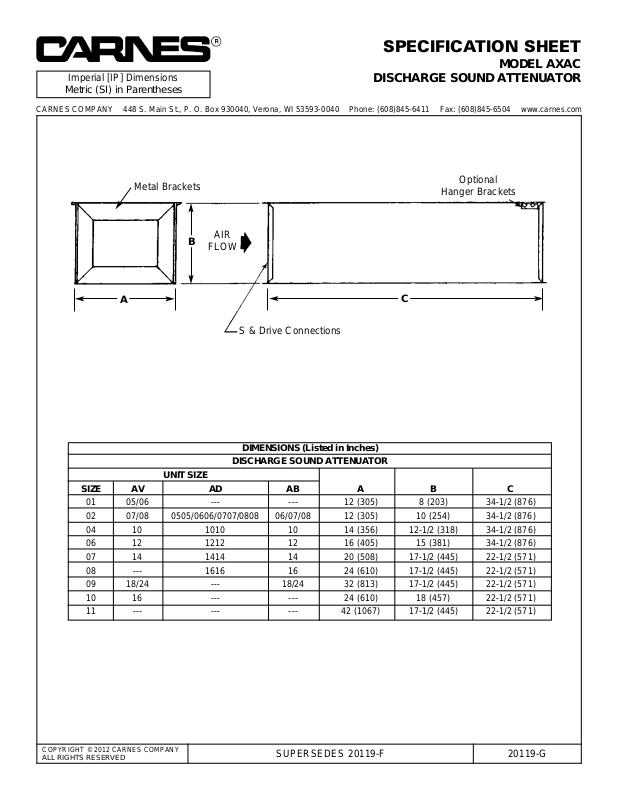

SPECIFICATION SHEET
MODEL AXAC
DISCHARGE SOUND ATTENUATOR
Imperial [IP] Dimensions
Metric (SI) in Parentheses
AIR
FLOW
B
A
C
S & Drive Connections
Optional
Hanger Brackets
Metal Brackets
DIMENSIONS (Listed in Inches)
DISCHARGE SOUND ATTENUATOR
UNIT SIZE
SIZE AV AD AB A B C
01 05/06 --- --- 12 (305) 8 (203) 34-1/2 (876) 02 07/08 0505/0606/0707/0808 06/07/08 12 (305) 10 (254) 34-1/2 (876) 04 10 1010 10 14 (356) 12-1/2 (318) 34-1/2 (876) 06 12 1212 12 16 (405) 15 (381) 34-1/2 (876) 07 14 1414 14 20 (508) 17-1/2 (445) 22-1/2 (571) 08 --- 1616 16 24 (610) 17-1/2 (445) 22-1/2 (571) 09 18/24 --- 18/24 32 (813) 17-1/2 (445) 22-1/2 (571) 10 16 --- --- 24 (610) 18 (457) 22-1/2 (571) 11 --- --- --- 42 (1067) 17-1/2 (445) 22-1/2 (571)
