Carnes AVWE User Manual

Imperial [IP] Dimensions

Metric (SI) in Parentheses

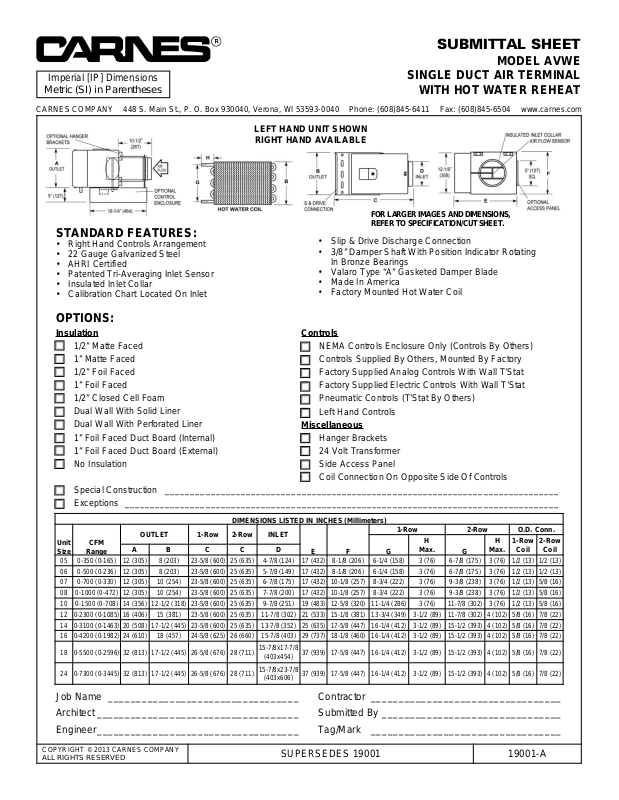

SUBMITTAL SHEET

MODEL AVWE

SINGLE DUCT AIR TERMINAL

WITH HOT WATER REHEAT

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com

COPYRIGHT © 2013 CARNES COMPANY

ALL RIGHTS RESERVED

SUPERSEDES 19001 19001-A

STANDARD FEATURES:

• Right Hand Controls Arrangement

• 22 Gauge Galvanized Steel

• AHRI Certified

• Patented Tri-Averaging Inlet Sensor

• Insulated Inlet Collar

• Calibration Chart Located On Inlet

• Slip & Drive Discharge Connection

• 3/8” Damper Shaft With Position Indicator Rotating
In Bronze Bearings

• Valaro Type “A” Gasketed Damper Blade

• Made In America

• Factory Mounted Hot Water Coil

DIMENSIONS LISTED IN INCHES (Millimeters)

Unit
Size

CFM

Range

OUTLET 1-Row 2-Row INLET

E F

1-Row 2-Row O.D. Conn.

G

H

Max.

G

H

Max.

1-Row

Coil

2-Row

Coil

A B C C D

05 0-350 (0-165) 12 (305) 8 (203) 23-5/8 (600) 25 (635) 4-7/8 (124) 17 (432) 8-1/8 (206) 6-1/4 (158) 3 (76) 6-7/8 (175) 3 (76) 1/2 (13) 1/2 (13)
06 0-500 (0-236) 12 (305) 8 (203) 23-5/8 (600) 25 (635) 5-7/8 (149) 17 (432) 8-1/8 (206) 6-1/4 (158) 3 (76) 6-7/8 (175) 3 (76) 1/2 (13) 1/2 (13)
07 0-700 (0-330) 12 (305) 10 (254) 23-5/8 (600) 25 (635) 6-7/8 (175) 17 (432) 10-1/8 (257) 8-3/4 (222) 3 (76) 9-3/8 (238) 3 (76) 1/2 (13) 5/8 (16)
08 0-1000 (0-472) 12 (305) 10 (254) 23-5/8 (600) 25 (635) 7-7/8 (200) 17 (432) 10-1/8 (257) 8-3/4 (222) 3 (76) 9-3/8 (238) 3 (76) 1/2 (13) 5/8 (16)
10 0-1500 (0-708) 14 (356) 12-1/2 (318) 23-5/8 (600) 25 (635) 9-7/8 (251) 19 (483) 12-5/8 (320) 11-1/4 (286) 3 (76) 11-7/8 (302) 3 (76) 1/2 (13) 5/8 (16)
12 0-2300 (0-1085) 16 (406) 15 (381) 23-5/8 (600) 25 (635) 11-7/8 (302) 21 (533) 15-1/8 (381) 13-3/4 (349) 3-1/2 (89) 11-7/8 (302) 4 (102) 5/8 (16) 7/8 (22)
14 0-3100 (0-1463) 20 (508) 17-1/2 (445) 23-5/8 (600) 25 (635) 13-7/8 (352) 25 (635) 17-5/8 (447) 16-1/4 (412) 3-1/2 (89) 15-1/2 (393) 4 (102) 5/8 (16) 7/8 (22)
16 0-4200 (0-1982) 24 (610) 18 (457) 24-5/8 (625) 26 (660) 15-7/8 (403) 29 (737) 18-1/8 (460) 16-1/4 (412) 3-1/2 (89) 15-1/2 (393) 4 (102) 5/8 (16) 7/8 (22)

18 0-5500 (0-2596) 32 (813) 17-1/2 (445) 26-5/8 (676) 28 (711)

15-7/8x17-7/8

(403x454)

37 (939) 17-5/8 (447) 16-1/4 (412) 3-1/2 (89) 15-1/2 (393) 4 (102) 5/8 (16) 7/8 (22)

24 0-7300 (0-3445) 32 (813) 17-1/2 (445) 26-5/8 (676) 28 (711)

15-7/8x23-7/8

(403x606)

37 (939) 17-5/8 (447) 16-1/4 (412) 3-1/2 (89) 15-1/2 (393) 4 (102) 5/8 (16) 7/8 (22)

OPTIONS:

Insulation

 1/2” Matte Faced
 1” Matte Faced
 1/2” Foil Faced
 1” Foil Faced
 1/2” Closed Cell Foam
 Dual Wall With Solid Liner
 Dual Wall With Perforated Liner
 1” Foil Faced Duct Board (Internal)
 1” Foil Faced Duct Board (External)
 No Insulation

 Special Construction ______________________________________________________________________________
 Exceptions ______________________________________________________________________________________

Controls

 NEMA Controls Enclosure Only (Controls By Others)
 Controls Supplied By Others, Mounted By Factory
 Factory Supplied Analog Controls With Wall T’Stat
 Factory Supplied Electric Controls With Wall T’Stat
 Pneumatic Controls (T’Stat By Others)
 Left Hand Controls

Miscellaneous

 Hanger Brackets
 24 Volt Transformer
 Side Access Panel
 Coil Connection On Opposite Side Of Controls

Job Name __________________________________
Architect____________________________________
Engineer____________________________________

Contractor __________________________________
Submitted By ________________________________
Tag/Mark __________________________________

LEFT HAND UNIT SHOWN
RIGHT HAND AVAILABLE

FOR LARGER IMAGES AND DIMENSIONS,
REFER TO SPECIFICATION/CUT SHEET.
