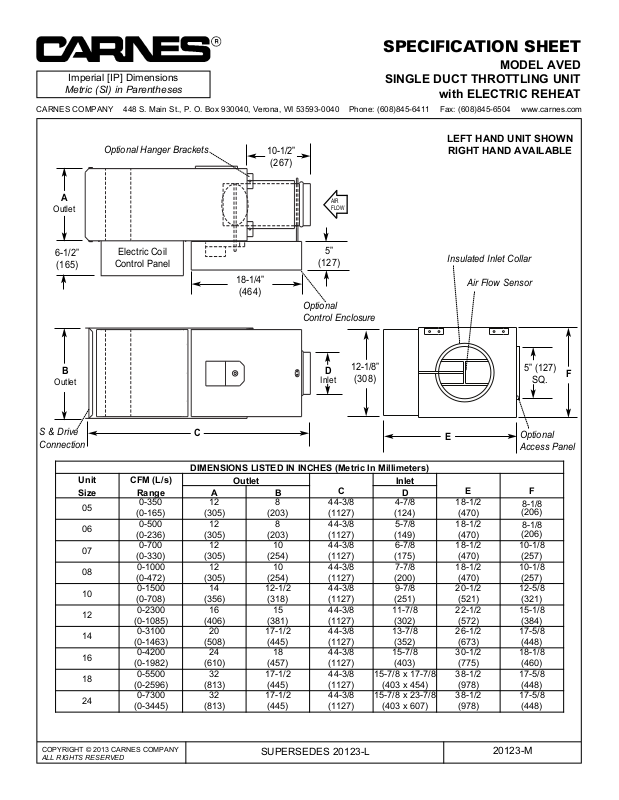

SPECIFICATION SHEET
MODEL AVED
SINGLE DUCT THROTTLING UNIT
with ELECTRIC REHEAT
Electric Coil
Control Panel
10-1/2”
(267)
A
Outlet
B
Outlet
6-1/2”
(165)
18-1/4”
(464)
12-1/8”
(308)
5”
(127)
Optional
Control Enclosure
S & Drive
Connection
Optional
Access Panel
F
E
Insulated Inlet Collar
Air Flow Sensor
LEFT HAND UNIT SHOWN
RIGHT HAND AVAILABLE
AIR
FLOW
5” (127)
SQ.
C
D
Inlet
Optional Hanger Brackets
DIMENSIONS LISTED IN INCHES (Metric In Millimeters)
Unit
Size
CFM (L/s)
Range
Outlet
C
Inlet
E F
A B D
05
0-350
(0-165)
12
(305)
8
(203)
44-3/8
(1127)
4-7/8
(124)
18-1/2
(470)
8-1/8
(206)
06
0-500
(0-236)
12
(305)
8
(203)
44-3/8
(1127)
5-7/8
(149)
18-1/2
(470)
8-1/8
(206)
07
0-700
(0-330)
12
(305)
10
(254)
44-3/8
(1127)
6-7/8
(175)
18-1/2
(470)
10-1/8
(257)
08
0-1000
(0-472)
12
(305)
10
(254)
44-3/8
(1127)
7-7/8
(200)
18-1/2
(470)
10-1/8
(257)
10
0-1500
(0-708)
14
(356)
12-1/2
(318)
44-3/8
(1127)
9-7/8
(251)
20-1/2
(521)
12-5/8
(321)
12
0-2300
(0-1085)
16
(406)
15
(381)
44-3/8
(1127)
11-7/8
(302)
22-1/2
(572)
15-1/8
(384)
14
0-3100
(0-1463)
20
(508)
17-1/2
(445)
44-3/8
(1127)
13-7/8
(352)
26-1/2
(673)
17-5/8
(448)
16
0-4200
(0-1982)
24
(610)
18
(457)
44-3/8
(1127)
15-7/8
(403)
30-1/2
(775)
18-1/8
(460)
18
0-5500
(0-2596)
32
(813)
17-1/2
(445)
44-3/8
(1127)
15-7/8 x 17-7/8
(403 x 454)
38-1/2
(978)
17-5/8
(448)
24
0-7300
(0-3445)
32
(813)
17-1/2
(445)
44-3/8
(1127)
15-7/8 x 23-7/8
(403 x 607)
38-1/2
(978)
17-5/8
(448)
Imperial [IP] Dimensions
Metric (SI) in Parentheses
