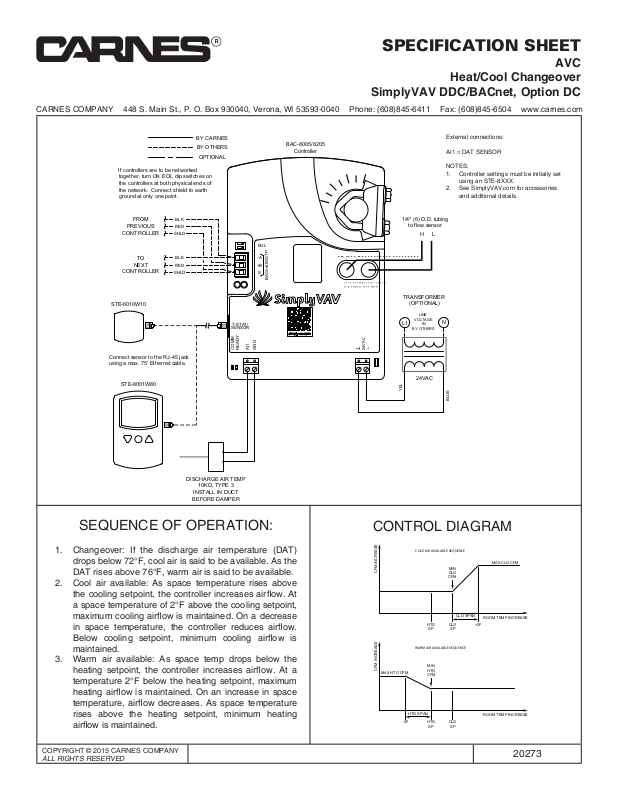

SPECIFICATION SHEET

AVC

Heat/Cool Changeover

SimplyVAV DDC/BACnet, Option DC

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com

If controllers are to be networked
together, turn ON EOL dip switches on
the controllers at both physical ends of
the network. Connect shield to earth
ground at only one point.

FROM

PREVIOUS

CONTROLLER

TO

NEXT

CONTROLLER

STE-6010W10

Connect sensor to the RJ-45 jack
using a max. 75' Ethernet cable.

STE-8001W80

BLK

RED

SHLD

BLK

RED

SHLD

BY CARNES

BY OTHERS

OPTIONAL

T-STAT/

SENSOR

COMM

READY

AI1

EOL

-A

+B

GND

S

BAC-8005/8205

BACnet MS/TP

Controller

1/4" (6) O.D. tubing

to flow sensor

••••••• •••••••••••••••••••••

•••• ••••••

••••••••••••

•• •• • •••••••

•• • • ••••••

TRANSFORMER

(OPTIONAL)

L1

BY OTHERS

24VAC

~

T

YEL

HL

LINE

VOLTAGE

IN

24VAC

External connections:

AI1 = DAT SENSOR

NOTES:

1. Controller settings must be initially set
using an STE-8XXX.

2. See SimplyVAV.com for accessories
and additional details.

N

BLUE

DISCHARGE AIR TEMP

10KΩ, TYPE 3

INSTALL IN DUCT

BEFORE DAMPER

SEQUENCE OF OPERATION:

1. Changeover: If the discharge air temperature (DAT)
drops below 72°F, cool air is said to be available. As the
DAT rises above 76°F, warm air is said to be available.

2. Cool air available: As space temperature rises above
the cooling setpoint, the controller increases airfl ow. At
a space temperature of 2°F above the cooling setpoint,
maximum cooling airfl ow is maintained. On a decrease
in space temperature, the controller reduces airfl ow.
Below cooling setpoint, minimum cooling airfl ow is
maintained.

3. Warm air available: As space temp drops below the
heating setpoint, the controller increases airfl ow. At a
temperature 2°F below the heating setpoint, maximum
heating airfl ow is maintained. On an increase in space
temperature, airfl ow decreases. As space temperature
rises above the heating setpoint, minimum heating
airfl ow is maintained.

COPYRIGHT © 2015 CARNES COMPANY

ALL RIGHTS RESERVED

CONTROL DIAGRAM

COLD AIR AVAILABLE SEQUENCE

CFM INCREASE

CFM INCREASE

MAX HTG CFM

HTGSPCLG

WARM AIR AVAILABLE SEQUENCE

MIN
HTG
CFM

HTG SPAN

HTGSPCLG

-2F

MIN
CLG
CFM

SP

SP

CLG SPAN

MAX CLG CFM

ROOM TEMP INCREASE

+2F

ROOM TEMP INCREASE
