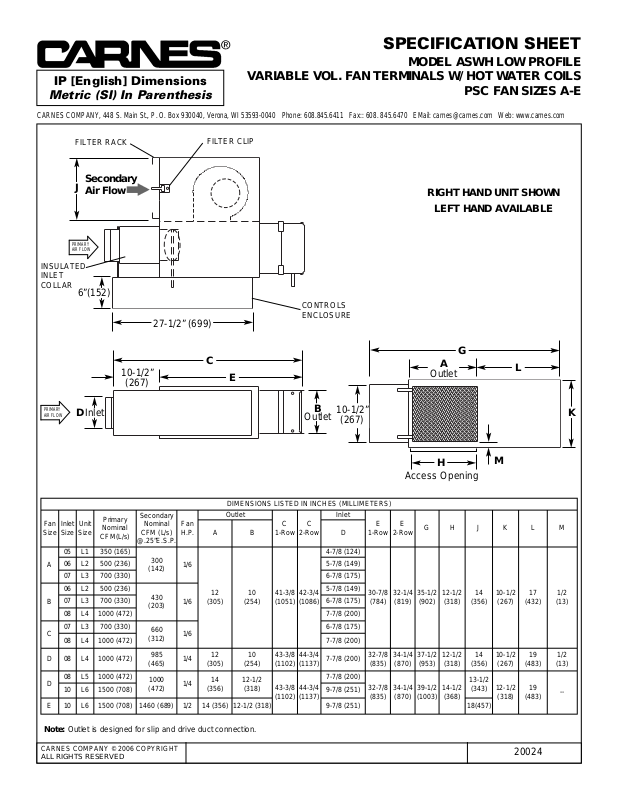

SPECIFICATION SHEET

MODEL ASWH LOW PROFILE

VARIABLE VOL. FAN TERMINALS W/ HOT WATER COILS

PSC FAN SIZES A-E

CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax:: [phone] EMail: [e-mail] Web: www.carnes.com

CARNES COMPANY © 2006 COPYRIGHT

ALL RIGHTS RESERVED

20024

Note: Outlet is designed for slip and drive duct connection.

IP [English] Dimensions

Metric (SI) In Parenthesis

RIGHT HAND UNIT SHOWN

LEFT HAND AVAILABLE

FILTER RACK

DIMENSIONS LISTED IN INCHES (MILLIMETERS)

Fan

Size

Inlet
Size

Unit
Size

Primary

Nominal

CFM(L/s)

Secondary

Nominal

CFM (L/s)

@.25”E.S.P.

Fan

H.P.

Outlet

C

1-RowC 2-Row

Inlet

E

1-RowE2-Row

G H J K L M

A B D

A

05 L1 350 (165)

300

(142)

1/6

12

(305)

10

(254)

41-3/8
(1051)

42-3/4
(1086)

4-7/8 (124)

30-7/8

(784)

32-1/4

(819)

35-1/2

(902)

12-1/2

(318)14(356)

10-1/2

(267)17(432)

1/2

(13)

06 L2 500 (236) 5-7/8 (149)
07 L3 700 (330) 6-7/8 (175)

B

06 L2 500 (236)

430

(203)

1/6

5-7/8 (149)
07 L3 700 (330) 6-7/8 (175)
08 L4 1000 (472) 7-7/8 (200)

C

07 L3 700 (330)

660

(312)

1/6

6-7/8 (175)
08 L4 1000 (472) 7-7/8 (200)

D 08 L4 1000 (472)

985

(465)

1/4

12

(305)

10

(254)

43-3/8
(1102)

44-3/4
(1137)

7-7/8 (200)

32-7/8

(835)

34-1/4

(870)

37-1/2

(953)

12-1/2

(318)14(356)

10-1/2

(267)19(483)

1/2

(13)

D

08 L5 1000 (472)

1000
(472)

1/4

14

(356)

12-1/2

(318)

43-3/8
(1102)

44-3/4
(1137)

7-7/8 (200)

32-7/8

(835)

34-1/4

(870)

39-1/2
(1003)

14-1/2

(368)

13-1/2

(343)

12-1/2

(318)19(483)

--

10 L6 1500 (708) 9-7/8 (251)

E 10 L6 1500 (708) 1460 (689) 1/2 14 (356) 12-1/2 (318) 9-7/8 (251) 18(457)

DInlet

B

Outlet

10-1/2”

(267)

K

Access Opening

H

A

Outlet

L

G

M

E

C

10-1/2”

(267)

27-1/2” (699)

FILTER CLIP

CONTROLS
ENCLOSURE

Secondary
Air Flow

PRIMARY
AIR FLOW

J

INSULATED
INLET
COLLAR

PRIMARY
AIR FLOW

6”(152)
