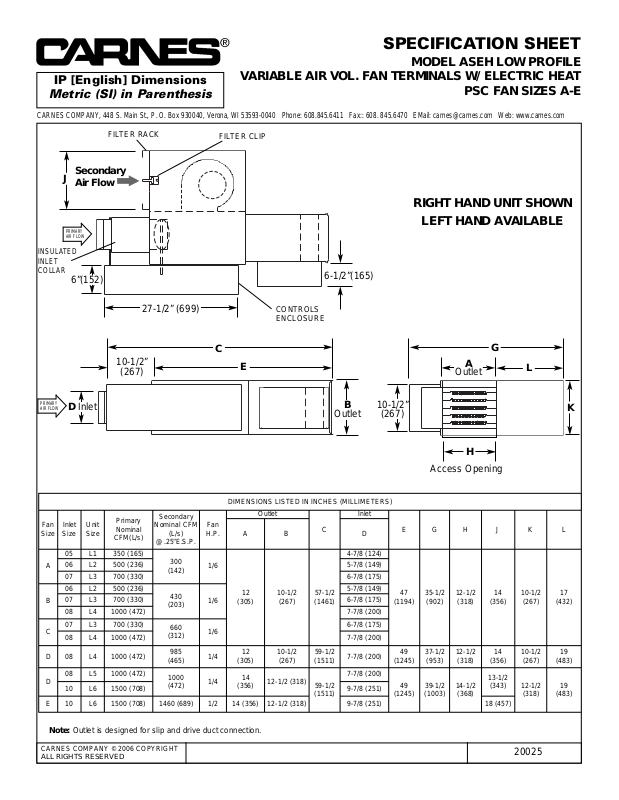

SPECIFICATION SHEET
MODEL ASEH LOW PROFILE
VARIABLE AIR VOL. FAN TERMINALS W/ ELECTRIC HEAT
PSC FAN SIZES A-E
CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: 608.845.6411 Fax:: 608. 845.6470 EMail: carnes@carnes.com Web: www.carnes.com
CARNES COMPANY © 2006 COPYRIGHT
ALL RIGHTS RESERVED
20025
Note: Outlet is designed for slip and drive duct connection.
RIGHT HAND UNIT SHOWN
LEFT HAND AVAILABLE
FILTER RACK
FILTER CLIP
DIMENSIONS LISTED IN INCHES (MILLIMETERS)
Fan
Size
Inlet
Size
Unit
Size
Primary
Nominal
CFM(L/s)
Secondary
Nominal CFM
(L/s)
@.25”E.S.P.
Fan
H.P.
Outlet
C
Inlet
E G H J K L
A B D
A
05 L1 350 (165)
300
(142)
1/6
12
(305)
10-1/2
(267)
57-1/2
(1461)
4-7/8 (124)
47
(1194)
35-1/2
(902)
12-1/2
(318)14(356)
10-1/2
(267)17(432)
06 L2 500 (236) 5-7/8 (149)
07 L3 700 (330) 6-7/8 (175)
B
06 L2 500 (236)
430
(203)
1/6
5-7/8 (149)
07 L3 700 (330) 6-7/8 (175)
08 L4 1000 (472) 7-7/8 (200)
C
07 L3 700 (330)
660
(312)
1/6
6-7/8 (175)
08 L4 1000 (472) 7-7/8 (200)
D 08 L4 1000 (472)
985
(465)
1/4
12
(305)
10-1/2
(267)
59-1/2
(1511)
7-7/8 (200)
49
(1245)
37-1/2
(953)
12-1/2
(318)14(356)
10-1/2
(267)19(483)
D
08 L5 1000 (472)
1000
(472)
1/4
14
(356)
12-1/2 (318)
59-1/2
(1511)
7-7/8 (200)
49
(1245)
39-1/2
(1003)
14-1/2
(368)
13-1/2
(343)
12-1/2
(318)19(483)
10 L6 1500 (708) 9-7/8 (251)
E 10 L6 1500 (708) 1460 (689) 1/2 14 (356) 12-1/2 (318) 9-7/8 (251) 18 (457)
D Inlet
B
Outlet
10-1/2”
(267)
E
C
10-1/2”
(267)
K
L
G
A
Outlet
H
Access Opening
27-1/2” (699)
Secondary
Air Flow
CONTROLS
ENCLOSURE
6-1/2”(165)
PRIMARY
AIR FLOW
J
PRIMARY
AIR FLOW
INSULATED
INLET
COLLAR
6”(152)
