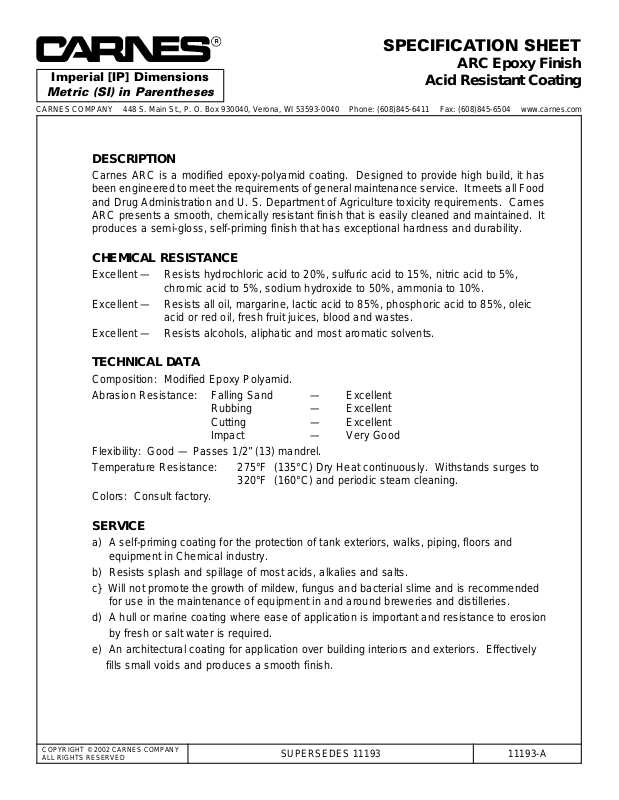

SPECIFICATION SHEET

ARC Epoxy Finish

Acid Resistant Coating

DESCRIPTION

Carnes ARC is a modified epoxy-polyamid coating. Designed to provide high build, it has
been engineered to meet the requirements of general maintenance service. It meets all Food
and Drug Administration and U. S. Department of Agriculture toxicity requirements. Carnes
ARC presents a smooth, chemically resistant finish that is easily cleaned and maintained. It
produces a semi-gloss, self-priming finish that has exceptional hardness and durability.

CHEMICAL RESISTANCE

Excellent — Resists hydrochloric acid to 20%, sulfuric acid to 15%, nitric acid to 5%,

chromic acid to 5%, sodium hydroxide to 50%, ammonia to 10%.

Excellent — Resists all oil, margarine, lactic acid to 85%, phosphoric acid to 85%, oleic

acid or red oil, fresh fruit juices, blood and wastes.

Excellent — Resists alcohols, aliphatic and most aromatic solvents.

TECHNICAL DATA

Composition: Modified Epoxy Polyamid.
Abrasion Resistance: Falling Sand — Excellent

Rubbing — Excellent
Cutting — Excellent
Impact — Very Good

Flexibility: Good — Passes 1/2” (13) mandrel.
Temperature Resistance: 275°F (135°C) Dry Heat continuously. Withstands surges to

320°F (160°C) and periodic steam cleaning.

Colors: Consult factory.

SERVICE

a) A self-priming coating for the protection of tank exteriors, walks, piping, floors and

equipment in Chemical industry.
b) Resists splash and spillage of most acids, alkalies and salts.
c} Will not promote the growth of mildew, fungus and bacterial slime and is recommended

for use in the maintenance of equipment in and around breweries and distilleries.
d) A hull or marine coating where ease of application is important and resistance to erosion

by fresh or salt water is required.
e) An architectural coating for application over building interiors and exteriors. Effectively

fills small voids and produces a smooth finish.
