Carnes ADCD User Manual
COPYRIGHT © 2012 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 20161-B
20161-C
5” (127)
A
F
E
D
H
J
G
B
OUTLET
C
OUTLET
10-1/2”
(267)
18-1/4”
(464)
12-1/8”
(308)
AIR
FLOW
AIR
FLOW
Nominal DIMENSIONS LISTED IN INCHES (Millimeters)
Unit Max. CFM (L/s) Outlet Inlets
Size Cooling Heating A B C D E F G H J
0505 350 (165) 350 (165) 24 (610) 12 (305) 10 (254) 4-7/8 (124) 4-7/8 (124) 38-1/2 (978) 9 (229) 14 (356) 34 (864)
0605 350 (165) 4-7/8 (124) 8 (203) 13-1/4 (343)
0606
500 (236)
500 (236)
24 (610) 12 (305) 10 (254) 5-7/8 (149)
5-7/8 (149)
38-1/2 (978)
7 (178) 13 (330)
34 (864)
0705 350 (165) 4-7/8 (124) 7 (178) 13 (330)
0706 700 (330) 500 (236) 24 (610) 12 (305) 10 (254) 6-7/8 (175) 5-7/8 (149) 38-1/2 (978) 6 (152) 12-1/2 (318) 34 (864)
0707 700 (330) 6-7/8 (175) 5 (127) 12 (305)
0806 500 (236) 5-7/8 (149) 5 (127) 12 (305)
0807 1000 (472) 700 (330) 24 (610) 12 (305) 10 (254) 7-7/8 (200) 6-7/8 (175) 38-1/2 (978) 4 (102) 11-1/2 (292) 34 (864)
0808 1000 (472) 7-7/8 (200) 3 (76) 11 (279)
1007 700 (300) 6-7/8 (175) 6 (152) 14-1/2 (368)
1008 1500 (708) 1000 (472) 28 (711) 14 (356) 12-1/2 (318) 9-7/8 (251) 7-7/8 (200) 42-1/2 (1080) 5 (127) 14 (356) 38 (965)
1010 1500 (708) 9-7/8 (251) 3 (76) 13 (330)
1208 1000 (472) 7-7/8 (200) 7 (178) 17 (432)
1210 2300 (1085) 1500 (708) 32 (813) 16 (406) 15 (381) 11-7/8 (302) 9-7/8 (251) 44-1/2 (1130) 5 (127) 14 (356) 42 (1067)
1212 2300 (1085) 11-7/8 (302) 3 ( 76) 15 (381)
1410 1500 (708) 9-7/8 (251) 7 (178) 19 (483)
1412 3100 (1463) 2300 (1085) 36 (914) 20 (508) 17-1/2 (445) 13-7/8 (353) 11-7/8 (302) 45-1/2 (1156) 5 (127) 18 (457) 46 (1168)
1414 3100 (1463) 13-7/8 (353) 3 (76) 17 (432)
1612 2300 (1085) 11-7/8 (302) 7 (178) 21 (533)
1614 4200 (1982) 3100 (1463) 40 (1016) 24 (610) 17-1/2 (445) 15-7/8 (403) 13-7/8 (353) 48-1/2 (1232) 5 (127) 20 (508) 50 (1270)
1616 4200 (1982) 15-7/8 (403) 3 (76) 19 (483)
AIR FLOW SENSOR
DISCHARGE
AIR FLOW SENSOR
INSULATED
INLET COLLAR
OPTIONAL CONTROL
ENCLOSURE
REAR
VIEW
FRONT
VIEW
OPTIONAL HANGER
BRACKETS
(SIZES 0505-1010 ONLY)
NOTE: 5” (127) and 6” (152) inlet will be 1-1/4” (32)
off center in the vertical plane.
S & DRIVE CONNECTIONS

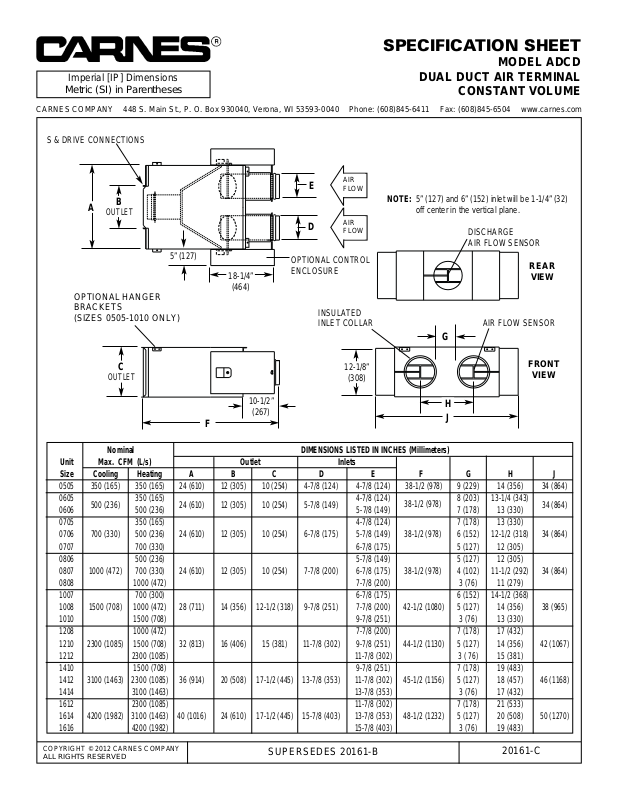

SPECIFICATION SHEET
MODEL ADCD
DUAL DUCT AIR TERMINAL
CONSTANT VOLUME
Imperial [IP] Dimensions
Metric (SI) in Parentheses
