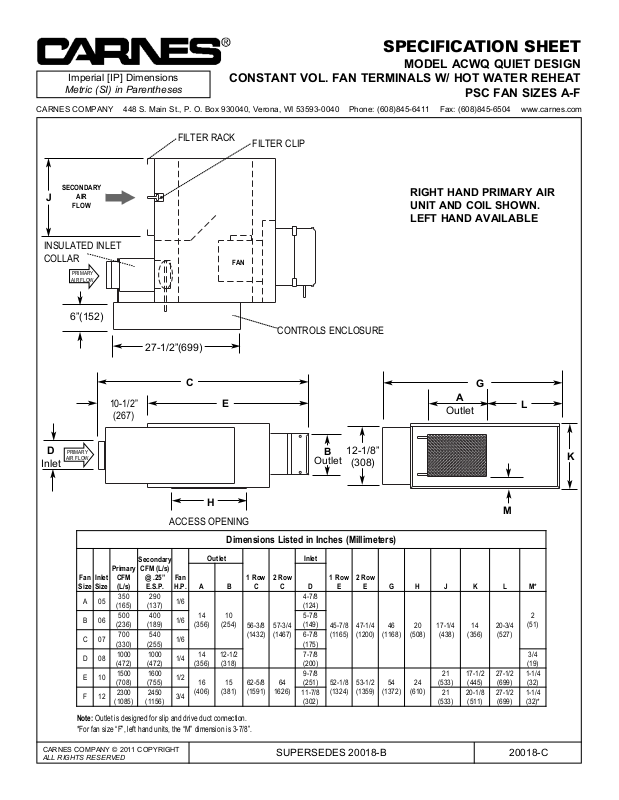

SPECIFICATION SHEET
MODEL ACWQ QUIET DESIGN
CONSTANT VOL. FAN TERMINALS W/ HOT WATER REHEAT
PSC FAN SIZES A-F
CARNES COMPANY © 2011 COPYRIGHT
ALL RIGHTS RESERVED
SUPERSEDES 20018-B 20018-C
FILTER RACK
FILTER CLIP
INSULATED INLET
COLLAR
CONTROLS ENCLOSURE
ACCESS OPENING
J
6”(152)
27-1/2”(699)
C
E
D
Inlet
H
A
Outlet
M
K
G
12-1/8”
(308)
L
FAN
RIGHT HAND PRIMARY AIR
UNIT AND COIL SHOWN.
LEFT HAND AVAILABLE
10-1/2”
(267)
Note: Outlet is designed for slip and drive duct connection.
*For fan size “F”, left hand units, the “M” dimension is 3-7/8”.
Dimensions Listed in Inches (Millimeters)
Fan
Size
Inlet
Size
Primary
CFM
(L/s)
Secondary
CFM (L/s)
@ .25”
E.S.P.
Fan
H.P.
Outlet
1 RowC2 Row
C
Inlet
1 RowE2 Row
E G H J K L M*A B D
A 05
350
(165)
290
(137)
1/6
14
(356)10(254)
56-3/8
(1432)
57-3/4
(1467)
4-7/8
(124)
45-7/8
(1165)
47-1/4
(1200)46(1168)20(508)
17-1/4
(438)14(356)
20-3/4
(527)
2
(51)
B 06
500
(236)
400
(189)
1/6
5-7/8
(149)
C 07
700
(330)
540
(255)
1/6
6-7/8
(175)
D 08
1000
(472)
1000
(472)
1/4
14
(356)
12-1/2
(318)
7-7/8
(200)
3/4
(19)
E 10
1500
(708)
1600
(755)
1/2
16
(406)15(381)
62-5/8
(1591)641626)
9-7/8
(251)
52-1/8
(1324)
53-1/2
(1359)54(1372)24(610)
21
(533)
17-1/2
(445)
27-1/2
(699)
1-1/4
(32)
F 12
2300
(1085)
2450
(1156)
3/4
11-7/8
(302)
21
(533)
20-1/8
(511)
27-1/2
(699)
1-1/4
(32)*
SECONDARY
AIR
FLOW
PRIMARY
AIR FLOW
PRIMARY
AIR FLOW
B
Outlet
Imperial [IP] Dimensions
Metric (SI) in Parentheses
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
