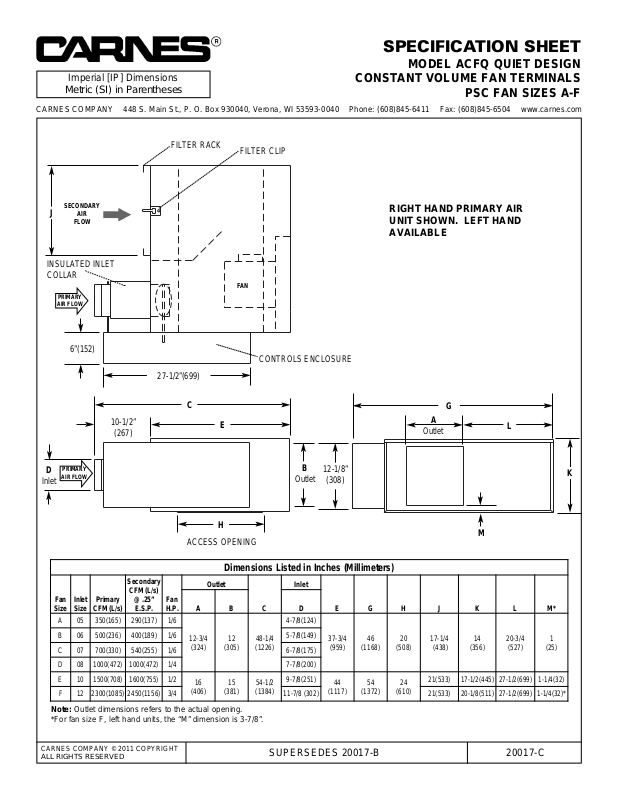

SPECIFICATION SHEET
MODEL ACFQ QUIET DESIGN
CONSTANT VOLUME FAN TERMINALS
PSC FAN SIZES A-F
CARNES COMPANY © 2011 COPYRIGHT
ALL RIGHTS RESERVED
SUPERSEDES 20017-B 20017-C
FILTER RACK
FILTER CLIP
INSULATED INLET
COLLAR
CONTROLS ENCLOSURE
ACCESS OPENING
J
FAN
6”(152)
PRIMARY
AIR FLOW
27-1/2”(699)
10-1/2”
(267)
C
E
D
Inlet
H
B
Outlet
A
Outlet
M
K
G
12-1/8”
(308)
L
Note: Outlet dimensions refers to the actual opening.
*For fan size F, left hand units, the “M” dimension is 3-7/8”.
RIGHT HAND PRIMARY AIR
UNIT SHOWN. LEFT HAND
AVAILABLE
Dimensions Listed in Inches (Millimeters)
Fan
Size
Inlet
Size
Primary
CFM (L/s)
Secondary
CFM (L/s)
@ .25”
E.S.P.
Fan
H.P.
Outlet
C
Inlet
E G H J K L M*A B D
A 05 350(165) 290(137) 1/6
12-3/4
(324)12(305)
48-1/4
(1226)
4-7/8(124)
37-3/4
(959)46(1168)20(508)
17-1/4
(438)14(356)
20-3/4
(527)
1
(25)
B 06 500(236) 400(189) 1/6 5-7/8(149)
C 07 700(330) 540(255) 1/6 6-7/8(175)
D 08 1000(472) 1000(472) 1/4 7-7/8(200)
E 10 1500(708) 1600(755) 1/2
16
(406)15(381)
54-1/2
(1384)
9-7/8(251)
44
(1117)54(1372)24(610)
21(533) 17-1/2(445) 27-1/2(699) 1-1/4(32)
F 12 2300(1085) 2450(1156) 3/4 11-7/8 (302) 21(533) 20-1/8(511) 27-1/2(699) 1-1/4(32)*
SECONDARY
AIR
FLOW
PRIMARY
AIR FLOW
Imperial [IP] Dimensions
Metric (SI) in Parentheses
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
