Carnes ACFH User Manual
Imperial [IP] Dimensions
Metric (SI) in Parentheses

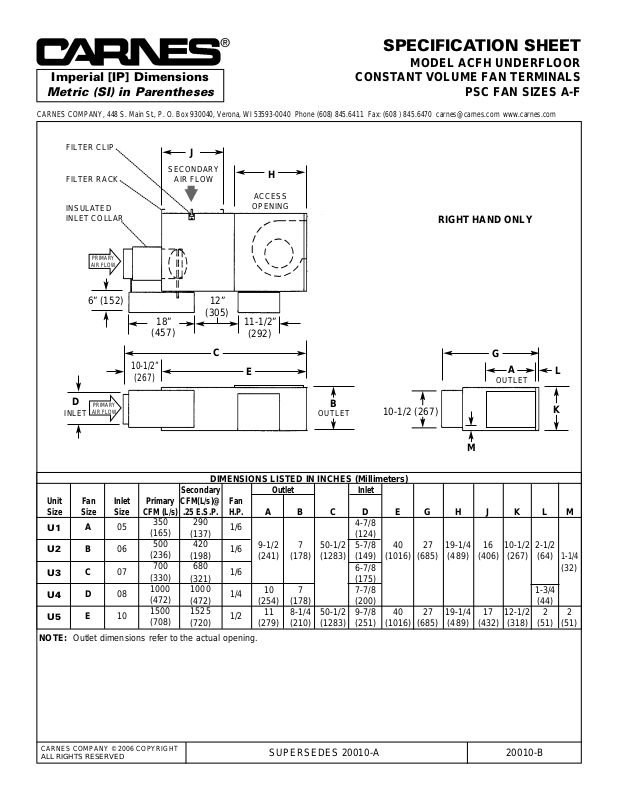

SPECIFICATION SHEET
MODEL ACFH UNDERFLOOR
CONSTANT VOLUME FAN TERMINALS
PSC FAN SIZES A-F
CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone (608) 845.6411 Fax: (608 ) 845.6470 carnes@carnes.com www.carnes.com
CARNES COMPANY © 2006 COPYRIGHT
ALL RIGHTS RESERVED
SUPERSEDES 20010-A 20010-B
SECONDARY
AIR FLOW
J
H
ACCESS
OPENING
6” (152)
18”
(457)
12”
(305)
11-1/2”
(292)
10-1/2”
(267)
C
E
G
A
M
K
L
DIMENSIONS LISTED IN INCHES (Millimeters)
Secondary Outlet Inlet
Unit Fan Inlet Primary CFM(L/s)@ Fan
Size Size Size CFM (L/s) .25 E.S.P. H.P.
ABCDEGHJKLM
U1
A 05
350 290
1/6
4-7/8
(165)
(137) (124)
U2 B 06
500 420
1/6
9-1/2 7 50-1/2 5-7/8 40 27 19-1/4 16 10-1/2 2-1/2
(236)
(198) (241) (178) (1283) (149) (1016) (685) (489) (406) (267) (64)
1-1/4
U3
C 07
700 680
1/6
6-7/8 (32)
(330)
(321) (175)
U4
D 08
1000 1000
1/4
10 7 7-7/8 1-3/4
(472)
(472) (254) (178) (200) (44)
U5
E 10
1500 1525
1/2
11 8-1/4 50-1/2 9-7/8 40 27 19-1/4 17 12-1/2 2 2
(708)
(720) (279) (210) (1283) (251) (1016) (685) (489) (432) (318) (51) (51)
NOTE: Outlet dimensions refer to the actual opening.
PRIMARY
AIR FLOW
PRIMARY
AIR FLOW
D
INLET
FILTER CLIP
FILTER RACK
INSULATED
INLET COLLAR
RIGHT HAND ONLY
OUTLET
B
OUTLET
10-1/2 (267)
