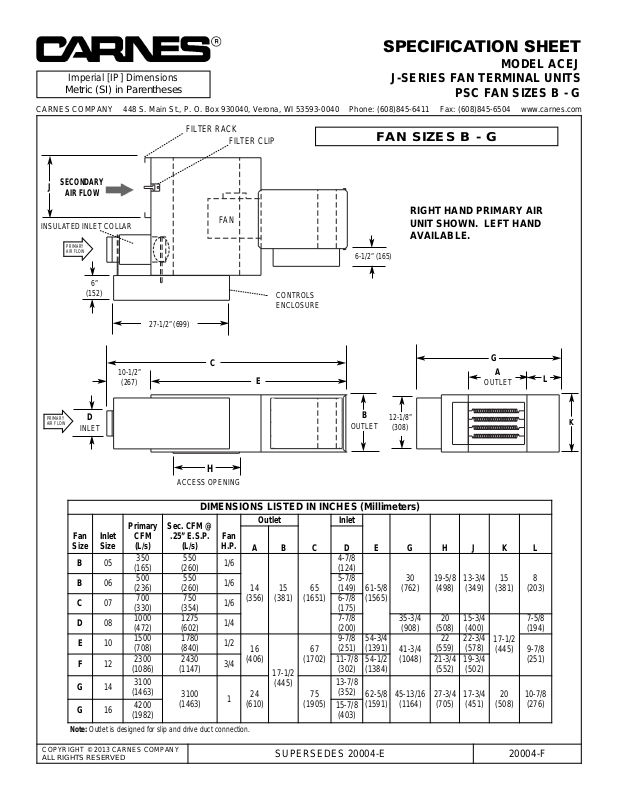

SPECIFICATION SHEET
MODEL ACEJ
J-SERIES FAN TERMINAL UNITS
PSC FAN SIZES B - G
FILTER RACK
FILTER CLIP
6-1/2” (165)
6”
(152)
FAN
10-1/2”
(267)
J
CONTROLS
ENCLOSURE
27-1/2” (699)
C
E
D
INLET
H
G
A
OUTLET
12-1/8”
(308)
K
ACCESS OPENING
RIGHT HAND PRIMARY AIR
UNIT SHOWN. LEFT HAND
AVAILABLE.
PRIMARY
AIR FLOW
INSULATED INLET COLLAR
PRIMARY
AIR FLOW
L
FAN SIZES B - G
SECONDARY
AIR FLOW
B
OUTLET
Note: Outlet is designed for slip and drive duct connection.
Imperial [IP] Dimensions
Metric (SI) in Parentheses
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
DIMENSIONS LISTED IN INCHES (Millimeters)
Fan
Size
Inlet
Size
Primary
CFM
(L/s)
Sec. CFM @
.25” E.S.P.
(L/s)
Fan
H.P.
Outlet
C
Inlet
E G H J K LA B D
B
05
350
(165)
550
(260)
1/6
14
(356)15(381)65(1651)
4-7/8
(124)
61-5/8
(1565)
30
(762)
19-5/8
(498)
13-3/4
(349)15(381)8(203)
B
06
500
(236)
550
(260)
1/6
5-7/8
(149)
C
07
700
(330)
750
(354)
1/6
6-7/8
(175)
D
08
1000
(472)
1275
(602)
1/4
7-7/8
(200)
35-3/4
(908)20(508)
15-3/4
(400)
17-1/2
(445)
7-5/8
(194)
E
10
1500
(708)
1780
(840)
1/2
16
(406)
17-1/2
(445)
67
(1702)
9-7/8
(251)
54-3/4
(1391)
41-3/4
(1048)
22
(559)
22-3/4
(578)
9-7/8
(251)
F
12
2300
(1086)
2430
(1147)
3/4
11-7/8
(302)
54-1/2
(1384)
21-3/4
(552)
19-3/4
(502)
G
14
3100
(1463)
3100
(1463)
1
24
(610)
75
(1905)
13-7/8
(352)
62-5/8
(1591)
45-13/16
(1164)
27-3/4
(705)
17-3/4
(451)20(508)
10-7/8
(276)
G
16
4200
(1982)
15-7/8
(403)
