Carnes ACEH User Manual

Imperial [IP] Dimensions

Metric (SI) in Parentheses

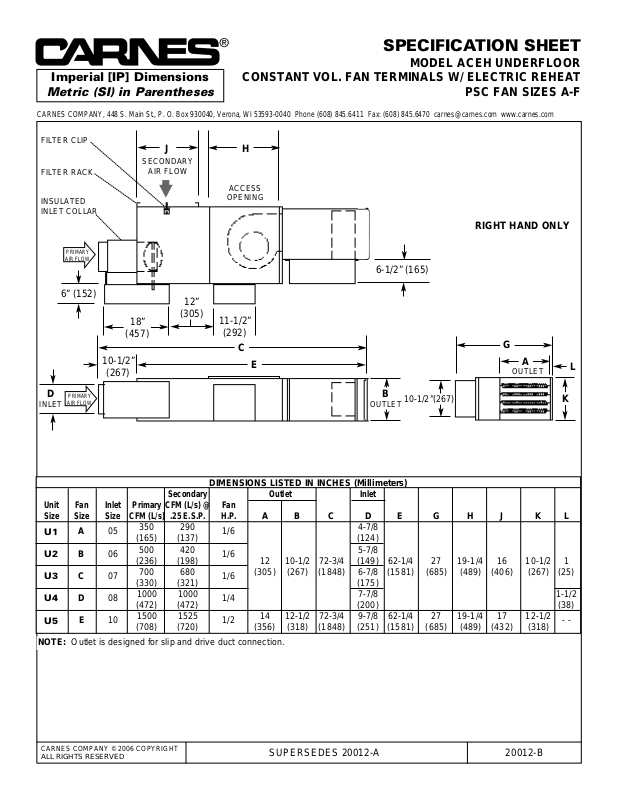

SPECIFICATION SHEET

MODEL ACEH UNDERFLOOR

CONSTANT VOL. FAN TERMINALS W/ ELECTRIC REHEAT

PSC FAN SIZES A-F

CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone [phone] Fax: [phone] [e-mail] www.carnes.com

CARNES COMPANY © 2006 COPYRIGHT

ALL RIGHTS RESERVED

SUPERSEDES 20012-A 20012-B

SECONDARY

AIR FLOW

J

H

B

OUTLET

6-1/2” (165)

11-1/2”

(292)

6” (152)

C

E

A

L

K

G

10-1/2”

(267)

DIMENSIONS LISTED IN INCHES (Millimeters)

Secondary Outlet Inlet
Unit Fan Inlet Primary CFM (L/s) @ Fan
Size Size Size CFM (L/s) .25 E.S.P. H.P.

ABC DE GHJ KL

U1

A 05

350 290

1/6

4-7/8

(165) (137) (124)

U2 B 06

500 420

1/6

5-7/8

(236) (198) 12 10-1/2 72-3/4 (149) 62-1/4 27 19-1/4 16 10-1/2 1

U3 C 07

700 680

1/6

(305) (267) (1848) 6-7/8 (1581) (685) (489) (406) (267) (25)

(330) (321) (175)

U4 D 08

1000 1000

1/4

7-7/8 1-1/2

(472) (472) (200) (38)

U5

E 10

1500 1525

1/2

14 12-1/2 72-3/4 9-7/8 62-1/4 27 19-1/4 17 12-1/2

- -

(708) (720) (356) (318) (1848) (251) (1581) (685) (489) (432) (318)

ACCESS

OPENING

18”

(457)

NOTE: Outlet is designed for slip and drive duct connection.

PRIMARY

AIR FLOW

FILTER CLIP

FILTER RACK

INSULATED
INLET COLLAR

RIGHT HAND ONLY

12”

(305)

OUTLET

10-1/2”(267)

PRIMARY

AIR FLOW

D

INLET
