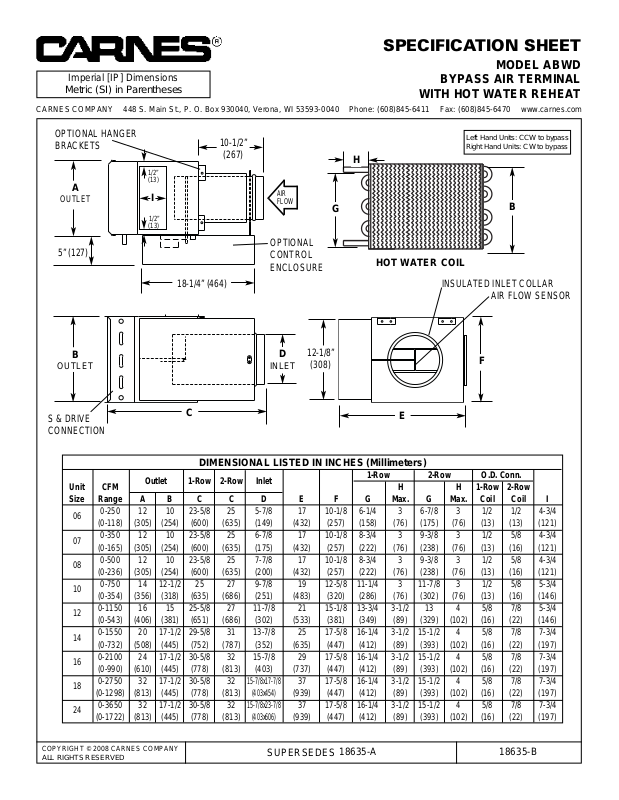

SPECIFICATION SHEET
MODEL ABWD
BYPASS AIR TERMINAL
WITH HOT WATER REHEAT
A
OUTLET
B
OUTLET
F
E
H
B
18-1/4” (464)
INSULATED INLET COLLAR
AIR FLOW SENSOR
D
INLET
G
HOT WATER COIL
10-1/2”
(267)
OPTIONAL
CONTROL
ENCLOSURE
5” (127)
12-1/8”
(308)
S & DRIVE
CONNECTION
AIR
FLOW
OPTIONAL HANGER
BRACKETS
C
DIMENSIONAL LISTED IN INCHES (Millimeters)
Outlet 1-Row 2-Row Inlet
1-Row 2-Row O.D. Conn.
Unit CFM H H 1-Row 2-Row
Size Range A B C C D E F G Max. G Max. Coil Coil I
06
0-250 12 10 23-5/8 25 5-7/8 17 10-1/8 6-1/4 3 6-7/8 3 1/2 1/2 4-3/4
(0-118) (305) (254) (600) (635) (149) (432) (257) (158) (76) (175) (76) (13) (13) (121)
07
0-350 12 10 23-5/8 25 6-7/8 17 10-1/8 8-3/4 3 9-3/8 3 1/2 5/8 4-3/4
(0-165) (305) (254) (600) (635) (175) (432) (257) (222) (76) (238) (76) (13) (16) (121)
08
0-500 12 10 23-5/8 25 7-7/8 17 10-1/8 8-3/4 3 9-3/8 3 1/2 5/8 4-3/4
(0-236) (305) (254) (600) (635) (200) (432) (257) (222) (76) (238) (76) (13) (16) (121)
10
0-750 14 12-1/2 25 27 9-7/8 19 12-5/8 11-1/4 3 11-7/8 3 1/2 5/8 5-3/4
(0-354) (356) (318) (635) (686) (251) (483) (320) (286) (76) (302) (76) (13) (16) (146)
12
0-1150 16 15 25-5/8 27 11-7/8 21 15-1/8 13-3/4 3-1/2 13 4 5/8 7/8 5-3/4
(0-543) (406) (381) (651) (686) (302) (533) (381) (349) (89) (329) (102) (16) (22) (146)
14
0-1550 20 17-1/2 29-5/8 31 13-7/8 25 17-5/8 16-1/4 3-1/2 15-1/2 4 5/8 7/8 7-3/4
(0-732) (508) (445) (752) (787) (352) (635) (447) (412) (89) (393) (102) (16) (22) (197)
16
0-2100 24 17-1/2 30-5/8 32 15-7/8 29 17-5/8 16-1/4 3-1/2 15-1/2 4 5/8 7/8 7-3/4
(0-990) (610) (445) (778) (813) (403) (737) (447) (412) (89) (393) (102) (16) (22) (197)
18
0-2750 32 17-1/2 30-5/8 32
15-7/8x17-7/8
37 17-5/8 16-1/4 3-1/2 15-1/2 4 5/8 7/8 7-3/4
(0-1298) (813) (445) (778) (813)
(403x454)
(939) (447) (412) (89) (393) (102) (16) (22) (197)
24
0-3650 32 17-1/2 30-5/8 32
15-7/8x23-7/8
37 17-5/8 16-1/4 3-1/2 15-1/2 4 5/8 7/8 7-3/4
(0-1722) (813) (445) (778) (813)
(403x606)
(939) (447) (412) (89) (393) (102) (16) (22) (197)
I
1/2”
(13)
1/2”
(13)
Left Hand Units: CCW to bypass
Right Hand Units: CW to bypass
Imperial [IP] Dimensions
Metric (SI) in Parentheses
