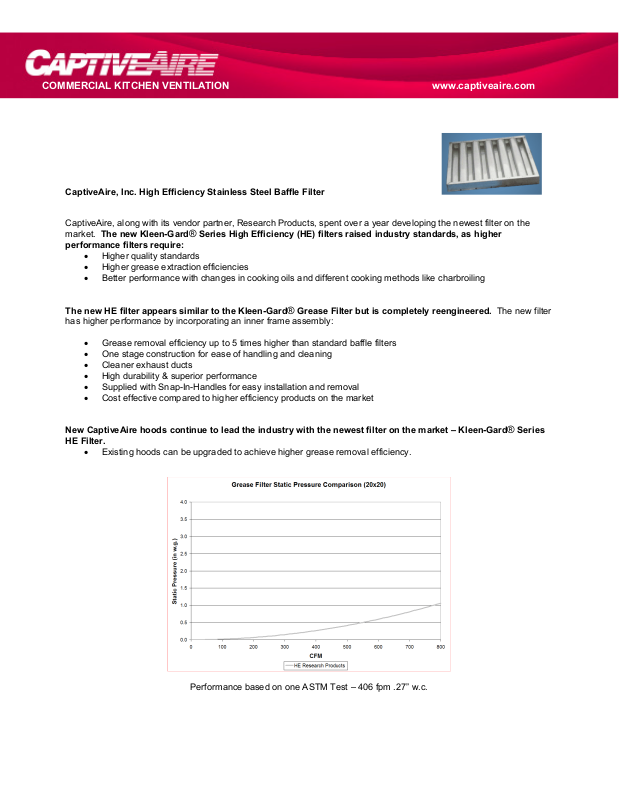

CaptiveAire, Inc. High Efficiency Stainless Steel Baffle Filter

CaptiveAire, along with its vendor partner, Research Products, spent over a year developing the newest filter on the
market. The new Kleen-Gard

performance filters require:

• Higher quality standards

• Higher grease extraction efficiencies

• Better performance with changes in cooking oils and different cooking methods like charbroiling

The new HE filter appears similar to the Kleen-Gard
has higher performance by incorporating an inner frame assembly:

• Grease removal efficiency up to 5 times higher than standard baffle filters

• One stage construction for ease of handling and cleaning

• Cleaner exhaust ducts

• High durability & superior performance

• Supplied with Snap-In-Handles for easy installation and removal

• Cost effective compared to higher efficiency products on the market

New CaptiveAire hoods continue to lead the industry with the newest filter on the market – Kleen-Gard® Series
HE Filter.

• Existing hoods can be upgraded to achieve higher grease removal efficiency.

® Series High Efficiency (HE) filters raised industry standards, as higher

® Grease Filter but is completely reengineered. The new filter

Performance based on one ASTM Test – 406 fpm .27” w.c.

COMMERCIAL KITCHEN VENTILATION www.captiveaire.com

Cleaning Instructions

Kleen-Gard
as dishwashing liquid. If the accumulation of dirt or grease is based on an extremely heavy load, then a stronger
cleanser may be used provided it is not caustic. Wash filters using a commercial dishwasher if available.

Grease Extraction

The HE filter was tested to ASTM Standard ASTM F2519-05. The purpose of this standard is to determine the grease
particle capture efficiency of filters used in commercial kitchens to capture grease effluent prior to entering the grease
duct.

® HE Series grease filters can be cleaned in most cases using hot water or hot water with a mild soap such

NEW KLEEN-GARD HE SERIES FILTER SIZES

Part No. Nominal Dimensions
HESS1016 10” * 16”
HESS1020 10” * 20”
HESS1216 12” * 16”
HESS1616 16” * 16”
HESS1620 16” * 20”
HESS2016 20” * 16”
HESS2020 20” * 20”
