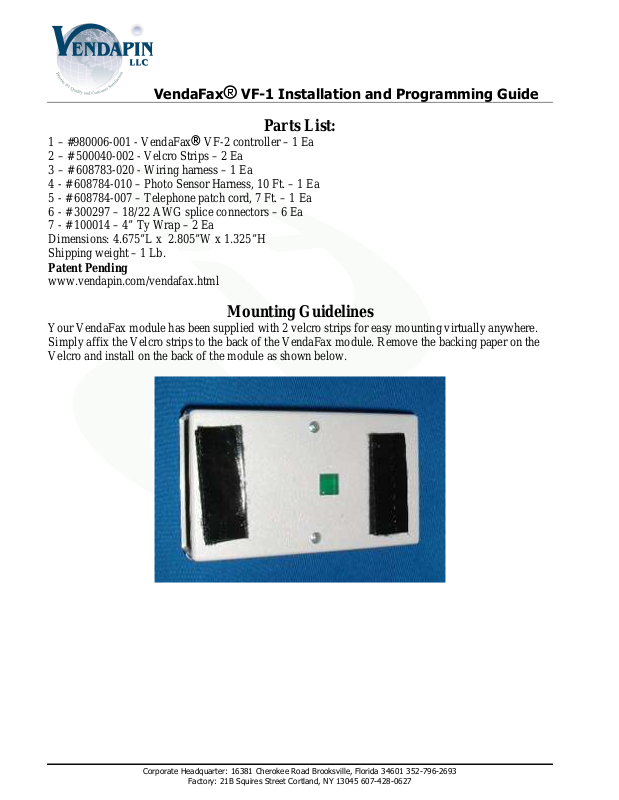

VendaFax VF-1 Installation and Programming Guide
Parts List:
1 – #980006-001 - VendaFax VF-2 controller – 1 Ea
2 – # 500040-002 - Velcro Strips – 2 Ea
3 – # 608783-020 - Wiring harness – 1 Ea
4 - # 608784-010 – Photo Sensor Harness, 10 Ft. – 1 Ea
5 - # 608784-007 – Telephone patch cord, 7 Ft. – 1 Ea
6 - # 300297 – 18/22 AWG splice connectors – 6 Ea
7 - # 100014 – 4” Ty Wrap – 2 Ea
Dimensions: 4.675”L x 2.805”W x 1.325”H
Shipping weight – 1 Lb.
Patent Pending
www.vendapin.com/vendafax.html
Mounting Guidelines
Your VendaFax module has been supplied with 2 velcro strips for easy mounting virtually anywhere.
Simply affix the Velcro strips to the back of the VendaFax module. Remove the backing paper on the
Velcro and install on the back of the module as shown below.
Corporate Headquarter: 16381 Cherokee Road Brooksville, Florida 34601 352-796-2693
Factory: 21B Squires Street Cortland, NY 13045 607-428-0627
If you purchased a VENDAPIN 5596 Series, please refer to the photo below for the recommended
mounting location and orientation of the VendaFax module.
Please note the connections for the Telco Line In and To Fax are pointing up in the enclosure. There is
a diagnostic LED next to the switch array that must easily be seen for diagnostics. This also makes the
switches easy to get to for programming.
For other equipment, the mounting guidelines are the same. The VendaFax should be located in a
secure area where it cannot be tampered with other than by the owner of the equipment. We suggest
mounting the unit inside of the pay station for security. If this cannot be achieved, then we suggest
using a small lock box to secure the module.
Once you have the VendaFax secured in the desired position, you can proceed to making connections
to the unit.
Corporate Headquarter: 16381 Cherokee Road Brooksville, Florida 34601 352-796-2693
Factory: 21B Squires St. Cortland, NY 13045 607-428-0627
Wiring Specifications:
The power for the VendaFax is +12~24Vdc. The supplied harness has two wires (yellow and black)
with a fork terminal already on them. They are labeled +24V and GRND. Connect the +24V yellow
wire to the +24V on the DC/DC converter in the coin op. Connect the GRND black wire to the ground
on the DC/DC converter. Please see the photo below for details.
Corporate Headquarter: 16381 Cherokee Road Brooksville, Florida 34601 352-796-2693
Factory: 21B Squires St. Cortland, NY 13045 607-428-0627
If you purchased a VENDAPIN 5596, simply connect the supplied harness to J-10 3-position and 2position headers. See the photo below.
All the electrical connections are complete for the VENDAPIN 5596. For competitive vend devices,
please refer to the following section for proper interfacing.
If you are using another type of machine, the final termination points are to be supplied by the
Manufacturer of that machine. In other words, you will need to know where to get +24Vdc and
Ground, where to get an Enable signal, and where to connect the Count circuit for that specific
machine. Please refer to the wiring table below for specifications.
Pin 1 - +24Vdc - Yellow
Pin 2 – Ground - Black
Pin 3 – Enable - +5Vdc ONLY - Orange
Pin 4 – Enable DC return - Blue
Pin 5 – Count In (+5Vdc only with at least 1K current limiting resistor) - Red
Corporate Headquarter: 16381 Cherokee Road Brooksville, Florida 34601 352-796-2693
Factory: 21B Squires St. Cortland, NY 13045 607-428-0627
Pin 6 – Count Out (DC Return) - Red/White
NOTE: Failure to follow the correct wiring as described above will result in serious damage
and/or failure of the VendaFax module.
Simply cut off the 2 position and 3 position Molex connectors at the end of the harness installed on the
VendaFax module and discard. Use the supplied splice connectors to attach the wires to the necessary
locations as specified in the wiring table.
Line Connections
On the face of the VendaFax are two phone jacks. The jack closest to the DIP switches is “Telco Line
In”, the jack farthest from the DIP switches is “To Fax”. First, connect the supplied 7 ft. Telco cord to
the “Telco Line In” jack. See photo below.
Next, connect the Telco cord to your wall jack. This completes connections to your phone service.
Corporate Headquarter: 16381 Cherokee Road Brooksville, Florida 34601 352-796-2693
Factory: 21B Squires St. Cortland, NY 13045 607-428-0627
Now you are ready to make the connections to your fax machine. Connect the cable going out to your
fax device to the “To Fax” jack on the VendaFax module. See the photo below for details.
Next, connect the other end of the “To Fax” line to the “Line” jack on your fax device.
Route the two lines out the bottom of the enclosure as shown in the photo below. Please note this
routing is for a VENDAPIN product, cable routing may vary on other equipment.
Corporate Headquarter: 16381 Cherokee Road Brooksville, Florida 34601 352-796-2693
Factory: 21B Squires St. Cortland, NY 13045 607-428-0627
