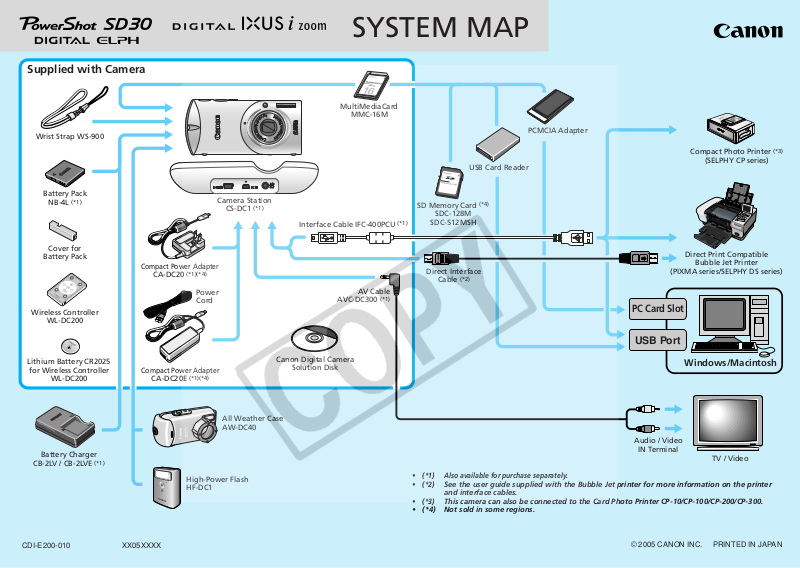

Canon SD30 System Map

Supplied with Camera

SYSTEM MAP

MultiMediaCard

MMC-16M

Wrist Strap WS-900

Battery Pack

(*1)

NB-4L

Cover for

Battery Pack

Wireless Controller

WL-DC200

Lithium Battery CR2025

for Wireless Controller

WL-DC200

Camera Station

Compact Power Adapter

CA-DC20

Compact Power Adapter

CA-DC20E

(*1)(*4)

Power Cord

(*1)(*4)

CS-DC1

(*1)

Interface Cable IFC-400PCU

Canon Digital Camera

Solution Disk

AV Cable

AVC-DC300

(*1)

SD Memory Card

(*1)

SDC-512MSH

Direct Interface

SDC-128M

(*2)

Cable

USB Card Reader

(*4)

PCMCIA Adapter

(PIXMA series/SELPHY DS series)

PC Card Slot

USB Port

Compact Photo Printer

(SELPHY CP series)

Direct Print Compatible

Bubble Jet Printer

Windows/Macintosh

(*3)

Battery Charger

CB-2LV / CB-2LVE

CDI-E200-010 XX05XXXX

(*1)

All Weather Case AW-DC40

High-Power Flash HF-DC1

• (*1) Also available for purchase separately.

• (*2)

• (*3)

•(*4) Not sold in some regions.

See the user guide supplied with the Bubble Jet printer for more information on the printer and interface cables. This camera can also be connected to the Card Photo Printer CP-10/CP-100/CP-200/CP-300.

Audio / Video

IN Terminal

TV / Video

Optional Accessories

Confirming the Package Contents

Optional Accessories

Direct Print Compatible Printers

Your camera package includes all of the following items. If any of these items are missing, please contact the dealer for assistance.

• Digital Camera

• Camera Station CS-DC1

•Wrist Strap WS-900

• Battery Pack NB-4L

• Cover for Battery Pack

• MultiMediaCard MMC-16M

• Compact Power Adapter CA-DC20/CA-DC20E

• Interface Cable IFC-400PCU

•AV Cable AVC-DC300

• Canon Digital Camera Solution Disk

•Wireless Controller WL-DC200

• Lithium Battery CR2025 for Wireless Controller WL-DC200

• Basic Camera User Guide

• Advanced Camera User Guide

• Direct Print User Guide

• Software Starter Guide

• System Map (this sheet)

•Warranty Card

• “For Windows® XP and Mac OS X Users” Leaflet*

• “Canon Customer Support” Leaflet*

•“Use of Genuine Canon Accessories Recommended“ Leaflet*

* These leaflets are printed together on one

sheet of paper. Please separate them before reading.

The following camera accessories are sold separately.

Some accessories are not sold in some regions

Flash

• High-Power Flash HF-DC1

This attachable supplementary flash can be used to capture photographic subjects that are too distant for the built-in flash to illuminate.

Power Supplies

• Compact Power Adapter CA-DC20/20E

An adapter for supplying power to operate the camera.

• Battery Charger CB-2LV/CB-2LVE

An adapter for charging Battery Pack NB-4L.

• Battery Pack NB-4L

Rechargeable lithium-ion battery.

Connection Accessory

This connection accessory can be used with computers equipped with genuine built-in USB interfaces and running the following operating systems.

Windows:

Macintosh:

• Interface Cable IFC-400PCU

Use this cable to connect the camera station to a computer, Compact Photo Printer (SELPHY series), or to a Bubble Jet printer (refer to your Bubble Jet printer user guide).

Systems running preinstalled Windows 98 Second Edition (SE), Windows Me, Windows 2000 Service Pack 4, or Windows XP (including Service Pack 1 and Service Pack 2). Mac OS X (v10.2 – v10.3)

• SD Memory Card

SD memory cards are used to store images recorded by the camera. Canon brand cards are available in 128 MB and 512 MB capacities.

• Camera Station CS-DC1

Use this to charge the battery, play back images, or connect to a TV set, computer or printer.

•AV Cable AVC-DC300

Use this cable to connect the camera station to a TV set.

• All Weather Case AW-DC40

You can use this case to take underwater shots at depths of up to 3 meters (10 feet), and of course it’s ideal for taking worry-free pictures in the rain, at the beach, or on the ski slopes.

Other Accessories

Canon offers the following separately sold printers for use with the camera. You can produce photo quality prints quickly and easily by connecting them to the camera with a single cable and operating the camera’s controls.

• Compact Photo Printers (SELPHY series)

• Bubble Jet Printers

For more information, visit your nearest Canon retailer.
