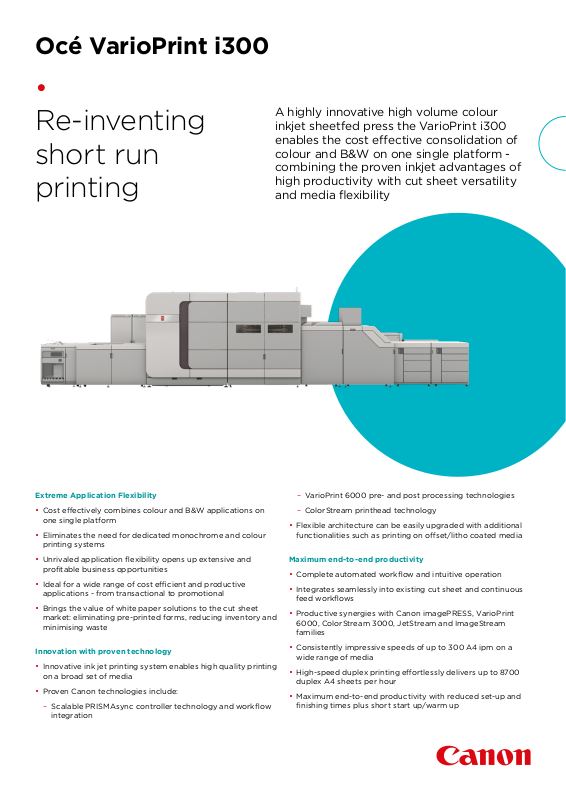

Océ VarioPrint i300

•

Re-inventing short run printing

A highly innovative high volume colour inkjet sheetfed press the VarioPrint i300 enables the cost eective consolidation of colour and B&W on one single platform combining the proven inkjet advantages of high productivity with cut sheet versatility and media ﬂexibility

Extreme Application Flexibility

• Cost eectively combines colour and B&W applications on

one single platform

• Eliminates the need for dedicated monochrome and colour

printing systems

• Unrivaled application ﬂexibility opens up extensive and

proﬁtable business opportunities

• Ideal for a wide range of cost ecient and productive

applications - from transactional to promotional

• Brings the value of white paper solutions to the cut sheet

market: eliminating pre-printed forms, reducing inventory and minimising waste

Innovation with proven technology

• Innovative ink jet printing system enables high quality printing

on a broad set of media

• Proven Canon technologies include:

– Scalable PRISMAsync controller technology and workﬂow

integration

– VarioPrint 6000 pre- and post processing technologies

– ColorStream printhead technology

• Flexible architecture can be easily upgraded with additional

functionalities such as printing on oset/litho coated media

Maximum end-to-end productivity

• Complete automated workﬂow and intuitive operation

• Integrates seamlessly into existing cut sheet and continuous

feed workﬂows

• Productive synergies with Canon imagePRESS, VarioPrint

6000, ColorStream 3000, JetStream and ImageStream families

• Consistently impressive speeds of up to 300 A4 ipm on a

wide range of media

• High-speed duplex printing eortlessly delivers up to 8700

duplex A4 sheets per hour

• Maximum end-to-end productivity with reduced set-up and

ﬁnishing times plus short start up/warm up

•

Re-inventing short run printing

Océ VarioPrint i300

• Designed with robust reliability in mind for fast, uninterrupted

production

Versatile and ﬂexible media handling

• Use up to 8 dierent stocks in a single job

• Print on media up to B3 size; easily load dierent papers

within or between jobs

• Air separated paper feeds ensure reliable input from high

capacity paper trays

• Smooth, productive switching between dierent types and

sizes of media with no mechanical adjustments

• Seamless print belt moves sheets ﬂat and securely at high

speed through the system

Technical Speciﬁcations

TECHNOLOGY

Print Technology Inkjet, Océ drop-on-demand, piezoelectric

Ink Water-based pigment ink

Drop Size Variable, Multi-level

Print Speed 300 A4 im ages / 15 2 A3 imag es dupl ex

Specialty Speed 200 A4 im ages / 10 6 A3 images dupl ex

Duty Cycle 1,000,000 – 10,000,000 A4 impressions/month

Print Resolution 60 0 x 600 dpi with mult ilevel ( 1200 dp i perceived)

PAPE R

Paper Weight 60 –300 gr/m

Substrates Uncoate d, inkjet treate d and ink jet coate d

Standard Conﬁguration 1 Paper I nput Mo dule (P IM), Sta ndard P IM or PI M-XL

Optional Second Paper Input Module, Standard PIM or PIM-XL

Paper Sizes 203 x 203 mm - 4 88 x 320 mm

Paper Capacity 4600 s heets A 4 (80 gsm) with o ne PIM

STANDARD PAPER INPUT M ODULE (PIM)

Pap er Tray s 2 x 6 00 sheets, 2 x 1 ,700 she ets (80 gsm)

Standard Paper Capacity 4,600 sheets

Paper Size 2 03 x 203 mm - 4 88 x 320 mm

Dimensions (WxDxH) 987 x 101 5 x 104 0 mm

Weigh t 240 kg

PAPER INPUT MODULE XL (PIM-XL)

Pap er Tray s 2 x 6 00 sheets, 2 x 1 ,700 she ets (80 gsm)

Standard Paper Capacity 4,600 sheets

Paper Size Top tray : 203 x 203 mm - 4 88 x 320 mm

Dimensions (WxDxH) 987 x 101 5 x 104 0 mm

Weigh t 240 kg

150 A4 im ages / 82 A 3 image s simpl ex

178 x 254 m m (with option al guide)

353 x 50 0 mm with PI M-XL

9200 sh eets A4 (8 0 gsm) with two PIMs

178 x 254 m m (with option al guide)

All othe r trays: 35 3 x 500 mm (ﬁ xed)

Quality assured from start to ﬁnish

• Designed to ensure optimum quality for each application,

every time

• Print at a perceived 1200dpi image quality level with

multilevel technology

• Intelligent and automated quality control during printing

• A “sentry” unit automatically detects and purges any sheets

which could interrupt production via a top tray - without a production stop

• Printhead nozzles are constantly monitored and any failures

automatically compensated for

HIG H CAPACIT Y STAC KER

Stacks 2 x 3,00 0 sheets (80gs m) per stac ker

Dimensions (WxDxH) 899 x 745 x 10 40 mm

Weigh t Empty 14 0 kg, full 300 kg

PRISMASYNC CONTROLLER

Network Connectivity 2 x 10 giga bit Ether net (1 0/10 0/10 00 Bas e-T)

Page Description Languages

Job Submission lpr, Hot fol ders, S ocket (streaming), S MB, J DF/JMF, IPP 2. 0

Protocols SN MP v1, SNMP v3, H ost Reso urces M IB, MI B II, Printer MI B, Job

CONNECTION REQUIREMENTS

Conne ction F use (EU ) 230/400 VAC, 1 00A; 10 0-240 VAC, 20A; 2 x 200 -240 VAC, 13 -20A

Power ConsumptionPrinting (EU)

Power ConsumptionIdle (E U)

Compressed Air 7-12 ba r, dry an d oil free

Tap W ater Maximu m 8 bar pre ssure, 4 – 2 0°C

ENVIRONMENTAL

Temperature Optima l range 2 0 – 26 °C

Humidity Optima l range 3 0 – 50%

Operating Noise Printin g 73 dB, S tandby 6 1 dB

PHYSIC AL DATA

Lengt h × Width x Heigh t 10,2 00 × 2,750 x 2,40 0 mm

Weigh t 8500 kg

Footnote

[1]

Physica l data is pr ovided fo r a stand ard conﬁgurati on which i nclud es one PI M and one Hig h Capac ity Sta cker

[1]

899 x 12 50 x 104 0 mm with st ack tray ej ected

TCP/IP (LP R /LPD, 91 00 Socket, SM B), Static I P / Auto-I P (DHCP), IPv4, I Pv6 (only in Docume nt Printing mode)

PDF 1.7, PD F-X (PDF/X-1a: 2001 , PDF/X-1a:2003, P DF/X-3:2002, PDF/X-3:20 03, PDF/X-4), PDF/V T1, IPDS IS/ 3

Monito ring MI B, Job M anagement MI B

22 kW

13.5 k W
