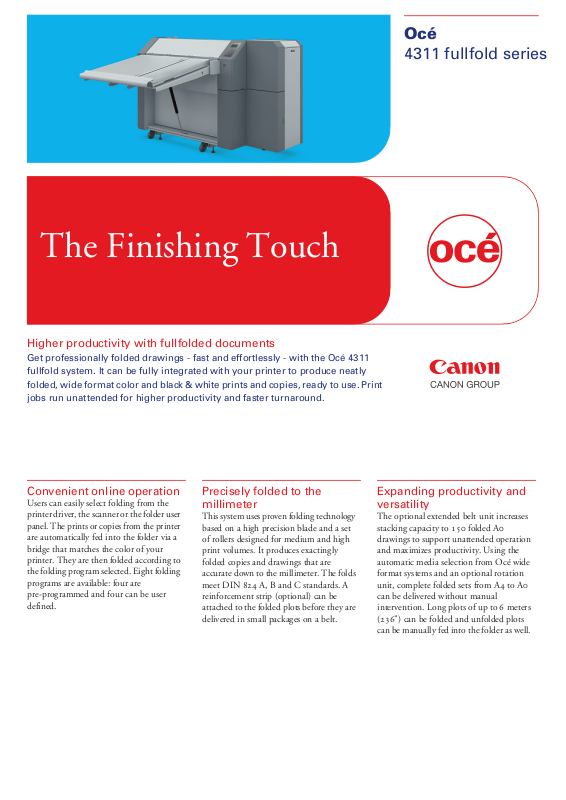

Canon OCE 4311 FULLFOLD BROCHURE
The Finishing Touch
Océ
4311 fullfold series
o
Higher productivity with fullfolded documents
Get professionally folded drawings - fast and effortlessly - with the Océ 4311
fullfold system. It can be fully integrated with your printer to produce neatly
folded, wide format color and black & white prints and copies, ready to use. Print
jobs run unattended for higher productivity and faster turnaround.
Convenient online operation
Users can easily select folding from the
printer driver, the scanner or the folder user
panel. The prints or copies from the printer
are automatically fed into the folder via a
bridge that matches the color of your
printer. They are then folded according to
the folding program selected. Eight folding
programs are available: four are
pre-programmed and four can be user
defined.
Precisely folded to the
millimeter
This system uses proven folding technology
based on a high precision blade and a set
of rollers designed for medium and high
print volumes. It produces exactingly
folded copies and drawings that are
accurate down to the millimeter. The folds
meet DIN 824 A, B and C standards. A
reinforcement strip (optional) can be
attached to the folded plots before they are
delivered in small packages on a belt.
Expanding productivity and
versatility
The optional extended belt unit increases
stacking capacity to 150 folded A0
drawings to support unattended operation
and maximizes productivity. Using the
automatic media selection from Océ wide
format systems and an optional rotation
unit, complete folded sets from A4 to A0
can be delivered without manual
intervention. Long plots of up to 6 meters
(236") can be folded and unfolded plots
can be manually fed into the folder as well.
Paper handling
US
Paper feed
Paper width
Paper length
Paper weight
Paper type
Output delivery
Folding
Folding standards
Fanfold
Crossfold
Folded package width
Folded package length
Folding accuracy
Folding speed
Folding programs
Environmental data
Dimensions (WxDxH)
Weight
Power requirements (V/Hz/A)
Ambient temperature
Humidity
Options
Reinforcement unit
Extended belt unit
A2 rotation unit
US-Kit
Automatic or manual
279 - 930 mm; 11 - 36.6"
Fanfold only: 210, 420 - 6000 mm; 8¼, 16½ 236"
Fanfold and crossfold: 210,420- 2500 mm; 8¼,
16½ - 100"
60 - 110 g/m2; 16 - 30 lb
Bond paper, plain paper others on request
Standard belt. Active first fold delivery. Capacity:
50 DIN A0 prints
DIN 824 A, B, C, AFNOR, ANSI, US sizes
Panel width adjustable from 180 - 230 mm; 7 - 9"
(increments of 1 mm; ¼")
Binding margin adjustable from 0 - 30 mm; 0
-1¼" (increments of 1 mm; ¼")
Z-style; 2 folds; package length standard 297 mm;
11-12"
180 - 230 mm; 7 - 9"
297 mm; 11 - 12"
Exceeding DIN 824 specifications
Aligned to print speed
4 factory default programs, 4 user programmable
(unlimited with the Océ ColorWave 650)
1680 x 1670 x 1110 mm; 5.21 x 5.48 x 3.64 ft
280 kg; 617 lbs (in crate 390 kg; 859 lbs)
AC 115/230 V / 50/60Hz / 6/3 A
0 - 30ºC; 32 - 86°F
40 - 60% / non condensing
Adds binding stripe automatically
Increases belt capacity for up to 150 DIN A0 prints
Adds a virtual 3rd roll to the printer
Optimized output of US-sized prints
Standard folding packages
Standard folding packages with
binding edge
Standard folding packages with
reinforcement stripe
Configurations
Océ 4311 fullfold +
Océ ColorWave 550 &
Océ ColorWave 650
* The level of integration depends on the type of printer that the folder is connected to.
For detailed information please contact your local sales representative.
o
Printing for
Professionals
Océ 4311 fullfold +
Océ ColorWave 300
www.oce.com
© 2012 Océ. Illustrations and specifications do not necessarily apply to products and services offered in each local market. Technical specifications are subject
to change without prior notice. Océ is a registered trademark of Océ-Technologies B.V. All other trademarks are the property of their respective owners.
Océ 4311 fullfold +
Océ PlotWave 350
Océ 4311 fullfold +
Océ TCS500
Edition 2012-41
