Canon imagePROGRAF iPF825 Basic Guide No.3, imagePROGRAF iPF815, imagePROGRAF iPF815 MFP M40, imagePROGRAF iPF825 MFP M40 Basic Manual
Printer Relocation
Printer Driver
Installation
3
1
Printer Operations
2
Troubleshooting
Basic Guide
Read this manual before attempting to operate the printer.
Keep this manual in a handy location for future referencing.
This Basic Guide includes three booklets.
Large-Format Printers
Be sure to read "
Safety Precautions" in the fi rst
booklet, Printer Operations.
ENG
3
Printer Relocation
Printer Driver Installation
Preparing to Transfer the Printer ......................2
Reinstalling the Printer .....................................8

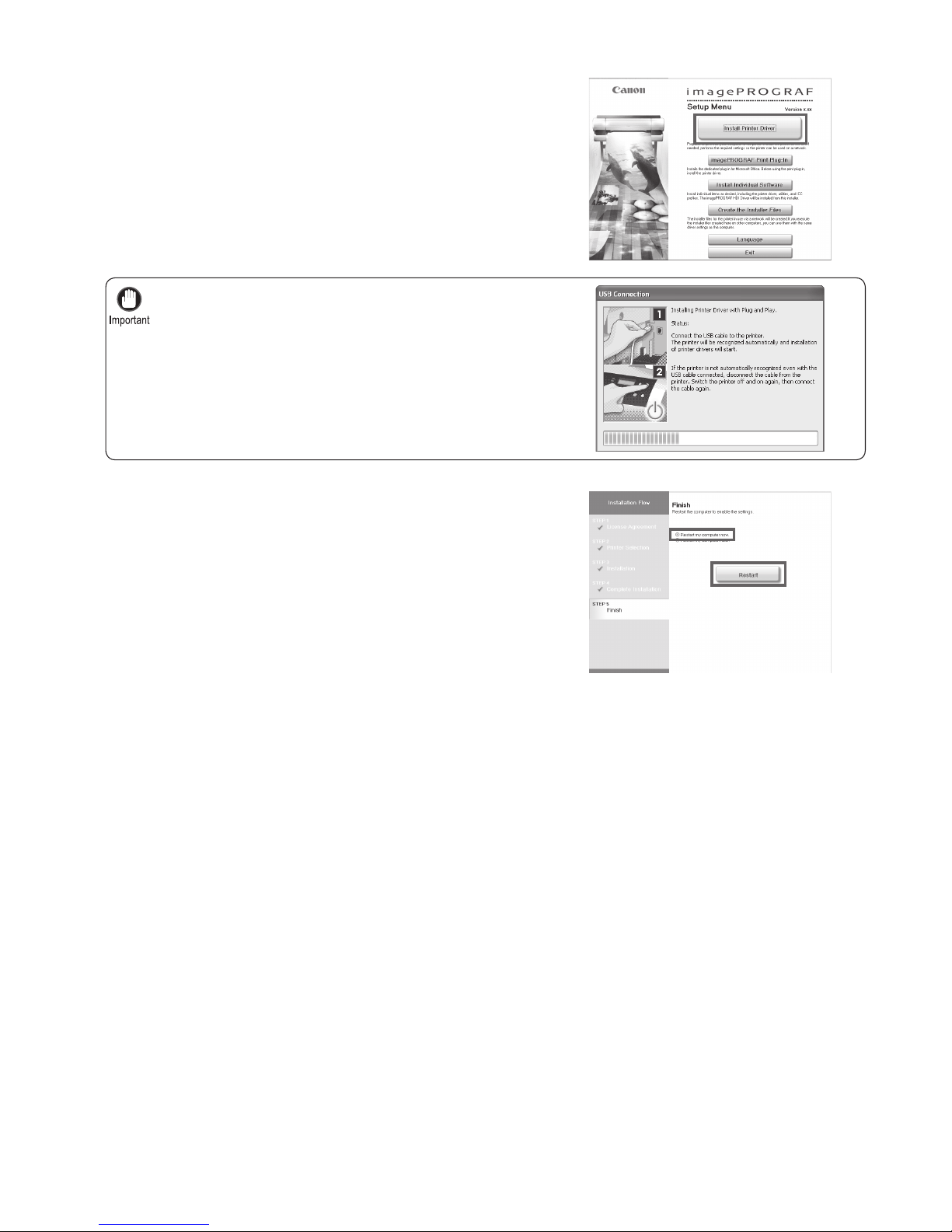

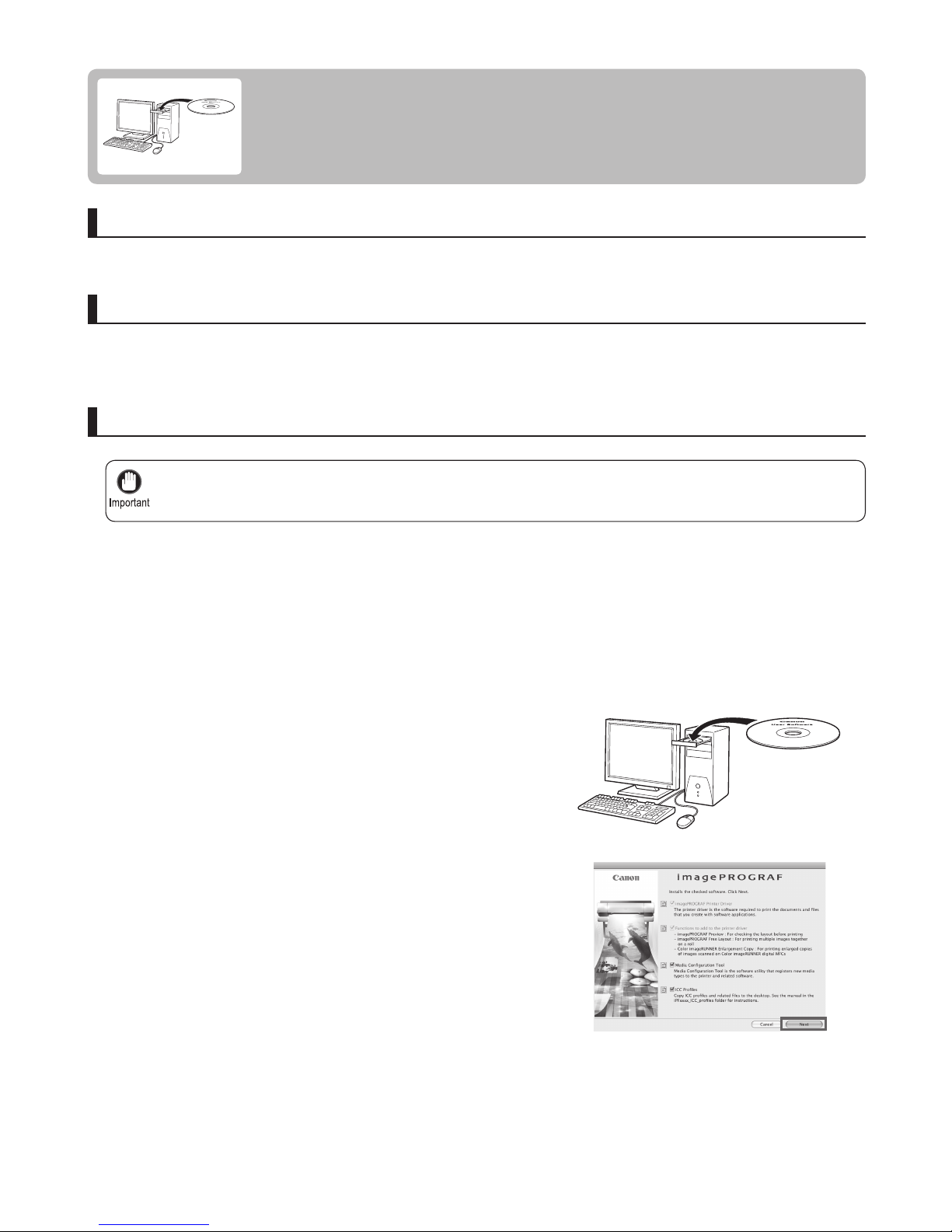

Installing the Printer Driver (Windows) ........... 12
Installing the Printer Driver (Mac OS X) .........14

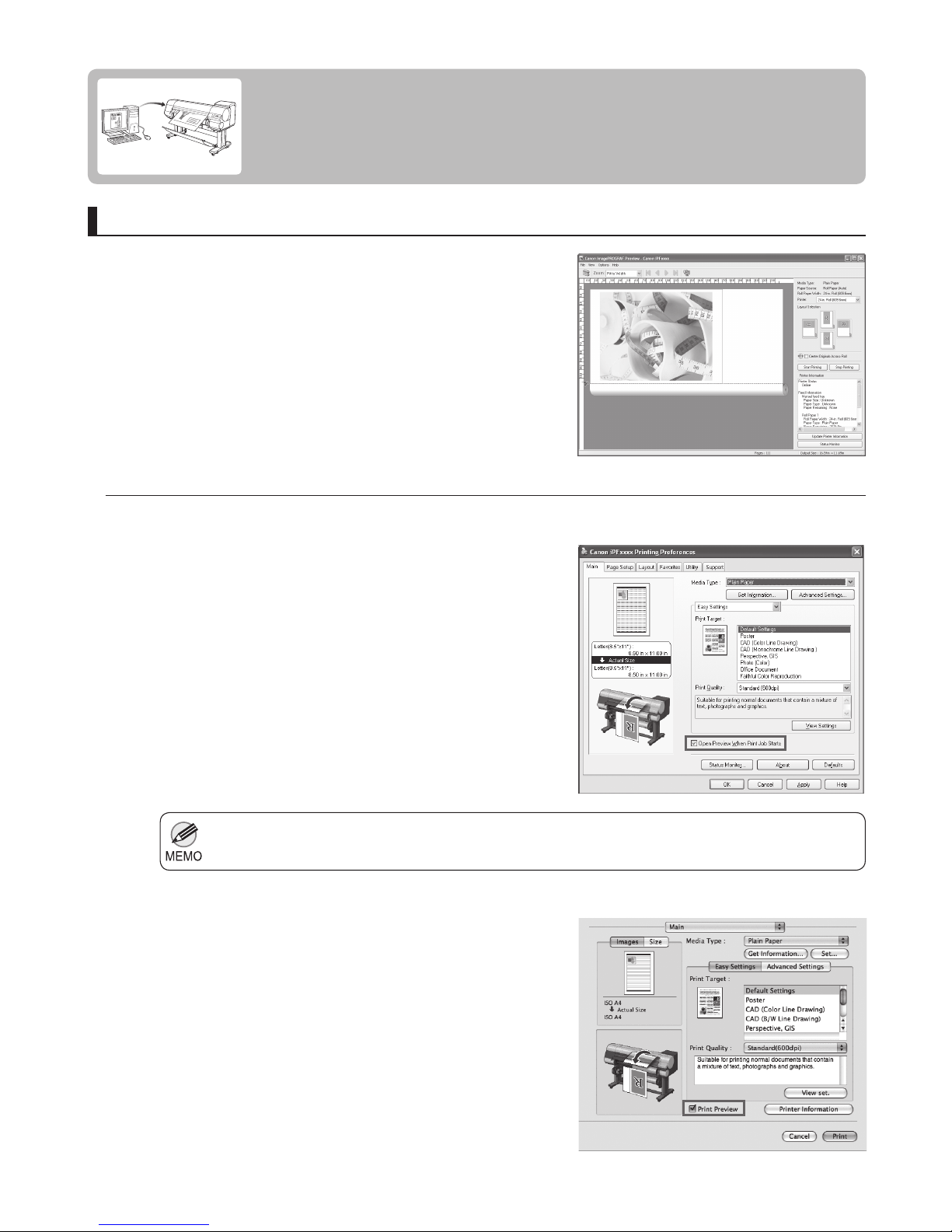

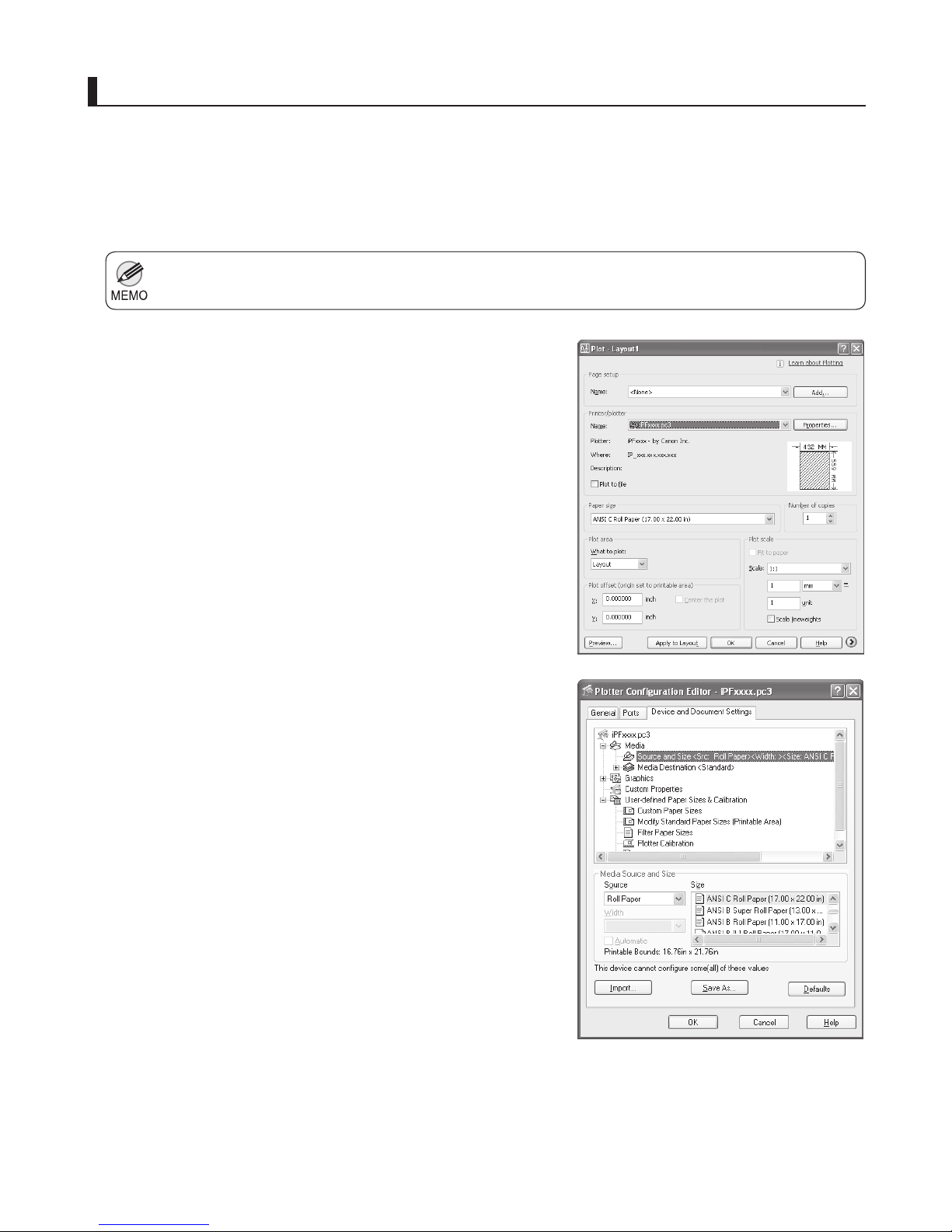

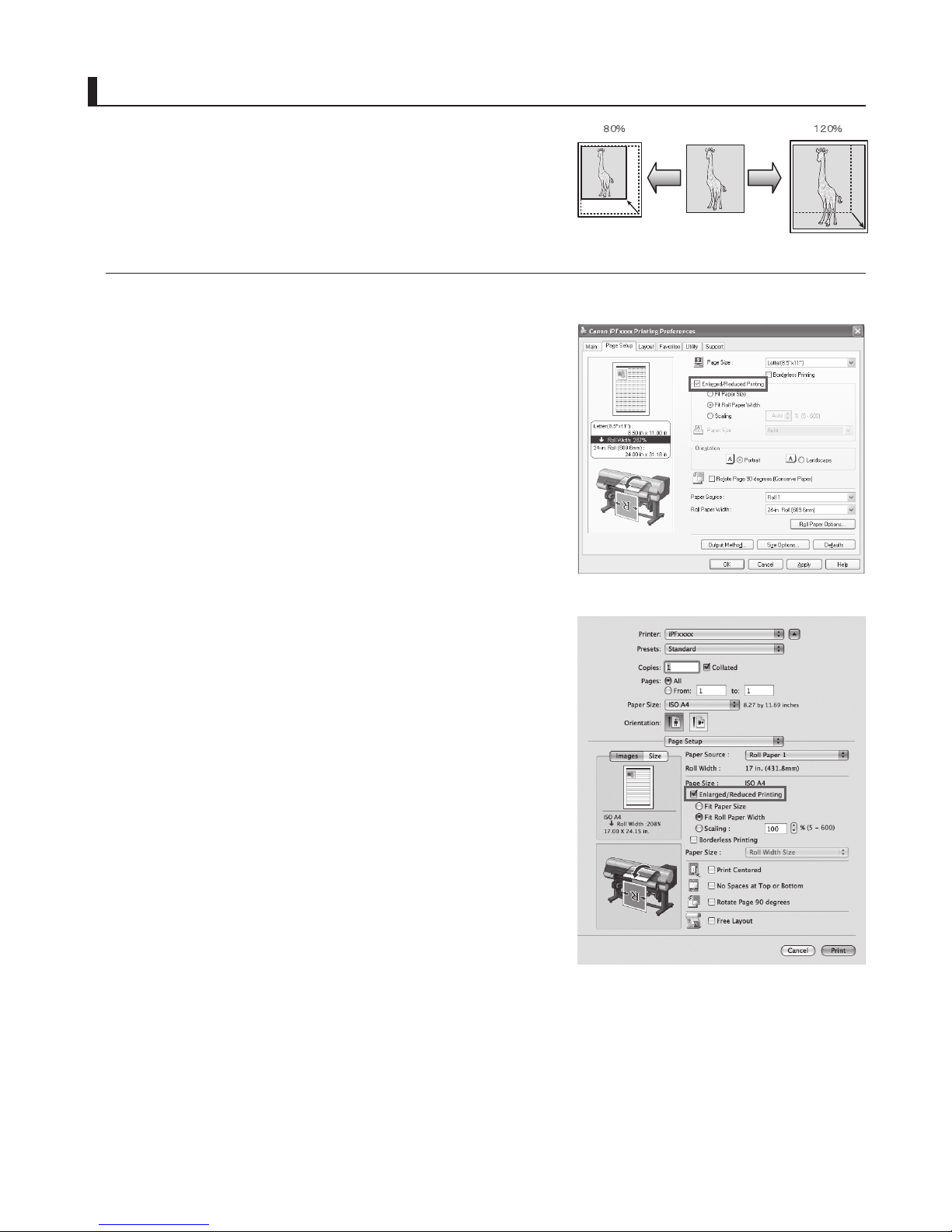

Convenient Printer Driver Features ................16
Troubleshooting ................................................2
If Roll Paper Jams .......................................... 18
If a Sheet Jams...............................................21
If Paper is Soiled ............................................23
If Printing is Faint ............................................25
If Vertical Lines are Warped or Colors are
Misaligned ..................................................26
If Banding Occurs ...........................................28
If Line Length Does Not Match .......................30
Error Messages .............................................. 32
Safety Precautions ........................................2
Types of Manuals ............................................. 5
Documentation Conventions ............................6
Parts .................................................................8
Attaching the Roll Holder to Rolls ...................12
Loading Rolls in the Printer ............................14
Removing the Roll from the Printer ................18
Loading Sheets in the Printer ......................... 22
Removing Sheets ........................................... 24
Consumables..................................................25
Replacing Ink Tanks .......................................26
Replacing the Maintenance Cartridge ............ 32
Replacing the Printhead ................................. 37
Menu Map.......................................................42
2
It is not possible to prepare the printer for transfer if the Display Screen requests Maintenance Cartridge
replacement or checking of the remaining capacity. Replace the Maintenance Cartridge before transfer
preparations. (→ , Replacing the Maintenance Cartridge)
•
Be sure to contact your Canon dealer before transferring the printer to a new location. Ink may leak and damage
the printer if you do not prepare the printer correctly and it is tipped or stood on end in transit.
•
Ink must be drained before Level 2 or Level 3 printer transfer, as described in the following table. Prepare a
Maintenance Cartridge in advance.
•
Depending on the state of the printer, part replacement may be necessary when preparing to transfer the printer
(that is, when you execute the printer menu item to prepare for transfer).
•
Always follow the instructions of the service representative when transferring the printer under Level 3 conditions.•
To protect the internal parts in transit, always follow the steps below before transferring the printer to a new
location. Refer to the Setup Guide for details on packing the printer and installing it after transfer.
Level Permitted Angle of Inclination
Required
Maintenance
Cartridges(*1)
Shipping Method
(Example)
Amount of Ink
to Dispose of
1 By truck Lengthwise: 0°–30° 0 0 or 1
3 Tipping the printer or
holding it upright for
elevators or stairs
Lengthwise: 0°–90°
2 By plane All directions: 0°–30°
Approx. 700 ml
Approx. 200 ml
2 or 3
1 or 2
Rotation: 0°–10°
Rotation: 0°–30°
*1: The quantity of maintenance cartridges required depends on the capacity of the Maintenance Cartridge in use.
Preparing to Transfer the Printer
Prepare to transfer the printer as follows.
3
Preparing to Transfer the Printer
If consumables must be replaced, the message Consumables must be replaced. Call for service. is
shown on the Display Screen and preparation is not possible. If this message is displayed, press the
OK button and contact your Canon dealer for assistance.
•
1
2
2
3
4
1
5
Remove the Wheeled Output Stacker from the printer
(iPF825 only).
Remove the paper.
Press ▲ or ▼ to select Maintenance , and then press the
► button.
Press ▲ or ▼ to select Move Printer , and then press the
► button.
Press ▲ or ▼ to select the level of transfer, and then
press the OK button.
Press the Menu button to display MAIN MENU .
After the message Always contact service before
preparing to move the printer. is shown on the Display
Screen , press the OK button.
If you have selected Level 1 , after processing in
preparation to move the printer is fi nished, the
message Finished preparing to move printer. Turn
off printer. is shown on the Display Screen . In this
case, follow the instructions in "Pack the printer."
•
When you are fi nished preparing to transfer the printer
after selecting Level 2 or Level 3 conditions, the
Display Screen requests you to open the Ink Tank
Cover . In this case, follow the instructions in "Remove
the ink tanks."
•
Remove paper
Access the menu for moving the printer
Rolls: (→ , Removing the Roll from the Printer)
Sheets: (→
, Removing Sheets)
OK
4
Preparing to Transfer the Printer
Store the Ink Tank you removed in the box with the ink
holes (a) facing up. Otherwise, ink may leak and cause
stains.
•
1
2
3
4
Open the Ink Tank Cover .
Lift the stopper (a) of the Ink Tank Lock Lever (a). Lift the
Ink Tank Lock Lever until it stops, and then push it down
to the front.
Remove the Ink Tank .
Repeat steps 2 and 3 to remove all ink tanks.
Remove the ink tanks
a
A
A
A
A
G
G
B
B
B
a
BK
A
A
M
B
K
GY
Y
M
5
Preparing to Transfer the Printer
Do not remove the Maintenance Cartridge during this process.•
5
6
Push down the release lever (a) as shown as you gently
return all ink tank lock levers to the original position.
Close the Ink Tank Cover .
At this point, ink is drawn out from inside the tubes.
When the process is fi nished, Finished preparing to
move printer. Turn off printer. is displayed.
BK
A
A
M
B
K
GY
Y
M
a
6
Preparing to Transfer the Printer
Turn off the printer before you unplug it. It may damage the printer if you unplug it before it is off and
transfer it in that state. If you accidentally unplug the printer, plug it in again, reinstall the Ink Tank , wait
until the printer comes online, and follow this procedure again.
•
Here, the Belt Stopper is the one that was removed and stored after initial installation. Neglecting to
attach the Belt Stopper may damage the printer.
•
3
2
4
1
Open the Top Cover , grasp the Belt , insert it between the
Belt Stopper , and affi x the Belt Stopper with a hex screw
at the position indicated.
Disconnect the power cord and interface cable. Also
disconnect the power cord of the Roll Unit and Media
Take-up Unit , if your model is equipped with these units.
Close the Top Cover .
Press the Power button and turn off the printer.
Pack the printer
OK
7
Preparing to Transfer the Printer
5
6
7
8
Tape down printer covers to secure them, in the reverse
order of tape removal during installation.
Remove the Stand by reversing the installation procedure,
when it was attached to the printer.
Disassemble and repackage the Stand by following the
installation procedure in reverse.
Repack the Roll Holder , Holder Stopper , and printer in
shipping materials, and then package them in a shipping
box.
The Stand must be assembled by at least two people on a fl at surface. Attempting assembly by yourself poses a
risk of injury or bending the Stand .
•
The iPF815 or iPF825 alone weighs approximately 112 kg. Moving the printer requires at least six people, holding it
on both sides. Be careful to avoid back strain and other injuries.
•
When moving the printer, fi rmly grasp the Carrying Handles (a)
under each side. The printer may be unsteady if you hold it at other
positions, which poses a risk of injury from dropping the printer.
•
When assembling the Stand , lock the casters. In addition, always unlock the casters before moving the assembled
Stand . Attempting to move the stand when the casters are locked poses a risk of injury or damage to the location
site.
•
8

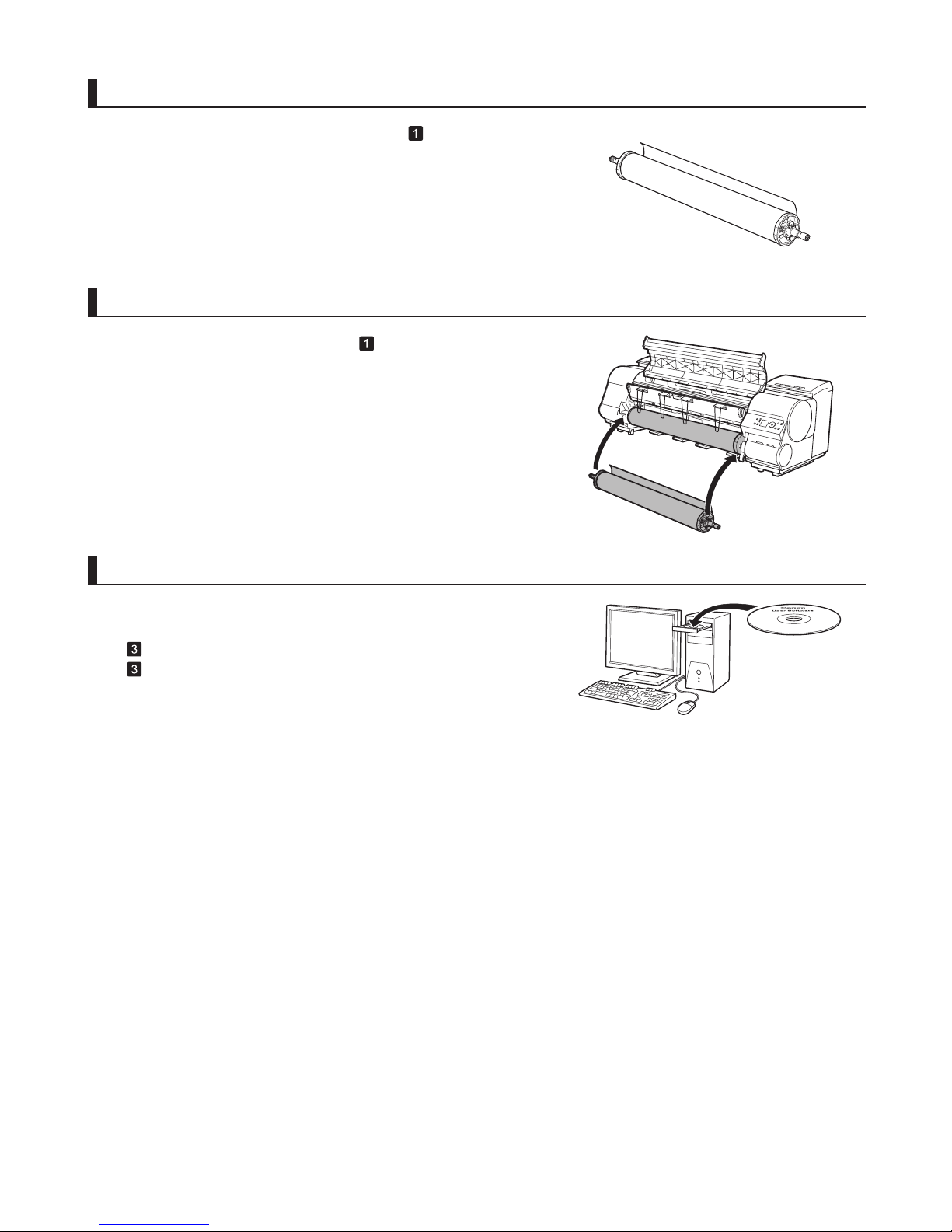

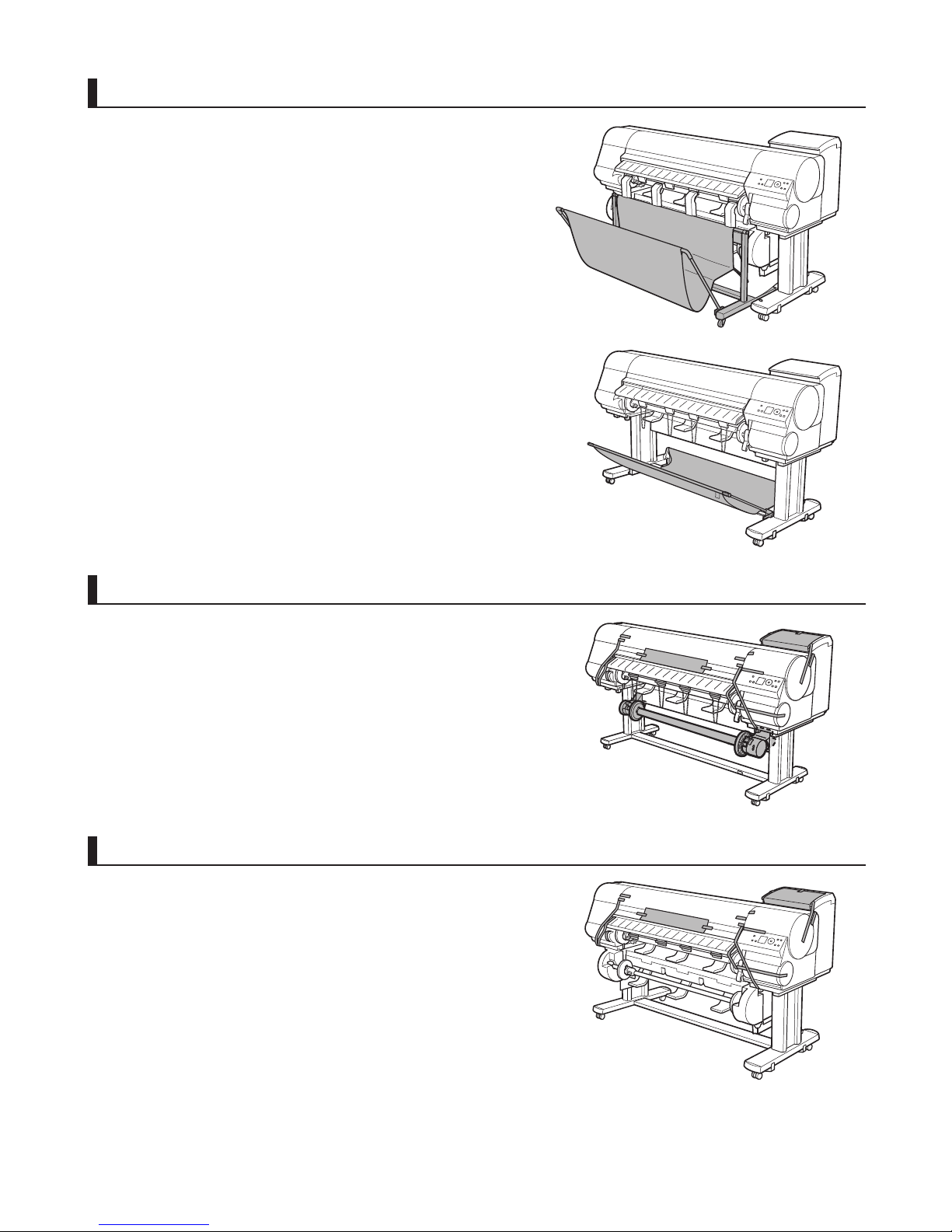

Reinstalling the Printer
The basic workfl ow for reinstalling the printer is as follows.
For detailed instructions, see the Setup Guide .
Install the printer
Referring to the Printer Stand Setup Guide , assemble the Stand .
Mount the printer on the assembled Stand and tighten the screws
fi rmly.
For the iPF825 , mount the Roll Unit on the Stand .
Assemble the stand
a
