Canon EOS 620, EOS 650 User Manual
Canon EOS 620 - 650 camera manual
Canon EOS 620-650
Camera Manual
TO FIRST PART OF MANUAL - TO SECOND PART OF MANUAL
CLICK HERE TO SEE THE "EF LENS LINEUP"
Interchangeable Focusing Screens The Overall New Laser-Matte/AF Frame screen comes
with your camera. You can change the focusing screen according to specific focusing needs
with six different focusing screens available optionally.
file:///D|/copy_topcities/chinon/canon_620-650/canon_eos_620-650-3.htm (1 of 15)1/9/2005 1:18:39 PM
Canon EOS 620 - 650 camera manual
Quartz Date Back E Technical Back E / Interface Unit TB / Keyboard Unit E
The Quartz Date Back E is a fully automatic data back which imprints data on the film.
1. Auto date up through the year 2029. (automatic compensation for leap years and long/
short months)
2. Auto digital clock mode (Day/Hour/Minutes) with 24 hour display.
3. Arbitrary 6-digit numbers
4. Frame counter number from Fc 0001 through 9999.
As the name "Technical" suggests, the Technical Back E not only imprints the data and
arbitrary comments (up to 30 digits) on film but memorizes shooting data such as shutter
speed, aperture value, lens focal length and film speed.
file:///D|/copy_topcities/chinon/canon_620-650/canon_eos_620-650-3.htm (2 of 15)1/9/2005 1:18:39 PM
Canon EOS 620 - 650 camera manual
· When the Technical Back E is connected to a personal computer through the Interface Unit
TB, it is also possible to command the camera from a computer, etc. (The Interface Unit TB
is sold in both MSX and IBM computer models, but product availability may vary from area
to area.)
· With the Keyboard Unit E, comments can be imprinted in English, French, German and
Spanish.
Dioptric Adjustment Lenses / Circular Polarizing Filters PL-C / Interchangeable
Grips
Ten eyesight correction lenses are available in powers of +3, +2, +1.5, +1, +0.5,0, - 0.5, 2, - 3 and -4 diopters. They make viewing and focusing easier if you are near or far-sighted.
Choose the one which is closest to your eyeglass prescription, and make a practical test if
possible.
· The dioptric adjustment lens consists of a correction lens and removable rubber frame
(eyecup). With the frame removed, the correction lens can be attached to the A-series and T
series cameras.
AF photography is possible with the Canon Circular Polarizing Filters PL-C. These are screwin types available in three thread diameters: 52mm, 58mm and 72mm.
You can replace the palm grip according to your hand size.
Three types are available:
1. Grip GR30: Standard with the EOS 650. Has no remote control terminal.
2. Grip GR20: Standard with the EOS 620. The same size as Grip GR30 but equipped with a
remote control terminal.
3. Grip GR10 (Grip L): The large size grip for bigger hands. Has no remote control terminal.
Caring for Your Camera
As with any precision instrument proper care and maintenance involve a few simple rules
and good common sense. Observing them will keep your camera in top condition at all
times. We recommend cleaning your camera periodically.
Cleaning tools: blower brush, lens cleaning fluid, lens cleaning tissue, silicone treated cloth
1) To clean the lens surface and the viewfinder eyepiece:
Blow off dust with the blower brush and gently wipe the lens surface with a lens cleaning
file:///D|/copy_topcities/chinon/canon_620-650/canon_eos_620-650-3.htm (3 of 15)1/9/2005 1:18:39 PM
Canon EOS 620 - 650 camera manual
tissue slightly moistened with lens cleaner.
2) To clean the reflecting mirror and the focusing screen:
Only use a blower brush. If more cleaning is necessary NEVER attempt to do it yourself, take
it to an authorized Canon Service Facility.
3) To clean the film chamber:
Use a blower brush to occasionally remove accumulated film dust particles that might
scratch the film.
4) To clean the film pressure plate and the film guide rails:
Lightly wipe the surface with a lens cleaning tissue moistened with lens cleaning fluid.
PRECAUTIONS
· Be careful NEVER to touch the shutter curtain.
· After using the camera at the beach, clean it thoroughly Salt and sand are the camera's
worst enemies.
· Aerosol spray dust removers are not recommended for the shutter curtain area. If used,
hold the can at least 20cm (8 inches) away from the curtain.
STORAGE
The best thing you can do for your camera is to use it regularly. If you must store it for
awhile remove the battery. Then wrap the camera in a clean, soft cloth and place it in a cool,
dry, dust-free place. If you store the camera body and lens separately, attach the body and
rear lens caps.
AVOID STORING YOUR CAMERA IN THE FOLLOWING PLACES:
· "Hot spots" such as a car trunk, rear window shelf or glove compartment.
· Laboratories or other areas where chemicals may cause corrosion.
· In direct sunlight.
Carefully check the operation of each part after prolonged storage before shooting important
events.
Other Notes
1. Liquid Crystal Display

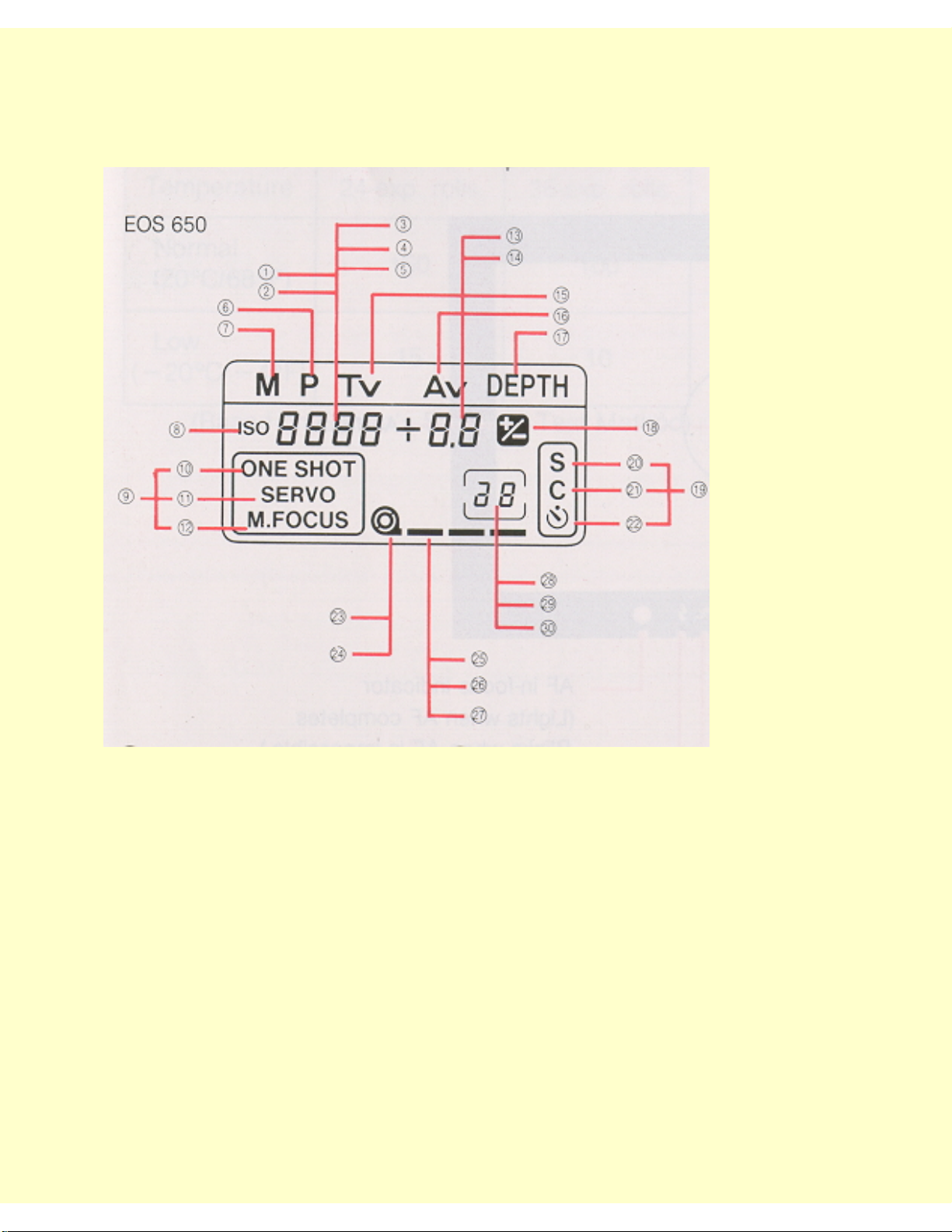

The display panel uses a liquid crystal to display exposure information. After about five
years, the display may become hard to read.
The liquid crystal may respond relatively slow in low temperatures about 0°C/32°F and the
display may become dark in high temperatures about 60°C/140°F. Regular functioning
resumes in temperatures about 20°C/68°F.
Take your camera to the nearest Canon Service Facility for the replacement of the liquid
crystal. (Replacement will be at owner's expense.)
2. Blinking "bc"
Display
A "bc" appearing with battery check bar marks may blink in the display panel to warn you of
battery replacement or camera malfunction. Perform the following operations:
1) Check the battery first.
2) If battery voltage is insufficient, replace the battery.
file:///D|/copy_topcities/chinon/canon_620-650/canon_eos_620-650-3.htm (4 of 15)1/9/2005 1:18:39 PM
