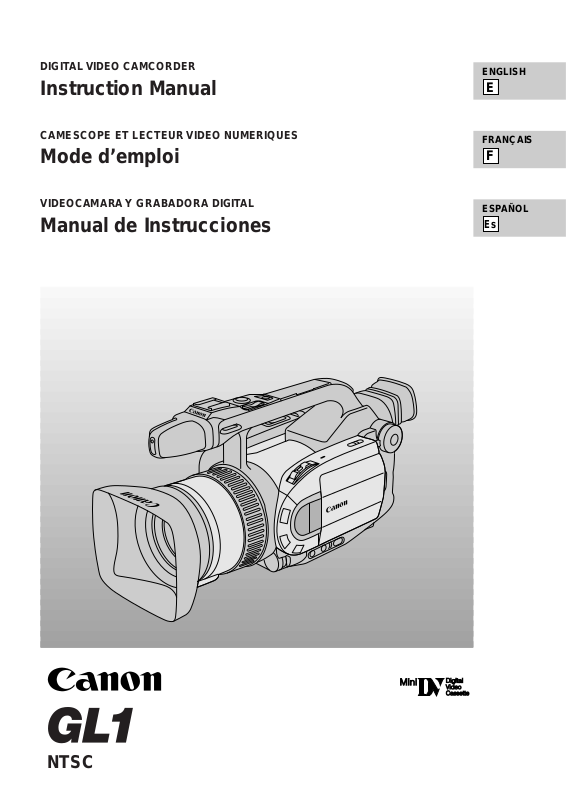

DIGIT AL VIDEO CAMCORDER

Instruction Manual

CAMESCOPE ET LECTEUR VIDEO NUMERIQUES

Mode d’emploi

VIDEOCAMARA Y GRABADORA DIGITAL

Manual de Instrucciones

ENGLISH

FRANÇAIS

ESPAÑOL

Mini

igital Video Cassette

NTSC

Introduction

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

Important Usage Instructions

Digital Video Camcorder, DM-GL1 and Compact Power Adapter, CA-910A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and use in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.

Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Canon U.S.A. Inc. One Canon Plaza, Lake Success, NY 11042, U.S.A. Tel No. (516)328-5600

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK AND TO REDUCE ANNOYING INTERFERENCE, USE THE RECOMMENDED ACCESSORIES ONLY.

Unauthorized recording of copyrighted materials may infringe on the rights of copyright owners and be contrary to copyright laws.

Important Warning

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure, that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point, within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Introduction

IMPORTANT SAFETY INSTRUCTIONS

In these safety instructions the word “product” refers to the Canon Digital Video Camcorder DM-GL1A and all its accessories.

1. Read Instructions — All the safety and operating instructions should be read before the product is operated.

2. Retain Instructions — The safety and operating instructions should be retained for future reference.

3. Heed Warnings — All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions — All operating and maintenance instructions should be followed.

5. Cleaning — Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. The product should be cleaned only as recommended in this manual.

6. Accessories — Do not use accessories not recommended in this manual as they may be hazardous.

7. Avoid magnetic or electric fields — Do not use the camera close to TV transmitters, portable communication devices or other sources of electric or magnetic radiation. They may cause picture interference, or permanently damage the camera.

8. Water and Moisture — Hazard of electric shock — Do not use this product near water or in rainy/moist situations.

9. Placing or Moving — Do not place on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10. Power Sources — The CA-910A Compact Power Adapter should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. Regarding other power sources such as battery power, refer to instructions in this manual.

11. Polarization — The CA-910A Compact Power Adapter is equipped with a polarized 2-prong plug (a plug having one blade wider than the other). The 2-prong polarized plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still fails to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12. Power Cord Protection — Power cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to plugs and the point from which the cords exit the product.

13. Outdoor Antenna Grounding — If an outside antenna is connected to the product, be sure the antenna is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No. 70—1984, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See figure 1.

14. Lightning — For added protection of this product during a lightning storm, or when it is left unattended and unused for long periods of time, disconnect it from the wall outlet and disconnect the antenna. This will prevent damage to the product due to lightning and power-line surges.

15. Power Lines — An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16. Overloading — Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17. Objects and Liquid Entry — Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Be careful not to spill liquid of any kind onto the product.

18. Servicing — Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250. PART H)

NEC - NATIONAL ELECTRICAL CODE

ELECTRIC SERVICE EQUIPMENT

GROUND CLAMP

Fig. 1

Introduction

19. Damage Requiring Service — Disconnect this product from the wall outlet and all power sources including battery, and refer servicing to qualified service personnel under the following conditions: a. When the power-supply cord or plug is damaged. b. If any liquid has been spilled onto, or objects have

fallen into, the product. c. If the product has been exposed to rain or water. d. If the product does not operate normally even if

you follow the operating instructions. Adjust only

those controls that are covered by the operation

instructions. Improper adjustment of other controls

may result in damage and will often require

extensive work by a qualified technician to restore

the product to its normal operation. e. If the product has been dropped or the cabinet

has been damaged. f. When the product exhibits a distinct change in

performance. This indicates a need for service.

20. Replacement Parts — When replacement parts are required, be sure the service technician has used replacement parts that are specified by Canon or that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

21. Safety Check — Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in safe operating order.

“Note to CATV system installer: This reminder is provided to call the CATV system installer ’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical”.

Introduction

Important Usage Instructions ................................2

IMPORTANT SAFETY INSTRUCTIONS ..........3

Thank you for Choosing a Canon..........................6

Introducing the GL1 ..............................................7

Finding Your Way Around the GL1 ......................8

The GL1 System Diagram ..................................12

Optional Accessories............................................13

Attaching the Lens Hood ....................................15

Powering the GL1................................................16

Loading a Cassette ..............................................19

Basic Recording ..................................................21

Zooming ..............................................................24

Using the LCD Screen ........................................25

Playing Back a Cassette ......................................28

Connections for Playback on a TV Screen ..........30

Tips for Making Better Videos ............................31

~ General ... ~

Turning the Optical Image Stabilizer Off............33

Selecting from the Menus....................................34

Using the Wireless Controller/Tally Lamp ..........36

~ For Recording ...~

Setting the Date and Time....................................39

Using the ND Filter..............................................42

Taking Still Pictures (Photo Mode)......................43

Using a Canon Speedlite for Flash

Photography (optional) ......................................45

Choosing the Movie Mode (Normal/Frame) ......46

Searching and Reviewing While Recording........47

Using the Various Recording Programs ..............48

Using Digital Effects............................................51

Audio Recording..................................................53

Setting the Self-Timer..........................................54

~ When Making Manual Adjustments ...~

Manual Exposure Adjustment..............................55

Adjusting the Focus ............................................58

Using AE Shift ....................................................59

Adjusting Camera Sharpness ..............................60

Adjusting Color Phase ........................................61

Using the Zebra Pattern........................................62

Adjusting the White Balance ..............................63

~ For Playback ...~

Displaying Data Code..........................................65

Searching the Tape (Photo Search/

Date Search) ......................................................67

Returning to a Pre-Marked Position ....................68

The Dubbing Function ........................................69

Using the Dubbing Function for the

First Time ..........................................................70

Cut-In and Cut-Out Adjustments ........................73

Simple Editing to a VCR ....................................74

Dubbing with Digital Video Equipment ..............75

Recording from a VCR, TV or Other

Camcorder (Analog Line-in) ............................76

Recording Over Existing Scenes

(A/V Insert Editing) ..........................................78

Audio Dubbing ....................................................80

Preparing the Camera ..........................................82

Notes on Using the Batteries................................83

Setting the Audio Mix..........................................86

Camera Holding Styles ........................................88

Maintenance ........................................................89

Troubleshooting....................................................92

Screen Displays....................................................95

Specifications ......................................................99

Index ..................................................................100

Contents

Introduction

Editing

Using the Full Range of Features

Quick Overview

Additional Information

The serial number of this product may be found on the bottom of the camera. No others have the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft.

Date of Purchase Dealer Purchased From Dealer Address Dealer Phone No. Model Name GL1 Serial No.

Introduction

Thank you for Choosing a Canon

Your camcorder is supplied with the following accessories:

WL-D73 Wireless Controller Two AA batteries

SS-650 Shoulder Strap

DC-905 DC Coupler S-150 S-video Cable

STV-250N

Stereo Video Cable

CA-910 Compact Power Adapter

BP-915 Battery Pack

Lens cap (Attached to camera)

First, we’d like to thank you for purchasing this Canon camcorder. Its advanced technology makes it very easy to use — you will soon be making high-quality videos which will give you pleasure for years to come.

To get the most out of your new camcorder, we recommend that you read this manual thoroughly — there are many sophisticated features which will add to your recording enjoyment.

Getting started

To get started we suggest that you master the basic operations of the camcorder first, before moving on to use its full range of features.

For quick reference (in addition to the contents and index) please refer to:

• Finding Your Way Around the GL1 (p. 8)

• Screen Displays (p. 95)

• Troubleshooting — in case you run into any problems (p. 92)

Note that capital letters are used to refer to settings displayed in the menus and buttons labeled on the camcorder itself e.g. Press the MENU button. The camera’s short operation confirmation beeps are indicated by ` in the illustrations. Beeps sound to confirm your operations, e.g. Turn the standby lever to STANDBY (p. 21).

DVM-E30 Digital Video Cassette

Lens hood

Quick Overview

Introducing the GL1

Digital Video Manual Control

Frame Movie Mode

L Series Fluorite 20× (100× Digital)

Zoom Lens

GL1 conforms to the new digital video D standard to give you outstanding picture quality. It is fitted with a DV terminal for digital-to-digital dubbing (IEEE 1394 standard).

From wide-angle to 20× telephoto — with unparalleled optical quality. The digital zoom magnifies this by five times for even more dramatic results. Fluorite incorporated into the lens produces images with high-contrast, true-to-life color.

3 CCD System with Pixel Shift Technology

Superb picture quality results from using a larger light capturing area for each pixel (and fewer pixels) to give higher sensitivity, higher SN ratio and a greater dynamic range, and then horizontally shifting the green CCD to ensure high image resolution. In addition, you can get stunningly clear still pictures from video action.

During playback, pause the video any time you like to view a crystal clear still image in the display or on a connected TV screen. It is also possible to transfer your favorite still pictures to a PC for image enhancement and printout.

Optical Image Stabilizer

Canon’s optical technology stabilizes your recordings even in long telephoto shots.

2.5” LCD Screen

An LCD screen makes it easy for you to shoot colorful, well composed video. It is also great for playback.

Choose to operate the GL1 using the Manual recording program to access the complete set of manual functions, for exceptional creative freedom.

Dubbing Function

The GL1’s dubbing function directly controls your VCR, allowing you to dub at the touch of a button.

Audio Dubbing/A/V Insert Editing

Add new sound to original sound, or replace original sound and images on a prerecorded tape.

GL1 is equipped with a DV terminal that conforms to IEEE 1394. By connecting the GL1 to your computer, you can capture still or motion images on your computer (commercially available IEEE 1394 computer interface board required).

DV terminal (IEEE 1394)

PCM Digital Sound

Analog Line-in Recording

Connect to a VCR or analog camcorder and record onto a DV tape in the GL1.

Offers you stunning digital sound — 16-bit for highest quality sound, and 12-bit for audio dubbing.

Advanced digital technology allows you to add special effects to your videos.

Digital Effects

Quick Overview

Finding Your Way Around the GL1

Program selector (p. 48)

BATTERY RELEASE button (p. 16)

Infra-red signals transmitter (p. 69)

MENU button (p. 35)

Menu dial (p. 35)

VOLUME buttons (p. 27)

LCD BRIGHT buttons (p. 26)

DISPLAY/DATA CODE button (p. 23, 65, 95)

Self timer button (p. 54)

RESET button (p. 94)

Speaker (p. 27)

LCD screen (p. 25) LCD panel open button (p. 25)

Program selector

Easy Recording Auto

Manual Sand & Snow Spotlight

Shutter-Priority Aperture-Priority

Viewfinder (p. 82)

FF button (p. 28)

REW button (p. 28)

PLAY button (p. 28)

PAUSE button (p. 28)

STOP button (p. 28)

REC button (p. 75, 77)

Image stabilizer button (p. 33)

Power source attachment unit (p. 16)

Quick Overview

IN/OUT

IN/ OUT

A/V

LOCK lever (p. 88)

Lens hood locking screw (p. 15)

MOVIE MODE switch (p. 46)

Zoom control (p. 24)

PHOTO button (p. 43)

Strap attachment bar (p. 82)

DV terminal (p. 75)

Audio/video terminal (p. 30)

S-video terminal (p. 30)

DC 5V terminal

MIC terminal (p. 31, 80)

Grip belt (p. 82)

Cassette compartment cover (p. 19)

Cassette compartment (p. 19)

OPEN button (p. 19)

Standby lever (p. 21)

Stereo microphone (p. 80)

REMOTE terminal (p. 74)

(headphone) terminal (p. 27)

Viewfinder focusing lever (p. 82)

Carrying handle

Start/stop button (p. 21)

Focus ring (p. 58)

EJECT button (p. 19)

Quick Overview

Tripod socket (p. 31)

Lens hood (p. 15)

START/STOP button (p. 21)

Zoom control (p. 24)

PHOTO button (p. 43)

POWER switch (p. 21, 28)

REC SEARCH button (p. 47)

ND FILTER button (p. 42)

FOCUS A/M button (p. 58)

EXPOSURE dial (p. 55)

D.E. (digital effects) ON/OFF button (p. 52)

WHITE BALANCE SELECT button (p. 63)

Accessory shoe (p. 45)

Tally lamp (p. 38)

Remote sensor (p. 36)

Power indicator (p. 28)

Strap attachment bar (p. 82)

WHITE BALANCE set button (p. 63)

Record review button (p. 47) – REC SEARCH button (p. 47)

Quick Overview

REW

PLAY

START /STOP

SELF

TIMER


SCREEN

DATA CODE

AUDIO

MONITOR

REC

PAUSE

SELECT

ZERO SET MEMORY

AUDIO

DUB.

STOP

MIX

BALANCE

ST-1

ST-2

SET

ZOOM

A/V

INSERT

PAUSE

SLOW

REMOTE SET

–/

WIRELESS CONTROLLER WL-D73

× 2 button (p. 29)

START/STOP button (p. 21)

MENU button (p. 35)

PHOTO button (p. 43)

TV SCREEN button (p. 35, 95)

SELF TIMER button (p. 54)

DATA CODE button (p. 65, 95)

REC PAUSE button (p. 75) ZERO SET MEMORY button

(p. 68)

Transmitter

Zoom buttons (p. 24)

SET button (p. 35)

MIX BALANCE buttons (p. 86)

Controller buttons (p. 35)

Search buttons (p. 67) SEARCH SELECT button (p. 67)

AUDIO MONITOR button (p. 86)

AUDIO DUB. button (p. 81)

A/V INSERT button (p. 79)

REMOTE SET button (p. 37)

button (p. 29)

button (p. 29) PAUSE button (p. 28)

FF button (p. 28)

REW button (p. 28)

SLOW button (p. 29)

STOP button (p. 28)

PLAY button (p. 28)

Quick Overview

The GL1 System Diagram (Availability differs from area to area)

WL-D73 Wireless Controller

MiniDV Video Cassette

VCR

VL-10Li Battery Video Light

S-150 S-video Cable

STV-250N Stereo Video Cable

CV-150F DV Cable

Digital Device

FR-100 Floppy Disk Still Image Recorder

CB-900 Car Battery Adapter

CA-910 Compact Power Adapter

CH-910 Dual Battery Charger/Holder (Available soon)

DC-905 DC Coupler

SS-650 Shoulder Strap

BP-900 Series Battery Pack

HC-4000 System Case

Video Head Cleaning Cassette

WD-58 Wide-converter (Available soon)

220EX Speedlite

380EX Speedlite

550EX Speedlite

BP-900 Series Battery Pack

Stereo Microphone (Available commercially)

MB-100 Microphone Boom

Call or visit your local retailer/dealer for genuine Canon video accessories. You can also obtain genuine accessories for your Canon camcorder by calling 1-800-828-4040, Canon U.S.A. Information Center.

Battery pack Maximum recording Time required for

using viewfinder using LCD screen full charge BP-914 (optional) 1 hr. 55 min. 2 hrs. 10 min. BP-915 (supplied) 1 hr. 5 min. 1 hr. 2 hrs. 10 min. BP-930 (optional) 2 hrs. 15 min. 2 hrs. 10 min. 3 hrs. 30 min. BP-930R (optional) 2 hrs. 10 min. 2 hrs. 5 min. 3 hrs. 20 min. BP-941 (optional) 3 hrs. 5 min. 2 hrs. 55 min. 4 hrs. 10 min.

Quick Overview

Optional Accessories

CB-900 Car Battery Adapter

Power your camera, or recharge battery packs on the move. The car battery adapter plugs into your car’s cigarette lighter socket and runs off a 12–24 V DC negative ground battery.

When you attach two battery packs to the CH-910 Dual Battery Charger/Holder, the maximum recording time will be almost doubled.

Battery pack Playback time (using the LCD screen)

BP-914 1 hr. 25 min. BP-915 1 hr. 35 min. BP-930 3 hrs. 10 min. BP-930R 2 hrs. 55 min. BP-941 4 hrs. 15 min.

These figures show how long you can view playback with the LCD, after attaching a fully-charged battery pack. Playback time will be shortened at low temperatures.

WD-58 Wide-converter

This lens decreases focal length by a factor of 0.7, giving you a wide perspective for indoor shots or panoramic views.

• There may be some vignetting at the extreme wide angle position.

FR-100 Floppy Disk Still Image Recorder

Connects to the GL1 or any Canon camcorder with a DV terminal and records still images onto a floppy disk in one of three resolution choices. Images from the disk can then be transferred to a computer. Available: Winter 1999

Battery Packs

Extra batteries for use with the GL1. When you use the optional BP-930R (without the CH-910 Dual Battery Charger/Holder), the remaining time indicator appears, showing you how many minutes you can continue to record before the battery is exhausted (see p. 83).

Quick Overview

VL-10Li Battery Video Light

This compact yet powerful video light can be used for both indoor and outdoor shooting.

• Lithium ion battery packs can be used to power the light. Approximate usage times are as follows: BP-914 50 min. BP-915 1 hr. BP-941 2 hrs. 40 min. BP-930 2 hrs. BP-930R 2 hrs.

220EX Speedlite 380EX Speedlite 550EX Speedlite

Attach to the GL1 to give SLR-style flash photography.

CH-910 Dual Battery Charger/ Holder

This holds two battery packs and can charge them both consectively. It can then be connected directly to the GL1 to give twice the playback time. It can also make use of the high performance battery pack BP-941, to give up to 6 hrs. recording time.

220EX

380EX

550EX

This mark identifies genuine Canon video accessories. When you use Canon video equipment, we recommend Canon-brand accessories or products bearing the same mark.

Provided accessories:

WL-D73 Wireless Controller D83-0532-000 CA-910 Compact Power Adapter D85-1022-201 DC-905 DC Coupler D85-1170-201 BP-915 Battery Pack D85-0952-201 SS-650 Shoulder Strap D81-1350-000 S-150 S-video Cable D82-0330-202 STV-250N Stereo Video Cable D82-0590-201 Lens Hood D52-0110-000 Lens Cap DG1-3740-000

Optional accessories:

FR-100 Floppy Disk Still Image

Recorder D89-0732-002 CB-900 Car Battery Adapter D85-0502-201 CH-910 Dual Battery Charger/

Holder D85-1072-002 HC-4000 System Case D81-1360-000 VL-10Li Battery Video Light D86-0081-201 MB-100 Microphone Boom D89-0200-202 JR7.2V 10WF Halogen Bulb DY4-4530-000 220EX Speedlite (Flash Unit) C50-0741-201 380EX Speedlite (Flash Unit) C50-0721-201 550EX Speedlite (Flash Unit) C50-0731-011 DVM-CL DV Cleaning Cassette D36-0032-201

HC-4000 System Case

A solid, lockable case that provides safe and stylish protection for the camera during transportation and storage.

Quick Overview

1. Remove the lens cap.

• When you purchase the GL1, the lens cap cord is attached in the middle of the velcro grip belt. Open the velcro and slide the lens cap cord to the position shown in the illustration.

2. Align the hood to the lens with the Canon logo facing to the left.

3. Twist it into position (clockwise), so that the Canon logo is to the top.

• You do not need to assert any pressure — screw the hood lightly into place.

4. Finally, tighten the locking screw.

• To remove, reverse the above procedure.

Since the lens hood cuts stray light that may cause flare and ghost images and protects the lens, be sure to attach the hood when you are recording.

Attaching the Lens Hood

Quick Overview

Powering the GL1

Before operating your camera, you will need to use the power adapter to:

provide power from an AC outlet

charge a battery pack

Notes:

• The power adapter converts current from a household power socket (100–240 V AC, 50–60 Hz) to the DC current used by your camera.

• If the adapter is used next to a TV, it may cause the TV to emit noise — move the adapter away from the TV or the antenna cable.

Connecting the camera to an AC outlet

Use the power adapter and the DC coupler to provide your camera with instant power from an AC outlet.

1. Attach the DC coupler to the camera.

• Extend the viewfinder and rotate it upwards.

• Align the edge of the DC coupler with the line on the camera.

• Slide the coupler down in the direction of the arrow, until it clicks into place.

2. Connect the DC coupler to the adapter.

3. Plug the adapter into an AC outlet.

4. Detach the DC coupler after use.

• Press and hold the BATTERY RELEASE button, while you slide the coupler up.

• Always turn the camera off and raise the viewfinder before removing the power source.

Quick Overview

Charging and attaching the battery pack

Your battery pack was partially charged before it left the factory. It should have enough power for you to check that your camera is working properly. However, you must charge the battery pack fully if you want it to power the camera for more than a few minutes.

1. Attach the battery pack to the power adapter.

• Make sure the DC coupler is not connected.

• Align the triangle on the battery pack with the line on the power adapter.

• Slide the battery across until it clicks into place.

2. Plug the adapter into an AC outlet.

• The charge indicator flashes red to show that charging is in progress. Single flashes mean that the battery pack is less than 50% charged. Double flashes mean that it is between 50% and 75% charged. Triple flashes mean that it is more than 75% charged.

• The indicator glows steadily when the battery pack is fully charged.

3. Take the battery pack off the adapter and attach it to the camera.

• Extend the viewfinder and rotate it upwards.

• Align the triangle on the battery pack with the line on the camcorder, then slide the battery in the direction of the arrow until it clicks into place.

4. Remove the battery pack after use.

• Press and hold the BATTERY RELEASE button, while you slide the battery up.

• Always turn the camera off and raise the viewfinder before removing the power source.

Notes:

• You can find detailed notes for using the batteries in the “Notes on Using the Batteries” on p. 83. These notes include charging and recording times and how to charge the backup battery.

• Using the optional CH-910 Dual Battery Charger/Holder you can power the camera from two battery packs for longer continuous recording. You can exchange the battery packs independently without cutting the power to the camcorder. In addition, the CH-910 can charge two batteries consecutively when it is connected to an AC outlet.

Specifications

Power supply 100–240 VAC, 50–60 Hz Power consumption 16 W Rated output Adapter mode: 6.0 V, 1.7 ADC

Charger mode: 8.4 V, 1.2 ADC

Operating temperature range 32°F–104°F (0°C–40°C) Dimensions 2 1/2 × 5 × 1 3/4 in (63 × 127.5 × 43 mm)

Weight 10 7/8 oz (310 g)

Weight and dimensions are approximate. Errors and omissions excepted. Subject to change without notice.

Quick Overview

CA-910 Compact Power Adapter

When replacement or repair of any product including power supply is required, please return it to the nearest authorized Canon Service Center and have it repaired or replaced with the same number product or equivalent.

Quick Overview

Loading a Cassette

PUSH

CLOSE THIS FIRST.

EJECT

OPEN

PUSH

CLOSE THIS FIRST.

Only use videocassettes marked with the D logo.*

Loading and unloading

1. Make sure that you have attached a power source.

2. Slide the OPEN button across to release the cover.

• Pull the cover fully open (while holding the button in the OPEN position).

3. Press the EJECT5button and wait for the cassette compartment to open.

• The confirmation beep sounds.

4. Load or unload the cassette.

• Insert the cassette gently with the window facing out and the REC/SAVE tab to the top.

• Remove the cassette by pulling it straight out.

5. Press the P mark on the compartment until it clicks.

6. Click the cover back into place.

* D is a trade mark.

Notes:

• After loading a cassette, use record search (p. 47) to find the point where you want to start recording.

• Do not interfere with the cassette compartment while it is opening or closing, or attempt to close the cover.

• Be careful not to get your fingers caught in the cassette compartment cover.

• Do not leave the cassette in the camera after use — return it to its case and store it in a cool, clean, dry place.

• When a cassette is not loaded, v flashes in the display.

• With some types of tapes, the remaining tape display may not give an accurate reading (p. 95).

Quick Overview

Protecting tapes from accidental erasure

Handling cassettes

Cassette memory

To protect your recording from accidental erasure, slide the tab on the cassette so that it exposes the hole and the red mark. (This switch position is usually labeled SAVE or ERASE OFF.) If you load this cassette and put the camera in record pause mode (p. 21), “THE TAPE IS SET FOR ERASURE PREVENTION” is displayed for approx. 4 seconds and then the v mark flashes in the display. The camera also shows the above phrase if you accidentally press the 2 (record) button with the camera switched to VCR mode. If you want to record on the cassette again, slide the tab back so the hole is closed.

• To protect the tape heads, transfer cassettes directly from the tape case to the camcorder — do not open the tape protect cover or touch the tape itself.

• Do not use cassettes where the tape has been damaged or spliced — they may damage the camcorder.

• Do not insert anything into the small holes on the cassette or cover them with cellophane tape.

• Handle cassettes with care — dropping them or exposing them to external shocks may cause internal damage.

• Store cassettes in the provided case, rewinding them to the start of the tape first, and then storing them upright.

• A cassette with metal plated terminals may become dirty with use, affecting information transfer. Therefore, after using a tape around ten times, be sure to clean the terminals with a cotton swab.

You are unable to use the cassette memory function with this camcorder.

REC

SAVE

REC

SAVE

Quick Overview

Before you start recording

To record

Basic Recording

POWER

OFF

VCR

CAMERA

STANDBY LOCK

START

/STOP

• Attach a power source (p. 16).

• Load a cassette (p. 19).

• Fasten the grip belt (p. 82).

• Attach the lens hood (p. 15).

• Choose the display: viewfinder (p. 82) or LCD screen (p. 25).

• Adjust the viewfinder or the LCD screen.

You may also want to charge the backup battery (p. 84) in order to set the date and time display (p. 39). To set the movie mode, refer to p. 46.

1. Press down and slide the POWER switch to CAMERA.

2. Turn the standby lever to STANDBY.

• The confirmation beep sounds.

• The camera power indicator lights up red and PAUSE appears in the display — the camera is now in “record pause mode”.

• The camera will turn itself off if you leave it in record pause mode for more than about five minutes. To return to record pause mode, turn the standby lever to LOCK and back to STANDBY, or slide the POWER switch off and back on.

3. Turn the program selector to [ Easy Recording mode.

• This selects the camera’s Easy Recording program. It allows you to simply point and shoot without making any manual adjustments (see p. 48).

4. Press the start/stop button to begin recording.

• There are two start/stop buttons, to give you control from both gripping positions.

• The tally lamp flashes rapidly and REC appears in the display.

5. Press the start/stop button again to pause recording.

• The camera returns to record pause mode and PAUSE reappears in the display.

• You can stop and restart recording as often as you like by pressing the start/stop button.

Using the STANDBY lever

As long as the POWER switch is set to CAMERA, you can use the STANDBY lever to turn the camera on and off. This makes it easy to save battery power, and prevents accidental operation of the start/stop button. Turn the STANDBY lever to LOCK and back to STANDBY to enter/leave standby mode.

Quick Overview

You can record and play back a tape in SP (standard play) and LP (long play) modes. LP extends tape usage by 1.5 times. To switch to LP mode, select REC MODE from the camera or VCR menu, select LP and then close the menu (for instructions on how to use the menus, refer to page 35).

When you have finished recording

Changing the recording mode (SP/LP)

• Close the LCD panel.

• Unload the cassette.

• Turn the standby lever to LOCK.

• Slide the POWER switch to OFF.

• Disconnect the power source. (If you have used the viewfinder, return it to its lowered and retracted position.)

Notes:

• To check that the camera is recording correctly, make a test recording first.

• Before making important recordings, clean the video heads using a Canon DVM-CL Digital Video Head Cleaning Cassette or a commercially available digital video head cleaning cassette.

• To close the LCD panel, rotate it vertically until the screen faces you, then push it in flat against the side of the camera.

• You cannot monitor the sound from the speaker when recording.

• For tips on how to make better videos, see page 31.

• For extra recording time, set REC MODE in the camera menu to LP.

• The flashing of the tally lamp may be reflected into the lens during close-up recording, or when recording through glass. You may therefore decide to turn it off (p. 38).

REC MODE¥¥¥¥SP

(see p. 34)

Notes:

• When recording and playing back tapes in LP mode, the nature of the tape and usage conditions may affect recording, mosaic-like noise may appear in the image and the sound may be distorted during playback of tapes recorded in LP mode. For important recordings, therefore, set the camera to SP mode.

• If you record in both modes on the same tape, the picture may become distorted during playback and the time code may not be written correctly.

• When the camera is set to LP mode, pausing between recordings may produce mosaic-like noise.

• A tape recorded in LP mode on another camcorder may produce mosaic-like noise when played back on this camcorder, and vice versa.

You can’t add sound (audio dubbing) or images (A/V insert) to a tape that has been recorded in LP mode. If you plan to use either of these functions later, record in SP mode.

You can show/hide non-essential camera recording displays by pressing the DISPLAY/DATA CODE button. You cannot hide the following:

• Recording displays (REC, PAUSE etc.)

• Remaining battery power, flash information display

• Caution phrases (“CONDENSATION HAS BEEN DETECTED,” etc.)

To see a demonstration of the camera’s main features, before loading the cassette, go to the DEMO MODE option in the camera menu. Select the ON setting and close the menu. The demo also starts automatically if the power has been on for 5 minutes without a cassette loaded into the cassette compartment. (You can avoid this by turning the DEMO MODE to OFF through the camera menu.) To cancel the demo mode once it has begun: press a camera operation button such as the menu button or the zoom control, turn off the power, or load a cassette.

Quick Overview

Confirmation/Warning beeps

The camera’s short operation confirmation beeps are indicated by ` in the illustrations. One beep sounds when you turn the power on. Aseries of beeps also sound during the self-timer countdown, right before the camera’s automatic shut-off and upon any unusual condition of the camera. Beeps are not recorded on the tape. You can turn them OFF through the menu.

BEEP¥¥¥¥¥¥¥¥ON

(see p. 34)

Microphone attenuator

Use the microphone attenuator if during recording or audio dubbing you need to lower the volume level or correct audio distortion of the input audio. Monitor the level of the input sound with headphones and if necessary, turn the attenuator on through the camera or VCR menu by selecting MIC ATT and setting it to ON.

Turning the camera recording displays ON/OFF

DISPLAY

/DATA CODE

Demonstration mode

DEMO MODE¥¥¥ON

(see p. 34)

Even if you have the displays hidden, all displays will appear for 4 seconds if you operate any of the recording functions. All displays will appear for 8 seconds if ND ON, ND OFF, the Tv mode shutter speed value or the Av mode aperture value starts to flash.

Notes:

• You cannot hide the displays when in [ Easy Recording mode.

• If you slide the POWER switch to OFF, the displays will be reset to appear.

Quick Overview

Turn the digital zoom on by choosing D.ZOOM from the camera menu, to magnify the camera’s zoom range by up to 5×.

Zooming

Zoom in

Zoom out

ZOOM

40×/100× digital zoom

Operate the zoom controls from either the side grip, the camera handle or the wireless controller. The camera’s 20× zoom lens allows you to choose the best picture angle for each scene:

• Press the zoom control towards W to zoom out to wide-angle.

• Press it towards T to zoom in to telephoto.

You can control the speed of zooming from the side grip:

• Press the control slightly to zoom slowly.

• Press it farther to zoom more quickly. (The farther you press the zoom control, the faster the zoom speed.)

The T and W buttons on the wireless controller and the camera handle adjust the picture angle, but not the zoom speed. Set the handle-top zoom control to one of three speeds. Open the camera menu and select ZOOM HANDLE , then set it to LOW, MEDIUM or FAST. The speed of the zoom control on the wireless controller cannot be adjusted.

20× optical zoom

The zoom control continues to work as usual. You can freely zoom in and out between 1× and 40× or 1× and 100× magnification — the camera automatically switches between optical zooming (up to 20×) and digital zooming (20× to 100×).

Notes:

• When zooming, as a rule, keep at least one meter between you and your subject. However when the zoom is at the wide-angle position, you can focus on a subject as close as 3/8 in (1 cm).

• Image resolution decreases the further you zoom towards 100× in digital zoom range.

• When the digital zoom is set to 40×, the zoom indicator extends (light blue). When the digital zoom is set to 100× zoom, the zoom indicator extends again (a darker blue).

D.ZOOM¥¥¥¥¥¥40×

(see p. 34)

Quick Overview

Using the LCD Screen

Push the LCD panel open button and open the panel by pulling it away from the camera. This automatically switches the LCD screen on and the viewfinder off. When you close the LCD panel, the LCD screen automatically switches off and the viewfinder switches back on.

Open the LCD screen

First open out the LCD panel at a right angle (90°) to the camera.

Changing the angle of the LCD screen

You can now choose the angle of the panel that suits you best by rotating it backwards (up to 180°) and forwards (up to 90°) about this axis.

If you rotate the panel backwards around to 180° you can allow the subject to monitor the shot in the LCD screen or you can include yourself in the picture. The viewfinder is also activated when the panel is in this position.

From this position you may also push the panel flat against the camera, with the screen facing outwards.

Notes:

• Avoid touching the LCD screen when moving the LCD panel.

• Do not hold the camera by the LCD panel or the viewfinder.

• Make sure you open the LCD panel at 90°, before attempting to rotate it backwards or forwards.

• Always rotate the LCD panel vertically into place, before closing it or pushing it flat against the side of the camera.

• Always fully close the LCD panel when it’s not in use.

• Be careful not to leave the LCD, viewfinder or lens exposed to direct sunlight outdoors or in a window. Doing so could cause damage.

• Bright light falling on the LCD screen may cause glare that makes it difficult for you to view the image. In this case, switch to using the viewfinder. You are also able to adjust the brightness of the screen (see “Adjusting the LCD screen” p. 26).

Quick Overview

Adjusting the LCD screen

Notes:

• The camera will remember your brightness setting even if you slide the POWER switch to OFF.

• The brightness of the LCD does not effect that of the recorded images or the viewfinder.

About the LCD Screen

The LCD screen built into this camcorder is a high precision product. However, small black dots or bright points of light (red, blue or green) may appear constantly on the LCD screen. This is not a malfunction of the LCD screen and they are not recorded on the tape. (Effective dots: more than 99.99%)

Allowing the subject to monitor recording

When you turn the LCD panel so that it faces the opposite direction (see diagram opposite), you can let your subject monitor recording, or you can include yourself in the picture.

• You can choose the display style, reversed (mirror on) or not (mirror off) from the camera menu.

MIRROR¥¥¥¥¥¥ON

(see p. 34)

Note:

• If you choose the mirror-on, the recording itself is unaffected.

You can adjust the brightness of the LCD screen. Adjust the level with the +/– LCD BRIGHT buttons.

A bar showing the level appears in the display and disappears after 4 seconds.

• Press the + button to make the display brighter.

• Press the – button to make the display darker.

LCD

BRIGHT

The camcorder has a built-in speaker and a headphone terminal so you can review the sound track alongside the picture during playback. Use the speaker or headphones when viewing playback with the LCD screen, and use headphones when viewing with the viewfinder. The built-in speaker is monaural; use headphones for stereo sound.

Quick Overview

Built-in speaker and headphone terminal

REC REC PAUSE EJECT

Indicators that appear in the LCD display when “mirror” is selected:

Adjust the speaker and headphone volume with the +/– VOLUME buttons.

• Press the + button to increase the volume, and the – button to lower the volume.

• A VOLUME bar appears in the display to indicate the current volume. It disappears in four seconds.

• You can turn off the volume completely by pressing the – button until OFF appears.

• You can also adjust the headphone volume separately from the built-in speaker, either during VCR mode or camera mode. The volume level is the same regardless of mode.

• The levels you adjust for the built-in speaker and headphones are memorized separately. The camera remembers your levels even if you slide the POWER switch to OFF.

Notes:

• The speaker turns off when the camera is set to camera mode or when you use headphones.

• Sometimes the playback picture becomes rough with “noise”, when the volume is turned up high. If this happens, turn down the volume.

• All indicators appear normally in the viewfinder.

VOLUME

Quick Overview

Playing Back a Cassette

POWER

OFF

VCR

CAMERA

You can use the LCD screen or the viewfinder for instant, on-the-spot playback. The camera also plays back the sound track via the built-in speaker (p. 27).

• When you play back a tape, you can close the LCD panel with its screen side facing up.

• When the LCD panel is closed, you can monitor the playback using the viewfinder.

To play back your recordings on a TV, see p. 30. To use the wireless controller, see p. 36.

Note:

• To avoid accidental recording, make sure that you slide the tab on the cassette so that it exposes the hole (the switch position is usually labeled SAVE or ERASE OFF).

1. Attach a power source and slide the POWER switch to VCR.

• The power indicator lights up green.

• The confirmation beep sounds.

2. Load the cassette.

3. Press the PLAY

e button to start playback.

• Open the cover to use the handle-top buttons.

• To end playback, press the STOP 3 button.

• To wind the tape forwards, stop playback and press the FF 1 button.

• To wind the tape backwards, stop playback and press the REW ` button.

• If the playback picture is rough (mosaic-like noise), clean the video heads using a Canon DVM-CL Digital Video Head Cleaning Cassette or a commercially available digital video head cleaning cassette.

Other playback modes

Playback Pause

To view the video as a still picture press the PAUSE a button. To resume normal playback, press it again, or press the PLAY e button. The camera automatically goes into stop mode after about five minutes’ playback pause.

Fast Forward Playback

To play back the recording at about 9.5 times normal speed, press and hold the FF 1 button during normal playback or press and hold the FF 1 button during normal fast forward.

Rewind Playback

For reverse playback at about 9.5 times normal speed, press and hold the REW ` button during normal playback or press and hold the REW ` button during normal rewind.

Quick Overview

Special playback

These can only be operated from the wireless controller (p. 36).

Frame Advance

To play back frame by frame, press the +/ae button repeatedly during playback pause. Press and hold to play back continuous frame advance.

Frame Reverse

To play back in reverse frame by frame, press the –/4a button repeatedly during playback pause. Press and hold to play back continuous frame reverse.

Slow Forward Playback

To play back at about 1/5 normal speed, press the SLOW M button during normal playback. Press the PLAY e button to return to normal playback.

• The camera automatically returns to playback after about 30 seconds of slow playback.

Slow Reverse Playback

To play back in reverse at about 1/5 normal speed, press the –/4a button and then the SLOW M button during normal playback. Press PLAY e to return to normal playback.

• The camera automatically returns to ×1 reverse playback after about 30 seconds of slow playback.

Reverse Playback

To play back in reverse at normal speed, press the –/4a button during normal forward playback. Press the PLAY e button to return to normal forward playback.

Forward ×2 Playback

Press the ×2 button during normal playback. Press the PLAY e button to return to normal playback.

Reverse ×2 Playback

Press the –/4a button and then the ×2 button during normal playback. Press the PLAY e button to return to normal playback.

Notes:

• Mosaic-like noise appears on the screen during some of the VCR modes.

• There’s no audio during special playback.

REW

PLAY

REC

PAUSE

SELECT

ZERO SET

MEMORY

STOP

PAUSE

SLOW

Quick Overview

If your TV (or VCR) has an S-video input terminal

Connections for Playback on a TV Screen

You can connect the camera to a TV or VCR in order to play back your recordings. You will need to attach a power source to the camera (see p. 16).

See your TV or VCR instruction manual for further details.

A/V

VIDEO

S-VIDEO

INPUT

AUDIO

S-150 S-video Cable

STV-250N Stereo Video Cable

IN/OUT

IN/ OUT

• Use the S-150 S-video Cable to connect the S-video terminal d. Use the STV-250N Stereo Video

Cable, to connect the AUDIO terminals. Connect the white plug to the white AUDIO terminal L (left). Connect the red plug to the red AUDIO terminal R (right). Do not connect the yellow plug.

• Set the TV/VIDEO selector on the television to VIDEO.

• If you are connecting the camera to a VCR, set the input selector on the VCR to LINE.

If your TV (or VCR) has audio/video input terminals

A/V

VIDEO

INPUT

AUDIO

STV-250N Stereo Video Cable

IN/OUT

IN/ OUT

• Connect the camera using the STV-250N Stereo Video Cable. Connect the white plug to the white audio

terminal L (left). Connect the red plug to the red audio terminal R (right). Connect the yellow plug to the yellow video terminal V.

• Set the TV/VIDEO selector on the television to VIDEO.

• If you are connecting the camera to a VCR, set the input selector on the VCR to LINE.

Note:

• If you are going to use the TV as a monitor while you are shooting, remember to keep the TV volume turned down as long as the camera’s audio terminals are connected. If the sound from the TV speakers is picked up by the microphone, an unpleasant high-pitched squeal, called feedback may be produced.

If your TV is already hooked up to a VCR, you can connect the camera to the VCR instead of the TV. Follow the instructions above.

+ 74 hidden pages
