Canon 7D, CANON 5D MARK II Specifications

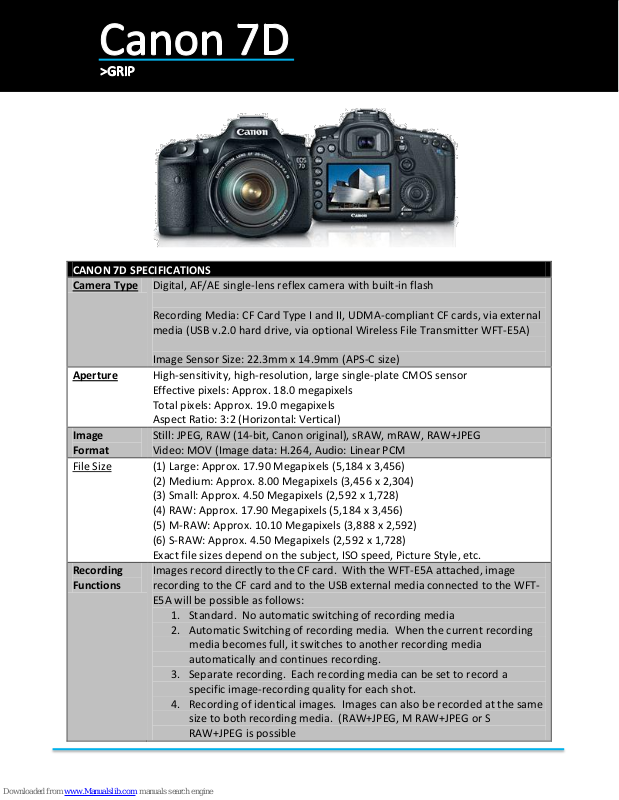

CANON 7D SPECIFICATIONS

Camera Type

Digital, AF/AE single-lens reflex camera with built-in flash

Recording Media: CF Card Type I and II, UDMA-compliant CF cards, via external
media (USB v.2.0 hard drive, via optional Wireless File Transmitter WFT-E5A)

Image Sensor Size: 22.3mm x 14.9mm (APS-C size)

Aperture

High-sensitivity, high-resolution, large single-plate CMOS sensor
Effective pixels: Approx. 18.0 megapixels
Total pixels: Approx. 19.0 megapixels
Aspect Ratio: 3:2 (Horizontal: Vertical)

Format

Still: JPEG, RAW (14-bit, Canon original), sRAW, mRAW, RAW+JPEG
Video: MOV (Image data: H.264, Audio: Linear PCM

File Size

(1) Large: Approx. 17.90 Megapixels (5,184 x 3,456)
(2) Medium: Approx. 8.00 Megapixels (3,456 x 2,304)
(3) Small: Approx. 4.50 Megapixels (2,592 x 1,728)
(4) RAW: Approx. 17.90 Megapixels (5,184 x 3,456)
(5) M-RAW: Approx. 10.10 Megapixels (3,888 x 2,592)
(6) S-RAW: Approx. 4.50 Megapixels (2,592 x 1,728)
Exact file sizes depend on the subject, ISO speed, Picture Style, etc.

Recording
Functions

Images record directly to the CF card. With the WFT-E5A attached, image
recording to the CF card and to the USB external media connected to the WFT­E5A will be possible as follows:

1. Standard. No automatic switching of recording media

2. Automatic Switching of recording media. When the current recording

media becomes full, it switches to another recording media
automatically and continues recording.

3. Separate recording. Each recording media can be set to record a

specific image-recording quality for each shot.

4. Recording of identical images. Images can also be recorded at the same

size to both recording media. (RAW+JPEG, M RAW+JPEG or S
RAW+JPEG is possible

CANON 5D MARK II SPECIFICATIONS CONTINUED

Recording
Functions Cont.

5. Backup to external recording media. Selected images, all images, and

quick backup are possible

Weight
(without lens)

Approx. 28.9 oz/820g (body only)

Lens Mount

Canon EF Mount

Display

Single image, Single image + image-recording quality/shooting information,
histogram, 4- or 9- image index, magnified view (approx. 1.5x-10x) rotated
image (auto/manual), image jump (by 10/100 images, index screen, by
shooting date, by folder), slide show (all images/selected by date/folder)

Interface

USB Terminal: For personal computer communication and direct printing
(USB 2.0 Hi-Speed)

Video Out Terminal: 1. Video OUT terminal: NTSC/PAL selectable

2. mini-HDMI OUT terminal

Extension System Terminal: For connection to WFT-E5A

Viewfinder

Type: Eye-level pentaprism

Coverage: Vertical/Horizontal approx. 100%

Magnification: Approx. 1.0x (-1m

-1

with 50mm lens at infinity)/29.4° angle of

view

Eye Point: Approx. 22mm (from eyepiece lens center)

Dioptric Adjustment Correction: -3.0 to +1.0m-1 (diopter)

Drive System

Drive Modes: Single, High-speed continuous, Low-speed continuous, and
Self-timer (10 sec. self-timer/remote control, or 2-sec. self-timer/remote
control)

Continuous Shooting Speed:
High-speed: Max. 8.0 shots/sec.
Low-speed: Max. 3.0 shots/sec.

Power

One Battery Pack LP-E6
AC power can be supplied via AC Adaptor Kit ACK-E6
With Battery Grip BG-E7 attached.

Temperature
Range

Working Temperature Range: 32-104°F/0-40°C

Working Humidity Range: 85% or less

Dimensions

Dimensions (W x H x D)
Approx. 5.8 x 4.4 x 2.9 in./148.2 x 110.7 x 73.5mm

For complete specifications visit: http://www.canon.ca/inetCA/products?m=gp&pid=873
