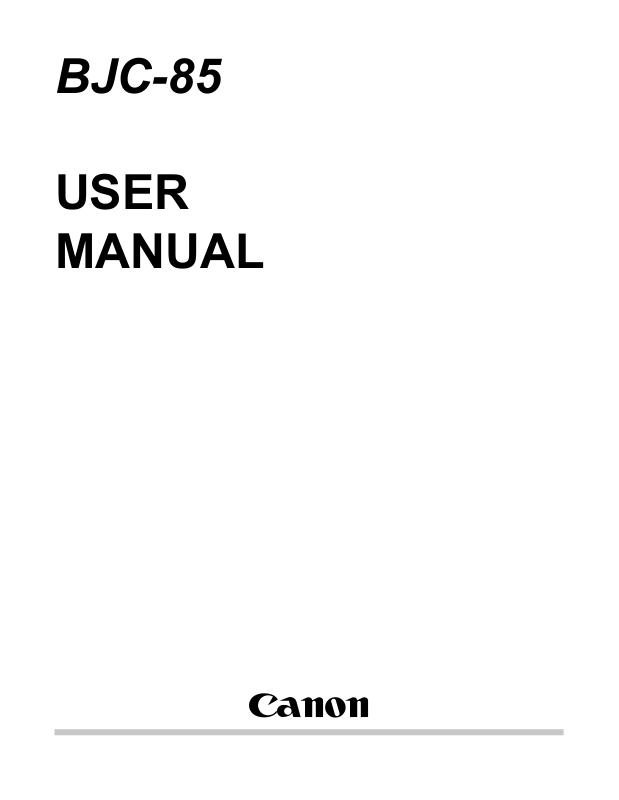

Canon BJC-85 User Manual

BJC-85

USER MANUAL

Canon

Contents

Introduction

Welcome Printer Documentation How to Use This Manual Copyright Disclaimer Trademarks FCC Regulations Canadian Radio Interference Regulations Safety Precautions

Getting Ready to Print

Printer Parts and Their Functions Turning the Printer On Setting Up and Using a Wireless Connection

Printing

Paper and Other Print Media Loading Paper in the Printer Changing BJ Cartridges

Maintaining the Printer

Printing a Nozzle Check Pattern Cleaning the Print Head Using the Low-Ink Alert Replacing Ink Tanks Replacing a BJ Cartridge Cleaning the Printer Performing the Test Print Transporting the Printer

2Contents

Printing With Windows

Getting Ready to Print Selecting the Print Mode Changing the Page Size Windows Printer Driver Features Using the BJ Background Monitor Using the BJ Backgrounder Using the BJ Printer Status Monitor

Printing With Macintosh

Overview of Printing With the Macintosh Printer Driver Selecting the Printer Driver Opening the Macintosh Printer Driver Changing the Paper Size Selection Setting Up a Simple Print Job Macintosh Printer Driver Features Using the BJ Print Monitor Uninstalling the Macintosh Printer Driver

Troubleshooting

Error Messages Problems and Solutions Before You Call For Service Getting Help From Canon Servicing the Printer

Speciﬁcations

Printer Speciﬁcations Printing Area

Using the Optional IS-12 Color Scanner Cartridge

3Contents

Introduction

Welcome

Printer Documentation

How to Use This Manual

Disclaimer

Trademarks

FCC Regulations

Canadian Radio Interference Regulations

Safety Precautions

4Introduction

Welcome

Thank you for purchasing the BJC-85 Color Bubble Jet Printer.

Printer Documentation

The documentation for your printer consists of these items:

■

Quick Start Guide

Shows you how to set up the printer and prepare it for operation according to your computer system. You may also need your computer manual for reference during setup.

■

User’s Manual (this manual)

Shows you everything you need to know about using the printer efﬁciently and safely. A detailed troubleshooting section provides step-by-step guidance for identifying and solving printing problems.

User’s Manual

This printer. To maximize the life of your printer, it’s a good idea to familiarize yourself fully with all of its functions.

provides complete explanations of the features and functions of the

5Introduction

Printer Documentation

Note

Caution

Macintosh

■

Conventions

User’s Manual

This

uses the following symbols to indicate important information. Always

observe the instructions indicated by these symbols.

Cautions alert you to ways to avoid injury to yourself, damage to the printer, or the loss of valuable data.

Notes provide advice, tips, and suggestions that are intended to help you work more efﬁciently with the printer.

This arrow and blue text indicate a link to where you can ﬁnd more information about the current subject.

This manual uses the following symbols depending on the computer system you are using. Always observe the instructions indicated by these symbols.

Throughout this guide the names Microsoft Microsoft Windows NT

as Windows 98, Windows 95, Windows NT, and Windows CE.

Windows

Indicates information for Windows

98, Windows 95, Windows NT, and

Windows CE users only.

Indicates information for iMac™ and Power Macintosh® G3 users only.

Windows® 98, Microsoft® Windows 95,

4.0, and Microsoft Windows CE® 2.1 are abbreviated, respectively,

6Introduction

How to Use This Manual

To view this User’s Manual, please use Acrobat Reader 4.0, which is included on your

CD-ROM, or a later version of Acrobat Reader.

Use this button when you wish to enlarge the screen you are viewing. Select this button in the tool bar, and then click within the screen of the

User’s Manual.

Use this button to display the

previous page of the User’s Manual.

Use this button to display the

next page of the User’s Manual.

Use this button to return to the page you were viewing previously. This button moves you back from another page.

This arrow and blue text indicate a jump to another

location in the User’s Manual where the topic

shaded in blue is discussed.

7Introduction

How to Use This Manual

Use this button when you wish to search for a word.

This column displays a table of contents for the User’s Manual.

Click the desired item to jump to the topic. Click the + (or ) symbol when you wish to see detailed headings for each chapter. Click the – (or

▼

▼) symbol when you wish to return to the original (condensed) display.

8Introduction

Copyright

Disclaimer

This manual is copyrighted by Canon Computer Systems, Inc. (CCSI) with all rights reserved. Under the copyright laws, this manual may not be reproduced in any form, in whole or part, without the prior written consent of CCSI.

Canon Computer Systems, Inc. has reviewed this manual thoroughly in order to make it an easy to use guide for your Canon BJC-85 Color Bubble Jet Printer. All statements, technical information, and recommendations in this guide and in any guides or related documents are believed reliable, but the accuracy and completeness thereof are not guaranteed or warranted, and they are not intended to be, nor should they be understood to be, representations or warranties concerning the products described.

Your printer and the software media included with your printer have been sold to you subject to the limited warranties set forth in the warranty card and license agreement enclosed with the respective products. All software is licensed AS IS, as described in the license agreement enclosed with the software media. Further, CCSI reserves the right to make changes in the speciﬁcations of the products described in this guide at any time without notice and without obligation to notify any person of such changes.

9Introduction

Trademarks

Canon, BCI, BJ, Bubble Jet, and Drop Modulation Technology are trademarks, and SelectExchange is a service mark of Canon Inc.

Microsoft and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.

Mac and the Mac logo are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.

All other product and brand names are trademarks or service marks of their respective owners.

NERGY STA R

COMPLIANT

As an ENERGY STA R® Partner, Canon U.S.A., Inc. has determined that this product meets the E

NERGY STA R

guidelines for energy efﬁciency.

10Introduction

FCC Regulations

Color Bubble Jet Printer, Model K10190

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

11Introduction

Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of FCC Rules.

Do not make any changes or modiﬁcations to the equipment unless otherwise speciﬁed in the manual. If such changes or modiﬁcations should be made, you could be required to stop operation of the equipment.

Canadian Radio Interference Regulations

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus,” ICES-003 of the Industry and Science Canada.

Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques,” NMB-003 édictée par l’Industrie et Sciences Canada.

12Introduction

Safety Precautions

Please read the safety warnings provided in this manual to ensure that you use the printer safely. Do not attempt to use the printer in any way not described in this manual as this could result in unforeseen printer faults or cause a ﬁre or electric shock.

Printer Location

Power Outlet and Power Cord

Cleaning the Printer

BJ Cartridges

General Warnings

Universal AC Adapter

13Introduction

■

Printer Location

Safety Precautions

The electrical contacts inside the printer become hot during normal operation. To avoid causing a ﬁre or dangerous electrical shock, never store volatile substances such as alcohol or thinner near the printer.

To avoid damage to the printer or possible personal injury, place the printer on a ﬂat, stable surface that is safe from sudden shocks or strong vibrations to ensure that it will not fall.

To avoid damage to the printer that could result in a ﬁre or electrical shock, place it in a location that is protected from dust, direct sunlight, high temperature, and high humidity. Use the printer in an environment where temperature and humidity are within the ranges of 41 to 95°F (5 to 35°C) and 10 to 90% RH (with no condensation).

To avoid dropping and damaging the printer, always hold the printer by both ends and carry it level. Do not pick up or hold the printer by any part.

14Introduction

Safety Precautions

■

Power Outlet and Power Cord

The socket-outlet shall be installed near the equipment and shall be easily accessible.

To avoid personal injury from an electrical shock, never handle the power cord or plug when your hands are wet.

To avoid causing a ﬁre or serious electrical shock, make sure that the power plug is securely and completely inserted into the power outlet.

To avoid causing a ﬁre or serious electrical shock, never use any type of power adapter other than the universal AC adapter provided with the printer.

To avoid a ﬁre or serious electrical shock caused by a short circuit, avoid damaging the AC adapter cord or the power cord. Do not attempt to modify the cords in any way. Do not apply force to the cords by pulling on them nor place a heavy object on the cords.

15Introduction

Safety Precautions

To avoid a ﬁre or serious electrical shock, do not knot the power cord or wrap it around itself.

To avoid damaging the power plug, which could cause a short circuit and cause a ﬁre or electrical shock, do not pull on the power cord to unplug the cord from the power outlet. Grip the plug to remove it from the power outlet.

To avoid minor burns or minor injury from moving parts, press the POWER button to turn off the printer then unplug the power cord from the power outlet and allow the electrical contacts inside the printer to cool before cleaning the printer.

16Introduction

■

Cleaning the Printer

■

BJ Cartridges

Safety Precautions

Use only a damp, clean cloth to clean the surfaces of the printer. The electrical contacts inside the printer become hot during normal operation. To avoid a ﬁre or serious electrical shock, do not use alcohol, benzene, thinner, or any other type of volatile liquid cleaner to clean the printer.

Store the BJ cartridges and ink tanks out of the reach of small children. If a child accidentally ingests ink from a BJ cartridge or ink tank, contact a physician immediately.

To avoid staining clothing or your work area with spilled ink, do not violently shake or drop a BJ cartridge.

17Introduction

■

General Warnings

Safety Precautions

There are high voltage points inside the printer. To avoid a ﬁre or electrical shock, do not attempt to disassemble the printer or attempt repairs.

To avoid a ﬁre or electrical shock, do not use volatile sprays around the printer.

The electrical contacts of the BJ cartridge become extremely hot during normal operation. To avoid minor burns, do not touch the electrical contacts after removing the BJ cartridge from the printer.

To avoid minor injury from moving parts inside the printer, do not open the cover and insert your ﬁngers into the printer while the printer is printing.

18Introduction

Safety Precautions

To avoid damage to the printer from objects falling into it, resulting in a ﬁre or electrical shock, do not place any object such as a stapler or liquid container on top of the printer.

If any object falls into the printer and damages it while it is printing, press the POWER button to turn it off and unplug the power cord from the power outlet. To avoid a ﬁre or electrical shock, stop using the printer and call the Canon Customer Care Center.

Getting Help From Canon

To avoid a ﬁre or serious electrical shock, if the printer emits smoke or a strange odor, immediately press the POWER button to turn the printer off then unplug the power cord from the power outlet. Stop using the printer and call the Canon Customer Care Center.

Getting Help From Canon

■

Universal AC Adapter

When you pack the universal AC adapter for travel or storage, do not wrap the cord around the body of the AC adapter. Doing so may cause the cord to split or separate from the body of the AC adapter, which could cause a short circuit.

19Introduction

Safety Precautions

■

Printer Functions and Special Features

This section describes the functions and special features of your printer that you can enjoy when you print color documents and images.

High resolution color (720 dpi)

With the BC-11e Color BJ Cartridge installed in the printer, you can print up to 720 dpi (720 dpi horizontal × 360 dpi vertical) to reproduce quality documents and images even on plain paper. The BC-11e Color BJ Cartridge employs two different sizes of ink droplets in varied patterns to create images of higher quality than ever before. The BC-10 Black BJ Cartridge prints crisp and clear text documents. The BC-12e Photo BJ Cartridge produces beautiful, natural color in photographic images captured with a scanner or digital camera.

A variety of interface connections

In addition to the standard parallel port, this printer includes a USB and infrared port. The

USB connection can be used with an IBM

-compatible PC running Windows 98, an iMac, or Power Macintosh G3. The infrared port on an IBM-compatible PC with Windows 98 can be used for wireless printer connection between the printer and a computer.

Special print media

Most of the special media available for use with other Canon Bubble Jet printers can be used with this compact printer.

Capturing originals with the optional Scanner Cartridge

By inserting the optional IS-12 Color Image Scanner Cartridge in place of the BJ cartridge, you can convert the printer into a scanner.

Using the Optional IS-12 Color Scanner Cartridge

20Introduction

Safety Precautions

■

Options and Consumables

The following options and consumables are available for use with this printer. To get more information, visit our web site at

www.ccsi.canon.com

Options

Item Comment

Portable Kit NK-300 NiMH battery set with recharger IS-12 Color Image Scanner Cartridge Color scanner option Universal AC Adapter AD-360U AC adapter SB-10 Ink Cartridge Storage Box Storage box for additional BJ cartridges NiMH Battery Pack NB-300 Additional NiMH battery pack for portable kit

Consumables

Items Comment

BC-10 Black BJ Cartridge Monochrome printing

BCI-10 Black Ink Tank Black ink for BC-10 Black BJ Cartridge

BC-11e Color BJ Cartridge Color printing

BCI-11 Color Ink Tank Color ink for BC-11e Color BJ Cartridge BCI-11 Black Ink Tank Black ink for BC-11e Color BJ Cartridge

BC-12e Photo BJ Cartridge Photographic printing

BCI-12 Photo Color Ink Tank Color ink for the BC-12e Photo BJ Cartridge BCI-12 Photo Black Ink Tank Black ink for the BC-12e Photo BJ Cartridge

21Introduction

Paper and special print media

Media Load Limit

Bubble Jet Paper 30 sheets Brilliant White Paper 30 sheets High Resolution Paper 10 sheets Glossy Photo Paper 10 sheets High Gloss Film 1 sheet Glossy Photo Cards 1 sheet Transparencies 10 sheets

Back Print Film 1 sheet T-Shirt Transfer 1 sheet Greeting Cards (1/4 fold) 1 sheet Envelopes 5 envelopes

Safety Precautions

22Introduction

Getting Ready to Print

Printer Parts and Their Functions

Turning the Printer On

Setting Up and Using a Wireless Connection

23Getting Ready to Print

Printer Parts and Their Functions

This section describes important parts of the printer and how they function.

■ Front View

Top Cover (and Paper Rest)

Before you use the printer, open the top cover. The top cover supports paper fed into the sheet feeder.

Paper Guide

Adjusts to the size of the paper or special media.

Cartridge Cover

Open to change the BJ cartridge or to replace ink tanks.

Paper Output Slot

Printed sheets are ejected here.

Operation Panel

Sheet Feeder

Feeds sheets of paper continuously to the printer.

Paper Release Lever

Press to release paper jammed in the printer.

USB Interface Connector

Provides the connection point for a USB interface cable from the computer.

24Getting Ready to Print

■ Back View

Power Connector

Provides the connection point for the universal AC adapter plug.

Printer Parts and Their Functions

Parallel Interface Connector

Provides the connection point for a parallel interface cable between the printer and computer.

IrDA Interface Port

Provides a port for a wireless IrDA connection between the printer and computer. This port should face the IrDA port of the computer. The port glass can be pulled out to adjust the position angle.

25Getting Ready to Print

■ Operation Panel

CARTRIDGE

ERROR

POWER RESUME

Printer Parts and Their Functions

POWER Button

Press to turn the printer on and off.

Turning the

Printer On

CARTRIDGE Button

Press to move the cartridge holder to the center in order to switch BJ cartridges or to replace ink tanks and to return the cartridge holder to the home position when you are finished.

Note

RESUME Button

Press to release the printer from an error after the cause of the error has been removed. Pressing this button has no effect on unrecoverable errors.

When no error exists, press once to feed a sheet of paper. If paper is partially fed into the printer, the sheet will be ejected.

Press and hold down until the printer beeps twice then release to start print head cleaning.

Cleaning the Print Head

ERROR Light

Lights or flashes orange when an error occurs.

ERROR light is orange

POWER Light

Tells you whether or not the printer is on. On Lights green when the printer is standing

by and ready for normal operation. Off Printer power is turned off. Flashing Printer is warming up after power on, or

is receiving a print job from the printer.

• If you will not be using the printer for a long period of time, turn off the printer; then remove the AC adapter power cord from the power outlet.

• Always press the POWER button to turn the printer off before you remove the AC adapter power cord from the power outlet. If the power cord is unplugged before the printer is turned off with the POWER button, the BJ cartridge will not return to the home position and may dry out which could cause the BJ cartridge to become unusable.

26Getting Ready to Print

Printer Parts and Their Functions

■

POWER and ERROR Lights

The POWER and ERROR lights tell you the current status of the printer.

Light Status What It Means

POWER Off Printer is off.

On Printer is standing by and ready for normal operation.

Flashing Indicates one of the following:

• Printer is warming up.

• Printer is performing print head cleaning.

• BJ cartridge is being changed or ink tank is being replaced.

• Printer is receiving a print job from the computer.

ERROR Flashing Indicates one of the following:

POWER, ERROR

ERROR

• If the printer beeps twice, ink supply is low in an ink tank.

• If the printer beeps three times, the low-ink alert feature is on

and an ink tank is empty.

• Battery power is low. If the printer beeps four times, the optional Portable Kit NK-300 power is low.

• If the printer beeps ﬁve times, the waste ink tank is full.

ERROR

On Indicates one of the following:

• If the printer beeps once, paper feed error.

• If the printer beeps twice, paper jam.

• If the printer beeps three times, BJ cartridge is not installed.

• If the printer beeps four times, wrong BJ cartridge is installed.

ERROR

Both ﬂashing

Unrecoverable error has occurred. Call the Canon Customer Care Center.

Getting Help From Canon

For details about what to do when these errors occur, see the Troubleshooting section of this manual.

Troubleshooting

27Getting Ready to Print

Turning the Printer On

Make sure that the AC adapter is securely connected to the printer.

2 Open the top cover.

3 Press and release the POWER button to turn the printer on.

POWER RESUME

CARTRIDGE

ERROR

If a BJ cartridge is not installed, the POWER light continues to ﬂash and the printer will beep three times.

If a BJ cartridge is installed, the POWER light will ﬂash while the printer warms up. When the light stops ﬂashing, the printer is ready for normal operation.

28Getting Ready to Print

Setting Up and Using a Wireless Connection

If you have a computer with an infrared port for wireless data transmission, you can set up a cordless connection with the printer using the IrDA method to effect infrared data transmission.

Before you can set up an infrared connection with the printer, you must perform several settings on the computer. Make sure that you read the section below before you set up the connection.

■ What You Need for Infrared Data Transmission

In order to use infrared data transmission, you need the Windows 98 plug and play Microsoft infrared driver Version 3.0. The following items are required in order to set up wireless data transmission between the printer and computer via the infrared ports on the printer and your computer.

Computer IBM PC/AT or a compatible computer CPU

IrDA IrDA 1.1 or later Baud rate

(transmission speed) Infrared transmission

device

Operating system Windows 98

Intel® Pentium® or faster

Max. 4 Mbps

Built-in infrared port on the computer, or an infrared transmission adapter connected to the parallel or serial port.

29Getting Ready to Print

+ 257 hidden pages
