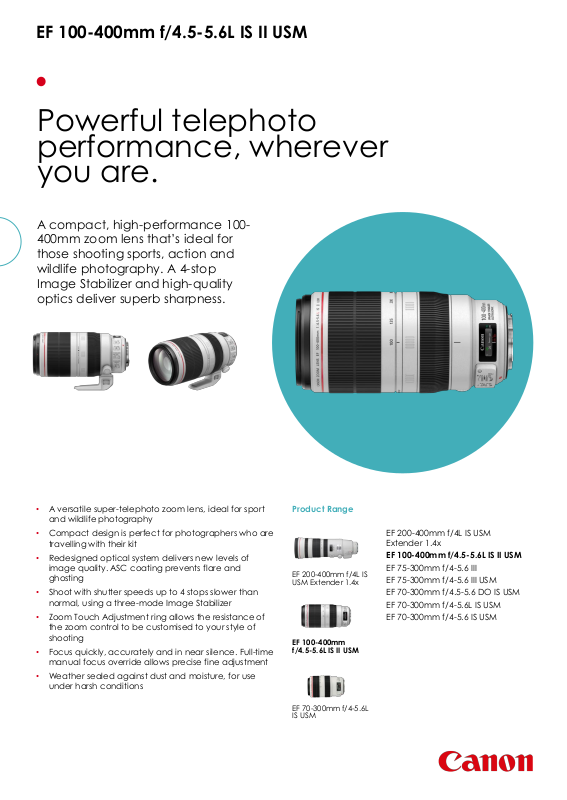

EF 100-400mm f/4.5-5.6L IS II USM

Powerful telephoto
performance, wherever
you are.

A compact, high-performance 100­400mm zoom lens that’s ideal for
those shooting sports, action and

wildlife photography. A 4-stop

Image Stabilizer and high-quality
optics deliver superb sharpness.

• A versatile super-telephoto zoom lens, ideal for sport

and wildlife photography

• Compact design is perfect for photographers who are

travelling with their kit

• Redesigned optical system delivers new levels of

image quality. ASC coating prevents flare and
ghosting

• Shoot with shutter speeds up to 4 stops slower than

normal, using a three-mode Image Stabilizer

• Zoom Touch Adjustment ring allows the resistance of

the zoom control to be customised to your style of
shooting

• Focus quickly, accurately and in near silence. Full-time

manual focus override allows precise fine adjustment

• Weather sealed against dust and moisture, for use

under harsh conditions

Product Range

EF 200-400mm f/4L IS
USM Extender 1.4x

EF 100-400mm
f/4.5-5.6L IS II USM

EF 70-300mm f/4-5.6L
IS USM

EF 200-400mm f/4L IS USM
Extender 1.4x

EF 100-400mm f/4.5-5.6L IS II USM

EF 75-300mm f/4-5.6 III
EF 75-300mm f/4-5.6 III USM
EF 70-300mm f/4.5-5.6 DO IS USM
EF 70-300mm f/4-5.6L IS USM
EF 70-300mm f/4-5.6 IS USM

EF 100-400mm f/4.5-5.6L IS II USM

Canon Inc.
canon.com
Canon Europe
canon-europe.com
English edition
Canon Europa NV 2014

Footnotes

1

Minimum aperture if using 1/3 stop increments

2

Full time Manual focus

3

Lenses with dust/moisture resistance are fitted with a rubber ring on the lens mount which
may cause slight abrasion of the camera mount. This in no way effects either the lens or
camera performance.

4

AF possible only with EOS-1 series, 7D Mark II and 5D Mark III with firmware 1.2.1or later

5

IS will not work with the following cameras EOS-1, EOS 5, EOS 100, EF-M, EOS 1000/F/n/Fn,
EOS 700, EOS 10, EOS RT, EOS 600/630, EOS 850, EOS 750, EOS 620, EOS 650

6

Tested under CIPA standards

OPTICAL FEATURES/SPECIFICATIONS

Angle of view (horzntl, vertl, diagnl)

20° - 5°10', 14° - 3°30', 24° - 6°10'

Lens construction (elements/groups)

21/16

No. of diaphragm blades

9

Minimum aperture

32 - 38(40)

1

Closest focussing distance (m)

0.98

Maximum magnification (x)

0.31(at 400 mm)

Distance Information

Yes

Image stabilizer

4-stops

6

AF actuator

Ring USM

2

PHYSICAL SPECIFICATIONS

Dust/moisture resistance

3

Yes

Filter diameter (mm)

77

Max. diameter x length (mm)

94 x 193

Weight (g)

1640 with tripod mount

ACCESSORIES

Lens cap

E-77II

Lens hood

ET-83D

Lens case/pouch

LZ1326

Rear cap

Lens Dust Cap E

Magnification with Extension Tube EF12 II

0.38 - 0.03

Magnification with Extension Tube EF25 II

0.46 - 0.07

Extender Compatibility

Compatible

SPECIFICATIONS WITH EF 1.4X II

Focal Length

140 - 560

Maximum Aperture

6.3 - 45 (8 - 57 at 400 mm)

Maximum Magnification

0.44 at 400 mm

AF Possible

Yes

4

IS

Yes

5

SPECIFICATIONS WITH EF 2X II

Focal Length

200 - 800

Maximum Aperture

9 - 64 (11 - 81 at 400 mm)

Maximum Magnification

0.64

AF Possible

Not Possible

IS

Yes

5

A compact, high-performance 100-400mm zoom lens that’s ideal for
those shooting sports, action and wildlife photography. A 4-stop Image
Stabilizer and high-quality optics deliver superb sharpness.

Sales Start Date: December 2014

Product Details:

Product name Mercury Code EAN Code Recommended Retail Price

EF 100-400mm f/4.5-5.6L IS II USM 9524B005AA 4549292010350 <Please fill in RRP>

Measurement / Logistic Information:

Product name Mercury Code Pack

type

Pack Description Quantity Length

(mm)

Width
(mm)

Height
(mm)

Net
Weight
(kg)

Gross Weight
(kg)

EF 100-400mm f/4.5-5.6L IS II USM 9524B005AA EA Each 1 184 184 312 1.9495 2.4243

CT Carton 6 573 388 351 14.55 15.65

EP Euro pallet 72 120 80 120.3 202

Layers per pallet 3

Cartons per layer 4

LENS HOOD ET-83D 9533B001AA EA Each 1 115 115 100 0.0875 0.1418

CT Carton 12 445 296 243 1.70 2.89

EP Euro pallet 288 120 80 112.2 54.7

Layers per pallet 4

Cartons per layer 6

What’s in the box?

• EF 100- 400mm f/4.5-5.6L IS II USM

• LENS HOOD ET-83D

• LENS CASE LZ1326

• LENS CAP E-77II

Optional Accessories:

Product name Mercury Code EAN Code Recommended Retail Price

LENS HOOD ET-83D 9533B001AA 4549292010541 <Please fill in RRP>

77mm Circular Polarizing Filter PL-C B 2191B001AA 4960999455792 <Please fill in RRP>

Powerful telephoto performance,
wherever you are.

Technical Specifications

• LENS DUST CAP E

• Instruction Manuals (Booklet)

• Warranty card(EUR)
