Canon 1061C001 Product Data Sheet

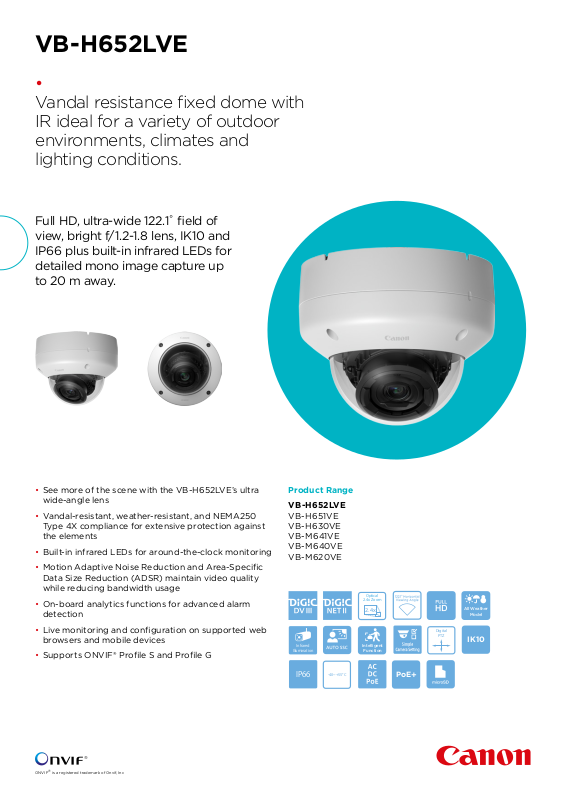

VB-H652LVE

•

Vandal resistance ﬁxed dome with IR ideal for a variety of outdoor environments, climates and lighting conditions.

Full HD, ultra-wide 122.1˚ ﬁeld of view, bright f/1.2-1.8 lens, IK10 and IP66 plus built-in infrared LEDs for detailed mono image capture up to 20 m away.

• See more of the scene with the VB-H652LVE’s ultra

wide-angle lens

• Vandal-resistant, weather-resistant, and NEMA250

Type 4X compliance for extensive protection against the elements

• Built-in infrared LEDs for around-the-clock monitoring

• Motion Adaptive Noise Reduction and Area-Speciﬁc

Data Size Reduction (ADSR) maintain video quality while reducing bandwidth usage

• On-board analytics functions for advanced alarm

detection

• Live monitoring and conﬁguration on supported web

browsers and mobile devices

• Supports ONVIF® Proﬁle S and Proﬁle G

Product Range

VB-H652LVE

VB-H651VE VB-H630VE VB-M641VE VB-M640VE VB-M620VE

Infrared

Illumination

IP66

-40~+55°C

Optical

2.4x Zoom

2.4x

Intelligent

Function

PoE

Digital

PTZ

All Weather

Model

IK10

ONVIF is a registe red trademark of O nvif, Inc

•

Technical Speciﬁcations

VB-H652LVE

CAMERA

Image Sensor 1/3 typ e CMOS (primar y colour ﬁlter)

Numbe r of Eective Pixels

Scanning Method Progressive

Lens 2.4x opti cal zoom (4x digital zoom) le ns (elec tric drive)

Focal Length 2.55 ( W) – 6.12 mm (T)

F-number F1. 2 (W) – F1.8 ( T)

Viewing Angle For 16:9 a spect ratios :

ay / Night Sw itch Auto / Day Mod e / Night Mode

Min. Subject Illumination

cus Auto / One- shot AF / Manual / Fi xed at inﬁnity

Shooting Distance

(from fron t of lens)

Shutter Speed 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000,

Exposure Auto / Auto (Fli ckerless) / Auto (Shutt er-priority AE) / A uto (Aperture- priority AE) /

White Balance Auto / Lig ht Source / Manual

etering Mode Center-Weighted / Average / Spot

Exposure Compensation

Smart Shade Control Auto / Manual / Disable

aze Compensation Auto / Manual / Disable

C Limit 6 levels

Image Stabilizer 2 leve ls (digital)

Motion-Adaptive NR

(NoiseReduction)

IR Illumination Range 20 m (65.6 f t.)

Pan Angle Range 360° (±180°)

Tilt Angle Range 90° (-15° – +75°)

otation Angle Range 350° (+220°/-130°)

oving Speed – (Limited to m anual movement)

SERVER

Video Co mpression Method

Video Size

Video Quality

Frame Rate

I-Frame Inte rval

Simultaneous Client Access

Bit Rate Control

ADSR:

Area-speciﬁc Data Size

eduction

Security

Protocol

Audio Compression Method

Approx. 2 .1 million pixels

Horizont al: 122.1° (W ) – 50.1° (T) Vertical : 65.9° (W) – 2 8.1° (T)

or 4:3 as pect ratios

Horizont al: 89.2° (W ) – 37.5° (T) Vertical : 65.9° (W) – 2 8.1° (T)

Day Mode (colo ur): 0.035 lux (F1. 2, shutter spe ed 1/30 sec., S SC o, 50IRE)

Night Mo de (monochrome): 0 lux / 0 .002 lux (F1. 2, shutter spe ed 1/30 sec., S SC o, 50IRE with I R light on / o)

Smoked D ome ﬁtted (sold sepa rately) Day Mode (colo ur): 0.07 lux (F1. 2, shutter spe ed 1/30 sec., S SC o, 50IRE)

Night Mo de (monochrome): 0. 004 lux (F1. 2, shutter spe ed 1/30 sec., S SC o, 50IRE)

ay Mode: 0. 3 m (12 in.) – inﬁni ty

D Night Mo de: 0.3 m (12 in.) – i nﬁnity

1/10000, 1/16000 sec.

Manual (Shutter Speed, Aperture, Gain)

Light So urce: Daylight Fluo rescent / White Fluo rescent / Warm Fluor escent / Mercur y

amp / Sodi um Lamp / Haloge n Lamp

L Manual : One-shot WB/ R Gain/B Gain

9 levels

Auto: 3 levels Manual : 7 levels – Brighte ns shaded areas of a v ideo

Auto: 3 levels Manual : 7 levels

Available

– Camer a is at 0° when attac hed to the ceiling an d facing straigh t down

+: Clockwise

JPEG, H.264

JPEG, H .264: 1 920 x 1080, 96 0 x 540, 480 x 270

JPEG, H .264: 10 leve ls

JPEG: 0. 1 – 30 fps H.2 64: 1/2/3/5 /6/10/15/3 0 fps

– Values rep resent streamin g performanc e from the camera . –

The f rame rate may be redu ced due to Viewer com puter’s specs , the number of clie nts accessi ng at the same time, n etwork loads, v ideo quality se tting, type or move ment of the subje ct or other reaso ns.

Maximu m frame rate when us ed in the following co mbinations: When stre aming H.26 4(1) (1920 x 1 080) and H.2 64(2) (all sizes) simulta neously: 15 fp s When stre aming H.26 4(1) (all sizes) and H. 264(2) (192 0 x 1080) simulta neously: 15 fp s When stre aming H.26 4(1) (1280 x 9 60) and H.26 4(2) (1280 x 96 0) simultaneou sly: 15 fps When stre aming H.26 4(1) (1280 x 7 20) and H.264 (2) (1280 x 720) sim ultaneously : 15 fps

0.5/1/1 .5/2/3/4/5 sec.

Max. 30 Cl ients + 1 Admin Clie nt – H.26 4: Max. 10 Clien ts

Target Bit Rate: 64/ 128/256/38 4/512/768/ 1024/2048/3072 /409 6/6144/8192/ 10240/1228 8/14336/16384 kbps

Numbe r of Speciﬁed Are as: Max. 8 areas Data Size Re duction Level: 3 leve ls

Camer a Control: Admini strator, Authorized us er, Guest user (leve l of control varies depending on user) Access Co ntrol: User autho rity (user name and p assword), Host Ac cess Restrictio ns (IPv4, I

Pv6) IEEE802.1X: EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP Encryp ted Communica tions: SSL/ TLS, IPsec

IPv4, I Pv6, TCP/IP, UDP, HTTP, FT P, SNM Pv1/v2c/v3 (MIB2), D HCP, DNS, AutoIP, mD NS, ARP, ICMP, PO P3, NTP, SMTP, RTP/RTCP, RTSP, SSL /TLS, IPs ec, ONVIF, WV-HT TP (Canon proprietary)

G.71 1 -law (64 kbps)

1280 x 72 0, 640 x 360, 320 x 1 80 1280 x 96 0, 640 x 480, 32 0 x 240

Audio Communication Method

Audio File Playback

Analog v ideo output

(NTSC)

Privacy Mask

Preset

ntelligent Function

(V ideo)

Intelligent Function

(Au dio)

Event Trigger Type

Image Upload

Event Notiﬁcation

Log Notiﬁcation

Image Cropping Function

On-Screen Display

Daylight Saving Time

INTERFACE

Network Terminal

Audio Input Terminal

(common for L INE IN & M

IC IN)

Audio Output Terminal

(LINE OUT)

External Device I/O Terminal

Memor y Card

OTHER

Operating Environment

Installation Method

Power Supply

Power Consumption

Dimensions ( x H) 180 x 145 m m (7.09 x 5.71 i n.)

Weigh t

Impact Resistance

Dust-resistant/ Waterproof Speciﬁcation

International Standard

Full-du plex (two-way) – Echo ca ncellation fun ction compliant RTP, Sound Transfer Protocol by C anon

Availabl e (audio ﬁ les can be played ba ck when an event is trig gered by the intellig ent functi on or external devi ce input) – A third-party ampliﬁer speaker is necessary

Available (Only for ch ecking the came ra angle)

Numbe r of registration: M ax. 8 places, Nu mber of mask colo urs: 1 (select from 9 co lours)

Numbe r of registers: Max . 20 positions (+Home P osition) Numbe r of Preset Tour Route: Max . 1

Moving Object Detection, Abandoned Object Detection, Removed Object Detection, Camer a Tamper ing Detection, P assing Detecti on, and Intrusio n Detection Detecti on Settings: Max . 15 Non-d etection Area Set tings: Availabl e

Volume Dete ction, Scream D etection

External Device Input, Intelligent Function (Video), Intelligent Function (Audio), Timer, Day/N ight Swi tch Numbe r of Linked Events: 2 Linked Even t Conditions: OR , AND (whether or no t there is a sequenc e to events)

FTP/HTTP/SMTP (e-mail)

HTTP/SMTP (e-mail)

SM TP (e- mail)

Digital P TZ Croppin g sizes:

Available English / Chinese (Simpliﬁed) / Japanese

Available

LAN x 1 (RJ 45, 100Bas e-TX (auto / full-dup lex / half-duplex))

3.5 mm (0.14 in.) mini-jack connector (monaural) LINE IN (con nect to an ampliﬁ er microphone) or M IC IN (connect to a micr ophone w/o ampliﬁer) – Switch LIN E IN/MIC IN in the s etting page.

3.5 mm (0.14 in.) mini-jack connector (monaural) LINE OU T (conne ct to an ampliﬁe r speaker)

Input x 2, O utput x 2 Analog V ideo Output x 1

microSD M emory Card , microSDHC Me mory Card, m icroSDXC Memor y Card Compatib le. Recorde d Content: Log, V ideo (Event, Man ual, ONVIF, Time r, Upload) Frame Rate: Max. 1 fps (JPEG)

– To insu re reliability in t he recording sp eed, it is recomm ended to use CL ASS 10 rated

Temperature When the h eater unit (sold sepa rately) is installe d Operating Temperature Range: AC, PoE+: - 40°C – +55°C (-40° F – +131°F)

Start-up Temperature Range: AC, PoE+: -3 0°C – +55°C (-22°F – +13 1°F)

– Su nshade cover (sold sep arately) necessa ry when under di rect sun exposure

When the h eater unit (sold sepa rately) is not instal led AC, DC, P oE+, PoE: -10°C – +5 5°C (+14°F – +13 1°F) – Sun shade cover (sold sep arately) necessa ry when under di rect sun exposure

Humidity 5% – 85% (witho ut condensatio n)

Ceiling m ount / Surface m ount

PoE: PoE p ower supply via LA N connector (IE EE802.3at Type1 /Type2 compliant) AC Adapter: PA-V 18 (100 – 240 V AC) (sol d separately) Extern al power source: 24 V AC/ 12 V DC

PoE+: Max. a pprox. 12.4 W* 1

PoE: Max . approx. 12.4 W *3

AC Adapter PA-V1 8: Max. ap prox. 15.2 W ( 100 V AC)

DC: Max . approx. 13.8 W AC: M ax. approx. 12.7 W

*1 Class 4 p ower sourcing equ ipment (request s 30.0 W) *2 When th e heater unit (sold sep arately) is install ed *3 Class 0 po wer sourcing equi pment (requests 1 5.4 W)

– Camer a only (excluding Ceili ng Plate)

Approx. 1 850 g (4.08 lb.)

IK10 (20J)

IP66 ra ted

EN5503 2 Class A, FCC par t15 subpart B Cl ass A, ICES-3/ NMB-3 Class A , VCCI Class A , C-tick AS/NZS EN5 5032 Class A, CN S13438 Clas s A, KN32 Class A , EN5502 4, KN35, EN50 581, EN62471 IEC/U L/EN 60950 -1, IEC/UL/ EN 60950-1/-22, E N50130-4 , IEC/UL/EN 6 0529 IP66 , IEC/UL/EN 6 2262 IK10, NE MA 250 Type 4X

64 0 x 360 / 512 x 288 / 38 4 x 216 / 256 x 144 / 12 8 x 72 640 x 48 0 / 512 x 384 / 384 x 2 88 / 256 x 192 / 128 x 9 6

Max. 30 f ps (H.264)

products. Even when using CLASS 10 products, reliability cannot be guaranteed during heavy ac cess loads (e.g., wh en recording an d deleting data a t the same time).

Max. ap prox. 23.1 W*1 *2

Max. ap prox. 24.1 W*4

Max. ap prox. 15.2W (24 0 V AC)
