Candy CVNB 6184X-S1 User manual

USER MANUAL

COMBI

English

Italiano

Español

Deutsch

Portoguese

Français

Čeština

101

Slovenský

116

Ελληνικά

132

Magyar

149

Nederlands

163

Dansk

179

Suomi

192

Norsk

205

Svenska

218

English

Contents

1. SAFETY INFORMATION ...................................................................................... 4

2. INSTALLATION .................................................................................................. 11

2.1 Location ................................................................................................................... 11

2.2 Door Handle Install Illumination (optional) ................................................................. 11

2.3 Reversing the Door Swing ........................................................................................ 12

2.4 Door Space Requirements ....................................................................................... 14

2.5 Levelling the Unit ...................................................................................................... 14

2.6 Cleaning Before Use ................................................................................................ 14

2.7 Before Using Your Unit ............................................................................................. 14

2.8 Interior Accessories .................................................................................................. 15

3. PRODUCT OVERVIEW ....................................................................................... 15

4. OPERATION ....................................................................................................... 17

4.1 Operation Instructions .............................................................................................. 17

4.2 Noise Inside the Unit! ............................................................................................... 19

4.3 Tips for Keeping Food in the Unit.............................................................................. 19

4.4 Change the Light Bulb .............................................................................................. 19

5. CLEANING .......................................................................................................... 19

5.1 Defrosting ................................................................................................................ 19

5.2 Cleaning the Interior and the Exterior of the Unit ....................................................... 19

5.3 Cleaning Tips ........................................................................................................... 19

6. MAINTENANCE .................................................................................................. 20

6.1 Changing the Internal Light ....................................................................................... 20

6.2 Care When Handling / Moving Your Unit................................................................... 20

6.3 Servicing .................................................................................................................. 20

6.4 Switching Off for Long Periods of Time ..................................................................... 20

6.5 Do not shield positions of air outlet and return air inlet of the refrigerator ................... 20

6.6 Do not keep foods of higher temperature close to temperature sensor ...................... 20

6.7 Take out drawer of freezing chamber of refrigerator and put foods directly on

the glass partition ..................................................................................................... 20

7. TROUBLE SHOOTING ....................................................................................... 20

7.1 Warm tips: ................................................................................................................ 21

8. TIPS FOR ENERGY SAVING .............................................................................. 21

9. SCRAPPING OLD APPLIANCES ....................................................................... 21

Thank you for purchasing this product.

Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as:

- the kitchen area for personnel in shops, offices and other working environments

- on farms, by clientele of hotels, motels and other environments of a residential type

- at bed and breakfasts (B & B)

- for catering services and similar applications not for retail sale.

This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions.

1. SAFETY INFORMATION

This guide contains many important safety information. Please, we suggest you keep these instructions in a safe place for easy reference and a good experience with the appliance. The refrigerator contains a refrigerant gas (R600a: isobutane) and insulating gas (cyclopentane), with high compatibility with the environment, that are, however, inflammable.

Caution: risk of fire

If the refrigerant circuit should be damaged:

⚫ Avoid opening flames and sources of

ignition. Thoroughly ventilate the room in which the appliance is situated

Percentage running

WARNING!

• Care must be taken while

cleaning/carrying the appliance to avoid touching the condenser metal wires at the back of the appliance, as you might injure

your fingers and hands or damage your product.

• This appliance is not designed for stacking

with any other appliance. Do not attempt to sit or stand on top of your appliance as it is not designed for such use. You could injure yourself or damage the appliance.

• Make sure that mains cable is not caught

under the appliance during and after carrying/moving the appliance, to avoid the mains cable becoming cut or damaged.

• When positioning your appliance take care

not to damage your flooring, pipes, wall coverings etc. Do not move the appliance by pulling by the lid or handle. Do not allow children to play with the appliance or tamper with the controls. Our company declines to accept any liability should the instructions not be followed.

• Do not install the appliance in humid, oily

or dusty places, nor expose it to direct sunlight and to water.

• Do not install the appliance near heaters

or inflammable materials.

• If there is a power failure do not open the

lid. Frozen food should not be affected if the failure lasts for less than 20 hours. If the failure is longer, then the food should be checked and eaten immediately or cooked and then refrozen.

• If you find that the lid of the chest freezer

is difficult to open just after you have closed it, don’t worry. This is due to the pressure difference which will equalize and allow the lid to be opened normally

after a few minutes.

• Do not connect the appliance to the

electricity supply until all packing and transit protectors have been removed.

• Leave to stand for at least 4 hours before

switching on to allow compressor oil to settle if transported horizontally.

• This freezer must only be used for its

intended purpose (i.e. storing and freezing of edible foodstuff).

• Do not store medicine or research

materials in the Wine Coolers. When the material that requires a strict control of storage temperatures is to be stored, it is possible that it will deteriorate or an uncontrolled reaction may occur that can cause risks.

• Before performing any operation, unplug

the power cord from the power socket.

• On delivery, check to make sure that the

product is not damaged and that all the parts and accessories are in perfect condition.

• If in the refrigeration system a leak is

noted, do not touch the wall outlet and do not use open flames. Open the window and let air into the room. Then call a service center to ask for repair.

• Do not use extension cords or adapters.

• Do not excessively pull or fold the power

cord or touch the plug with wet hands.

• Do not damage the plug and/or the power

cord; this could cause electrical shocks or fires.

• If the supply cord is damaged, it must be

replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

• Do not place or store inflammable and

highly volatile materials such as ether, petrol, LPG, propane gas, aerosol spray cans, adhesives, pure alcohol, etc. These materials may cause an explosion.

• Do not use or store inflammable sprays,

such as spray paint, near the Wine Coolers. It could cause an explosion or fire.

• Do not place objects and/or containers

filled with water on the top of the appliance.

• We do not recommend the use of

extension leads and multi-way adapters.

• Do not dispose of the appliance on a fire.

Take care not to damage, the cooling circuit/pipes of the appliance in transportation and in use. In case of damage do not expose the appliance to fire, potential ignition source and immediately ventilate the room where the appliance is situated.

• The refrigeration system positioned

behind and inside the Wine Coolers contains refrigerant. Therefore, avoid damaging the tubes.

• Do not use electrical appliances inside the

food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• Do not use mechanical devices or other

means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not use electrical appliances inside the

food storage compartments, unless they are of the type recommended by the manufacturer.

• Do not touch internal cooling elements,

especially with wet hands, to avoid cracks or injuries.

• Maintain the ventilation openings in the

appliance enclosure or in the built-in structure, free of obstruction.

• Do not use pointed or sharp-edged objects

such as knives or forks to remove the frost.

• Never use hairdryers, electrical heaters or

other such electrical appliances for defrosting.

• Do not scrape with a knife or sharp object

to remove frost or ice that occurs. With these, the refrigerant circuit can be damaged, the spill from which can cause a fire or damage your eyes.

• Do not use mechanical devices or other

equipment to hasten the defrosting process.

• Absolutely avoid the use of open flame or

electrical equipment, such as heaters, steam cleaners, candles, oil lamps and the like in order to speed up the defrosting phase.

• Never use water wash the compressor

position, wipe it with a dry cloth thoroughly after cleaning to prevent rust.

• It is recommended to keep the plug clean,

any excessive dust residues on the plug can be the cause fire.

• The product is designed and built for

domestic household use only.

• The guarantee will be void if the product is

installed or used in commercial or nonresidential domestic household premises.

• The product must be correctly installed,

located and operated in accordance with the instructions contained in the User Instructions Booklet provided.

• The guarantee is applicable only to new

products and is not transferable if the product is resold.

• Our company disclaims any liability for

incidental or consequential damages.

• The guarantee does not in any way

diminish your statutory or legal rights.

• Do not perform repairs on this Wine

Coolers. All interventions must be performed solely by qualified personnel.

• If you are discarding an old product with a

lock or latch fitted to the door, ensure that it is left in a safe condition to prevent the entrapment of children.

• This appliance can be used by children

aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or with a lack of experience and knowledge; provided that they have been given adequate supervision or instruction concerning how to use the appliance in a safe way and understand the hazards involved.

• Children should not play with the

appliance. Cleaning and user maintenance should not be made by children without supervision.

• Locks :If your Fridge/Freezer is fitted with

a lock, to prevent children being entrapped keep the key out of reach and not in the vicinity of the appliance. If disposing of an old Fridge/Freezer break off any old locks or latches as a safeguard.

• Children aged from 3 to 8 years are allowed

to load and unload this appliance. WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged. WARNING! Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. To avoid contamination of food, please respect the following instructions

• Opening the door for long periods can cause

a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in

contact with food and accessible drainage systems.

• Clean water tanks if they have not been

used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.

• Store raw meat and fish in suitable

containers in the refrigerator, so that it is not in contact with or drip onto other food.

• Two-star frozen-food compartments(if they

are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

• One-, two- and three -star compartments

(if they are presented in the appliance) are not suitable for the freezing of fresh food.

• If the appliance is left empty for long

periods, switch off, defrost, clean, dry and leave the door open to prevent mould developing within the appliance. WARNING! During using, service and disposal the appliance, please pay attention to symbol as left side, which is located on rear of appliance (rear panel or compressor). It’s risk of fire warning symbol. There are

flammable materials in refrigerant pipes and compressor.

• Please be far away fire source during using,

service and disposal.

2. INSTALLATION

2.1 Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

When installing the unit, ensure that 10 cm of free space is left at both sides, 10 cm at the rear and 30 cm at the top of the unit. This will allow cold air to circulate around the wine cooler and improve the efficiency of the cooling process.

2.2 Door Handle Install Illumination (optional)

1) Take out the screw caps from the door handle holes.

2) Put the handles into the screw holes and then hit them to fix.

3) Cap the screw caps on the handle screws.

4) Take out the screw caps from the handle screw holes.

5) Remove the screws and take the handles down.

6) Cap the screw caps on the door handle holes again.

7) Install the handles into the door handle holes of the other side in accordance with the handle

installation instructions.

2.3 Reversing the Door Swing

1) Take off knuckle guard.

2) Take off top hinge.

3) Take off the door of refrigerating

chamber.

7) Assemble the door of freezer chamber on the lower hinge.

4) Take off middle hinge with a screw

driver.

8) Assemble middle hinge assembly to left side of the cabinet.

5) Take off the door of freezing chamber.

9) Assemble the door of

refrigerating.

6) Take off hinge assembly with a screw driver, Assemble lower hinge assembly to left side of the cabinet with a screw driver.

10) Take on knuckle guard.

2.4 Door Space Requirements

The unit's door must be able to open fully as shown. W×D≥990×1025mm

2.5 Levelling the Unit

To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the door and magnetic seal alignments

will not be covered properly. Make sure that the foot touches the ground before use. Look down from the top, clockwise and counterclockwise loosening, tightening.

2.6 Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a 'Wrung-out' sponge or cloth. Wash the shelves and salad bin in warm soapy water and dry completely before replacing in the unit. Clean the exterior of the unit with a damp cloth.

If you require more information, refer to the Cleaning section.

2.7 Before Using Your Unit

The refrigerator adopts 220~240V/50Hz AC power, voltage fluctuations over the range of 187~264V will cause malfunction or even damage.

Do not damage the power cord under any condition so as to ensure safety use, do not use when the power cord is damaged or the plug is worn.

Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.

Do not place flammable items near the refrigerator to avoid fires. This product is household refrigerators and shall be only suitable for the storage of foods. According to national standards, household refrigerators shall not be used for other purposes,

such as storage of blood, drugs or biological products. Do not place items such as bottled or sealed container of fluid such as bottled beers and

beverages in the freezer to prevent bursts and other losses. Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working

properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled. Do not damage the power cord under any condition so as to ensure safety use, do not use when the power cord is damaged or the plug is worn.

Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent

damages to the product or fire accidents. Do not place flammable items near the refrigerator to avoid fires. This product is household refrigerators and shall be only suitable for the storage of foods.

According to national standards, household refrigerators shall not be used for other purposes, such as storage of blood, drugs or biological products.

Do not place items such as bottled or sealed container of fluid such as bottled beers and beverages in the freezer to prevent bursts and other losses.

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

♦ Before Plugging in

You must check that you have a socket which is compatible with the plug supplied with the unit.

♦ Before Turning On!

Do not turn on until two hours after moving the unit.

2.8 Interior Accessories

Various glass or plastic storage shelves are included with your appliance - different models have different combinations.

You should always slide one of the full size glass storage shelves into the lowest set of guides, above the fruit and vegetable containers, and keep it in this position. To do this, pull the storage shelf forward until it can be swiveled upwards or downwards and removed.

Please do the same in reverse to insert the shelf at a different height.

In order to make the most of the volume of the fresh food storage compartment and frozen-food storage compartment, the user can remove one or more shelves, drawers, out of the appliance, according to your daily use.

3. PRODUCT OVERVIEW

*Dotted line represents the position of air outlet and return air inlet.

*All images in this instruction manual are for indication only; please refer to your individual unit for details.

4. OPERATION

4.1 Operation Instructions

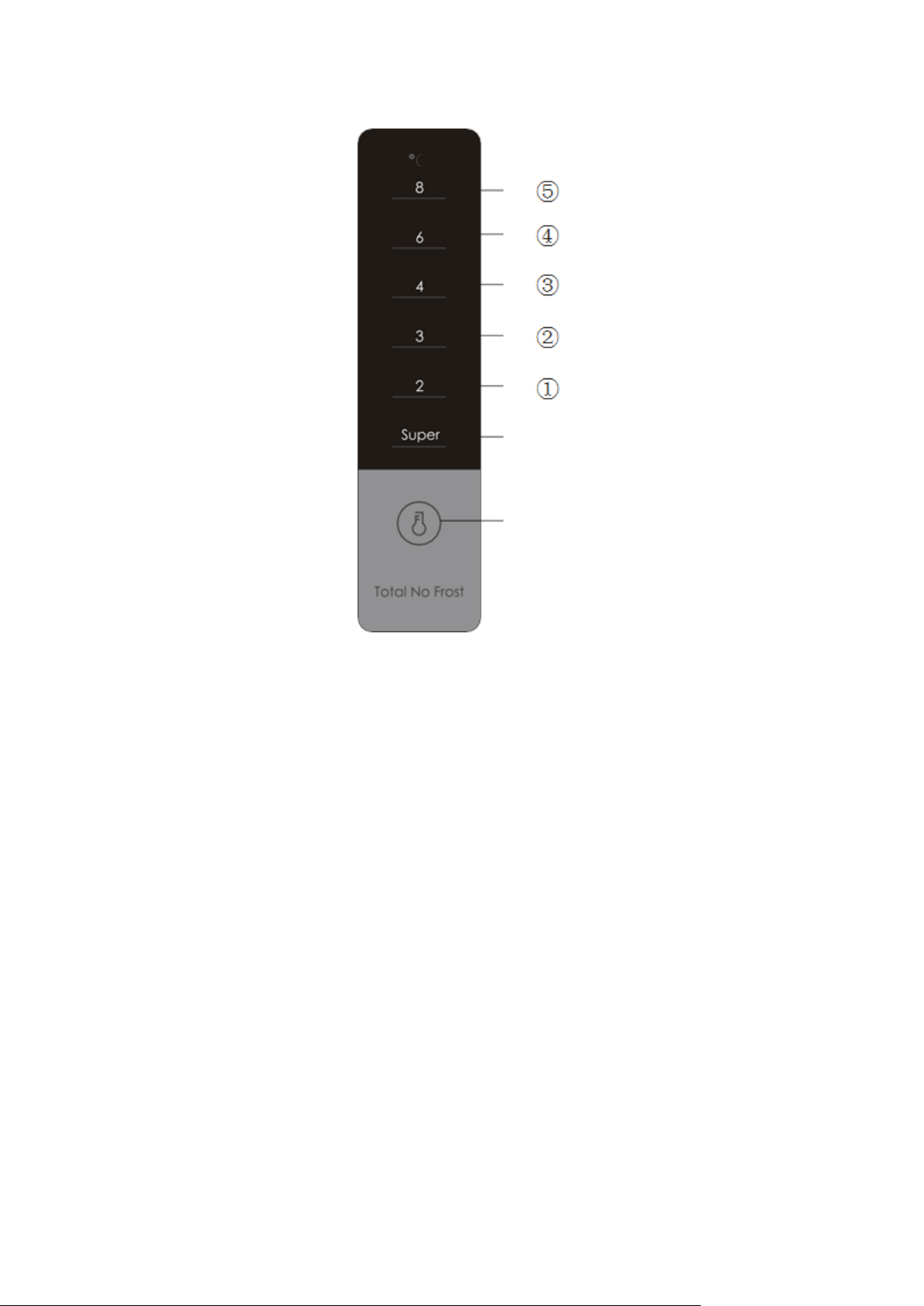

Temperature control

• Temperature control of fresh food storage compartment.

Key

A.SET: gear setting key.

Display screen

1 Gear 1 2 Gear 2 3 Gear 3 4 Gear 4 5 Gear 5

fast cool

External display

Display

For the first power-on, the display screen (including the key light) will be displayed in full for 3s, and then the gear in the middle displays the state of running.

Display of normal running On the occurrence of a failure, the corresponding LED light will give a combined display of

failure code (loop display); Where there is no failure, the LED light will display the current running gear of the refrigerator. Gear setting The gear will be changed once every time when you press the key SET. Then, the refrigerator

will run under the setting value after 15s.

Fast cool function

Enter: Circulating modulation rapid cooling mode. Operate: Indicator of rapid cooling lights up, and the refrigerator operates at 2°C.

Exit: 1. Operate 150min under the rapid cooling mode.

2. Temperature adjustment can exit from the rapid cooling mode.

• Temperature control of freezing chamber

The freezing temperature is relatively low in “COLDER” position, while the freezing temperature is relatively high in “COLD” position, thus, “NORMAL” position is generally used.

When ambient temperature is high in summer, the temperature shall be in the range from “NORMAL" to “COLD”. If the ambient temperature is above 35°C, then “COLD” position shall prevail.

When ambient temperature is low in winter, the temperature shall be in the range from “NORMAL" to “COLDER”. If the ambient temperature is below 10°C, then “COLDER” position shall prevail.

Gear 1

Gear 5

Gear 4

Gear 3

Gear 2

(summer)

(winter)

4.2 Noise Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

4.3 Tips for Keeping Food in the Unit

♦ Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid

bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.

♦ Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the

unit are kept cool.

♦ To prevent transfer of favours and drying out, pack or cover the food separately. Fruit and

vegetables do not need to be wrapped.

♦ Always let pre-cooked food cool down before you put in the unit. This will help to maintain the

internal temperature of the unit.

♦ To prevent cold air escaping from the unit, try to limit the number of times you open the door.

We recommend that you only open the door when you need to put food in or take food out.

4.4 Change the Light Bulb

Lamp replacement by professionals

5. CLEANING

5.1 Defrosting

Auto-defrost for Frost-free Refrigerator

5.2 Cleaning the Interior and the Exterior of the Unit

♦ Remove all the shelves and the salad bin. To remove the salad bin first remove the lower door

shelf.

♦ Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm

water using a “wrung-out” sponge or cloth. Wipe completely dry before replacing the shelves

and salad bin.

♦ Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make

sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.

♦ The grille of the condenser at the back of the unit and the adjacent components can be

vacuumed using a soft brush attachment.

5.3 Cleaning Tips

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe of any moisture residue. If the problem continues, please contact a qualified technician for assistance.

6. MAINTENANCE

6.1 Changing the Internal Light

Lamp replacement by professionals.

6.2 Care When Handling / Moving Your Unit

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

6.3 Servicing

The unit should be serviced by an authorized engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualitatively technician.

6.4 Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.

6.5 Do not shield positions of air outlet and return air inlet of the refrigerator

6.6 Do not keep foods of higher temperature close to temperature sensor

6.7 Take out drawer of freezing chamber of refrigerator and put foods directly on

the glass partition

7. Trouble shooting

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not settled.

Inoperation

Whether the freezer is plugged and connected to power; Low voltage; Failure power or tripping circuit

Odor

Odorous foods should closely wrapped; Whether foods are rotten; Whether the interior shall be cleaned.

Long-term operation of

compressor

It is normal that refrigerator operates for longer time in summer when the ambient temperature is higher; Do not put too much food in the freezer at one time; Do not put foods until they are cooled; Frequent opening of refrigerator door.

Illuminating light does not

shine

Whether the refrigerator is connected to power, whether the illuminating light is damaged.

The refrigerator door can not

be properly closed.

The freezer door is stuck by food packages; Too much food; Tilt refrigerator.

Loud noises

Whether the food is leveled, whether the refrigerator is balanced; Whether the refrigerator parts are properly placed.

7.1 Warm tips:

♦ The refrigerator enclosure may emit heat during operation specially in summer, this is caused by the radiation of the condenser, and it is a normal phenomenon.

♦ Condensation: condensation phenomenon will be detected on the exterior surface and door seals of the freezer when the ambient humidity is large, this is a normal phenomenon, and the condensation can be wiped away with a dry towel.

♦ Buzz: Buzz will be generated by running compressor specially when starting up or shutting down.

8. TIPS FOR ENERGY SAVING

For better energy saving we suggest : Installing tge appliance away from heat sources and not exposed to direct sunlight and in a well

ventilated roo. Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and

therefore causing continuos functionaliting of the compressor. Do not excessively stuff foods so as to ensure proper air circulation. Defrost the appliance in case there is ice to facilitate the transfer of cold. In case of absence of electrical energy, it is advisable to keep the refrigerator door closed. Open or keep the doors of the appliance open as little as possible Avoid adjusting the setting to temperatures too cold. Remove dust present on the rear of the appliance

9. SCRAPPING OLD APPLIANCES

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

- WEEE should not be treated as household waste;

- WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Conformity

By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

Italiano

Indice

INFORMAZIONI DI SICUREZZA ......................................................................... 23

INSTALLAZIONE ................................................................................................. 28

2.1 Posizione ................................................................................................................. 28

2.2 Installazione dell'illuminazione sullo sportello (opzionale).......................................... 28

2.3 Inversione del senso di apertura degli sportelli .......................................................... 29

2.4 Requisiti di spazio per gli sportelli ............................................................................. 30

2.5 Livellamento dell'unità .............................................................................................. 30

2.6 Pulizia prima dell'uso ................................................................................................ 31

2.7 Operazioni prima dell'uso ......................................................................................... 31

2.8 Accessori interni ....................................................................................................... 32

PANORAMICA DEL PRODOTTO ........................................................................ 32

USO ..................................................................................................................... 33

4.1 Istruzioni per l'uso .................................................................................................... 33

4.2 Rumori all'interno dell'unità ....................................................................................... 35

4.3 Suggerimenti per una perfetta conservazione degli alimenti nell'unità ....................... 35

4.4 Sostituzione della lampadina .................................................................................... 35

PULIZIA ............................................................................................................... 35

5.1 Sbrinamento ............................................................................................................. 35

5.2 Pulizia della parte interna ed esterna dell'unità ......................................................... 35

5.3 Suggerimenti per la pulizia ....................................................................................... 35

MANUTENZIONE ................................................................................................ 36

6.1 Sostituzione della lampada interna ........................................................................... 36

6.2 La manipolazione e la movimentazione dell'unità richiedono particolare

attenzione. ............................................................................................................... 36

6.3 Riparazioni ............................................................................................................... 36

6.4 Spegnimento in caso di lunghi periodi di inutilizzo ..................................................... 36

6.5 Non coprire l'uscita dell'aria e l'ingresso dell'aria di ritorno del frigorifero ................... 36

6.6 Non conservare alimenti a temperatura maggiore in prossimità del sensore

di temperatura .......................................................................................................... 36

6.7 Estrarre il cassetto del vano congelatore del frigorifero e collocare gli alimenti

direttamente sul separatore di vetro .......................................................................... 36

SOLUZIONE DEI PROBLEMI .............................................................................. 36

7.1 Emissione di calore .................................................................................................. 37

RISPARMIO ENERGETICO ................................................................................ 37

SMALTIMENTO DEI VECCHI ELETTRODOMESTICI ......................................... 37

Grazie per aver acquistato questo prodotto.

Prima di utilizzare il frigorifero, leggere attentamente questo manuale di istruzioni per ottimizzare il rendimento dell'elettrodomestico. Conservare tutta la documentazione per future consultazioni o per altri proprietari. Questo prodotto è destinato esclusivamente all'uso domestico o applicazioni simili, come:

- zone cucina per il personale di negozi, uffici e altri ambienti lavorativi,

- aziende agricole, clienti di hotel e motel e altri ambienti residenziali,

- ad es. Bed and Breakfast (B&B),

- servizi di catering e altri usi diversi dalla vendita al dettaglio.

Questo elettrodomestico deve essere utilizzato esclusivamente per la conservazione di alimenti. Altri utilizzi sono pericolosi e il produttore in questi casi non sarà responsabile. Si raccomanda di consultare le condizioni della garanzia. Per un funzionamento senza problemi e per ottimizzare il rendimento dell'elettrodomestico, leggere attentamente queste istruzioni. Il mancato rispetto delle istruzioni fornite potrebbe annullare il diritto all'assistenza gratuita durante il periodo di garanzia.

1. INFORMAZIONI DI SICUREZZA

Questa guida contiene numerose informazioni importanti per la sicurezza. Conservare queste istruzioni in un luogo sicuro per una facile consultazione durante l'uso dell'elettrodomestico. Il frigorifero contiene un gas refrigerante (isobutano, R600a) e un gas isolante (ciclopentano); entrambi i gas sono altamente compatibili con l'ambiente ma sono infiammabili.

Attenzione: rischio di incendio

Se il circuito di refrigerazione è visibilmente danneggiato:

• evitare la vicinanza con fiamme libere e fonti

di ignizione. Ventilare accuratamente l'ambiente in cui è installato l'elettrodomestico

AVVERTENZA!

• Durate le operazioni di pulizia o trasporto

dell'elettrodomestico, fare attenzione a non toccare

i cavi metallici del condensatore sul retro

dell'elettrodomestico per evitare di ferirsi le dita

e le mani o di danneggiare il prodotto.

• Questo elettrodomestico non può essere impilato

con altri elettrodomestici. Non sedersi né salire

sull'elettrodomestico. Non è progettato per simili

utilizzi. Ci si potrebbe ferire o l'elettrodomestico

potrebbe danneggiarsi.

• Accertarsi che il cavo di alimentazione non resti

impigliato sotto l'apparecchiatura per evitare che

si laceri o si danneggi.

• Quando l'elettrodomestico viene posizionato,

fare attenzione a non danneggiare il pavimento,

i tubi, il rivestimento delle pareti ecc. Non spostare

l'elettrodomestico tirandolo per il coperchio o per

la maniglia. Non consentire ai bambini di giocare

con l'apparecchio o manomettere i controlli.

In caso di inosservanza delle istruzioni,

l'azienda declina qualunque responsabilità.

• Non installare l'elettrodomestico in luoghi umidi,

unti o polverosi, e non esporlo all'acqua e alla luce

solare diretta.

• Non installare l'elettrodomestico accanto a caloriferi

o materiali infiammabili.

• In caso di interruzione della corrente, non aprire

il coperchio. Se il blackout non supera le 20 ore,

gli alimenti congelati non dovrebbero subire

alterazioni. Se l'interruzione della corrente dura di più,

controllare il cibo e consumarlo immediatamente

o ricongelarlo solo dopo averlo cotto.

• Se il coperchio del congelatore orizzontale non

si riapre facilmente subito dopo che è stato chiuso,

non si tratta di un problema, in quanto tale

condizione dipende dalla differenza di pressione

che si bilancerà entro pochi minuti consentendo

nuovamente l'apertura del coperchio.

• Collegare l'elettrodomestico all'alimentazione

elettrica solo dopo aver tolto l'imballo e le protezioni

per il trasporto.

• Prima di accendere l'elettrodomestico, attendere

almeno 4 ore per consentire all'olio del compressore

di assestarsi nel caso in cui l'elettrodomestico

sia stato trasportato in posizione orizzontale.

• Utilizzare il congelatore solo per gli scopi previsti,

ossia la conservazione e il congelamento di alimenti.

• Non conservare medicinali o materiali di ricerca nelle

cantinette. Non conservare medicinali o materiali

di ricerca che richiedano un controllo rigido della

temperatura di conservazione, in quanto potrebbero

deteriorarsi e provocare reazioni incontrollate

e pericolose.

• Prima di qualunque intervento, scollegare il cavo

di alimentazione dalla presa elettrica.

• Quando il prodotto viene consegnato, accertarsi

che non sia danneggiato e che tutti i componenti

e gli accessori siano in perfette condizioni.

• In caso di perdita nell'impianto di refrigerazione,

non toccare la presa di corrente ed evitare l'uso

di fiamme libere. Aprire la finestra e arieggiare

l'ambiente. Rivolgersi al centro assistenza

per chiedere la riparazione.

• Non adoperare adattatori né cavi di prolunga.

• Non tirare o piegare eccessivamente il cavo

di alimentazione e non toccare la spina con

le mani umide.

• Per scongiurare il rischio di incendi o scosse

elettriche, non danneggiare la spina e/o il cavo

di alimentazione.

• Se il cavo di alimentazione dell’elettrodomestico

dovesse essere danneggiato, farlo sostituire dal

produttore, dal suo servizio tecnico o da un tecnico

qualificato, per evitare rischi.

• Non collocare o conservare materiali infiammabili

o estremamente volatili (ad es. etere, benzina, GPL,

propano, bombolette per aerosol, adesivi, alcool

puro), in quanto possono provocare esplosioni.

• Non adoperare né conservare spray infiammabili

(ad es. bombolette di vernice spray) accanto alle

cantinette, in quanto potrebbero svilupparsi incendi

o esplosioni.

• Non collocare oggetti e/o contenitori pieni d'acqua

sopra l'elettrodomestico.

• Si sconsiglia l'uso di prolunghe e prese multiple.

• Non smaltire l'elettrodomestico nel fuoco.

Fare attenzione a non danneggiare il circuito/i tubi

di raffreddamento dell'elettrodomestico durante

il trasporto e l'uso. In caso di danni, non esporre

l'elettrodomestico al fuoco o a potenziali fonti

di ignizione, e ventilare immediatamente l'ambiente

in cui è installato.

• L'impianto di refrigerazione collocato nella parte

posteriore e nella parte interna delle cantinette

contiene refrigerante, per cui occorre particolare

attenzione a non danneggiare i tubi.

• Non adoperare apparecchiature elettriche all'interno

dei comparti dell'elettrodomestico destinati alla

conservazione degli alimenti, a meno che non siano

del tipo consigliato dal produttore.

• Non danneggiare il circuito di refrigerazione.

• Non usare oggetti meccanici o utensili diversi

da quelli consigliati dal produttore per accelerare

lo sbrinamento.

• Non adoperare apparecchiature elettriche all'interno

dei comparti per la conservazione degli alimenti,

a meno che non siano del tipo consigliato dal

produttore.

• Tenere libere da ostruzioni le aperture di ventilazione

sull'involucro del frigorifero.

• Non toccare gli elementi di raffreddamento interni,

soprattutto con le mani bagnate, per evitare

bruciature o lesioni.

• Non adoperare oggetti appuntiti o affilati

(ad es. coltelli o forchette) per rimuovere il ghiaccio.

• Non utilizzare asciugacapelli, stufe o apparecchi

simili per lo sbrinamento.

• Non adoperare coltelli o oggetti appuntiti per

rimuovere brina o ghiaccio. Il circuito del refrigerante

potrebbe danneggiarsi ed eventuali fuoriuscite

potrebbero provocare danni oculari o incendi.

• Non adoperare dispositivi meccanici o altre

apparecchiature per accelerare il processo

di sbrinamento.

• Evitare nel modo più assoluto l'uso di fiamme libere

o apparecchiature elettriche (ad es. stufe, pulitrici

a vapore, candele, lampade a olio e altri oggetti simili)

per accelerare lo sbrinamento.

• Non lavare con acqua la zona del compressore,

ma dopo la pulizia strofinarla con un panno asciutto

per evitare la formazione di ruggine.

• Tenere pulita la presa di corrente, in quanto

l'eccesso di residui di polvere può causare incendi.

• Il prodotto è progettato e realizzato esclusivamente

per l'uso domestico.

• Qualora il prodotto venga installato o utilizzato

il ambienti commerciali o non residenziali,

la garanzia potrebbe essere annullata.

• Il prodotto deve essere installato correttamente,

posizionato e utilizzato secondo le istruzioni

riportate nel manuale d'uso fornito in dotazione.

• La garanzia vale solo per i prodotti nuovi e non

è trasferibile se il prodotto viene rivenduto.

• L'azienda declina qualunque responsabilità in caso

di danni incidentali o consequenziali.

• La garanzia non limita in alcun modo i diritti

dell'utente previsti dalla legge.

• Le cantinette non possono essere riparate

dall'utente. Tutti gli interventi devono essere

effettuati esclusivamente da personale qualificato.

SICUREZZA DEI BAMBINI!

• Se occorre smaltire un vecchio prodotto con un

lucchetto applicato allo sportello, accertarsi che

venga lasciato in condizioni sicure per evitare

il pericolo di intrappolamento di bambini.

• Questo elettrodomestico può essere utilizzato dai

bambini di almeno 8 anni, da persone con ridotte

capacità fisiche, sensoriali o mentali e da persone

inesperte solo sotto supervisione o se hanno appreso

le modalità di utilizzo sicuro dell'elettrodomestico

e sono consapevoli dei relativi rischi.

• Impedire ai bambini di giocare con l'elettrodomestico.

La pulizia e la manutenzione non devono essere

effettuate dai bambini senza supervisione.

2. INSTALLAZIONE

2.1 Posizione

Nella scelta della posizione dell'unità, accertarsi che il pavimento sia solido e a livello e che l'ambiente sia adeguatamente ventilato. Non collocare l'unità in prossimità di fonti di calore (ad es. forno, caldaia o radiatori). Per ridurre i consumi elettrici, evitare l'esposizione alla luce solare diretta. Temperature ambientali troppo basse possono influire sul corretto funzionamento dell'unità. Questa unità non è progettata per l'uso in autorimesse o ambienti esterni. Non coprire mai l'unità.

Quando l'unità viene installata, lasciare 10 cm di spazio su entrambi i lati, 10 cm di spazio dalla parte posteriore e 30 cm di spazio sulla parte superiore. In tal modo si consente la circolazione dell'aria fredda attorno alla cantinetta e il processo di raffreddamento è più efficiente.

2.2 Installazione dell'illuminazione sullo sportello (opzionale)

1) Estrarre i cappucci delle viti dai fori della maniglia dello sportello.

2) Collocare le maniglie nei fori delle viti e spingere per fissarle.

3) Applicare i cappucci delle viti sulle viti delle maniglie.

4) Estrarre i cappucci delle viti dai fori per le viti delle maniglie.

5) Rimuovere le viti e staccare le maniglie.

6) Applicare nuovamente i cappucci delle viti sui fori delle maniglie degli sportelli.

7) Installare le maniglie nei fori per le maniglie degli sportelli dall'altro lato, seguendo le istruzioni per l'installazione delle maniglie.

2.3 Inversione del senso di apertura degli sportelli

1) Smontare la protezione della cerniera.

2) Smontare la cerniera superiore.

3) Smontare lo sportello del vano frigorifero.

4) Smontare la cerniera centrale con un cacciavite.

5) Smontare lo sportello del vano congelatore.

7) Montare lo sportello del vano congelatore sulla

cerniera inferiore.

8) Assemblare la cerniera centrale sul lato sinistro

del vano.

9) Montare lo sportello del frigorifero.

6) Smontare la cerniera con un cacciavite e montare la cerniera inferiore sul lato sinistro del vano con un cacciavite.

10) Montare la protezione della cerniera.

2.4 Requisiti di spazio per gli sportelli

Lo sportello dell'unità deve potersi aprire completamente, come visualizzato nella figura.

L×P≥990×1025 mm

2.5 Livellamento dell'unità

Regolare i due piedini di livellamento sul lato anteriore dell'unità.

Se l'unità non è a livello, lo sportello e la guarnizione magnetica non si allineano correttamente.

Accertarsi che il piedino tocchi terra. Controllare l'allineamento dall'alto in basso, in senso orario e antiorario e stringere i piedini

se necessario.

+ 206 hidden pages
