Candy CVMI900X User Manual

ENGLISH

INSTALLATION AND USER’S MANUAL

FRENCH

NOTICE D’INSTALLATION ET D’UTILISATION

ITALIAN

MANUALE D’ISTRUZIONE

PORTOGUESE

MANUAL DE INSTALAÇÃO E UTILIZAÇÃO

ROMÂNĂ

MANUAL DE INSTALARE ȘI UTILIZARE

INSTALLATION AND

USER’S MANUAL

CONTENT

INTRODUCTION
SAFETY PRECAUTION
SPECIFICATION
INSTALLATION
DESCRIPTION OF COMPONENTS
OPERATION
MAINTENANCE
TROUBLESHOOTING
CONFORMITY WITH DIRECTIVES
ENVIRONMENTAL PROTECTION

4-5

2
2
3

6
6
7
8
8
9

1

INTRODUCTION

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required
instructions related to the installation, use and maintenance of the appliance.
In order to operate the unit correctly and safety, please read this instruction
manual carefully before installation and usage.

The cooker hood uses high quality materials, and is made with a streamlined
design. Equipped with large power electric motor and centrifugal fan, it also
provides strong suction power, low noise operation, non-stick grease filter and
easy assembly installation.

By placing the marking on this product, we declare, on our own
responsibility, compliance to all of European safety, health and environmental
requirements stated in the legislation for this product.

SAFETY PRECAUTION

□ Never let the children operate the machine.
□ The cooker hood is for home use only, not suitable for barbecue, roast

shop and other commercial purpose.

□ The cooker hood and its filter should be clean regularly in order to

keep in good working condition.

□ Clean the cooker hood according to the instruction manual and keep

the unit from danger of burning.

□ Forbid the direct baking from the gas cooker.
□ Please keep the kitchen room a good convection.
□ Before connecting this appliance check that the power supply cord is

not damaged. A damage supply cord must be replaced by qualified
service personnel only.

□ There shall be adequate ventilation of the room when the range hood

is used at the same time as appliances burning gas or other fuels;

□ The air must not be discharged into a flue that is used for exhausting

fumes from appliances burning gas or other fuels;

□ Regulations concerning the discharge of air have to be fulfilled.
□ This appliance if not intended for use by persons(including children)

with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person slide for their
safety.

□ Children should be supervised to ensure that they do not play with the

appliance.

□ Do not flame under the range hood.
□ The range hood is not intended to be installed over a hob having more

than four hob elements

□ Only plug this unit into a properly earthed outlet. If in doubt seek

advice from a suitably qualified engineer.

□ Failure to follow these instructions can result in death, fire, or

electrical shock.

Electrical Shock Hazard

2

Standard Installation Accessories List

Spec.

Illustration Picture

Qty

Casing
(CMBI970LX)
(CVMI970LX)

1

Upper Chimney 600mm

1

Lower Chimney 600mm

1

Hanging Board

1

Screws M6×60

8

φ8 Rawl Plugs

φ8×φ6 white color

11

Screws

ST6.0×40

11

φ7.2 Screws

ST4.0×8

4

Screws M5x12

40

Washers

16

Nuts

16

3

CEILING MOUNTING INSTALLATION

1)Position the hanging plate on the
ceiling and then mark the position of the
screw holes.
The hanging plate should be securely fixed
to the ceiling,
 11 x ST6 (40 mm)screws for wooden

ceiling

 8 x expansion bolts for cement ceiling

2) Fix the angle bars to the hanging plate,
using the 8 x M5 screws.

3) Extend the angle bars to the repuired
height and then fix them in position using
the 16 x M5 screws and nuts with metal
washers.

 IMPORTANT: The angle bars must have an overlap of AT LEAST 100

mm.

4) If your cooker hood is going to
be used in extraction mode, then
you should connect the ducting
hose to the ceiling adaptor at this
point.
Fix the upper chimney section to
the hanging plate, using the 4 x
self tapping screws.

Slide the lower chimney section
onto the angle bars and raise it
until it sits just below the upper
chimney section.

4

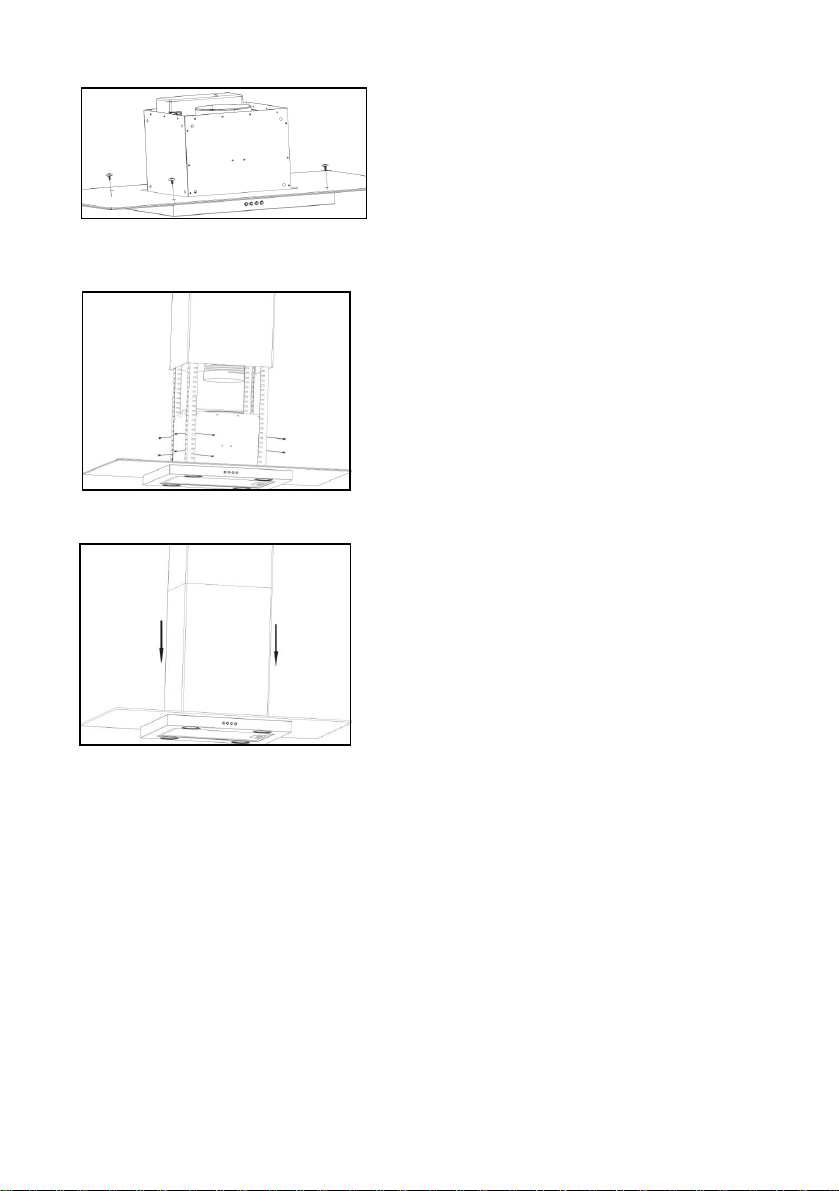

5) If the glass canopy has not been
pre-assembled by the factory, then it
should be fixed to the top of the main
body of the cooker hood at this stage.

6) Lift the main body of the cooker
hood onto the angle bar and then fix it
into position using the 16 x M5 screws.
 IMPORTANT: This stage of the

installation process MUST be
completed by two people.

 IMPORTANT: The 16 x M5 screws

MUST be securely tightened.

7) If you are going to be using the
hood in
extraction mode, you should fix the
ducting
hose to the spigot.

 The electrical connection must correspond to the electrical

repuirement noted on the rating plate, which is placed inside the
cooker hood. The appliance should now be connected to the
electrical supply.

 Check that the appliance is operating correctly by selecting each speed

and switching the light bulbs on and off.

 Remove the hanging hook and then slide the lower chimney section

downwards, until it rests against the main body of the cooker hood.

 Use a stainless steel cleaner and polish on the stainless steel sections of

the appliance.

 If you are using the appliance in recirculation mode, then you

should now fit the carbon filter.

5

DESCRIPTION OF COMPONENTS

OPERATION

Low Speed button

It’s used for Ventilation on the kitchen. It is suitable for simmering and cooking

which do not make much steam.

Medium Speed button

Airflow speed is ideally for ventilation in standard cooking operation.

High Speed button

When high density of smoke or steam produced, press high-speed button for
highest effective ventilation.

Light button

NOTE: If Low / Medium / High speed buttons are press at the same time, the
unit will only operate at the highest speed.

6

MAINTENANCE

Before cleaning switch the unit off and pull out the plug.
I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or
household cleaning detergent. Never use metal pads, chemical, abrasive
material or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust…... so the filter is directly
affecting the efficiency of the cooker hood. If not cleaned, the grease
residue (potential flammable) will saturate on the filter. Clean it with
household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that installed as a recirculation unit (not vented to
the outside). This filter traps odors and must be replaced at least once a
year
depending on how frequent the cooker hood used.

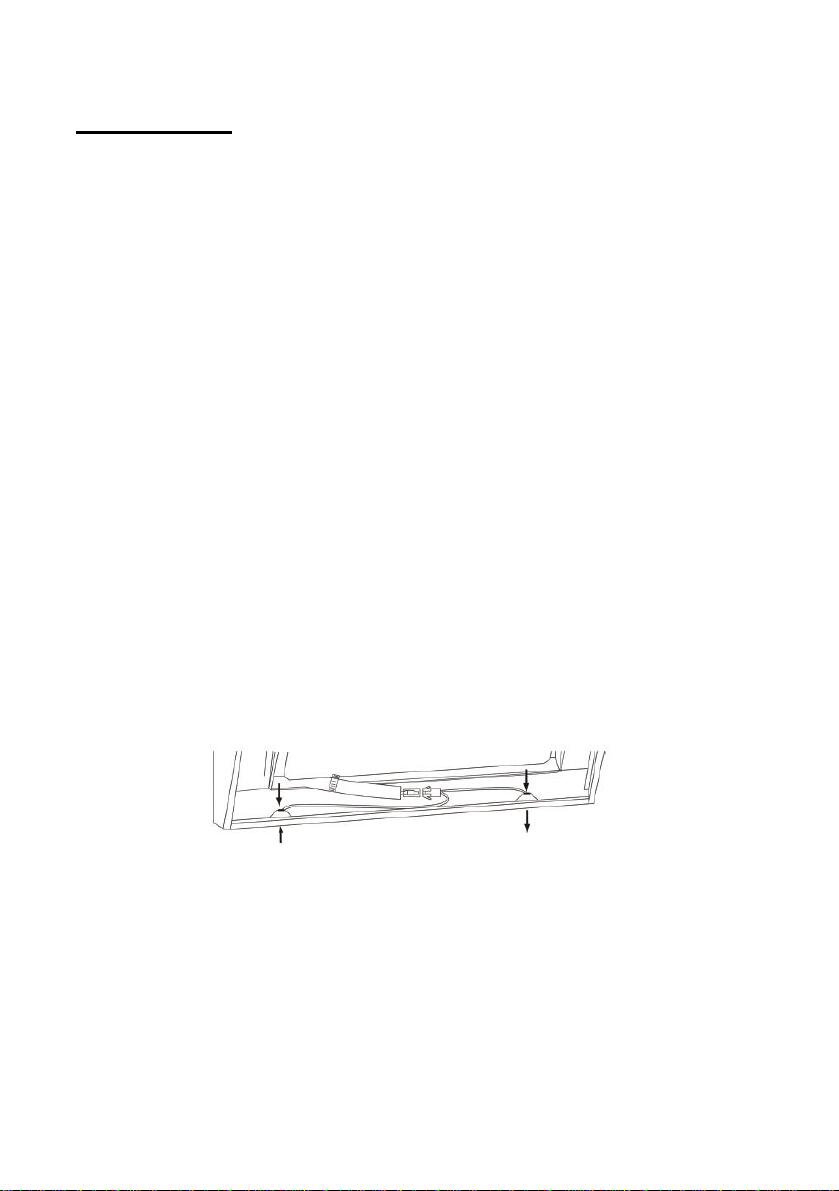

IV. Changing a light bulb
Remove the screws on the glass, take off the hood glass. Find the
bulb that requires replacement, you will find it located in the light
fixture which is inside the exposed section of the canopy.

Disconnect the light wiring point and remove the bulb holders and

wiring from the hood. Important: It’s not possible to replace the bulbs

individually, it will be necessary to obtain the bulbs, bulb holders and
wiring as a complete part. (LED light: MAX 1.5W)

Fit the replacement bulbs, bulb holders and wiring in the same
manners as the originals. Then reconnect the light wiring point.

Refit the hood glass and fasten the glass screws. Make sure the screws
are fully tightened.

7

TROUBLESHOOTING

Fault

Cause

Solution

Light on, but
fan does not
work

The fan blade is
jammed.

Switch off the unit and repair by
qualified service personnel only.

The motor is damaged.

Both light and
fan do not
work

Halogen light bulb burn.

Replace the bulb with correct
rating.

Power cord looses.

Plug in to the power supply again.

Serious
Vibration of
the unit
The fan blade is
damaged.

Switch of the unit and repair by
qualified service personnel only.

The fan motor is not
fixed tightly.

Switch off the unit and repair by
qualified service personnel only.

The unit is not hung
properly on the bracket.

Take down the unit and check
whether the bracket is in proper
location.

Suction
performance
not good

Too long distance
between the unit and
the cooking plane

Readjust the distance to 65-75cm

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of the operating anomaly, switch off the
appliance and contact the Assistance Service.

PRODUCT SERIAL NUMBER. Where can I find it?
It is important you to inform the Assistance Service of your product code
and its serial number (a 16 character code which begins with the number 3);
this can be found on the guarantee certificate or on the data plate located
on the appliance.
It will help to avoid wasted journeys to technicians, thereby (and most
significantly) saving the corresponding callout charges.

8

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling
advice.

This appliance is marked according to the European directive 2012/19/EU
on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human health,
which could otherwise be caused by inappropriate waste handling of this
product.
The symbol on the product indicates that this product may not be treated as
household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment
Disposal must be carried out in accordance with local environmental
regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of
this product, please contact your local city office, your household waste
disposal service or the shop where you purchased the product.

9

Notice d’installation et d’utilisation

Sommaire

INTRODUCTION
Conseils pour la sécurité 13
Installation
Description des composants 16
Fonctionnement
Entretien 17
Dépannage
Cahier des charges 18
Service après ventes
Protection de l’environnement

10

11-12

14 -15

17

18
18

19

Introduction
Merci d‘avoir choisi cette hotte.

Ce manuel d'instructions est conçu pour vous fournir toutes les
instructions requises relatives à l'installation, l'utilisation et l'entretien
de l'appareil. Afin de faire fonctionner l'appareil correctement et en
toute sécurité, merci de lire attentivement ce manuel avant
l'installation et l'utilisation.
La hotte utilise des matériaux de haute qualité avec un design épuré.
Equipé d’un moteur électrique de grande puissance et d’un
ventilateur centrifuge, il fournit également une puissance d'aspiration
forte, un fonctionnement avec un bruit modéré, un filtre à graisse et

un montage facile.
En plaçant le marquage sur ce produit , nous déclarons, sous
notre propre responsabilité, le respect à tous de la sécurité européenne,
la santé et les exigences environnementales énoncées dans la législation
pour ce produit.

Avertissement de sécurité

 Ne pas laisser d’enfants utiliser l’appareil
 Cette hotte est dédiée à un usage domestique uniquement.

Elle ne doit pas être utilisée pour les barbecues, les
rôtisseries ou toutes autres activités

 La hotte et ses filtres doivent être nettoyés régulièrement

pour en garantir un bon état de fonctionnement

 Respecter les consignes de ce manuel pour le nettoyage de

la hotte afin d’empêcher tout risque d’incendie

 Merci de garder une ventilation dans la cuisine
 Avant de connecter cet appareil, contrôlez que le cordon

d'alimentation n'est pas endommagé. Un cordon
d'alimentation endommagé doit être remplacé par une
personne qualifiée.

 Il doit y avoir une ventilation adéquate de la pièce quand la

hotte est utilisée en même temps que des appareils utilisant
du gaz ou d'autres combustibles

 l'air ne doit pas être évacué par un conduit qui est utilisé pour

évacuer les fumées des appareils utilisant le gaz ou d'autres
combustibles

 La réglementation concernant le rejet de l’air doit être

satisfaite

11

 Cet appareil n’est pas destiné à être utilisé par des personnes

(notamment les enfants) incapables, irresponsables ou sans

connaissance sur l’utilisation du produit, à moins qu’elle ne
soit surveillées ou instruites sur l’utilisation de l’appareil par

une personne responsable de leur sécurité

 Les enfants doivent être surveillés pour s'assurer qu'ils ne

jouent pas avec l'appareil.

 Ne pas faire flamber sous la hotte
 La hotte n'est pas destinée à être installé au-dessus d’une

plaque de cuisson ayant plus de quatre foyers de cuisson

Risque de choc électrique

 Cette hotte ne peut être branchée seulement sur une prise

reliée à la terre. En cas de doute, demandez conseil à un
ingénieur qualifié

 Le non-respect de ces instructions peut entraîner la mort, un

incendie ou un choc électrique.

12

Liste d’accessoires pour l’installation

Caractéristiques

Visuels

Qty

Base
(CMBI970LX)
(CVMI970LX)

1

Cheminée supérieure 600mm

1

Cheminée inférieure 600mm

1

Plaque s'accrochant

1

Vis M6×60

8

φ8 Chevilles

φ8×φ6 blanches

11

Vis

ST6.0×40

11

φ7.2 Vis
ST4.0×8

4

Screws M5x12

40

Washers

16

Nuts

16

13

Installation de votre hotte ilot.

Fixez la section de cheminée
supérieure à la plaque en
utilisant 4 vis découvrantes.

Faites glisser la section de
cheminée inférieure sur les barres
angulaires jusqu'à ce qu'elle soit
juste au-dessous de la section de
cheminée supérieure.

1)Placer la plaque s'accrochant au

plafond et marquez la position des
trous de vis, puis vissez.
La plaque doit être solidement fixée au
plafond.

 11 vis ST6 pour les plafonds

en bois

 8 vis d'expansion pour les

plafonds en ciment

2)Fixer les barres angulaires à la
plaque, pour cela utiliser 8 vis M5

3) Etendre les barres angulaires à la
hauteur requise, fixez les ensuite à

l’endroit indiqué sur les schémas en

utilisant 16 vis M5 et des vis avec des
rondelles métalliques.

Important : les barres angulaires doivent obligatoirement se chevaucher
d’au moins 100 mm.

4) Si votre hotte aspirante va être
utilisée en mode évacuation
externe, vous devez connecter le
tuyau de canalisation à
l'adaptateur de plafond.

14
