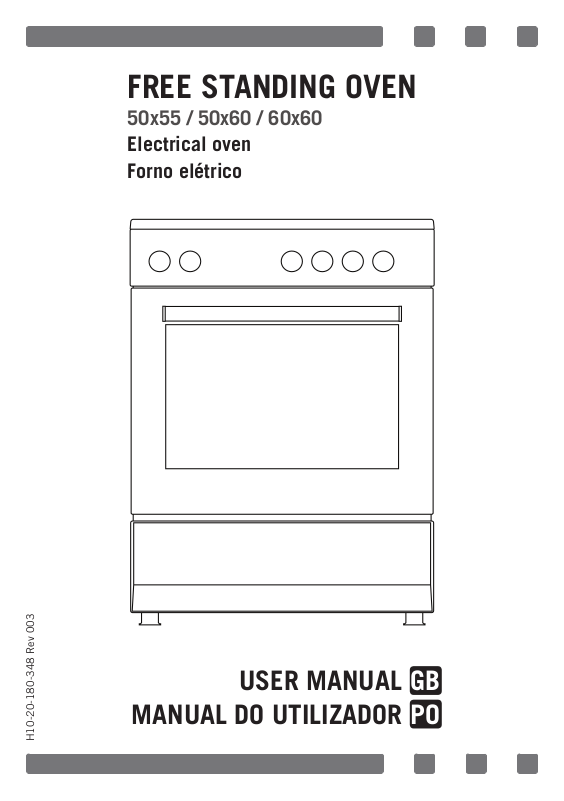

Candy CVE660MW User Manual

FREE STANDING OVEN

50x55 / 50x60 / 60x60

Electrical oven Forno elétrico

MANUAL DO UTILIZADOR

H10-20-180-348 Rev 003

USER MANUAL

GB PO

Dear User,

Our objective is to make this product provide you with the best output which is manufactured in our modern facilities in a careful working environment, in compliance with total quality concept.

Therefore, we suggest you to read the user manual carefully before using the product and, keep it permanently at your disposal.

Note: This user manual is prepared for more than one model. Some of the features specified in the Manual may not be available in your appliance.

All our appliances are only for domestic use, not for commercial use.

Products marked with (*) are optional.

“Conforms with the WEEE Regulations.”

Contents

Important warnings 4 Methods for protecting ceramic glass cooking surface 13 Electrical connection 14 Introduction of the appliance 15 Accessories 16 Technical features of your oven 17 Installation of your oven 18 Chain lashing illustration 20 Control panel 20 Using oven section 21 Using the grill 22 Using the chicken roasting 22 Using cooker section 23 Program types 25 Cooking time table 26 Maintenance and cleaning 27 Installation of the oven door 28 Cleaning and maintenance of the Oven’s front door glass 29 Changing the oven lamp 29 Catalytic walls 30 Rack positions 30 Using the grill deector sheet 31 Troubleshooting 32 Handling rules 34 Recommendations for energy saving 34 Environmentally-friendly disposal 35 Package information 35

IMPORTANT WARNINGS

1. Installation and repair should always be performed

by “AUTHORIZED SERVICE”. Manufacturer shall not be held responsible for operations performed by unauthorized persons.

2. Please read this operating instructions carefully.

Only by this way you can use the appliance safely and in a correct manner.

3. The oven should be used according to operating

instructions.

4. Keep children below the age of 8 and pets away

when operating.

5. WARNING: The accessible parts may be hot while using

the grill. Keep away from children.

6. WARNING: Fire hazard; do not store the materials on

the cooking surface.

7. WARNING: The appliance and its accessible parts are

hot during operation.

8. Setting conditions of this device are specied on

the label. (Or on the data plate)

9. The accessible parts may be hot when the grill is

used. Small children should be kept away.

10. WARNING: This appliance is intended for cooking. It

should not be used for other purposes like heating a room.

11. To clean the appliance, do not use steam cleaners.

12. Ensure that the oven door is completely closed

after putting food inside the oven.

13. NEVER try to put out the re with water. Only shut

down the device circuit and then cover the ame with a cover or a re blanket.

14. Children under 8 years of age should be kept away,

if they cannot be monitored continuously.

15. Touching the heating elements should be avoided.

16. CAUTION: Cooking process shall be supervised.

Cooking process shall always be supervised.

17. This device can be used by children over 8 years

of age, people with physical, hearing or mental challenges or people with lack of experience or knowledge; as long as control is ensured or information is provided regarding the dangers.

18. This device has been designed for household use

only.

19. Children must not play with the appliance.

Cleaning or user maintenance of the appliance shall not be performed by children unless they are older than 8 years and supervised by adults.

20. Keep the appliance and its power cord away from

children less than 8 years old.

21. Put curtains, tulles, paper or any ammable (ignitable)

material away from the appliance before starting to use

the appliance. Do not put ignitable or ammable materials

on or in the appliance.

22. Keep the ventilation channels open.

23. The appliance is not suitable for use with an external

timer or a separate remote control system.

24. Do not heat closed cans and glass jars. The pressure

may lead jars to explode.

25. Oven handle is not a towel drier. Do not hang towels,

etc. on the oven handle.

26. Do not place the oven trays, plates or aluminium

foils directly on the oven base. The accumulated heat may damage the base of the oven.

27. While placing food to or removing food from the

oven, etc., always use heat resistant oven gloves.

28. Do not use the product in states like medicated

and/or under inuence of alcohol which may affect your

ability of judgement.

29. Be careful when using alcohol in your foods. Alcohol

will evaporate at high temperatures and may catch re to cause a re if it comes in contact with hot surfaces.

30. After each use, check if the unit is turned off.

31. If the appliance is faulty or has a visible damage,

do not operate the appliance.

32. Do not touch the plug with wet hands. Do not pull

the cord to plug off, always hold the plug.

33. Do not use the appliance with its front door glass

removed or broken.

34. Place the baking paper together with the food into

a pre-heated oven by putting it inside a cooker or on an oven accessory (tray, wire grill etc.).

35. Do not put objects that children may reach on the

appliance.

36. It is important to place the wire grill and tray properly

on the wire racks and/or correctly place the tray on the rack. Place the grill or tray between two rails and make sure it is balanced before putting food on it.

37. Against the risk of touching the oven heater elements,

remove excess parts of the baking paper that hang over from the accessory or container.

38. Never use it at higher oven temperatures than the

maximum usage temperature indicated on your baking paper. Do not place the baking paper on the base of the oven.

39. When the door is open, do not place any heavy

object on the door or allow children to sit on it. You may cause the oven to overturn or the door hinges to be damaged.

40. The packaging materials are dangerous for children.

Keep packaging materials away from the reach of children.

41. Do not use abrasive cleaners or sharp metal scrapers

to clean the glass as the scratches that may occur on the surface of the door glass may cause the glass to break.

42. Do not hit glass surfaces of vitro-ceramic cookers

with a hard metal, resistance can get damaged. It may cause an electric shock.

43. User should not handle the oven by himself.

44. Food can spill when foot of oven is dismantled or

gets broken, be careful. It may cause personal injuries.

45. During usage, the internal and external surfaces

of the oven get hot. As you open the oven door, step back to avoid the hot vapour coming out from the interior. There is risk of burning.

46. Upper cover of the oven can be closed for a reason,

than cookware can trip over. Step back to avoid the hot food coming on you. There is risk of burning.

47. Do not place heavy objects when oven door is

open, risk of toppling.

48. User should not dislocate the resistance during

cleaning. It may cause an electric shock.

49. Do not place metal utensils such as knife, fork,

spoon on the surface of the appliance, since they will get hot.

50. Do not remove ignition switches from the appliance.

Otherwise, live electric cables can be accessed. It may cause an electric shock.

51. Oven supply can be disconnected during any

construction work at home. After completing the work, re-connecting the oven shall be done by authorized service.

52. Do not place metal utensils such as knife, fork, spoon

on the surface of the appliance, since they will get hot.

53. To prevent overheating, the appliance should not

be installed behind of a decorative cover.

54. Turn off the appliance before removing the

safeguards. After cleaning, install the safeguards according to instructions.

55. Cable xing point shall be protected.

56. Please don’t cook the food directly on the tray /

grid. Please put the food into or on appropriate tools before putting them in the oven.

57. CAUTION: If the glass of the stove is broken, turn off any heating element immediately and disconnect the appliance from power source, do not touch the surface of the appliance and do not use the appliance.

Electrical Safety

1. Plug the appliance in a grounded socket protected by

a fuse conforming to the values specied in the technical specications chart.

2. Have an authorized electrician set grounding equipment. Our company shall not be responsible for the damages that shall be incurred due to using the product without grounding according to local regulations.

3. The circuit breaker switches of the oven shall be placed so that end user can reach them when the oven is installed.

4. The power supply cord (the cord with plug) shall not contact the hot parts of the appliance.

5. If the power supply cord (the cord with plug) is damaged, this cord shall be replaced by the manufacturer

or its service agent or an equally qualied personnel to

prevent a hazardous situation.

6. Never wash the product by spraying or pouring water on it! There is a risk of electrocution.

7. WARNING: To avoid electric shock, ensure that the device circuit is open before changing the lamp.

8. WARNING: Cut off all supply circuit connections before accessing the terminals.

9. WARNING: If the surface is cracked, turn off the appliance to avoid risk of electric shock.

10. Do not use cut or damaged cords or extension

cords other than the original cord.

11. Make sure that there is no liquid or humidity in

the outlet where the product plug is installed.

12. The rear surface of the oven also heats up when the oven is operated. Electrical connections shall not touch the rear surface, otherwise the connections may be damaged.

13. Do not tighten the connecting cables to the oven door and do not run them over hot surfaces. If the cord melts, this may cause the oven to short circuit and

even a re.

14. Unplug the unit during installation, maintenance, cleaning and repair.

15. If the power supply cable is damaged, it must be replaced by its manufacturer or authorized technical

service or any other personnel qualied at the same

level, in order to avoid any dangerous situation.

16. Make sure the plug is inserted rmly into wall

socket to avoid sparks.

17. Do not use steam cleaners for cleaning the appliance, otherwise electric shock may occur.

18. An omnipolar switch capable to disconnect power supply is required for installation. Disconnection from power supply shall be provided with a switch or an

integrated fuse installed on xed power supply according

to building code.

19. Appliance is equipped with a type ‘’Y’’ cord cable.

20. Fixed connections shall be connected to a power

supply enabling omnipolar disconnection. For appliances with over voltage category below III, disconnection device

shall be connected to xed power supply according to

wiring code.

Intended Use

1. This product has been designed for domestic use.

Commercial use is not permitted.

2. This appliance may only be used for cooking purposes. It shall not be used for other purposes like heating a room.

3. This appliance shall not be used to heat plates under the grill, drying clothes or towels by hanging them on the handle or for heating purposes.

4. The manufacturer assumes no responsibility for any damage due to misuse or mishandling.

5. Oven part of the unit may be used for thawing, roasting, frying and grilling food.

6. Operational life of the product you have purchased is 10 years. This is the period for which the spare parts

required for the operation of this product as dened is

provided by the manufacturer.

Methods for Protecting Ceramic Glass Cooking Surface

Ceramic glass surface is unbreakable and scratch resistant to a certain degree. However, to avoid any damage, please do the following:

1. Never pour cold water on hot cookers.

2. Do not stand on a ceramic glass plate.

3. Sudden pressure, for example, the effect of a falling

salt shaker may be critical. So, do not place such objects on a place above the hobs.

4. After each use, make sure that the base of the cooking

pot and surfaces of cooking zones are clean and dry.

5. Do not peel vegetables on the hob surfaces. Sand

grains falling from the vegetables may scratch the ceramic glass plate.

6. Do not lay ammable materials such as cardboard

or plastic on the oven. Objects such as tin, zinc, or aluminium (as well as aluminium foils or empty coffee pots) may melt on hot cooking surfaces and thus cause damage.

7. Take care not to let sugary foods or fruit juices contact

the hot cooking zones. The ceramic glass surface may be stained by these.

Electrical Connection

1. Your oven requires 40 Amp fuse for mono phase or 3x16 Amp fuse

for 3 phase supply according to electrical power for cooker section has 4 ceramic heater and oven section has electric models. Installation by a

qualied electrician is mandatory.

2. Your oven is adjusted in compliance with 220-240V / 380-415V

AC,50/60Hz. electric supply. If the mains are different from this specied

value, contact your authorized service.

3. Electrical connection of the oven should only be made to connections /

sockets with an earth system installed in compliance with local regulations. If there are no connections/sockets with an earth system in place where

the oven will be installed, immediately contact a qualied electrician to

install. The manufacturer is not responsible for damages that will arise because of the appliance not be connected to an earth system.

4. If your supply cable gets damaged, it should be replaced by an

authorized service agent or qualied electrician in order to avoid danger

or electric shock.

5. Electrical cable should not touch the hot parts of the appliance.

6. Operate your oven in dry atmosphere.

7. When placing your oven to its location, ensure that it is at the counter

level. Bring it to the counter level by adjusting the feet if necessary.

Electrical Connection Scheme

220-240V~50/60Hz

Live Phase

H05 VV-F 3G 4 mm²

Neutral Neutre

Earth Terre Erdung

380-415V 3N~50/60Hz

H05 VV-F 5G 1.5 mm²

Neutral Neutre

Earth Terre Erdung

380-415V 2N~50/60Hz

H05 VV-F 4G 1.5 mm²

Neutral Neutre

Earth Terre Erdung

220-240V~50/60Hz

Neutral

L N

Neutre Earth Terre Erdung

H05 VV-F 3G 4 mm²

INTRODUCTION OF THE APPLIANCE

8.1

8.2

1. Glass top plate

2. Thermostat knob

3. Command knob for oven

4. Regulators for vitroceramic hobs

5. Oven door

6. Handle

7. Plastic leg

8. Lower cabinet door

6 7 8

8.1. Drawer

8.2. Flap door

9. Lamp

10. Grill

11. Ceramic heater (140 mm / 250 mm)

12. Ceramic heater (120 mm / 180 mm)

13. Ceramic heater (140 mm or 180 mm)

14. Hot plate (145 mm or 185 mm)

Accesories

Deep tray *

Used for pastry, big roasts, watery foods. It can also be used as oil collecting container if you roast directly on grill with cake, frozen foods and meat dishes.

Tray / Glass tray *

Used for pastry (cookie, biscuit etc.), frozen foods.

Circular tray *

Used for pastry frozen foods.

Wire grill

Used for roasting or placing foods to be baked, roasted and frozen into desired rack.

Telescopic rail *

Trays and wire racks can be removed and installed easily thanks to telescopic rails.

In tray wire grill *

Foods to stick while cooking such as steak are placed on in tray grill. Thus contact of food with tray and sticking are prevented.

Tray handle *

It is used to hold hot trays.

Technical features of your oven

Specications 50x55 50x60 60x60

Outer width 500 mm 500 mm 600 mm

Outer depth 565 mm 630 mm 630 mm

Outer height 855 mm 855 mm 855 mm

Lamp power 15-25 W

Bottom heating element 1000 W 1000 W 1200 W

Top heating element 800 W 800 W 1000 W

Turbo heating element ----- 1800 W 2200 W

Grill heating element 1500 W 1500 W 2000 W

Supply voltage 220-240V AC/380-415V AC 50/60 Hz

Hot plate 145 mm * 1000 W

Hot plate 180 mm * 1500 W

Hot plate rapid 145 mm * 1500 W

Hot plate rapid 180 mm * 2000 W

Ceramic heater 140 mm * 1200 W

Ceramic heater 180 mm * 1700 W / 1800 W

Ceramic heater 140 mm / 250 mm * 1800 W

Ceramic heater 120 mm / 180 mm * 1700 W

WARNING: For the modication to be done by authorized service, this

table should be considered. Manufacturer may not be held responsible for

any problems rising because of any faulty modication.

WARNING: In order to increase the product quality, the technical

specications may be changed without prior notice.

WARNING: The values provided with the appliance or its accompanying documents are laboratory readings in accordance with the respective standards. These values may differ depending on the use and ambient conditions.

INSTALLATION OF YOUR OVEN

Check if the electrical installation is proper to bring the appliance in operating condition. If electricity installation is not suitable, call an electrician and plumber to arrange the utilities as necessary. Manufacturer shall not be held responsible for damages caused by operations performed by unauthorized persons.

WARNING: It is customer’s responsibility to prepare the location the product shall be placed on and also to have the electrical installation prepared.

WARNING: The rules in local standards about electrical installations shall be followed during product installation.

WARNING: Check for any damage on the appliance before installing it. Do not have the product installed if it is damaged. Damaged products cause a risk for your safety.

Right Place for Installation and Important Warnings

Appliance feet should not stay on soft surfaces such as carpets. The

kitchen oor shall be durable to carry the unit weight and any other

kitchenware that may be used on the oven.

Appliance should be used with a clearance of minimum 400 mm over the upper hob surfaces, and 65 mm from side surfaces inside a kitchen furniture.

The appliance is suitable for use on both side walls, without any support, or without being installed in a cabinet. If a hood or aspirator will be installed above the cooker, follow the instructions of the manufacturer for height of mounting. (min. 650 mm)

400 mm min.

65 mm min. 65 mm min.

650 mm min.

WARNING: The kitchen furniture near the appliance must be heat resistant.

WARNING: Do not install the appliance beside refrigerators or coolers. Heat radiated by the appliance increases the energy consumption of cooling devices.

WARNING: Do not use the door and/or handle to carry or move the appliance.

Chain lashing illustration

Before using the appliance, in order to ensure

safe use, be sure to x the appliance to the wall

using thechain and hooked screw supplied. Ensure that the hook is screwed into the wall securely.

CONTROL PANEL

1 2 3 4 5 6 7

1. Thermostat

2. Function selection button

3. Mechanical timer *

5. Front left electrical heater

6. Front right electrical heater

7. Rear right electrical heater

4. Rear left electrical heater

WARNING: The control panel above is only for illustration purposes. Consider the control panel on your device.

Thermostat: Used for determining the cooking temperature of the dish to be cooked in the oven. After placing the food inside the oven, turn the switch to adjust desired temperature setting between 40-240 °C. For cooking temperatures of different food, see cooking table.

Mechanical timer*: Used for determining the period

for cooking in the oven. When adjusted time is expired, power to heaters is turned off and an audible warnig signal is emitted. Mechanical timer can be adjusted to desired period between 0-90 minutes. For cooking periods, see cooking tables.

USING OVEN SECTION

Using Oven Heating Elements

1. When your oven is operated rst time, an odor will be spread out

which will be sourced from using the heating elements. In order to get rid of this, operate it at 240 °C for 45-60 minutes while it is empty.

2. Oven control knob should be positioned to desired value; otherwise

oven does not operate.

3. Kinds of meals, cooking times and thermostat positions are given in

cooking table. The values given in the cooking table are characteristic values and were obtained as a result of the tests performed in our laboratory.

You can nd different avors suitable for your taste depending on your

cooking and using habits.

4. You can make chicken revolving in your oven by means of the

accessories.

5. Cooking times: The results may change according to the area voltage

and material having different quality, amount and temperatures.

6. During the time when cooking is being performed in the oven, the lid

of the oven should not be opened frequently. Otherwise circulation of the heat may be imbalanced and the results may change.

+ 48 hidden pages
