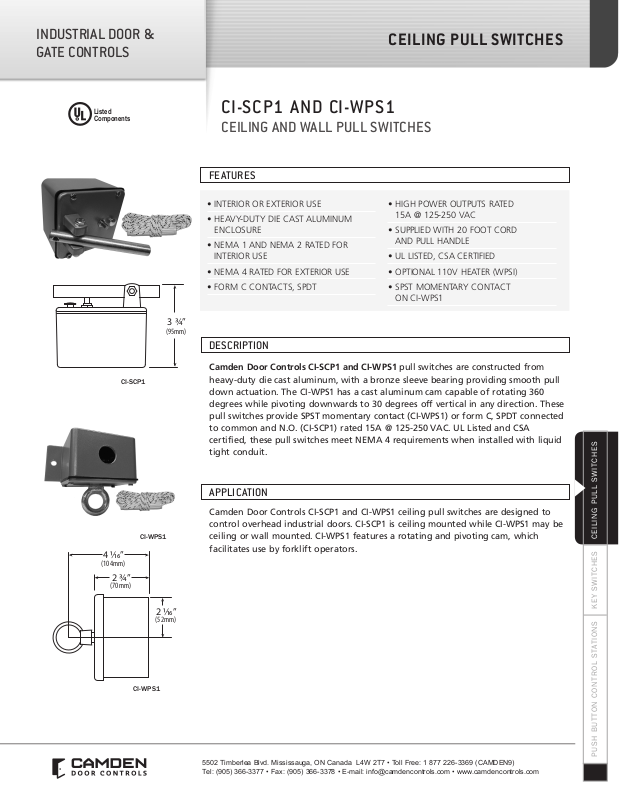

INDUSTRIAL DOOR &
GATE CONTROLS
CEILING PULL SWITCHES
Listed
Components
CI-SCP1
3 ¾”
(95mm)
CI-SCP1 AND CI-WPS1
CEILING AND WALL PULL SWITCHES
FEATURES
• INTERIOR OR EXTERIOR USE
• HEAVY-DUTY DIE CAST ALUMINUM
ENCLOSURE
• NEMA 1 AND NEMA 2 RATED FOR
INTERIOR USE
• NEMA 4 RATED FOR EXTERIOR USE
• FORM C CONTACTS, SPDT
DESCRIPTION
Camden Door Controls CI-SCP1 and CI-WPS1 pull switches are constructed from
heavy-duty die cast aluminum, with a bronze sleeve bearing providing smooth pull
down actuation. The CI-WPS1 has a cast aluminum cam capable of rotating 360
degrees while pivoting downwards to 30 degrees off vertical in any direction. These
pull switches provide SPST momentary contact (CI-WPS1) or form C, SPDT connected
to common and N.O. (CI-SCP1) rated 15A @ 125-250 VAC. UL Listed and CSA
certified, these pull switches meet NEMA 4 requirements when installed with liquid
tight conduit.
• HIGH POWER OUTPUTS RATED
15A @ 125-250 VAC
• SUPPLIED WITH 20 FOOT CORD
AND PULL HANDLE
• UL LISTED, CSA CERTIFIED
• OPTIONAL 110V HEATER (WPSI)
• SPST MOMENTARY CONTACT
ON CI-WPS1
4 ⁄”
(104mm)
2 ¾”
(70mm)
CI-WPS1
CI-WPS1
2 ⁄”
(52mm)
APPLICATION
Camden Door Controls CI-SCP1 and CI-WPS1 ceiling pull switches are designed to
control overhead industrial doors. CI-SCP1 is ceiling mounted while CI-WPS1 may be
ceiling or wall mounted. CI-WPS1 features a rotating and pivoting cam, which
facilitates use by forklift operators.
PUSH BUTTON CONTROL STATIONS KEY SWITCHES CEILING PULL SWITCHES
5502 Timberlea Blvd. Mississauga, ON Canada L4W 2T7 • Toll Free: 1 877 226-3369 (CAMDEN9)
Tel: (905) 366-3377 • Fax: (905) 366-3378 • E-mail: info@camdencontrols.com • www.camdencontrols.com
INDUSTRIAL CEILING AND WALL PULL SWITCHES
ARCHITECTS /ENGINEERS SPECIFICATIONS
The ceiling pull switches used throughout the complex shall be constructed of die
cast aluminum with a rubber gasket to seal against moisture. The ceiling pull
switches shall be Nema 1 and Nema 2 compliant for indoor use and Nema 4
compliant for outdoor use. The switches shall be rated for 15A @ 125-250 VAC and
shall be UL Listed and CSA approved. With availability to be fitted with a 110V
heater where necessary.
ORDERING INFORMATION
MODEL DESCRIPTION
CI-SCP1 CEILING MOUNT, DIE CAST ALUMINUM ENCLOSURE, SUPPLIED WITH
20’ CORD AND PULL HANDLE, SPDT MOMENTARY, 15A @ 125-250
VAC. NEMA 1, 2, 3R, 4, 6, 12, 13, AND ICS.
CI-WPS1 CEILING OR WALL MOUNT PULL SWITCH WITH 360º ROTATING ARM
AND PIVOTING CAM. IDEAL FOR ACTIVATING INDUSTRIAL DOORS OR
USE BY LIFT TRUCK OPERATORS, SPST MOMENTARY, 15A @ 125-250
VAC, NEMA 4
CI-WPSH AS ABOVE, WITH 110V HEATER (SPECIAL ORDER)
3 13/16”
(96mm)
R 1/2”
(R 12 mm)
1 7/8”
(48mm)
CI-SCP1
1 1/4”
(32mm)
2 11 /16”
(69mm)
R 3/16”
(R 4 mm)
(22mm)
7/8”
1 15/16”
(49mm)
4 1/8”
(105mm)
4 13/16”
(122mm)
CI-WPS1
R 1/2”
(R 12 mm)
4 1/16”
(104mm)
5502 Timberlea Blvd. Mississauga, ON Canada L4W 2T7 • Toll Free: 1 877 226-3369 (CAMDEN9)
Tel: (905) 366-3377 • Fax: (905) 366-3378 • E-mail: info@camdencontrols.com • www.camdencontrols.com
MKTG-LIT-SP-SCP&WPS-R2
