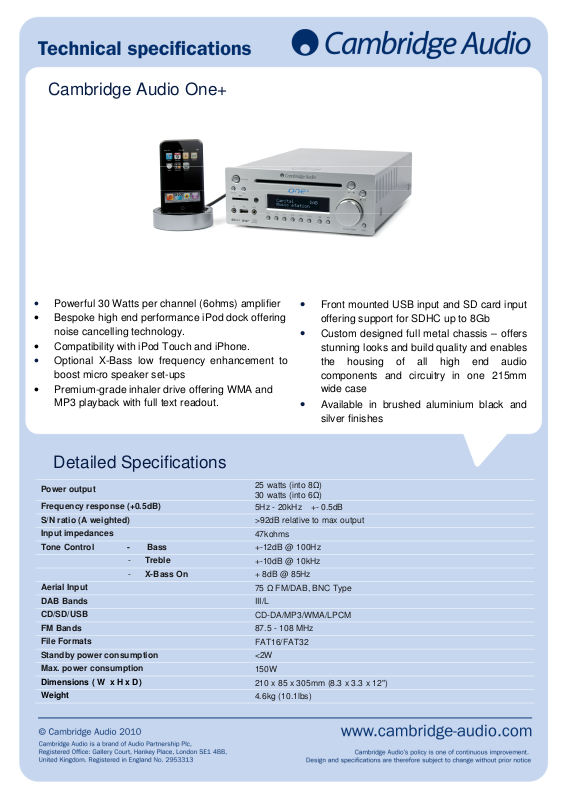

Cambridge audio ONE PLUS DATASHEET

•

Cambridge Audio One+

Powerful 30 Watts per channel (6ohms) amplifier

• Bespoke high end performance iPod dock offering noise cancelling technology.

• Compatibility with iPod Touch and iPhone.

• Optional X-Bass low frequency enhancement to

boost micro speaker set-ups

• Premium-grade inhaler drive offering WMA and MP3 playback with full text readout.

Detailed Specifications

Power output

Frequency response (+0.5dB)

S/N ratio (A weighted)

Input impedances

Tone Control - Bass

- Treble

- X-Bass On

Aerial Input

DAB Bands

CD/SD/USB

FM Bands

File Formats

Standby power consumption

Max. power consumption

Dimensions ( W x H x D)

Weight

25 watts (into 8Ω) 30 watts (into 6Ω)

5Hz - 20kHz +- 0.5dB

>92dB relative to max output

47kohms

+-12dB @ 100Hz

+-10dB @ 10kHz

+ 8dB @ 85Hz

75 Ω FM/DAB, BNC Type

III/L

CD-DA/MP3/WMA/LPCM

87.5 - 108 MHz

FAT16/FAT32

<2W

150W

210 x 85 x 305mm (8.3 x 3.3 x 12")

4.6kg (10.1lbs)

Front mounted USB input and SD card input offering support for SDHC up to 8Gb

•

Custom designed full metal chassis – offers stunning looks and build quality and enables the housing of all high end audio components and circuitry in one 215mm wide case

•

Available in brushed aluminium black and silver finishes

Cambridge Audio One+
