Cambridge audio MINX DATASHEET
I BMR (Balanced Mode Radiator) full range driver
combining bending wave technology for higher
frequencies, with pistonic driver movement for lower
frequencies
I Incredibly wide dispersion from the BMR driver virtually
eliminates any ‘sweet spot’ problem
I BMR technology offers wide frequency response
from a single driver, allowing for optimum integration
with a subwoofer
I Acoustically damped thermo polymer and extruded
aluminium cabinet construction ensuring a rigid speaker
cabinet to disperse colouration
I Scratch resistant high gloss lacquer available in black
or white finishes
I Optional table top or floor stands available

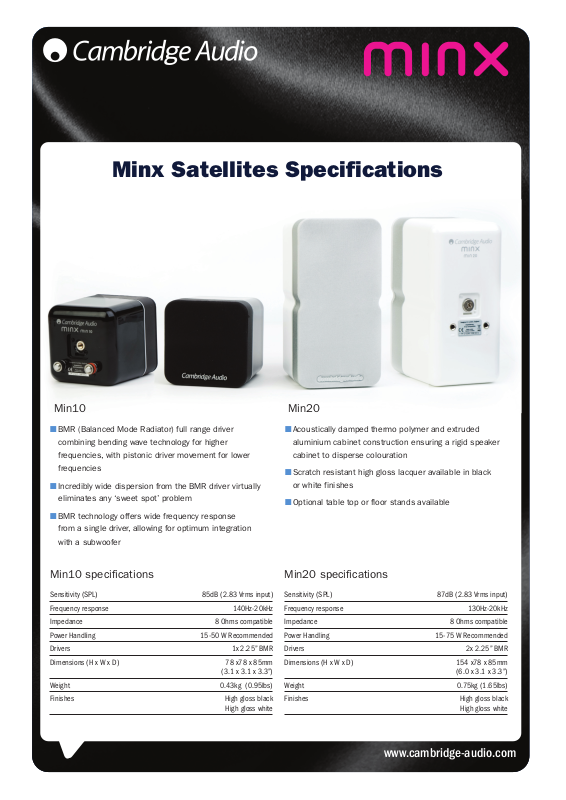

Minx Satellites Specifications
www.cambridge-audio.com
Sensitivity (SPL) 85dB (2.83 Vrms input)
Frequency response 140Hz-20kHz
Impedance 8 Ohms compatible
Power Handling 15-50 W Recommended
Drivers 1x 2.25” BMR
Dimensions (H x W x D) 78 x78 x 85mm
(3.1 x 3.1 x 3.3”)
Weight 0.43kg (0.95lbs)
Finishes High gloss black
High gloss white
Sensitivity (SPL) 87dB (2.83 Vrms input)
Frequency response 130Hz-20kHz
Impedance 8 Ohms compatible
Power Handling 15-75 W Recommended
Drivers 2x 2.25” BMR
Dimensions (H x W x D) 154 x78 x 85mm
(6.0 x 3.1 x 3.3”)
Weight 0.75kg (1.65lbs)
Finishes High gloss black
High gloss white
Min10 specifications Min20 specifications
Min10 Min20
www.cambridge-audio.com
I Powerful DSP design delivering awesome performance
from the smallest footprint possible
I Powerful 200W, 300W and 500W digital amplifiers
I One piece aerospace grade aluminium cones move air
with incredible efficiency
I DSP design allows far smaller cabinet construction than
comparative subwoofers
I Supplied with removable grilles
I Full rear panel control of gain, phase and crossover
frequency allowing optimum integration and room
positioning
I Driver plus ABR (Auxillary Bass Radiator)
configuration. ABRs replace bass ports to eliminate
air noise at high levels
I Scratch resistant high gloss lacquer available in
black or white finishes
I Future wireless option
Minx Subwoofer Specifications
Power Output 200W
Frequency Response 39Hz (-6dB) – 200Hz
Crossover Active – variable 50Hz-200Hz
Mains voltage 100V/110-120V/220-240V
Drivers 1 x 6.5" subwoofer
2 x 6.5" passive radiator
Dimensions 219 x 210 x 222mm
(H x W x D) (8.6 x 8.3 x 8.7")
Weight 5.0Kg (11.0lbs)
Finishes High gloss black
High gloss white
Power Output 300W
Frequency Response 33Hz (-6dB) – 200Hz
Crossover Active – variable 50Hz-200Hz
Mains voltage 100V/110-120V/220-240V
Drivers 1 x 8" subwoofer
1 x 8" passive radiator
Dimensions 311 x 266 x 278mm
(H x W x D) (12.4 x 10.5 x 11.0")
Weight 7.5Kg (16.5lbs)
Finishes High gloss black
High gloss white
Power Output 500W
Frequency Response 23Hz (-6dB) – 200Hz
Crossover Active – variable 50Hz-200Hz
Mains voltage 100V/110-120V/220-240V
Drivers 1 x 10" subwoofer
1 x 10" passive radiator
Dimensions 365 x 320 x 350mm
(H x W x D) (14.3 x 12.6 x 13.8")
Weight 11.7Kg (25.8lbs)
Finishes High gloss black
High gloss white
X200 specifications X300 specifications X500 specifications
X200 X300 X500
cm
35.5
33
30.5
28
25.5
23
20.5
18
15.5
13
10.5
8
Inches
14"
13"
12"
11"
10"
9"
8"
7"
6"
5"
4"
3"
2"
1"
