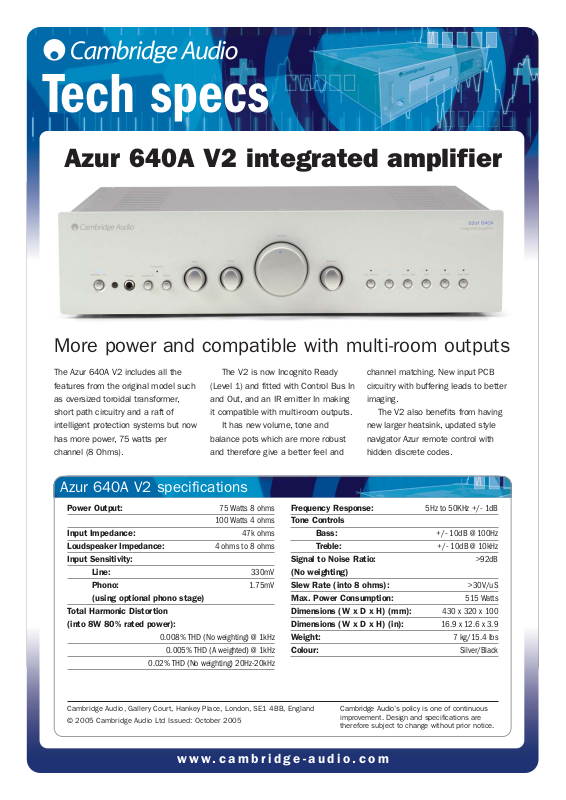

Tech specs

Azur 640A V2 specifications

Power Output: 75 Watts 8 ohms

100 Watts 4 ohms

Input Impedance: 47k ohms

Loudspeaker Impedance: 4 ohms to 8 ohms

Input Sensitivity:

Line: 330mV

Phono: 1.75mV

(using optional phono stage)

Total Harmonic Distortion

(into 8W 80% rated power):

0.008% THD (No weighting) @ 1kHz

0.005% THD (A weighted) @ 1kHz

0.02% THD (No weighting) 20Hz-20kHz

Frequency Response: 5Hz to 50KHz +/- 1dB

Tone Controls

Bass: +/- 10dB @ 100Hz

Treble: +/- 10dB @ 10kHz

Signal to Noise Ratio: >92dB

(No weighting)

Slew Rate (into 8 ohms): >30V/uS

Max. Power Consumption: 515 Watts

Dimensions (W x D x H) (mm): 430 x 320 x 100

Dimensions (W x D x H) (in): 16.9 x 12.6 x 3.9

Weight: 7 kg/15.4 lbs

Colour: Silver/Black

Cambridge Audio’s policy is one of continuous
improvement. Design and specifications are
therefore subject to change without prior notice.

Cambridge Audio, Gallery Court, Hankey Place, London, SE1 4BB, England

© 2005 Cambridge Audio Ltd Issued: October 2005

Azur 640A V2 integrated amplifier

More power and compatible with multi-room outputs

The Azur 640A V2 includes all the

features from the original model such

as oversized toroidal transformer,

short path circuitry and a raft of

intelligent protection systems but now

has more power, 75 watts per

channel (8 Ohms).

The V2 is now Incognito Ready

(Level 1) and fitted with Control Bus In

and Out, and an IR emitter In making

it compatible with multi-room outputs.

It has new volume, tone and

balance pots which are more robust

and therefore give a better feel and

channel matching. New input PCB

circuitry with buffering leads to better

imaging.

The V2 also benefits from having

new larger heatsink, updated style

navigator Azur remote control with

hidden discrete codes.
