Bush DFTA12HD Instruction Manual
INSTRUCTION MANUAL
Digital Set Top Box
DFTA12HD
The Gold Technical Support Line: 1902 215 259ʳ
Personal Product Supportʳ
(Charges will apply at $2.95 per minute)
ʳ
1
Introduction
Thank you for buying this Bush product, which is designe d to give you many years of
trouble-free service.
You may already be familiar with using a similar unit, but please take time to read these
instructions. They are designed to familiarize you with the unit’s man y features and to
ensure you get the very best from your purchase.
Safety is important
Your safety and the safety of others is important.
Please therefore, ensure you read the “Safety Instructions” before you operate this unit.
Warranty
In the unlikely event that your product fails to work normally, please call the below
Bush warranty number for support.
Australia
Bush Warranty: 1800 509 394
New Zealand
Bush Warranty: 0800 450 259
2
Table Of Contents
Introduction…………………………………………………………….……..1
Safety instructions………………………………………………………….. 3
About the Set-Top-Box………………………………………………………4
Front panel and rear panel illustration………………………………..…5
Front Panel……………………………………………………………………5
Rear Panel……………………………………………………………..……5
Remote control……………………………………………………………….6
Installing the batteries…………………………………………………………7
Connecting to equipments………………………………………….………..8

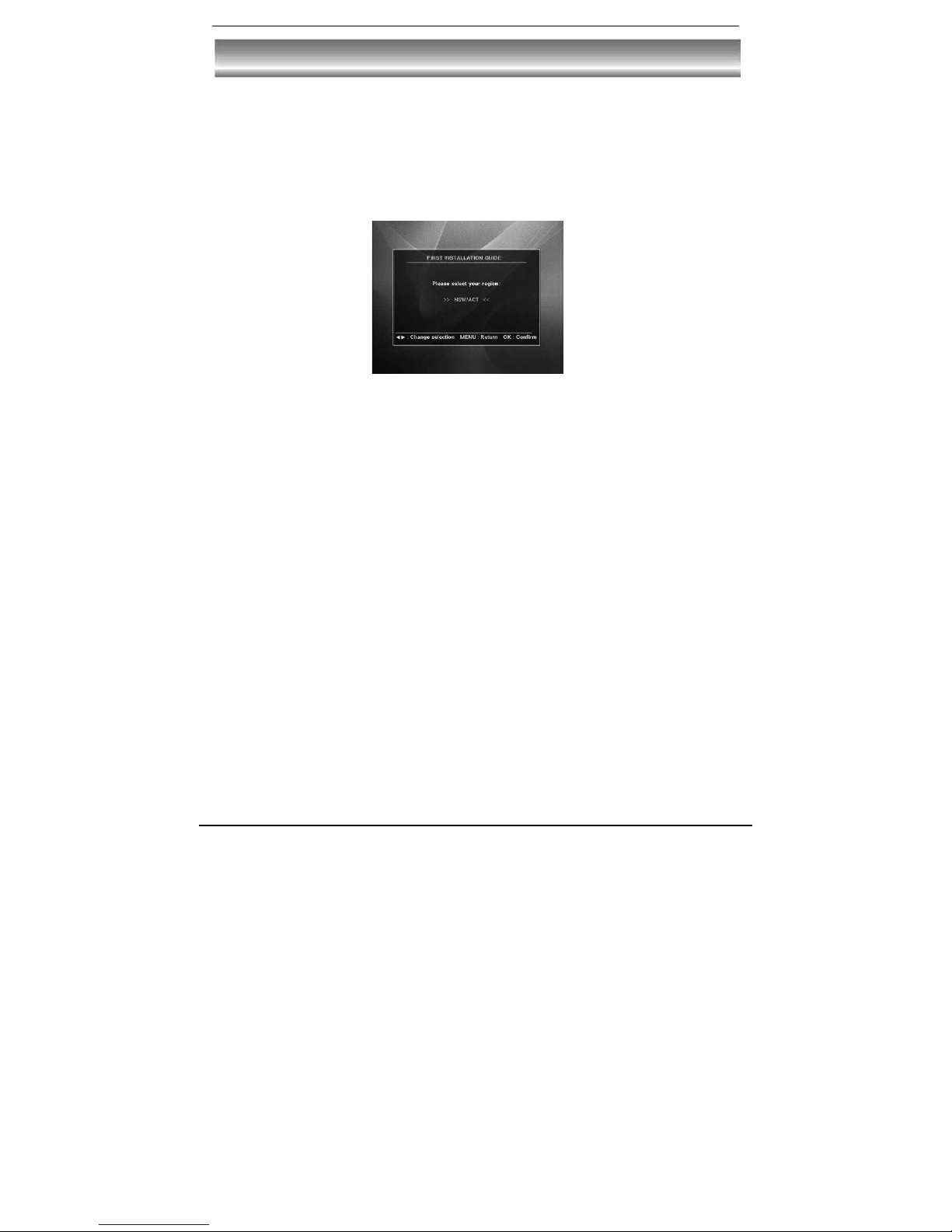

First time installation…………………………………………….………..12

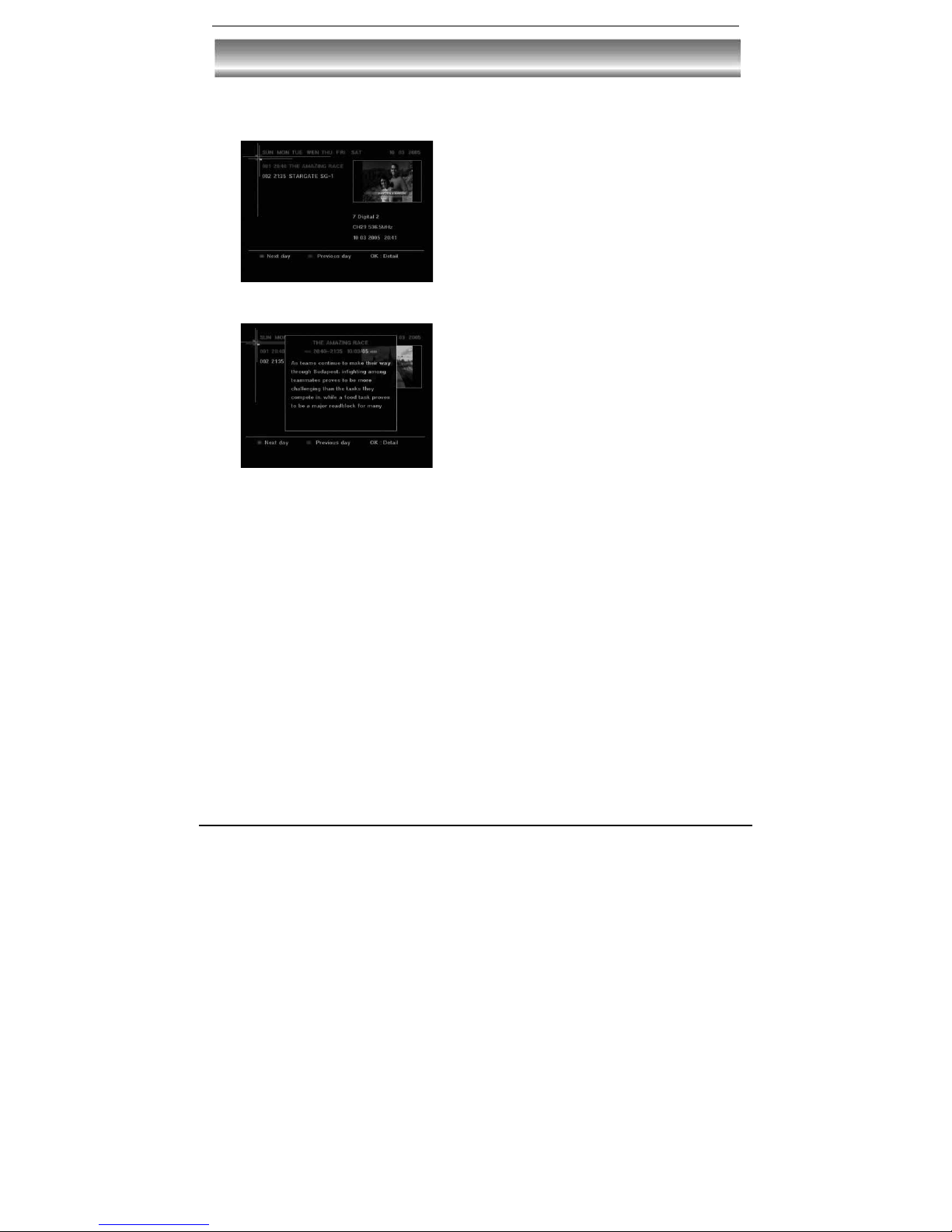

Basic operations…………………………………………………….……..13
Main menu…………..………………………………………………….……..16
Menu Tree………..……..……………………………………………….……17
Installation…………………………………………………………………..18
Auto Scan…..….……………………………………………………....18

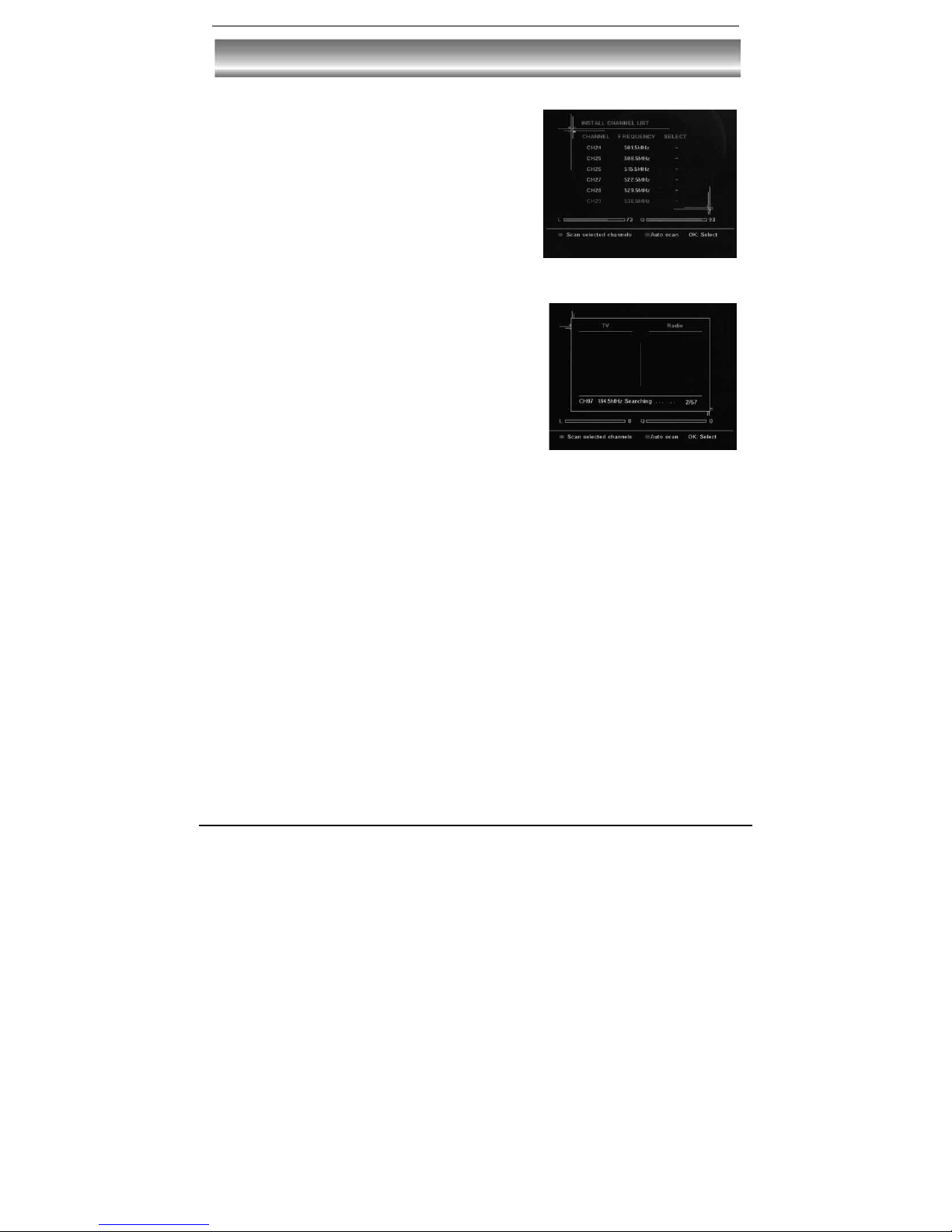

Manual Scan………………………………………………………..……….18

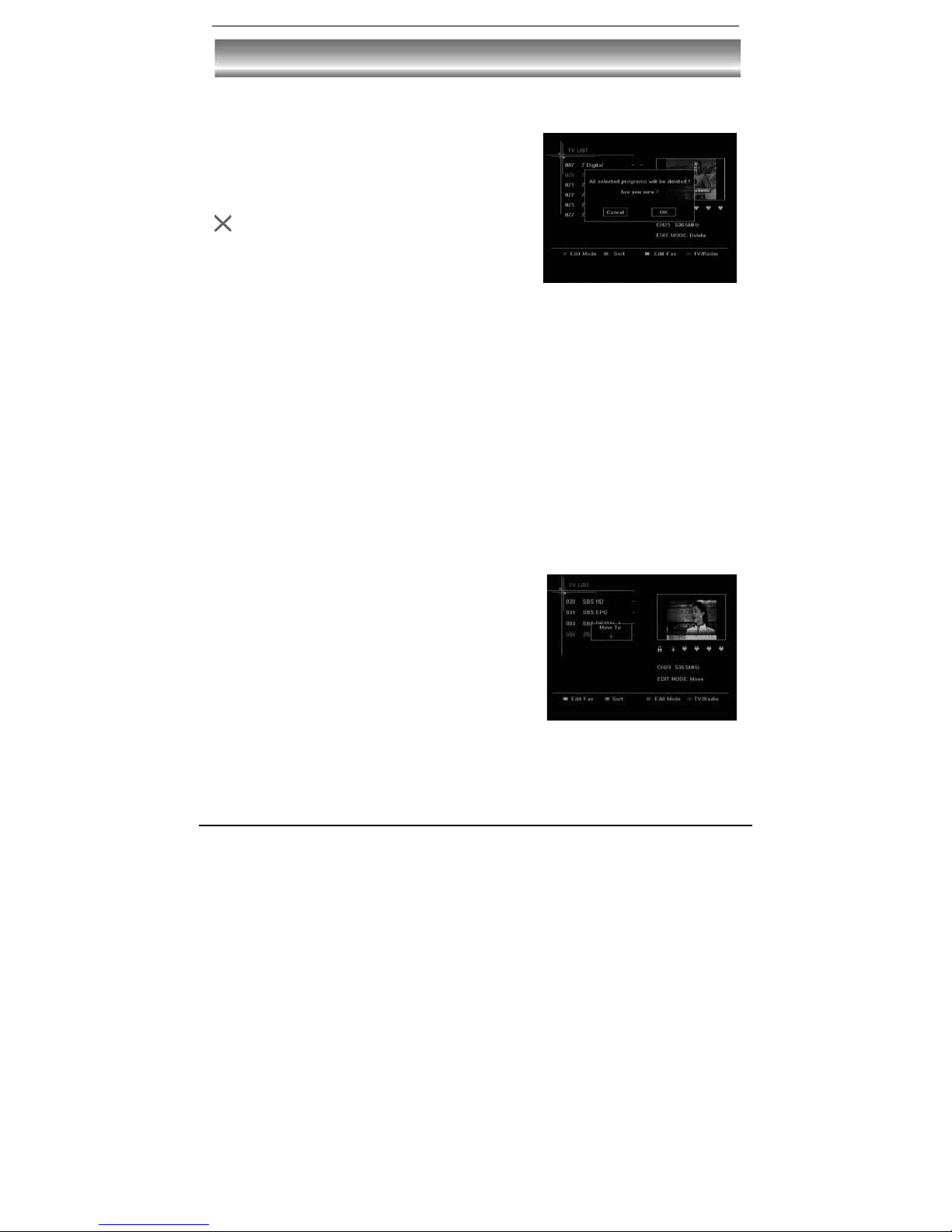

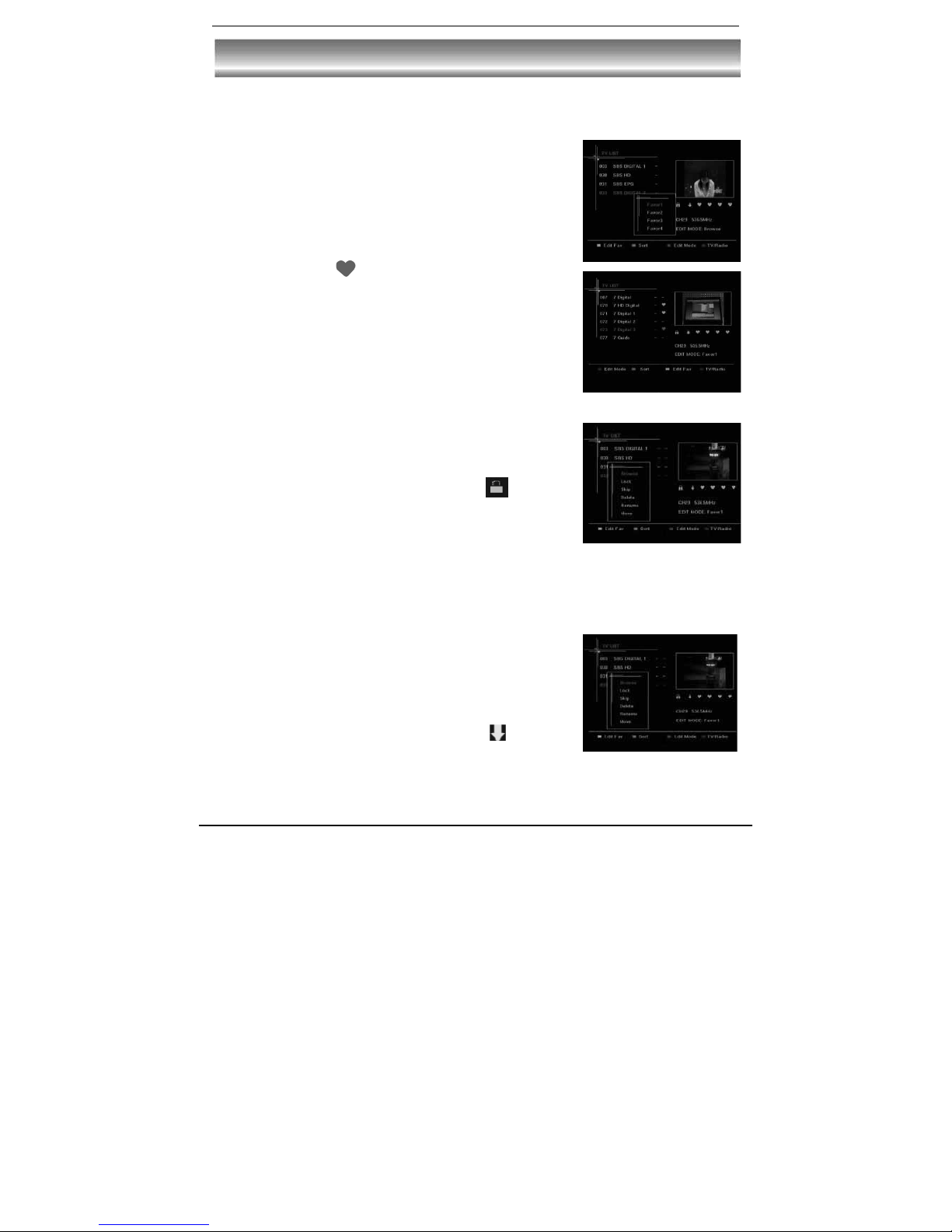

Program edit…………..……………………………………………..……....19

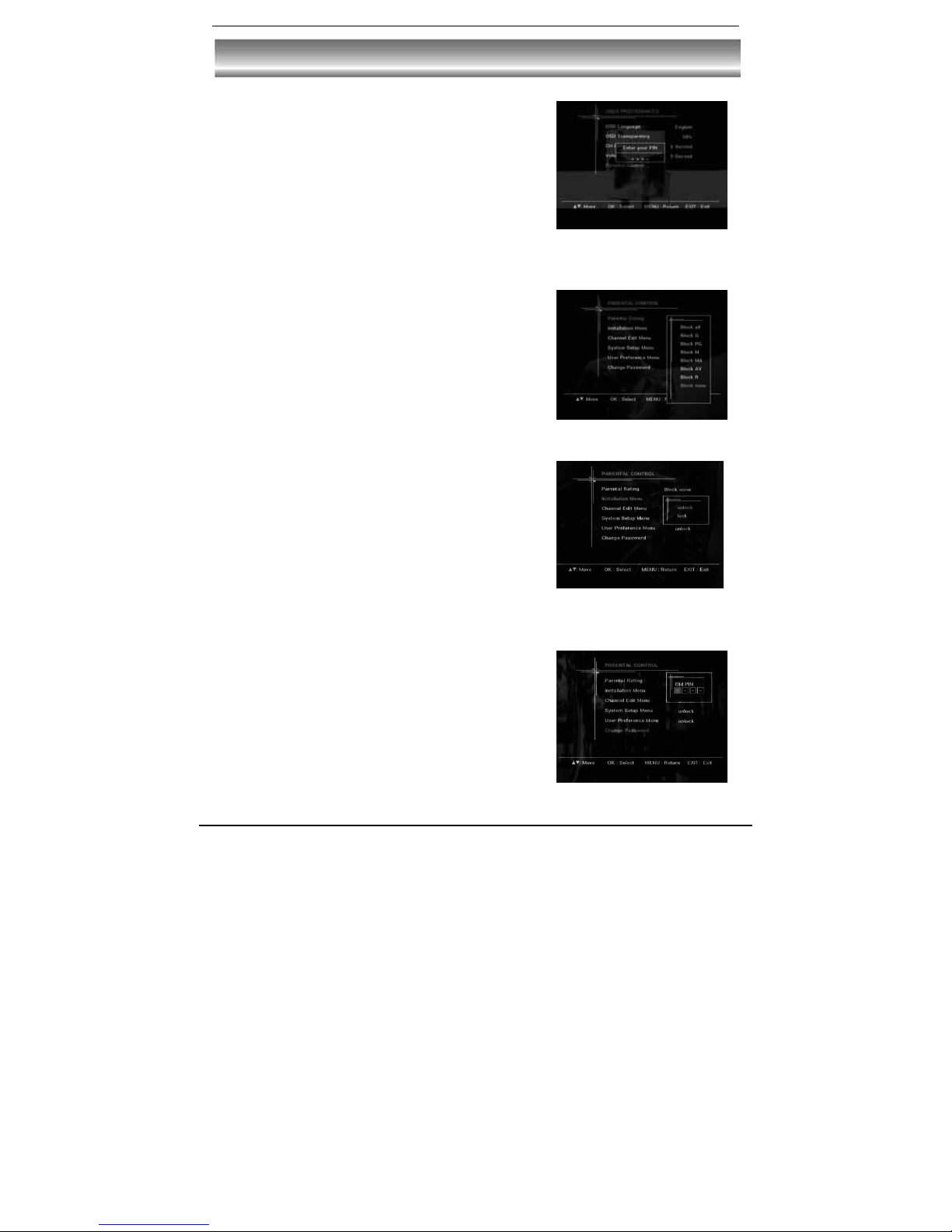

System setup………………………………………………………….…….21
A/V Output Settings…………………………………………………..……..21
Local Time Setting………...………………………………………..………..21
System Information………..…………………………………………..……..21
Factory Default…………….………………………………………..……..21

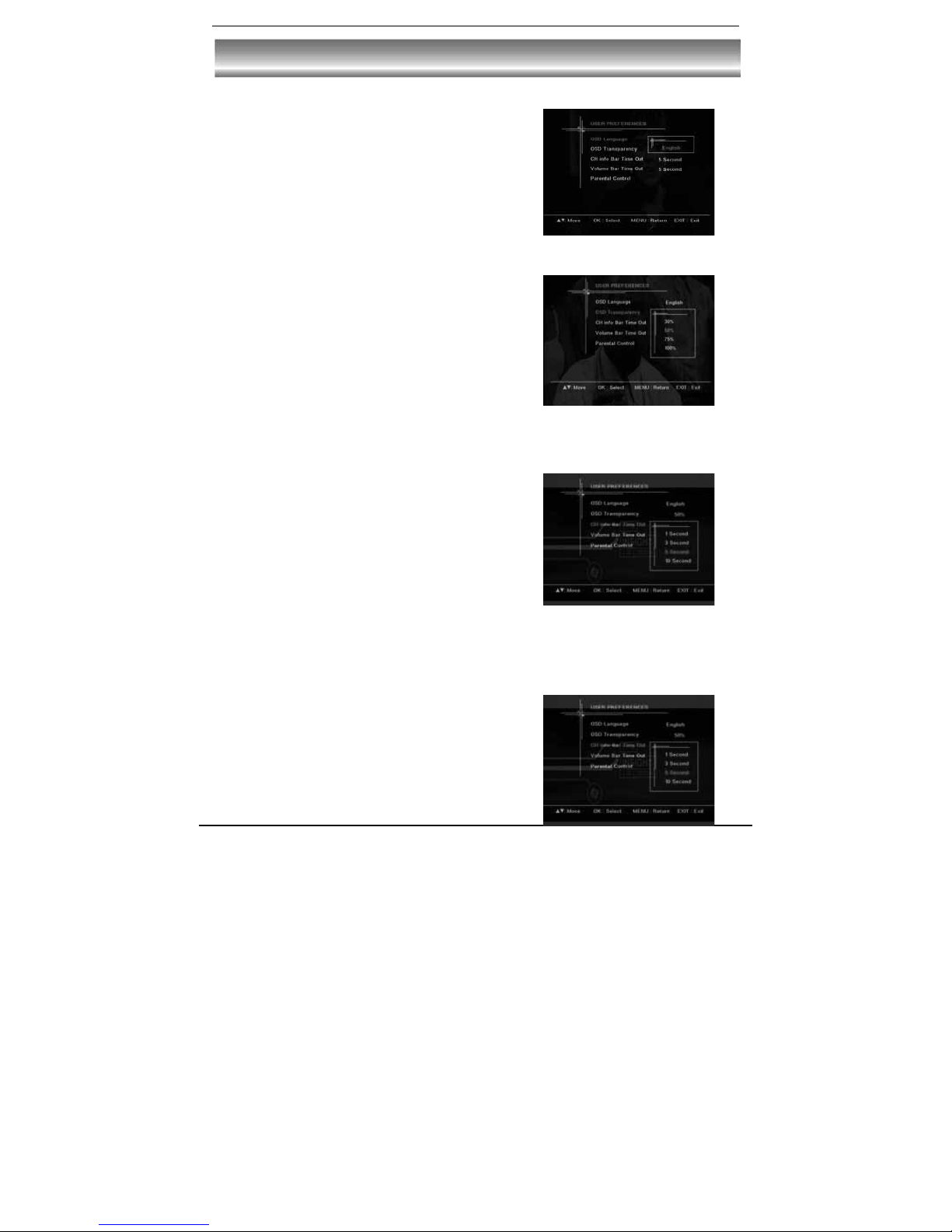

User preferences……………………………………………………….....22
OSD Language…………………..……………………………………..……22
OSD Transparency……….………..……………………………………..…..22
CH Info Bar Time Out………………..…………………………………………22
Volume Bar Time Out…………………..………………………………………22
Parental Control……………………………………………………………23
Trouble shooting……………………………………………………..……24
Technical specifications…………………………………………………..25
Warranty………………………………………………………………………26
3
Safety Instructions
x Always read the safety instructions carefully
x Keep this User's Manual for future reference
x Keep this equipment away from humidity
x Lay this equipment on a reliable flat surface before setting it up.
x Do not stand it on soft furnishings.
x If any of the following situation arises, get the equipment checked by a service
technician:
- The equipment has been exposed to moisture.
- The equipment has been dropped and damaged.
- The equipment has obvious sign of breakage.
- The equipment has not been working well or you cannot get it work according to User's
Manual.
Warning
x To prevent the risk of electric shock, do not open the cover or the back of the receiver.
x Do not block the ventilation holes of the device. Leave appropriate gap above and
around it to allow for adequate ventilation.
x Do not place the device in an unventilated cabinet or on top of a unit which emits heat.
Copyright Statement
No part of this publication may be reproduced in any form by any means without the prior
written permission. Other trademarks or brand names mentioned herein are trademarks or
registered trademarks of their respective companies.
Disclaimer
Information in this document is subject to change without notice. The manufacturer does
not make any representations or warranties (implied or otherwise) regarding the accuracy
and completeness of this document and shall in no event be liable for any loss of profit or
any commercial damage, including but not limited to special, incidental, consequential, or
other damage.
This symbol indicates that this product incorporates double insulation between
hazardous mains voltage and user accessible parts. When servicing use only
identical replacement parts.
WARNING: To reduce the risk of fire or electric shock, do not expose this unit to any
liquids or extreme heat.
4
About the Set-Top-Box
This DVB-T TV Receiver is a Free-To-Air digital terrestrial receiver, allowing you to access
free-to-air digital terrestrial TV channels and radio broadcasts on your TV set. Its digital
reception covers VHF & UHF band. Compared with the analog TV programs, digital TV
programs eliminate the noise and interference but offer high quality video and audio. An
on-screen initial installation guide is provided so that you can easily start to enjoy watching
the programs. In addition, a fully featured remote control is included that offers you access
to every feature with a simple press of a button.
Main Features
- Fully compliant with Australian DVB-T standards
- Full MPEG2 ISO/IEC 13818 transport stream compliant audio/video decoding
- Bandwidth of 7MHz supported
- COFDM demodulator
- Automatic/manual channel search
- Channel edit, moving and deletion
- Parental lock control
- EPG (Electronic Program Guide) and teletext function (where available)
- RS-232 serial port for software upgrade
- Tuner RF in/loop through
- Dolby R Digital 5.1 Channel Surround Sound
- Component/S-Video/Digital Audio via coaxial & optical output
- HDMI output
- Full function remote control
Package Contents
Before installation, please check the items of the package. The package should contain
the following items:
1. DVB-T TV receiver x 1 pcs
2. Remote control x 1 pcs
3. AAA size battery for the remote control x 2 pcs
4. Instruction manual x 1 pcs
5. YPbPr cable x 1 pcs
6. CVBS cable x 1 pcs
5
Front panel and rear panel illustration
Front Panel
ཛĸĹĺĻļĽľ
ཛ
POWER To turn the Stand-by mode ON/OFF.
ཛྷ
MENU To enter the main menu. Press the button again to return to previous menu.
ཝ
OKTo confirm the choice with the highlighted menu item.
ཞ
EXIT To exit the menu.
ཟ
CHANNEL- To change the channel downward.
འ
CHANNEL+ To change the channel upward.
ཡ
VOL DOWN To decrease volume.
ར
VOL UP To increase volume.
Rear Panel
ཛ
ANT IN To connect the antenna here.
ཛྷ
LOOP OUT To connect a RF signal from the STB to either the RF Input jack (antenna)
on your VCR or to the antenna input of your TV.
ཝ
HDMI video output used to connect to your HDMI device.
ཞ
PDIF/COAXIALGDigital audio output.
ཟ
S-VIDEOGY/C output for a S-VHS or Hi-Fi Video Recorder.
འ
AUDIOL/RGAudio output to connect to your TV.
ཡ
YPbPr High definition video output to connect to your TV.
ར
VIDEO CVBS output to connect to your TV.
ལ
VGA Video output to connect a VGA display monitor.
ཤ
RS-232GSerial port for software upgrade.
ཥ
POWER Switch ON/OFF.
6
Remote control
Remote key functions:
1. POWER To turn the Stand-by mode ON/OFF.
2. Numeric buttons (0-9) To select a channel by direct number input.
3. SUBT To switch the close caption ON/OFF.
4. EXIT To cancel operation or exit the menu
directly.
5. To Page Down (5-)/Page Up (5+).
6. MENU To enter into the main menu, Press
again to exit to previous menu.
7.
ൖ൘
To control the level of the volume.
8. AUDIO To display the Audio info of the
selected program.
9. COLOUR KEY To assist in the operation of
the box.
10. OUTPUT To switch the output mode of HD
between YPbPr and VGA.
11. EDIT To edit the properties of the current
program.
12. HELP The function of this button is not
available on this model.
13. RECALL
G
To return to view the previous
program.
14. MUTE To mute or recover the sound of the
receiver.
15. TTX To switch the teletext service ON/OFF.
16. FAV To access and exit the favourite
programs list.
17. EPG T o provide the user with TV
programming information.
18. INFO To display the current program
information.
19.
To change the program upward / downward.
20. OK
G
To confirm the selected menu item / to open the program list.
21. TV/RADIO To switch the program between TV and Radio.
22. FORMAT To switch the different resolution (1080i, 720P, 576P supported).
23. ASPECT To toggle among 16:9 full screen, 16:9 letter box, 4:3 full screen, 4:3 letter
box, 4:3 panscan.
24. PAUSE To pause the current program when pressed and continue playing program at
its current point when pressed again.
25. SIGNAL To show the quality / level of signal.
7
Installing the batteries
Remove the battery cover from the remote control and put two AAA size batteries inside
the compartment.
The diagram inside the battery compartment shows the correct way to install the batteries.
Caution:
1. Keep batteries out of children’s reach.
2. Don’t attempt to recharge, short-circuit, disassemble, heat or throw the batteries into the
fire.
3. Always replace both batteries at the same time. Never mix new and old batteries or
batteries of a different type.
4. If you don’t intend to use the remote controller for an extended period, remove the
batteries to prevent possible leakage and corrosion.
5. Do not drop, apply shock or step on the remote control.
6. Do not spill water on the remote control.
Notes:
If the receiver does not operate when operating the remote control from a close range,
you need to replace the batteries.
Using the Remote Control
1. To use the remote control, point it towards the front of the digital set top box.
2. The remote control has a range of up to 7 metres from the set top box at an angle of up
to 60 degrees.
3. The remote control will not operate if its path is blocked.
Note:
Sunlight or very bright light will decrease the sensitivity of the remote control.
8
Connecting to equipments
How to get good reception
G
ˍG In general you are not required to change the existing antenna. However if your antenna
is not in good condition you should consider replacing them to ensure uninterrupted digital
television viewing.
ˍ Viewers in areas of poor analog reception may need specialists’ advice about antenna
requirements for digital reception in their area.
ˍ It’s recommended that viewers use quad shielded cable from the antenna to the
television.

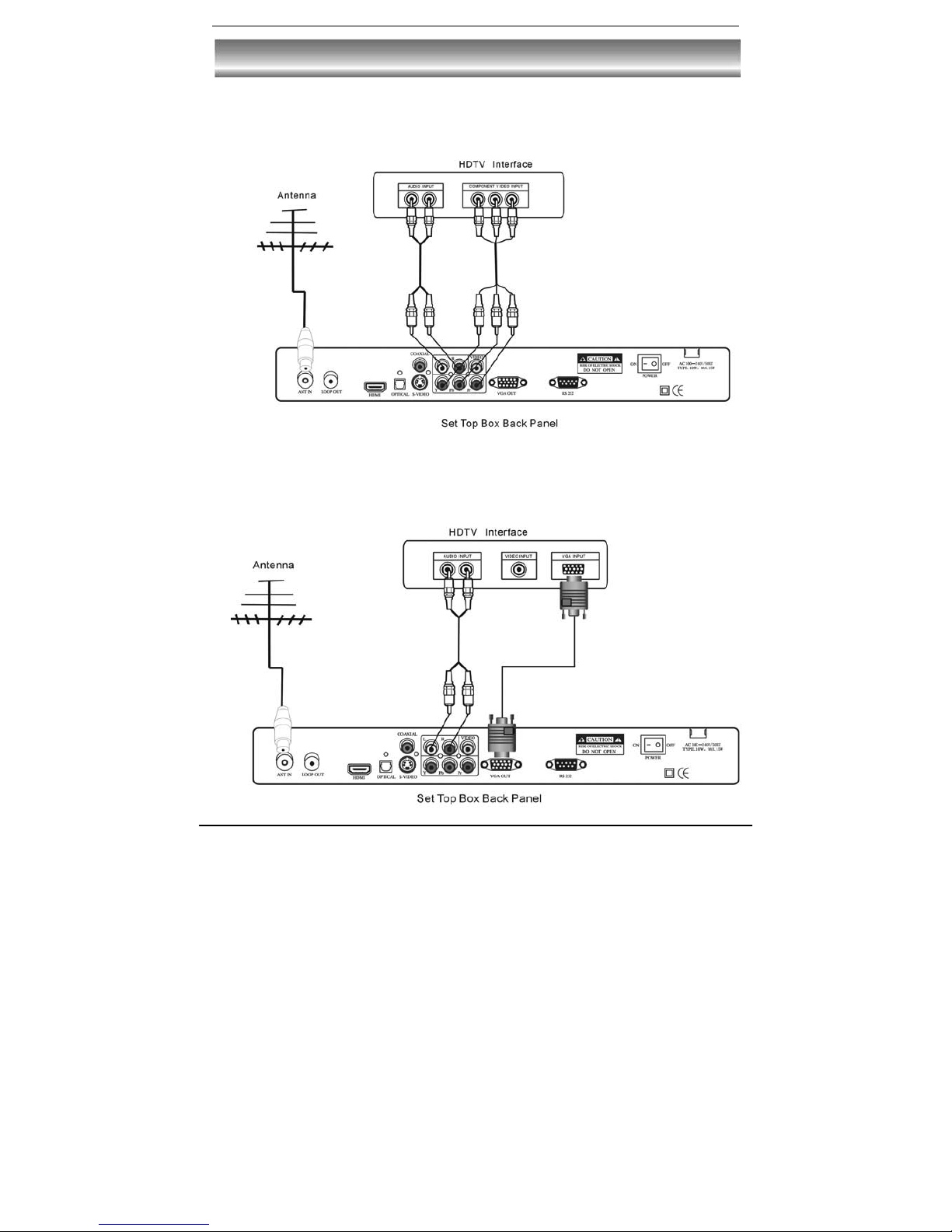

Connections to a TV
G
There are several ways of connecting your STB receiver to the TV and Hi-Fi System. For
high definition viewing your TV must support either 576p, 720p, 1080i resolution. Also the
connection between the STB receiver and TV must be YPbPr component, VGA, or HDMI.
Other connection will provide standard definition viewing.
Warning
Please switch OFF the mains power before plugging or unplugging connection cable s,
otherwise, it may damage this receiver!

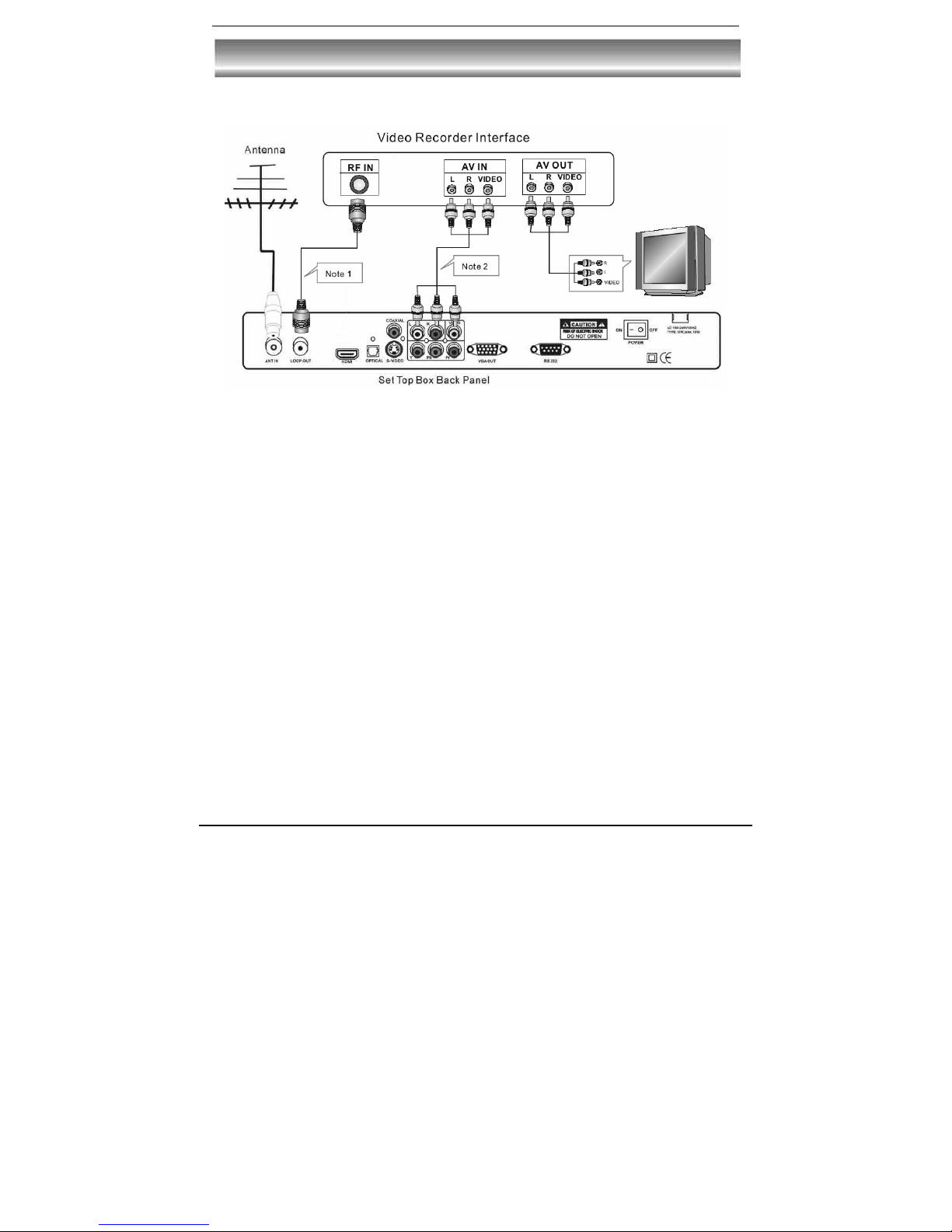

Connect the STB receiver via Video/S-Video and Audio
(for standard definition viewing)
