OPERATING & SERVICE MANUAL
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
CONTENTS
Introduction .....................................................................2
Warranty ..........................................................................2
User Notices .....................................................................3
Electrical & Plumbing Requirements ............................... 4
Initial Set-Up ....................................................................5
Adjusting Brew Volumes .................................................. 6
Auto Sweetener Set-up .................................................... 6
Operating Controls ...........................................................7
Cleaning ...........................................................................8
Auto Sweetener Cleaning .................................................8
Tea Brewing ...................................................................... 8
Troubleshooting ............................................................... 9
Service ...........................................................................15
Wiring Diagrams ............................................................28
INTRODUCTION
This equipment will brew a three-gallon batch of fresh tea into an awaiting dispenser. The tea will be dispensed at
approximately room temperature to conserve ice. The brewer is only for indoor use on a sturdy counter or shelf.
BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY
Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:
1) All equipment other than as specifi ed below: 2 years parts and 1 year labor.
2) Electronic circuit and/or control boards: parts and labor for 3 years.
3) Compressors on refrigeration equipment: 5 years parts and 1 year labor.
4) Grinding burrs on coffee grinding equipment to grind coffee to meet original factory screen sieve analysis: parts and labor for 3 years or 30,000 pounds of coffee, whichever comes fi rst. These warranty periods run from the date of installation BUNN warrants that the equipment manufactured by it will be commercially free of defects in material and workmanship existing at the time of manufacture and appearing within the applicable warranty period. This warranty does not apply to any equipment, component or part that was not manufactured by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect, alteration, improper installation or operation, improper maintenance or repair, damage or casualty. This warranty is conditioned on the Buyer 1) giving BUNN prompt notice of any claim to be made under this warranty by telephone at (217) 529-6601 or by writing to Post Offi ce Box 3227, Springfi eld, Illinois 62708-3227; 2) if requested by BUNN, shipping the defective equipment prepaid to an authorized BUNN service location; and 3) receiving prior authorization from BUNN that the defective equipment is under warranty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN are not authorized to make modifi cations to
this warranty or to make additional warranties that are binding on BUNN. Accordingly, statements by such individuals, whether oral or written, do not constitute warranties and should not be relied upon. If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement parts and/or labor (during the applicable parts and labor warranty periods specifi ed above) to repair the defective components, provided that this repair is done by a BUNN Authorized Service Representative; or 2) shall replace the equipment or refund the purchase price for the equipment.
THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.
In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profi ts, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.
Page 2
37235 050205
USER NOTICES
Carefully read and follow all notices on the equipment and in this manual. They were written for your pro­tection. All notices on the equipment should be kept in good condition. Replace any unreadable or damaged
#00831.0000
#37881.0000
#00656.0000
#06064.0000
WARNING
• FILL WATER TANK BEFORE ENERGIZING
• DO NOT OVERLOAD CIRCUIT
• KEEP AWAY FROM COMBUSTIBLES
• DO NOT DEFORM PLUG OR CORD
SEE
INSTRUCTIONS
• FAILURE TO COMPLY RISKS EQUIPMENT DAMAGE, FIRE OR SHOCK
• BREWER ENERGIZED UNLESS UNPLUGGED
#03408.0000
#03409.0000
BREWERS
CAUTION – Disconnect the power source from the brewer prior to the removal of any panel for the replacement or adjustment of any component. NOTE: Check that the brewer is connected to water supply, the tank is properly filled, and a funnel and server are in place, prior to setting or modifying batch sizes.
1. Modifying batch sizes. To modify a batch volume, first check that the SET/

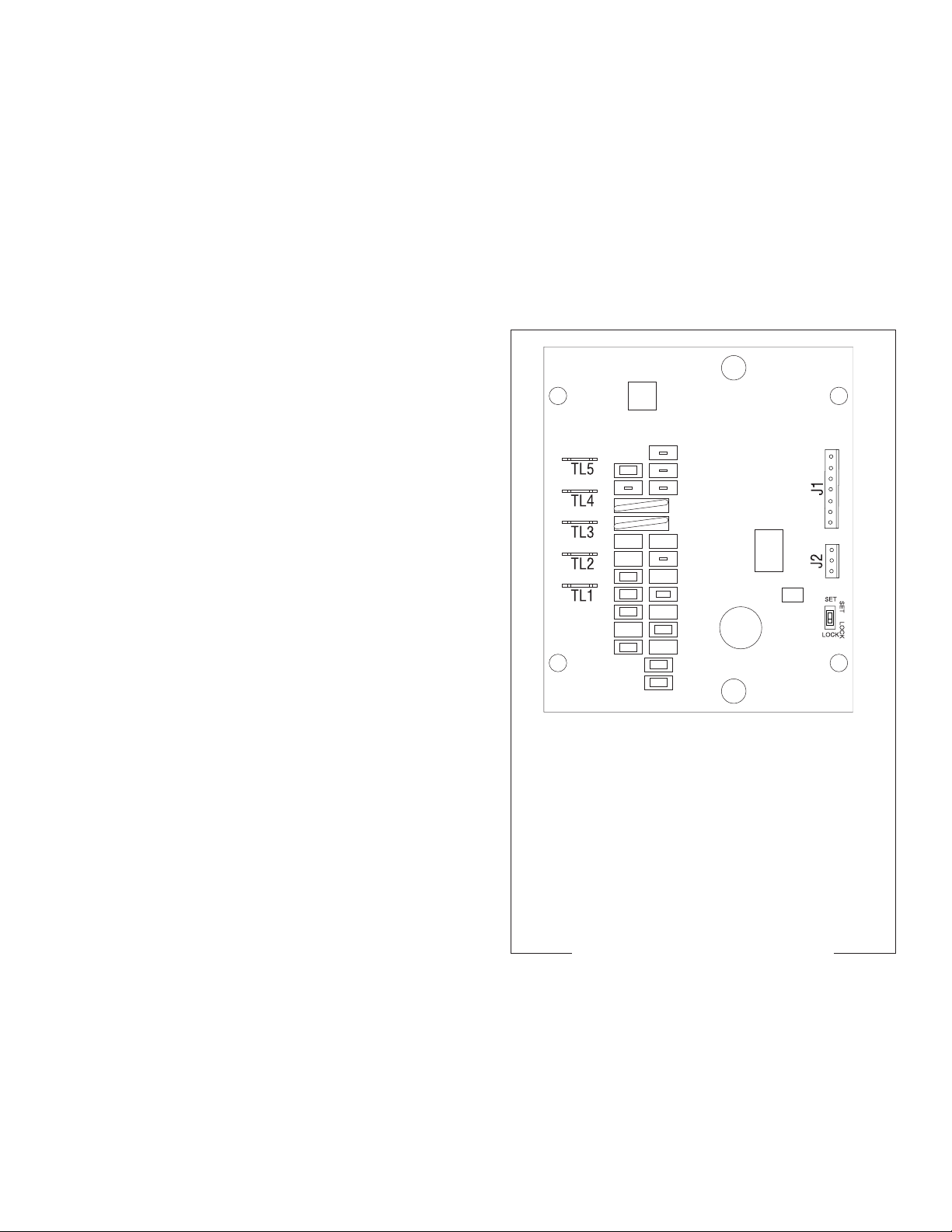

LOCK switch is in the “SET position on the circuit board. If the brewer has a batch selector switch, position it to the size to be changed. To increase a batch size, Press and hold the START or BREW switch until three clicks are heard. Release the switch and then press it again one or more times. Each time the switch is pressed, two seconds are added to the brew time period. Allow the brew cycle to finish in order to verify that the desired volume has been achieved. To decrease a batch size, Press and release the START or BREW switch once for every two-second interval to be removed from the total brew time period; then immediately press and hold down the START or BREW switch until three clicks are heard. Release the switch. Allow the brew cycle to finish in order to verify that the desired volume has been achieved.
2. Setting batch sizes. To set a batch volume, first check that the SET/LOCK
switch is in the “SET” position on the circuit board. Press and hold the START or BREW switch until three distinct clicks are heard (this will take approximately ten seconds), and then release the switch. (Failure to re­lease the switch within two seconds from the third click causes the volume setting to be aborted). View the level of the liquid being dispensed. When the desired level is reached, turn the ON/OFF switch to OFF. The brewer remembers this volume and will continue to brew batches of this size until the volume setting procedure is repeated. Empty server(s), turn selector switch to positions that have yet to be set, and repeat batch setting proce­dure until all batch sizes are set.
NOTE: When brewing coffee, batch volumes will decrease due to absorption by
TIMER SETTING
Page 3
37235 050205
ELECTRICAL REQUIREMENTS
CAUTION - The brewer must be disconnected from the power source until specifi ed in Initial Set-Up.
120V model brewers require 2-wire, grounded service rated 120 volts ac, 15 amp, single phase, 60 Hz. "A" model brewers require 2-wire, grounded service rated 230 volts ac, 10 amp, single phase, 50 Hz. "B" model brewers require 2-wire, grounded service rated 100 volts ac, 15 amp, single phase, 60 Hz.
WARNING - If the power cord is ever damaged, it must be replaced by the manufacturer or its service agent with a special cord available from the manufacturer or its service agent in order to avoid a hazard.
Proceed as follows:
Electrical Hook-Up
CAUTION – Improper electrical installation will damage electronic components.
1. An electrician must provide electrical service as specifi ed.
2. Using a voltmeter, check the voltage and color coding of each conductor at the electrical source.
3. Remove top cover from the brewer.
4. Rotate the control thermostat knob fully counterclockwise to the "OFF" position and replace the top cover.
5. Connect the brewer to the power source.
6. If plumbing is to be hooked up later be sure the brewer is disconnected from the power source. If plumbing has been hooked up, the brewer is ready for Initial Set-Up.
PLUMBING REQUIREMENTS
These brewers must be connected to a cold water system with operating pressure between 20 (138) and 90 psi (620 kPa) from a 1⁄2" or larger supply line. A shut-off valve should be installed in the line before the brewer. Install a regulator in the line when pressure is greater than 90 psi (620 kPa) to reduce it to 50 psi (345 kPa). The water inlet fi tting is 1⁄4" fl are.
NOTE - Bunn-O-Matic recommends 1⁄4" copper tubing for installations of less than 25 feet and 3⁄8" for more than 25 feet from the 1⁄2" water supply line. A tight coil of copper tubing in the water line will facilitate moving the brewer to clean the countertop. Bunn-O-Matic does not recommend the use of a saddle valve to install the brewer. The size and shape of the hole made in the supply line by this type of device may restrict water fl ow.
This equipment must be installed to comply with the Basic Plumbing Code of the Building Offi cials and Code Administrators International, Inc. (BOCA) and the Food Service Sanitation Manual of the Food and Drug Administration (FDA). For models installed outside the U.S.A., you must comply with the applicable Plumbing/Sanitation Code for your area.
1. Remove the shipping cap from the bulkhead fi tting on the rear of the brewer.
2. Flush the water line and securely attach it to the bulkhead fi tting on the rear of the brewer.
3. Turn on the water supply.
NOTE: TheFlow Control/Strainer assembly is internal, located inside the back panel.
Page 4
37235 050506
INITIAL SET-UP
CAUTION - The brewer must be disconnected from the power source throughout the initial set-up, except when
specifi ed in the instructions.
1. Remove the top lid from the brewer.
2. Rotate the control thermostat knob fully counterclockwise to the "OFF" position and replace the top lid.
3. Set the delay knob of the timer on the right side of the hood at eight minutes and the dilution knob of the
timer on the right side of the hood at three minutes and forty-fi ve seconds.
4. Remove the metal discharge tip from the funnel to speed up the set-up procedure. Insert the empty funnel
into the funnel rails.
5. Place an empty dispenser on the brewer base. Be sure the funnel discharge is directly above the hole in the
dispenser top lid.
6. Plug in the brewer and place the ON/OFF switch in the "ON" position. Momentarily press the start switch.
Water will fl ow into the tank and will shut off after three minutes. Press the start switch again. During the second period, the tank will fi ll to its capacity and the excess will fl ow from the funnel into the dispenser.
7. Place the ON/OFF switch in the "OFF" position.
8. Disconnect the brewer from the power source and remove the top lid.
Page 5
37235 050205
INITIAL SET-UP (cont.)
21. When all water stops fl owing, check the water volume in the dispenser. It should be 396 ounces.
22. If not, unplug the brewer and remove the top lid.
23. Adjust the dilution knob of the timer on the right side of the hood as required. Replace the top lid, plug in the brewer, start, and measure another brew cycle.
24. Repeat steps 20-23 until the proper water volume is achieved.
25. Return the delay knob of the timer on the right side of the hood to eight minutes. Replace the top lid and plug in the brewer.
26. Reinstall the metal discharge tip into the funnel.
27. Load the funnel with a BUNN® paper fi lter and approximately four ounces of loose tea leaves.
28. Place the ON/OFF switch in the "ON" position, momentarily press the start switch, and allow both the con­centrate and dilution cycles to occur. Observe the funnel discharge and the dilution streams near the end of the brew cycle. The dilution stream should stop approximately thirty seconds after the funnel discharge has stopped.
29. If not, unplug the brewer and remove the top lid.
30. Adjust the delay knob of the timer on the right side of the hood as required. Replace the top lid and plug in the brewer.
31. Repeat steps 27-30 until the proper dilution timing is achieved.
ADJUSTING BREW VOLUMES
CAUTION - Disconnect the power source from the brewer prior to the removal of any panel for the replacement
or adjustment of any component. NOTE: Prior to setting or modifying batch sizes, check that the brewer is connected to water supply, the tank is properly fi lled, and a funnel and server are in place.
1. Modifying batch sizes. To modify a batch volume, fi rst check that the SET/LOCK switch is in the "SET" posi- tion on the circuit board.
To increase a batch size. Press and hold the START or BREW switch until three clicks are heard. Release
the switch (Failure to release the switch within two seconds after the third click causes the volume setting to be aborted and previous volume setting will remain in memory) and press it again one or more times. Each time the switch is pressed, two seconds are added to the brew time period. Allow the brew cycle to fi nish in order to verify that the desired volume has been achieved.
To decrease a batch size. Press and release the START or BREW switch once for every two-second interval
to be removed from the total brew time period; then immediately press and hold down the START or BREW switch until three clicks are heard. Release the switch. (Failure to release the switch within two seconds after the third click causes the volume setting to be aborted and previous volume setting will remain in memory). Allow the brew cycle to fi nish in order to verify that the desired volume has been achieved.
2. Setting batch sizes. To set a batch volume, fi rst check that the SET/LOCK switch is in the "SET" position on the circuit board. Press and hold the START or BREW switch until three distinct clicks are heard, and then release the switch. (Failure to release the switch within two seconds after the third click causes the volume setting to be aborted and previous volume setting will remain in memory). View the level of the liquid being dispensed. When the desired level is reached, turn the ON/OFF switch to "OFF" (lower). The brewer remembers this volume and will continue to brew batches of this size until the volume setting procedure is repeated.
NOTE: When brewing tea, batch volumes will decrease due to absorption by the tea grounds.
3. Setting programming disable feature. If it becomes necessary to prevent anyone from changing brew times once programmed, you can set the SET/LOCK switch to the "LOCK" position. This will prevent any program­ming to be done until switch is once again placed in the "SET" position.
Page 6
37235 050205
AUTO SWEETENER SET-UP
CAUTION - The brewer must be disconnected from the power source throughout the Initial Set-Up, except
when specifi ed in the instructions.
1. Remove the top lid and rear panel.
2. Make sure the brewer water supply is off.
3. Connect sweetener hose from the bag in a box delivery system to the rear fi tting marked "Sweetener" . IMPORTANT - System delivery pressure must be regulated between 30-40 psi. System also needs to deliver product for at least 4 minutes without shutting off. Some pump systems shut off after a few minutes of continu­ous running.
4. Set the "Delay knob on the dilution timer to the 3 minute setting. (The minimum delay setting)
5. Plug brewer into the power source.
6. Place an empty reservoir under the dilution nozzle of the brewer.
7. Close the adjustment valve on the rear of the brewer fully (clockwise), then open (counterclockwise) 1/2
turn.
8. Set the selector switch to the "Sweetened" side and press the "Start" switch momentarily. (After approximately
3 minutes the sweetener will come out of the dilution nozzle.)
9. Run sweetener for 1 minute, then set selector switch to the "Off" position. The fl ow will stop.
10. Measure the amount of sweetener dispensed and calculate if the volume needs to be increased or decreased
(Dilution cycle is usually between 3 to 3 1/2 minutes).
11. If adjustment is needed, turning the adjustment valve clockwise decreases the amount of sweetener dis-
pensed and turning the adjustment valve counterclockwise increases the amount of sweetener dispensed.
12. Set the "Delay" knob on the dilution timer back to the 6 to 7 minute setting.
13. After the desired volume has been set, turn the water supply on.
14. Reinstall the top lid and rear panel. The brewer may now be returned to service.
OPERATING CONTROLS
A. ON/OFF Switch
ON - Placing the switch in the left position allows the start switch to activate a timed brew cycle for three gallons
of tea. OFF - Placing the switch in the right position stops the brew cycle. Stopping a brew cycle after it has been started will not stop the fl ow of water into the funnel until the tank syphons down to its proper level. The switch should
always be placed in this position after a brew cycle and whenever the brewer is unattended.
B. Start Switch Starts a brew cycle when the ON/OFF switch is in the "ON" position.
C. UNSWEET/OFF/SWEET Selector Switch (Models with Sweetener Only) UNSWEET - Placing the switch in the left positional allows the start switch to activate a timed brew cycle for three gallons of tea without sweetener. OFF - Placing the switch in the middle position stops the brew cycle. Stopping a brew cycle after it has been started will not stop the fl ow of water into the funnel until the tank syphons down to its proper level. The switch
should always be placed in this position after a brew cycle and whenever the brewer is unattended. SWEET - Placing the switch in the right positional allows the start switch to activate a timed brew cycle for three
gallons of tea with sweetener.
Page 7
37235 050205
CLEANING
CAUTION - CLEAN AND SANITIZE YOUR ICED TEA BREWER DAILY
1. Remove and thoroughly clean the entire brew funnel. The funnel tip and screen must be free from any tea particles or residue. Reassemble the funnel.
2. Place the ON/OFF switch in the "OFF" position. Remove and thoroughly rinse the sprayhead. The holes must be open and clear of any mineral deposits. Wipe the sprayhead panel clean with a damp cloth.
3. Insert the deliming spring into the sprayhead fi tting until no more than two inches is visible and move it in and out 5 or 6 times. Insert the spring into the airvent hole in the sprayhead panel and move it in and out 5 or 6 times. Reattach the sprayhead.
4. Wash the entire outside surface of the brewer with a clean damp cloth.
CAUTION - DO NOT KEEP BREWED ICED TEA OVERNIGHT. THE SERVER MUST BE CLEANED DAILY.
AUTO SWEETENER CLEANING
1. Remove the connector off of the bag in a box.
2. Place the end in a bucket of hot water (120°-130°F)
3. Place an empty reservoir on the base under the dilution nozzle.
4. Set the selector switch to the "Sweetened" setting.
5. Press and release the "Start" switch.
6. Run three brew cycles in a row, emptying the reservoir after each cycle.
7. When the three cycles have been completed, hook the connector back up to the bag in a box system. (This
will keep buildup from occurring in the system.)
This procedure should be performed weekly or as needed to keep the system clear.
TEA BREWING
1. Begin each brew cycle with a clean empty brew funnel and server. (Be sure the server lid doesn’t interfere with the fl ow of dilution water.)
2. Insert a BUNN® fi lter into the funnel.
3. Pour the packet of loose fresh tea leaves into the fi lter. Approximately four ounces is recommended.
4. Level the bed of tea leaves by gently shaking.
5. Slide the funnel into the funnel rails until it stops.
6. Place the ON/OFF switch in the "ON" position.
7. Momentarily press the start switch.
CAUTION - The funnel contains hot liquids. Remove funnel slowly.
8. Carefully remove the brew funnel and discard the used fi lter when tea no longer drips from the funnel tip.
9. Place the ON/OFF switch in the "OFF" position to prevent a false start.
10. Fresh tea is available at the faucet.
Page 8
37235 080204
TROUBLESHOOTING
A troubleshooting guide is provided to suggest probable causes and remedies for the most likely problems encountered. If the problem remains after exhausting the troubleshooting steps, contact the Bunn-O-Matic Technical Service Department.
Inspection, testing, and repair of electrical equipment should be performed only by qualifi ed service person-
nel.
All electronic components have 120 - 240 volt ac and low voltage dc potential on their terminals. Shorting
of terminals or the application of external voltages may result in board failure.
Intermittent operation of electronic circuit boards is unlikely. Board failure will normally be permanent. If
an intermittent condition is encountered, the cause will likely be a switch contact or a loose connection at a
terminal or crimp.
Solenoid removal requires interrupting the water supply to the valve. Damage may result if solenoids are
energized for more than ten minutes without a supply of water.
The use of two wrenches is recommended whenever plumbing fi ttings are tightened or loosened. This will
help to avoid twists and kinks in the tubing.
Make certain that all plumbing connections are sealed and electrical connections tight and isolated.
This brewer is heated at all times. Keep away from combustibles.
WARNING –
• Exercise extreme caution when servicing electrical equipment.
• Unplug the brewer when servicing, except when electrical tests are specifi ed.
• Follow recommended service procedures
• Replace all protective shields or safety notices
Problem
Brew cycle will not start
Probable Cause
1. No water
2. No power or incorrect voltage to the brewer
3. Strainer/Flow Control (.750GPM)
Remedy
Water lines and valves to the brewer must be open.
Check circuit breakers or fuses.
(A) Direction of fl ow arrow must be pointing upwards in the brewer.
(B) Remove the strainer/fl ow con­trol and check for obstructions. Clear or replace.
Page 9
37235 050205
TROUBLESHOOTING (cont.)
PROBLEM
Brew cycle will not start (cont.)
PROBABLE CAUSE
4. ON/OFF Switch
5. Start Switch
6. Brew Timer
7. Brew Solenoid Valve
8. Internal Flow control (.195 GPM)
REMEDY
Refer to Service - ON/OFF Switch for testing. See page 24
Refer to Service - Start Switch for testing procedures. See page 23
Refer to Service - Brew Timer for testing procedures. See page 18
Refer to Service - Brew Solenoid Valve for testing procedures. See page 16
(A) Direction of fl ow arrow must be pointing towards check valve.
(B) Remove the fl ow control and check for obstructions. Clear or replace.
Water is not hot
Dilution cycle will not start
1. Limit Thermostat CAUTION - Do not eliminate or bypass limit thermostat or thermal cut-off. Use only BOM replacement part 29329.0001
2. Control Thermostat
3. Tank Heater
1. ON/OFF Switch
2. Start Switch
Refer to Service - Limit Thermostat for testing procedures. See page 22
Refer to Service - Control Ther­mostat for testing procedures. See page 17
Refer to Service - Tank Heater for testing procedures. See page 27
Refer to Service - ON/OFF Switch for testing procedures. See page 24
Refer to Service - Start Switch for testing procedures. See page 23
3. Dilution Timer
Page 10
Refer to Service - Dilution Timer for testing procedures. See page 21
37235 080204
TROUBLESHOOTING (cont.) PROBLEM
Dilution cycle will not start (cont.)
Inconsistent beverage level in dispenser
PROBABLE CAUSE
4. Dilution Solenoid Valve
1. Internal Flow Control (.195 GPM)
2. Syphon System
3. Lime Build-up CAUTION - Tank and tank compo­nents should be delimed regularly depending on local water condi­tions. Excessive mineral build-up on stainless steel surfaces can initiate corrosive reactions resulting in serious leaks.
REMEDY
Refer to Service - Dilution Solenoid Valve for testing procedures. See page 20
(A) Direction of fl ow arrow must be pointing towards the check valve.
(B) Remove the fl ow control and check for obstruction. Clear or replace.
The brewer must be level or slightly lower in front to syphon properly.
Inspect the tank assembly for ex­cessive lime deposits. Delime as required.
Consistently high or low beverage level in the dispenser
4. Water Pressure
1. Brew Timer/Delay Timer
2. Strainer/Flow Control (.750GPM)
The water pressure to the brewer must be at least 20 psi (138 kPa).
With the ON/OFF switch "ON" adjust the brew timer to achieve the rec­ommended 76 oz. of concentrate then the dilution timer to achieve a total of 396 oz. for each three-gal­lon brew cycle.
(A) Direction of fl ow arrow must be pointing upwards in the brewer.
(B) Remove the strainer/fl ow con­trol and check for obstructions. Clear or replace.
Page 11
37235 080204
TROUBLESHOOTING (cont.) PROBLEM
Spitting or excessive steaming
Drip-out time too long
Dripping from sprayhead
PROBABLE CAUSE
1. Lime Build-up CAUTION - Tank and tank compo­nents should be delimed regularly depending on local water condi­tions. Excessive mineral build-up on stainless steel surfaces can initiate corrosive reactions resulting in serious leaks.
2. Control Thermostat
1. Funnel Tip
1. Syphon System
REMEDY
Inspect tank assembly for excessive lime deposits. Delime as required.
Refer to Service - Control Ther­mostat for testing procedures. See page 17
The brew funnel should be cleaned thoroughly before each brew cycle to lessen the chance of tea leaf par­ticles clogging the drip-out tip.
The brewer must be level or slightly lower in front to syphon properly.
Water flows into tank continu­ously (ON/OFF Switch "ON") or (UNSWEET/OFF/SWEET Switch in "UNSWEET" or "SWEET" position)
Water flows into tank continu­ously (ON/OFF Switch "OFF") or (UNSWEET/OFF/SWEET Switch in "OFF" position)
2. Lime Build-up CAUTION - Tank and tank compo­nents should be delimed regularly depending on local water condi­tions. Excessive mineral build-up on stainless steel surfaces can initiate corrosive reactions resulting in serious leaks.
3. Brew Solenoid Valve
1. Brew Timer
1. Brew Solenoid Valve
Inspect the tank assembly for ex­cessive lime deposits. Delime as required.
Refer to Service - Brew Solenoid Valve for testing procedures. See page 16
Refer to Service - Brew Timer for testing procedures. See page 18
Refer to Service - Brew Solenoid Valve for testing procedures. See page 16
Page 12
37235 050205
TROUBLESHOOTING (cont.) PROBLEM
Beverage overfl ows dispenser
PROBABLE CAUSE
1. Dispenser
2. Brew Timer
3. Brew Solenoid Valve
4. Dilution Timer
5. Dilution Solenoid Valve
REMEDY
The dispenser must be complete­ly empty before starting a brew cycle.
Refer to Service - Brew Timer for testing procedures. See page 18
Remove the Brew Solenoid Valve and clean any obstruction. Rebuild or replace the valve if necessary. See page 16
Refer to Service - Dilution Timer for testing procedures. See page 21
Refer to Service - Dilution Solenoid Valve for testing procedures. See page 20
Weak beverage
1. Filter Type
2. Tea
3. Sprayhead
4. Funnel Loading
5. Water Temperature
®
BUNN
paper fi lters must be used
for proper extraction.
A suffi cient quantity of fresh, loose tea leaves should be used for proper extraction.
A clean stainless steel sprayhead must be used for proper extrac­tion.
The BUNN® paper fi lter must be centered in the funnel and the bed of tea leaves leveled by gentle shaking.
Place an empty funnel on an empty dispenser beneath the sprayhead. Initiate a brew cycle and check the water temperature immediately below the sprayhead with a ther­mometer. The reading should not be less than 200°F (93°C). Adjust the control thermostat to increase the water temperature. Replace if necessary.
Page 13
37235 080204
TROUBLESHOOTING (cont.)
PROBLEM
Dry tea leaves remain in the fun­nel
Brewer is making unusual noises
PROBABLE CAUSE
1. Funnel Loading
1. Solenoid(s)
2. Plumbing Lines
3. Water Supply
REMEDY
®
The BUNN
paper fi lter must be centered in the funnel and the bed of grounds leveled by gently shak­ing.
The nut on the solenoid(s) must be tight or it will vibrate during operation.
Plumbing lines should not be rest­ing on the counter top.
(A) The brewer must be connected to a cold water line.
(B) Water pressure to the brewer must not exceed 90 psi (620 kPa). Install a regulator if necessary to lower the working pressure to ap­proximately 50 psi (345 kPa).
Sweetener is not working
4. Tank Heater
1. Sweetener box is empty
2. Flow Adjustment screw is closed
3. Solenoid is defective
4. The Pump is defective
Remove and clean lime off the tank heater. See page 27
Check the Sweetener box to make sure it is not out of product.
Check the Flow Adjustment screw to make sure the valve has not closed.
Refer to Service -Sweetener Sole­noid Valve for testing procedures. See page 26
Check the manufacturers warranty for additional information on test­ing and replacement of a defective pump.
Page 14
37235 111904
SERVICE
This section provides procedures for testing and replacing various major components used in this brewer should service become necessary. Refer to Troubleshooting for assistance in determining the cause of any problem.
WARNING - Inspection, testing, and repair of electri­cal equipment should be performed only by qualifi ed service personnel. The brewer should be disconnected from the power source when servicing, except when electrical tests are required and the test procedure specifi cally states to plug in the brewer.
COMPONENT ACCESS
WARNING - Disconnect the brewer from the power
source before the removal of any panel or the replace­ment of any component.
All components are accessible by the removal of the top cover and rear inspection panel.
The top cover is attached with one #6-32 screw. Removal of the top cover will allow access to ON/OFF switch, start switch, brew timer, dilution timer, control thermostat, limit thermostat and tank heater,
The rear inspection panel is attached with six #8-32 screws. Removal of the rear panel will allow access to the brew solenoid valve, dilution solenoid valve and the sweetener solenoid valve (optional), .195 GPM & .750 GPM fl ow control and check valves.
Contents
Brew Solenoid Valve ............................................16
Control Thermostat ..............................................17
Digital Brew Timer................................................18
Dilution Timer ......................................................20
Dilution Solenoid Valve ........................................21
Limit Thermostat ..................................................22
Start Switch ....................................................... 23
ON/OFF Switch .....................................................24
UNSWEET/OFF/SWEET Switch .............................25
Sweetner Solenoid ...............................................26
Tank Heater ......................................................... 27
Wiring Diagrams ................................................. 28
Page 15
SERVICE (cont.) BREW SOLENOID VALVE
Page 16
SERVICE (cont.)
M
I
N
U
T
E
S
M
I
N
U
T
E
S
D
E
L
A
Y
DI
L
U
T
I
O
N
B
U
N
N
-
O
-
M
A
T
IC
P
/
N
3
35
5
CONTROL THERMOSTAT
thermostat is turned fully clockwise. Connect the brewer to the power source. The indication must
be: a) 120 volts ac for two wire 120 volt models. b) 230 volts ac for two wire 230 volt models. c) 100 volts ac for two wire 100 volt models.
8. Disconnect the brewer from the power source.
C
I T A M
5
6
O-
5
­5
N
3
4
3
N
7
U
N
/
B
P
3
8
6
7
2
5
S
1
6
TE
U
4
N
MI
N
O I UT
3
S
L
E T
DI
U N
MI
Y A
L E D
P3040

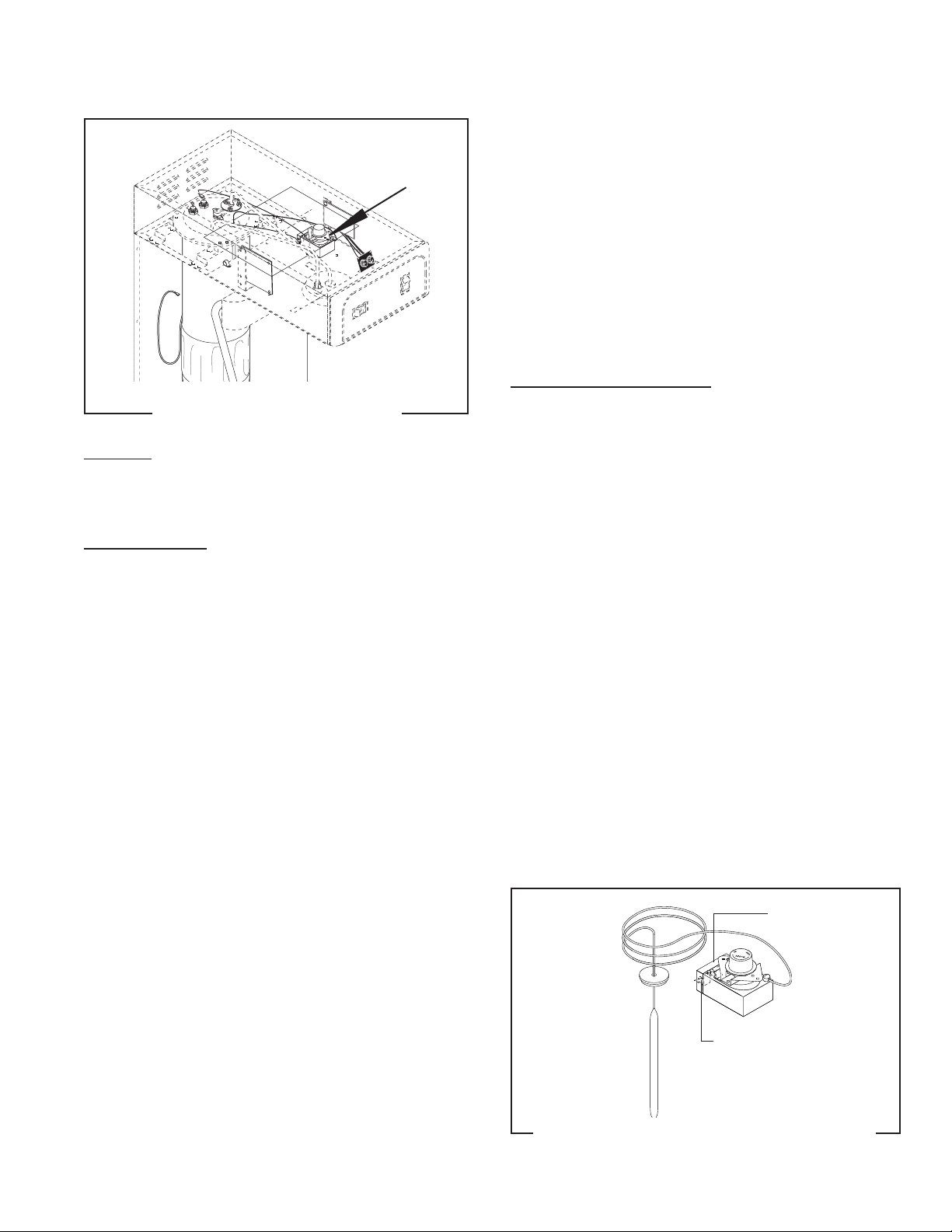

FIG. 4 CONTROL THERMOSTAT
Location:
The control thermostat is located inside hood on
the right side just behind the dilution timer.
Test Procedures:
1. Disconnect the brewer from the power source.
2. Locate the blue/black wire on the control thermo­stat.
3. With a voltmeter, check the voltage across the blue/black wire on the control thermostat and the white wire on the tank heater for 100 volt and 120 volt two wire models or red wire on the tank heater for 230 volt two wire models. Connect the brewer to the power source. The indication must be:
a) 120 volts ac for two wire 120 volt models. b) 230 volts ac for two wire 230 volt models. c) 100 volts ac for two wire 100 volt models.
4. Disconnect the brewer from the power source.
If voltage is present as described, reinstall the capillary tube into the tank to the line 4.5" above the bulb, the control thermostat is operating properly. If voltage is not present as described, replace the thermostat.
Removal and Replacement:
1. Remove both wires from the control thermostat terminals.
2. Remove the thermostat capillary bulb by fi rmly pulling up on the capillary tube at the tank lid. This will disengage the grommet from the tank lid.
3. Remove the #8-32 screw holding the control thermostat to its bracket.
4. Slide the grommet to the line 4.5" above the bulb on the new capillary tube.
5. Insert the capillary bulb through the hole in the tank lid and press the grommet fi rmly and evenly so that the groove in the grommet fi ts into the tank lid.
6. Carefully bend the capillary tube so that the tube and bulb inside the tank are in a vertical posi­tion.
NOTE – The capillary tube must be clear of any electri­cal termination and not kinked.
7. Fasten the new control thermostat to its bracket.
8. Refer to Fig. 5 when reconnecting the wires.
9. Adjust the control thermostat as required.
If voltage is present as described, proceed to #5. If voltage is not present as described, refer to the Wir- ing Diagrams and check the brewer wiring harness.
5. Locate the black wire on the control thermostat.
6. Gently remove the capillary bulb and grommet from the tank.
7. With a voltmeter, check the voltage across the black wire of the control thermostat and the white wire on the tank heater for 100 volt and 120 volt two wire models or red wire on the tank heater for 230 volt two wire models when the control
Page 17
BLK to Tank Heater
BLU/BLK to Limit Ther­mostat
P1280

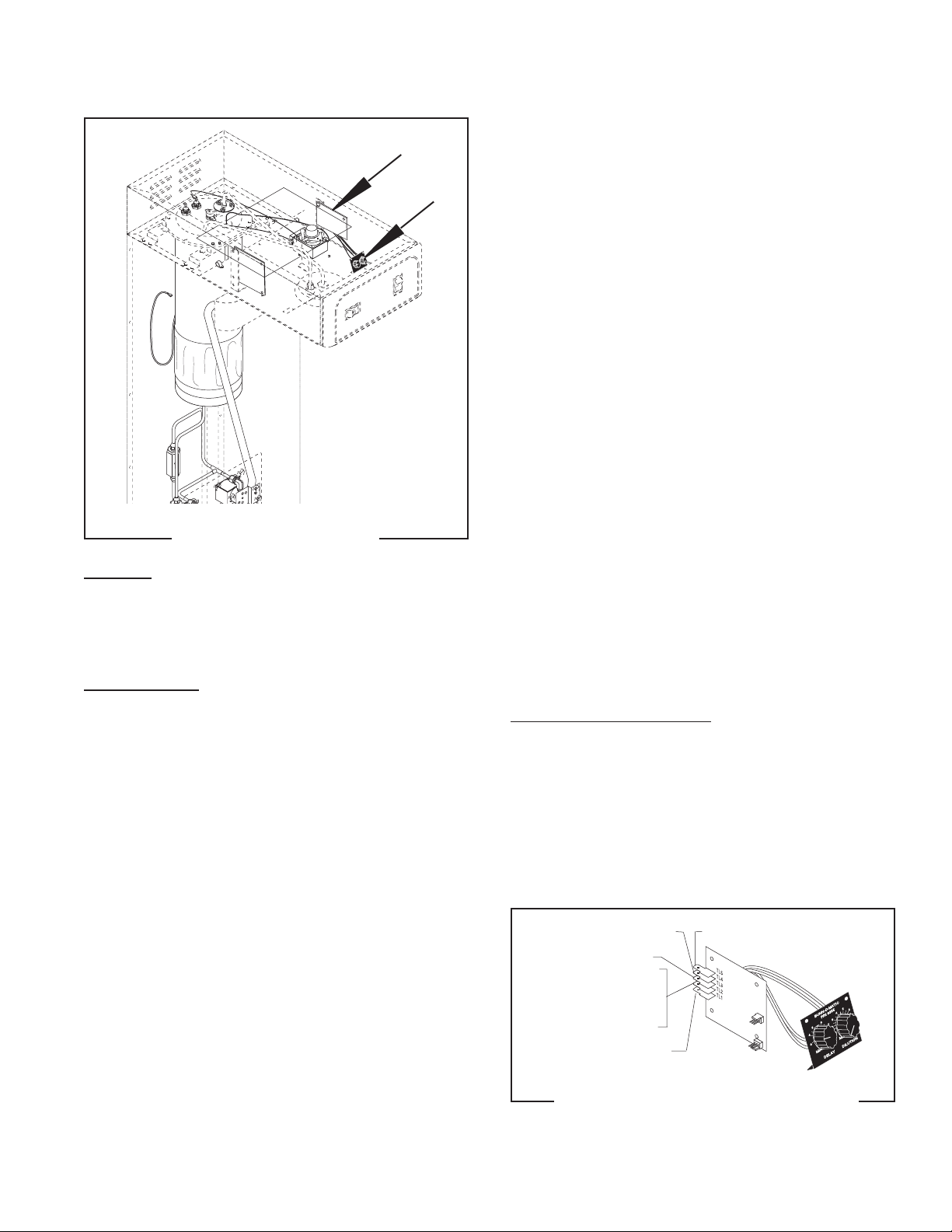

FIG. 5 CONTROL THERMOSTAT TERMINALS
37235 080204
SERVICE (cont.)

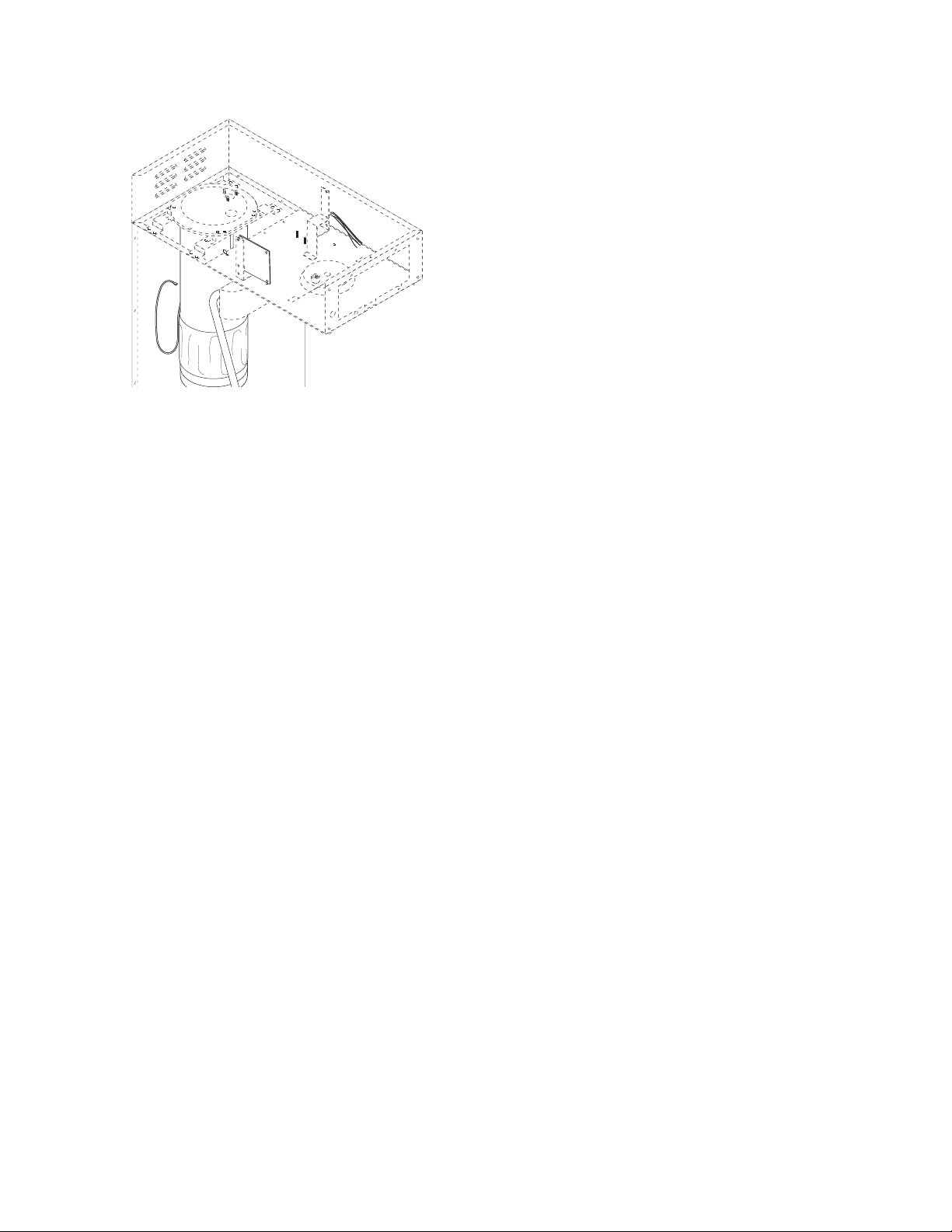

DIGITAL BREW TIMER
Page 18
SERVICE (cont.) DIGITAL BREW TIMER (cont.)
To increase a brew volume, place the ON/OFF switch in the "ON" position, press and hold the START switch until three clicks are heard. Release the switch and press it again one or more times. (Failure to re­lease the switch within two seconds after the third click causes the volume setting to be aborted and previous volume setting will remain in memory.) Each time the switch is pressed, two seconds are added to the brew time period. Allow the brew cycle to fi nish in order to verify that the desired volume has been achieved.
To decrease a brew volume, place the ON/OFF switch in the "ON" position, press and release the START switch once for every two-second interval to be removed from the total brew time period; then im­mediately press and hold down the START switch until three clicks are heard. Release the switch. (Failure to release the switch within two seconds after the third click causes the volume setting to be aborted and previous volume setting will remain in memory). Al­low the brew cycle to fi nish in order to verify that the desired volume has been achieved.
3. Setting programming disable feature. If it be- comes necessary to prevent anyone from changing brew time once programmed, you can set the SET/ LOCK switch to the "LOCK" position. This will prevent any further programming until switch is once again put into the "SET" position.
2. Setting brew volumes. To set a brew volume,
fi rst check that the SET/LOCK switch is in the "SET" position on the circuit board. Place the ON/OFF switch in the "ON" position, press and hold the START switch until three distinct clicks are heard and then release the switch. (Failure to release the switch within two seconds after the third click causes the volume setting to be aborted and previous volume setting will remain in memory.) View the level of the liquid being dispensed. When the desired level is reached, turn the ON/OFF switch to "OFF". NOTE: Several ounces of water will continue to sy­phon from the tank after turning the switch "OFF". The brewer remembers this volume and will continue to brew batches of this size until the volume setting procedure is repeated. NOTE: When brewing tea, volume will decrease due to absorption by the tea grounds.
TL1 - WHI/VIO to Dilution Timer and WHI/VIO to ON/OFF Switch TL2 - WHI to Power Cord (100V & 120V) or RED to Power connector (230V) and WHI to Dilution Timer (100V & 120V) or RED to Dilution Timer (230V) TL3 - WHI/ORN to Start Switch TL4 - WHI/GRN to Brew Solenoid TL5 - WHI/YEL to Start Switch
P2037

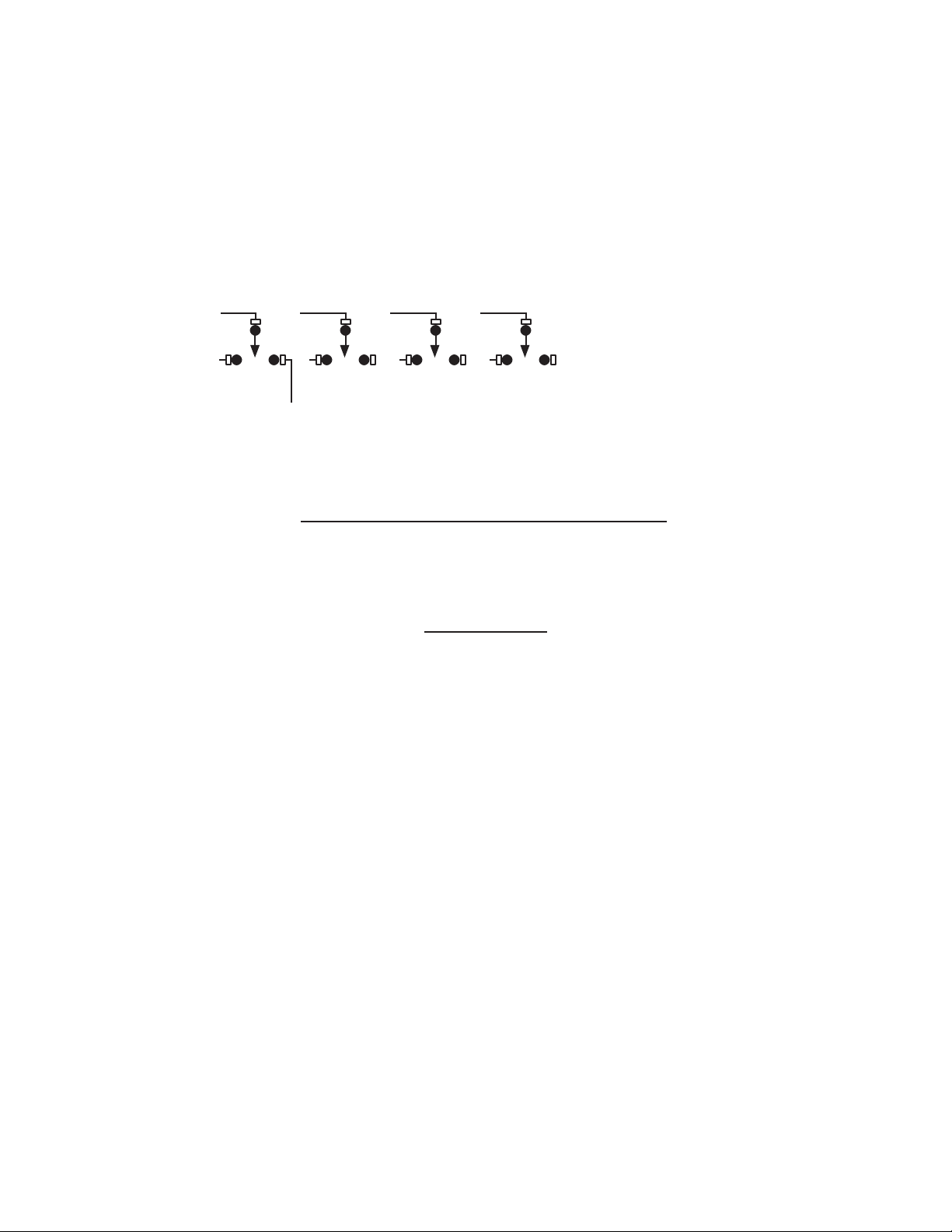

FIG. 7 DIGITAL TIMER WIRING
Page 19
37235 080204
SERVICE (cont.) DILUTION SOLENOID VALVE
Page 20
SERVICE (cont.)
M
I
N
U
T
E
S
M
I
N
U
T
E
S
D
E
L
A
Y
DI
L
U
T
I
O
N
B
U
N
N
-
O
-
M
A
T
IC
P
/
N
3
35
5
DILUTION TIMER
C I
T A M
-
5
6
O
5
­5
N
3
4
3
N
7
U
N
/
B
P
3
8
6
7
2
5
S E
1
6
T U
4
N I M
N
O I T
U
3
S
L I
E
D
T U N
I M
Y A L
E D
FIG. 10 DILUTION TIMER
P3040
Location: The dilution timer is located inside the hood on the right side. It consists of the dial plate with two dials and circuit board.
Test Procedure:
1. Disconnect the brewer from the power source and remove the wires from terminals TL3, TL4, & TL5 of the timer and rotate both dials fully counter­clockwise.
2. With a voltmeter, check the voltage across termi­nals TL1 and TL2 when the ON/OFF switch is in the "ON" position. Connect the brewer to the power source. The indication must be:
a) 120 volts ac for two wire 120 volt models. b) 230 volts ac for two wire 230 volt models. c) 100 volts ac for two wire 100 volt models.
3. Disconnect the brewer from the power source.
If voltage is present as described, proceed to #4. If voltage is not present as described, refer to the Wir- ing Diagrams and check the wiring harness.
If continuity is present as described, reconnect the wires to terminals TL3, TL4, & TL5 of the timer board and proceed to #5. If continuity is not present as described, refer to the Wiring Diagrams and check the wiring harness.
5. With a voltmeter, check the voltage across termi­nals TL1 and TL4 when the ON/OFF switch is in the "ON" position and the start switch is momentarily placed in the lower position. Connect the brewer to the power source. After a delay of approximately three minutes, the indication must be:
a) 120 volts ac for two wire 120 volt models for
approximately one minute and then return to its previous indication.
b) 230 volts ac for two wire 230 volt models for
approximately one minute and then return to its previous indication.
c) 100 volts ac for two wire 100 volt models for
approximately one minute and then return to its previous indication.
6. Disconnect the brewer from the power source.
If voltage is present as described, the timer is operat­ing properly. Adjust the timer dials as required. If voltage is not present as described, replace the timer.
Removal and Replacement:
1. Remove all wires from the timer.
2. Remove the circuit board and dial plate from the brackets.
4. Install the new dial plate and circuit board to the brackets.
5. Refer to Fig. 11 when reconnecting the wires.
6. Adjust the timer dials as required.
WHI/BLU to Dilution Solenoid
RED/BLK to Start Switch
WHI to Brew Timer (100V & 120V Models) RED to Brew Timer (230V Models)
WHI/VIO to ON/OFF Switch
GRN to Start Switch
4. Check for continuity across the green and red/ black wires when the start switch is held in the lower position.
Page 21
FIG. 11 DILUTION TIMER TERMINALS
P1281
37235 080204
SERVICE (cont.)
LIMIT THERMOSTAT
Page 22
Page 23

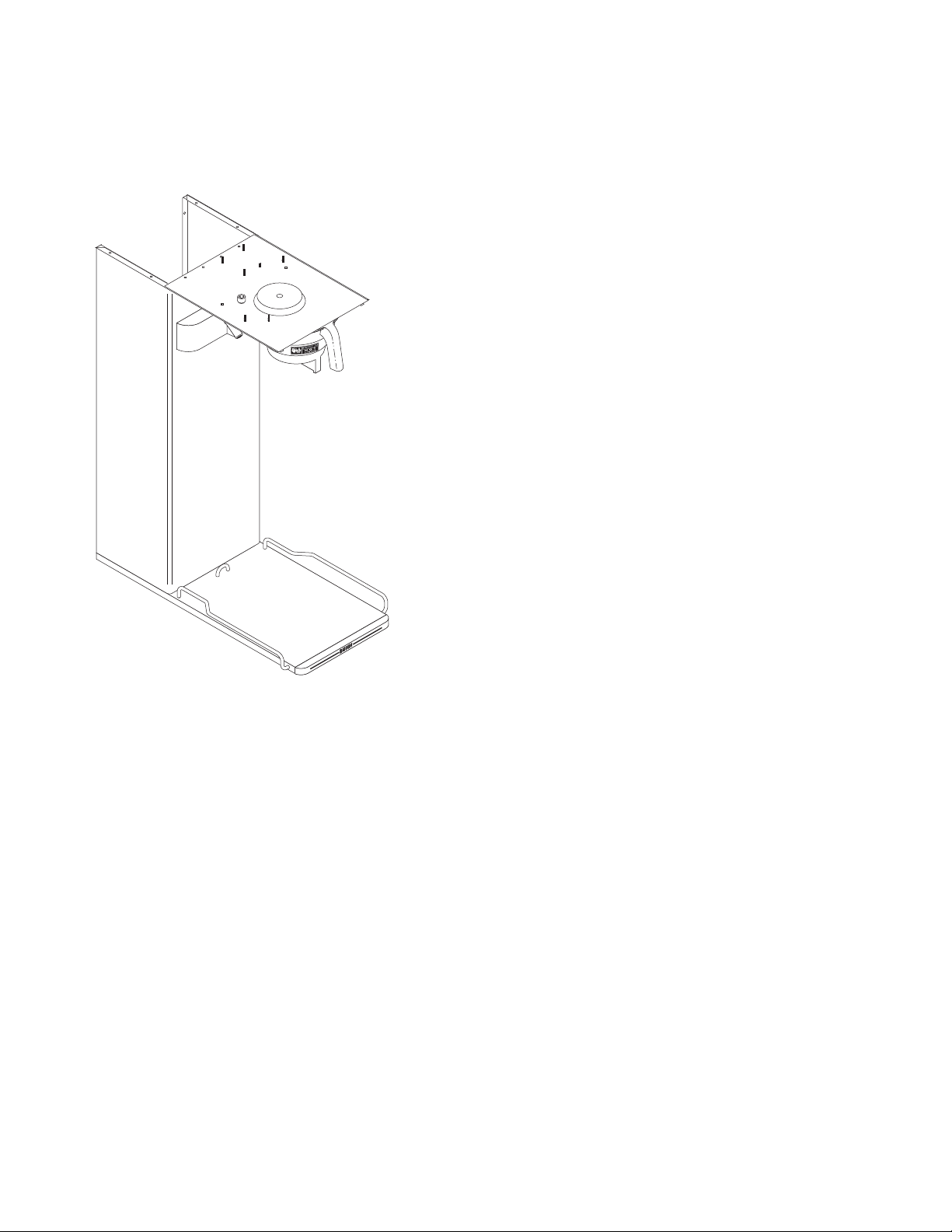

Page 24

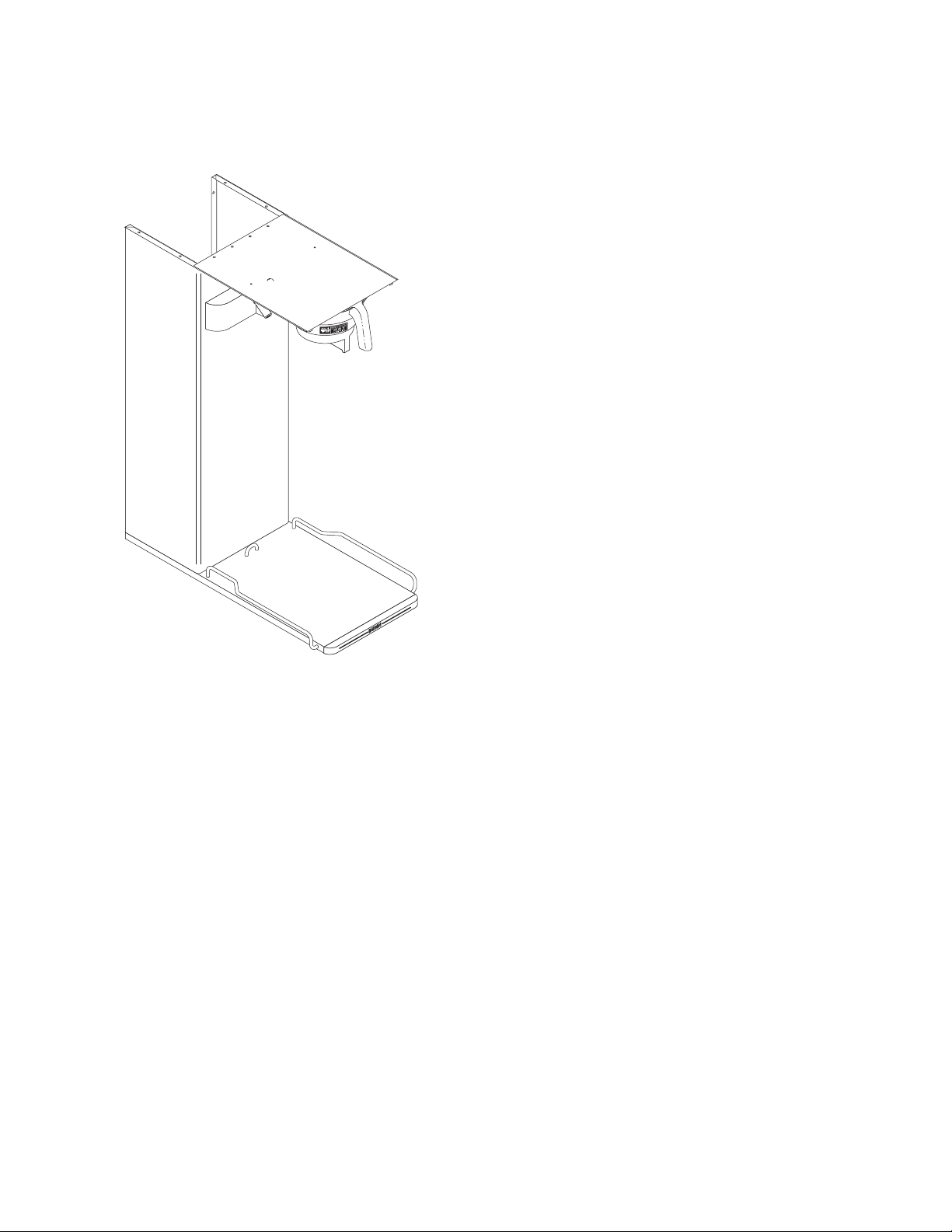

Page 25
SERVICE (cont.) SWEETNER SOLENOID VALVE
P3298

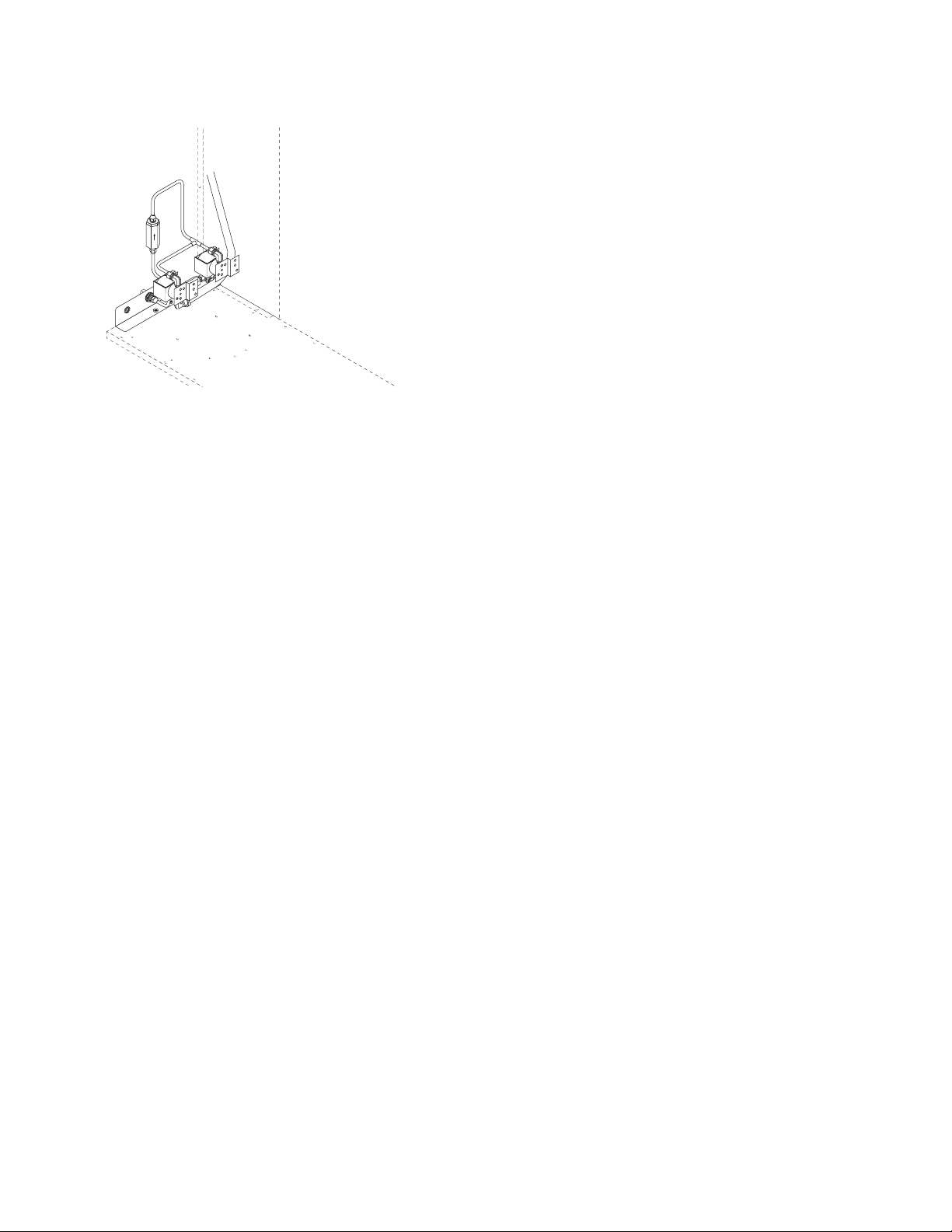

FIG. 20 SWEETNER SOLENOID VALVE
Location: Viewing the brewer from the front, the sweetener solenoid is mounted on the right side of the solenoid mounting bracket which is secured to the bottom base housing.
If continuity is not present as described, replace the solenoid valve.
5. Check the solenoid valve for coil action. Con­nect the brewer to the power source, place the UNSWEET/OFF/SWEET switch in the “SWEET” position and momentarily place the start switch in the lower position and release. At the start of a brew cycle, listen carefully in the vicinity of the solenoid valve for a “clicking” sound as the coil magnet attracts and at the end of the brew cycle when the plunger is released.
6. Disconnect the brewer from the power source.
If the sound is heard as described and sweetener will not pass through the solenoid valve, there may be a blockage in the sweetener line before or after the solenoid valve or, the solenoid valve may require inspection for wear, and removal of particles. If the sound is not heard as described, replace the solenoid valve.
Test Procedure:
1. Disconnect the brewer from the power source.
2. With a voltmeter, check the voltage across the brown/white and white/violet wires on the sweet­ener solenoid terminals when the UNSWEET/OFF/ SWEET switch is in the “SWEET” position and the start switch is momentarily placed in the lower position. Connect the brewer to the power source. After the approximate setting on the delay dial, the indication must be:
a) 120 volts ac for two wire 120 volt models. b) 230 volts ac for two wire 230 volt models. c) 100 volts ac for two wire 100 volt models, remain for the approximate setting on the dilution
dial, and then return to its previous indication.
3. Disconnect the brewer from the power supply.
If voltage is present as described, proceed to #4. If voltage is not present as described, refer to the Wir­ing Diagrams and check the wiring harness.
Removal and Replacement:
1. Remove all wires from the solenoid valves.
2. Turn off the sweetener supply to the brewer.
3. Disconnect the water lines to and from the sole­noid valves.
4. Remove the two #8-32 keps nuts holding the solenoid bracket to the mounting bracket.
5. Lift out the valve and bracket.
6. Remove the two #10-32 slotted-head screws hold­ing the solenoid valve to the mounting bracket.
7. Securely install the new solenoid valve to the mounting bracket.
8. Attach the solenoid valve and bracket to the mounting bracket.
9. Securely fasten the sweetener and water lines to and from the solenoid valves.
10. Refer to Fig. 19 when reconnecting the wires.
WHI/VIO to Brew Solenoid WHI/VIO to Brew Timer TL1
4. Remove both wires from the coil and check for continuity across the coil terminals. If continuity is present as described, reconnect the brown/white and white/violet wires and proceed to #5.
Page 26
BRN/WHI to Selector Switch
P2843
FIG. 21 SOLENOID VALVE TERMINALS
37235 050205
SERVICE (cont.)

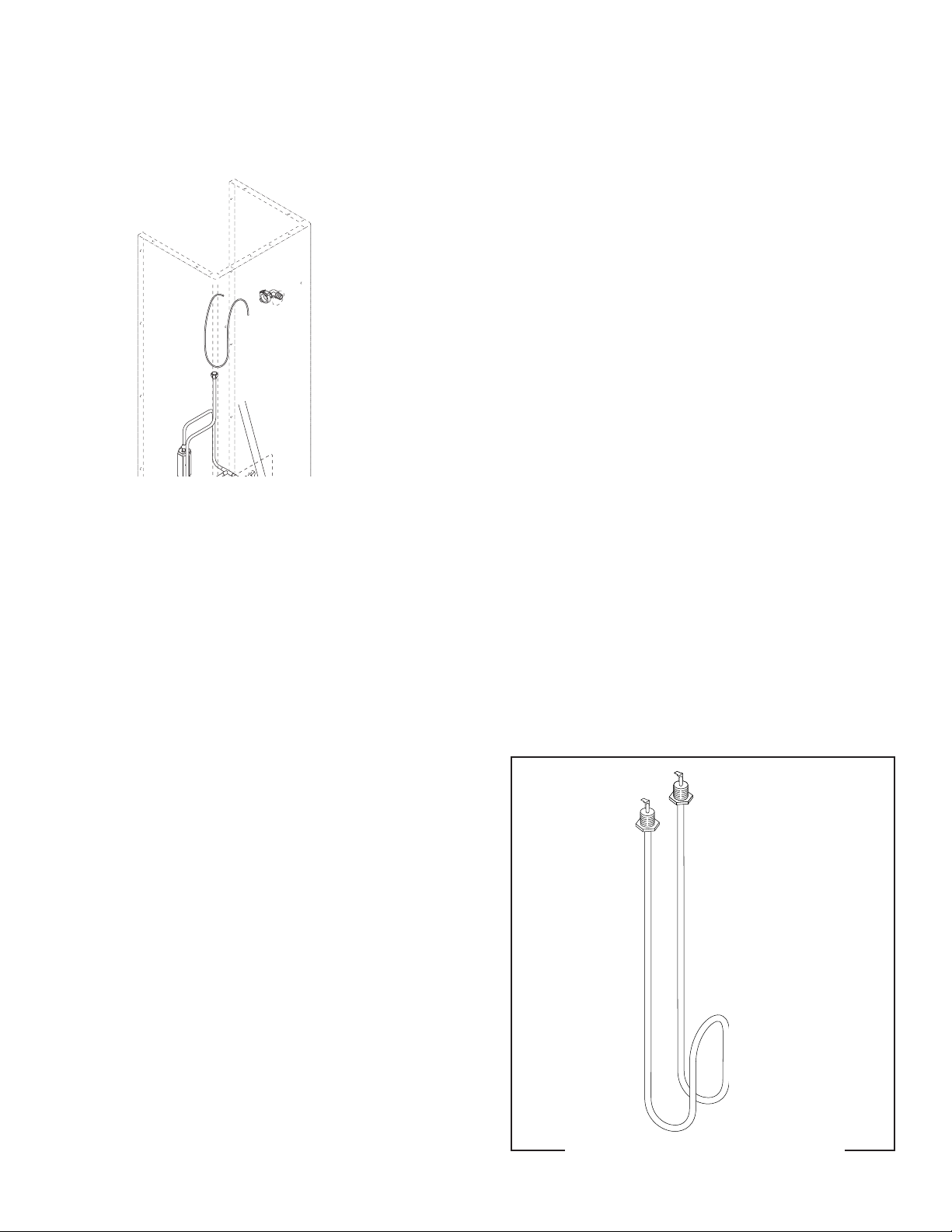

TANK HEATER
Page 27
FIG. 23 TANK HEATER TERMINALS
P1284
SCHEMATIC WIRING DIAGRAM TB3, TB3B, TB3-LP
OPTIONAL
READY
INDICATOR
BLU
L1 N
LIMIT
THERMOSTAT
BLU/BLK
ON/OFF SWITCH
BLK
SWITCH &
THERMOSTAT
BLK
BLK BLK
"KEEP WARM" HEATER
GRN
WHI
TANK HEATER
WHI WHI
WHI
BREW
TIMER
DILUTION
TIMER
5 4 3 2 1 5 4 3 2 1
WHI/VIO WHI/VIO
WHI/VIO
WHI/VIO WHI/GRN
DILUTION
SOL
1
BREW
SOL
2
WHI
WHI/BLU
WHI/ORN
WHI/YEL
START
SWITCH
RED/BLK
GRN
100 VOLTS AC 120 VOLTS AC
2 WIRE
SINGLE PHASE
37234.0000C 05/06 © 2004 BUNN-O-MATIC CORPORATION
WHI
Page 28
37235 053006
SCHEMATIC WIRING DIAGRAM
TU3, TB3 W/SWEETENER
READY INDICATOR
BLU/BLK
SELECTOR SWITCH
UNSWEET/OFF/SWEET
BLK
120 VOLTS AC
2 WIRE
SINGLE PHASE
WHI/VIO
WHI WHI
WHI/BLU
BRN/WHI WHI/ORN
WHI/YEL
27432.0000E 08/04 © 1996 BUNN-O-MATIC CORPORATION
WHI/BLU
Page 29
37235 050205
Page 30
Page 31
Loading...
