Bunn Sure Tamp Steam Operator’s Manual

RELEASED FOR PRODUCTION

SURE TAMP SERIES

Replaces 45921.#### & 49985.####

STEAM

AUTO

INSTALLATION & OPERATING GUIDE

BUNN-O-MATIC CORPORATION

POST OFFICE BOX 3227

SPRINGFIELD, ILLINOIS 62708-3227

PHONE: [phone] FAX: [phone]

http://www.bunn.com/espresso/index.html

51624.0000A 04/15 ©2015 Bunn-O-Matic Corporation

DIR Num: 51624.0000 01, June 2015

RELEASED FOR PRODUCTION

Bunn-O-Matic® COMMERCIAL PRODUCT WARRANTY

Bunn-O-Matic Corp. (“BUNN”) warrants the BUNN Espress®, Espresso Systems as further described below
for a warranty period of 1 year parts and labor.
These warranty periods run from the date of installation. BUNN warrants that the equipment manufactured by
it will be commercially free of defects in material and workmanship existing at the time of manufacture and
appearing within the applicable warranty period. This warranty does not apply to any equipment, component
or part that was not manufactured by BUNN or that, in BUNN’s judgment, has been affected by misuse, ne­glect, alteration, improper installation or operation, improper maintenance or repair, non periodic cleaning and
descaling, equipment failures related to poor water quality, damage or casualty. This warranty is conditioned
on the Buyer 1) giving BUNN prompt notice of any claim to be made under this warranty by telephone at (217)
529-6601 or by writing to Post Offi ce Box 3227, Springfi eld, Illinois 62708-3227; 2) if requested by BUNN,
shipping the defective equipment prepaid to an authorized BUNN service location; and 3) receiving prior au­thorization from BUNN that the defective equipment is under warranty. Additionally, the following is excluded
from the warranty period:

Warranty Exclusions:

• Parts such as, but not limited to, hoppers and lids, drip trays, steam wand sheaths, and plastic parts dam­aged due to improper handling or cleaning agents.

• Replacement of wear items such as, but not limited to, O-rings, gaskets, silicone tubes, hoses, and valve seats.

• Repairs made necessary due to poor water quality such as dispense valves, water inlet valves, scaling in the
steam or hot water boilers. (Total Hardness recommended range of 4-7 gpg constant).

• Improper voltage. (See equipment operations manual for voltage specifi cations).

• Failure to use BUNN approved cleaning supplies constitutes improper maintenance.

• Failure to have required preventive maintenance performed by BUNN technician or authorized espresso service provider.

• Parts replaced under the terms of this warranty carry the remainder on the machine’s parts warranty term, or
60 days, whichever is greater.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR ORAL,
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER MERCHANT­ABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN are not

authorized to make modifi cations to this warranty or to make additional warranties that are binding on BUNN.
Accordingly, statements by such individuals, whether oral or written, do not constitute warranties and should
not be relied upon. If BUNN determines in its sole discretion that the equipment does not conform to the war­ranty, BUNN, at its exclusive option while the equipment is under warranty, shall either 1) provide at no charge
replacement parts and/or labor (during the applicable parts and labor warranty periods specifi ed above) to
repair the defective components, provided that this repair is done by a BUNN Authorized Service Representa­tive; or 2) shall replace the equipment or refund the purchase price for the equipment.

THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF
THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S
SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be

liable for any other damage or loss, including, but not limited to, lost profi ts, lost sales, loss of use of equip­ment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities

or services, or any other special, incidental or consequential damages.

392, A Partner You Can Count On, Air Infusion, AutoPOD, AXIOM, BrewLOGIC, BrewMETER, Brew Better Not
Bitter, BrewWISE, BrewWIZARD, BUNN Espress, BUNN Family Gourmet, BUNN Gourmet, BUNN Pour-O-Matic,
BUNN, BUNN with the stylized red line, BUNNlink, Bunn-OMatic, Bunn-O-Matic, BUNNserve, BUNNSERVE
with the stylized wrench design, Cool Froth, DBC, Dr. Brew stylized Dr. design, Dual, Easy Pour, EasyClear,
EasyGard, FlavorGard, Gourmet Ice, Gourmet Juice, High Intensity, iMIX, Infusion Series, Intellisteam, My
Café, Phase Brew, PowerLogic, Quality Beverage Equipment Worldwide, Respect Earth, Respect Earth with the
stylized leaf and coffee cherry design, Safety-Fresh, savemycoffee.com, Scale-Pro, Silver Series, Single, Smart
Funnel, Smart Hopper, SmartWAVE, Soft Heat, SplashGard, The Mark of Quality in Beverage Equipment World­wide, ThermoFresh, Titan, trifecta, TRIFECTA (sylized logo), Velocity Brew, Air Brew, Beverage Bar Creator,
Beverage Profi t Calculator, Brew better, not bitter., Build-A-Drink, BUNNSource, Coffee At Its Best, Cyclonic
Heating System, Daypart, Digital Brewer Control, Element, Milk Texturing Fusion, Nothing Brews Like a BUNN,
Picture Prompted Cleaning, Pouring Profi ts, Signature Series, Sure Tamp, Tea At Its Best, The Horizontal Red
Line, Ultra are either trademarks or registered trademarks of Bunn-O-Matic Corporation. The commercial
trifecta® brewer housing confi guration is a trademark of Bunn-O-Matic Corporation.

Page 2

51624 031314

DIR Num: 51624.0000 01, June 2015

RELEASED FOR PRODUCTION

CONTENTS

North American requirements .............................................................................4

Site requirements................................................................................................5

Installation -Sure Tamp .......................................................................................7

Installation -Refrigerator .....................................................................................8

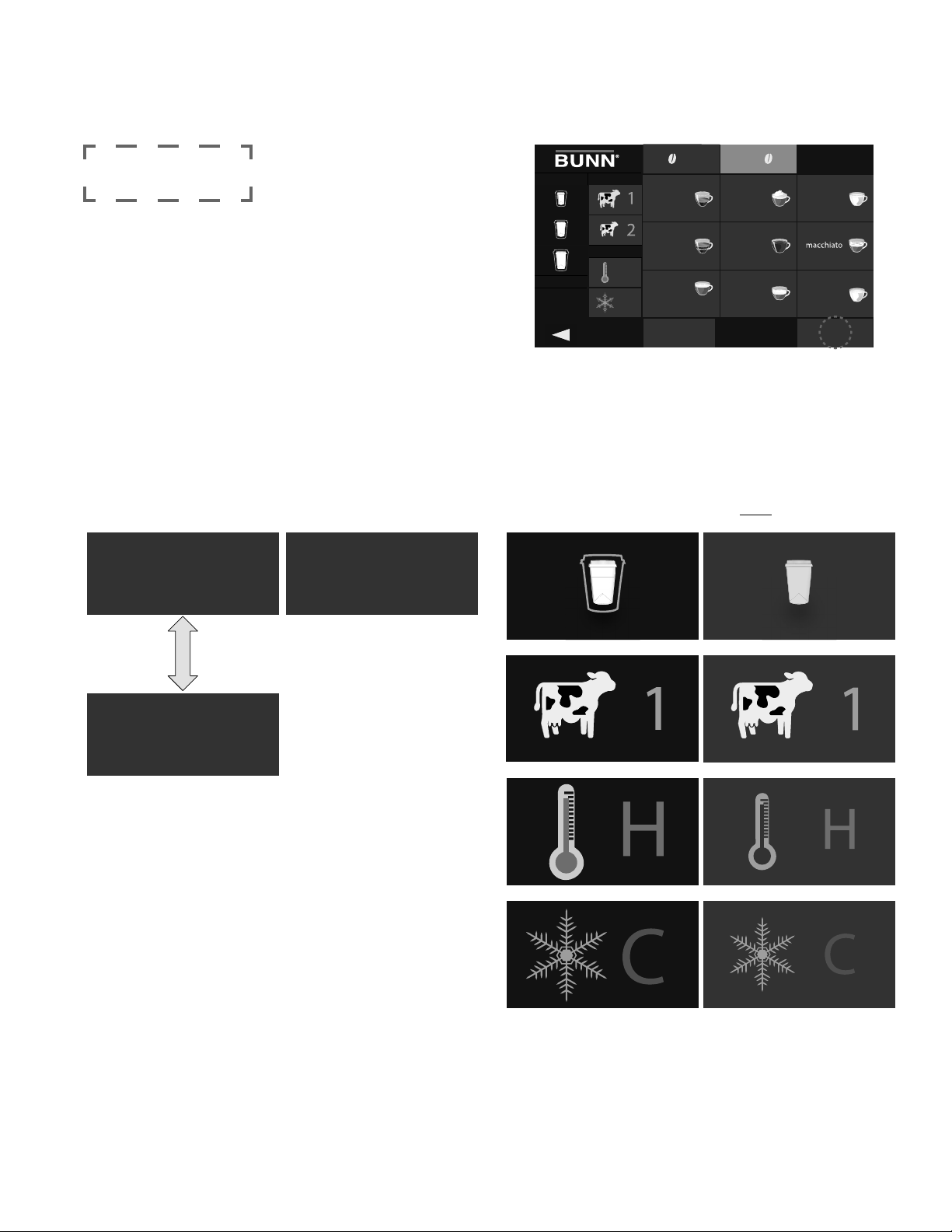

Operating controls...............................................................................................9

Operation-Build-A-Drink ....................................................................................10

Operation-Self serve .........................................................................................11

Rinsing/cleaning ...............................................................................................12

Menu options....................................................................................................13

Troubleshooting.................................................................................................16

USER NOTICES

Carefully read and follow all notices in this manual and on the equipment. All labels on the equipment should be
kept in good condition. Replace any unreadable or damaged labels.

To reduce the risk of electric shock,
do not remove or open cover.
No user-serviceable parts inside.
Authorized service personnel only.
Disconnect power before servicing.

#37881.0000

#50052.0000

#47075.0000

MAIN ON/OFF SWITCH

BEHIND THIS PANEL

#47074.0000

#47077.0000

#00824.0002

#47150.0000

#47622.0000

Steam model only

Warnings

• Unplug the machine or turn off the main switch before servicing the interior components of the machine.

• Never operate the machine without water.

• Never touch brew module, spouts, and hot water dispense pipes. They are HOT and could cause burns.

• The machine must be operated with clean water. Make sure to use water fi lters and/or softeners as needed.

• The operation of the equipment may allow a condition where milk or traces of dairy components are in
cross-contact with recipes that are considered non-dairy. These traces of allergenic proteins can cause reac­tions in individuals having food allergies to those proteins. (Auto models only)

Page 3

DIR Num: 51624.0000 01, June 2015

51624 042315

RELEASED FOR PRODUCTION

CE REQUIREMENTS

• This appliance must be installed in locations where it can be overseen by trained personnel.

• For proper operation, this appliance must be installed where the temperature is between 5°C to 35°C.

• Appliance shall not be tilted more than 10° for safe operation.

• An electrician must provide electrical service as specifi ed in conformance with all local and national codes.

• This appliance must not be cleaned by water jet.

• This appliance can be used by persons aged from 18 years and above if they have been given supervision or
instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

• Keep the appliance and its cord out of reach of children aged less than 18 years.

• Appliances can be used by persons 18 years and above with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.

• Children under the age of 18 years should be supervised to ensure they do not play with the appliance.

• If the power cord is ever damaged, it must be replaced by the manufacturer or authorized service personnel
with a special cord available from the manufacturer or its authorized service personnel in order to avoid a hazard.

• Machine must not be immersed for cleaning.

• Cleaning and user maintenance shall not be made by children unless they are older than 18 years and supervised.

• This appliance is intended to be used in household and similar applications such as:
– staff kitchen areas in shops, offi ces and other working environments;
– by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments.

• This appliance not intended to be used in applications such as:
– farm houses;

• Access to the service areas permitted by Authorized Service personnel only.

• The A-Weighted sound pressure level is below 70 dBA.

NORTH AMERICAN REQUIREMENTS

• This appliance must be installed in locations where it can be overseen by trained personnel.

• For proper operation, this appliance must be installed where the temperature is between 41°F to 95°F (5°C to
35°C).

• Appliance shall not be tilted more than 10° for safe operation.

• An electrician must provide electrical service as specifi ed in conformance with all local and national codes.

• This appliance must not be cleaned by pressure washer.

• This appliance can be used by persons aged from 18 years and above if they have been given supervision or
instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

• Keep the appliance and its cord out of reach of children aged less than 18 years.

• Appliances can be used by persons 18 years and above with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.

• Children under the age of 18 years should be supervised to ensure they do not play with the appliance.

• If the power cord is ever damaged, it must be replaced by the manufacturer or authorized service personnel
with a special cord available from the manufacturer or its authorized service personnel in order to avoid a hazard.

• Machine must not be immersed for cleaning.

• Cleaning and user maintenance shall not be made by children unless they are older than 18 years and supervised.

• This appliance is intended for commercial use in applications such as:
– staff kitchen areas in shops, offi ces and other working environments;
– by clients in hotel and motel lobbies and other similar types of environments;

• Access to the service areas permitted by Authorized Service personnel only.

Page 4

DIR Num: 51624.0000 01, June 2015

51624 022015

RELEASED FOR PRODUCTION

SITE REQUIREMENTS

Plumbing

1. Quick connect assembly with adapter (supplied).

2. 3/8˝ NPT fi tting on water fi lter.

3. These brewers must be connected to a cold water
system with operating pressure between 20 and 90
psi (0.138 and 0.620 MPa) from a 1⁄2" or larger sup­ply line. A shut-off valve should be installed in the line
before the brewer. Install a regulator in the line when
pressure is greater than 90 psi (0.620 MPa) to reduce
it to 50 psi (0.345 MPa).

4. Shut off valve should be present between water
supply and machine.

5. Vented drain available within 3.3 feet (1 meter) of
machine.

6. Flush the water line and securely attach it to the
inlet fi tting at the rear of the brewer.

7. Turn on the water supply.
NOTE - Bunn-O-Matic recommends 1⁄4" copper tub-
ing for installations of less than 25 feet and 3⁄8" for
more than 25 feet from the 1⁄2" water supply line. A
tight coil of copper tubing in the water line will fa­cilitate moving the brewer to clean the counter top.
Bunn-O-Matic does not recommend the use of a sad­dle valve to install the brewer. The size and shape of
the hole made in the supply line by this type of device
may restrict water fl ow.

REMOVE/INSTALL PUCK BIN

Water Treatment

1. No Chlorine.

2. Water Hardness 3 to 6 grains

3. Water Filtration System

NOTE:
the machine.

Location of the Serial Number

The serial number is located behind the puck bin on
the right wall across from the power switch.
The complete serial number will need to be docu­mented on all work orders and warranty tags.

As directed in the International Plumbing Code
of the International Code Council and the Food
Code Manual of the Food and Drug Administra­tion (FDA), this equipment must be installed with
adequate back fl ow prevention to comply with fed­eral, state and local codes. For models installed
outside the U.S.A., you must comply with the ap­plicable Plumbing /Sanitation Code for your area.

The water connections are at the lower rear of

Page 5

POWER SWITCH LOCATION

Optional Under Counter Puck Disposal
NOTE: This will require hole cut through

counter top.

1. Remove puck bin.

2. Remove small cover.

3. Install optional puck bin.

51624 042115

DIR Num: 51624.0000 01, June 2015

RELEASED FOR PRODUCTION

SITE REQUIREMENTS

FOR INDOOR USE ONLY

Site Requirements

1. Counter able to support at least 200 pounds (90kg).

2. Counter area large enough for machine and refrigerator.

3. Minimum clearance of 2˝ around machine.

Electrical-SureTamp

1. 208VAC, 2 wires with ground.

2. Dedicated 30A circuit with proper breaker and receptacle.

3. Receptacle within 5 feet (1.5 meter) of machine.

4. Power cord with L6-30 plug supplied with machine.

Electrical-refrigerator (Auto models only)

1. 120VAC, 2 wires with ground.

2. Dedicated 15A circuit with proper breaker and receptacle.

3. Receptacle within 5 feet (1.5 meter) of machine.

4. Power cord with plug supplied with machine.

5. Requires minimum 2 inches (50mm) in back and top.

WARNING -

The brewer must be disconnected from the power source until specifi ed in Initial Set-Up.
Refer to Data Plate on the Brewer, and local/national electrical codes to determine circuit requirements.

ELECTRICAL REQUIREMENTS
CAUTION – Improper electrical installation will damage electronic components.

1. An electrician must provide electrical service.

2. Determine the available on-site electrical service.

3. Using a voltmeter, check the voltage and color coding of each conductor at the electrical source.

Page 6

DIR Num: 51624.0000 01, June 2015

51624 042115

RELEASED FOR PRODUCTION

INSTALLATION-SURE TAMP

Drain Install

1. Install drip tray bracket with 3 screws (included in bag).

1. Attach the short drain hose to the drip tray fi tting.

2. Slide drip tray onto guide rails on front of machine.

3. Attach other end of drain hose to manifold as shown.

4. Attach long drain hose to back of manifold and route to
fl oor drain or sink, fl owing downhill at all times.

5. Secure hose above the drain to maintain the air gap.

Water Supply Install

1. Ensure water is turned off.

2. Install the water fi ltration system between the water
supply and the machine inlet per manufacturer’s instal­lation recommendations.

3. Connect one end of the inlet hose assembly to the
adapter and the other end to the water supply.

4. DO NOT TURN ON THE MAIN WATER SUPPLY UNTIL
REFRIGERATOR IS COMPLETELY CONNECTED (Auto
models only). Check for leaks; resolve any leak issues
before proceeding.

INSTALL DRAIN HOSE AND DRIP TRAY

Electrical Install

WARNING – Improper electrical installation will damage
electronic components.

1. Determine the available electrical service.

2. Ensure the proper voltage at the electrical source.

WARNING -

The brewer must be disconnected from the power source
until specifi ed in Initial Set-Up.
Refer to Data Plate on the Brewer, and local/national elec­trical codes to determine circuit requirements.

ELECTRICAL HOOK-UP (All Models)
CAUTION – Improper electrical installation will dam-

age electronic components.

1. An electrician must provide electrical service.

2. Determine the available on-site electrical service.

3. Using a voltmeter, check the voltage and color
coding of each conductor at the electrical source.

4. Uncoil the power cord completely and plug se­curely into the outlet or hard wire into electrical
box.

INSTALL DRAIN HOSES TO MANIFOLD

L2 RED L2 RED

L1 BLACK

L1 BLACK

L2

L1

GREEN

G

POWER CORD

208vac 2 wire + ground

INSTALL WATER SUPPLY LINE

Page 7

DIR Num: 51624.0000 01, June 2015

51624 042115

RELEASED FOR PRODUCTION

INSTALLATION-REFRIGERATOR (AUTO MODELS ONLY)

Milk Module Installation-counter top

1. Align hoses and harnesses through holes
in back of refrigerator and slide module into
cabinet on the pre-installed brackets.

Milk Module Installation-under counter

1. Align hoses and harnesses through hole
on top of refrigerator and slide module into
cabinet on the pre-installed brackets. Ensure
holes in back are plugged.

D

C

B

A

INSTALL SUPPLY LINES

Load milk containers.

A. Load a container of "non fat" milk towards the back

and insert the number "2" hose into container.

B. Load a container of "regular" milk towards the front

and insert the number "1" hose into container.

NOTE: Use either dairy or non dairy - not a mixture.

E

Connect hoses and harnesses to machine as shown.

A. Water supply to espresso machine.
B. Water line to milk module.
C. Milk line from milk module.
D. 8 pin connector from milk module.
E. 14 pin connector from milk module.

1

Load milk containers.

A. Adjust refrigerator thermostat control knob as needed.
B. Temperature may be monitored with the thermometer

hanging inside the cabinet (1). Range: 38°F to 43°F.

Refer to manufacturers manual included with refrigerator
for additional information.

Page 8

DIR Num: 51624.0000 01, June 2015

51624 042115

RELEASED FOR PRODUCTION

1

7

OPERATING CONTROLS

8

2

3

5

4

6

1. Bean hopper:
Right-regular
Left-decaf

2. Touch screen display:

3. Dispense nozzles:

4. Small cup shelf:

5. Puck bin:

6. Drip tray:

7. Key Lock:

8. Cafi za coffee cleaning tablet chute:

9. Steam wand:

(NOT USED ON AUTO MODEL)

10. Milk module:

(NOT USED ON STEAM MODEL)

11. Refrigerator:

(NOT USED ON STEAM MODEL)

9

11

Start up

1.

Pull puck bin out, turn the main switch on, replace puck bin.

2. The fi lling process will proceed automatically. When the
boilers are fi lled, unit will automatically start heating. You
will see a message " Please wait - heating in progress".

3. Install hoppers on top of brewer. NOTE: Brewer will not
operate without hoppers in place. Open front door and pull
each slide gate tab forward. (This also locks hoppers in
place). Close door and fi ll hoppers as needed.
4a. (Auto) Select "Care &cleaning", select "Milk prime" 1
then 2 to introduce milk into the suction lines. Press "right"
bean icon to return to home screen (Auto only).
4b. (Steam) Select rinse to introduce fresh water into the
system or select cancel to proceed (Steam only).

5. The machine is ready to use when "Ready to brew" is
displayed.

10

PULL HOPPER SLIDE GATE

TABS FORWARD

NOTE: POUR IN ONLY ENOUGH BEANS FOR THE DAY'S USE.
DO NOT STORE BEANS IN HOPPER OVERNIGHT, FRESHNESS WILL BE COMPROMISED.

Page 9

51624 042115

DIR Num: 51624.0000 01, June 2015

RELEASED FOR PRODUCTION

OPERATION - BUILD-A-DRINK

DRINK TYPES

1. Americano (hot water added to espresso).

2. Cappuccino (traditionally prepared with espresso, hot milk, and steamed-milk foam).

3. Espresso: x1=single shot; x2=double shot; x3=triple shot (coffee brewed by forcing a small
amount of nearly boiling water under pressure through fi nely ground coffee).

4. Latte (hot milk added to espresso with a dollop of foam) (Auto only).

5. Macchiato: espresso added to a small amount of milk foam (Auto only).

6. Milk (hot milk for hot chocolate) (Auto only).

7. Syrup icon leaves room in the drink volume to allow manually adding syrup without overfl owing the
cup.

8. Select "cup preheat" to dispense hot water into cup before running a brew cycle.

DO NOT USE CUP PREHEAT WITH PAPER OR STYROFOAM (OR SIMILAR) CUPS.

BREWING

1. Select between or bean hopper from the tabs on the top of touchscreen.

2. Place appropriate size cup on drip tray or shelf.

3. Select drink size.

4. Select desired options:

for non fat milk or for regular milk (Auto only).
for cold milk or for hot milk (Auto only).
Syrup for additional room;

5. Select one of the drink types.

STOP

STOP: Pressing the STOP button will stop brewing function, and will reset unit back to ready mode.

NOTE: Empty puck drawer when prompted.
DO NOT ALLOW USED PUCKS TO BACK UP INTO BREW CHAMBER AREA AS THIS CAN
CAUSE DAMAGE!

Page 10

DIR Num: 51624.0000 01, June 2015

51624 042115

Step 1:

Select drink
type

Step 2:

Select hot or
cold milk
(If applicable)

RELEASED FOR PRODUCTION

OPERATION-SELF SERVE MODEL

Grayed out icon(s) and light bar indicates

attention is needed.

Examples:

Milk(s) empty, hopper(s) empty, puck bin

full, reheating or refi lling.

Step 3:

Select cup size
(If applicable)

Step 4:

Select regular or
low fat
(If applicable)

Step 5:

Select regular or
decaf
(If applicable)

Return to

previous

screen

NOTE: This is just an example of "Self Serve"
menu. Variations in setup will affect which
screens will be displayed.

NOTE: To access the "care & cleaning" tab,
press the "BUNN" logo (on the upper left corner
of the screen) until the screen changes. Then
press the "care & cleaning" tab.

Step 6:

Press start

Page 11

DIR Num: 51624.0000 01, June 2015

51624 042115

RELEASED FOR PRODUCTION

RINSING/CLEANING

RINSING

Press the "care & cleaning" tab to access. Place container under dispense heads.

Coffee rinse: – Press "coffee rinse".
Milk rinse: – Press "milk rinse".

CLEANING CYCLE:

Cleaning due at 24 hours. A complete clean cycle is required to reset counter. Counter will not start until a
brew cycle or milk prime has been initiated.

CLEANING MESSAGES:

"Cleaning interrupted": Must restart & complete clean cycle in order to reset the counter
"Cleaning due soon": Appears 22 hours after fi rst drink or milk prime. Countdown of last 2 hours will be displayed.
"Clean due now": Appears 24 hours after fi rst drink or milk prime. 2 hours remain until clean lockout.
"Clean lockout": Appears 26 hours after fi rst drink or milk prime. Will not brew or dispense until a clean cycle
is completed.

DAILY CLEANING

NOTE: You will need pitcher (supplied), brush, Cafi za coffee cleaning tablets, Rinza Milk System cleaning tablets

and cleaning tube on hand.

1. Press the "care & cleaning" tab on the touch screen.

2. Press the "clean" icon . Follow the picture prompted cleaning guide.

3. Wipe off dispense nozzle tips.

WEEKLY CLEANING

1. Press the "care & cleaning" tab on the touch screen, follow the picture prompted cleaning guide.

2. Open brew chamber door.

3. Push hopper slide gate all the way in.

4. Lift hopper with both hands. DO NOT LIFT HOPPER BY THE LID. Empty beans from hopper and wash/
rinse with mild nonabrasive detergent and fresh water.

5. Remove discharge tube (A) with ¼ turn twist. Wipe off any buildup from bottom of discharge tube. Re­install discharge tube.

Page 12

DIR Num: 51624.0000 01, June 2015

51624 042115

RELEASED FOR PRODUCTION

MENU OPTIONS

Press and hold until "menu options" screen appears.

SURE TAMP AUTO

espresso x1

milk temp

espresso x2

H

americano

C

READY TO BREW

purge

11:46 AM
05-20-12

SURE TAMP STEAM

iNTELLISTEAM

manual

steam

espresso x1

large

americano

espresso x3

ready to brew
shot time: 0

right daily careleft

espresso x2

americano

ristretto

cup preheat

stop

stop

OR

size milk type

syrup

11:46 am
05-20-12

OR

SURE TAMP SELF SERVE

Press and hold until "care & cleaning" screen appears (approximately ½ second).

CARE & CLEANING SCREEN

Reminder! Check your stock of cleaning supplies.
Please call 800-286-6070 to order more.
Part numbers:

36000.1189 Caza Coee System Cleaning Tablets

right care & cleaningleft

cappuccino

latte

macchiato

beverage selection

milk

foam top

cup

preheat

stop

care & cleaning

Press and hold until "menu options" screen appears.

ALL MODELS

MENU OPTIONS SCREEN

11:46 am
03-13-15

standby

regional settings

cup count

machine statistics

Machine goes into energy save
mode if activated. Screen will
go blank. To reactivate, press
anywhere on the touch screen.

press to return to

previous screen

menu options

Use only Mild, Non-abrasive and Citrus-Free soaps
and detergents for cleaning sufaces.

Rinse with clean water using a clean cloth
then dry with soft, lint-free clean cloth.

READY TO BREW

stop

Set date/time, language and units

View/reset usage of various recipes
SEE PAGE 12

View/reset usage of water, grinders,
brew and cleaning cycles (resettable)

Reserved for managers & authorized ser-

vice technicians only. Password protected.

advanced

menu options

CONTINUED ON NEXT PAGE

Page 13

DIR Num: 51624.0000 01, June 2015

51624 042115

RELEASED FOR PRODUCTION

MENU OPTIONS

regional settings

date ( mm/dd/yyyy )

time ( hh/mm/AM )

)

)

1. Press to highlight box.

2. Press arrows to adjust.

3. Press "save" when fi nished.

language units

English English

Cycle through:

press this box press this box

English, Spanish, French

NOTE: Cup volumes will always be
displayed in ml rather than ounces.

Always press "save" before exiting.

1411

AM008

Toggle between:
English-Metric

save

machine statistics

0

right grinder clean cycles

0 lbs

left grinder

0 lbs

highlight box then press "reset"

clean cycle

0 gal

0

errors

0

reset

steam timewater usagecycle counts

0 sec

whole

0

non fat

0

lifetime

totals

Page 14

DIR Num: 51624.0000 01, June 2015

51624 042115

cup count

RELEASED FOR PRODUCTION

MENU OPTIONS

size milk type

espresso x1

right cup countsleft

cappuccino

1030

milk

americano

20

mocha

select cup counts

then press reset

add milk

4

reset

1. Press left or right (hopper).

2. Press to highlight/un-highlight box(s).

milk temp

espresso x2

H

C

15

latte

25 28

DAILY

lifetime

By default, all items on this screen start out highlighted (for totals). De-select individual items as desired to
obtain individual counts by hopper, drink size/type and temperature. NOTE: only "daily" counters can be reset.

HIGHLIGHTED NOT highlighted

DAILY

lifetime

PRESS “RESET” FOR

DAILY

COUNTERS ONLY

daily

LIFETIME

NO RESET FOR

LIFETIME

COUNTERS

Page 15

DIR Num: 51624.0000 01, June 2015

51624 042115

RELEASED FOR PRODUCTION

TROUBLESHOOTING

Notices Description

“cleaning interrupted”, Redo cleaning cycle to remove this error
“cleaning due now - shut down”, Machine will not dispense until cleaning is completed
“check right hopper”, Right hopper is out of beans.
“check left hopper”, Left hopper is out of beans.
“right brew time too long”, Grind size on right hopper needs to be adjusted. Coarsen by one turn at
a time until error is cleared.
“left brew time too long”, Grind size on left hopper needs to be adjusted. Coarsen by one turn at a
time until error is cleared.
milk 1 or 2 empty Refer back to "loading" section.
puck bin full empty puck bin to reset counter
operator door open close door
“steam wand temperature error”, Intellisteam will not function due to sensor error, manual steaming can
(N/A on AUTO) still be performed

On screen troubleshooting feature: Should there be an error message shown, additional help can be accessed
by pressing the pop up, . This will start a picture prompted troubleshooting instruction.

For additional help, call the Espresso Hotline at 888-436-0297.

The decal shown below is located on the inside of the front door assembly.

ESPRESSO HOTLINE

Please obtain the following before calling for service:

• Serial Number

• Error Message Displayed (if applicable)

• Description of Problem

• Contact Name and Phone Number

CALL: [phone]

#50052.0000

Page 16

DIR Num: 51624.0000 01, June 2015

51624 042115
