BUNN® SRU

SRUA

OPERATING & SERVICE MANUAL

BUNN-O-MATIC CORPORATION

POST OFFICE BOX 3227

SPRINGFIELD, ILLINOIS 62708-3227

PHONE: (217) 529-6601 FAX: (217) 529-6644

10067.0000F 8/00 ©1981 Bunn-O-Matic Corporation

INTRODUCTION

This brewer will brew a three gallon batch of coffee into the reservoir, which has its own dispensing faucet.The brewer also has a hot water faucet for allied beverage use. It is only for indoor use on a sturdy counter.

WARRANTY

Bunn-O-Matic Corp. (“Bunn”) warrants the equipment manufactured by it to be commercially free from defects in material and workmanship existing at the time of manufacture and appearing within one year from the date of installation. In addition:

1.) Bunn warrants electronic circuit and/or control boards to be commercially free from defects in material and workmanship for two years from the date of installation.

2.) Bunn warrants the compressor on refrigeration equipment to be commercially free from defects in material and workmanship for two years from the date of installation.

3.) Bunn warrants that the grinding burrs on coffee grinding equipment will grind coffee to meet original factory screen sieve analysis for three years from date of installation or for 30,000 pounds of coffee, whichever comes first.

This warranty does not apply to any equipment, component or part that was not manufactured by Bunn or that, in Bunn’s judgement, has been affected by misuse, neglect, alteration, improper installation or operation, improper maintenance or repair, damage or casualty.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of Bunn are not authorized to make modifications to this warranty or to make additional warranties that are binding on Bunn. Accordingly, statements by such individuals, whether oral or written, do not constitute warranties and should not be relied upon.

The Buyer shall give Bunn prompt notice of any claim to be made under this warranty by telephone at (217) 529-6601 or by writing to Post Office Box 3227, Springfield, Illinois, 62708-3227. If requested by Bunn, the Buyer shall ship the defective equipment prepaid to an authorized Bunn service location. If Bunn determines, in its sole discretion, that the equipment does not conform to the warranty, Bunn shall repair the equipment with no charge for parts during the warranty period and no charge for labor by a Bunn Authorized Service Representative during the warranty period. If Bunn determines that repair is not feasible, Bunn shall, at its sole option, replace the equipment or refund the purchase price for the equipment.

THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AS SPECIFIED HEREIN, TO REPAIR OR, AT BUNN’S SOLE OPTION, REPLACEMENT OR REFUND.

In no event shall Bunn be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.

10067 040100

Page 2

USER NOTICES

Carefully read and follow all notices on the brewer and in this manual. They were written for your protection. All notices on the brewer are to be kept in good condition. Replace any unreadable or damaged labels.

#00831.0000

#00878.0000

#12593.0000

#12555.0000

#00656.0000

#10044.0000

#03408.0000

#03409.0000

#29299.0000

10067 040100

Page 3

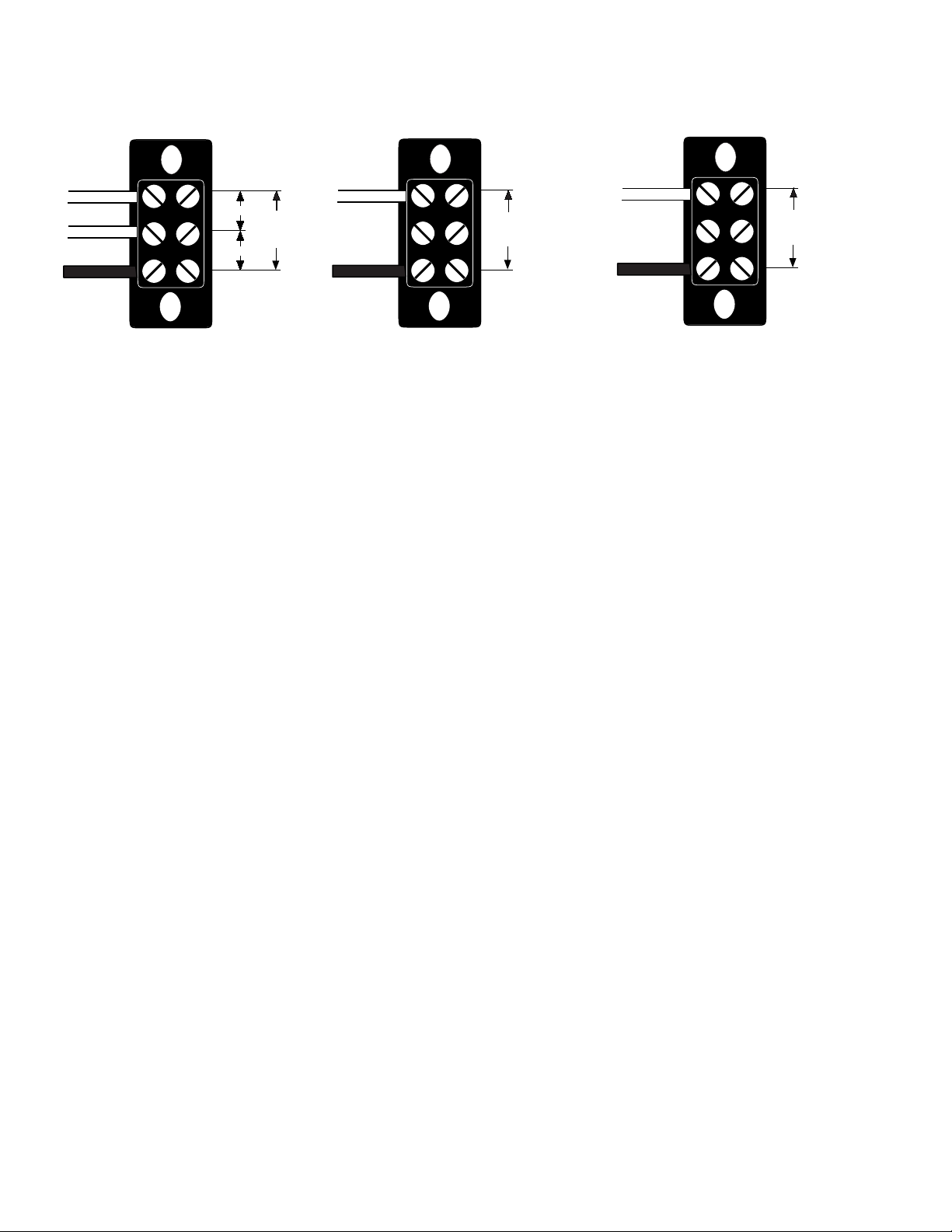

ELECTRICAL REQUIREMENTS

CAUTION - The brewer must be disconnected from the power source until specified in Initial Set-Up.

L2 RED

L2 RED



L2 RED







WHITE

120V A.C.



208 OR

208 OR





240V A.C.

230V A.C.

240V A.C.

NEUTRAL

120V A.C.



L1 BLACK

L1 BLACK



L1 BLACK



P1841

P1842

P1842

SRU Model requires 3- wire, grounded service rated 120/208 or 120/240 volts ac, 30 amp, single phase, 60 Hz. Proceed as follows:

SRUA-CE Models require 2- wire, grounded service rated 230 volts ac, 30 amp, single phase, 60 Hz. Proceed as follows:

SRUA Models require 2- wire, grounded service rated 208 or 240 volts ac, 30 amp, single phase, 60 Hz. Proceed as follows:

ELECTRICAL INSTALLATION INSTRUCTIONS

CAUTION – Improper electrical installation can damage the equipment and injure the installer. The chassis must be properly grounded. Do not assume a plumbing line will provide an adequate ground.

1.An electrician must provide electrical service as specified.

2.Using a voltmeter, check the voltage and color coding of each conductor at the electrical source.

3.Before electrically connecting the brewer, remove the side panel from the hood and rotate the control thermostat knob fully clockwise to the "OFF" position. Keep this knob in the "OFF" position until performing the "Initial Setup" Replace the side panel.

4.Remove the lower front panel and connect the proper electrical service to the terminal block.

5.Connect the brewer to the power source and verify the voltage at the terminal block before proceeding. Replace the lower front panel.

6.Disconnect the brewer from the power source. If plumbing has been hooked up, the brewer is ready for the

Initial Setup.

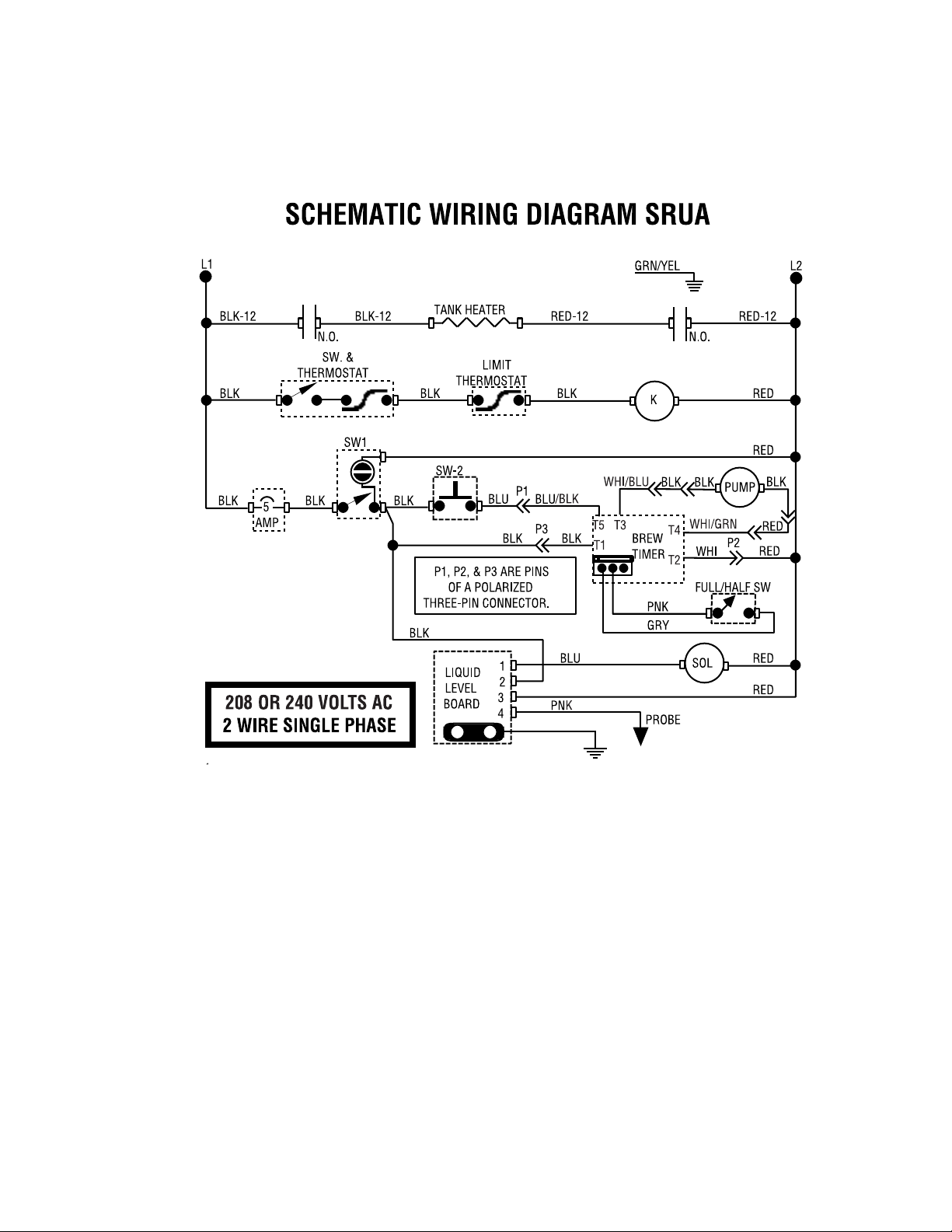

NOTE: Schematic wiring diagrams are included in this manual.

PLUMBING REQUIREMENTS

These brewers must be connected to a cold water system with operating pressure between 20 and 90 psi (138 and 621 kPa) from a 1/2" or larger supply line. A shut-off valve should be installed in the line before the brewer. Install a regulator in the line when pressure is greater than 90 psi (621 kPa) to reduce it to 50 psi (345 kPa). The water inlet fitting is 3/8" flare.

NOTE - Bunn-O-Matic recommends 3/8" copper tubing for installations from the 1/2" water supply line. Bunn- O-Matic does not recommend the use of a saddle valve to install the brewer. The size and shape of the hole made in the supply line by this type of device may restrict water flow.

Plumbing Hook-up

1.Make certain the 3/8" female flare fitting on the short tube from the outlet of strainer (supplied) is securely attached to the male fitting at the bottom rear of the brewer.

2.Flush the water line and securely attach it to the 3/8" male flare fitting on the inlet of the strainer.

3.Turn on the water supply.

4.Inspect the connection for leaks.

10067 040100

Page 4

ELECTRICAL INSTALLATION INSTRUCTIONS (CONT.)

This equipment must be installed to comply with the Basic Plumbing Code of the Building Officials and Code Administrators International, Inc. (BOCA) and the Food Service Sanitation Manual of the Food and Drug Administration (FDA).

INITIAL SETUP

CAUTION - The brewer must be disconnected from the power source throughout the initial setup, except when specified in the instructions.

IMPORTANT: Brewer must be level and installed on a sturdy structure.

Electrician's and Plumber's Instructions are provided. These instructions should be carefully followed before proceeding with initial setup.

Be sure all electrical and plumbing connections are tight.

1.Disconnect the brewer from the power source.

2.Remove the left side panel from the hood and rotate the control thermostat knob fully counterclockwise to the "OFF" position. Replace the side panel.

3.Connect the brewer to the power source and place the lighted ON/OFF switch in the "ON" position. Water will flow into the tank and should automatically stop after approximately 15 minutes.

NOTE - The lighted ON/OFF switch must be in the "ON" position to automatically refill the tank. The switch should be in the "OFF" position whenever the brewer is left unattended.

4.Disconnect the brewer from the power source.

5.Remove the left side panel from the hood and rotate the control thermostat knob clockwise to the 5 o'clock position. Replace the side panel.

6.Connect the brewer to the power source and wait for the water in the tank to heat to the proper temperature. This will take approximately 1-2 hours, depending on the incoming water temperature. Some water will flow from the overflow tube during this time due to expansion. Draw off a 1/2 gallon of water every 15 minutes during the initial heat-up to lessen the chance of hot water flow from this expansion.

7.Determine the water temperature by checking the water with a thermometer at the hot water faucet (red handle). The best brewing temperature is between 195˚ (91˚C) and 200˚F (93˚C). The temperature may be increased by turning the thermostat knob clockwise and decreased by turning the knob counterclockwise.

8.When the desired temperature is attained, place the funnel support, funnel, and funnel cover on top of the coffee reservoir. Center the discharge of the water swing spout over the opening in the top of the funnel cover.

9.Place the lighted ON/OFF switch in the "ON" position and momentarily press and release the start switch. Water should flow from the swing spout into the funnel assembly.

10.Drain and measure the water from the reservoir when the flow of water from this initial cycle stops. If it is three gallons, proceed to step 12. If it is more or less than three gallons, proceed to step 11.

11.Adjust the brew timer as required. See Adjusting Brew Volumes. Repeat steps 9 & 10.

12.The brewer is now properly adjusted to brew coffee.

Bunn-O-Matic recommends a bead of silicon sealant be placed around the base on the countertop after the initial operation instructions are completed. B.O.M. #M2509.1001 sealant is available.

10067 080200

Page 5

ADJUSTING BREW VOLUMES

CAUTION - Disconnect the power source from the brewer prior to the removal of any panel for the replacement or adjustment of any component.

NOTE: Prior to setting or modifying batch sizes, check that the brewer is connected to water supply, the tank is properly filled, and a funnel and server are in place.

1.Modifying batch sizes. To modify a batch volume, first check that the SET/LOCK switch is in the “SET” position on the circuit board.

To increase a batch size. Press and hold the START or BREW switch until you see three breaks in the water stream from the swing arm. Release the switch (Failure to release the switch within two seconds after the third break in the stream causes the volume setting to be aborted and previous volume setting will remain in memory) and press it again one or more times. Each time the switch is pressed, two seconds are added to the brew time period. Allow the brew cycle to finish in order to verify that the desired volume has been achieved.

To decrease a batch size. Press and release the START or BREW switch once for every two-second interval to be removed from the total brew time period; then immediately press and hold down the START or BREW switch until you see three breaks in the water stream from the swing arm. Release the switch. (Failure to release the switch within two seconds after the third break in the stream causes the volume setting to be aborted and previous volume setting will remain in memory). Allow the brew cycle to finish in order to verify that the desired volume has been achieved.

2.Setting batch sizes. To set a batch volume, first check that the SET/LOCK switch is in the “SET” position on the circuit board. Press and hold the START or BREW switch until you see three breaks in the water stream from the swing arm, and then release the switch. (Failure to release the switch within two seconds after the third break in the stream causes the volume setting to be aborted and previous volume setting will remain in

memory). View the level of the liquid being dispensed. When the desired level is reached, turn the ON/OFF switch to “OFF” (lower). The brewer remembers this volume and will continue to brew batches of this size until the volume setting procedure is repeated.

NOTE: When brewing coffee, batch volumes will decrease due to absorption by the coffee grounds. NOTE: HALF-BATCH AND FULL BATCH SETTINGS MUST EACH BE SET SEPARATELY

3.Setting programming disable feature. If it becomes necessary to prevent anyone from changing brew times once programmed, you can set the SET/LOCK switch to the “LOCK” position. This will prevent any programming until switch is once again placed in the “SET” position.

COFFEE BREWING

1.Brewing cycles may be started whenever water temperature is correct. This condition is indicated by the dial thermometer on front of the brewer. Whenever the pointer is in the green, brewer is ready for brewing.

2.Insert Bunn filter in funnel and add desired amount of coffee.

3.Level the bed of coffee and place funnel into the funnel support. Place funnel cover over the funnel and be sure the water swing spout is over the center of the funnel cover.

4.Turn "ON/OFF" switch to the "ON" position.(This switch must be in the "ON" position to start and complete a brewing cycle.)

5.Push and release "START" switch to start the brew cycle.

6.Water swing spout should not be moved as long as water is flowing into the funnel cover. When water stops flowing, it may then be moved for access to brewing funnel.

7.Remove funnel cover. Funnel should not be removed from urn until drip out of coffee has been completed.

8.To empty funnel, invert it over a waste container to dispose of filter and grounds. An additional flange is

provided on the funnel to help make this step easier.

NOTE: Hot water may be drawn from the hot water faucet during a brew cycle. However, if a large amount of hot water is drawn off (over 1 gallon) operator should wait to do so between brewing cycles.

10067 080200

Page 6

CLEANING

NOTE: Tank and tank components should be delimed regularly based on local water conditions. Excessive mineral build up on stainless steel surfaces can initiate corrosion reactions resulting in serious leaks,

1.Remove funnel, funnel lid and support. Under hot water, rinse away all coffee oils. Wipe with a clean damp cloth.

2.Drain coffee reservoir by opening coffee faucet. When empty, close faucet.

3.Cycle two or three inches of water into the coffee reservoir and scrub entire reservoir area. (Pour a bucket of cracked ice in coffee reservoir to obtain a more desirable cleaning water temperature.)

4.Drain coffee reservoir and rinse. Use clean damp cloth to wipe reservoir.

5.Install coffee funnel support, funnel and funnel lid.

6.Remove the sight gauge cap, insert sight gauge cleaning brush into the sight gauge glass tube and clean.

7.To clean coffee faucet, remove the faucet handle from the faucet and faucet clean out cap. Clean faucet with

a faucet cleaning brush and wipe all parts with a damp cloth. Replace faucet seat cup periodically if badly stained or to stop faucet dripping. DO NOT CLEAN THE HOT WATER FAUCET.

8Reassemble the coffee faucet.

9. Wipe the entire outside surface of the machine with a clean damp cloth. Wipe dry. CAUTION - CLEANING SURFACES ARE HOT!!

FILTER HOLDER

1.A filter holder is supplied with each SRU coffee brewer. Its purpose is to keep the filters in their originally formed shape to properly fit the brewer funnel.

2.It is suggested that only one cluster of filters be placed in the holder at one time for best results.

3.Not using the filter holder may permit the filters to gradually widen out towards a flat shape, especially so if humidity is present. Once a filter has lost its upright side walls, it may tend to collapse inward when placed in the brewing funnel. If this happens the hot water spray may cause one side to fall inwards, letting coffee grounds flow over the edge of filter and into the brewed coffee. Proper use of the holder should prevent this problem.

10067 080200

Page 7

TROUBLESHOOTING

A troubleshooting guide is provided to suggest probable causes and remedies for the most likely problems encountered. If the problem remains after exhausting the troubleshooting steps, contact the Bunn-O-Matic Technical Service Department.

Inspection, testing, and repair of electrical equipment should be performed only by qualified service personnel.

All electronic components have 120 volt ac and low voltage dc potential on their terminals. Shorting of terminals or the application of external voltages may result in board failure.

Intermittent operation of electronic circuit boards is unlikely. Board failure will normally be permanent. If an intermittent condition is encountered, the cause will likely be a switch contact or a loose connection at a terminal or crimp.

Solenoid removal requires interrupting the water supply to the valve. Damage may result if solenoids are energized for more than ten minutes without a supply of water.

The use of two wrenches is recommended whenever plumbing fittings are tightened or loosened. This will help to avoid twists and kinks in the tubing.

Make certain that all plumbing connections are sealed and electrical connections tight and isolated.

This brewer is heated at all times. Keep away from combustibles.

WARNING – • Exercise extreme caution when servicing electrical equipment.

Unplug the brewer when servicing, except when electrical tests are specified.

Follow recommended service procedures

Replace all protective shields or safety notices

PROBLEM

PROBABLE CAUSE

REMEDY

Brew cycle will not start

1.

No water



2.

No power or incorrect voltage to



the brewer

Water lines and valves to the brewer must be open.

(A1) Check the terminal block for

120 volts ac across the red and white terminals and the black and white terminal on three wire 102/ 208 volt or 120/240 volt models.

(A2) Check the terminal block for

208 volts ac, 230 volts ac or 240 volts ac on "A Series" brewers across the red and black terminals on two wire single phase 208 volt, 230 volt and 240 volt models.

(A3) Check the terminal block for

208 volts ac and 240 volts ac across the black and blue terminals, the blue and red and the black and red terminals on three wire three phase 208 volt and 240 volt models.

(B) Check circuit breakers or fuses.

10067 040100

Page 8

TROUBLESHOOTING (cont.)



PROBLEM

PROBABLE CAUSE

Brew cycle will not start (cont)

3. Water level below pump housing.



(Water level in the hot water gauge



glass should be approximately half



full).

REMEDY

Be sure water shut-off valve is open and that the in-line filters or strainers are not blocking water flow. (Do not confuse water shut-off valve with the manual fill and drain valve underneath the brewer).

4. ON/OFF Switch

5. Start Switch

6. Timer

7. Pump

8. Solenoid Valve

9. Strainer

Tank not filling

1. ON/OFF Switch (This switch must



be in the "ON" position for the refill



circuit to operate.



2. No water

Refer to Service - ON/OFF Switch for testing. See page 22

Refer to Service - Start Switches for testing procedures. See page 27

Refer to Service - Timer for testing procedures. See page 30 or 32

Refer to Service - Pump for testing procedures. See page 23

Refer to Service - Solenoid Valve for testing procedures. See page 25

(A)Direction of flow arrow must be pointing towards brewer.

(B)Remove the strainer and check for obstructions. Clear or replace.

Refer to Service - ON/OFF Switch for testing procedures. See page 22

Be sure water shut-off is open and that in-line filters or strainers are not blocking water flow. (Do not confuse water shut-off valve with the manual fill and drain valve underneath brewer).

3.Solenoid Valve

4.Probe

5.Liquid Level Board

Page 9

Refer to Service - Solenoid Valve for testing procedures. See page 25

Refer to Service - Probe for testing procedures. See page 20

Refer to Service - Liquid Level Board for testing procedures. See page 20

10067 080200

TROUBLESHOOTING (cont.)







PROBLEM

PROBABLE CAUSE

REMEDY

Water running out of the overflow

1.

Brewer not level

Brewer must be level and installed







on a sturdy structure.



2.

Solenoid Valve

Refer to Service - Solenoid Valve







for testing procedures. See page







25



3.

Liquid Level Board

Refer to Service -Liquid Level







Board for testing procedures. See







page 20



4.

Probe

Water is not hot

1.

Limit Thermostat

CAUTION - Do not eliminate or bypass limit thermostat. Use only Bunn-O-Matic replacement part #29329.1000.

Refer to Service - Probe for testing procedures. See page 20

Refer to Service - Limit Thermostat for testing procedures. See page 19

2.

Control Thermostat

Refer to Service - Control Ther-





mostat for testing procedures. See





page 17

3.

Tank Heater(s)

Refer to Service - Tank Heater for





testing procedures. See page 28

4.

Contactor

Refer to Service - Contactor for





testing procedures. See page 15

10067 080200

Page 10

TROUBLESHOOTING (cont.)





PROBLEM

PROBABLE CAUSE

Circuit breaker keeps tripping

1. Circuit Breaker



2.

ON/OFF Switch



3.

Brew Circuit



4.

Refill Circuit

Water keeps running from swing

1. Timer

spout







2.

Start Switch

Inconsistent coffee yield

1. Timer



2.

Solenoid Valve



3. Lime build-up in swing spout



and pump tubing.

Funnel overflows

1. Filters



2.

Hole in bottom of funnel



obstructed.

REMEDY

Refer to Service - Circuit Breaker for testing procedures. See page 14

Refer to Service - ON/OFF Switch for testing procedures. See page 22

Refer to Service - Pump Assembly for testing procedures. See page 23

Refer to Service - Liquid Level Board for testing procedures. See page 20

Refer to Service - Timer for testing procedures. See page 30 or 32

Refer to Service - Start Switch for testing procedures. See page 28

Refer to Service - Timer for testing procedures. See page 30 or 32

Refer to Service - Solenoid Valve for testing procedures. See page 25

Remove swing spout and insert deliming rod down into pump tubing as far as possible.

Use Bunn® filters made for the SRU brewer.

Remove obstruction.

10067 080200

Page 11

TROUBLESHOOTING (cont.)



PROBLEM

PROBABLE CAUSE

Funnel overflows (cont.)

3. Pump - Flow Rate

4. Soft Water

Coffee reservoir overflows

1. Coffee reservoir not completely



empty before a brew cycle was



started.



2.

Timer



3.

Pump - Flow Rate

Brewer is making unusal noises

1. Solenoid Valve

2. Plumbing lines

3. Water supply

4. Tank Heater(s)

REMEDY

Check pump flow rate with a watch. Pump flow rate should be approximately 24 ounces in 15 seconds. Be sure pump assembly is free of any obstructions.

When using a water softener, a coarse grind of coffee may be preferred. If required, a bypass system is available as an optional feature.

Be sure coffee reservoir is empty before brew cycle is started.

Refer to Service -Timer for testing procedures. See page 30 or 32

Check pump flow rate with a watch. Pump flow rate should be approximately 24 ounces in 15 seconds. Be sure pump assembly is free of any obstructions.

The nut on the solenoid must be tight or it will vibrate during operation.

Plumbing lines should not be resting on the counter top.

(A)The brewer must be connected to a cold water line.

(B)Water pressure to the brewer must not exceed 90 psi (621 kPa). Install a regulator if necessary to lower the pressure to approximately 50 psi (345 kPa).

Remove and clean lime off the tank heater. See page 28

10067 080200

Page 12

SERVICE

This section provides procedures for testing and replacing various major components used in this brewer should service become necessary. Refer to Troubleshooting for assistance in determining the cause of any problem.

WARNING - Inspection, testing, and repair of electrical equipment should be performed only by qualified service personnel. The brewer should be unplugged when servicing, except when electrical tests are required and the test procedure specifically states to plug in the brewer.

COMPONENT ACCESS

WARNING - Disconnect the brewer from the power source before the removal of any panel or the replacement of any component.

The control thermostat, limit thermostat, pump, solenoid valve, liquid level probe and tank heater are accessible by removal of the swing spout, front cupola cover, rear cupola cover and the cupola.

Disconnect the swing spout nut from the swing spout base fitting. Remove swing spout.

Remove the four #8-32 screws, two on each side, securing the side covers to the cupola.

Slip cupola off of the component bracket.

The on/off switch, selector switch, start switch, timer, contactor and liquid level control board are accessible by removal of the front lower panel.

Remove the four #8-32 screws securing the front access panel to the base.

The circuit breaker, fuse and fuse holder are accessible by removal of the rear utility cover.

Remove the six #8-32 screws securing the rear utility cover to the housing.

Contents



Circuit Breaker .....................................................

14

Contactor .............................................................

15

Control Thermostat ..............................................

17

Fuse and Fuse Holder ..........................................

18

Limit Thermostat .................................................

19

Liquid Level Board and Level Probe....................

20

ON/OFF Switch.....................................................

22

Pump ...................................................................

23

Selector Switch (Half Batch) ................................

24

Solenoid ..............................................................

25

Start Switch (Brew) .............................................

26

Tank Heater .........................................................

28

Thermal Cut-off ..................................................

29

Timer (Early Models) ...........................................

30

Digital Brew Timer (Late Models) ........................

32

Wiring Diagrams ......................................

34 thru 36

P2053.25

FIG. 1 COMPONENT ACCESS

10067 080200

Page 13

SERVICE (cont.)

CIRCUIT BREAKER (120/208V and 120/240V Three

Wire Models)

P2115.30

FIG. 2 CIRCUIT BREAKER

Location:

The circuit breaker is located on the rear of the urn, behind the rear utility cover.

Test Procedures:

1.Disconnect the brewer from the power source.

2.Disconnect the black wire from the main harness from the circuit breaker and the white wire on the pump assembly. With a voltmeter, check the voltage across the black wire and the white wire. Connect the brewer to the power source. The indication must be 120 volts for 120/208 and 120/ 240 volt, 3-wire with ground, single phase.

3.Disconnect the brewer from the power source.

If voltage is present as described, reconnect the white wire to the pump assembly and proceed to #4. If voltage is not present as described, refer to the Wiring Diagrams and check the brewer wiring harness.

4.With the black wire removed, remove the other black wire from the circuit breaker.

5.Check for continuity across the terminals on the circuit breaker.

If continuity is not present as described, press the reset button and repeat step 5, if continuity is not present as described, replace the circuit breaker.

Removal and Replacement:

1.Remove wires from the circuit breaker.

2.Remove the nut securing the circuit breaker to the component bracket.

3.Remove circuit breaker and discard.

4.Install new circuit breaker on component bracket and secure with nut.

5.Refer to Fig. 3 and reconnect the wires.

BLK from Main

Harness

BLK from ON/

OFF Switch

FIG. 3 CIRCUIT BREAKER TERMINALS

P1723



10067 040100

Page 14

SERVICE (cont.)

5. Disconnect the brewer from the power source.





If voltage is present as describ 84 20.0006 -1.5 2 2 2l01 8

Location:

The contactor is located inside the front lower access panel, left of center on the component bracket.

Test Procedures:

1. Disconnect the brewer from the power source.

2A. 120/208V and 120/240V THREE WIRE MODELS Disconnect the black wire from the contactor coil to the limit thermostat and black wire from the white wire on the main harness.

2B. 208V or 240V TWO WIRE MODELS, 208V and

240V THREE WIRE MODELS

Disconnect the black wire from the contactor coil to the limit thermostat and black wire from the red wire on the main harness.

2C. 230V MODELS

Disconnect the red wire from contactor coil to the limit thermostat and the black wire from the main harness.

3.Connect the brewer to the power source.

4.Check the voltage across the limit wire and the wire from the the main harness.The indication must be:

a)120 volts for 120/208 and 120/240 volt, 3-wire with ground, single phase;

b)230 volts for 230 volt, 2-wire with ground, single phase;

c)208 volts for 208 volt, 2-wire with ground, single phase;

d)240 volts for 240 volt, 2-wire with ground, single phase.

10067 040100

Page 15

C

O

N

T

A

C

T

O

R

(

c

o

n

S

E

R

V

I

C

E

(

c

o

n

t

.

Page 16

HB

l

e

o

ac

k

t

(

e L

2

r

)

(

L

1

)

BRED to Terminal

L

K

t

o

T

a

n

k

SERVICE (cont.)

BLKfromMain















If continuity is present as described, the control ther-

CONTROL THERMOSTAT









Harness(All





mostat is operating properly.









If continuity is not present as described, replace the





ModelsExcept





control thermostat.









Removal and Replacement:





230VCEModels





1.

Disconnect the wires from the control thermostat.









2.

Remove the thermostat capillary bulb by firmly











pulling up on the capillary at the component bracket.





REDfromMain







This will disengage the grommet from the compo-











nent bracket.









3.

Remove the #8-32 screw securing the control







P2113.40



thermostat and mounting bracket to the compo-



FIG. 6 CONTROL THERMOSTAT





nent bracket. Remove control thermostat and

Location:

















bracket as an assembly.



The control thermostat is mounted on the left





4.

Remove knob from control thermostat.





Harness(230VCE





front of the top component bracket.



5.

Remove the two #6-32 screws securing the con-











Test Procedures:







trol thermostat to the thermostat mounting bracket.







Remove and discard thermostat.

1.



brewer from the power source.



Disconnect the Models)





6.

Install new control thermostat on thermostat

2.

Locate the thermostat and the voltage check points.



mounting bracket and secure with two #6-32













Model

Check Voltage Across

Voltage



screw.

7.

Install knob on thermostat.

120/208V &

Black wire on thermo-

120V

8.

Install thermostat and mounting bracket on the

120/240V - 3-

stat from main









wire w/ground

BLKtoLimitharnessThermostat

to white wire





component bracket and secure with one #8-32

single phase

in terminal block.





screw.



9.

Carefully bend the capillary tube so that the tube











230V - 2-wire

Red wire on thermo-

230V



and bulb inside the brewer are in the vertical





(AllModelsExcept230V





position. The tube should extend an additional

w/ground single

stat from main









5.5", above the bulb into the brewer.

phase

harness to black wire







NOTE: The capillary tube must be clear of any electrical





in terminal block.







CEModels





termination and not kinked.

208V or 240V -

Black wire on thermo-

208V or

10.

Refer to Fig. 7 and reconnect the wires.

11.

Adjust the control thermostat as required.

2-wire w/ground

stat from main

240V





single phase

REDtoLimitThermostat









harness to red wire in











the terminal block.







4. Disconnect the brewer from the power source.









(230VCEModels)









If voltage is present as described,P1730 proceed to #5.

If voltage is not present as described, refer to the wiring diagramsFIG.7CONTROLTHERMOSTATand checkTERMINALS the brewer wiring harness.

5.Disconnect the black or red wires from the control thermostat.

6.Check for continuity across the terminals on the control thermostat with the control thermostat in the "ON" position (fully clockwise), continuity must not be present when the thermostat is in the "OFF" position (fully counterclockwise).

Page 17

10067 040100



SERVICE (cont.)

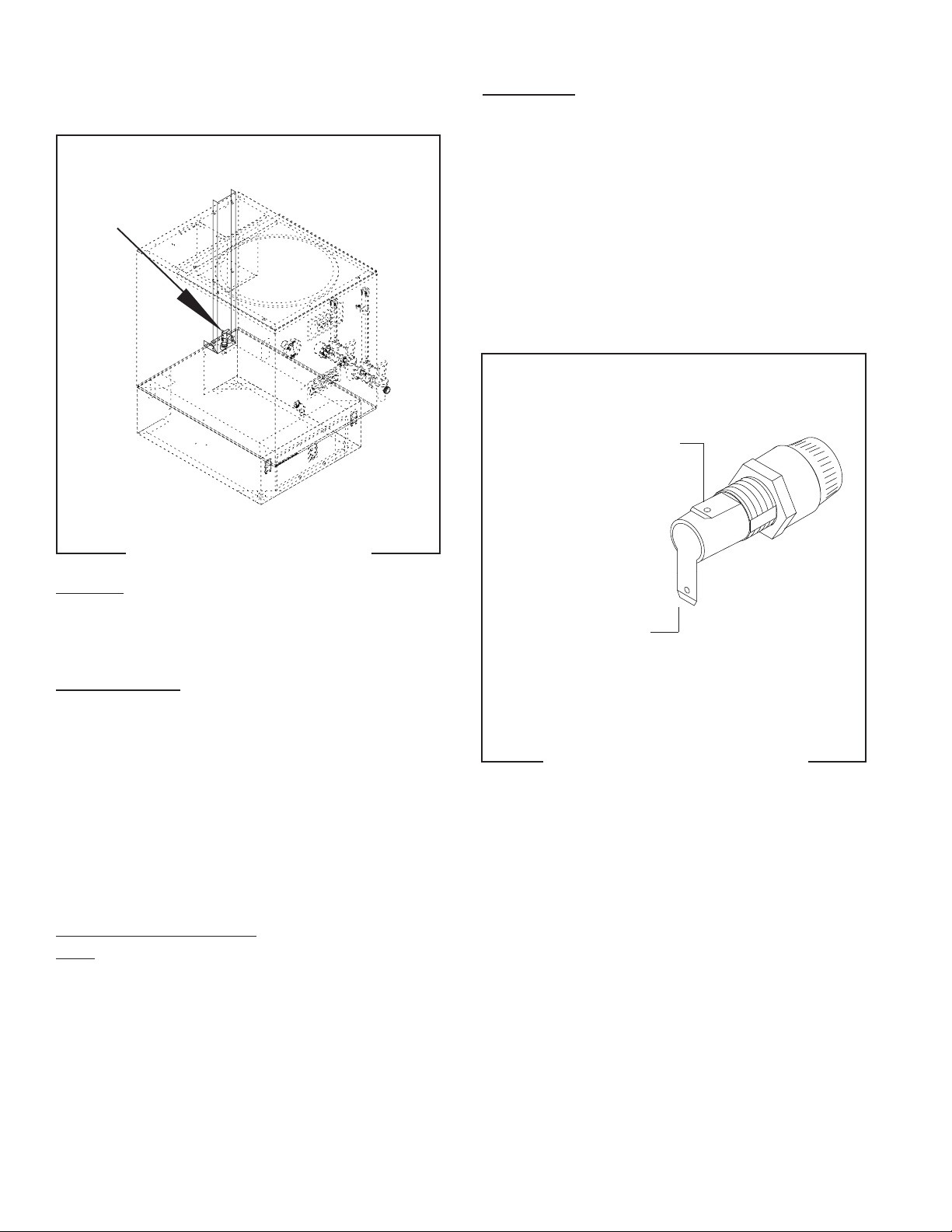

FUSE AND FUSE HOLDER (208V, 240V and 230V

Two Wire Models)

P2122.30

FIG.8 FUSE AND FUSE HOLDER

Location:

The fuse and fuse holder are located on the rear of the urn behind the rear utility cover.

Test Procedures:

1.Disconnect the brewer from the power source.

2.Remove the cap and fuse from the fuse holder.

3.Remove fuse from the cap.

4.Check for continuity through the fuse.

If continuity is present as described, reinstall the fuse, the fuse is operating properly.

If continuity is not present as described replace the fuse.

Removal and Replacement:

Fuse:

1.Remove the cap from the fuse holder.

2.Remove fuse from the fuse holder, inspect, if blown discard.

3.Install new 5 amp fuse in the fuse holder.

4.Reinstall fuse holder cap.

Fuse Holder:

1.Disconnect the wires from the rear of the fuse holder.

2.Remove the nut securing the fuse holder to the component bracket.

3.Push fuse holder through the hole in the component bracket.

4.Install new fuse holder and fuse through the hole in the component bracket and secure with nut.

5.Refer to Fig. 9 and reconnect the wires.

BLK from ON/OFF Switch (208V and 240V Two Wire Models)

RED from ON/OFF Switch (230V Two Wire Models)

BLK from Main Harness (208V and 240V Two

Wire Models)

RED from Main Harness (230V Two Wire Models)

P2112

FIG. 9 FUSE HOLDER TERMINALS

10067 040100

Page 18

SERVICE (cont.)

LIMIT THERMOSTAT





BLK to Contactor

BLK to Control





coil (All Models





Thermostat(All





Except 230V CE





Models Except





Models)





230V CE Models)





Red to Contactor





RED to Control





Coil (230V CE





Thermostat (230V





Models)





CE Models)













P1984

FIG. 10 LIMIT THERMOSTAT

P1732

FIG. 11 LIMIT THERMOSTAT TERMINALS









Location:

The limit thermostat is located on the center rear of the component bracket behind the tank heater.

Test Procedures:

1.Disconnect the brewer from the power source.

2.Disconnect the black wires or the red wires from the limit thermostat.

3.Check for continuity across the limit thermostat terminals with an ohmmeter.

If continuity is present as described, the limit thermostat is operating properly.

If continuity is not present as described, replace the limit thermostat.

Removal and Replacement:

1.Remove the wires from the limit thermostat terminals.

2.Carefully slide the limit thermostat out from under the retaining clip and remove the limit thermostat.

3.Carefully slide the new limit thermostat into the retaining clip.

4.Refer to Fig. 11 and reconnect the wires.

Page 19

10067 040100

SERVICE (cont.)

LIQUID LEVEL BOARD AND LEVEL PROBE

FIG.12 LIQUID LEVEL BOARD AND

P2208.40



LEVEL PROBE



Location:

The liquid level board is located behind the lower front access panel, to the right of center on the component bracket. The level probe is located on the right front of the upper component bracket.

Test Procedures:

1.Disconnect the brewer from the power source.

2.Disconnect the blue wire (T1) and the pink wire (T4).

3.Check the voltage across terminals (T2) and (T3) with the ON/OFF switch in the "ON" position. The indication must be:

a)120 volts for 120/208 and 120/240 volt, 3-wire with ground, single phase;

b)230 volts for 230 volt, 2-wire with ground, single phase;

c)208 volts for 208 volt, 2-wire with ground, single phase;

d)240 volts for 240 volt, 2-wire with ground, single phase.

4.Disconnect the brewer from the power source.

If voltage is present as described, proceed to #5.

If voltage is not present as described, refer to wiring diagrams and check the brewer wiring harness.

5.Reconnect the blue wire to T1 on the liquid level board.

6.Carefully connect a piece of insulated jumper wire to T4. Keep the other end of this wire away from any metal surface of the brewer.

7.Touching the free end of the jumper to the brewer's frame simulates a "FULL" condition, preventing jumper from touching the brewer's frame simulates "NEED WATER" condition. Connect the brewer to the power source, simulate the conditions in the chart below while measuring the voltage between T1 and T3 0n the liquid level board. Repeat these several times. Keep in mind there is an approximate five second delay for output to stabilize.

Model

Voltage -

Voltage -



Jumper

Jumper



Not Touching

Touching



Frame

Frame

120/208V &

120V

0

120/240V - 3-





wire w/ground





single phase





230V - 2-wire

230V

0

w/ground single





phase





208V or 240V -

208V or

0

2-wire w/ground

240V

0

single phase





10067 040100

Page 20

SERVICE (cont.)

LIQUID LEVEL BOARD AND LEVEL PROBE (cont.)

8.Disconnect the brewer from the power source and remove the jumper wire from T4.

If voltage is present as described, liquid level board is operating properly, proceed to #9.

If voltage is not present as described, replace the liquid level board.

9.Reconnect the pink wire to T4.

10.Remove the two #8-32 screws securing the level probe to the component bracket.

11.Gently pull the probe out of the component bracket

and inspect for corrosion. Replace if necessary. 12 Place the probe so that neither end is in contact

with any metal surface of the brewer.

13.Connect the brewer to the power source. Check the voltage across T1 and T3, refer to chart below. Keep in mind there is an approximate delay of five seconds for output to stabilize.

Model

Voltage -

Voltage -



Jumper

Jumper



Not Touching

Touching



Frame

Frame

120/208V &

120V

0

120/240V - 3-





wire w/ground





single phase





230V - 2-wire

230V

0

w/ground





single phase





208V or 240V -

208V or

0

2-wire w/ground

240V

0

single phase





14. Disconnect the brewer from the power source.

If voltage is present as described, reinstall the level probe, the liquid level board and level probe are operating properly.

If voltage is not present as described, check the pink wire on the level probe from liquid level board terminal.

Removal and Replacement:

1.Remove all wires from the liquid level board.

2.Remove the #10-32 screw and flat washer securing the protective shield to the component bracket.

3.Remove the #10-32 screw and internal tooth lockwasher securing the liquid level board to the component bracket.

4.Remove liquid level board and discard.

5.Install new liquid level board on component bracket and secure with a #10-32 screw and internal tooth lockwasher.

6.Install protective shield and secure with #10-32 screw and flat washer.

7.Refer to Fig. 13 and reconnect the wires.

T1 BLU to Solenoid Valve

T2 BLK to ON/OFF Switch (All models except 230V-CE models-

RED on CE Models)

T3 WHI to Main Harness (120/208V and120/240V models)

T3 RED to Main Harness (208V, 240V single phase and three phase models) T3 BLK to Main Harness (230V two wire models)

T4 PIN to Level Probe

P1733

FIG.13 LIQUID LEVEL BOARD TERMINALS

10067 040100

Page 21

SERVICE (cont.)

6. a) 120/208V, 120/240V, 208V and 240V Models -

ON/OFF SWITCH

Check for continuity across the terminals on the



rear of the switch with the switch in the "ON"



(upper) position. Continuity must not be present



when the switch is in the "OFF" (lower) position.



b) 230V - CE Models - Check for continuity across



the center terminal (2) and the lower terminal (1)



when the switch is in the "ON" (upper) position.



Continuity must not present when the switch is in



"OFF" (lower) position.



If continuity is present as described, the switch is



operating properly.



If continuity is not present as described, replace the



switch.



Removal and Replacement:

P2053.25

1. Remove the wires from the switch terminals.

2. Compress the clips on the back side of the switch

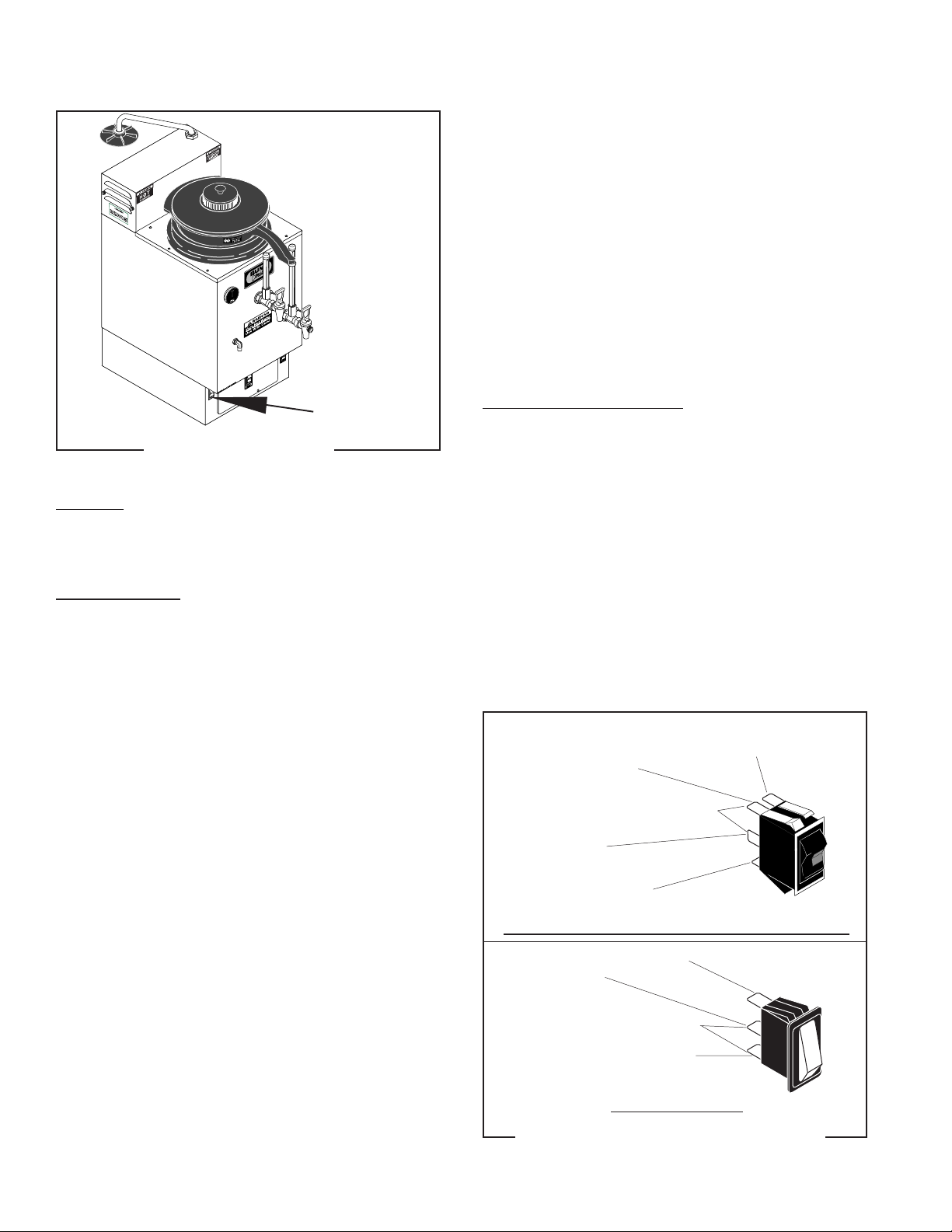

FIG.14 ON/OFF SWITCH

mounting bracket and gently push them through



Location:

the opening.

3. Push the new switch into the opening and spread

The ON/OFF switch is located on the left side of the

the clips to hold switch in the mounting bracket.

lower front panel.

NOTE: ON 230V - CE models terminal (3) must be on



Test Procedures:

the top.

4. Refer to Fig. 15 and reconnect the wires.

1. Disconnect the brewer from the power source.



2. a)120/208V, 120/240V, 208V and 240V Models



Remove the black wire on the ON/OFF switch from



the fuse holder or circuit breaker and the red wire



on the switch indicator light.



b) 230V - CE Models - Remove the red wire on the



BLK to On/Off Switch





ON/OFF switch from the fuse holder and the black

BLK to On/Off Switch BLK to Liquid Level Board L2

wire on the switch indicator light.

BLK to Start Switch





3. Connect the brewer to the power source. With a







Step #6





voltmeter, check the voltage across the removed







wire. The indication must be:

BLK to Circuit





Breaker or Fuse





a) 120 volts ac for 120/208 volt and 120/240 volt





WHI or RED to Indica-





models.





b) 208 volts ac for 2-wire 208 volt models.

tor Light





c) 240 volts ac for 2-wire 240 volt models.

120/208V, 120/240V, 208V and 240V MODELS

d) 230 volts ac for 2-wire 230 volt models.







BLK from Indicator Light





4. Disconnect the brewer from the power source.

RED to Fuse





If voltage is present as described, reconnect the wires









and proceed to #5



Step #6





If voltage is not present as described, refer to the







RED to Start Switch, Brew





wiring diagrams and check the brewer wiring harness.





Timer & Liquid Level Board











5. Disconnect the wires on the ON/OFF switch.



230V - CE Models













P2120.50





FIG. 15 ON/OFF SWITCH TERMINALS













Page 22

10067 040100





SERVICE (cont.)

PUMP ASSEMBLY

FIG.16 PUMP ASSEMBLY

P2113.40



Location:

The pump is located on the right of the component bracket.

2.Loosen the #8-32 screw (2) securing the clamp (3) on the fill tube (1) and slide the clamp (3) up the fill tube (1).

3.Disengage the fill tube (1) from the pump assembly (4).

4.Remove the four #8-32 screws (6) securing the pump assembly (4) to the component bracket (7).

5.Remove pump assembly (4).

6.Remove pump gasket (5) and inspect, replace if necessary.

7.Position gasket (5) on component bracket (7).

8.Install new pump assembly (4) on component bracket (7) and secure with four #8-32 screws (6).

9.Install fill tube (1) on pump assembly (4).

10.Slide clamp (3) down into position on the fill tube

(1) and tighten screw (2).

11.Refer to Fig. 17 and reconnect the wires.

Test Procedures:



WHI from Brew Timer





BLK from Brew Timer



1. Disconnect the brewer from the power source.

1





2. Disconnect the black wire from the black lead on











the pump and the white wire from the black lead on







the pump.

2





3. With a voltmeter, check the voltage across the











black wire and the white wire. Connect the brewer

3



6

to the power source. The indication must be:













a) 120 volts ac for 3-wire 120/208 volt and 120/

4





240 volt models.











b) 208 volts ac for 2-wire 208 volt models.

5





c) 240 volts ac for 2-wire 240 volt models.











d) 230 volts ac for 2-wire 230 volt models.





7







4. Disconnect the brewer from the power source.







If voltage is present as described, reconnect the wires







to the pump. Install swing spout and position over the







reservoir. Place the ON/OFF in the "ON" (upper) posi-







tion and push the start switch and release. If pump







does not run, replace the pump.







If voltage is not present as described, refer to the







wiring diagrams and check the brewer wiring harness.







Removal and Replacement (Refer to Fig. 17):



FIG.17 PUMP INSTALLATION

P1737





1. Disconnect the wires from the pump assembly.







Page 23





10067 040100







SERVICE (cont.)

SELECTOR SWITCH (HALF BATCH OPTION)

P2053.25

FIG. 18 SELECTOR SWITCH (HALF BATCH)

Location:

The selector switch is located in the center of the front access panel at the base of the urn on all models except the 230V CE Models. The selector switch is located to the right of the front panel, above the start switch on the 230V CE Models.

Test Procedures:

1.Disconnect the brewer from the power source.

2.Disconnect the wires from the switch terminals.

3.Check for continuity across the switch terminals with the switch in the "CLOSED" (bottom - half) position. Continuity must not be present when the switch is in the "OPEN" (top - full) position.

If continuity is present as described, the switch is operating properly.

If continuity is not present as described, replace the switch.

Page 24

10067 040100



SERVICE (cont.)

SOLENOID

FIG. 20 SOLENOID

P2113.40



























Location:















The solenoid is mounted on the upper left rear of













the component bracket.















Test Procedures:















1. Disconnect the brewer from the power source.













2. A) For 120/208 volt and 120/240 volt 3-wire,













single phase models, disconnect the black wire













from the liquid level board #2 and the white wire on













the solenoid. Check the voltage across the black













and the white wire with a voltmeter. Connect the













brewer to the power source. The indication must













be:















a) 208 volts ac for 3-wire 120/208 volt models.













b) 240 volts ac for 3-wire 120/240 volt models.













B) For 208 volt, 240 volt 2-wire single phase













models, disconnect the black wire from the liquid

solenoid

valve.





















level board #2 and the red wire from the solenoid.

If











and removal

of

waterborne

part

With a voltmeter check the voltage across the

the solenoid valve may require inspection for wear

black and red wires. Connect the brewer to the

blockage











power source. The indication must be:















a) 208 volts ac for 208 volt, 2-wire single phase













models.















b) 240 volts ac for 240 volt, 2-wire single phase













models.















C) For 230 volt - CE 2-wire single phase models,

nt:









che

disconnect the red wire from the liquid level board

m

Rpl





nd

voltage across the red wire and the black wire withRemovl

v , h re y

#2 and the black wire from the solenoid. Check the

ss

hr ugh

s

id





aIf the

a voltmeter. Connect the brewer to the power



sound

as

the

coil

magnet

source. The indication must be 230 volts ac.





in























Page 25

the





6. Check





10067 040100wires

t

If





solenoid

valve.



SERVICE (cont.)

SOLENOID

10.Install water inlet tube to connector on the solenoid.

11.Turn on the water supply to the brewer.

12.Refer to Fig. 21 and reconnect the wires.

BLU from Liquid

WHI from Main Har-

ness (120/208V and

Level Board #1

120/240V Models)





RED from Main Har-



ness (208V and 240V



Models)

BLU from Liquid

Level Board #1

BLK from Main

Harness

230V - CE MODELS

P1741.30

FIG. 21 SOLENOID TERMINALS

10067 040100

Page 26



Test Procedures:

START

1.

Disconnect the brewer from the power source.

2.

Remove the wires from the start switch terminals.





3.

Check for continuity across the switch terminals





when the switch is held in the lower position.





Continuity must not be present when the switch is





in the upper position.

SERVICE (cont.)

If continuity is present as described, reconnect the

wires the switch is operating properly.



If continuity is not present as described, replace the



switch.

Removal and Replacement:

1.Remove the wires from the switch terminals.

2.Compress the clips on the back side of the switch mounting panel and gently push them through the opening.

3.Push the new switch into the opening and spread the clips to hold switch in the mounting panel.

ALL MODELS EXCEPT 230V - CE MODELS4. Refer to Fig. 23 and reconnect the wires.

Location:

ALL MODELS EXCEPT 230V - CE MODELS

230V - CE MODELS

The brew

BLU to Brew Timer

side of the front



all models

RED from ON/OFF

the start switch

access panel,

Switch



230V - CE MODELS



P2119.65



FIG.23 BREW START SWITCH TERMINALS

10067 040100

Page 27

SERVICE (cont.)

TANK HEATERS

P2113.40

FIG. 24 TANK HEATER

Location:

The tank heater is located on the front center of the upper component bracket.

Test Procedures:

1.Disconnect the brewer from the power source.

2.Disconnect the wires from the tank heater.

3.Check for continuity across the tank heater terminals.

If continuity is present as described, proceed to #4. If continuity is not present as described, replace the tank heater.

Removal and Replacement:

1.Remove the wires or thermal fuses from the tank heater.

2.Remove the four #8-32 screws securing the tank heater to the component bracket.

3.Remove tank heater and gasket.

4.Position new tank heater and gasket on the component bracket and secure with four #8-32 screws.

5.Refer to Fig. 25 and reconnect the wires.

RED to Contactor T2 (120/ 208V, 120/240 Three Wire Single Phase, 208V and 240V Two Wire, Single

Phase)

RED (Thermal Fuse) to T2 (230V-CE Models)

BLK to Contactor T1 (All

Models Except 230V-CE

Models)

BLK (Thermal Fuse) to

T1 (230V-CE Models)

P1746

FIG. 25 TANK HEATER TERMINALS

10067 040100

Page 28

SERVICE (cont.)

THERMAL FUSES (230V-CE MODELS ONLY)

P2121.40

FIG. 26 THERMAL FUSES

Location:

The thermal fuses are mounted on the tank heater terminals.

Test Procedures:

1.Disconnect the brewer from the power source.

2.Disconnect the thermal fuse from the tank heater terminal and the contactor lead.

3.Check for continuity across the terminals on the ends of the thermal fuse.

If continuity is present as described, the thermal fuse is operating properly.

If continuity is not present as described, replace the thermal fuse.

Removal and Replacement:

1.Disconnect the thermal fuse from the tank heater terminal and the contactor lead and discard.

2.Connect the new thermal fuse to the tank heater terminal and the contactor terminal.

10067 040100

Page 29

TIMER (Early Models)

P2114.40

FIG. 27 TIMER

Location:

The timer is located behind the front access panel on the right side of the component bracket.

Test Procedures:

1.Disconnect the brewer from the power source.

2.Disconnect the polarized, three pin connector from the brewer main harness and rotate the brew timer dial fully counterclockwise.

3.With a voltmeter check the voltage across sockets P2 and P3 (white and black wire or red wire) of the female connector on the main wiring harness when the "ON/OFF" switch is in the "ON" (upper) position. See chart below for P2 and P3 wires:

5volt CE models.

lt models.

.



























The

indication

must



be:



















switch

pressed.

Connect



the

brewer

to

the

















switch







is



in

the

"ON"

(upper)

position

and

(BLU)

and

P2

(see

chart

in

#3)

of

the











wiringdiagramsandcheckthebrewerwiringharness.





















5.

With

























If5voltage

























4. Disconnect the brewer from the power source. If5voltageispresentasdescribed,proceedto#5.

Page 30

M

O

D

E

L

P

2

P

3

SERVICE (cont.)

TIMER (Early Models)(cont.)

Removal and Replacement:

1.Separate all connectors between the brewer wiring harness and the timer.

2.Disconnect the timer leads from the pump leads.

3.Remove the two #8-32 screws securing the brew timer to the component bracket and remove timer.

4.Install new timer circuit board as described in Late Model Timer section on the following pages.

5.Refer to Fig. 30 to reconnect the wires.

6.Install the Timer Setting Decal, provided with the timer replacement kit, on the back of the front access panel.

7.Adjust the timer as required. Refer to Late Model Timer section on the following pages.

Three Pin Connector from



Half/Full Batch Switch



To Three Pin Female

Connector on Main



Harness



BLK to Pump Lead

WHI to Pump Lead

FIG. 28 TIMER TERMINALS

P1751



10067 080200

Page 31

SERVICE (cont.)

DIGITAL BREW TIMER (Late Models)

Page 32

SERVICE (cont.)

DIGITAL BREW TIMER (Late Models)

1. Modifying brew volumes. To modify a brew volume, first check that the SET/LOCK switch is in the “SET” position on the circuit board.

To increase a brew volume, place the ON/OFF switch in the “ON” position, press and hold the START switch until you see three breaks in the water stream from the swing arm. Release the switch and press it again one or more times. (Failure to release the switch within two seconds after the third break in the water stream causes the volume setting to be aborted and previous volume setting will remain in memory.) Each time the switch is pressed, two seconds are added to the brew time period. Allow the brew cycle to finish in order to verify that the desired volume has been achieved.

To decrease a brew volume, place the ON/OFF switch in the “ON” position, press and release the START switch once for every two-second interval to be removed from the total brew time period; then immediately press and hold down the START switch until you see three breaks in the water stream from the swing arm. Release the switch. (Failure to release the switch within two seconds after the third break in the water stream causes the volume setting to be aborted and previous volume setting will remain in memory). Allow the brew cycle to finish in order to verify that the desired volume has been achieved.

2. Setting brew volumes. To set a brew volume, first check that the SET/LOCK switch is in the “SET” position on the circuit board. Place the ON/OFF switch in the “ON” position, press and hold the START switch until you see three breaks in the water stream from the swing arm and then release the switch. (Failure to release the switch within two seconds after the third break in the water stream causes the volume setting to be aborted and previous volume setting will remain in memory.)

View the level of the liquid being dispensed. When the desired level is reached, turn the ON/OFF switch to “OFF”.

NOTE: The brewer remembers this volume and will continue to brew batches of this size until the volume setting procedure is repeated.

NOTE: When brewing coffee, volume will decrease due to absorption by the coffee grounds.

NOTE: Half-Batch and full batch settings must each be set separately.

3. Setting programming disable feature. If it becomes necessary to prevent anyone from changing brew time once programmed, you can set the SET/ LOCK switch to the “LOCK” position. This will prevent any further programming until switch is once again put into the “SET” position.

BLU/BLK wire from TL5 to P1

WHI/GRN wire from TL4 to (BLK) Pump

WHI/BLU wire from TL3 to (BLK) Pump

WHI wire from TL2 to P2

BLK wire from TL1 to P3

J2 - Three Pin connector from Half/Full Batch



Switch

P2037

FIG. 30 DIGITAL TIMER TERMINALS

10067 080200

Page 33

10067 080200

Page 34

10067 080200

Page 35

WHI/BLU





/BLK





T5 T3

T4

WHI/GRN

T1

T2







G 8

10067 080200

Page 36
