GRINDERS

Includes: MHG, FPG,

FPG-2, LPG-2, G1, G2, G3,

G2 trifecta

™

, G9, G9WD,

G9-2 & G9-2T DBC

SERVICE & REPAIR MANUAL

BUNN-O-MATIC CORPORATION

POST OFFICE BOX 3227

SPRINGFIELD, ILLINOIS 62708-3227

PHONE: (217) 529-6601 FAX: (217) 529-6644

www.bunn.com

To ensure you have the latest revision of the Operating Manual, or to view the Illustrated Parts Catalog, Programming Manual, or Service Manual, please visit the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and manual updates. For Technical Service, contact Bunn-O-Matic Corporation at 1-800-286-6070.

Page 2

BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY

Warranty statements and information can be found on our website. Please visit

https://commercial.bunn.com/support/warranty-lookup for further details.

41545 041423

Page 3

CONTENTS

Warranty and Trademark .................................................................................................3

Introduction ....................................................................................................................4

Recommended Daily Cleaning ........................................................................................4

G9WD Packaging & Shim Removal ................................................................................5

Operating Controls ..........................................................................................................6

Troubleshooting ............................................................................................................10

Service ..........................................................................................................................14

Component Access ...........................................................................................14

Bag Sensor .......................................................................................................15

Motor and Grind Chamber ................................................................................16

Capacitor ...........................................................................................................30

Circuit Breaker ..................................................................................................31

Hopper Selector Switch ....................................................................................32

Off/On/Start Switch ...........................................................................................34

Urn/Carafe Selector Switch ...............................................................................35

Batch Selector Switch .......................................................................................36

Potentiometer ...................................................................................................37

Rectiﬁer ............................................................................................................38

Relay .................................................................................................................39

Hopper Slide Plates ...........................................................................................43

Solenoid ............................................................................................................45

Timer ................................................................................................................46

Control Board ....................................................................................................50

Membrane Switch .............................................................................................52

EMI Filter ...........................................................................................................54

Funnel Sensing Coil ..........................................................................................55

Memory Clock Board ........................................................................................56

Display Board ....................................................................................................57

Wiring Schematics ........................................................................................................58

41545 111711

Page 4

INTRODUCTION

The Grinder will store various amounts of whole bean coffee and grind it to a preset grind and amount into an awaiting funnel and ﬁlter or French Press from most commercial drip coffee brewers. The equipment is only for indoor use on a sturdy counter or shelf. Adequate space must be available above the grinder to raise the lid when adding beans. Use only with whole bean coffee. The grind is preset at the factory to drip speciﬁcations as set forth by the United States Department of Commerce and adopted by the Coffee Brewing Center of the Pan American Coffee Bureau. Adjustments may be made to alter both the amount and grind from the factory setting. Refer to the Installation & Operating Manuals for ADJUSTMENTS.

RECOMMENDED DAILY CLEANING

The use of a damp cloth rinsed in any mild, nonabrasive, liquid detergent is recommended for cleaning all surfaces on Bunn-O-Matic equipment. Care should be taken not to scratch the hopper or windows with any abrasive material. Regular cleaning will keep your grinder looking new for years. Refer to the Installation & Operating Manuals for CLEANING.

CAPACITY CHART

FPG, LPG ................................Six pounds

FPG-2 ......................................Three pounds in each hopper

MHG ........................................Five pounds in each hopper

G9 ...........................................Nine pounds

G9-2, G9-2T DBC ....................Six pounds in each hopper

G9WD .....................................Five pounds

G1 ...........................................One pound

G2 ...........................................Two pounds

G3 ...........................................Three pounds

G2 trifecta ...............................Two pounds

41545 072710

Page 5

G9 WD - Packaging & Shim Removal

WARNING

MUST BE COMPLETED BY AUTHORIZED SERVICE PERSONNEL.

DO NOT PLUG IN !

SEE INSTRUCTIONS BELOW BEFORE USING !

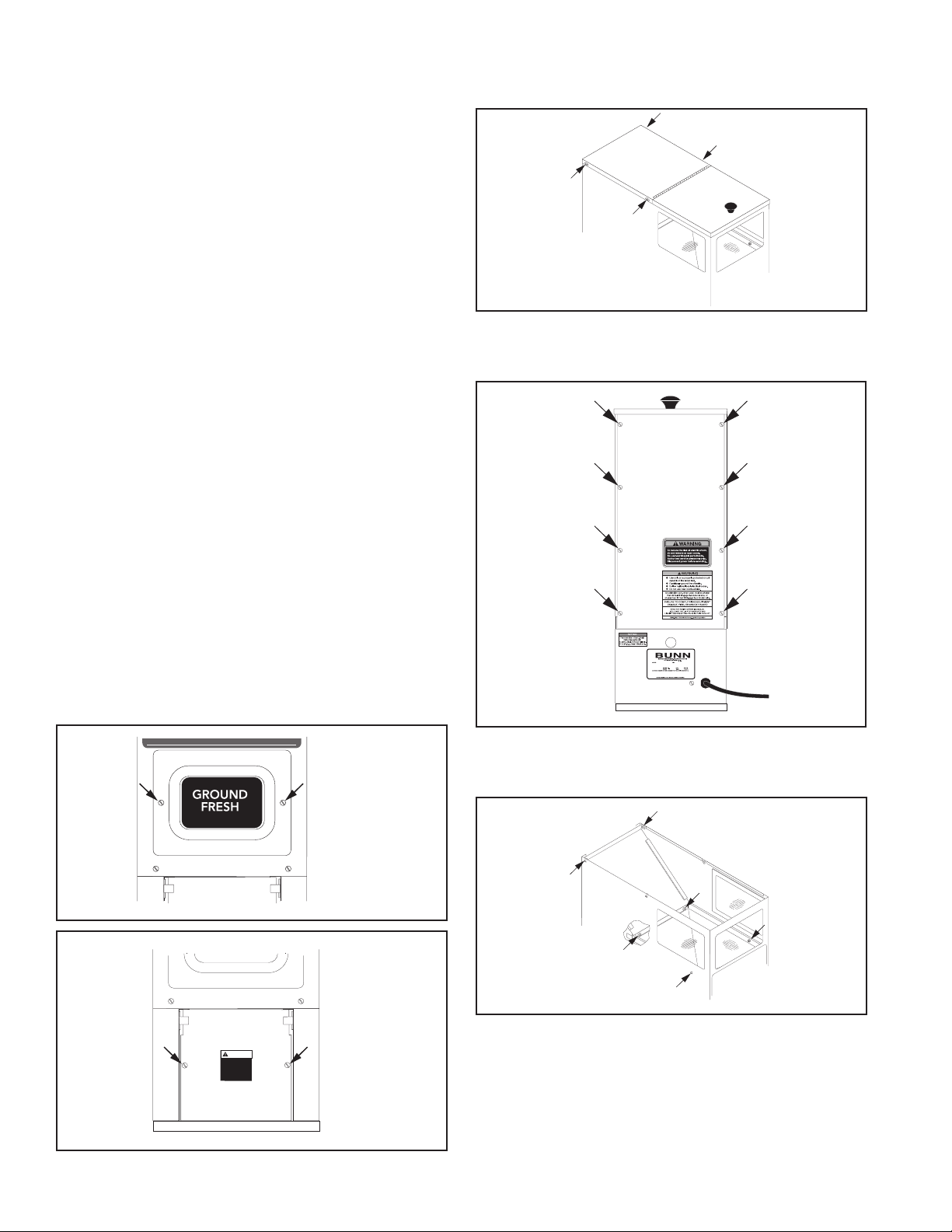

Step 1 - Remove & discard tape holding funnel arm in place. (Figure 1) Step 2 - Remove & discard two silicon tubes between funnel guide & housing. (Figure 2) Step 3 - Remove four screws in front housing panel. (Figure 3) Step 4 - Remove & discard shim under transducer. (Figure 4) Step 5 - Replace housing panel and secure four screws. (Figure 3)

Figure 1

Figure 3

Figure 2

Figure 4

41545 111711

Page 6

G9 SERIES

OPERATING CONTROLS

Model G9WD

Grind Pad (a)

Pressing initiates a grind cycle.

Stop Pad (b)

Pressing ends the operation of the grinder.

® Pad (c)

Pressing the copyright pad allows programming access.

Pads (d)

“Hidden” buttons used to navigate setup and programming menus.

Pads (e)

Press button to select small, medium or large batch size.

GRIND

STOP

Model G9-2

Off/On/Start Switch

OFF - (upper position) Switching to this position stops all operation of the grinder. ON - (middle position) The switch will return to this position after a grind cycle has begun and will remain

in this position after grinding has ceased.

START - (lower, momentary position) Pressing the switch initiates a timed grind cycle.

Hopper Selector Switch

Left - Switching to this position allows beans to be dispensed from the

left hopper.

Right - Switching to this position allows beans to be dispensed from the

right hopper.

Batch Selector Switch (Optional)

Urn - Switching to this position allows the correct amount of beans to be

dispensed when grinding a large batch.

CARAFE - Switching to this position allows the correct amount of beans

to be dispensed when grinding a small batch.

P633.1

Dispense Timer The dispense timer controls the amount of beans that will leave the hopper in a grind cycle. The timer can

be adjusted to dispense a different amount from each hopper. The scale is from 0.4 to 150.0 seconds. Refer to the Installation & Operating Manuals for Adjustments.

41545 070518

Page 7

URN

O F F

S T A R T

CARAFE

G9 SERIES

OPERATING CONTROLS (Continued)

Model G9

Off/On/Start Switch OFF - (left position)

Placing the switch in this position stops the operation of the grinder. ON - (center, resting position) The switch will return to this position after a grind cycle has begun and will remain in this position after grinding has ceased. START - (right, momentary position)

P1300.1

Placing the switch in this position initiates a timed grind cycle.

Batch Selector Switch (Optional)

URN - Switching to this position allows the correct amount of beans to be dispensed when grinding a large batch. CARAFE - Switching to this position allows the correct amount of beans to be dispensed when grinding a small batch.

Models G1, G2, G3 & G2 trifecta

Off/On/Start Switch

OFF - (upper position) Switching to this position stops the operation of the grinder. ON - (center, resting position) The switch will return to this position after a grind cycle has begun and will remain in this position after grinding has ceased. START - (lower, momentary position) Pressing the switch initiates grinding only when a bag is in place behind the chute.

Grind Selector

Allows the user to vary the grind for each bag of coffee. Each setting will provide precisely the same grind every time it is selected.

Bag Sensor

Prevents the grinder from operating unless the back of a bag is in place behind the dispense chute.

Do not attempt to bypass this safety device.

Models LPG, LPG-2E

Off/On/Start Switch (Models LPG and LPG-2E)

OFF - (upper position) Switching to this position stops all operation of the grinder. ON - (middle position) The switch will return to this position after a grind cycle has begun and will remain in this position after grinding has ceased. START - (lower, momentary position) Pressing the switch to this position and releasing initiates a grind cycle.

Hopper Selector Switch (Model LPG-2E only) LEFT - Switching to this position allows beans to be ground from the left hopper. RIGHT - Switching to this position allows beans to be ground from the right hopper.

P1028.1

P1029.1

41545 070518

Page 8

OPERATING CONTROLS (Continued)

GRIND

STOP

Model MHG

Grind Pad (a)

Pressing initiates a timed grind cycle.

Stop Pad (b)

Pressing ends the operation of the grinder.

® PAD (c)

Pressing the ® pad allows programming access.

Hopper/Batch Selector Pads (d)

These pads are located on the funnel depictions on each side of the grinder with a total of 6 pads. Selecting one of these pads will select the amount of grind and side from which to grind. Example: Selecting the lower pad on the left side will grind enough beans from the left hopper of the grinder to brew the amount programmed into grinder.

Control Board

The control board determines the amount of beans that will leave the hopper in a grind cycle. The timer portion can be adjusted to dispense a different amount from each hopper and each batch size. The scale is from 0.4 to

99.9 seconds. Refer to the Installation & Operating Manuals for Adjustments.

Model G9-2T DBC

GRINDER

Grind Pad (a)

Pressing initiates a timed grind cycle.

Stop Pad (b)

Pressing ends the operation of the grinder.

® PAD (c)

Pressing the ® pad allows programming access.

SECONDS

Hopper/Batch Selector Pads (d)

Power ON/OFF Pad (e) (100V Models)

Pressing the ON/OFF pad alternately turns the grinder on and off.

Control Board

99.9 seconds. Refer to the Installation & Operating Manuals for Adjustments.

41545 070518

Page 9

OPERATING CONTROLS (Continued)

Model FPG

Off/On/Start Switch

OFF - (upper position) Switching to this position stops all operation of the grinder.

ON - (middle position) The switch will return to this position after a grind cycle has begun and will remain in this position after grinding has ceased.

START - (lower, momentary position) Pressing the switch to this position and releasing initiates a grind cycle.

Batch Selector Switch

Select Small, Medium or Large batch by turning the round selector knob

on the left front of the grinder.

Model FPG-2 DBC

Grind Pad (a) Pressing GRIND initiates a timed grind cycle. Stop Pad (b) Pressing STOP ends the operation of the grinder. ® PAD (c) Pressing the ® pad allows programming access

(see page 5).

P2947

GRINDER

SECONDS

Hopper/Batch Selector Pads (d)

These pads are located on the funnel depictions on each side of the grinder with a total of 6 pads. Selecting one of these pads will select the amount of grind and side from which to grind. Example: Selecting the lower pad on the left side will grind enough beans from the left side of the grinder to brew the amount programmed into grinder.

Control Board

41545 070518

Page 10

TROUBLESHOOTING

A troubleshooting guide is provided to suggest probable causes and remedies for the most likely problems

encountered. If the problem remains after exhausting the troubleshooting steps, contact the Bunn-O-Matic Technical Service Department.

• Inspection, testing, and repair of electrical equipment should be performed only by qualiﬁed service personnel.

• All electronic components have ac voltage and dc voltage potential on their terminals. Shorting of terminals or the application of external voltages may result in board failure.

• Intermittent operation of electronic circuit boards is unlikely. Board failure will normally be permanent. If an intermittent condition is encountered, the cause will likely be a switch contact or a loose connection at a terminal or crimp.

• Make certain that all electrical connections are tight and isolated.

WARNING

• Exercise extreme caution when servicing electrical equipment.

• Turn power OFF when servicing, except when electrical tests are speciﬁed.

• Follow recommended service procedures.

• Replace all protective shields or safety notices.

Problem

Grinder will not start.

Probable Cause

1. No power or incorrect voltage

2. Off/On/Start switch

3. Circuit Breaker (Not applicable on Model LPG with capacitor)

Remedy

(A) Plug-in the grinder. (B) Check the voltage at the wall outlet with a voltmeter. It must be 120 volts ac for 120 volt models, 100 volts for 100 volt models, and 230 volts for 230 volt models.

(A) Momentarily press the Off/On/ Start switch to the “START” position. (B) Refer to Service - Off/On/Start switch for testing procedures.

Press the “Reset” button, located on rear of the grinder. Listen carefully for a “click”. This resets the motor protection circuit and indicates that an overload may have been encountered by the motor. (An overload can occur when something other than coffee is inserted into the hopper for grinding). Refer to Service - Circuit Breaker for testing procedure.

4. Timer

Refer to Service - Timer for testing procedures.

41545 122209

Page 11

TROUBLESHOOTING (cont.)

Problem

Grinder will not start. (Continued)

Probable Cause

5. Motor

6. Relay

7. Bag sensor or Cup Sensor

Remedy

Each motor is equipped with a temperature and current overload protection feature which will immediately shut off the motor when an overload has occurred. Check the grinder for obstructions. Refer to Service - Motor for testing procedures.

Refer to Service - Relay for testing procedures.

(A) The receiving bag must be placed on the tray screen and have the back of the bag behind the dispense chute to activate the sensor switch.

(B) Refer to Service - Bag Sensor Switch for testing and adjustment procedures.

Grinder will not shut off.

1. Off/On/Start switch

2. Timer

3. Relay

4. Bag Sensor or Cup Sensor

(A) Place the switch in the “OFF” upper position.

(B) Refer to Service - Off/On/Start Switch for testing procedures.

Refer to Service - Timer for testing procedures.

Refer to Service - Relay for testing procedures.

(A) Remove bag from under the dispense chute.

(B) Refer to Service - Bag Sensor Switch for testing procedures.

41545 072710

Page 12

Problem Probable Cause Remedy

Grinder starts, but will not dispense from hopper.

1. Hopper(s)

2. Blockage of hopper(s)

3. Slide Gate Solenoids (Model LPG2E only)

4. Timer

5. Off/On/Start switch

6. Slide plates

Begin each grind cycle by visually inspecting the hopper(s) for ample supplies of whole bean coffee.

Foreign materials must not block the openings at the bottom of the hopper(s).

Refer to Service - Solenoids for testing procedures.

Refer to Service - Timer for testing procedures.

Refer to Service - Off/On/Start switch for testing procedures.

(A) Check to see that the slide plates move freely to allow beans to travel into the grind chamber.

Incorrect amount of coffee.

7. Solenoids

8. Solenoid Limit Thermostat

9. Shear Plate

1. Timer adjustment

2. Snubber

(B) Refer to Service -Slide Plates for testing procedures.

Refer to Service - Solenoids for testing procedures.

Remove both black ﬁllister head screws holding the grinder selector dial plate to the grinder. Carefully remove the dial plate and rotor cup. Inspect the shear plate for wear. Replace if excessively worn or damaged.

Refer to the Adjustment section in the Installation and Operation Manual.

Refer to Service - Snubber for replacement procedures.

Refer to the Adjustment section

41545 122209

Page 13

TROUBLESHOOTING (cont.)

PROBLEM

Incorrect coffee grind dispensed.

Excessive chaff

Grinder only dispenses from one hopper

Timer will not display or displays incorrectly.

Incorrect weight of coffee dispensed

PROBABLE CAUSE

1. Burr adjustment

1. Dechaffer

1. Hopper selector switch (Model LPG-2E only)

1. Digital Timer

1. Grinder scale requires calibration.

2. Funnel handle touched during grinding.

REMEDY

in the Installation and Operation Manual.

Replace the dechaffer springs. Replacement dechaffer springs are provided in the literature package accompanying the grinder.

Refer to Service - Hopper selector switch for testing procedures.

(A) Unplug the grinder. Wait a few seconds and plug it in again. (B) Refer to Service - Timer for test- ing procedures.

Refer to GRINDER SCALE CALIBRATION procedure.

Do not touch funnel or funnel handle during grinding operation.

41545 072710

Page 14

SERVICE

PERSONAL INJURY

HAZARD.

KEEP FINGERS AND

FOREIGN OBJECTS

OUT OF HOPPER

OR CHUTE OPENING.

CAUTION

This section provides procedures for testing and replacing various major components used in this grinder should service become necessary. Refer to Troubleshooting for assistance in determining the cause of any problem.

WARNING - Inspection, testing, and repair of electrical equipment should be performed only by qualiﬁed service personnel. The grinder should be unplugged when servicing, except when electrical tests are required and the test procedure speciﬁcally states to plug-in the grinder.

Component Access

WARNING - Unplug the grinder before the removal of

any panel or the replacement of any component. All components are accessible by the removal of the lid, hopper, or front and rear access panels. Mark and retain all screws,washers and nuts for installation.

P1306

Component Locations

Some pictures showing component locations may be general to all grinders unless the component is speciﬁc to your model.

P602

P1307

P1308

P603

41545 070518

Page 15

SERVICE (Cont.)

CLEANING LEVER

GROUND COFFEE

TURKISH

BAG SENSOR SWITCH (Models G1, G2, G3) or CUP SENSOR SWITCH (MODEL G2 TRIFECTA)

P1704

FIG. 1 BAG SENSOR SWITCH

Location:

The bag sensor switch is located inside the lower front of the grinder housing behind the coffee dispensing chute.

Test Procedure:

1. Disconnect the grinder and place a coffee bag

behind the dispense chute.

2. Remove the white/violet wire from the bag sensor

switch.

3. Check the voltage across the white/violet wire

from the bag sensor switch and the white wire, red/black wire or red wire on the relay coil with a voltmeter. Hold the Off/On/Start switch in the “START” (lower) position and connect the grinder

to the power source. The indication must be: a. 120 volts ac for two wire 120 volt models. b. 230 volts ac for two wire 230 volt models. c. 240 volts ac for two wire 240 volt models.

4. Disconnect the grinder from the power source.

If voltage is present as described, proceed to #5. If voltage is not present as described, refer to the

Wiring Diagrams and check the grinder wiring harness.

5. Check for continuity across the terminals on the bag sensor switch.

If continuity is present as described, reconnect the wires, the switch is operating properly. If continuity is not present as described, replace the switch.

Removal and Replacement:

1. Remove the wires from the switch.

2. Remove the two #8-32 keps nuts securing the bag sensor assembly to the grinder housing.

3. Remove the two #2-56 screws, nuts and external tooth lock washers securing the switch to the bag sensor assembly.

4. Mount the new switch to the bag sensor assembly using two #2-56 screws, nuts and external tooth lock washers. Adjust the assembly by locating the corner of the switch housing to the top edge of the black metal mounting bracket.

5. Reattach the sensor assembly to the grinder housing and secure with two #8-32 keps nuts.

6. Refer to Fig. 2 when reconnecting the wires.

WHI/VIO from Off/On/Start Switch

WHI/ORA to Terminal “A” on Relay

P1705

FIG. 2 BAG SENSOR SWITCH TERMINALS

41545 072710

Page 16

SERVICE (Cont.)

CLEANING LEVER

GROUND COFFEE

TURKISH

AC MOTOR AND GRIND CHAMBER

FIG. 3 AC MOTOR AND GRIND CHAMBER

Location: The motor is located inside the upper part of the

grinder housing.

Test Procedure:

1. Remove the plug located on the right side of the housing. Press the red “Reset” button visible through the opening. Listen carefully for a “click”. This resets the motor protection circuit and may indicate that something other than coffee was inserted into the hopper for grinding.

If the grinder remains unable to start, proceed to #2. If the grinder stops operating shortly after starting, refer to removal and replacement instructions and inspect for foreign materials.

2. Disconnect the grinder from the power source and place a coffee bag behind the dispense chute.

3. Remove the electrical access panel at the rear of the motor.

P1704

4. Check the voltage across the white, red or red/ black and white/blue wires on terminals L1 & L2 with a voltmeter. Connect the grinder to the power source. When the Off/On/Start switch is momentarily placed in the “START” (lower) position and then left in the “ON” (center) position and a bag is in place behind the coffee dispense chute.

The indication must be: a. 120 volts ac for two wire 120 volt models. b. 230 volts ac for two wire 230 volt models c. 240 volts ac for two wire 240 volt models.

5. Disconnect the grinder from the power source.

If voltage is present as described replace the motor. If voltage is not present as described, reconnect the white, red or red/black and white/blue wires to the motor, refer to the Wiring Diagrams and check the grinder wiring harness.

Removal and Replacement - Motor (Refer to FIG.6):

1. Remove the plate on the rear of the motor and disconnect all wires from the motor.

2. Remove the two .250”-20 screws (1) securing grind selector dial plate and grind selector knob (2) to the grind chamber. Remove dial plate and selector knob as an assembly.

3. Slide burr (7), auger rotor/spring assembly (3), shear plate (4) and burr rotor cup (5) off the grinder motor shaft as an assembly.

4. Remove the two .250”-20 screws (8) securing the stationary burr (9) to the grind chamber.

5. Remove bushing (10) and shaft extension (11) from the grinder motor shaft.

6. Remove the two #8 thread forming screws (12) securing the ﬁll plate (13) to grinder housing and remove plate (13).

7. Remove the four #10-24 screws (14) securing the chute assembly (15) to the grind chamber and remove chute assembly (15).

8. Remove the four .250”-20 screws, ﬂat washer and rubber washers securing the motor to the mounting bracket.

9. Remove motor out the rear of the grinder housing.

10. Remove the four .250”-20 cage nuts from the motor mount.

41545 122209

Page 17

SERVICE (Cont.)

AC MOTOR AND GRIND CHAMBER (cont.)

11. Clean all grinding burrs and mounting surfaces before reassembly.

12. Install the four .250”-20 cage nuts on the new motor.

13. Place the new motor with hopper collar and bushing into position on the bushings on the motor mounting bracket.

14. Using four .250”-20 screws, ﬂat washers and rubber washers secure the motor to the mounting bracket.

15. Install stationary burr (9) to the grind chamber housing using two .250”-20 screws.

16. Install burr (7) and burr auger rotor/spring assembly (3) on to motor shaft.

17. Install motor shaft extension (11) on motor shaft.

18. Align the slot in the motor shaft extension (11) with the slot in the burr auger rotor/spring assembly (6) and install shear plate (4).

19. Install burr rotor cup (5).

20. Install grind selector dial plate and grind selector knob assembly on the grind chamber housing and secure with two .250”-20 screws.

21. Refer to Fig. 4 and reconnect the wires.

22. Refer to ADJUSTMENTS in the Installation and Operating Manual, and reset the burrs.

WHI/BLU to Relay N.O.(K4) WHI to Cordset (120V) RED/BLK to Cordset (230V)

GRN to Ground (120V) GRN/YEL to Ground (230V)

FIG. 4 AC MOTOR TERMINALS

P1310

41545 122209

Page 18

SERVICE (Cont.)

AC MOTOR AND GRIND CHAMBER (cont.)

20 7 6 4 5

11 10 9 8 3

18 1 19 17

TURKISH

CLEANING LEVER

GROUND COFFEE

FIG. 5 GRIND CHAMBER COMPONENTS

Removal and Replacement - Grind Chamber - Fig. 5:

1. Loosen the two set screws (16) securing the grind selector knob to the grind selector dial plate (18) and remove knob.

2. Remove the adjusting screw w/bearing (19). Inspect adjusting screw w/bearing for wear. Replace if excessively worn or damaged.

3. Remove the two .250”-20 screws (1) securing the grind selector dial plate (18) to the grind housing.

4. Slide burr auger rotor/spring assembly (3) off of the grinder motor shaft with burr rotor cup (5), shear plate (4) and burr (7) as an assembly.

5. Remove burr rotor cup (5) and shear plate (4) from burr auger rotor/spring assembly (6). Inspect shear plate (4) for wear. Replace if excessively worn or damaged.

6. Remove the two .250” screws (20) securing burr (7) to burr auger rotor/spring assembly (6) and remove burr (7). Inspect burr (7) for wear. Replace if excessively worn or damaged.

7. Remove the two .250”-20 screws (8) securing the stationary burr (9) to grind chamber housing and remove burr. Inspect for wear. Replace if excessively worn or damaged.

NOTE: Burrs are serviced in sets of two with hardware.

8. Clean all grinding burrs and mounting surfaces before reassembly.

18 1

TURKISH

P1708 A

9. Remove bushing (10) and shaft extension (11) from grinder motor shaft. Inspect for wear. Replace if excessively worn or damaged.

10. Install shaft extension (11) and bushing (10) onto the grinder motor shaft.

11. Install stationary burr (9) inside the grind chamber and secure with two .250” -20 screws (8).

12. Install burr (7) on burr auger rotor/spring assembly (6) securing with two .250”-20 screws (20).

13. Slide burr auger rotor/spring assembly and burr (3) onto the motor shaft.

14. Align the slot in the shaft extension and the slot in the burr auger rotor/spring assembly and install shear plate (4).

15. Install burr rotor cup (5) onto the burr auger rotor/spring assembly (6).

16. Install the adjusting screw w/bearing (19) into the grind selector dial plate (18).

17. Install grind selector dial plate (18) with adjusting screw w/bearing (19) onto the grind chamber and secure with two .250”-20 screws (1).

18. Install grind selector knob (17) onto the grind selector dial plate (18).

NOTE: Refer to ADJUSTMENTS in the Installation and Op- erating Manual, and reset the burrs.

41545 122209

Page 19

SERVICE (Cont.)

CLEANING LEVER

GROUND COFFEE

TURKISH

DC MOTOR AND GRIND CHAMBER - G1MD ONLY

P1706

FIG. 6 DC MOTOR AND GRIND CHAMBER

Location: The motor is located inside the upper part of the grinder housing. Test Procedures:

1. Remove the rear panel. Press the red “Reset” button visible on the rear of the motor. Listen carefully for a “click”. This resets the motor protection circuit and may indicate that something other than coffee was inserted into the hopper for grinding.

If the grinder remains unable to start, proceed to #2. If the grinder stops operating shortly after starting, refer to removal and replacement instructions and inspect for foreign materials.

2. Disconnect the grinder from the power source and place a coffee bag behind the dispense chute.

3. Remove the black wire from the rectiﬁer (+) terminal and the red wire from the (-) terminal.

4. Check the voltage across the (+) and (-) terminals with a voltmeter. Connect the grinder to the power source. When the Off/On/Start switch is momentarily placed in the “START” (lower) position and then left in the “ON” (center) position and a bag is in place behind the coffee dispense chute. The indication must be approximately 108 volts dc.

5. Disconnect the grinder from the power source.

If voltage is present as described replace the motor. If voltage is not present as described, reconnect the white or red and white/blue wires to the motor, refer to the Wiring Diagrams and check the grinder wiring harness.

Removal and Replacement - Motor (Refer to Fig. 8)

1. Disconnect all wires from the motor.

2. Remove the two .250”-20 screws (1) securing grind selector dial plate and grind selector knob (2) to the grind chamber. Remove dial plate and selector knob as an assembly.

3. Slide burr (7), auger rotor/spring assembly (3) and burr rotor disc (4) off the grinder motor shaft as an assembly.

4. Remove the two .250”-20 screws (8) securing the stationary burr (9) to the grind chamber.

5. Remove bushing (10) and washer (11) from the grinder motor shaft.

6. Remove the two #8 thread forming screws (12) securing the ﬁll plate (13) to grinder housing and remove plate (13).

7. Remove the four #10-24 screws (14) securing the chute assembly (15) to the grind chamber and remove chute assembly (15).

8. Disconnect all the wires from the rectiﬁer (23).

9. Remove the four .312”-18 screws (20), rubber washers (22) and ﬂat washers (21) securing the motor and bracket to the grinder housing bracket.

41545 122209

Page 20

SERVICE (Cont.)

DC MOTOR AND GRIND CHAMBER - G1MD ONLY (cont.)

10. Remove motor and bracket out the rear of the grinder housing.

11. Remove the two .250”-20 screws securing the motor to the front of the mounting bracket.

12. Remove the two #10-32 screws securing the motor to rear of the mounting bracket.

13 Remove motor from bracket.

14. Clean all grinding burrs and mounting surfaces before reassembly.

15 Place the new motor with hopper collar into posi-

tion on the motor mounting bracket.

16. Using two .250”-20 screws secure the motor to the front of the mounting bracket.

17. Using two #10-32 screws secure the motor to the rear of the mounting bracket

18. Install motor and bracket through the rear of the grinder, position on the grinder housing bracket and secure with four .312”-18 screws (20), rubber washers (22) and ﬂat washers (21).

19. Install stationary burr (9) to the grind chamber housing using two .250”-20 screws (8).

20. Install burr (7), burr auger rotor/spring assembly (3) and burr rotor disc (4) on to motor shaft.

21. Install grind selector dial plate and grind selector knob assembly (2) on the grind chamber housing and secure with two .250”-20 screws.

22. Refer to Fig. 7 and reconnect the wires to the motor and Fig. 37 and reconnect the wires to the rectiﬁer.

23. Refer to ADJUSTMENTS section and reset the burrs.

Removal and Replacement - Grind Chamber - Refer to Fig. 8:

1. Loosen the two set screws (16) securing the grind selector knob to the grind selector dial plate (18) and remove knob.

2. Remove the adjusting screw w/bearing (19). Inspect adjusting screw w/bearing for wear. Replace if excessively worn or damaged.

3. Remove the two .250”-20 screws (1) securing the

BLU to BLU from Rectiﬁer

BLU to WHI/BLU from Relay (3)

RED to Rectiﬁer (-) BLK to Rectiﬁer (+)

P1710

FIG. 7 DC MOTOR TERMINALS

grind selector dial plate (18) to the grind housing and remove plate.

4. Slide burr auger rotor/spring assembly (3) off of the grinder motor shaft with burr (7) as an assembly.

5. Remove the two .250”-20 screws (5) securing burr (7) to burr auger rotor/spring assembly (6), remove burr (7) and burr rotor disc (4). Inspect burr (7) for wear. Replace if excessively worn or damaged.

6. Remove the two .250”-20 screws (8) securing the stationary burr (9) to grind chamber housing and remove burr. Inspect for wear. Replace if excessively worn or damaged.

NOTE: Burrs are serviced in sets of two with hardware.

7. Remove bushing (10) and washer (11) from grinder motor shaft. Inspect for wear. Replace if excessively worn or damaged.

8. Clean all grinding burrs and mounting surfaces before reassembly.

9. Install washer (11) and bushing (10) onto the grinder motor shaft.

10. Install stationary burr (9) inside the grind chamber and secure with two .250” -20 screws (8).

41545 122209

Page 21

SERVICE (Cont.)

DC MOTOR AND GRIND CHAMBER - G1MD ONLY (cont.)

11. Install burr (7) on burr auger rotor/spring assembly (6) securing with two .250”-20 screws (5).

12. Slide burr auger rotor/spring assembly and burr (3) onto the motor shaft.

13. Install burr rotor disc (4).

5 7 6

9 8 11 10 3

14. Install the adjusting screw w/bearing (19) into the grind selector dial plate (18).

15. Install grind selector dial plate (18) with adjusting screw w/bearing (19) onto the grind chamber housing and secure with two .250”-20 screws (1).

16. Install grind selector knob (17) onto the grind selector dial plate (18).

NOTE: Refer to ADJUSTMENTS and reset the burrs.

18 1 19 17

4 2 1

P1711

FIG. 8 MOTOR AND GRIND CHAMBER REMOVAL

41545 122209

Page 22

SERVICE (Cont.)

MOTOR (Models LPG & FPG)

P1022.1

FIG. 9 MOTOR

Location: The motor is located inside the hopper assembly. Test Procedures:

1. Disconnect grinder from the power supply.

2. On Model LPG-2E, disconnect the black wire and the white wire to the motor from the main wiring harness, the red wire to the circuit breaker and the red wire to the Off/On/Start switch. On Model LPG disconnect the motor wiring harness from the main wiring harness.

3. Connect the leads of an ohm meter to the red wires from the motor.

If continuity is present the overload is good. If continuity is not present the overload will not reset,

replace the motor.

4. Set an ohm meter to read at least 20 ohms. Connect the leads from the ohm meter to the black wire and the white from the motor. The ohm reading should be approximately 18 ohms. Using the bean agitator slowly rotate the motor shaft in approximately 1/8 turn steps through one full rotation. If ohm readings are consistent motor windings are good. If readings vary more than ±1 ohm, replace motor.

NOTE: Clean all grind burrs and mounting surfaces before reassembly.

Removal and Replacement:

1. On Model LPG-2E, disconnect the black wire and the white wire to the motor from the main wiring harness, the red wire to the circuit breaker and the red wire to the Off/On/Start switch. On Model LPG disconnect the motor wiring harness from the main wiring harness.

2. On Model LPG-2E, disconnect the red wire from the left and right solenoid, the orange wire from the left solenoid and the violet wire from the right solenoid.

P1049.1

FIG. 10 MOTOR REMOVAL

3. Refer to Fig 10. Remove the three #10-32 x .25” screws (1) securing the motor to the motor support bracket.

4. Remove the motor, solenoid and solenoid components (2) from the hopper housing (3) as an assembly.

NOTE: Steps 5 thru 12 apply only to Model LPG-2E.

5. Refer to Fig.11. Remove the three #8-32 Keps nuts.

6. Lift the retaining ring w/hopper gasket (1) over the motor and burr housing assembly (6). Set aside for reassembly.

7. Lift slide plate, solenoid plunger and spring (2) off of the dowel pin in the mounting ring and slide solenoid plunger and spring (2) out of solenoid coil. Set aside for reassembly. Repeat for opposite side.

41545 070518

Page 23

SERVICE (Cont.)

MOTOR (Models LPG & FPG)

8. Remove spacer plate (3) and set aside for reassembly.

9. Lift solenoid bracket and solenoids (4) over the motor and burr housing assembly (6) and set aside for reassembly.

10. Remove the #8-32 setscrew (5) and set aside for reassembly.

11. Lay motor on its side.

NOTE: Refer to Fig. 14 for the disassembly and assembly of the burrs and rotor.

12. Remove the two #10-32 ﬁllister head screw securing burr housing cap (10) to the burr housing.

13. Remove cap, burr adjusting screw, dechaffer plate and dechaffer support (10) as an assembly. Set aside for reassembly.

14. Remove load disc (11) and set aside for reassembly.

15. Slide rotor (12), lower burr (13) and spring (14) as an assembly off the motor shaft, set aside for reassembly.

16. Remove burr housing divider (8) and set aside for reassembly.

NOTE: Inspect rotor. If rotor needs to be replaced, remove the two #10-32 binding head screws securing lower burr (13) to the rotor and remove burr. Install lower burr (13) on new rotor (12) using two #10-32 binding head screws.

17. Slide spring retaining bushing (15) off the motor shaft and set aside for reassembly.

18. Remove the two #10-32 binding head screws securing the upper burr (16) to the motor and housing assembly (17).

19. Remove the upper burr (16) and set aside for reassembly.

NOTE: If burrs need to be replaced, they must be replaced in matched pairs.

P1050

FIG. 11 SOLENOID AND GATES

1. Retaining Ring W/Hopper Gasket

2. Slide Plate, Solenoid Plunger and Spring

3. Spacer Plate

4. Mounting Ring, Solenoid and Solenoid Mounting Plate

5. Setscrew, #8-32

6. Motor and Burr Housing

41545 122209

Page 24

SERVICE (Cont.)

MOTOR (Models LPG & FPG)

MODEL LPG ONLY

10 11 12 13 14 15 16 17 18

FIG. 12 ROTOR/AUGER, BURRS AND MOTOR COVER

20. Remove the two #8-32 ﬂat head screws securing the motor cover (18) to the motor and housing assembly (17) and remove the cover. Set aside for reassembly.

21. Discard old motor and housing assembly.

22. Place new motor on its side and install motor cover (18) using two #8-32 ﬂat head screws.

23. Install upper burr (16) to the new motor and housing assembly (17) using two #10-32 binding head screws.

24. Install spring retaining bushing (15) on motor shaft.

25. Refer to Fig. 11. Install burr housing divider (8) in slot in the burr housing and secure with #8-32 cup point setscrew (7), for Model LPG-2E only.

26. Refer to Fig. 12. Install rotor (12), lower burr (13) and spring (14) as an assembly on the motor shaft.

27. Install load disc (11) ﬂat side towards rotor.

28. Install burr housing cap (10), adjusting screw, dechafﬁng spring plate and dechaffer support as an assembly to the new motor and housing assembly (17) using two #10-32 ﬁllister head screws.

29. Set motor upright with burr housing at the bottom.

P1051

assembly on the new motor.

31. Install spacer plate (3) making sure the hole in the spacer plate aligns with the hole in the mounting ring.

32. Install solenoid plunger with spring and slide plate (2) as an assembly into the solenoid coil. Place slide plate on the dowel in the mounting ring. Repeat for the opposite side.

33. Install retaining ring w/hopper gasket (1) using three #8-32 pan head screws and three #8-32 keps nuts.

34. Refer to Fig.10. Install motor, solenoids and solenoid components (2) in the hopper housing (3) using three #10-32 truss head screws (1).

35. Reconnect wires for motor and solenoids. Refer to wiring schematic.

NOTE: Steps 30 thru 33 apply only to Model LPG-2E.

30. Install solenoids and solenoid bracket (4) as an

41545 122209

Page 25

SERVICE (Cont.)

DECHAFFER (Models LPG & FPG)

3 2 1

FIG. 13 DECHAFFER

P1062.1

Location: The dechaffer spring plates are located in the burr

housing cap.

Removal and Replacement: Refer to Fig. 14

1. Remove coffee beans from hopper(s).

2. Lay grinder on its back.

3. Remove the #4-40 truss head screw securing dechaffer support (1) to the burr housing cap.

4. Remove dechaffer support (1).

5. Remove dechaffer spring plate (2) from burr hosing cap.

6. For models with extra ﬁne dechaffer, remove dechaffer support (3).

7 Place new dechaffer spring plate (2) in the slot in

the burr housing cap.

8. Place dechaffer support (1) over dechaffer spring plate (2), support (3) and secure with a #4-40 truss head screw.

OPTIONAL EXTRA

FINE DECHAFFER

P1063.1

FIG. 14 DECHAFFER REMOVAL/REPLACEMENT

41545 070518

Page 26

SERVICE (Cont.)

PERSONAL INJURY

HAZARD.

KEEP FINGERS AND FOREIGN OBJECTS OUT OF HOPPER

OR CHUTE OPENING.

CAUTION

11191.0001

COARSE FINE

MOTOR (Models G9, G9-2, MHG)

P1309.1

FIG. 15 MOTOR

Location:

The motor is located in the upper wrapper under the

hopper.

Test Procedure:

1. Remove the hole plug located on the right side of the housing. Press the red “Reset” button visible through the opening. Listen carefully for a “click”. This resets the motor protection circuit and may indicate that something other than coffee was inserted into the hopper for grinding.

If the grinder remains unable to start, proceed to step 2. If the grinder stops operating shortly after starting, refer to the removal and replacement steps to gain access-to the grind chamber. Remove any foreign materials that may be found.

of the grinder housing through the hole in the motor mounting plate.

3. Remove both 6-32 screws beneath the upper front inspection panel.

4. Remove the six 10-32, hex head screws on top of the motor mounting plate.

5. Slowly slide the assembly out the rear of the grinder housing. The mounting plate will have to be raised to gain clearance for the motor hardware and wiring harness bushing.

6. Remove the four 5/16”-18 bolts and nuts to separate the motor from the mounting plate.

7. Mount the new motor and tighten the four bolts and nuts. They should be tightened approximately one full turn past snug.

8. Slide the motor mounting plate into the rear of the grinder housing.

9. Feed the wiring harness into the top of the housing through the hole in the motor plate.

10. Reinstall the six 10-32 hex head screws through the motor plate and the two 6-32 screws through the housing.

11. Reattach the green wire to the 10-32 stud on the motor mounting plate.

12. Refer to the Off/On/Start switch section when reconnecting the switch wires.

13. Refer to the illustration below when reconnecting the motor wires.

WHI/ BLU to Snubber WHI/BLU to Relay

WHI/BLK to Cordset (120V models) RED/BLK to Cordset (230V models)

2. Disconnect the grinder from the power supply.

3. Remove the electrical access panel at the rear of the motor.

4. Check the voltage across terminals L1 & L2 of the motor with a voltmeter when the Off/On/Start switch is placed in the “START” (right) position and released. Connect the grinder to the power supply. The indication must be:

(a) 120 volts ac for two wire 120 volt models. (b) 240 volts ac for two wire 240 volt models.

5. Disconnect the grinder from the power supply.

If voltage is present as described and the grinder remains unable to start, replace the motor. If voltage is not present as described, refer to the Wiring Diagrams, and check the grinder wiring harness.

Removal and Replacement - MOTOR

1. Remove all wires from the Off/On/Start switch, motor, and motor mounting plate.

2. The entire wiring harness must be fed into the bottom

FRANKLIN MOTOR

MARATHON MOTOR

FIG. 16 MOTOR WIRING

WHI/BLK to Snubber

GRN to Chassis Ground

YEL to Snubber

WHI/BLK to Snubber YEL to Snubber WHI/ BLU to Snubber WHI/BLK to Cordset

WHI/BLU to Relay GRN to Chassis Ground

P621

41545 070518

Page 27

4 5

SERVICE (Cont.)

MOTOR (Models G9, G9-2, MHG)

FIG. 17 MOTOR AND GRIND CHAMBER

1. Indicator Adjustment Cap & Decal

2. Adjusting Screw

3. Burr Housing Cap

4. Rotor Cup

5. Shear Plate

Removal and Replacement - GRIND CHAMBER

1. Refer to the illustration above and remove the two 1/4”-20, hex head screws holding the burr housing cap(3) to the burr housing; carefully remove the burr housing cap. Inspect the adjusting screw(2) to see if the thrust plug is worn.

Replace if excessively worn or damaged.

2. Carefully remove rotor cup(4), shear plate(5), and burr rotor(6) from the grinder. Inspect the shear plate and burr(8) for wear.

Replace if excessively worn or damaged.

3. Remove and inspect stationary burr(9) for wear.

Replace if excessively worn or damaged.

P1311

6. Rotor

7. Spring

8. Burr (Rotating)

9. Burr (Stationary)

4. Inspect the grind chamber and remove any foreign materials. The burrs will not properly seat in the chamber if any material or coffee particles remain.

5. Reinstall the stationary burr, spring, burr rotor, shear plate, rotor cup, and burr housing cap to the burr housing.

6. Refer to ADJUSTMENTS in the Installation and Operating Manual to vary the grind dispensed.

NOTE: Burrs must be replaced as a set.

41545 122209

Page 28

SERVICE (Cont.)

RSE FI

ARSE

SNUBBER (Models G9, G9-2, MHG)

WHI/ BLU to Snubber WHI/BLU to Relay

WHI/BLK to Cordset (120V models) RED/BLK to Cordset (230V models)

P611

FIG. 18 SNUBBER

Location: The snubber is located at the back of the motor attached to the right side of the wiring harness.

Removal and Replacement:

1. Remove snubber wires from the motor terminals.

2. Cut the ties holding snubber to the wiring harness.

3. Refer to the following illustration when reconnecting the wires.

4. Fasten snubber to the wiring harness using new ties.

FRANKLIN MOTOR

MARATHON MOTOR

FIG. 19 SNUBBER

WHI/BLK to Snubber GRN to Chassis Ground YEL to Snubber

WHI/BLK to Snubber YEL to Snubber

WHI/ BLU to Snubber WHI/BLK to Cordset

WHI/BLU to Relay

GRN to Chassis Ground

P621

41545 122209

Page 29

SERVICE (Cont.)

Press the hidden

Grinder Scale (Model G9WD only)

CALIBRATION

1. Place empty funnel into funnel rails.

2. Press and hold the right hidden (copyright) button until the “MACHINE TYPE” menu appears. (See level 2

programming)

3. Press the middle button under the screen until the “CALIBRATE SCALES?” menu appears.

4. Press the right button under “YES” in the “CALIBRATE SCALES?” screen.

5. Press the middle button under “TARE”.

6. When the “PLACE 8oz” screen appears, remove the funnel, and place a calibrated 8oz weight in the funnel.

Replace the funnel in the funnel rails.

7. Press the middle button under “DONE”. The grinder will go through a calibration, and then return to the main

screen when calibration is complete.

8. Remove the weight from the funnel. The grinder is now ready calibrated and ready for normal operation.

(copyright) button for

3 seconds in “ENTER

LEVEL 2 FUNCTIONS:

PASSWORD” menu.

MACHINE TYPE

WEIGHT TIMED

CALIBRATE SCALE ?

NO YES

MODIFY MAXBIT

NO SPREAD? YES

SHUToff Bits ##

(-) DONE (+)

MaxBits read #

(-) DONE (+)

Finished, returns

to main screen

CALIBRATION OZ

(-) 8.00 (+)

CALIBRATE SCALES EXIT TARE

PLEASE WAIT TARE

PLACE 8.00 oz EXIT DONE

PLEASE WAIT CAL

41545 072710

Page 30

OFF/STOP

START

1. Place filter into funnel and slide funnel into rails.

2. Momentarily push the switch to "START" position.

3. Grinder will automatically stop when finished.

SERVICE (Cont.)

Capacitor (Model LPG only)

P1745.1

FIG. 20 CAPACITOR

Location: The capacitor is located inside the front panel of the hopper housing next to the Off/On/Start switch.

Removal and Replacement:

1. Disconnect the capacitor wiring harness from the main wiring harness.

2. Remove the #8-32 nut attaching the capacitor and mounting bracket to the hopper housing and remove the bracket, shield, capacitor and capacitor wiring harness as an assembly.

3. Disconnect the wiring harness from the capacitor and attach it to a new capacitor making sure the black wire attaches to the positive (+) pole, FIG. 21.

4. Wrap the shield around the capacitor and place into the mounting bracket. Slide the lower tab of the mounting bracket between the wrapper and base and secure in place over the mounting stud with the #8-32 nut.

5. Reconnect the wiring harness to the main wiring harness.

Test Procedure:

1. Disconnect grinder from the power source.

2. Visually inspect the capacitor for leakage. If leakage is visible, replace the capacitor.

3. Connect the grinder to the power source, if the motor does not run, disconnect the capacitor wiring harness from the main wiring harness. If the motor now runs, replace the capacitor.

BLK

FIG. 21 CAPACITOR TERMINALS

WHI/BRN

P1747

41545 070518

Page 31

SERVICE (Cont.)

Circuit Breaker (Models LPG, LPG-2E, FPG, FPG-2 DBC)

Removal and Replacement:

1. Remove the wires from the circuit breaker.

2. Remove the face nut securing circuit breaker to the motor support.

3. Remove circuit breaker.

4. Install new circuit breaker in motor support and secure with face nut.

5. Reconnect the wires.

6. Refer to FIG. 23 when reconnecting the wires.

RED from Motor-LPG-2E BLK from Start Switch-LPG

FIG. 22 CIRCUIT BREAKER

P1036

Location: The circuit breaker is located on the rear of the grinder next to the power cord strain relief bushing. The circuit breaker is not available on Model LPG equipped with capacitor.

Test Procedure:

1. Disconnect grinder from the power source.

2. Remove the wires from the circuit breaker.

3. Check for continuity between the terminals. Continuity must be present between the terminals.

If continuity is present as described the circuit breaker is functioning properly. If continuity is not present as described, press reset button and repeat step #3, if continuity is not present as described, replace the circuit breaker.

BLK from Power Cord

FIG. 23 CIRCUIT BREAKER TERMINALS

P1037

41545 122209

Page 32

SERVICE (Cont.)

Hopper Selector Switch (Model LPG-2E only)

P1029.1

FIG. 24 HOPPER SELECTOR SWITCH

Location: The Hopper Selector Switch is located in the lower left front of the hopper housing.

Test Procedure:

1. Disconnect grinder from the power supply.

2. Remove all wires from the switch terminals.

3. Check that the switch is installed properly, FIG. 25.

4. Place the selector switch in the left position.

5. Check for continuity across the terminals on the rear of the switch.

7. Check for continuity across the terminals on the rear of the switch. Continuity should not be present across terminals in the right position.

If continuity is not present as described, reconnect the wires, the switch is operating properly. If continuity is present replace the switch.

Removal and Replacement:

1. Remove all wires from the switch terminals.

2. Compress the clips inside the front of the housing and gently push the switch through the opening.

3. Push the new switch into the opening and spread the clips to retain the switch in the housing.

4. Refer to Fig. 25 when reconnecting the wires.

WHI to OFF/ON/START Switch BLU to Timer P1-4 (BLU)

If continuity is present as described proceed to #6. If continuity is not present as described, replace the switch.

6. Place the selector switch in the right position.

P1038

FIG. 25 HOPPER SELECTOR SWITCH TERMINALS

(Viewed from rear)

41545 070518

Page 33

SERVICE (Cont.)

G9 SERIES

Hopper Selector Switch (Model G9-2 only)

P594.1

FIG. 26 HOPPER SELECTOR SWITCH

Location: The hopper selector switch is located in the center on the front of the hopper housing.

Test Procedure:

1. Disconnect the grinder from the power source.

2. Remove all wires from the switch terminals.

3. Place the selector switch in the left position. 4 Check for continuity across the center and right

terminals on the rear of the switch.

5. Continuity must not be present across the center and left terminals on the rear of the switch.

6. Check the bottom row, then the top row of terminals.

Removal and Replacement:

1. Remove all wires from the switch terminals.

2. Compress the clips inside the front of the housing and gently push the switch through the opening.

3. Push the new switch into the opening and spread the clips to retain the switch in the housing.

4. Refer to Fig. below when reconnecting the wires.

ORA to Timer P1-6

BLU to Timer P1-8

YEL to Timer P1-1

P787

FIG. 27 HOPPER SELECTOR SWITCH TERMINALS

If continuity is present as described proceed to #7. If Continuity is not present as described replace the switch.

7. Place the selector switch in the right position.

8. Check for continuity across the center and left terminals on the rear of the switch.

9. Continuity must not be present across the center and right terminals on the rear of the switch.

10. Check the bottom row, then the top row.

If continuity is present as described, reconnect the wires, the switch is operating properly. If continuity is not present as described, replace the switch.

41545 122209

Page 34

SERVICE (Cont.)

G9 SERIES

Off/On/Start Switch (Models LPG, LPG-2E, FPG, G-1,G-2,G-3, G9, G9-2, G2 trifecta)

the switch is placed in the “START” (lower) position only. Continuity must not be present in the “OFF” position.

If continuity is present as described, the Off/On/Start switch is operating properly. If continuity is not present as described, replace the switch.

FIG 28 OFF/ON/START SWITCH

P594.1

Location: The Off/On/Start switch is located to the left side on the front of the housing above the upper front inspection panel.

Test Procedure:

1. Unplug the grinder.

2. Remove the black wire from the switch.

3. Check for continuity across the black wire from the Off/On/Start switch and the left blade of the cordset connector (see illustration below).

CORDSET CONNECTOR

Black

Ground

White

Removal and Replacement:

1. Remove all wires from the switch terminals.

2. Compress the clips inside the front wrapper and gently push the switch through the opening.

3. Push the new switch into the opening and spread the clips to retain the switch in the hood.

4. Refer to the following illustration when reconnecting the wires.

VIO to timer P1-2

BLK to Cordset BLK to timer P4-1

WHI/RED timer to P4-6

BLU to SW2 PNK to Intf conn. 2

Grinders with Digital Timer

If continuity is present as described, proceed to #4. If continuity is not present as described, refer to the Wiring Diagrams and check the grinder wiring harness.

4. Remove the remaining wires from the switch.

5. Check for continuity across the left terminals when the switch is placed in both the “ON” (center) and “START” (lower) positions. Continuity must not be present in the “OFF” position.

If continuity is present as described, proceed to #6. If continuity is not present as described, replace the switch.

6. Check for continuity across the right terminals when

VIO to timer P1-2

BLK to Cordset

WHI/RED timer to P4-6 BLK to timer P4-1

BLU to SW2 PNK to Intf conn. 2

Grinders with Analog Timer

P606

FIG 29 OFF/ON/START SWITCH TERMINALS

41545 070518

Page 35

SERVICE (Cont.)

URN

O F F

S T A R T

CARAFE

G9 SERIES

Urn/Carafe Switch (Models G9, G9-2)

4. Place the switch in the “URN” position; check for continuity across the orange and green wire terminals.

If continuity is present as described, the switch is operating properly. If continuity is not present as described, replace the switch.

FIG 30 URN/CARAFE SWITCH

P1300.1

Location: The Urn/Carafe switch is located to the left side on the front of the housing above the upper inspection panel.

Test Procedure:

1. Disconnect the grinder from the power supply.

2. Remove the tan, yellow and green wires from the switch.

3. Place the switch in the “CARAFE” position; check for continuity across the pink and the tan wire terminals, also across the orange and the yellow wire terminals.

If continuity is present as described in both checks, proceed to step 4. If continuity is not present as described in one or both of the checks, replace the switch.

Removal and Replacement:

1. Remove all the wires from the switch terminals.

2. Compress the clips inside the housing and gently push the switch through the opening.

3. Push the new switch into the opening and spread the clips to hold the switch in the housing.

4. Refer to the illustration below when reconnecting the wires.

TAN

PNK

YEL

ORA

GRN

P1318

FIG 31 URN/CARAFE SWITCH TERMINALS

41545 070518

Page 36

SERVICE (Cont.)

Batch Selector Switch (Model FPG)

P2947.1

FIG 32 BATCH SELECTOR SWITCH

Location: The batch selector switch is located on the left front of the hopper housing.

Test Procedure:

1. Disconnect the grinder from the power source.

2. Open hopper lid and loosen four screws inside the hopper and remove hopper.

3. The ORN wire is connected to the common terminal "a" on the rear of the switch.

4. The TAN wire for the SMALL selection is connected to terminal 1, the GRY wire for the MEDIUM selection is connected to terminal 2, the PNK wire for the LARGE selection is connected to terminal 3.

5. Remove all wires from the switch terminals.

6. Set the switch in the SMALL position. Check for continuity between terminal "a" and terminal 1.

7. Set the switch in the MEDIUM position. Check for continuity between terminal "a" and terminal 2.

8. Set the switch in the LARGE position. Check for continuity between terminal "a" and terminal 3.

If continuity is present at all positions, the switch is operating properly. If continuity is not present at any position, replace the switch.

9. Refer to the Fig. 33 when reconnecting wires.

Removal and Replacement:

1. Disconnect the grinder from the power source.

2. Remove the four 8-32 screws attaching the rear access panel and move aside.

3. Remove all wires from the batch selector switch terminals.

4. Loosen the setscrew on the switch knob and remove the knob.

5. Remove the nut and lock washer attaching the switch to the hopper housing.

6. Remove the 6-32 screw attaching the switch to the hopper housing.

7. Remove and discard the old switch.

8. Refer to Fig 33 when reconnecting wires.

ORN to TIMER

TAN to POTENTIOMETER GRY to POTENTIOMETER PNK to POTENTIOMETER

FIG 33 BATCH SELECTOR SWITCH TERMINALS

P787

41545 070518

Page 37

SMALL MEDIUM LARGE

SERVICE (Cont.)

Potentiometer (Model FPG)

FIG 34 POTENTIOMETERS

Location: The potentiometer switches are located on the top rear of the hopper housing.

Test Procedure:

1. Disconnect the grinder from the power source.

2. Open hopper lid and loosen four screws inside the hopper and remove hopper.

3. Disconnect the BRN wire from the control board.

4. Disconnect the PNK, GRY, and TAN wires from the front selector switch.

5. Connect an ohmmeter to the BRN wire. Connect the other lead from the meter to the TAN wire. Turn the knob for the SMALL potentiometer all the way counterclockwise. The meter should read <3K ohm. Turn the knob all the way clockwise, the meter should read between 94K and 116K ohms.

6. Connect an ohmmeter to the GRY wire. Connect the other lead from the meter to the TAN wire. Turn the knob for the MEDIUM potentiometer all the way counterclockwise. The meter should read <3K ohm. Turn the knob all the way clockwise, the meter should read between 94K and 116K ohms.

7. Connect an ohmmeter to the TAN wire. Connect the other lead from the meter to the TAN wire. Turn the knob for the LARGE potentiometer all the way counterclockwise. The meter should read between

13.5K and 19.5K ohms. Turn the knob all the way clockwise, the meter should read between 108K and 132K ohms.

P2946

If continuity is present at all positions, the potentiometer switches are operating properly. If continuity is not present at any position, replace the potentiometer switches.

8. Refer to Fig 35 when reconnecting wires.

Removal and Replacement:

1. Disconnect the grinder from the power source.

2. Remove the four 8-32 screws attaching the rear access panel and move aside.

3. Disconnect three wires to the batch selector switch and the one wire to the timer.

4. Loosen the setscrews on the switch knobs and remove the knobs.

5. Remove the three nuts and lock washers attaching the switches to the rear access panel.

6. Inspect and replace the adhesive backed sponge washers on the rear access panel if necessary.

7. Install the new potentiometer switches and tighten the lock washers and nuts.

8. Replace the knobs and tighten the setscrews.

9.Refer to Fig. 35 when reconnecting wires.

BRN to BRN WIRE

at TIMER

PNK to BATCH SELECTOR SWITCH GRY to BATCH SELECTOR SWITCH

TAN to BATCH SELECTOR SWITCH

FIG 35 POTENTIOMETER TERMINALS

41545 122209

Page 38

SERVICE (Cont.)

CLEANING LEVER

GROUND COFFEE

TURKISH

Rectiﬁer (Models G1 MD, FPG-2 DBC)

Removal and Replacement:

1. Disconnect the wires from the rectiﬁer.

2. Remove the #10-32 screw securing the rectiﬁer to the motor mounting bracket.

3. Remove the rectiﬁer and discard.

4. Install new rectiﬁer on the rear of the motor mounting bracket and secure with a #10-32 screw.

5. Refer to Fig. 37 and reconnect the wires.

BLK from Motor (+)

BLU to BLU from Motor (AC)

WHI from Main Harness (AC)

RED from Motor (-)

FIG. 36 RECTIFIER

P1706

Location: The rectiﬁer is located inside the grinder housing mounted on the rear of the motor mounting bracket for models G1 MD and on the component mounting bracket for model FPG-2 DBC.

Test Procedures:

1. Disconnect the grinder from the power source.

2. Remove the red wire and the black wire from the rectiﬁer.

3. Check the voltage across the (+) and (-) terminals on the rectiﬁer with a voltmeter. Connect the grinder to the power source and start the grinder motor. The indication must be approximately 108 volts dc.

4. Disconnect the grinder from the power source.

If voltage is present as described, the rectiﬁer is operating properly. If voltage is not present as described, refer to the grinder wiring diagram and check the grinder wiring harness.

FIG. 37 RECTIFIER TERMINALS

P1381

41545 122209

Page 39

SERVICE (Cont.)

MINUTES

BUNN-O-MATIC

P/N 2620- 120 VAC

Relay (Early Model G-9)

Single set timer shown Multi set timer (Urn/Carafe) similar

FIG 38 RELAY

Location:

The relay is located on the timer bracket in the grinder base. The bracket can be removed by loosening the two 8-32 screws beneath the timer dial.

Test Procedure:

1. Disconnect the grinder from the power supply.

2. Check the voltage across the white/red and white/

green wires of the relay coil with a voltmeter when the Off/On/Start switch is placed in the “START” (right) position and released. Connect grinder to

the power supply. The indication must be: (a) 120 volts ac for two wire 120 volt models (b) 240 volts ac for two wire 240 volt models for

the approximate setting on the timer.

3. Disconnect the grinder from the power supply.

P1312

the relay contacts.

5. Check for continuity across the relay contacts when the Off/On/Start switch is placed in the “START” (right) position and released. Connect grinder to the power supply. Continuity must be present for the approximate setting on the timer.

6. Disconnect the grinder from the power supply.

If continuity is present as described, reconnect the white/red and white/blue wires, the relay is operating properly.

If continuity is not present as described, replace the relay.

Removal and Replacement

1. Remove all wires from the relay terminals.

2. Remove the 6-32 screw fastening the relay to the

timer bracket.

3. Mount the new relay to the timer bracket and

tighten the screw.

4. Refer to the illustration below when reconnecting

the wires.

WHI/BLU to Motor L1

WHI/GRN to Timer L4

If voltage is present as described, reconnect the white/red and white/green wires to the relay coil, and proceed to step 4.

If voltage is not present as described, refer to the Wiring Diagrams and check the grinder wiring harness.

4. Remove the white/red and white/blue wires from

WHI/RED to Timer TL1

FIG 39 RELAY TERMINALS

P610

41545 122209

Page 40

SERVICE (Cont.)

CLEANING LEVER

GROUND COFFEE

TURKISH

Relay (Models G1, G2, G3, G2 trifecta)

P1704

FIG.40 RELAY

Location: The relay is located on the grinder base inside the lower housing.

5. Check the voltage across the white wire or red/ black on terminal B and either white/red wire with a voltmeter. Place the Off/On/Start in either the “ON” (center) position or “START” (lower) position. Connect the grinder to the power source. The indication must be:

a. 120 volts ac for two wire 120 volt models. b. 230 volts ac for two wire 230 volt 50 Hz models. c. 240 volts ac for two wire 240 volt 60 Hz models.

6. Disconnect the grinder from the power source.

7. Check the voltage across terminal B and the remaining white/red wire with a voltmeter. Place the Off/On/Start switch in either the “ON” (center) position or “START (lower) position. Connect the grinder to the power source. The indication must be:

a. 120 volts ac for two wire 120 volt models. b. 230 volts ac for two wire 230 volt 50 Hz models. c. 240 volts ac for two wire 240 volt 60 Hz models.

8. Disconnect the grinder from the power source.

If voltage is present as described, proceed to #9. If voltage is not present as described, refer to the Wiring Diagrams and check the grinder wiring harness.

Test Procedure:

1. Disconnect the grinder from the power source and place a coffee bag behind the dispense chute.

2. Check the voltage across the white/orange and white or red/black wires on terminals A & B of the relay with a voltmeter. Hold the Off/On/Start switch in the “START” (lower) position and connect the grinder to the power source. The indication must be:

a. 120 volts ac for two wire 120 volt models. b. 230 volts ac for two wire 230 volt models. c. 240 volts ac for two wire 240 volt models

3. Disconnect the grinder from the power source.

If voltage is present as described, proceed to #4. If voltage is not present as described, refer to the Wiring Diagrams and check the grinder wiring harness.

4. Remove the white/red wires from relay contacts 7 & 9.

9. Remove the white/violet wire from terminal 6 and white/blue wire from terminal 4.

10. Check for continuity across terminals 7 & 4. Connect the grinder to the power source. Continuity must be present when the Off/On/Start switch is momentarily placed in the “START” (lower) position and a bag is in place behind the coffee dispense chute.

11. Check for continuity across terminals 9 & 6. Connect the grinder to the power source. Continuity must be present when the Off/On/Start switch is momentarily placed in the “START” (lower) position and a bag is in place behind the coffee dispense chute.

12. Disconnect the grinder from the power source.

If continuity is present as described, reconnect the wires, the relay is operating properly. If continuity is not present as described, replace the relay.

41545 072710

Page 41

SERVICE (Cont.)

RELAY (cont.)

Removal and Replacement (120 Volt and 240V 60 Hz Models):

1. Remove the wires from the relay terminals.

2. Remove the two #6-32 screws securing the relay bracket w/relay to the grinder base and remove bracket and relay as an assembly.

3. Remove the #6-32 screw securing the relay to the bracket and remove relay and discard.

4. Install new relay to the mounting bracket using one #6-32 screw,

5. Mount the new relay w/bracket to the grinder base using two #6-32 screws.

6. Refer Fig. 41 when reconnecting the wires.

Removal and Replacement (230 volt 50 Hz Models):

1. Remove the wires from the relay terminals.

2. Remove the two #6-32 screws securing the relay to the grinder base.

3. Remove relay and discard.

4. Install new relay to the grinder base using two #6-32 screw.

5. Refer Fig. 41 when reconnecting the wires.

WHI/VIO from Switch to Relay

K-6

WHI/BLU from Motor to Relay K-4

WHI/RED from Switch to Relay K-7 & K-9

120V AND 240 VOLT AC MODELS

WHI/VIO from Switch to Relay

K-6

WHI/BLU from Motor to Relay K-4

WHI/RED from Switch to Relay K-7 & K-9

WHI to Main Harness 120V (B) RED/BLK to Main Harness 240V (B)

WHI/ORN from Bag Sensor Switch (A)

WHI to Main Harness 120V (B) RED/BLK to Main Harness 240V (B)

WHI/ORN from Bag Sensor Switch (A)

120 VOLT DC MODELS

WHI to Main Harness 120V(0) RED/BLK to Main Harness 240V(0)

WHI/RED from Switch to Relay K-2 & K-8

120V AND 240 VOLT AC MODELS

WHI to Main Harness (0)

WHI/RED from Switch to Relay K-2 & K-8

WHI/ORN from Bag Sensor Switch(1)

WHI/VIO from Switch to Relay K-6

WHI/BLU from Motor to Relay K-4

WHI/ORN from Bag Sensor Switch(1)

WHI/VIO from Switch to Relay K-6

WHI/BLU from Motor to Relay K-4

120 VOLT DC MODELS

WHI/VIO from Switch to Relay K-6

WHI/BLU from Motor to Relay K-4

WHI/RED from Switch to Relay K-7 & K-9

RED from Main Harness (B)

WHI/ORN from Bag Sensor Switch (A)

230 VOLT AC 50 Hz MODELS

EARLY MODELS

RED from Main Harness (0)

WHI/RED from Switch to Relay K-2 & K-8

P1707

FIG. 41 RELAY TERMINALS

WHI/ORN from Bag Sensor Switch(1)

WHI/VIO from Switch to Relay K-6

WHI/BLU from Motor to Relay K-4

230 VOLT AC 50 Hz MODELS

P3696

LATE MODELS

41545 122209

Page 42

SERVICE (Cont.)

Relay (Models MHG, FPG-2 DBC, Late Model G-9, G9-2, G9-2 DBC)

Removal and Replacement

1. Disconnect the grinder from the power supply.

2. Remove all wires from the relay terminals.

3. Remove the two 8-32 screws attaching the relay to the mounting bracket.

4. Refer to Fig 43 when connecting relay wires.

FIG 42 RELAY

Location: The relay is located either on the timer bracket or on the component mounting bracket in the grinder base. The bracket can be removed by loosening the two 8-32 screws beneath the timer dial.

Test Procedure:

1. Disconnect the grinder from the power supply.

2. Access the relay and remove the wires from all terminals.

3. With an ohmmeter, check for continuity between the 0 and 1 terminals.

4. With an ohmmeter, check that there is an open circuit between terminals 2 and 4, and between terminals 6 and 8.

FIG 43 RELAY TERMINALS

If continuity is present as described, reconnect the wires, the relay is operating properly. If continuity is not present as described, replace the relay.

41545 122209

Page 43

SERVICE (Cont.)

Hopper Slide Plates (Models G9-2, G9-2 DBC)

A. Solenoid Coil B. Fiber Washer C. Spring D. Spring Retaining Washer E. Solenoid Plunger F. Snap Ring G. Short Link H. Long Link I. Slide Plate J. Pivot Pin K. Stop Block L. Solenoid Mounting Plate M. Solenoid Limit Thermostat

P608

FIG 44 HOPPER SLIDE PLATES

Location: The slide plates are located on the solenoid mounting plate immediately beneath the hopper openings.

The slide plates must always remain ﬂat for proper operation.

Test Procedure: With the solenoid mounting plate attached to the hopper, push the solenoid plunger into the coil. The slide plate must move freely in the assembly and snap closed when the plunger is released. Repeat for the other slide plate. If the slide plates move as described, they are operating correctly. If the slide plates do not move as described, the problem may be in any one or more of the linkage pieces, springs, slide plates, and/or the solenoid mounting plate. Disassemble the solenoid mounting plate assembly and inspect all components for free movement.

Replace if excessively worn or damaged.

Removal and Replacement:

1. Remove the hopper from the grinder.

2. Remove six slotted head screws holding the solenoid mounting panel to the hopper.

3. The slide plate with attached linkage can be lifted off the pivot pin and removed with the solenoid plunger.

4. Refer to the illustration above when reassembling the components.

5. Inspect the slide plates after reassembly.

They must move freely.

41545 122209

Page 44

SERVICE (Cont.)

Hopper Slide Plates (Models MHG)

A. Solenoid Coil B. Slide Gate C. Slide Gate Support D. Collector E. Collector Seal F. Solenoid Mounting Plate

FIG 45 HOPPER SLIDE PLATES

Location: The slide plates are located on the solenoid mounting plate immediately beneath the hopper openings.

The slide plates must always remain ﬂat for proper operation.

Replace if excessively worn or damaged.

Removal and Replacement:

1. Remove the hopper from the grinder.

2. Remove six slotted head screws holding the solenoid mounting panel to the hopper.

3. The slide plate with attached linkage can be lifted off the pivot pin and removed with the solenoid plunger.

4. Refer to the illustration above when reassembling the components.

5. Inspect the slide plates after reassembly.

They must move freely.

41545 122209

Page 45

SERVICE (Cont.)

Solenoids (Models MHG, FPG-2 DBC, LPG-2, G9-2, G9-2 DBC)

wires, and proceed to #7. If continuity is not present as described, replace the limit thermostat.

7. Check the solenoid for coil action when the control

switch is momentarily pressed to the “START” (lower) position and released. Plug-in the grinder. Listen carefully in the vicinity of the solenoid for a “clicking” sound as the coil magnet attracts and after a period of time, repels the plunger.

8. Unplug the grinder.

If the sound is heard as described and the plunger

P608

FIG 46 SOLENOIDS

Location: The solenoids are located on the mounting plate immediately beneath the hoppers.

Test Procedure:

1. Unplug the grinder.

2. Connect a voltmeter across the left or right solenoid coil terminals. Plug-in the grinder. Momentarily press the Off/On/Start switch to “START” (lower) position and release (hopper selector switch must be corresponding to the suspect solenoid). The indication must be 120 volts ac for 120V models and 230 volts ac for 230V models.

3. Unplug the grinder.

If voltage is present as described, proceed to #4. If voltage is not present as described, refer to the Wiring Diagram and check the grinder wiring harness.

4. Separate the connectors on the white/brown wires of the solenoids from the connectors on the grinder wiring harness (RED/BLK) and the limit thermostat.

5. Check for continuity across the white/brown wires on the suspect solenoid coil.

If continuity is present as described, reconnect the white/brown wires to the grinder wiring harness, and proceed to #6. If continuity is not present as described, replace the solenoid.

6. Check for continuity across the terminals of the limit thermostat.

If continuity is present as described, reconnect the

remains unable to move or move freely, refer to the slide plate section. If the sound is not heard as described, replace the solenoid.

Removal and Replacement:

1. Remove the hopper assy from the grinder.

2. Remove the four 8-32 slotted-head screws holding the solenoid coil to the solenoid panel.

3. Feed the white/brown wires through the hole in the solenoid mounting plate and loosely install the new solenoid coil.

4. Look through the collector on the bottom of the assy and adjust the slide plate travel distance when installing the solenoid coil.

5. Push the solenoid plunger into the solenoid coil with your hand while moving the coil forward or backward in its mounting holes.

6. Securely tighten the mounting screws when the slide plate appears to have no metal showing in the front or back of the hopper hole.

7. Refer to the following illustration when reconnecting the wires.

RED/BLK to

Right Solenoid RED/BLK to Timer P4-7

WHI/YEL to Timer P4-5

Right

Left

FIG 47 SOLENOID TERMINALS

RED/BLK to Left Solenoid

WHI/ORN to Timer P4-4

P612

41545 122209

Page 46

SERVICE (Cont.)

Timer (Model LPG-2E)

P1061

FIG. 48 TIMER Location: The timer is located inside the hopper housing just behind the left solenoid.

Test Procedure:

1. Disconnect grinder from the power source.

2. Insert the leads of a voltmeter set to read at least

120 volts AC, along side the red wire (terminal 8) and the white wire (terminal 2) of the harness plug. Place the Off/On/Start switch in the “ON” center position. Connect the grinder to the power source. The indication must be 120 volts AC.

3. Disconnect the grinder from the power source.

7. Place the hopper selector switch in the right position.

8. Insert the leads of a voltmeter set to read at least 120 volts AC, along side the red wire (terminal 8) and the violet wire (terminal 9) of the harness plug. Place the Off/On/Start switch in the “START” lower position. Connect the grinder to the power source. The indication must be 120 volts AC for the set gate time and return to 0 volts.

9. Disconnect the grinder from the power source.

If voltage is present as described, proceed to step#10. If voltage is not present as described, replace the timer.

10. Insert the positive (+) lead of a volt meter set to read at least 120 volts DC, along side the black wire (terminal 7) of the harness plug and insert the negative (-) lead along side the white/black wire (terminal 6) of the harness plug. Place the Off/On/Start switch in the “START” lower position. Connect the grinder to the power source. The indication must be 120 volts DC for the set gate time plus clean out time and return to 0 volts.

If voltage is present as described the timer is operating properly. If Voltage is not present as described, replace the timer.

If voltage is present as described, proceed to step #4. If voltage is not present as described, refer to the wiring diagram and check the grinder wiring harness.

4. Place the hopper selector switch in the left position.

5. Insert the leads of a voltmeter set to read at least 120 volts AC, along side the red wire (terminal 8) and the orange wire (terminal 10) of the harness plug. Place the Off/On/Start switch in the “START” lower position. Connect the grinder to the power source. The indication must be 120 volts AC for the set gate time and return to 0 volts.

6. Disconnect the grinder from the power source.

If voltage is present as described, proceed to step #7. If voltage is not present as described, replace the timer.

Removal and Replacement:

1. Disconnect the main wiring harness plug from the terminal block on the timer.

2. Remove the two timer dial knobs located on the rear panel of the grinder.

3. Remove nut and internal tooth lock washer securing dials to the rear panel.

4. Loosen the two #8-32 pan head screws securing the timer and timer mounting bracket to the motor support plate.

5. Remove timer and timer mounting bracket from the grinder.

6. Remove the four #6-32 keps nuts securing the timer to the mounting bracket. Leave the four spacers on the mounting bracket studs.

7. Place new timer over the studs on the mounting bracket and secure with four #6-32 keps nuts.

41545 070518

Page 47

SERVICE (Cont.)

Timer (Model LPG-2E)

8. Slip timer and timer mounting bracket under the two screws on the motor support plate and tighten screws.

9. Locate the left and right timer dials in their proper place on the rear panel and secure with nuts and internal tooth lock washers.

10. Place timer knobs on timers.

11. Reconnect harness plug to the terminal block on the timer board.

Timer (Models LPG, FPG)

1. Disconnect grinder from the power source.

2. Insert the leads of a voltmeter set to read at least 120 volts AC, along side the red wire (terminal 1) and the white/black wire (terminal 2) of the harness plug. Place the Off/On/Start switch in the “ON” center position. Connect the grinder to the power source. The indication must be 120 volts AC for 120 volt models, 100 volts for 100 volt models, and 230 volts for 230 volt models.

3. Disconnect the grinder from the power source.

If voltage is present as described, proceed to step #4. If voltage is not present as described, refer to the wiring diagram and check the grinder wiring harness.

4. Insert the positive (+) lead of a volt meter set to read at least 120 volts DC (157 volts DC on units with capacitor), along side the black wire (terminal

3) of the harness plug and insert the negative (-) lead along side the white wire (terminal 6) of the harness plug. Place the Off/On/Start switch in the “START” lower position. Connect the grinder to the power source. The indication must be 120 volts DC for 120 volt models (157 volts DC on units with capacitor), 100 volts for 100 volt models, and 230 volts for 230 volt models for the set time and return to 0 volts.

5. Disconnect the grinder from the power source.

P1748.1

FIG. 49 TIMER

Location: The timer is located inside the rear access panel. Adjustments can be made by removing the 2” hole plug.

Test Procedure:

If voltage is present as described the timer is operating properly. If Voltage is not present as described, replace the timer.

41545 070518

Page 48

SERVICE (Cont.)

MINUTES

BUNN-O-MATIC

P/N 2620- 120 VAC

MINUTES

BUNN-O-MATIC

P/N 2620- 120 VAC

MINUTES

BUNN-O-MATIC

P/N 2620- 120 VAC

Timer (Model G9)

Single set timer shown Multi set timer (Urn/Carafe) similar

FIG 50 TIMER Location: The timer is located on the timer bracket in the grinder base. The bracket can be removed by loosening the two 8-32 screws beneath the timer dial(s).

Test Procedure:

1. Disconnect the grinder from the power supply.

2. Check the voltage across terminals TL1 & TL2 with

a voltmeter when the “Off/On/Start switch is placed in the “START” (right) position and released. Connect grinder to the power supply. The indication

must be: (a) 120 volts ac for two wire 120 volt models. (b) 240 volts ac for two wire 240 volt models.

3. Disconnect the grinder from the power supply.

If voltage is present as described, proceed to step 4. If voltage is not present as described, refer to the Wiring Diagram and check the grinder wiring harness.

P1312

6. Check the voltage across terminals TL1 and TL4 with a voltmeter when the Off/On/Start switch is placed in the “START” (right) position and released. Connect grinder to the power supply. The indication must be:

(a) 120 volts ac for two wire 120 volt models. (b) 240 volts ac for two wire 240 volt models.

7. Disconnect the grinder from the power supply.

If voltage is present as described, the timer is operating properly. Refer to the Adjustments section to vary the amount dispensed. If voltage is not present as described, replace the timer.

Removal and Replacement:

1. Remove all wires from the timer terminals.

2. Remove the four 6-32 screws and nuts holding the

circuit board to the timer bracket.

3. Remove the two 6-32 screws and nuts holding the

dial plate to the timer bracket.

4. Install the new dial plate and circuit board to the

timer bracket.

5. Refer to the illustration below when reconnecting

the wires.

6. Refer to the Adjustments section to vary the amount

dispensed.

WHI/RED to Relay N.O.

WHI/RED to Off/On/Start Switch

WHI to Cordset (120 v) RED/BLK to Cordset (240 v)

4. Remove the white/orange and white/yellow wires from terminals TL3 & TL5.

5. Check for continuity across the white/orange and white/yellow wires when the Off/On/Start switch is placed in the “START” (right) position.

If continuity is present as described, reconnect the white/orange wire to terminal TL3 and the white/yellow wire to terminal TL5, and proceed to step 6. If continuity is not present as described, refer to the Wiring Diagram and check the grinder wiring harness.

WHI/ORA to Off/On/Start Switch

WHI/GRN to Relay Coil

WHI/YEL to Off/On/Start Switch

Single set timer shown Multi set timer (Urn/Carafe) connections are the same

FIG 51 TIMER TERMINALS

P1313

41545 122209

Page 49

SERVICE (Cont.)

Timer (Model G9-2)

)

s d n

c e S

( E

TIM

E S N

a e r

c e

AY L

P IS D

e s

nutes

e r c

for 5 m

ted

adj

splayed i d

ll be

only be

s displa

er can

readout

Rea

le hi

WARNING

HAZARDOUS VOLTAGE

R E

G N I

N I

M E

OR F

Digital Timer

IME

5 2

)

PENS

3.2

4.4

H G I H

30 0 1

OFF

6 2

H G I R

H IG

LEF

F F O

VOLTAGE

WARNING

ARDOUS

HAZ

R E D

N I

M E R

NPLU

R O

Analog Timer

FIG 52 TIMER

Location: The timer is located in the grinder base.

Test Procedure:

1. Unplug the grinder.

2. Connect a voltmeter across contacts 1 & 2 of the larger connector (P4) on the timer board. Plug-in the grinder. The indication must be 120 volts ac for 120V models and 230 volts ac for 230V models.

3. Unplug the grinder.

4. Connect a voltmeter across contacts 2 & 6 of the larger connector (P4) on the timer board. Plug-in the grinder. When the control switch is in any position except “OFF” (center), the indication must be 120 volts ac for 120V models and 230 volts ac for 230V models.

5. Unplug the grinder.

If voltage is present as described, proceed to #6. If voltage is not present as described, refer to the Wiring Diagram and check the grinder wiring harness.

P613

6. Connect a voltmeter across contacts 3 & 7 of the larger connector (P4) on the timer board. Plug-in the grinder. Momentarily press the Off/On/Start switch to “START” (lower) position and release. The indication must be 120 volts ac for 120V models and 230 volts ac for 230V models.

7. Unplug the grinder.

If voltage is present as described, proceed to #8. If voltage is not present as described, replace the timer.

8. Connect a voltmeter across contacts 4 & 7 of the larger connector (P4) on the timer board. Plug-in the grinder. Place the hopper selector switch to the left position. Momentarily press the Off/On/ Start switch to the “START” (lower) position and release. The indication must be 120 volts ac for 120V models and 230 volts ac for 230V models and should remain for the approximate timer setting.

9. Unplug the grinder.

If voltage is present as described, proceed to #10. If voltage is not present as described, replace the timer.

10. Connect a voltmeter across contacts 5 & 7 of the larger connector (P4) on the timer board. Plug-in the grinder. Place the hopper selector switch to the right position. Momentarily press the Off/On/ Start switch to the “START” (lower) position and release. The indication must be 120 volts ac for 120V models and 230 volts ac for 230V models and should remain for the approximate timer setting.

11. Unplug the grinder.

If voltage is present as described, the timer is operating properly. If voltage is not present as described, replace the timer.

Removal and Replacement:

1. Separate the grinder wiring harness connectors from the timer circuit board.

2. Remove the relay from the timer bracket.

3. Attach the relay to the new timer bracket.

4. Refer to the following illustration when reattaching the connectors.

5. Refer to the Adjustments section to reset the volume dispensed.

41545 122209

Page 50

SERVICE (Cont.)

Control Board (Model MHG)

FIG 53 CONTROL BOARD

Location:

The control board is located on the component mounting bracket mounted to the grinder base inside the front access panel. The bracket can be removed by loosening the two 8-32 screws securing the bracket to the grinder base.

Test Procedure:

1. Press and hold the upper right hidden button to

enter the Programming menus.

2. Scroll to SERVICE TOOLS menu, and press the

button under "YES".

3. Press "YES" under TEST OUTPUTS and

proceed,through the menus to test the left and right gates, and the grinder motor.

4. Then scroll to the TEST FREQUENCY menu and

press the button under "YES".

5. Observe the left, right and center frequency

screens, they should read between 124.0 and

126.0 khz.

6. Should any of the outputs or frequency tests fail,

ﬁrst check the continuity of the wiring between the component and the control board. Then test the individual component before replacing the control board.

Removal and Replacement

1. Disconnect the grinder from the power supply.

2. Remove the front access panel.

3. Remove all wires from the control board terminals.

4. Remove the bracket and control board by removing the two 8-32 screws securing the bracket to the grinder base.

5. Remove the six 8-32 screws attaching the control board the component bracket.

6. Remove the six spacers from the old control board and discard the control board.

7. Install the six spacers to the new control board

8. Attach the control board to the component bracket using the six screws previously removed.

9. Position the bracket and control board assembly in the grinder base and secure with the two 8-32 screws.

10. Reconnect the wires to the control board.

J16

J13

MOV4

TH3

MOV3

TH2

MOV2

TH1

MOV1

J12

FIG 54 CONTROL BOARD TERMINALS

41545 070518

Page 51

SERVICE (Cont.)

Control Board (Models FPG-2 & G9-2 DBC)

Removal and Replacement

1. Disconnect the grinder from the power supply.

2. Remove the rear access panel.

3. Disconnect all harness plugs from the control board.

4. Remove the two knurled nuts from the bottom of the control board and remove the control board.

5. Refer to Fig 56 when connecting wires.

MOV4 MOV3 MOV2 MOV1

TH1

TH2

TH3

FIG 55 CONTROL BOARD

Location:

The control board is located inside the hopper

housing behind the membrane switch.

Test Procedure:

1. Check the continuity of the wiring between the component and the control board.

2. Test the individual components before replacing the control board.

FIG 56 CONTROL BOARD TERMINALS

J10 J7

41545 070518

Page 52

SERVICE (Cont.)

Membrane Switches (Model MHG only)

FIG 57 MEMBRANE SWITCH

Location: The membrane switch is located on the front of the hopper housing.

Removal and Replacement

1. Disconnect the grinder from the power supply.

2. Remove the rear access panel.

3. Disconnect the membrane switch harness from the control board.

4. Carefully peel the membrane switch from the front of the switch bezel.

5. Remove any excess adhesive from the bezel surface.

6. Remove the backing from the new membrane switch.

7. Feed the membrane switch harness through the opening and apply the new membrane switch to the switch bezel.

8. Connect the switch harness to J9 on the display board.

Test Procedure:

1. Press and hold the right hidden button to enter programming.

2. Scroll through the menus to Service Tools and select YES.

3. Select YES at Test Outputs and scroll through to Test Switches by pressing NEXT.

4. Follow the chart below to test all switches.

If any of the switches indicate a fault, replace the membrane switch.

TEST SWITCHES?

NO YES

PRESS RIGHT

HIDDEN TO EXIT

PRESSING ANY BUTTON

NOTHING PRESSED

EXCEPT THE RIGHT HIDDEN

BUTTON WILL DISPLAY

THE BUTTON NAME

ON THE SCREEN

TEST FREQUENCY?

NO YES

41545 070518

Page 53

SERVICE (Cont.)

Membrane Switches (Models FPG-2 & G9-2 DBC)

GRINDER

SECONDS

CAUTION

HAZARD.

PERSONAL INJURY

KEEP FINGERS AND FOREIGN OBJECTS OUT OF HOPPER

OR CHUTE OPENING.

P13461.1

FIG 58 MEMBRANE SWITCH

Removal and Replacement

1. Disconnect the grinder from the power supply.

2. Remove the rear access panel.

3. Disconnect the membrane switch harness from the control board.

4. Carefully peel the membrane switch from the front of the switch bezel.

5. Remove any excess adhesive from the bezel surface.

6. Remove the backing from the new membrane switch.

7. Feed the membrane switch harness through the opening and apply the new membrane switch to the switch bezel.

8. Connect the switch harness to the control board.

Location: The membrane switch is located on the front of the hopper housing.

Test Procedures: NOTE: Before continuing, check that the ribbon cable is properly connected to the control board and not a pin off in either direction.

1. Disconnect the dispenser from the power source.

2. Remove the rear panel and disconnect ribbon cable.

3. Check for continuity of the switches using pin #1 as common. If continuity is not present when the appropriate switch

A1 - #5 Grind A2 - #6 Stop B2 - #10 Hidden Button "Right" C1 - #2 Large Batch Size "Left" C2 - #3 Medium Batch Size "Left" C3 - #4 Small Batch Size "Left" C4 - #9 Large Batch Size "Left" C5 - #8 Medium Batch Size "Left" C6 - #7 Small Batch Size "Left"

- #1 Neutral

To Control Board J6

SHIELD

SWITCH UNIT ASSY

FIG 59 MEMBRANE SWITCH

is pressed, the Membrane Switch must be replaced. If continuity is present, check the short harness going to J6 on the Control Board.

41545 070518

Page 54

SERVICE (Cont.)

EMI Filter (Models FPG & FPG-2)

FIG 60 EMI FILTER

Location:

GRINDER DBC

Removal and Replacement:

1. Disconnect the wires from the EMI Filter.

2. Remove the two screws securing the EMI Filter.

3. Remove and discard EMI Filter.

4. Install new EMI Filter using two screws to secure

EMI Filter to its former location.

5. Refer to schematic when reconnecting the wires.

118.0 kΩ - 118.5 kΩ

Across either pair

The EMI Filter is located inside the rear cover of the grinder housing.

Test Procedure:

1. Disconnect the dispenser from the power source.

2. Disconnect the two red wires and two white wires on the EMI Filter from the EMI Filter wiring harness.

3. Check for resistance between the two red leads on the EMI Filter. (Fig 61)

If resistance is present as described the EMI Filter is operating properly. If resistance is not present as described, replace the EMI Filter.

FIG 61 EMI FILTER TERMINALS

41545 070518

Page 55

SERVICE (Cont.)

Funnel Sensing Coil (Models MHG & G9-2 DBC)

FIG 62 FUNNEL SENSING COIL

Location: The funnel sensing coil is located inside of the coil cover.

1. Disconnect the grinder from the power supply.

2. Remove the two 6-32 screws attaching the coil cover to the grinder housing.

3. Pull slightly away from the housing and disconnect the two wires from the coil.

3. Remove the coil from the coil cover.

4. Place the new coil into the coil cover and attach the two wires previously removed.

5. Secure cover with two 6-32 screws.

Test Procedure:

1. Disconnect the grinder from the power supply.

2. Remove the two 6-32 screws attaching the coil cover to the front of the grinder housing.

3. Pull slightly away from the housing and disconnect the two wires from the coil.

4. With an ohmmeter, measure the resistance across the pin terminals of the coil. The reading should be 5 to 7 ohms.

If this amount of resistance is not present, replace the funnel sensing coil.

Removal and Replacement

FIG 63 FUNNEL SENSING COIL TERMINALS

41545 070518

Page 56

SERVICE (Cont.)

Memory Clock Board (Model MHG)

FIG 64 MEMORY CLOCK BOARD

Location: The memory clock board is located on the component mounting bracket mounted to the grinder base inside the front access panel.

Removal and Replacement

1. Disconnect the grinder from the power supply.

2. Remove the front access panel.

3. Remove the two 8-32 screws securing the component bracket to the grinder base and tilt forward to gain access to the memory clock board.

5. Disconnect the harness from the memory clock board.

6. Remove the two 6-32 nuts attaching the memory clock board to the component bracket.

7. Remove the two spacers from the old board and attach to the new board.

8. Install new memory board using two #6-32 nuts to secure board to the component bracket.

9. Refer to Fig. 65 when reconnecting the wires.

Test Procedure:

1. Disconnect the grinder from the power supply.

2. Disconnect the wiring harness on the memory board.

3. Check for 5VDC on J1-4 and J1-5.

If voltage is not present as described the memory board is operating properly. If voltage is present as described, replace the memory board.

J1-1

GRN

J16-1

WHI

MEMORY

BOARD

+5VDC

J1-5

FIG. 65 MEMORY CLOCK BOARD CONNECTORS

RED

BLK

J16-5

41545 070518

Page 57

SERVICE (Cont.)

Display Board (Model MHG)

Removal and Replacement

1. Disconnect the grinder from the power supply.

2. Remove the two 6-32 screws attaching the membrane switch bezel to the hopper housing.

3. Tilt the bezel assembly forward.

4. Remove the four 8-32 screws attaching the board cover bracket to the switch bezel and remove the bracket.

5. Disconnect the wiring harness from the display board.

6. Remove the four 8-32 screws attaching the display board to the switch bezel and remove the board.

To Control Board J8

FIG 66 DISPLAY BOARD

Location: The display board is located inside the hopper housing behind the membrane switch.

Test Procedure:

1. Press and hold the upper right hidden button to enter the Programming menus.

2. Scroll to SERVICE TOOLS menu, and press the button under "YES".

3. Press "YES" under TEST OUTPUTS and proceed, through the menus to test the left and right gates, and the grinder motor.

4. Then scroll to the TEST SWITCHES menu and press the button under "YES". Test each button on the control panel, the button pressed will be displayed on the screen.

YEL

BLU

ORN

GRN

J10-1

DISPLAY BOARD

J9-5

J9-1

J9-1 16

J10-4

J9-10

J9-15

FIG 67 DISPLAY BOARD TERMINALS

41545 070518

Page 58

TRIAC MAP for MHG

MOV1 controls Transformer @ J5-4,5,6 TH1 & MOV2 controls Left Gate @ J5-3 TH2 & MOV3 controls Relay @ J5-2 TH3 & MOV4 controls Right Gate @ J5-1

41545 122209

Page 59

TRIAC MAP for FPG-2 DBC and G9-2 DBC

TH1 & MOV1 controls Left Gate @ J1-1 TH2 & MOV2 controls Relay @ J1-2 TH3 & MOV3 controls Right Gate @ J1-3 MOV4 controls Transformer @ J1-4,5,6

41545 122209

Page 60

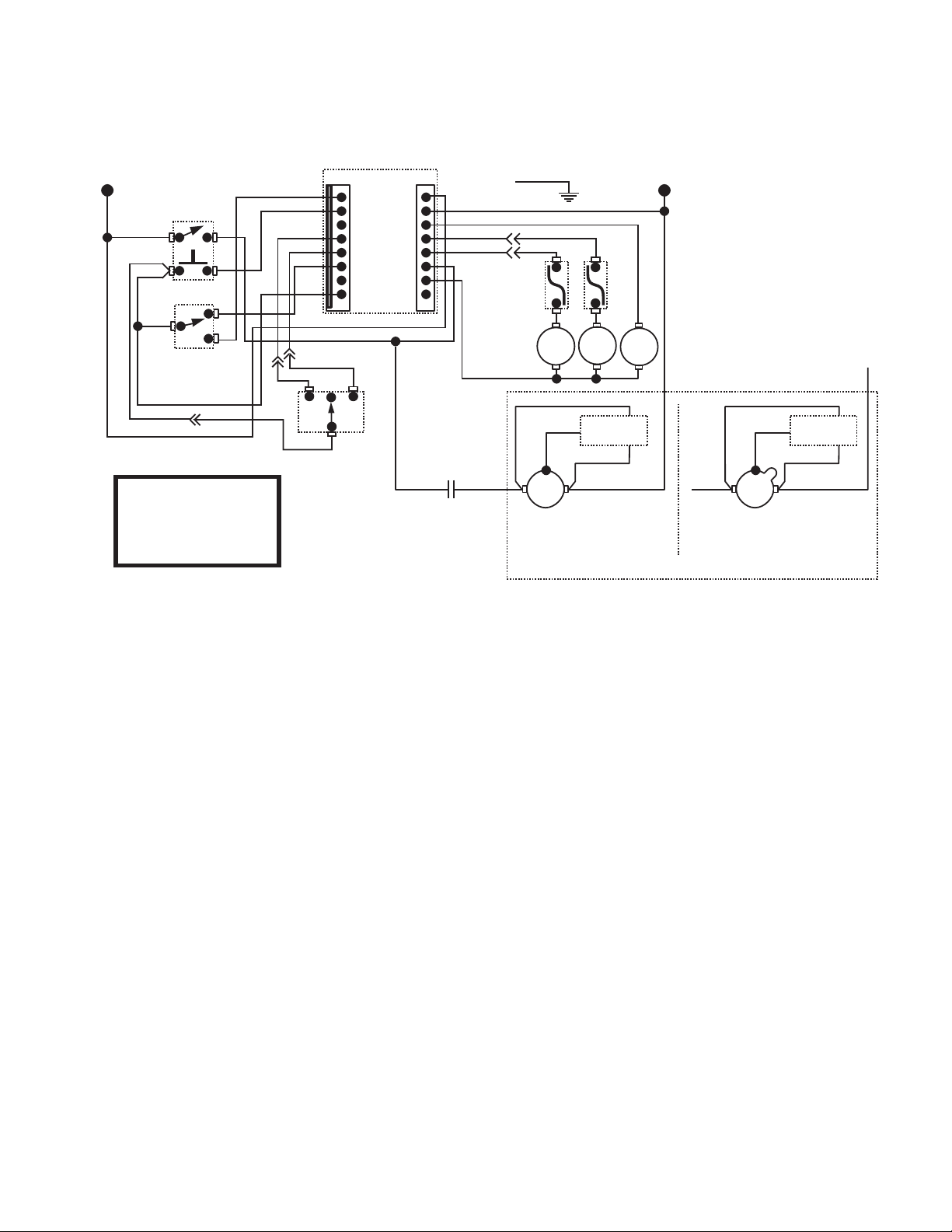

BLK

WIRING DIAGRAMS

GREEN

WHI

RELAY

RIGHT GATE

SCHEMATIC WIRING DIAGRAM

G9-2 DBC & G9-2T DBC W/SMART FUNNEL

LEFT GATE

COIL

LIMIT THERMOSTAT

SOL

LIMIT THERMOSTAT

SOL

WHI/ORA

WHI/GRN

WHI/YEL

BLK

WHI

J1-6

CONTROL PC BOARD

RED/BLK

FUNNEL SENSOR

BLK

Switch Unit Assembly Codes

A1 Grind A2 Stop B2 Hidden Button "Right" C1 Large Batch Size "Left" C2 Medium Batch Size "Left" C3 Small Batch Size "Left" C4 Large Batch Size "Right" C5 Medium Batch Size "Right" C6 Small Batch Size "Right"

WHI/GRN

WHI/VIO

120 VOLTS AC

2 WIRE

SINGLE PHASE

BLK

60 Hz

WHI/BLU

RELAY

CONTACTS

J1-6

J8-1

J8-3

SHIELD

SWITCH UNIT ASSY

Models with RUN capacitor

START

CAPACITOR

GRY

J6-10

RED

GRINDER MOTOR

RUN

CAPACITOR

WHT

J6-5

J6-1

WHI

41545 082824

Page 61

WIRING DIAGRAMS

FUSE

FILTER

BLK

GRN/YEL

EMI

WHI

RELAY

RIGHT GATE

LEFT GATE

COIL

SCHEMATIC WIRING DIAGRAM

G9-2TA DBC

W/SMART FUNNEL

LIMIT THERMOSTAT

SOL

LIMIT THERMOSTAT

SOL

WHI/ORA

WHI/GRN

WHI/YEL

BLK

WHI

J1-6

CONTROL PC BOARD

RED/BLK

FUNNEL SENSOR

BLK

Switch Unit Assembly Codes

WHI/GRN

WHI/VIO

220-240 VAC

2 WIRE

SINGLE PHASE

50-60 Hz

WHI/BLU

BLK

RELAY

CONTACTS

J1-6

J8-1

J8-3

SHIELD

Models with RUN capacitor

START

CAPACITOR

GRY

J6-10

SWITCH UNIT ASSY

RED

J6-5

RUN

CAPACITOR

WHT

GRINDER MOTOR

J6-1

WHI

41545 082824

Page 62

BLK

WIRING DIAGRAMS

LI N

CAPACITOR

GRN/YEL

WHI

RELAY

RIGHT GATE

LEFT GATE

COIL

SCHEMATIC WIRING DIAGRAM

G9-2TB DBC

W/SMART FUNNEL

LIMIT THERMOSTAT

SOL

LIMIT THERMOSTAT

SOL

FUNNEL SENSOR

WHI/ORA

WHI/GRN

WHI/YEL

BLK

WHI

RED/BLK

WHI/GRN

J1-6

J8-3

CONTROL PC BOARD

J8-1

J6-10

J6-5

J6-1

BLK

Switch Unit Assembly Codes

100 VAC

WHI/VIO

SHIELD

Models with RUN capacitor

START

CAPACITOR

SWITCH UNIT ASSY

RED

RUN

CAPACITOR

2 WIRE

SINGLE PHASE

50/60 Hz

WHI/BLU

BLK

RELAY

CONTACTS

GRY

RED

WHT

GRINDER MOTOR

WHI

41545 082824

Page 63

WIRING DIAGRAMS

BLK

SCHEMATIC WIRING DIAGRAM MHG

WHI

GRN

WHI

THERMOSTAT

WHI

RIGHT HOPPER SENSOR

LEFT HOPPER SENSOR

LIMIT

THERMOSTAT

LIMIT

RELAY

COIL

GRN

SOL

RIGHT GATE

SOL

LEFT GATE

GRN

WHI/YELWHI/YEL

WHI/GRN

WHI/ORNWHI/ORN

BLK

WHIWHI

YEL

ORN

VIO

P1, P2, P3 & P4 ARE

PINS OF A POLARIZED

FOUR-PIN CONNECTOR

J5-1

CONTROL PC BOARD

J5-5

J12-1

J8-4

J8-1

J16-1

J16-5

GRINDER MOTOR

BLK

Switch Unit Assembly Codes

A1 Grind A2 Stop B1 Hidden Button "Left" B2 Hidden Button "Right" C1 Large Batch Size "Left" C2 Medium Batch Size "Left" C3 Small Batch Size "Left" C4 Large Batch Size "Right" C5 Medium Batch Size "Right" C6 Small Batch Size "Right" D1 "Digital" Left Hidden Button D2 "Brewer" Center Hidden Button D3 "Control" Right Hidden Button

WHI/BLU

RELAY

CONTACTS

100 VAC,50/60Hz

120 VAC,60Hz

2 WIRE

SINGLE PHASE

WHI

FUNNEL SENSOR

DISPLAY BOARD

J9-1

J9-5

BLU

J10-1

J9-10

GRN

YEL

ORN

J10-4

RED

WHI

GRN

MEMORY

BOARD

STATIC SHIELD

BLK

SWITCH UNIT ASSY

41545 082824

Page 64

WIRING DIAGRAMS

BLK

EMI

FILTER

SCHEMATIC WIRING DIAGRAM MHGA

GRN

LIMIT

THERMOSTAT

WHI

LIMIT

THERMOSTAT

RELAY

COIL

RIGHT HOPPER SENSOR

LEFT HOPPER SENSOR

GRN

SOL

RIGHT GATE

SOL

LEFT GATE

GRN

WHI/YELWHI/YEL

WHI/GRN

WHI/ORNWHI/ORN

BLK

WHIWHI

YEL

YEL ORN

ORN

VIO

P1, P2, P3 & P4 ARE

PINS OF A POLARIZED

FOUR-PIN CONNECTOR

J5-1

CONTROL PC BOARD

J5-5

J12-1

J8-1

J8-4

J16-1

J16-5

GRINDER MOTOR

BLK

Switch Unit Assembly Codes

WHI/BLU

RELAY

CONTACTS

220-240 VAC

2 WIRE

SINGLE PHASE

50-60 Hz

WHI

FUNNEL SENSOR

DISPLAY BOARD

J9-1

J9-5

BLU

J10-1

J9-10

GRN

YEL

ORN

J10-4

RED

WHI

GRN

MEMORY

BOARD

STATIC SHIELD

BLK

SWITCH UNIT ASSY

41545 082824

Page 65

WIRING DIAGRAMS

SCHEMATIC WIRING DIAGRAM

BLK

TIMER ASSY.

(Hopper Slide

Gate Timer

Dial Wiring)

Right - Brown

Left - Orange

OFF/ON/START

SWITCH

AMP

LPG-2E, LPGB-2E

GRN

1 2 3 4 5 6 7 8 9

RED

RED RED

BLU YEL

WHI/BLK

BLK

RED

VIO

ORA

GRN

SELECTOR

SWITCH

BLK

GRINDER

WHI RED RED

SOL

SLIDE GATES

SOL

NL1

WHI

RED

YEL

100 VAC,50/60Hz

120 VAC,60Hz

2 WIRE

SINGLE PHASE

WHI

41545 082824

Page 66

WIRING DIAGRAMS

SCHEMATIC WIRING DIAGRAM

LPG

1 2 3 4 5 6

GREEN

RED

WHI/BLK

BLK WHI/BLU WHI/BRN

WHI

B L K

TIMER

AMP

BLK

RED

WHI/BLK

BLK WHI/BLU WHI/BRN

WHI

GRN

NL1

WHI/BRN WHI/BLU

MOTOR

120 VOLTS AC

2 WIRE

SINGLE PHASE

60 Hz

BLK

RED

BLK

WHI

RED

1 2 3 4 5

1 2 3 4

BLK

RED WHI/BRN WHI/BLU

BLK WHI RED RED

41545 082824

Page 67

WIRING DIAGRAMS

SCHEMATIC WIRING DIAGRAM

EMI

FILTER

B L K

TIMER

L2L1

AMP

BLK

RED

WHI/BLK

BLK

WHI/BLU

WHI/BRN

WHI

GRN

BLK RED

WHI/BRN

WHI/BLU

LPGA

1 2 3 4 5 6

1 2 3 4 5

GRN/YEL

R E D

RED

WHI/BLK

BLK

WHI/BLU

WHI/BRN

WHI

BLK RED

WHI/BRN

WHI/BLU

BLK

MOTOR

WHI RED RED

220-240 VAC

2 WIRE

SINGLE PHASE

50-60 Hz

1 2 3 4

BLK

WHI RED RED

41545 082824

Page 68

WIRING DIAGRAMS

SCHEMATIC WIRING DIAGRAM

LPG W/Capacitor

BLK

TIMER

MOTOR

BLK

RED WHI/BLK

BLK WHI/BLU WHI/BRN

WHI

GRN

BLK

WHI/BRN

BLK

RED

WHI/BRN

WHI/BLU

BLK WHI RED RED

1 2 3 4 5 6

2 1

1 2 3 4 5

1 2 3 4

RED WHI/BLK BLK WHI/BLU

WHI/BRN WHI

BLK WHI/BRN

BLK RED WHI/BRN WHI/BLU

BLK WHI RED RED

GREEN

120 VOLTS AC

2 WIRE

SINGLE PHASE

60 Hz

41545 082824

Page 69

WIRING DIAGRAMS

SCHEMATIC WIRING DIAGRAM

LPG-B

NL1

1 2 3 4 5 6

GREEN

RED

WHI/BLK

BLK

WHI/BLU

WHI/BRN

WHI

B L K

AMP

TIMER

BLK

RED

WHI/BLK

BLK

WHI/BLU

WHI/BRN

WHI

GRN

BLK RED

WHI/BRN

WHI/BLU

MOTOR

BLK WHI RED RED

100 VOLTS AC

2 WIRE

SINGLE PHASE

50/60 Hz

2 3 4

1 2 3 4 5

BLK

RED WHI/BRN WHI/BLU

BLK

WHI

RED

41545 082824

Page 70

WHI/VIO

WHI/BLU

WHI/ORA

1 or A

GRN or GRN/YEL

SW1

BLK WHI/RED

SW2

0 or B

L1 L2

WHI

K-2 or K-7

K-8 or K-9

K-6

K-4

SCHEMATIC WIRING DIAGRAM G1, G2, G3, G2 trifecta

100 VAC,50/60Hz

120 VAC,60Hz

2 WIRE

SINGLE PHASE

WHI/VIO

WHI/BLU

WHI/ORA

1 or A

GRN or GRN/YEL

L1 L2

SW1

BLK WHI/RED

SW2

0 or B

L1 L2

WHI or RED/BLK

K-2 or K-7

K-8 or K-9

K-6

K-4

EMI

FILTER

* RESISTOR

* Used with EMI Filter only

SCHEMATIC WIRING DIAGRAM

G1, G2, G3 & G2 trifecta

220-240 VAC

2 WIRE

SINGLE PHASE

50-60 Hz

WIRING DIAGRAMS

41545 072710

Page 71

WHI/VIO

WHI/BLU

WHI/ORA

1 or A

GRN or GRN/YEL

SW1

BLK WHI/RED

SW2

0 or B

L1 L2

WHI

K-2 or K-7

K-8 or K-9

K-6

K-4

SCHEMATIC WIRING DIAGRAM GVH-1, GVH-2, GVH-3

120 VAC

2 WIRE

SINGLE PHASE

60 Hz

WHI/VIO

WHI/BLU

WHI/ORA

1 or A

GRN or GRN/YEL

L1 L2

SW1

BLK WHI/RED

SW2

0 or B

L1 L2

WHI or RED/BLK

K-2 or K-7

K-8 or K-9

K-6

K-4

EMI

FILTER

SCHEMATIC WIRING DIAGRAM

GVH-1A, GVH-2A, GVH-3A

220-240 VAC

2 WIRE

SINGLE PHASE

50-60 Hz

WIRING DIAGRAMS

41545 072710

Page 72

120 VOLTS AC

2 WIRE

SINGLE PHASE

60 Hz

SCHEMATIC WIRING DIAGRAM G1-MD

WIRING DIAGRAMS

WHI/VIO

WHI/BLU

WHI/ORA

SCHEMATIC WIRING DIAGRAM G1A HD, G2A HD & G3A HD

GRN/YEL

SW1

BLK

WHI/RED

SW2

N.O.

RED (230V)

RED/BLK (240V)

RED (230V)

RED/BLK (240V)

K-4

K-6

1 or A 0 or B

K-2 or K-7

K-8 or K-9

EMI

FILTER

220-240 VAC

2 WIRE

SINGLE PHASE

50-60 Hz

41545 072710

Page 73

WH I / GRN

BLK

WHI/ BLU

L2L1

L1 N

GREEN

K1 N.O.

TI M ER

WH I / RED

WH I / YEL

WH I / ORA

WHI

WH I / RED

OPTIONAL KEY SW

54321

W H

/ O R

120 VOLTS AC

2 WIRE

SINGLE PHASE

60 Hz

SCHEMATIC WIRING DIAGRAM G9

WIRING DIAGRAMS

SCHEMATIC WIRING DIAGRAM

G9-URN/CARAFE

WHI/RED

WHI/YEL

WHI/ORA

32 4 5

TIMER

WHI/RED

WHI/GRN

ORA

TAN

ORA

WHI/RED

K1 N.O.

YEL

GRN

MULTI-SET SW (OPTIONAL)

BLK

120 VOLTS AC

2 WIRE

SINGLE PHASE

60 Hz

GREEN

WHI/BLU

BRN

YEL

GRN

URN

WHI

L2L1

CARAFE

41545 122209

Page 74

WIRING DIAGRAMS

LOAD

TRANSDUCER

SCHEMATIC WIRING DIAGRAM G9WD-RH

L1 N

GRN

BLK

BLK WHT

WHTBLK

1 2

BLK

WHT

LINE

LOAD

YEL

4 5

RED

BLK

GRN WHT RED

BLK BLK

K1 N.O.

VIOVIO

VIO

RED

1 4

CONTROL CIRCUIT BOARD

L1 L2

J12

1 5

BrewWISE Models only

FUNNEL SENSOR

VIO9VIO

WHT

A1 GRIND A2 STOP B1 HIDDEN BUTTON "LEFT" B2 HIDDEN BUTTON "RIGHT" C1 LARGE BATCH SIZE "LEFT"

120 VOLTS AC

2 WIRE

SINGLE PHASE

60 Hz

C2 MEDIUM BATCH SIZE "LEFT" C3 SMALL BATCH SIZE "LEFT" D1 "DIGITAL' LEFT HIDDEN BUTTON D2 "BREWER" CENTER HIDDEN D3 "CONTROL" RIGHT HIDDEN

1 5 10 16

J13

41545 072710

Page 75

WIRING DIAGRAMS

EMI

FILTER

BLK

LOAD TRANSDUCER

BLK

WHT WHT

SCHEMATIC WIRING DIAGRAM G9WD-RH

GRN/YEL

Models with RUN capacitor

START

GRN

1 2

BLK

LINE

LOAD

YEL

4 5

RED

WHTBLKBLK

WHT

YEL

RED

BLK GRN WHT RED

BLK BLK

K1 N.O.

CAPACITOR

GRY

RED

VIO

1 4

CONTROL CIRCUIT BOARD

1 5 10 16

J13

RED

L1 L2

VIOVIO

RUN

CAPACITOR

WHT

GRINDER MOTOR

BrewWISE Models only

FUNNEL

SENSOR

J12

1 5

WHT

VIO9VIO

A1 GRIND A2 STOP B1 HIDDEN BUTTON "LEFT" B2 HIDDEN BUTTON "RIGHT"

220-240 VAC

2 WIRE

SINGLE PHASE

50-60 Hz

C1 LARGE BATCH SIZE "LEFT" C2 MEDIUM BATCH SIZE "LEFT" C3 SMALL BATCH SIZE "LEFT" D1 "DIGITAL' LEFT HIDDEN BUTTON D2 "BREWER" CENTER HIDDEN D3 "CONTROL" RIGHT HIDDEN

41545 122209

Page 76

WHI/GRN

BLK

WHI/BLU

120 VOLTS AC

2 WIRE

SINGLE PHASE

60 HZ

L1 N

GREEN

K1 N.O.

SCHEMATIC WIRING DIAGRAM G9

TIMER

32 4 5

WHI/RED

WHI/YEL

WHI/ORA

WHI

WHI/RED

GRY

1 2

OPTIONAL

MULTI-SET SW

OPTIONAL BREWER

INTERFACE CONNECTOR

PNK

TAN

ORA

PNK

OPTIONAL KEY SW

W H I / O R A

120 VOLTS AC

2 WIRE

SINGLE PHASE

60 Hz

WHI/GRN

BLK

WHI/BLU

L2L1

GREEN

K1 N.O.

SCHEMATIC WIRING DIAGRAM G9

TIMER

32 4 5

WHI/RED

WHI/YEL

WHI/ORA

WHI

WHI/RED

GRY

1 2

OPTIONAL BREWER

INTERFACE CONNECTOR

PNK

TAN

OPTIONAL KEY SW

WHI/ORA

120 VOLTS AC

2 WIRE

SINGLE PHASE

60 Hz

WIRING DIAGRAMS

41545 122209

Page 77

SCHEMATIC WIRING DIAGRAM G9-2 HD

APPROXIMATE TIMER SETTINGS IN SECONDS

WEIGHT FINE DRIP REGULAR

(Ounces) (7*) (8*) (12*)

1.5 0.5 0.5 0.5

1.75 0.7 0.6 0.6 2 1 0.8 0.8

2.25 1.4 1.4 1.2

2.5 1.9 1.8 1.6

2.75 2.4 2.2 2 3 2.9 2.7 2.5

3.25 3.3 3.1 2.9

3.5 3.8 3.6 3.3

3.75 4.2 3.9 3.6 4 4.8 4.4 4 6 8.6 7.9 7.5 8 12 11.5 10.9

10 15.7 15.1 14.1 12 19.6 18.5 17.5 14 23.5 22 20.9 16 27 25.3 24.3

* Hash mark settings. Refer to the Operating & Service Manual.

WIRING DIAGRAMS

(DIGITAL TIMER W/BATCH SELECTOR)

P1 P4

BLK

WHI/RED

TAN

DIGITAL

TIMER

WHI/RED WHI/BLKWHI/BLU

WHI/BLK WHI/GRN WHI/ORA

WHI/YEL

RED/BLK

K1 N.O.

L1 N

OFF/ON/START

BLK

PNK BLU

HOPPER

SELECTOR SW

BLU

YEL VIO

GRY TAN ORA

BLU

GRY

BLK

120 VOLTS AC

2 WIRE

SINGLE PHASE

60 Hz

L S

PNK

BATCH SELECTOR

SWITCH

GREEN

WHI/BLK WHI/BLK

SOL

WHI/BLU

FRANKLIN MOTOR MARATHON MOTOR

YEL

SNUBBER

WHI/BLK

L2L1

ALTERNATE MOTOR

WHI/BLK

YEL

SNUBBER

WHI/BLU

WHI/BLKWHI/BLU

L2L1

41545 122209

Page 78

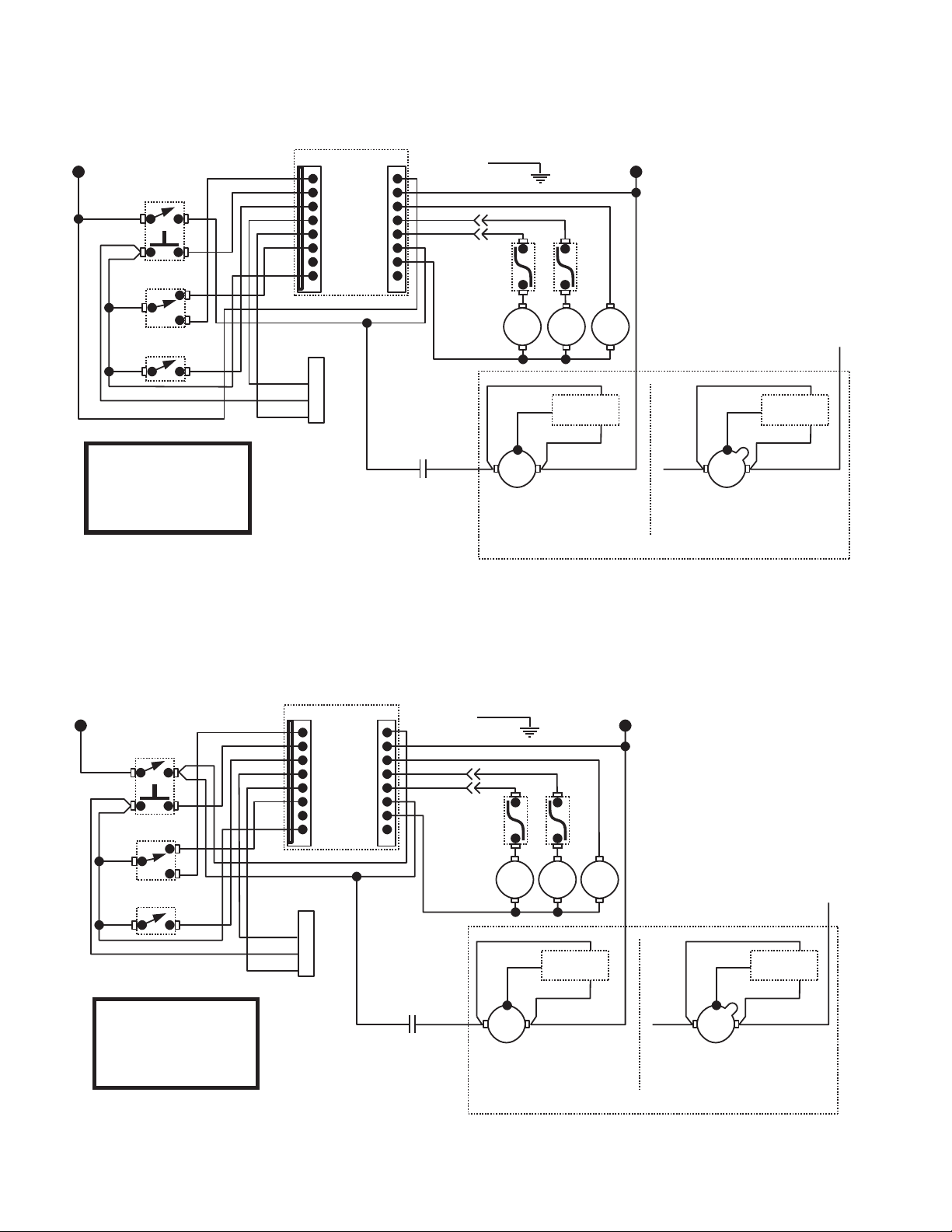

SCHEMATICWIRINGDIAGRAMG9-2 HD

APPROXIMATE TIMER SETTINGS IN SECONDS

WEIGHT FINE DRIP REGULAR

(Ounces) (7*) (8*) (12*)

1.5 0.5 0.5 0.5

1.75 0.7 0.6 0.6 2 1 0.8 0.8

2.25 1.4 1.4 1.2

2.5 1.9 1.8 1.6

2.75 2.4 2.2 2 3 2.9 2.7 2.5

3.25 3.3 3.1 2.9

3.5 3.8 3.6 3.3

3.75 4.2 3.9 3.6 4 4.8 4.4 4 6 8.6 7.9 7.5 8 12 11.5 10.9

10 15.7 15.1 14.1 12 19.6 18.5 17.5

14 23.5 22 20.9 16 27 25.3 24.3

* Hash mark settings. Refer to the Operating & Service Manual.

SCHEMATICWIRINGDIAGRAMG9-2 HD

APPROXIMATE TIMER SETTINGS IN SECONDS

WEIGHT FINE DRIP REGULAR

(Ounces) (7*) (8*) (12*)

1.5 0.5 0.5 0.5

1.75 0.7 0.6 0.6 2 1 0.8 0.8

2.25 1.4 1.4 1.2

2.5 1.9 1.8 1.6

2.75 2.4 2.2 2 3 2.9 2.7 2.5

3.25 3.3 3.1 2.9

3.5 3.8 3.6 3.3

3.75 4.2 3.9 3.6 4 4.8 4.4 4 6 8.6 7.9 7.5 8 12 11.5 10.9

10 15.7 15.1 14.1 12 19.6 18.5 17.5 14 23.5 22 20.9 16 27 25.3 24.3

* Hash mark settings. Refer to the Operating & Service Manual.

WIRING DIAGRAMS

(DIGITAL TIMER)

OFF/ON/START

BLK

PNK

BLU

HOPPER

SELECTOR SW

BLU

MULTI-SET SW

BLU

BLK

120 VOLTS AC

2 WIRE

SINGLE PHASE

OFF/ON/START

BLK

PNK BLU

HOPPER

SELECTOR SW

BLU

OPTIONAL

MULTI-SET SW

BLU

OPTIONAL

60 Hz

GRINDER INTERFACE

120 VOLTS AC

2 WIRE

P1 P4 YEL VIO

GRN

GRY TAN ORA

BLU

GRINDER INTERFACE

YEL

VIO

GRN

GRY TAN ORA

BLU

WHI/RED

CONNECTOR

GRY PNK TAN

BLK

WHI/RED

CONNECTOR

GRY

PNK

TAN

P1 P4

ANALOG

TIMER

BLK

DIGITAL

TIMER

WHI/BLK WHI/GRN WHI/ORA

WHI/YEL

RED/BLK

WHI/RED WHI/BLK

WHI/BLU

K1 N.O.

(ANALOG TIMER)

WHI/RED WHI/BLKWHI/BLU

WHI/BLK WHI/GRN WHI/ORA

WHI/YEL

RED/BLK

K1 N.O.

SINGLE PHASE

60 Hz

GREEN

WHI/BLK WHI/BLK

SOL

WHI/BLU

YEL

L2L1

FRANKLIN MOTOR MARATHON MOTOR

GREEN

WHI/BLK WHI/BLK

SOL

WHI/BLU

YEL

WHI/BLK

L2L1

FRANKLIN MOTOR MARATHON MOTOR

SOL

SNUBBER

WHI/BLK

SNUBBER

ALTERNATE MOTOR

WHI/BLK

YEL

L2L1

WHI/BLU

L2L1

SNUBBER

WHI/BLU

WHI/BLKWHI/BLU

SNUBBER

WHI/BLKWHI/BLU

ALTERNATE MOTOR

41545 122209

Page 79

WIRING DIAGRAMS

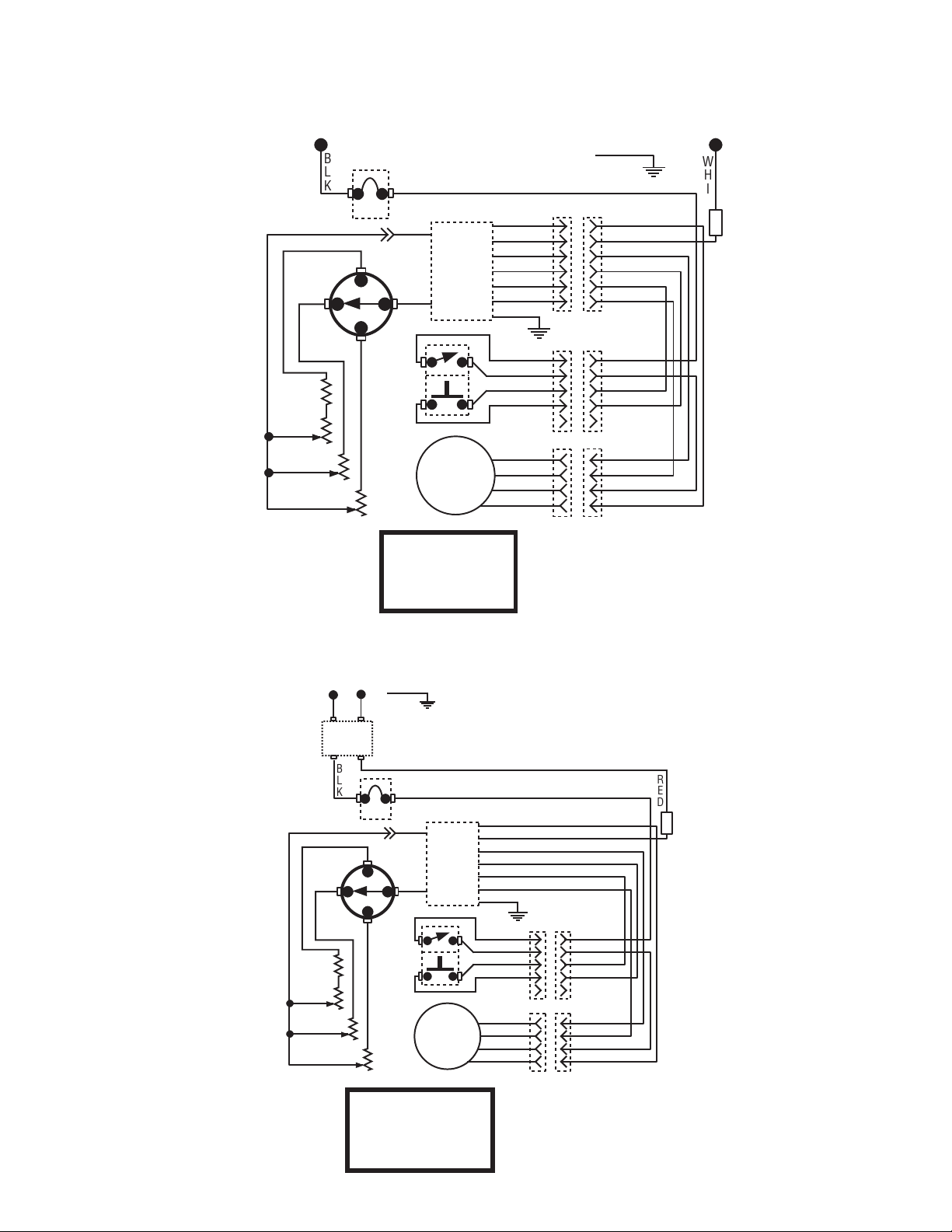

SCHEMATIC WIRING DIAGRAM

FPG

BLK

GREEN

NL1

WHI

SELECT SW.

MED

AMP

TIMER

BLK

RED

WHI/BLK

BLK

WHI/BLU

WHI/BRN

WHI GRN

BLK

RED

WHI/BRN

WHI/BLU

1 2 3 4 5 6

1 2 3 4

RED

WHI/BLK

BLK

WHI/BLU

WHI/BRN

WHI

BLK

RED

WHI/BRN

WHI/BLU

MOTOR

120 VOLTS AC

2 WIRE

BLK WHI RED RED

1 2 3 4

BLK WHI RED RED

SINGLE PHASE

60 Hz

SCHEMATIC WIRING DIAGRAM

TIMER

MOTOR

FPGA

BLK

RED

WHI/BLK

BLK WHI/BLU WHI/BRN

WHI

GRN

BLK

RED WHI/BRN WHI/BLU

BLK WHI RED RED

1 2

WHI/BRN

WHI/BLU

4 5

1 2 3 4

L1 L2

EMI

FILTER

BLK

SELECT SW.

MED

GRN or GRN/YEL

AMP

220-240 VOLTS AC

2 WIRE

SINGLE PHASE

50-60 Hz

RED

BLK

RED

BLK WHI RED RED

41545 122209

Page 80

WIRING DIAGRAMS

SCHEMATIC WIRING DIAGRAM

BLK

AMP

LEFT GATE

RELAY

RIGHT GATE

SOL

COIL

SOL

Switch Unit Assembly Codes

FPG-2 DBC, FPGB-2 DBC

LIMIT THERMOSTAT

WHI/ORA

WHI/GRN

WHI/YEL

RED

WHI/BLK

RED

J1-6

CONTROL PC BOARD

J1-6

SHIELD

SWITCH UNIT ASSY

BLU

J6-10

J6-5

GRN

WHI

WHI/BLK

J6-1

BLK

100 VAC,50/60Hz

120 VAC,60Hz

2 WIRE

SINGLE PHASE

WHI

RED

RECT

–

WHI/BLK

41545 122209

Page 81

WIRING DIAGRAMS

AMP

SOL

LEFT GATE

SOL

WHI/BLK

LIMIT

THERMOSTAT

WHI

Switch Unit Assembly Codes

SCHEMATIC WIRING DIAGRAM

WHI/ORA

WHI/YEL

RIGHT GATE

THERMOSTAT

WHI

GRN GRN

WHI

LIMIT

WHI

RELAY

COIL

WHI

FPGA-2 DBC

RED

WHI

EMI FILTER

RED

WHI/ORA

WHI/GRN

WHI/YEL

RED

WHI

RED

SHIELD

WHI

BLU

RED

J1-1

CONTROL PC BOARD

J1-6

J6-10

WHI

GRN

WHI

RECT –

J6-5

BLK

J6-1

220-240 VAC

2 WIRE

SINGLE PHASE

50-60 Hz

SWITCH UNIT ASSY

41545 122209

BUNN MHG, FPG, FPG-2, LPG-2, G1 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
