Bryant 583B Series User's Information Manual
User Information Manual
SINGLE PACKAGE
GAS HEATING/ELECTRIC COOLING UNITS
WITH PURON® (R-410A) REFRIGERANT
Cancels: New OM10-19
583B
Sizes
024-060
1-00
NOTE TO INSTALLER
This manual should be left with the equipment owner.
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliances.
— WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
fire department.
— Installation and service must be performed by a
qualified installer, service agency or the as supplier.
WARNING: Do not use this unit if any part has been
under water. Immediately call a qualified service technician to inspect the unit and to replace any part of the
control system which has been under water. Failure to
follow this warning could result in electrical shock, fire,
serious injury, or death.
WARNING: Before performing recommended maintenance, be sure themainpower switch to unit is turned off.
Electric shock could cause serious injury or death.
Your combination heating/cooling unit is equipped with an automatic direct spark ignition and power combustion blower.
WARNING: Do not attempt to light by hand; serious
injury may result.

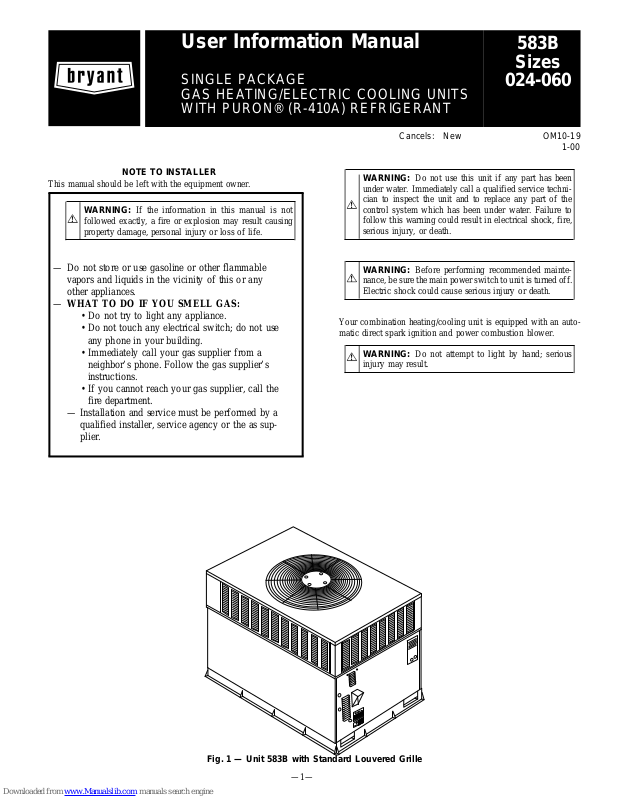

Fig. 1 — Unit 583B with Standard Louvered Grille
—1—
TO LIGHT UNIT
TO SHUT UNIT OFF
WARNING:
1. Do not turn off the electrical power to unit without first
turning off the gas supply.
2. Before attempting to start the gas heating section,
familiarize yourself with all the procedures that must
be followed.
If you do not follow these instructions exactly, a fire or
explosion may result, causing property damage, serious
injury, or death.
1. Set the temperature selector on room thermostat to the
lowest temperature setting and set system switch to HEAT.
2. Close the external manual shutoff valve.
3. Turn off the electrical supply to the unit.
4. Remove the front access panel with a 5/16 in. nut driver.
5. Move the selector switch on the internal gas valve to the
OFF position and wait 5 minutes.
6. Move the selector switch on the internal gas valve to the ON
position.
7. Replace the front access panel.
8. Turn on the electrical supply to unit.
9. Open the external manual shutoff valve.
10. Set the temperature selector on room thermostat slightly
above room temperature to start unit. The induced-draft
combustion-air fan will start. Main gas valve will open and
main burners should ignite within 5 seconds. If the burner
does not light within 5 seconds, the ignition module will go
into a RETRY mode after a period of approximately 22
seconds (following the 5-second ignition period).
If the burners do not light within 15 minutes of the initial
call for heat, there is a lockout.
11. Set the temperature selector on room thermostat to desired
setting.
WARNING: Do not turn off the electrical power to unit
without first turning off the gas supply.
Failure to follow these procedures can result in fire,
serious injury, or death.
NOTE: If unit is being shut down because the heating season has
ended, make sure to turn on power to cooling system.
If unit is being shut down because of a malfunction, call your
dealer as soon as possible.
Should overheating occur or the gas supply fail to shut off, shut off
the manual gas valve to the unit before shutting off the electrical
supply.
1. Set the temperature selector on room thermostat to lowest
temperature setting and set system switch to OFF.
2. Close the external manual shutoff valve.
3. Turn off the electrical power supply to the unit.
4. Remove the front access panel.
5. Move the selector switch on the internal gas valve to the
OFF position.
6. Replace the burner access panel.
7. Restore electrical power to the unit and set system switch to
COOL to ensure operation of the cooling system during the
cooling season.
WARNING:
1. If the main burners fail to light, or the blower fails to
start, shut down gas heating section and call your
dealer for service.
2. Never attempt to manually light the main burners on
unit with a match, lighter, or any other flame. If the
electric sparking device fails to light the main burners,
refer to the following shutdown procedures, then call
your dealer as soon as possible.
Failure to follow these requirements could result in
serious injury or death.
—2—
FRONT
ACCESS PANEL
Fig. 2—Gas Heating/Electric Cooling Unit
Front Access Panel
ROUTINE MAINTENANCE
All routine maintenance should be handled by skilled, experienced
personnel. Your dealer can help you establish a standard procedure.
For your safety, keep the unit area clear and free of combustible
materials, gasoline, and other flammable liquids and vapors.
To assure proper functioning of the unit, flow of combustion and
ventilating air must not be obstructed from reaching the unit.
Clearance of at least 48 in. is required from top of unit and on sides
except the power entry side (42 in. clearance) and the duct side (12
in. minimum clearance).
MAINTENANCE AND CARE FOR THE EQUIPMENT
OWNER
Before proceeding with those things you might want to maintain
yourself, please carefully consider the following:
WARNING:
1. TURN OFF GAS SUPPLY AND ELECTRICAL
POWER TO YOUR UNIT BEFORE SERVICING OR
PERFORMING MAINTENANCE.
2. Do not turn off electrical power to this unit without
first turning off the gas supply.
3. When removing access panels or performing maintenance functions inside your unit, be aware of sharp
sheet metal parts and screws. Although special care is
taken to reduce sharp edges to a minimum, be extremely careful when handling parts or reaching into
the unit.
Failure to follow these instructions may result in serious
injury or death.
A. Air Filters
Air filter(s) should be checked at least every 3 or 4 weeks and
changed or cleaned whenever it becomes dirty. Dirty filters
produce excessive stress on the blower motor and can cause the
motor to overheat and shut down. Table 1 indicates the correct
filter size for your unit. Refer to Fig. 3 to access the filter(s).
To replace or inspect filter(s) (or accessory filter rack when
supplied):
1. Remove the filter access panel using a 5/16-in. nut driver.
2. Remove the filter(s) by pulling the filter(s) out of the unit.
If the filter(s) is dirty, clean or replace with new one.
When installing the new filter(s), note the direction of the airflow
arrows on the filter frame.
If you have difficulty in locating your air filter(s), or if you have
questions concerning proper filter maintenance, contact your
dealer for instructions. When replacing filters, always use the same
size and type of filter that was supplied originally by the installer.
CAUTION: Never operate your unit without filters in
place. Failure to heed this warning may result in damage
to the blower motor and/or compressor. An accumulation
of dust and lint on internal parts of your unit can cause
loss of efficiency and, in some cases, fire.
B. Heat Exchanger
To ensure dependable and efficient heating operation, the heat
exchanger should be checked by a qualified maintenance person
before each heating season, and cleaned when necessary. This
checkout should not be attempted by anyone not having the
required expertise and equipment to properly do the job. Checking
and/or cleaning the heat exchanger involves removing the gas
controls assembly and the flue collector box cover and, when
completed, reinstalling the gas controls assembly for proper
operation. Also, the flue collector box cover must be replaced
correctly so that a proper seal is maintained. Contact your dealer
for the required periodic maintenance.
C. Fans and Fan Motor
Periodically check the condition of fan wheels and housings and
fan-motor shaft bearings. No lubrication of condenser- or
evaporator-fan bearings or motors is required or recommended.
D. Evaporator and Condenser Coils
Cleaning of the coils should only be done by qualified service
personnel. Contact your dealer for the required annual maintenance.
E. Condensate Drain
The drain pan and condensate drain line should be checked and
cleaned at the same time the cooling coils are checked by your
dealer.
F. Compressor
All compressors are factory-shipped with a normal charge of the
correct type refrigeration grade oil in them and should rarely
require additional oil.
TABLE 1—INDOOR-AIR FILTER DATA
UNIT SIZE FILTER SIZE
583B024-030 20x20
583B036 20x24
583B042-060 24x30
—3—
FILTER ACCESS
PANEL*
*For accessory filter rack.
Fig. 3—Filter Access Panel—
ACCESS PANEL
Vertical Supply Shown
