577C----A PREFERREDt 14 SEER SINGLE--PACKAGED AIR CONDITIONER AND GAS FURNACE SYSTEM WITH PURON (R--410A) REFRIGREANT SINGLE AND THREE PHASE 2--5 NOMINAL TONS (SIZES 24--60)

Product Data

Innovative Unit Base Design

On the inside a high --tech composite material will not rust and incorporates a sloped drain pan which improves drainage and helps inhibit mold, algae and bacterial growth. On the outside metal base rails provide added stability as well as easier handling and rigging.

Convertible duct configuration

Unit is designed for use in either downflow or horizontal applications. Each unit can be converted from horizontal to downflow and includeds two horizontal duct covers. Downflow operation is provided in the field to allow vertical ductwork connections. The basepan seals on the bottom openings to ensure a positive seal in the vertical airflow mode.

Efficient operation High-- efficiency design offers SEER (Seasonal Energy Efficiency Ratios) of 14.2 to 14.5, 12.0 EER, and AFUE (Annual Fuel Utilization Efficiency) ratings as high as

80.4%.

Energy--saving, direct spark ignition saves gas by operating only when the room thermostat calls for heating. Standard units are furnished with natural gas controls. A low--cost field installed kit

A09033

Fig. 1 -- Unit 577C-- --A

Single--Packaged Products with Energy--Saving Features and PuronR refrigerant.

S 14.2 to 14.5 SEER S 12.0 EER S Up to 80.4% AFUE S Factory--Installed TXV S Multi--Speed High Efficiency Blower--Standard S Direct Spark Ignition S Low Sound Levels

S Dehumidification Feature

FEATURES/BENEFITS

One--piece heating and cooling units with low sound levels, easy installation, low maintenance, and dependable performance.

Puron Environmentally Sound Refrigerant is Bryant’s unique refrigerant designed to help protect the environment. Puron is an HFC refrigerant which does not contain chlorine that can harm the ozone layer. The most important advantage of Puron refrigerant is that it has not been banned in future air conditioning systems as the traditional refrigerant R --22 has been. Puron refrigerant is in service in millions of systems proving highly reliable, environmentally sound performance.

Easy Installation

Factory--assembled package is a compact, fully self--contained, combination gas heating/electric cooling unit that is prewired, pre--piped, and pre--charged for minimum installation expense. These units are available in a variety of standard and optional heating/ cooling size combinations with voltage options to meet residential and light commercial requirements. Units are lightweight and install easily on a rooftop or at ground level. The high tech composite base eliminates rust problems associated with ground level applications.

for propane conversion is available for all units.

Low NOx units are designed for California installations. These models meet the California maximum oxides of nitrogen (NOx) emissions requirement of 40 nanograms/joule or less as shipped from the factory and MUST be installed in California Air Quality Management Districts and wherever a Low NOx rule exists.

Durable, dependable components Compressors are designed for high efficiency. Each compressor is hermetically sealed against contamination to help promote longer life and dependable operation. Each compressor also has vibration isolation to provide quieter operation. All compressors have internal high pressure and overcurrent protection.

Monoport inshot burners produce precise air--to--gas mixture, which provides for clean and efficient combustion. The large monoport on the inshot (or injection type) burners seldom, if ever, requires cleaning. All gas furnace components are accessible in one compartment.

Turbo--tubulart heat exchangers are constructed of aluminized steel for corrosion resistance and optimum heat transfer for improved efficiency. The tubular design permits hot gases to make multiple passes across the path of the supply air.

In addition, dimples located on the heat exchanger walls force the hot gases to stay in close contact with the walls, improving heat transfer.

Direct--drive high efficiency brushless DC blower motor is standard on all 577C-- --A models.

Direct--drive PSC (Permanent Split Capacitor) condenser--fan motors are designed to help reduce energy consumption and

provide for cooing operation down to 40_F(4.4_C) outdoor temperature. Motormasterr II low ambient kit is available as a field--installed accessory.

Thermostat controls

Time Guardr II anti--short cycle protection circuitry. If a non--corporate thermostat without anti-- short cycle protection is used the Time Guard II field --installed anti--short cycle kit is recommended.

Page 2

Thermostatic Expansion Valve -- A hard shutoff, balance port TXV maintains a constant superheat at the evaporator exit (cooling cycle) resulting in higher overall system efficiency.

Refrigerant system is designed to provide dependability. Liquid filter driers are used to promote clean, unrestricted operation. Each unit leaves the factory with a full refrigerant charge. Refrigerant service connections make checking operating pressures easier.

High and Low Pressure Switches provide added reliability for the compressor.

Indoor and Outdoor coils are computer--designed for optimum heat transfer and efficiency. The indoor coil is fabricated from copper tube and aluminum fins and is located inside the unit for protection against damage. The outdoor coil is internally mounted on the top tier of the unit. Copper fin coils and pre--coated fin coils are available from the factory by special order. These coils are recommended in applications where aluminum fins are likely to be damaged due to corrosion. They are ideal for seacoast applications.

Low sound ratings ensure a quiet indoor and outdoor environment with sound ratings as low as 73dBA.

577C-- --A

Easy to service cabinets provide easy 3--panel accessibility to serviceable components during maintenance and installation. The basepan with integrated drain pan provides easy ground level installation with mounting pad. A nesting feature ensures a positive basepan to roof curb seal when the unit is roof mounted. A convenient 3/4-- in. (19.05 mm) wide perimeter flange makes frame mounting on a rooftop easy.

Standard horizontal metal duct covers with insulation come with the unit and cover the horizontal duct openings. These can be left in place if the units are converted to downflow.

Integrated Gas Control (IGC) board provides safe and efficient control of heating and simplifies trouble--shooting through its built--in diagnostic function.

Cabinets are constructed of heavyduty, phosphated, zinc--coated prepainted steel capable of withstanding 500 hours in salt spray. Interior surfaces of the evaporator/heat exchanger compartment are insulated with cleanable semi--rigid insulation board, which keeps the conditioned air from being affected by the outdoor ambient temperature and provides improved indoor air quality. (Conforms to American Society of Heating, Refrigeration and Air Conditioning Engineers 62.2.) The sloped drain pan minimizes standing water in the drain. An external drain is provided.

TABLE OF CONTENTS

Features/Benefits 1--- 2..............................

Model Number Nomenclature 3.......................

ARI Capacities 4....................................

P h y s i c a l D a t a 5 --- 6..................................

Options and Accessories 7...........................

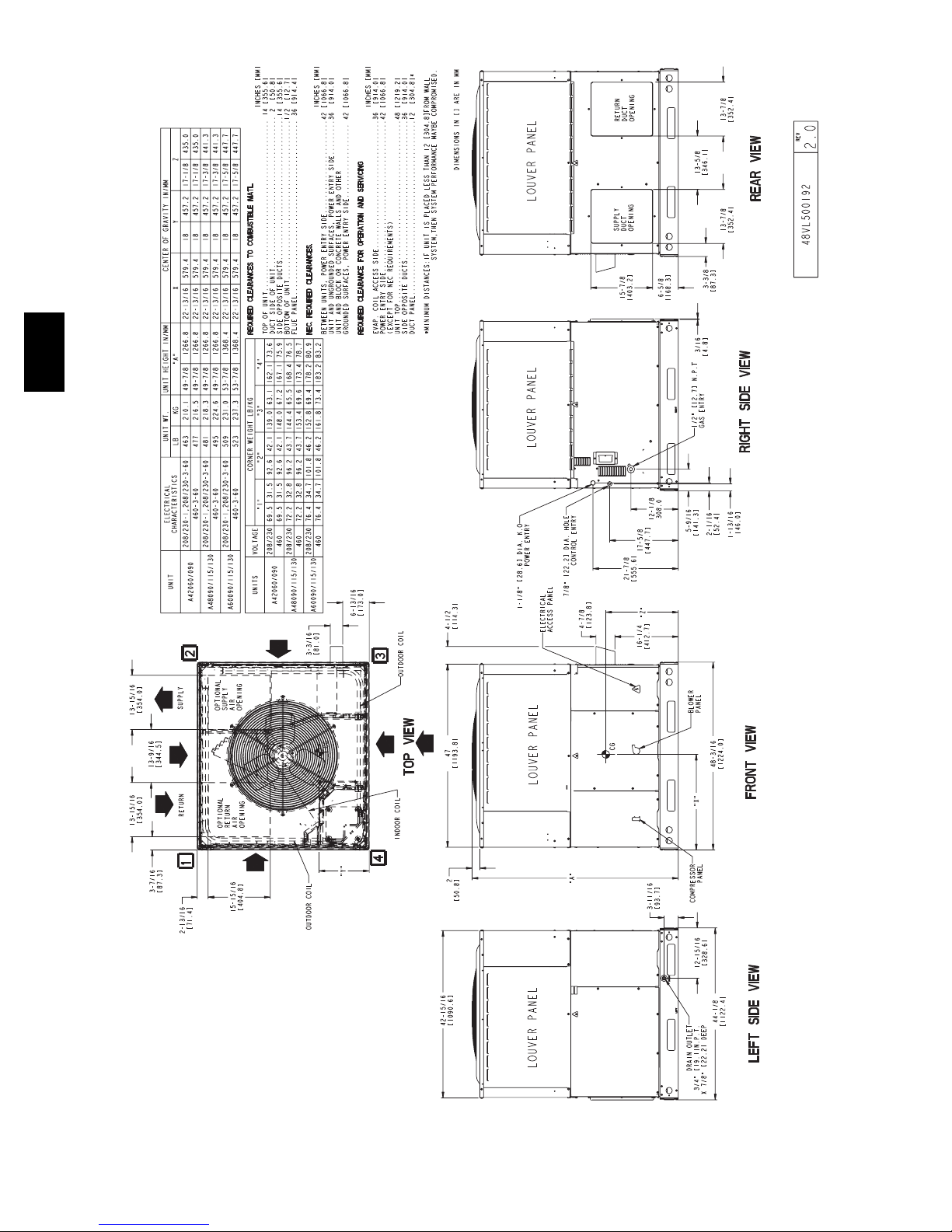

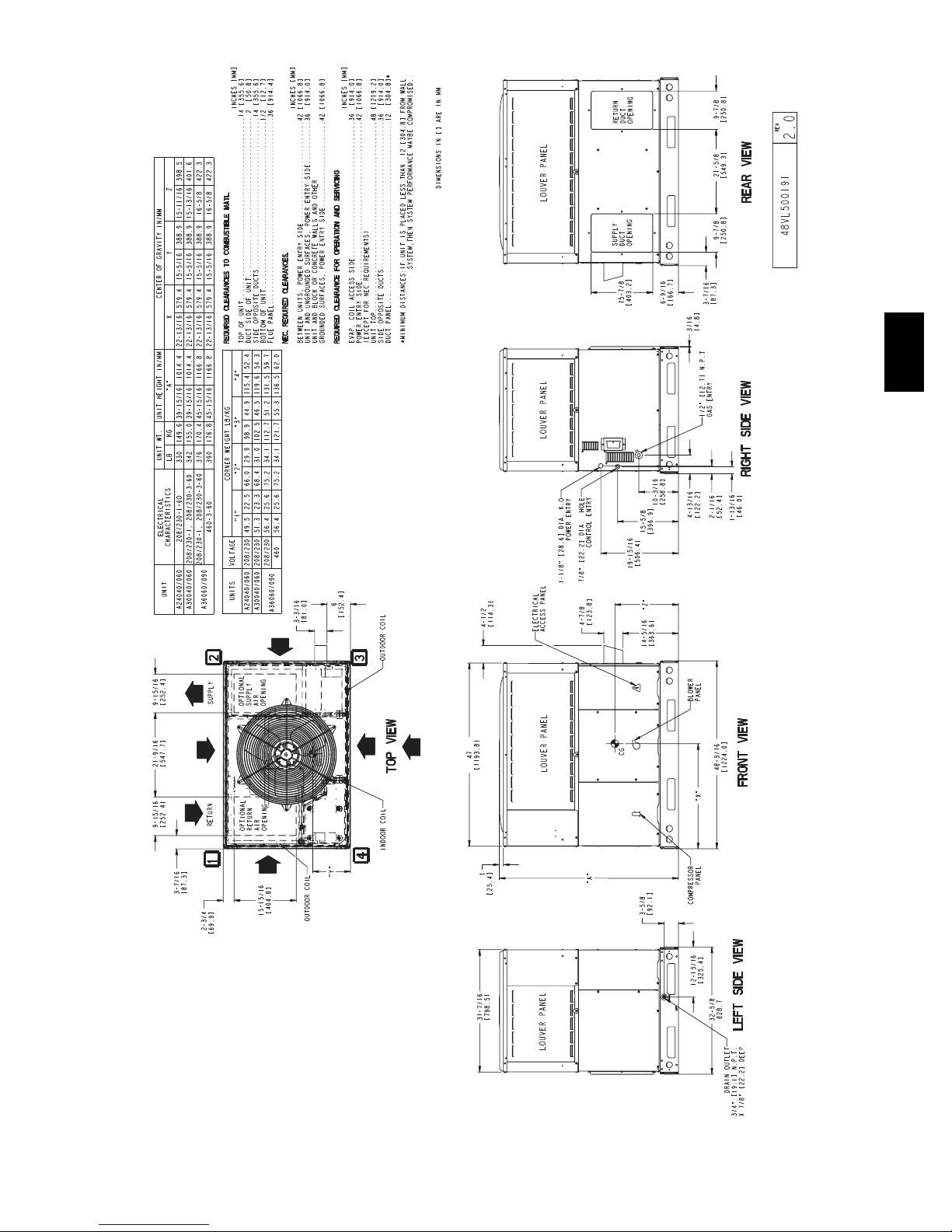

Base Unit Dimensions 9--- 10.........................

Accessory Dimensions 11............................

Selection Procedure 12..............................

Performance Data 13 -- -25............................

Typical Piping and Wiring 26..........................

Application Data 27.................................

Electrical Data 28...................................

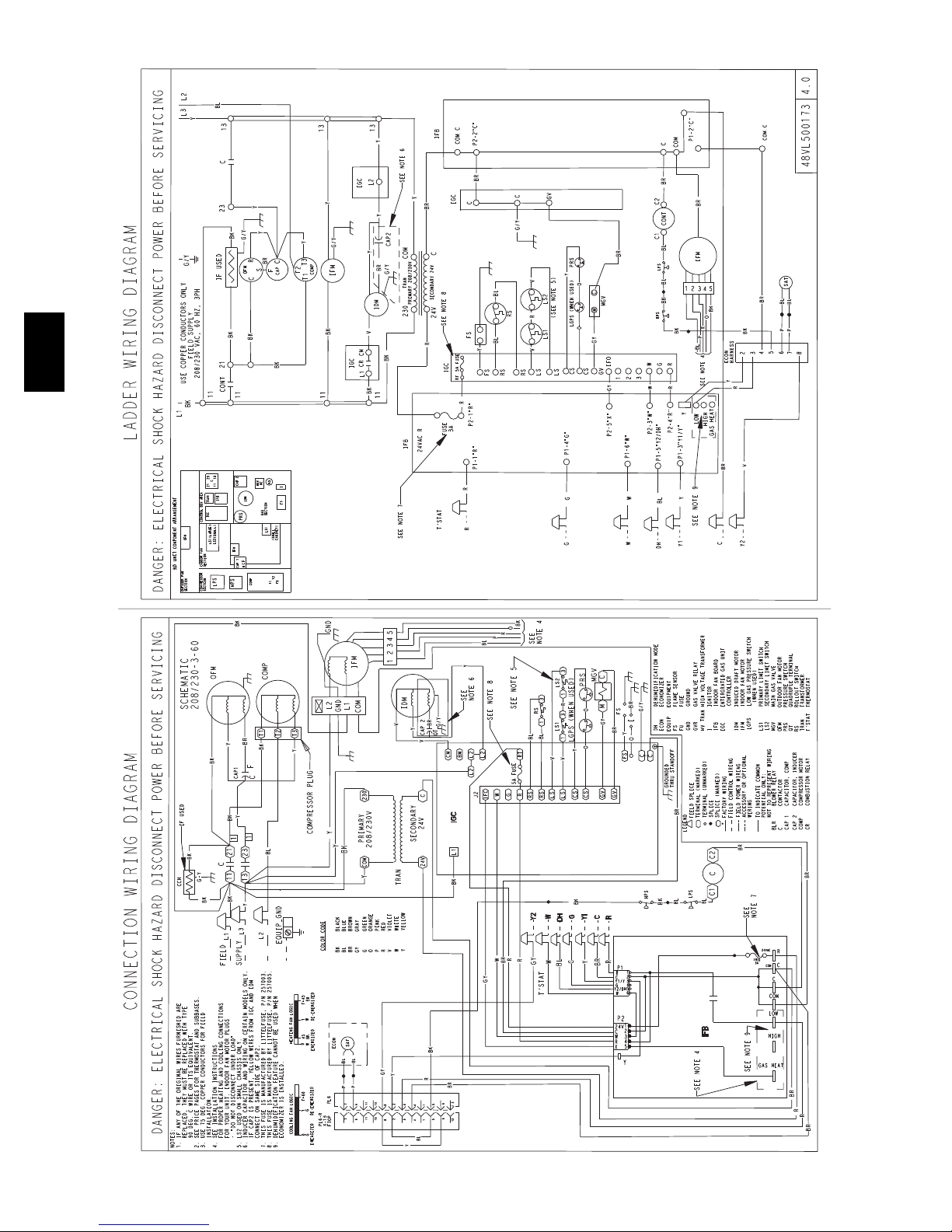

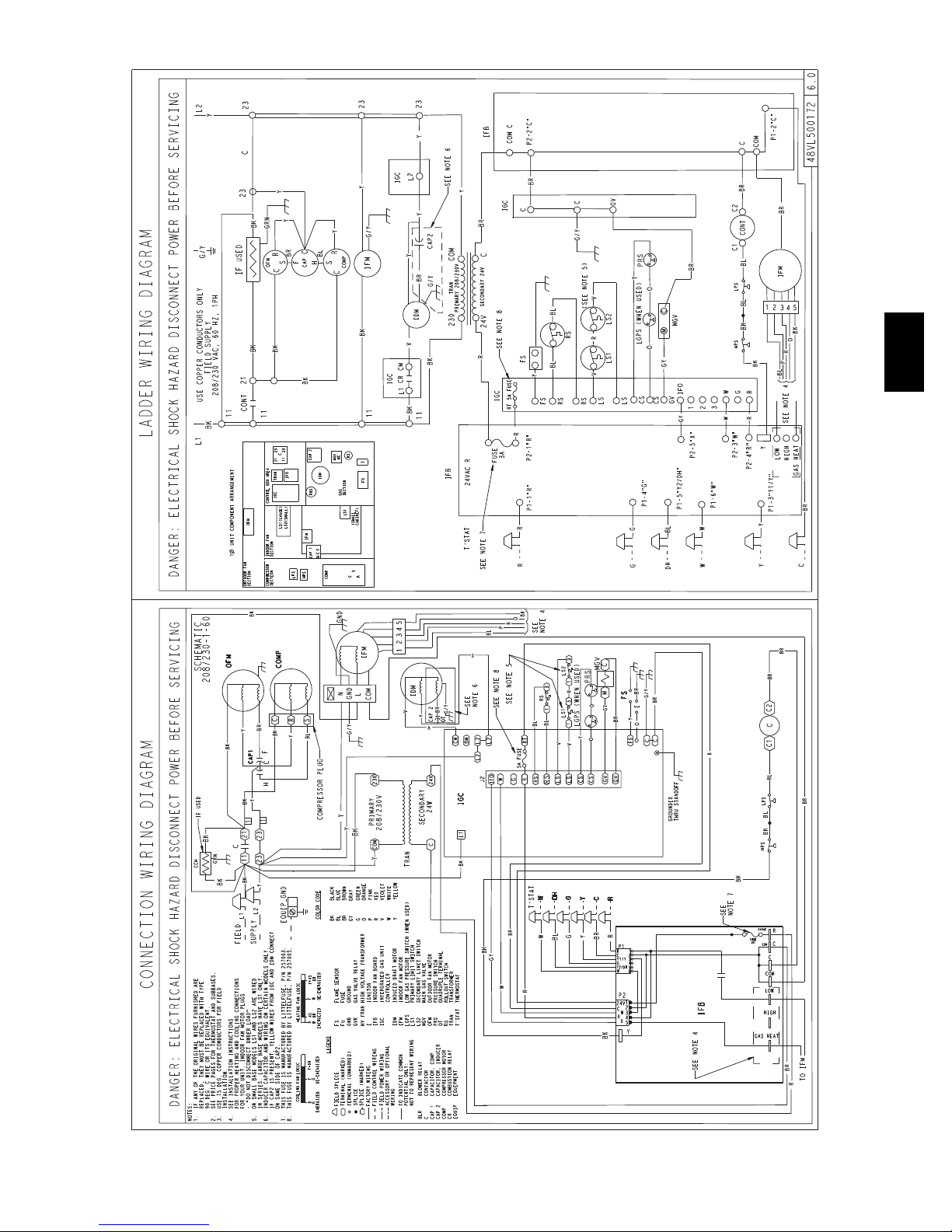

Typical Wiring Schematics 29--- 31.....................

Controls 32........................................

Guide Specifications 33 - -- 34..........................

Page 3

MODEL NUMBER NOMENCLATURE

Typ e o f Un i t 577C --- Single Packaged

Air Conditioner and Gas Furnace

Electrical Supply N --- 208/230 ---1 --- 60 P --- 208/230--- 3 --- 60 E --- 4 6 0 --- 3 --- 6 0

Fuel and Controls W --- N a t u r a l G a s

Major Series

Nominal Cooling Capacity 24 --- 2.0 Tons 30 --- 2.5 Tons 36 --- 3.0 Tons 42 --- 3.5 Tons 48 --- 4.0 Tons 60 --- 5.0 Tons

577C --- ---

000

Heat Input Size (Btuh) 040 --- 40,000 060 --- 60,000 090 --- 90,000 115 --- 115,000 130 --- 130,000

Brand Name A --- C o m m o n U n i t

Minor Series

Vari a ti ons GP --- Base unit with tin plated indoor coil hairpins

and Stainless Steel HX GS --- Stainless Steel HX TP --- Base unit with tin pl ated indo or coil hairpins

See Price Page fo r full l ist of f actory options. Only used if ordering an option

ama

577C-- --A

As an Energy Star Partner, the company has determined that this product meets the Energy Star guidelines for energy efficiency.

Page 4

ARI* CAPACITIES

Cooling Capacities and Efficiencies

577C --- -A

24 2 800 23600 12.0 14.5 30 2.5 1000 28600 12.0 14.5 36 3 1200 34200 12.0 14.5 42 3.5 1400 41000 12.0 14.5 48 4 1600 47000 12.0 14.2 60 5 1750 57000 12.0 14.2

LEGEND

d B --- Sound Levels (decibels) db—Dry Bulb SEER—Seasonal Energy Efficiency Ratio wb—Wet Bulb COP---Coefficient of Performance

* Air Conditioning & Refrigeration Institute. **At “ A” conditions---80_F (26.7_C) indoor db/67_F (19.4_C) indoor wb & 95_F(35_C) outdoor db. { Rated in accordance with U.S. Government DOE Department of Energy) test procedures and/or ARI Standards 210/240.

577C-- --A

NOMINAL

TONS

STANDARD

CFM

COOLING

CAPACITY

Notes:

1. Ratings are net values, reflecting the effects of circulating fan heat. Ratings are based on: Cooling Standard: 80°F (26.7_C) db, 67°F wb (19.4_C ) in d o o r e n t e r i n g --- a ir temperature and 95°Fdb(35_C) outdoor entering ---air temperature.

2. Before purchasing this appliance, read important energy cost and efficiency information available from you r retailer.

Gas Heating Capacities and Efficiencies

UNIT 577C-- --A HEATING INPUT (Btuh)

24040 30040

40,000 32,000

24060 30060 36060

60,000

42060

36090 42090 48090

90,000

60090

48115 60115

48130 60130

LEGEND AFUE—Annual Fuel Utilization Efficiency NOTE: Before pu rchasing th is appliance, read important energy cost an d efficiency information available from your retailer.

115,000 93,000

130,000 103,000

OUTPUT CAPACITY

(Btuh)

48,000 48,000 48,000 47,000

72,000 73,000 73,000 73,000

EER SEER

TEMPERATURE RISE

RANGE °F 〈°C)

30--60

(17--33)

25--55

(14--31)

35--65

(19--36)

30--60

(17--33)

35--65

(19--36)

AFUE (%)

80.0

78.5

79.3

80.4

80.3

78.9

A--Weighted Sound Power Level (dBA)

MODEL

577C --- -A

24 76 58.0 65.5 71.5 71.0 65.5 60.5 53.0 30 73 62.0 64.0 67.5 67.5 65.0 60.0 54.5 36 76 64.5 66.5 70.0 70.0 67.5 61.0 54.0 42 77 70.5 68.0 70.5 70.5 68.0 62.5 58.0 48 77 71.5 65.0 71.0 67.5 67.5 63.0 57.5 60 77 73.5 65.5 68.5 67.5 66.5 62.0 58.0

NOTE: Tested in accordance with ARI Standard 270 (not listed in ARI).

STANDARD

RATING dBA

125 250 500 1000 2000 4000 8000

TYPICAL OCTAVE BAND SPECTRUM (dBA without tone adjustment)

Page 5

PHYSICAL DATA

UNIT SIZE 24040 24060 30040 30060 36060 36090 42060 42090 NOMINAL COOLING C APACITY (ton) 2 2 2 --- 1/ 2 2 --- 1/ 2 3 3 3 --- 1/ 2 3 --- 1/ 2 NOMINAL HEATING INPUT (Btu/hrs) 40,000 60,000 40,000 60,000 60,000 90,000 60,000 90,000 SHIPPING WEIGHT* * lb.

SHIPPING WEIGHT* * (kg)

COMPRESSORS

Quantity

REFRIGERANT (R --- 410A)

Quantity lb. Quantity (kg)

REFRIGERANT METERING DEVICE TXV OUTDOOR COIL

Rows...Fins/in. Face Area ( sq f t)

OUTDOOR FAN

Nominal CFM Diameter in. Diameter (mm)

Motor Hp (Rpm)

INDOOR COIL

Rows...Fins/in. Face Area ( sq f t)

INDOOR BLOWER

Nominal Cooling Airflow (Cfm)

Size in. Size (mm.) Motor HP (RPM)

FURNACE SECTION*

Burner Orifice No. Natural Gas Qty...Drill Size (Factory Installed) Propane Gas

HIGH--PRESSURE SWITCH (psig) Cut-- out Reset (Auto)

LOSS--O F --CHARGE / LOW-- PRESSURE SWITCH (Liquid Line) (psig) cut--out Reset (auto)

RETURN--- AIR FILTERS†}

Throwaway Size in.

(mm)

337 153

6.0

2.7

1..21

11.9

2500

609.6

1/10 (810)

2...17

3.7

800

10x10

254x254

1/2 (1050)

2...44

2...55

20x20x1

508x508x

337 153

6.0

2.7

1...21

11.9

2500

609.6

1/10 (810)

2...17

3.7

800

10x10

254x254

1/2 (1050)

2...38

2...53

349 158

5.6

2.5

1...21

13.6

2700

609.6

1/10 (810)

3...17

3.7

1000

10x10

254x254

1/2 (1050)

2...44

2...55

20x24x1

508x610x25

349 158

5.6

2.5

1...21

13.6

2700

609.6

1/10 (810)

3...17

3.7

1000

10x10

254x254

1/2 (1050)

2...38

2...53

Scroll

1/5 (810)

279.4x254 3/4 (1000)

650 +/-- 15 420 +/-- 25

20 +/-- 5

45 +/-- 10

383 174

9.5

4.3

2...21

15.4

2800

609.6

3...17

3.7

1200

11x10

2...38

2...53

383 174

9.5

4.3

2...21

15.4

2800

609.6

1/5 (810)

3...17

3.7

1200

11x10

279.4x254 3/4 (1000)

3...38

3...53

610x762x25

24x30x1

472 214

8.8

4.0

2...21

13.6

3000

660.4

1/5 (810

3...17

4.7

1400

11x10

279.4x254 3/4 (1075)

2...38

2...53

472 214

8.8

4.0

2...21

13.6

3000

660.4

1/5 (810)

3...17

4.7

1400

11x10

279.4x254 3/4 (1075)

3...38

3...53

577C-- --A

Page 6

PHYSICAL DATA (CONT)

1600

1750

UNIT SIZE 48090 48115 48130 60090 60115 60130 NOMINAL COOLING C APACITY (ton) 4 4 4 5 5 5 NOMINAL HEATING INPUT (Btu/hrs) 90,000 115,000 130,000 90,000 115,000 130,000 SHIPPING WEIGHT* * lb

SHIPPING WEIGHT* * kg

COMPRESSORS

Quantity

REFRIGERANT (R --- 410A)

Quantity lb Quantity (kg.)

REFRIGERANT METERING DEVICE TXV OUTDOOR COIL

Rows...Fins/in. Face Area ( sq f t)

OUTDOOR FAN

Nominal Cfm Diameter in. Diameter (mm) Motor Hp (Rpm)

INDOOR COIL

Rows...Fins/in. Face Area ( sq f t)

INDOOR BLOWER

577C-- --A

Nominal Cooling Airflow (Cfm)

Size in. Size (mm) Motor HP (RPM)

FURNACE SECTION* Burner Orifice No.

Natural Gas Qty...Drill Size (Factory Installed) Propane Gas

HIGH--PRESSURE SWITCH (psig) Cut-- out Reset (Auto)

LOSS--O F --CHARGE / LOW-- PRESSURE SWITCH (Liquid Line) (psig) cut--out Reset (auto)

RETURN--AIR FILTERS Throwaway†} in.

(mm)

*Based on altitude of 0 to 2000 ft (0 ---610 m). { Required filter sizes shown are based on the larger of the ARI (Air Conditioning and Refrigeration Institute) rated cooling airflow or the heating airflow velocity

of 300 ft/minute for throwaway type. Air filter pressure drop for non---standard filters must not exceed 0.08 IN. W.C. } If using accessory filter rack refer to the filter rack installation instructions for correct filter sizes and quantity.

** For 460 volt units, add 14 lbs (6.35 kg) to the shipping weight.

490 222

9.5

4.3

2...21

17.5

3200

660.4

1/5 (810)

3...17

4.7

1600 1600 1600 1750 1750

11x10

279.4x254

1.0 (1075)

3...38

3...53

490 222

9.5

4.3

2...21

17.5

3200

660.4

1/5 (810)

3...17

4.7

11x10

279.4x254

1.0 (1075)

3...33

3...51

490 222

9.5

4.3

2...21

17.5

3200

660.4

1/5 (810)

3...17

4.7

11x10

279.4x254

1.0 (1075)

3...31

3...49

Scroll

650 +/-- 15 420 +/-- 25

20 +/-- 5

45 +/-- 10

24x36x1

610x914x25

518 235

12.3

5.6

2...21

21.4

3600

660.4

1/5 (810)

3...17

5.7

11x10

279.4x254

1.0 (1040)

3...38

3...53

518 235

12.3

5.6

2...21

21.4

3600

660.4

1/5 (810)

3...17

5.7

11x10

279.4x254

1.0 (1040)

3...33

3...51

518 235

12.3

5.6

2...21

21.4

3600

660.4

1/5 (810)

3...17

5.7

1750

11x10

279.4x254

1.0 (1040)

3...31

3...49

Page 7

OPTIONS AND ACCESSORIES

FACTORY

ITEM DESCRIPTION

Coil Options Base unit with tin plated indoor coil hairpins X

Compressor Start Kit assists compressor start--- up by

Compressor Start Kit

Corporate Thermostats

Crankcase Heater

Economizer

Filter Rack

Flat Roof Curbs

Flue Discharge Deflector

Heat Exchanger Stainless Steel Heat Exchanger X

High Altitude Propane Conversion Kit

Low Ambient Kit

Manual Outside Air Damper

Natural to Propane Gas Conversion Kit

Propane to Natural Gas Conversion Kit

S q u a r e --- t o --- R o u n d D u c t T r a n s i t i o n K i t

Time Guard II

Curb Adapter

Gasket Kit

*Refer to Price Page for application detail.

providing additional starting torque on sing phase units only.

Thermostats provide control for the system heating and cooling functions.

Crankcase Heater provides anti---floodback protection for low--- load cooling applications.

Horizontal Economizer with solid state controls and barometric relief dampers includes filter racks and provide outdoor air during cooling and reduce compressor operation.

Vertical Economizer with solid state controls and barometric relief dampers includes filter racks and provide outdoor air during cooling and reduce compressor operation.

Filter Rack features easy installation, serviceability, and high---filtering performance for vertical applications. Includes 1 ---in. (25 mm) filter.

F l a t R o o f C u r b s i n b o t h 1 1 --- i n ( 2 7 9 m m ) a n d 1 4 --- i n . ( 3 5 6 mm) sizes are available for roof mounted applications.

Directs flue gas exhaust 90 degrees upward from current discharge.

High Altitude Propane Conversion Kit is for use at 2001 to 6000 ft. (611--- 1829 m) above sea level. Kit consists of propane gas orifices that compensate for gas heat operation at high altitude.

Low Ambient Kit (Motormaster II Control) allows the use of mechanical cooling down to outdoor temperatures as low as 0°F (--- 18° C) when properly installed.

Manual Outside Air Damper includes hood and filter rack with adjustable damper blade for up to 25% outdoor air.

Natural to Propane Gas Conversion Kit allows for conversion from natural gas to propane gas (0 ---2000 ft) (0 --- 610 m)

Propane to Natural Gas Conversion Kit allows for conversion from propane to natural gas for altitudes of 0 ---2000 ft ( 0 --- 6 1 0 m )

S q u a r e --- t o --- R o u n d D u c t T r a n s i t i o n K i t e n a b l e 2 4 --- 4 8 s i z e units to be fitted to 14 in. (356 mm) round ductwork.

Automatically prevents the compressor from restarting for at least 4 minutes and 45 seconds after shutdown of the compressor. Not required when a corporate programmable thermostat is applied or with a RTU--- MP control.

Adapter curb f or new unit with base rail installed on existing curb

For field modified existing roof curb with new base rail unit.

INSTALLED

OPTION

FIELD

INSTALLED

ACCESSORY

577C-- --A

Page 8

BASE

ECONOMIZER

COIL

FILTER

ECONOMIZER

577C-- --A

COIL

SIDE VIEW

CAULK BOTTOM CORNER OF ECONOMIZER ON EACH SIDE

FI LT ER

ECONOMIZER

Vertical Economizer

FLANGE ON BASE

EV APORATOR COIL

AIL

DET

FILTER RACK

BEND FLANGE AT 90° -SCREW TO

DIVIDER WITH 1-IN. (25 mm)

TOP FILTER RACK

SCREW

BOTTOM FILTER RACK

Horizontal Economizer

MANUAL OUTSIDE AIR DAMPER

REPLACEMENT PANEL

MANUAL OUTSIDE AIR HOOD

DAMPER BLADE

A09376

Page 9

UNIT DIMENSIONS -- 577C----A24--36

577C-- --A

A09144

Page 10

UNIT DIMENSIONS -- 577C----A42--60

577C-- --A

A09145

Page 11

ACCESSORY DIMENSIONS

HVAC unit base rails

Anchor screw

Flashing field supplied

Roofing material field supplied

Cant strip field supplied

*Provided with roofcurb

HVAC unit basepan

ROOF CURB DETAIL

Sealing Gasket

Roofcurb

Wood nailer*

Roofcurb*

Insulation (field supplied)

A09090

SMALL/COMMON CURB

SUPPLY

AIR

Dashed lines show cross support location for large basepan units.

A09096

577C-- --A

SMALL BASE UNIT

LARGE

RETURN

AIR

BASE UNIT

LARGE CURB

UNIT SIZE

Small or

Large

* Part Numbers CPRCURB010A00 and CPRCURB011A00 can be used on both small and large basepan units. Th e cross supports must be located based on whether the unit is a small basepan or a large basepan. NOTES:

1. Roof curb must be set up for unit being installed.

2. Seal strip must be applied, as required, to unit being installed.

3. Roof curb is made of 16--gauge steel.

4. Attach ductwork to curb (flanges of duct rest on curb).

5. Insulated panels: 1--in. (25.4 mm) thick fiberglass 1 lb. density.

CATALOG

NUMBER

CPRFCURB010A00 11 (279) CPRFCURB011A00 14 (356) CPRFCURB012A00 11 (279) CPRFCURB013A00 14 (356)

IN. (mm)

A09095

B (small/common

curb)

IN. (mm)*

B (large curb)

IN. (mm)*

10 (254)

14 (356) 16 (406) 47.8 (1214)

14 (356) 43.9 (1116)

UNIT PLACEMENT ON

COMMON CURB

SMALL OR LARGE BASE UNIT

IN. (mm)DIN. (mm)EIN. (mm)FIN. (mm)

32.4 (822)

A09094

A09097

2.7 (69)

Page 12

SELECTION PROCEDURE (WITH EXAMPLE)

1. Determine cooling and heating requirements at design conditions:

Given:

Required Cooling Capacity (TC) 34,000 Btuh..........

Sensible Heat Capacity (SHC) 25,000 Btuh............

Required Heating Capacity 60,000 Btuh...............

Condenser Entering Air Temperature 95°F(35°C).......

Indoor--Air Temperature 80°F(26°C)edb 67°F(19°C)ewb.

Evaporator Air Quantity 1200 CFM..................

External Static Pressure 0.10 in. W .C..................

Electrical Characteristics 208--1--60...................

2. Select unit based on required cooling capacity.

Enter Net Cooling Capacities table at condenser entering temperature of 95°F(35°C). Unit 036 at 1200 cfm and 67°F (19°C) ewb (entering wet bulb) will provide a total capacity of 34,200 Btuh and a SHC of 27,400 Btuh. Calculate SHC correction, if required, using Note 4 under Cooling Capacities tables.

577C-- --A

3. Select heating capacity of unit to provide design condition requirement.

In the Heating Capacities and Efficiencies table, note that the unit 036090 will provide 72,000 Btuh with an input of 90,000 Btuh.

4. Determine fan speed and power requirements at design conditions.

Before entering the air delivery tables, calculate the total static pressure required. From the given example, the Wet Coil Pressure Drop Table, and the Filter Pressure Drop Table:

External Static Pressure 0.10 in. wc

Filter 0.07 in. wc Wet Coil Pressure Drop 0.18 in.

Total Static Pressure 0.28 in. wc Enter the table for Dry Coil Air Delivery—Horizontal and

Downflow Discharge. At .287 in. wc ESP, the closest speed to 1200 CFM is Med--Low (pink wire), which delivers 1262 CFM at .3 in ESP.

5. Select unit that corresponds to power source available.

The Electrical Data Table shows that the unit is designed to operate at 208--1--60.

Page 13

To t a l

Capacity MBtuh

To t a l

Capacity MBtuh

Sys

To t a l

Capacity MBtuh

Sys

To t a l

CONDENSER ENTERING AIR TEMPERATURES °F(°C)

Capacity MBtuh

VL-A24 Outdoor Section With NONE Indoor Section

Sys

To t a l

577C-- --A

Capacity MBtuh

Sys

To t a l

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

To t a l Sens To t a l Sens Tot a l Sens To ta l Sens To t al Sens To t a l Sens

PERFORMANCE DAT A

577C----A24

EVAPORATOR AIR

Capacity MBtuh

EWB

CFM/BF

22.98 22.98 1.47 21.68 21.68 1.68 20.31 20.31 1.90 18.78 18.78 2.14 17.08 17.08 2.40 15.36 15.36 2.68

23.82 21.37 1.48 22.23 20.56 1.68 20.58 19.70 1.91 18.81 18.81 2.14 17.11 17.11 2.40 15.39 15.39 2.68

(13.8)

°F(°C)

(16.6)

24.35 17.47 1.49 22.73 16.72 1.69 21.04 15.94 1.91 19.13 15.07 2.15 16.92 14.08 2.39 14.70 13.09 2.66

63*

(17.2)

700/0.02

26.42 18.21 1.49 24.76 17.49 1.71 23.03 16.75 1.95 21.14 15.93 2.20 18.89 14.98 2.44 16.58 14.01 2.71

(19.4)

28.85 14.79 1.50 27.32 14.23 1.72 25.63 13.61 1.96 23.80 12.93 2.23 21.65 12.14 2.52 19.22 11.24 2.79

(22.2)

24.12 24.12 1.50 22.76 22.76 1.71 21.34 21.34 1.94 19.80 19.80 2.18 17.99 17.99 2.43 16.19 16.19 2.72

(13.8)

24.50 23.07 1.50 22.90 22.19 1.71 21.38 21.38 1.94 19.84 19.84 2.18 18.02 18.02 2.44 16.22 16.22 2.72

(16.6)

25.00 18.69 1.50 23.32 17.92 1.72 21.58 17.12 1.94 19.66 16.24 2.18 17.37 15.21 2.42 15.09 14.18 2.69

63*

(17.2)

800/0.03

27.05 19.46 1.51 25.38 18.76 1.72 23.60 18.00 1.97 21.66 17.17 2.23 19.36 16.20 2.47 17.00 15.20 2.74

(19.4)

29.34 15.47 1.53 27.83 14.96 1.74 26.14 14.36 1.98 24.31 13.70 2.25 22.19 12.94 2.54 19.67 12.02 2.83

(22.2)

25.11 25.11 1.52 23.69 23.69 1.74 22.22 22.22 1.97 20.65 20.65 2.22 18.78 18.78 2.47 16.90 16.90 2.76

(13.8)

25.16 25.16 1.52 23.73 23.73 1.74 22.26 22.26 1.97 20.68 20.68 2.22 18.81 18.81 2.47 16.93 16.93 2.76

(16.6)

25.49 19.84 1.52 23.79 19.07 1.74 22.01 18.25 1.97 20.08 17.36 2.21 17.74 16.30 2.45 15.43 15.18 2.72

63*

(17.2)

900/0.04

27.52 20.63 1.53 25.83 19.96 1.74 24.04 19.20 1.98 22.07 18.37 2.25 19.75 17.37 2.50 17.35 16.33 2.77

(19.4)

29.68 16.09 1.55 28.19 15.62 1.76 26.50 15.05 2.00 24.67 14.41 2.27 22.61 13.70 2.57 20.03 12.76 2.86

(22.2)

See Legend and Notes on Page 19.

Page 14

To t a l

Capacity MBtuh

To t a l

Capacity MBtuh

Sys

577C-- --A

CONDENSER ENTERING AIR TEMPERATURES °F(°C)

To t a l

Capacity MBtuh

To t a l

Capacity MBtuh

To t a l

Sys

VL-A30 Outdoor Section With NONE Indoor Section

Sys

Capacity MBtuh

Sys

To t a l

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

To t a l Sens To t a l Sens Tot a l Sens To ta l Sens To t al Sens To t a l Sens

PERFORMANCE DAT A

577C----A30

EVAPORATOR AIR

Capacity MBtuh

EWB

CFM/BF

26.99 26.99 1.86 26.03 26.03 2.08 24.84 24.84 2.31 23.28 23.28 2.55 21.63 21.63 2.82 19.83 19.83 3.11

27.80 26.01 1.87 26.54 25.26 2.08 25.04 24.35 2.31 23.33 23.33 2.55 21.67 21.67 2.82 19.87 19.87 3.11

(13.8)

°F(°C)

(16.6)

28.37 21.21 1.87 27.09 20.50 2.09 25.54 19.70 2.32 23.41 18.68 2.55 21.13 17.63 2.81 18.66 16.51 3.08

63*

(17.2)

875/0.03

30.73 22.07 1.86 29.48 21.44 2.10 27.98 20.72 2.35 25.91 19.78 2.59 23.61 18.78 2.85 21.10 17.72 3.13

(19.4)

33.46 17.78 1.87 32.40 17.30 2.10 31.09 16.72 2.36 29.42 16.04 2.64 27.07 15.10 2.93 24.52 14.14 3.21

(22.2)

28.26 28.26 1.89 27.27 27.27 2.12 26.09 26.09 2.36 24.45 24.45 2.59 22.72 22.72 2.87 20.84 20.84 3.16

(13.8)

28.57 27.98 1.89 27.32 27.32 2.13 26.13 26.13 2.36 24.49 24.49 2.60 22.76 22.76 2.87 20.87 20.87 3.16

(16.6)

29.05 22.65 1.89 27.73 21.95 2.13 26.16 21.15 2.36 23.97 20.11 2.59 21.65 19.03 2.85 19.13 17.84 3.12

63*

(17.2)

1000/0.04

31.37 23.54 1.89 30.12 22.95 2.12 28.60 22.25 2.38 26.53 21.33 2.63 24.15 20.29 2.89 21.60 19.20 3.18

(19.4)

33.95 18.56 1.90 32.92 18.14 2.14 31.61 17.60 2.39 30.05 16.99 2.68 27.65 16.09 2.98 25.04 15.12 3.26

(22.2)

29.32 29.32 1.92 28.31 28.31 2.15 27.10 27.10 2.41 25.45 25.45 2.64 23.65 23.65 2.91 21.70 21.70 3.21

(13.8)

29.36 29.36 1.92 28.35 28.35 2.15 27.14 27.14 2.41 25.49 25.49 2.64 23.68 23.68 2.92 21.73 21.73 3.21

(16.6)

29.55 24.01 1.92 28.22 23.33 2.15 26.63 22.53 2.40 24.43 21.47 2.62 22.07 20.33 2.88 19.66 19.66 3.17

63*

(17.2)

1125/0.05

31.84 24.91 1.92 30.59 24.37 2.15 29.08 23.70 2.41 27.00 22.80 2.68 24.60 21.73 2.93 22.02 20.55 3.22

(19.4)

34.29 19.27 1.94 33.28 18.91 2.17 31.97 18.40 2.43 30.44 17.85 2.71 28.11 17.06 3.01 25.43 16.05 3.31

(22.2)

See Legend and Notes on Page 19.

Page 15

To t a l

Capacity MBtuh

To t a l

Capacity MBtuh

Sys

577C-- --A

Sys

To t a l

Capacity MBtuh

Sys

To t a l

CONDENSER ENTERING AIR TEMPERATURES °F(°C)

Capacity MBtuh

VL-A36 Out door Section With NO NE Indoor Section

Sys

To t a l

Capacity MBtuh

Sys

To t a l

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

To t a l Sens To t a l Sens Tot a l Sens To ta l Sens To t al Sens To t a l Sens

PERFORMANCE DATA (CONT)

Capacity MBtuh

EWB

EVAPORATOR AIR

577C----A36

32.04 32.04 2.19 31.05 31.05 2.46 29.67 29.67 2.74 27.89 27.89 3.04 25.97 25.97 3.38 23.86 23.86 3.76

32.91 27.48 2.20 31.59 27.24 2.46 29.83 29.66 2.74 27.93 27.93 3.04 26.01 26.01 3.38 23.90 23.90 3.76

63*

(13.8)

°F(°C)

CFM/BF

(16.6)

33.62 22.38 2.21 32.24 22.10 2.47 30.40 21.63 2.75 27.88 20.90 3.04 25.18 20.09 3.37 22.23 19.16 3.72

36.45 23.33 2.21 35.13 23.14 2.49 33.48 22.83 2.80 30.96 22.18 3.09 28.22 21.45 3.42 25.24 20.62 3.78

(19.4)

(17.2)

1050/0.04

39.67 18.74 2.22 38.63 18.63 2.50 37.24 18.38 2.81 35.25 17.95 3.16 32.48 17.21 3.51 29.45 16.41 3.88

(22.2)

33.50 33.50 2.25 32.48 32.48 2.53 31.16 31.16 2.81 29.25 29.25 3.11 27.24 27.24 3.46 25.04 25.04 3.83

(13.8)

33.79 29.49 2.25 32.53 32.53 2.53 31.22 31.22 2.82 29.30 29.30 3.11 27.28 27.28 3.46 25.08 25.08 3.84

(16.6)

34.36 23.89 2.25 32.96 23.65 2.53 31.14 23.23 2.81 28.52 22.48 3.10 25.75 21.66 3.43 22.79 20.63 3.79

63*

(17.2)

1200/0.05

37.19 24.89 2.25 35.85 24.76 2.54 34.20 24.50 2.85 31.64 23.89 3.16 28.84 23.16 3.49 25.80 22.30 3.85

(19.4)

40.13 19.52 2.27 39.14 19.50 2.55 37.77 19.31 2.86 35.97 19.03 3.21 33.15 18.34 3.58 30.03 17.54 3.95

(22.2)

34.72 34.72 2.30 33.67 33.67 2.58 32.38 32.38 2.89 30.42 30.42 3.18 28.32 28.32 3.53 26.03 26.03 3.91

(13.8)

34.77 34.77 2.30 33.72 33.72 2.58 32.42 32.42 2.89 30.47 30.47 3.19 28.36 28.36 3.53 26.07 26.07 3.91

(16.6)

34.95 25.34 2.30 33.50 25.12 2.58 31.73 24.75 2.88 29.03 23.98 3.16 26.24 23.10 3.49 23.49 23.49 3.85

63*

(17.2)

1350/0.06

37.71 26.36 2.30 36.39 26.30 2.58 34.73 26.08 2.90 32.19 25.52 3.22 29.33 24.77 3.55 26.31 23.80 3.92

(19.4)

40.41 20.21 2.32 39.47 20.28 2.60 38.09 20.14 2.91 36.46 20.02 3.26 33.65 19.42 3.64 30.47 18.63 4.02

(22.2)

See Legend and Notes on Page 19.

Page 16

To t a l

Capacity MBtuh

To t a l

Capacity MBtuh

Sys

577C-- --A

CONDENSER ENTERING AIR TEMPERATURES °F(°C)

To t a l

Capacity MBtuh

To t a l

Capacity MBtuh

To t a l

Sys

VL-A42 Outdoor Section With NONE Indoor Section

Sys

Capacity MBtuh

Sys

To t a l

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

To t a l Sens To t a l Sens Tot a l Sens To ta l Sens To t al Sens To t a l Sens

PERFORMANCE DAT A

577C----A42

EVAPORATOR AIR

Capacity MBtuh

EWB

CFM/BF

39.61 39.61 2.72 37.75 37.75 3.11 35.18 35.18 3.47 32.60 32.60 3.87 29.87 29.87 4.29 27.01 27.01 4.72

41.07 38.45 2.67 38.75 36.39 3.09 35.55 33.89 3.46 32.66 32.66 3.87 29.92 29.92 4.29 27.06 27.06 4.72

(13.8)

°F(°C)

(16.6)

63*

41.95 31.44 2.64 39.60 29.62 3.07 36.33 27.46 3.45 32.90 25.32 3.87 29.27 23.19 4.30 25.42 21.06 4.73

(17.2)

1225/0.03

45.37 32.67 2.53 43.06 30.92 2.96 39.97 28.94 3.40 36.45 26.82 3.83 32.72 24.71 4.27 28.81 22.62 4.72

(19.4)

49.27 26.39 2.42 46.93 24.87 2.85 44.47 23.37 3.31 41.33 21.77 3.74 37.56 19.92 4.23 33.52 18.06 4.71

(22.2)

41.50 41.50 2.69 39.58 39.58 3.11 36.97 36.97 3.49 34.25 34.25 3.90 31.39 31.39 4.32 28.40 28.40 4.76

(13.8)

42.21 41.36 2.67 39.89 39.13 3.10 37.03 37.03 3.49 34.31 34.31 3.89 31.45 31.45 4.32 28.45 28.45 4.76

(16.6)

63*

42.97 33.53 2.65 40.58 31.68 3.08 37.25 29.48 3.49 33.72 27.26 3.90 29.98 25.02 4.34 26.10 22.75 4.77

(17.2)

1400/0.04

46.35 34.80 2.54 43.98 33.00 2.97 41.00 31.10 3.42 37.31 28.90 3.87 33.50 26.70 4.31 29.50 24.50 4.76

(19.4)

50.00 27.51 2.44 47.63 26.00 2.87 45.07 24.46 3.33 42.19 23.04 3.76 38.40 21.21 4.25 34.25 19.32 4.76

(22.2)

43.07 43.07 2.68 41.12 41.12 3.10 38.51 38.51 3.52 35.67 35.67 3.92 32.70 32.70 4.36 29.59 29.59 4.80

(13.8)

43.17 43.17 2.68 41.17 41.17 3.10 38.57 38.57 3.52 35.73 35.73 3.92 32.75 32.75 4.36 29.63 29.63 4.80

(16.6)

63*

43.75 35.51 2.67 41.32 33.62 3.10 37.99 31.40 3.52 34.37 29.08 3.94 30.58 26.74 4.37 26.77 26.77 4.81

(17.2)

1575/0.05

47.03 36.77 2.56 44.64 34.95 2.99 41.77 33.12 3.44 38.00 30.88 3.90 34.12 28.58 4.35 30.10 26.23 4.80

(19.4)

50.51 28.53 2.47 48.10 27.01 2.90 45.48 25.44 3.37 42.80 24.21 3.79 39.02 22.42 4.27 34.83 20.52 4.79

(22.2)

See Legend and Notes on Page 19.

Page 17

To t a l

Capacity MBtuh

Sys

To t a l

Capacity MBtuh

Sys

To t a l

CONDENSER ENTERING AIR TEMPERATURES °F(°C)

Capacity MBtuh

VL-A48 Outdoor Section With NONE Indoor Section

Sys

To t a l

577C-- --A

Capacity MBtuh

Sys

To t a l

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

To t a l Sens To t a l Sens Tot a l Sens To ta l Sens To t al Sens To t a l Sens

PERFORMANCE DATA (CONT)

577C----A48

EVAPORATOR AIR

Capacity MBtuh

EWB

CFM/BF

45.84 45.84 2.98 43.32 43.32 3.39 40.27 40.27 3.79 36.93 36.93 4.23 33.57 33.57 4.70 30.16 30.16 5.21

47.63 42.40 3.00 44.58 40.08 3.40 40.96 37.50 3.80 36.99 36.99 4.23 33.63 33.63 4.70 30.21 30.21 5.21

63*

(13.8)

°F(°C)

(16.6)

48.63 34.72 3.00 45.52 32.68 3.41 41.85 30.46 3.82 37.52 28.03 4.23 33.20 25.66 4.69 28.77 23.31 5.18

(17.2)

1400/0.04

52.66 36.12 2.99 49.43 34.10 3.41 46.02 32.06 3.86 41.50 29.66 4.31 37.03 27.31 4.77 32.47 24.99 5.27

(19.4)

57.51 29.34 2.99 54.21 27.62 3.41 50.75 25.85 3.86 46.93 24.09 4.35 42.34 22.07 4.88 37.63 20.03 5.42

(22.2)

47.96 47.96 3.06 45.32 45.32 3.47 42.32 42.32 3.89 38.76 38.76 4.32 35.24 35.24 4.80 31.66 31.66 5.31

(13.8)

48.90 45.54 3.06 45.80 43.03 3.47 42.41 42.41 3.89 38.82 38.82 4.32 35.30 35.30 4.80 31.72 31.72 5.32

(16.6)

63*

49.79 37.01 3.06 46.56 34.90 3.47 42.93 32.66 3.90 38.42 30.10 4.31 33.97 27.62 4.77 29.47 25.14 5.26

(17.2)

1600/0.05

53.81 38.48 3.05 50.48 36.40 3.46 47.00 34.30 3.92 42.43 31.88 4.39 37.88 29.44 4.86 33.20 27.00 5.35

(19.4)

58.37 30.60 3.05 55.05 28.87 3.47 51.47 27.05 3.93 47.81 25.40 4.41 43.22 23.43 4.94 38.39 21.38 5.50

(22.2)

49.74 49.74 3.12 47.00 47.00 3.53 44.06 44.06 3.98 40.29 40.29 4.41 36.64 36.64 4.89 32.92 32.92 5.41

(13.8)

50.02 49.61 3.11 47.06 47.06 3.53 44.13 44.13 3.98 40.35 40.35 4.41 36.69 36.69 4.89 32.97 32.97 5.41

(16.6)

63*

50.68 39.21 3.11 47.38 37.03 3.53 43.79 34.77 3.98 39.13 32.09 4.38 34.61 29.48 4.84 30.08 26.75 5.33

(17.2)

1800/0.06

54.66 40.72 3.10 51.27 38.58 3.52 47.75 36.43 3.97 43.18 34.03 4.47 38.53 31.47 4.93 33.83 28.88 5.44

(19.4)

58.98 31.74 3.11 55.61 30.01 3.53 51.97 28.16 3.99 48.35 26.51 4.48 43.87 24.71 4.99 38.98 22.66 5.56

(22.2)

See Legend and Notes on Page 19.

Page 18

To t a l

Capacity MBtuh

To t a l

Capacity MBtuh

Sys

577C-- --A

CONDENSER ENTERING AIR TEMPERATURES °F(°C)

To t a l

Capacity MBtuh

To t a l

Capacity MBtuh

To t a l

Sys

Capacity MBtuh

Sys

To t a l

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

To t a l Sens To t a l Sens Tot a l Sens To ta l Sens To t al Sens To t a l Sens

PERFORMANCE DAT A

577C----A60

EVAPORATOR AIR

Capacity MBtuh

EWB

CFM/BF

57.97 57.97 3.80 55.02 55.02 4.21 51.93 51.93 4.68 48.68 48.68 5.21 45.23 45.23 5.81 41.56 41.56 6.49

59.45 53.94 3.82 55.93 51.73 4.22 52.32 49.43 4.68 48.74 48.74 5.21 45.29 45.29 5.81 41.61 41.61 6.49

(13.8)

°F(°C)

(16.6)

63*

60.48 43.88 3.83 56.84 41.90 4.23 53.09 39.89 4.69 49.17 37.85 5.21 45.08 35.75 5.80 40.81 33.61 6.47

(17.2)

1750/0.19

65.05 45.58 3.88 61.08 43.55 4.29 57.00 41.50 4.75 52.75 39.41 5.27 48.31 37.28 5.86 43.70 35.10 6.52

(19.4)

71.36 36.96 3.97 66.97 35.08 4.38 62.43 33.17 4.83 57.72 31.22 5.35 52.82 29.25 5.94 47.74 27.24 6.59

(22.2)

60.36 60.36 3.91 57.19 57.19 4.32 53.88 53.88 4.79 50.41 50.41 5.31 46.72 46.72 5.91 42.83 42.83 6.59

(13.8)

60.82 57.92 3.91 57.29 57.29 4.32 53.96 53.96 4.79 50.47 50.47 5.32 46.78 46.78 5.92 42.88 42.88 6.59

(16.6)

63*

61.65 46.80 3.92 57.84 44.73 4.33 53.93 42.64 4.78 49.88 40.51 5.30 45.65 38.32 5.89 41.27 36.06 6.56

(17.2)

2000/0.23

66.24 48.72 3.98 62.11 46.60 4.39 57.86 44.46 4.85 53.47 42.28 5.36 48.88 40.05 5.95 44.14 37.77 6.61

(19.4)

72.62 38.94 4.06 68.04 36.99 4.47 63.32 35.02 4.93 58.45 33.03 5.45 53.38 30.99 6.03 48.15 28.93 6.68

(22.2)

62.35 62.35 4.01 58.99 58.99 4.43 55.49 55.49 4.89 51.82 51.82 5.42 47.93 47.93 6.02 43.84 43.84 6.69

(13.8)

62.44 62.44 4.01 59.07 59.07 4.43 55.56 55.56 4.89 51.88 51.88 5.42 47.99 47.99 6.02 43.88 43.88 6.69

(16.6)

63*

62.51 49.60 4.01 58.59 47.45 4.42 54.57 45.27 4.87 50.40 43.04 5.39 46.08 40.74 5.98 41.62 38.30 6.65

(17.2)

2250/0.27

67.13 51.74 4.07 62.86 49.53 4.48 58.50 47.31 4.94 53.98 45.03 5.46 49.29 42.69 6.04 44.47 40.24 6.70

(19.4)

73.55 40.84 4.16 68.82 38.84 4.57 63.97 36.82 5.02 58.95 34.76 5.54 53.76 32.68 6.12 48.40 30.58 6.77

(22.2)

See Legend and Notes on Page 19.

Page 19

577C-- --A

(Btuh)

Sensible capacity

---

edb

ldb =

*At75°F(24°C) entering dry bulb--- Tennessee Valley Authority (TVA) rating conditions; all others at 80°Fdrybulb.

LEGEND

PERFORMANCE DATA (CONT)

BF— Bypass Factor

edb— Entering Dry - -- Bulb

Ewb— Entering Wet--- Bulb

kW — Total Unit Power Input

SHC— Sensible Heat Capacity (1000 Btuh)

TC — Total Capacity (1000 Btuh) (net)

rh—Relative Humidity

COOLING NOTES:

1. Ratings are net; they account for the effects of the evaporator--- fan motor power and heat.

2. Direct interpolation is permissible. Do not extrapolate.

3. The following formulas may be used:

lwb)

1.10 x cfm

Wet---bulb temperature corresponding to enthalpy

air leaving evaporator coil (

lwb =

4.5 x cfm

total capacity (Btuh)

e w b ---

ewb = Enthalpy of air entering evaporator coil

lwb =

4. The SHC is based on 80_F (26.6_C) edb temperature of air entering

Where:

evaporator coil. Below 80_F (26.6_C) edb, subtract (corr factor x cfm) from

SHC.

Above 80_F (26.6_C) edb, add (corr factor x cfm) to SHC.

Correction Factor = 1.10 x (1 + BF) x (edb + 80).

5. Integrated capacity is maximum (instantaneous) capacity less the effect

of frost on the outdoor coil and the heat required to defrost it.

Page 20

PERFORMANCE DATA (CONT)

Dry Coil Air Delivery CFM* -- Horizontal and Downflow Discharge -Unit 577C----A24--60

HEATING

577C-- --A

UNIT

577C--- ---A24040

577C--- ---A24060

577C--- ---A30040

RISE

RANGE

oF(o

30 --- 60

( 1 7 --- 3 3 )

25 --- 55

( 1 4 --- 3 1 )

30 --- 60

( 1 7 --- 3 3 )

Medium

MOTOR

SPEED

WIRE

COLOR

Low Blue

M e d ---

Low

M e d ---

High

Pink

Red

Orange

High Black

Low Blue

M e d ---

Low

M e d ---

High

Pink

Red

Orange

Black

Low Blue

M e d ---

Low

Pink

Medium Red

M e d ---

High

Orange

High Black

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9

CFM 754 650 538 429 --- --- --- --- --- --- --- --- --- ---

Heating

Rise (

Heating

Rise (

CFM 851 777 675 591 475 --- --- --- --- --- --- --- ---

Heating

Rise (

Heating

Rise (

CFM 941 851 774 684 576 479 --- --- --- --- --- ---

Heating

Rise (

Heating

Rise (

CFM 1009 917 840 759 667 577 447 --- --- --- ---

Heating

Rise (

Heating

Rise (

CFM 1241 1167 1111 1036 969 881 818 731 640

Heating

Rise (

Heating

Rise (

CFM 754 650 538 429 --- --- --- --- --- --- --- --- --- ---

Heating

Rise (

Heating

Rise (

CFM 851 777 675 591 475 --- --- --- --- --- --- --- ---

Heating

Rise (

Heating

Rise (

CFM 941 851 774 684 576 479 --- --- --- --- --- ---

Heating

Rise (

Heating

Rise (

CFM 1009 917 840 759 667 577 447 --- --- --- ---

Heating

Rise (

Heating

Rise (

CFM 1241 1167 1111 1036 969 881 818 731 640

Heating

Rise (

Heating

Rise (

CFM 741 638 547 415 --- --- --- --- --- --- --- --- --- ---

Heating

Rise (

Heating

Rise (

CFM 973 887 823 733 665 538 451 --- --- --- ---

Heating

Rise (

Heating

Rise (

CFM 1088 1023 954 881 800 723 658 563 461

Heating

Rise (

Heating

Rise (

CFM 1140 1064 996 915 840 758 687 564 480

Heating

Rise (

Heating

Rise (

CFM 1202 1140 1082 1015 961 881 810 732 631

Heating

Rise (

Heating

Rise (

40 46 56 NA NA NA NA NA NA

22 26 31 NA NA NA NA NA NA

36 39 45 51 NA NA NA NA NA

20 22 25 28 NA NA NA NA NA

32 36 39 44 52 NA NA NA NA

18 20 22 25 29 NA NA NA NA

30 33 36 40 45 52 NA NA NA

17 18 20 22 25 29 NA NA NA

NA NA NA NA 31 34 37 41 47

NA NA NA NA 17 19 21 23 26

NA NA NA NA NA NA NA NA NA

52 NA NA NA NA NA NA NA NA

29 NA NA NA NA NA NA NA NA

47 52 NA NA NA NA NA NA NA

26 29 NA NA NA NA NA NA NA

44 48 53 NA NA NA NA NA NA

24 27 29 NA NA NA NA NA NA

36 38 40 43 46 50 54 NA NA

20 21 22 24 25 28 30 NA NA

41 47 55 NA NA NA NA NA NA

23 26 31 NA NA NA NA NA NA

31 34 37 41 45 56 NA NA NA

17 19 20 23 25 31 NA NA NA

NA 30 32 34 38 42 46 54 NA

NA 16 18 19 21 23 26 30 NA

NA NA 30 33 36 40 44 54 NA

NA NA 17 18 20 22 24 30 NA

NA NA NA 30 31 34 37 41 48

NA NA NA 17 17 19 21 23 27

EXTERNAL STATIC PRESSURE (IN. W.C.)

Page 21

Dry Coil Air Delivery CFM* -- Horizontal and Downflow Discharge -Unit 577C----A24--60 (Cont)

UNIT

577C--- ---A30060

577C--- ---A36060

577C--- ---A36090

HEATING

RISE

RANGE

oF(o

25 --- 55

( 1 4 --- 3 1 )

25 --- 55

( 1 4 --- 3 1 )

35 --- 65

( 1 9 --- 3 6 )

MOTOR

SPEED

WIRE

COLOR

Low Blue

M e d ---

Low

Pink

Medium Red

M e d ---

High

Low

M e d ---

Low

Medium

M e d ---

High

Orange

Black

Blue

Pink

Red

Orange

High Black

Low Blue

M e d ---

Low

Medium

M e d ---

High

Pink

Red

Orange

Black

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9

CFM 741 638 547 415 --- --- --- --- --- --- --- --- --- ---

Heating

Rise (

Heating

Rise (

CFM 973 887 823 733 665 538 451 --- --- --- ---

Heating

Rise (

Heating

Rise (

CFM 1088 1023 954 881 800 723 658 563 461

Heating

Rise (

Heating

Rise (

CFM 1140 1064 996 915 840 758 687 564 480

Heating

Rise (

Heating

Rise (

CFM 1202 1140 1082 1015 961 881 810 732 631

Heating

Rise (

Heating

Rise (

CFM 1234 1168 1093 1021 961 894 825 759 687

Heating

Rise (

Heating

Rise (

CFM 1290 1223 1154 1090 1027 977 894 828 762

Heating

Rise (

Heating

Rise (

CFM 1354 1290 1226 1158 1102 1046 981 918 843

Heating

Rise (

Heating

Rise (

CFM 1606 1546 1489 1430 1371 1316 1258 1208 1140

Heating

Rise (

Heating

Rise (

CFM 1630 1580 1517 1463 1407 1339 1277 1210 1131

Heating

Rise (

Heating

Rise (

CFM 1234 1168 1093 1021 961 894 825 759 687

Heating

Rise (

Heating

Rise (

CFM 1290 1223 1154 1090 1027 977 894 828 762

Heating

Rise (

Heating

Rise (

CFM 1354 1290 1226 1158 1102 1046 981 918 843

Heating

Rise (

Heating

Rise (

CFM 1606 1546 1489 1430 1371 1316 1258 1208 1140

Heating

Rise (

Heating

Rise (

CFM 1630 1580 1517 1463 1407 1339 1277 1210 1131

Heating

Rise (

Heating

Rise (

NA NA NA NA NA NA NA NA NA

46 50 54 NA NA NA NA NA NA

25 28 30 NA NA NA NA NA NA

41 43 47 50 NA NA NA NA NA

23 24 26 28 NA NA NA NA NA

39 42 45 49 53 NA NA NA NA

22 23 25 27 29 NA NA NA NA

37 39 41 44 46 50 55 NA NA

21 22 23 24 26 28 30 NA NA

36 38 41 44 46 50 54 NA NA

20 21 23 24 26 28 30 NA NA

34 36 39 41 43 45 50 54 NA

19 20 21 23 24 25 28 30 NA

33 34 36 38 40 42 45 48 53

18 19 20 21 22 24 25 27 29

28 29 30 31 32 34 35 37 39

15 16 17 17 18 19 20 20 22

27 28 29 30 32 33 35 37 39

15 16 16 17 18 18 19 20 22

55 58 62 NA NA NA NA NA NA

31 32 35 NA NA NA NA NA NA

53 56 59 62 NA NA NA NA NA

29 31 33 35 NA NA NA NA NA

50 53 55 59 62 65 NA NA NA

28 29 31 33 34 36 NA NA NA

42 44 46 48 50 52 54 56 60

24 24 25 26 28 29 30 31 33

42 43 45 46 48 51 53 56 60

23 24 25 26 27 28 30 31 33

EXTERNAL STATIC PRESSURE (IN. W.C.)

577C-- --A

Page 22

Dry Coil Air Delivery CFM* -- Horizontal and Downflow Discharge -Unit 577C----A24--60 (Cont)

HEATING

577C-- --A

UNIT

577C--- ---A42060

577C--- ---A42090

577C--- ---A48090

RISE

RANGE

oF(o

25 --- 55

( 1 4 --- 3 1 )

35 --- 65

( 1 9 --- 3 6 )

35 --- 65

( 1 9 --- 3 6 )

Medium

MOTOR

SPEED

Low

M e d ---

Low

WIRE

COLOR

Blue

Pink

Medium Red

M e d ---

High

Orange

High Black

Low Blue

M e d ---

Low

M e d ---

High

Pink

Red

Orange

High Black

Low

M e d ---

Low

M e d ---

High

Blue

Pink

Red

Orange

High Black

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9

CFM 1295 1234 1182 1126 1075 1016 955 898 857

Heating

Rise (

Heating

Rise (

CFM 1345 1282 1235 1194 1140 1095 1027 974 921

Heating

Rise (

Heating

Rise (

CFM 1505 1452 1413 1358 1323 1282 1234 1169 1130

Heating

Rise (

Heating

Rise (

CFM 1545 1492 1449 1411 1362 1313 1278 1231 1188

Heating

Rise (

Heating

Rise (

CFM 1705 1643 1607 1568 1518 1483 1448 1404 1360

Heating

Rise (

Heating

Rise (

CFM 1295 1234 1182 1126 1075 1016 955 898 857

Heating

Rise (

Heating

Rise (

CFM 1345 1282 1235 1194 1140 1095 1027 974 921

Heating

Rise (

Heating

Rise (

CFM 1505 1452 1413 1358 1323 1282 1234 1169 1130

Heating

Rise (

Heating

Rise (

CFM 1545 1492 1449 1411 1362 1313 1278 1231 1188

Heating

Rise (

Heating

Rise (

CFM 1705 1643 1607 1568 1518 1483 1448 1404 1360

Heating

Rise (

Heating

Rise (

CFM 1402 1351 1311 1263 1224 1172 1136 1080 1041

Heating

Rise (

Heating

Rise (

CFM 1457 1404 1367 1318 1284 1233 1197 1144 1104

Heating

Rise (

Heating

Rise (

CFM 1736 1695 1642 1601 1553 1512 1465 1427 1381

Heating

Rise (

Heating

Rise (

CFM 2149 2111 2062 2026 1980 1945 1905 1864 1793

Heating

Rise (

Heating

Rise (

CFM 2344 2306 2259 2203 2141 2070 1991 1902 1803

Heating

Rise (

Heating

Rise (

34 36 38 39 41 44 47 49 52

19 20 21 22 23 24 26 27 29

33 35 36 37 39 41 43 46 48

18 19 20 21 22 23 24 25 27

30 31 31 33 34 35 36 38 39

16 17 17 18 19 19 20 21 22

29 30 31 31 33 34 35 36 37

16 17 17 17 18 19 19 20 21

26 27 28 28 29 30 31 32 33

14 15 15 16 16 17 17 18 18

53 55 58 60 63 NA NA NA NA

29 31 32 34 35 NA NA NA NA

51 53 55 57 60 62 NA NA NA

28 29 31 32 33 35 NA NA NA

45 47 48 50 51 53 55 58 60

25 26 27 28 29 29 31 32 33

44 46 47 48 50 52 53 55 57

24 25 26 27 28 29 30 31 32

40 41 42 43 45 46 47 48 50

22 23 24 24 25 25 26 27 28

49 50 52 54 56 58 60 63 65

27 28 29 30 31 32 33 35 36

47 48 50 52 53 55 57 59 62

26 27 28 29 29 31 32 33 34

39 40 41 42 44 45 46 48 49

22 22 23 24 24 25 26 26 27

NA NA NA NA NA 35 36 36 38

NA NA NA NA NA 19 20 20 21

NA NA NA NA NA NA NA 36 38

NA NA NA NA NA NA NA 20 21

EXTERNAL STATIC PRESSURE (IN. W.C.)

Page 23

Dry Coil Air Delivery CFM* -- Horizontal and Downflow Discharge -Unit 577C----A24--60 (Cont)

UNIT

577C--- ---A48115

577C--- ---A48130

577C--- ---A60090

HEATING

RISE

RANGE

oF(o

30 --- 60

( 1 7 --- 3 3 )

35 --- 65

( 1 9 --- 3 6 )

35 --- 65

( 1 9 --- 3 6 )

MOTOR

SPEED

Low Blue

M e d ---

Low

Medium

M e d ---

High

High Black

Low Blue

M e d ---

Low

Medium

M e d ---

High

High Black

Low

M e d ---

Low

Medium

M e d ---

High

High Black

WIRE

COLOR

Pink

Red

Orange

Pink

Red

Orange

Blue

Pink

Red

Orange

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9

CFM 1402 1351 1311 1263 1224 1172 1136 1080 1041

Heating

Rise (

Heating

Rise (

CFM 1457 1404 1367 1318 1284 1233 1197 1144 1104

Heating

Rise (

Heating

Rise (

CFM 1736 1695 1642 1601 1553 1512 1465 1427 1381

Heating

Rise (

Heating

Rise (

CFM 2149 2111 2062 2026 1980 1945 1905 1864 1793

Heating

Rise (

Heating

Rise (

CFM 2344 2306 2259 2203 2141 2070 1991 1902 1803

Heating

Rise (

Heating

Rise (

CFM 1402 1351 1311 1263 1224 1172 1136 1080 1041

Heating

Rise (

Heating

Rise (

CFM 1457 1404 1367 1318 1284 1233 1197 1144 1104

Heating

Rise (

Heating

Rise (

CFM 1736 1695 1642 1601 1553 1512 1465 1427 1381

Heating

Rise (

Heating

Rise (

CFM 2149 2111 2062 2026 1980 1945 1905 1864 1793

Heating

Rise (

Heating

Rise (

CFM 2344 2306 2259 2203 2141 2070 1991 1902 1803

Heating

Rise (

Heating

Rise (

CFM 1445 1389 1341 1281 1236 1189 1139 1072 1027

Heating

Rise (

Heating

Rise (

CFM 1678 1635 1602 1558 1513 1474 1438 1404 1349

Heating

Rise (

Heating

Rise (

CFM 1962 1915 1880 1843 1794 1753 1711 1675 1628

Heating

Rise (

Heating

Rise (

CFM 2131 2088 2065 2013 1982 1941 1888 1860 1785

Heating

Rise (

Heating

Rise (

CFM 2461 2409 2339 2286 2192 2140 2062 1968 1874

Heating

Rise (

Heating

Rise (

NA NA NA NA NA NA NA NA NA

60 NA NA NA NA NA NA NA NA

33 NA NA NA NA NA NA NA NA

50 51 53 54 56 57 59 NA NA

28 28 29 30 31 32 33 NA NA

40 41 42 43 44 45 46 47 48

22 23 23 24 24 25 25 26 27

37 38 38 39 41 42 44 46 48

21 21 21 22 23 23 24 25 27

NA NA NA NA NA NA NA NA NA

55 57 59 60 62 64 NA NA NA

31 32 33 33 34 35 NA NA NA

45 46 47 48 49 50 51 52 54

25 25 26 26 27 28 28 29 30

41 42 43 44 45 47 48 51 53

23 23 24 24 25 26 27 28 30

47 49 51 53 55 57 60 63 NA

26 27 28 29 31 32 33 35 NA

41 42 42 44 45 46 47 48 50

23 23 24 24 25 26 26 27 28

35 36 36 37 38 39 40 41 42

19 20 20 20 21 22 22 23 23

NA NA NA NA NA 35 36 37 38

NA NA NA NA NA 19 20 20 21

NA NA NA NA NA NA NA 35 36

NA NA NA NA NA NA NA 19 20

EXTERNAL STATIC PRESSURE (IN. W.C.)

577C-- --A

Page 24

Dry Coil Air Delivery CFM* -- Horizontal and Downflow Discharge -Unit 577C----A24--60 (Cont)

HEATING

UNIT

577C--- ---A60115

RISE

RANGE

oF(o

30 --- 60

( 1 7 --- 3 3 )

577C-- --A

577C--- ---A60130

*Air delivery values are without air filter and are for dry coil (See 577C --- ---A Wet Coil Pressure Drop table).

Factory-shipped heating speed

Factory-shipped cooling speed ”NA” = Not allowed for heating speed Note: For horizontal applications deduct field-supplied air filter pressure drop and wet coil pressure drop to obtain external static pressure available for ducting. For downflow appl ications see Wet Coil Air D elivery table for available static including wet coil, 1- --in. filter and economizer.

35 --- 65

( 1 9 --- 3 6 )

MOTOR

SPEED

Low Blue

M e d ---

Low

Medium

M e d ---

High

High Black

Low Blue

M e d ---

Low

Medium

M e d ---

High

High Black

WIRE

COLOR

CFM 1445 1389 1341 1281 1236 1189 1139 1072 1027

Heating

Rise (

Heating

Rise (

CFM 1678 1635 1602 1558 1513 1474 1438 1404 1349

Heating

Pink

Rise (

Heating

Rise (

CFM 1962 1915 1880 1843 1794 1753 1711 1675 1628

Red

Heating

Rise (

Heating

Rise (

CFM 2131 2088 2065 2013 1982 1941 1888 1860 1785

Heating

Orange

Rise (

Heating

Rise (

CFM 2461 2409 2339 2286 2192 2140 2062 1968 1874

Heating

Rise (

Heating

Rise (

CFM 1445 1389 1341 1281 1236 1189 1139 1072 1027

Heating

Rise (

Heating

Rise (

CFM 1678 1635 1602 1558 1513 1474 1438 1404 1349

Heating

Pink

Rise (

Heating

Rise (

CFM 1962 1915 1880 1843 1794 1753 1711 1675 1628

Red

Heating

Rise (

Heating

Rise (

CFM 2131 2088 2065 2013 1982 1941 1888 1860 1785

Heating

Orange

Rise (

Heating

Rise (

CFM 2461 2409 2339 2286 2192 2140 2062 1968 1874

Heating

Rise (

Heating

Rise (

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9

60 NA NA NA NA NA NA NA NA

33 NA NA NA NA NA NA NA NA

52 53 54 56 57 59 60 NA NA

29 30 30 31 32 33 34 NA NA

44 45 46 47 48 50 51 52 53

25 25 26 26 27 28 28 29 30

41 42 42 43 44 45 46 47 49

23 23 23 24 24 25 26 26 27

35 36 37 38 40 41 42 44 46

20 20 21 21 22 23 23 25 26

NA NA NA NA NA NA NA NA NA

57 59 60 62 64 65 NA NA NA

32 33 33 34 35 36 NA NA NA

49 50 51 52 54 55 56 57 59

27 28 28 29 30 31 31 32 33

45 46 47 48 49 50 51 52 54

25 26 26 27 27 28 28 29 30

39 40 41 42 44 45 47 49 51

22 22 23 23 24 25 26 27 29

Shaded areas indicate speed/static combinations that are not permitted for dehumidification speed.

EXTERNAL STATIC PRESSURE (IN. W.C.)

Horizontal Filter Pressure Drop Table (in. W.C.)

FILTER SIZE

in. (mm)

20X20X1

(508X508X25)

20X24X1

(508X610x25)

24X30X1

(610X762x25)

24X36X1

(610X914X25)

500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300

0.05 0.07 0.08 0.1 0.12 0.13 0.14 0.15 — — — — — — — — — — —

— — — — 0.09 0.10 0.11 0.13 0.14 0.15 0.16 — — — — — — — —

— — — 0.04 0.05 0.06 0.07 0.07 0.08 0.09 0.1 — — — — — — — —

— — — — — — — 0.06 0.07 0.07 0.08 0.09 0.09 0.10 0.11 0.12 0.13 0.14 0.14

CFM

577C----A Horizontal Wet Coil Pressure Drop (in. W.C.)

UNIT

SIZE

600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 24 0.030 0.037 0.044 0.053 0.063 --- --- --- --- --- --- --- --- --- --30 --- 0.037 0.044 0.053 0.063 0.072 0.081 0.105 --- --- --- --- --- --- --36 --- --- --- 0.055 0.060 0.090 0.100 0.110 0.140 --- --- --- --- --- --42 --- --- --- --- 0.045 0.050 0.060 0.065 0.075 0.080 0.090 0.094 0.110 --- --48 --- --- --- --- --- --- 0.041 0.063 0.085 0.100 0.104 0.110 0.120 0.130 --60 --- --- --- --- --- --- --- --- --- 0.060 0.065 0.072 0.077 0.085 0.100

STANDARD CFM (S.C.F.M)

Page 25

Horizontal Economizer 1--in. (25 mm) Filter Pressure Drop (in. W.C.)

UNIT 577C --- --- A PRESSURE DROP

24--- 36 0.20 42--- 60 0.25

Wet Coil Air Delivery CFM -- Downflow -- High Speed with 1--in. (25 mm) Filter and Economizer

UNIT SIZE

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 36 1333 1289 1256 1214 1152 1118 1076 1035 997 950 42 1612 1569 1527 1481 1451 1393 1351 1317 1278 1242 48 2166 2085 2002 1919 1798 1709 1582 1467 1270 988 60 2298 2239 2180 2110 2044 1951 1862 1777 1697 1591

EXTERNAL STATIC PRESSURE (in. W.C.)

GAS ADJUSTMENT

Natural Gas Orifice Sizes and Manifold Pressure (in. W.C.)

Nameplate Input

(Btu/hr)

40000

60000

90000

115000

130000

*In the U.S.A., the input rating for altitudes above 2000 ft (610m) must be reduced by 4% for each 1000 ft (305 m) above Sea level. In Canada, the input rating for altitudes from 2001 to 4500 ft (611 to 1372 m) above sea level must be derated by 10% by an authorized gas conversion stationor dealer. For Canadian Installations from 2000 to 4500 ft (610 to 1372 m), use U.S.A. column 2001 to 3000 ft (611 to 914 m). Note: Orifice sizes and manifold pressure settings are based on natural gas with a heating value of 1025 Btu/ft3 amd a specific gravity of .6. † Orifices available through your distributor.

Orifice No. (Qty) 44 (2) 45 (2)† 48 (2)† 48 (2)† 48 (2)† Manifol d Press. 3.2 3.2 3.8 3.5 3.2 Orifice No. (Qty) 38 (2) 41 (2)† 41 (2)† 42 (2)† 42 (2)† Manifol d Press. 3.6 3.8 3.4 3.4 3.2 Orifice No. (Qty) 38 (3) 41 (3)† 41 (3)† 42 (3)† 42 (3)† Manifol d Press. 3.6 3.8 3.4 3.4 3.2 Orifice No. (Qty) 33 (3) 36 (3)† 36 (3)† 36 (3)† 38 (3)† Manifol d Press. 3.8 3.8 3.6 3.3 3.6 Orifice No. (Qty) 31 (3) 31 (3) 33 (3)† 33 (3)† 34 (3)† Manifol d Press. 3.8 3.2 3.7 3.4 3.3

0 to 2000

( 0 --- 6 1 0 m )

Propane Gas Orifice Sizes and Manifold Pressure (in. W.C.)

Nameplate

Input (Btu/hr)

40000

60000

90000

115000

130000

*In the U.S.A., the input rating for altitudes above 2000 ft (610m) must be reduced by 4% for each 1000 ft (305 m) above Sea level. In Canada, the input rating for altitudes from 2001 to 4500 ft (611 to 1372 m) above sea level must be derated by 10% by an authorized gas conversion stationor dealer. For Canadian Installations from 2000 to 4500 ft (610 --- 1372 m), use U.S.A. column 2001 to 3000 ft (611 to 914 m). †Use Kit No. CPLPCONV013A00 (0 ---2000 ft [0---610 m] above sea level). Use Kit No. CPLPCONV014A00 (2001 --- 6000 ft [611---1829 m] above sea level) .

Orifice No. (Qty) 55 (2) 56 (2) 56 (2) 56 (2) 56 (2) Manifol d Press. 10.0 11.0 11.0 11.0 10.7 Orifice No. (Qty) 53 (2) 54 (2) 54 (2) 54 (2) 54 (2) Manifol d Press. 10.0 11.0 11.0 11.0 11.0 Orifice No. (Qty) 53 (3) 54 (3) 54 (3) 54 (3) 54 (3) Manifol d Press. 10.0 11.0 11.0 11.0 11.0 Orifice No. (Qty) 51 (3) 52 (3) 52 (3) 53 (3) 53 (3) Manifol d Press. 10.0 11.0 10.6 11.0 11.0 Orifice No. (Qty) 49 (3) 50 (3) 51 (3) 52 (3) 52 (3) Manifol d Press. 10.0 11.0 11.0 11.0 11.0

0 to 2000

( 0 --- 6 1 0 m )

High Altitude Compensation, Propane Gas

Nameplate Input

(Btu/hr)

40000 38000 31700 31700 31700 31200 60000 53000 45900 45900 45800 45800

90000 79000 68900 68900 68600 68600 115000 103000 100400 98900 83000 83000 130000 116000 115500 111800 101300 100400

0 to 2000 ft ( 0 --- 6 1 0 m )

Rated Heating Input (Btu/hr), Propane Gas at Installation Altitude Above Sea Level, U.S.A.*

2001 to 3000 ft*

(611 to 914 m)

High Altitude Compensation, Natural Gas

Nameplate

Input (Btu/hr)

40000 40000 36000 34400 32800 31200 60000 60000 54000 51600 49200 46800 90000 90000 81000 77400 73800 70200

115000 115000 103500 98900 94300 89700

130000 130000 117000 111800 106600 101400 *In the U.S.A., the input rating for altitudes above 2000 ft (610m) must be reduced by 4% for each 1000 ft (305 m) above Sea level. In Canada, the input rating for altitudes from 2001 to 4500 ft (611 to 1372 m) above sea level must be derated by 10% by an authorized gas conversion stationor dealer. For Canadian Installations from 2000 to 4500 ft (610 --- 1372 m), use U.S.A. column 2001 to 3000 ft (611 to 914 m).

0 to 2000 ft ( 0 --- 6 1 0 m )

Rated Heating Input (Btu/hr), Natural Gas at Installation Altitude Above Sea Level, U.S.A.*

2001 to 3000 ft*

(611 to 914 m)

ALTITUDE OF INSTALLATION (FT. ABOVE SEA LEVEL) U.S.A.*

2001 to 3000*

(611 to 914 m)

ALTITUDE OF INSTALLATION (FT. ABOVE SEA LEVEL) U.S.A.*

2001 to 3000*

(611 to 914 m)

3001 to 4000 ft

(915 to 1219 m)

3001 to 4000 ft

(915 to 1219 m)

3001 to 4000

(915 to 1219 m)

3001 to 4000

(915 to 1219 m)

(1220 to 1524 m)

4001 to 5000

(1220 to 1524 m)

4001 to 5000

(1220 to 1524 m)

4001 to 5000 ft

(1220 to 1524 m)

4001 to 5000 ft

5001 to 6000

(1524 to 1829 m)

5001 to 6000

(1524 to 1829 m)

5001 to 6000 ft

(1524 to 1829 m)

5001 to 6000 ft

(1524 to 1829 m)

577C-- --A

Page 26

TYPICAL PIPING AND WIRING

ROOF-MOUNTING CURB

SUPPLY-AIR FLEXIBLE DUCT

577C-- --A

ROOF

RETURN-AIR FLEXIBLE DUCT

CONCENTRIC DIFFUSER BOX (FIELD-SUPPLIED)

TOP COVER

RETURN AIR

CEILING

INDOOR THERMOSTAT

FROM POWER SOURCE

A09233

DISCONNECT PER NEC*

FROM GAS LINE

*NEC - NATIONAL ELECTRICAL CODE

A09234

Page 27

APPLICATION DATA

Condensate trap — A 2-- in. (50.8 mm) condensate trap must be

field supplied. Ductwork — Secure downflow discharge ductwork to roof curb.

For horizontal discharge applications, attach ductwork to unit with flanges.

To convert a unit to downflow discharge — Units are equipped with factory--installed inserts in the down -- flow openings. Use the duct cover to seal the horizontal discharge openings in the unit. Units installed in horizontal discharge orientation do not require duct covers.

Airflow — Units are draw--thru in the cooling mode and blow--thru in the heating mode.

Maximum cooling airflow — To minimize the possibility of condensate blow--off from the evaporator, airflow through the units should not exceed 450 cfm per ton.

Minimum cooling airflow — Minimum cooling airflow is 350 cfm per ton.

Minimum ambient cooling operation temperature —All standard units have a minimum ambient operating temperature of 40_F(4_C). With accessory low ambient temperature kit, units can operate at temperatures down to 0_F(--17_C).

Minimum temperature — Air entering the heat exchanger in heating mode must be a minimum of 50_F(10_C) continuous and/or 45_F(7_C) intermittent.

577C-- --A

Page 28

ELECTRICAL DATA

UNIT

577C--- ---A24040 577C--- ---A24060 13.5 58.3 0.7 4.1 1.65 21.7 30 577C--- ---A30040 12.8 64.0 0.7 4.1 0.65 20.8 30 577C--- ---A30060 12.8 64.0 0.7 4.1 1.65 20.8 30 577C--- ---A36060 14.1 77.0 1.2 6.0 1.65 24.8 35 577C--- ---A36090 14.1 77.0 1.2 6.0 0.52 24.8 35 577C--- ---A42060 17.9 112.0 1.2 6.0 1.65 29.6 40 577C--- ---A42090 17.9 112.0 1.2 6.0 0.65 29.6 40 577C--- ---A48090 21.8 117.0 1.2 7.6 0.65 36.1 50 577C--- ---A48115 21.8 117.0 1.2 7.6 1.65 36.1 50 577C--- ---A48130 21.8 117.0 1.2 7.6 0.52 36.1 50 577C--- ---A60090 26.4 134.0 1.2 7.6 0.65 41.8 60 577C--- ---A60115 26.4 134.0 1.2 7.6 1.65 41.8 60 577C--- ---A60130 26.4 134.0 1.2 7.6 0.52 41.8 60

577C--- ---A30040 577C--- ---A30060 8.3 58.0 0.7 4.1 1.65 15.2 20 577C--- ---A36060 9.0 71.0 1.2 6.0 1.65 18.5 25 577C--- ---A36090 9.0 71.0 1.2 6.0 0.52 18.5 25 577C--- ---A42060 13.5 88.0 1.2 6.0 1.65 24.1 35 577C--- ---A42090 13.5 88.0 1.2 6.0 0.65 24.1 35 577C--- ---A48090 13.7 83.1 1.2 7.6 0.65 25.9 35 577C--- ---A48115 13.7 83.1 1.2 7.6 1.65 25.9 35 577C--- ---A48130 13.7 83.1 1.2 7.6 0.52 25.9 35

577C-- --A

577C--- ---A60090 16.0 110.0 1.2 7.6 0.65 28.8 40 577C--- ---A60115 16.0 110.0 1.2 7.6 1.65 28.8 40 577C--- ---A60130 16.0 110.0 1.2 7.6 0.52 28.8 40

577C--- ---A36060 577C--- ---A36090 5.6 38.0 0.5 3.0 0.30 10.5 15 577C--- ---A42060 6.0 44.0 0.5 3.0 0.70 11.0 15 577C--- ---A42090 6.0 44.0 0.5 3.0 0.33 11.0 15 577C--- ---A48090 6.2 41.0 0.5 3.8 0.33 12.1 15 577C--- ---A48115 6.2 41.0 0.5 3.8 0.70 12.1 15 577C--- ---A48130 6.2 41.0 0.5 3.8 0.30 12.1 15 577C--- ---A60090 7.8 52.0 0.5 3.8 0.33 14.1 20 577C--- ---A60115 7.8 52.0 0.5 3.8 0.70 14.1 20 577C--- ---A60130 7.8 52.0 0.5 3.8 0.30 14.1 20

LEGEND

FLA -- Full Load Amps LRA -- Locked Rotor Amps MCA -- Minimum Circuit Amps MOCP -- Maximum Overcurrent Protection RLA -- Rated Load Amps

NO TES:

1. In compliance with NEC (National Electrical Code) requirements

for multimotor and combination load equipment (refer to NE C Articles 430 and 440), the overcurrent protective device for the unit shall be Power Supply fuse. The CGA (Canadian Gas Association) units may be fuse or circuit break er.

2. Minimum wire size is based on 60 C copper wire. I f other than

60 C wire is used, or if length exceeds wire length in table, determine siz e from NEC..

3. Unbalanced 3-Phase Supply Voltage

Never operate a motor where a phase imbalance in supply voltage is greater than 2%.

the percentage of voltage imbalance.

% Voltage imbalance

= 100 x

max voltage deviation from average voltage

NOMINAL

V --- P H --- H Z

208/230---1 ---60 197 253

208/230---3 ---60 197 253

4 6 0 --- 3 --- 6 0 414 506

Use the following formula to determine

average voltage

VOLTAGE

RANGE

MIN MAX RLA LRA FLA FLA FLA MCA MOCP

COMPRESSOR OFM IFM IDM POWER SUPPLY

13.5 58.3 0.7 4.1 0.65 21.7 30

8.3 58.0 0.7 4.1 0.65 15.2 20

5.6 38.0 0.5 3.0 0.70 10.5 15

EXAMPLE: Supply voltage is 230-3-60.

AB = 228 v BC = 231 v

(R)

AC = 227 v

Average Voltage =

228 + 231 + 227

686

= 229

Determine maximum deviation from average voltage.

(AB) 229 (BC) 231 (AC) 229 -

228 =1v 229 =2v

227 =2v Maximum deviation is 2 v.

Determine percent of voltage imbalance.

% Voltage Imbalance = 100 x

229

= 0.8%

This amount of phase imbalance is satisfactory as it is below the maximum allowable 2%.

IMPORTANT: If the supply voltage phase imbalance is more than 2%, contact your local electric utility company immediately.

A06564

Page 29

TYPICAL WIRING SCHEMATIC 208/230--1 --60

577C-- --A

A09282

Page 30

TYPICAL WIRING SCHEMATIC 208/230--3 --60

577C-- --A

A09264

Page 31

TYPICAL WIRING SCHEMATIC 460--3--60

577C-- --A

A09265

Page 32

CONTROLS

Operating sequence

Heating -- On a call for heating, terminal “W” of the thermostat is

energized, starting the induced--draft motor. When the pressure switch senses that the induced--draft motor is moving sufficient combustion air, the burner sequence begins. This function is performed by the integrated gas unit controller (IGC). The indoor (evaporator)--fan motor is energized 45 sec after flame is established. When the thermostat is satisfied and “W” is de--energized, the burners stop firing and the indoor (evaporator) fan motor shuts off after a 45 --sec time--off delay. Please note that the IGC has the capability to automatically reduce the indoor fan motor on delay and increase the indoor fan motor off delay in the event of high duct static and/or partially--clogged filter.

Cooling — When the system thermostat calls for cooling, 24 V is supplied to the “Y1/Y” and “G” terminals of the thermostat. This completes the circuit to the contactor coil (C) and indoor (evaporator) fan relay (IFR). The normally open contacts of energized C close and complete the circuit through compressor motor (COMP) to outdoor (condenser) fan motor (OFM). Both

577C-- --A

motors start instantly. The set of normally open contacts of energized IFR close and complete the circuit through IFM. The IFM starts instantly.

On the loss of the thermostat call for cooling, 24 V is removed from both the “Y1/Y” and “G” terminals (provided the fan switch is in the “AUTO” position) de--energizing the compressor contactor and opening the contacts supplying power to compressor/OFM. After a 90--second delay, the IFM shuts off. If the thermostat fan selector switch is in the “ON” position, the IFM will run continuously.

NOTE: On units with a Time Guard compressor has started and then stopped, it cannot be restarted again until 5 minutes have elapsed.

II device: Once the

Page 33

GUIDE SPECIFICATIONS

Packaged Gas Heating/Electric Cooling Uni ts Constant Volume Application

HVAC Guide Specifications

Size Range: 2to5Tons,NominalCooling

40,000 to 130,000 Btuh, Nominal Heating Input

Model Number: 577C-- -- A

Part 1 — General

SYSTEM DESCRIPTION

Outdoor rooftop mounted, gas heating/electric cooling unit utilizing a hermetic scroll compressor for cooling duty. Unit shall discharge supply air vertically or horizontally as shown on contract drawings. Condenser fan/coil section shall have a draw--thru design with vertical discharge for minimum sound levels.

QUALITY ASSURANCE

A. Unit shall be rated in accordance with ARI Standards 210/240

and 270.

B. Unit shall be designed in accordance with UL Standard 1995

and ANSI Z 21.47.

C. Unit shall be manufactured in a facility registered to ISO 9001

manufacturing quality standard.

D. Unit shall be UL listed and c--UL certified as a total package

for safety requirements. E. Roof curb shall be designed to conform to NRCA Standards.

F. Insulation and adhesives shall meet NFPA 90.1 requirements

for flame spread and smoke generation.

G. Cabinet insulation shall meet ASHRAE Standard 62.2.

DELIVERY, STORAGE AND HANDLING

Unit shall be stored and handled per manufacturer’s

recommendations.

Part 2 — Products

EQUIPMENT

A. General:

Factory--assembled, single--piece, heating and cooling unit. Contained within the enclosure shall be all factory wiring, piping, controls, refrigerant charge with R--410A refrigerant, and special features required prior to field start--up.

B. Unit Cabinet:

1. Unit cabinet shall be constructed of phosphated, zinc--coated, pre--painted steel capable of with--standing 500 hours in salt spray.

2. Normal service shall be through 3 removable cabinet panels.

3. The unit shall be constructed on a rust proof unit base that has an externally trapped, integrated sloped drain.

4. Evaporator fan compartment top surface shall be insulated with a minimum 1/2--in. (12.7 mm) thick, flexible fiberglass insulation, coated on the air side and retained by adhesive and mechanical means. The evaporator wall sections will be insulated with a minimum semi-- rigid foil-faced board capable of being wiped clean. Aluminum foil-faced fiberglass insulation shall be used in the entire indoor air cavity section.

5. Unit shall have a field--supplied condensate trap.

C. Fans:

1. The evaporator fan shall be a multi--speed, direct--drive, as shown on equipment drawings.

2. Fan wheel shall be made from steel, be double--inlet type with forward curved blades with corrosion resistant finish. Fan wheel shall be dynamically balanced.

3. Condenser fan shall be direct drive propeller type with aluminum blades riveted to corrosion resistant steel spiders, be dynamically balanced, and discharge air vertically.

D. Compressor:

1. Fully hermetic compressors with factory--installed vibration isolation.

2. Scroll compressors shall be standard on all units.

E. Coils:

Evaporator and condenser coils shall have aluminum plate fins mechanically bonded to seamless copper tubes with all joints brazed (Copper/copper and vinyl--coated construction available as option). Tube sheet openings shall be belled to prevent tube wear.

F. Heating Section:

1. Induced--draft combustion type with energy saving direct spark ignition system and redundant main gas valve.

2. Induced--draft motors shall provide adequate airflow for combustion.

3. The heat exchangers shall be constructed of aluminized steel for corrosion resistance.

4. Burners shall be of the in-- shot type constructed of aluminum coated steel.

5. All gas piping and electric power shall enter the unit cabinet at a single location.

G. Refrigerant Components:

Refrigerant expansion device shall be of the TXV (thermostatic expansion valve) type.

H. Filters:

Filter section shall consist of field-- installed, throwaway, 1-- in. (25 mm) thick fiberglass filters of commercially available sizes.

I. Controls and Safeties:

1. Unit controls shall be complete with a self--contained low voltage control circuit.

2. Compressors shall incorporate a solid--state compressor protector that provides reset capability.

J. Operating Characteristics:

1. Unit shall be capable of starting and running at 125_F

_C) ambient outdoor temperature per maximum load

(51 criteria of ARI Standard 210.

2. Compressor with standard controls shall be capable of operationdownto40_F(4_C) ambient outdoor temperature.

3. Units shall be provided with fan time delay to prevent cold air delivery before the heat exchanger warms up.

4. Unit shall be provided with 90-- second fan time delay after the thermostat is satisfied.

K. Electrical Requirements:

All unit power wiring shall enter the unit cabinet at a single

location.

L. Motors:

1. Compressor motors shall be of the refrigerant--cooled type with line--break thermal and current overload protection.

2. All fan motors shall have permanently lubricated bearings, and inherent, automatic reset, thermal overload protection.

3. Condenser fan motor shall be totally enclosed.

4. Evaporator Fan Motor to be high--efficiency brushless DC motor.

M. Compressor Protection:

Solid--state control shall protect compressor by preventing “short cycling.”

577C-- --A

Page 34

GUIDE SPECIFICATIONS (CONT)

N. Low NOx:

Shall provide NOx reduction to values below 40 nanograms/ joule to meet California’s and other localities’ emission requirements as shipped from factory.

O. Special Features Available:

1. Coil Options Base unit with tin plated indoor coil hairpins available as a factory installed option.

2. Compressor Start Kit (single phase units only): Shall provide additional starting torque for single--phase compressors.

3. Thermostat: To provide for one--stage heating and cooling in addition manual or automatic changeover and indoor fan control.

4. Crankcase Heater: Shall provide anti--floodback protection for low--load cooling applications.

5. Economizer:

577C-- --A

a. Economizer controls capable of providing free cooling

using outside air.

b. Equipped with low leakage dampers not to exceed 3%

leakage, at 1.0 IN. W .C. pressure differential.

c. Spring return motor shuts off outdoor damper on power

failure.

6. Filter Rack Kit: Shall provide filter mounting for downflow applications.

7. Flat Roof Curb: Curbs shall have seal strip and a wood nailer for flashing and shall be installed per manufacturer’s instructions.

8. Flue Discharge Deflector Directs flue gas exhaust; 90 degrees upward from current discharge.

9. Heat Exchanger Stainless Steel Heat Exchanger available as a factory installed option.

10. High Altitude Propane Conversion Kit: Shall consist of all required hardware to convert to propane gas heat operation at 2001 to 6000 ft (611 to 1829 m) above sea level.

11. Low Ambient Package: Shall consist of a solid--state control and condenser coil temperature sensor for controlling condenser--fan motor operation, which shall allow unit to operate down to 0_F (--18_C) outdoor ambient temperature when properly installed.

12. Manual Outdoor Air Damper: Package shall consist of damper, birdscreen, and rainhood which can be preset to admit outdoor air for year--round ventilation.

13. Natural --to-- Propane Conversion Kit: Shall be complete with all required hardware to convert to propane gas operation at 10.0 IN. W.C. manifold pressure.

14. Propane--to--Natural Conversion Kit Shall be complete with all hardware to convert to natural gas at standard altitude (0 to 2000 ft [0 to 610 m] above sea level).

15. Square--To-- Round Duct Transitions (24-- 48 models): Shall have the ability to convert the supply and return openings from rectangular to round.

16. Time Guard II Automatically prevents the compressor from restarting for at least 4 minutes and 45 seconds after shutdown of the compressor. Not required when a corporate programmable thermostat is applied.

E2009 Bryant Heating & Cooling Systems D 7310 W. Morris St. D Indianapolis, IN 46231 Printed in U.S.A. Edition Date: 06/09

Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without inc ur ring obligations.

Catalog No. PDS577C --- 03

Replaces: PDS577C --- 02
