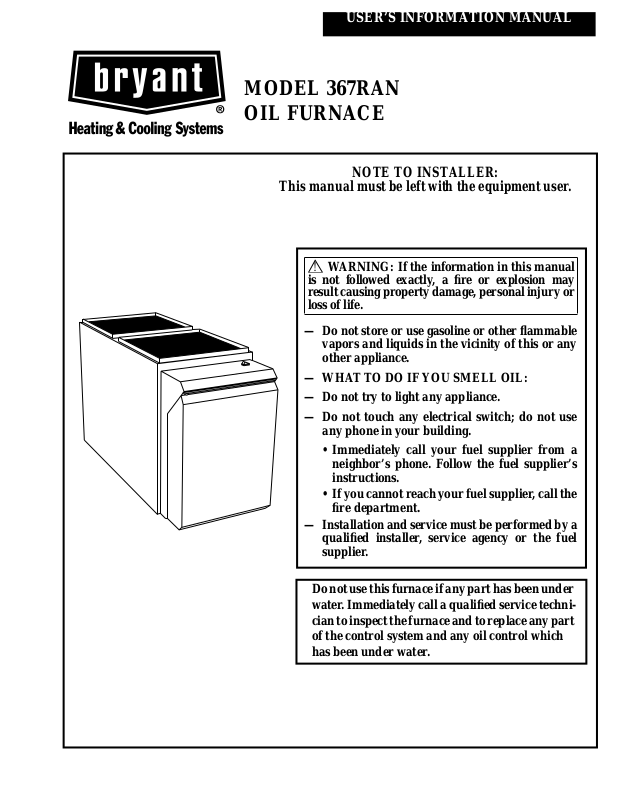

USER’S INFORMATION MANUAL

MODEL 367RAN
OIL FURNACE

NOTE TO INSTALLER:

This manual must be left with the equipment user.

!

WARNING: If the information in this manual
is not followed exactly, a fire or explosion may
result causing property damage, personal injury or
loss of life.

— Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any

other appliance.
— WHAT TO DO IF YOU SMELL OIL:
— Do not try to light any appliance.
— Do not touch any electrical switch; do not use

any phone in your building.

• Immediately call your fuel supplier from a
neighbor’s phone. Follow the fuel supplier’s
instructions.

• If you cannot reach your fuel supplier, call the
fire department.

— Installation and service must be performed by a

qualified installer, service agency or the fuel
supplier.

Do not use this furnace if any part has been under
water. Immediately call a qualified service techni­cian to inspect the furnace and to replace any part
of the control system and any oil control which
has been under water.

WELCOME TO A
NEW GENERATION
OF COMFORT

Congratulations! In light of rising
energy costs, the 367RAN Low­Boy Oil Furnace is among the
soundest investments today’s
homeowner can make.

Your new furnace is truly a tri­umph of technology in home heat­ing. Its unique silencer within the
heat exchanger, insulated cabinet,
and rubber blower mounts make it
among the quietest units on the
market. The combustion chamber
is stainless steel for long life and it
heats up quickly resulting in
higher energy efficiency.

With only minimal care, your ne w
furnace will deliver man y years of
money-saving home comfort and
enjoyment. Spend just a few min­utes with this manual to learn the
operation of your new furnace and
the small amount of maintenance
it takes to help keep it operating at
peak efficiency year after year.

1

MODEL 367RAN LOW-BOY FURNACE

INSTALLATION DATA

Date Installed
Dealer Name
Address
City
State Zip
Telephone

FURNACE

Product No.
Model No.
Serial No.

SPLIT-SYSTEM

OUTDOOR UNIT:
Product No.
Model No.
Serial No.
INDOOR COIL:
Product No.
Model No.
Serial No.

ACCESSORIES

Product No.
Model No.
Serial No.

2

910111213

14

FURNACE COMPONENTS

6

7

8

5

9

10

4

3

11

12

X

C

H
5
U

4

M

3

2

7

N

1

6

3

H
D
E
S

E
U

C
N
U

A
O

C

T
O

O

L

S

E

N

S
D

A

T

2

A
E
L

C

O

N
1
2

YC

R

GW

2

13

1

14

1

Heavy-duty blower circulates air across the heat
exchanger to transfer heat into the home.

2

Access door to air filters and blower.

3

Air filters.

4

Unique silencer system eliminates combustion
noise.

5

Return-air plenum.

6

Stainless steel combustion chamber.

7

Heat exchanger designed and shaped to effi­ciently transfer heat from furnace into the home.

8

Supply-air plenum.

2

Fully insulated internal walls minimize heat
loss.

High limit control prevents overtemperature.
Manual switch allows user control of constant

low-speed blower operation.
Adjustable electronic fan timer control (inside)

with low voltage electrical terminal strip for
easy connection of thermostat, cooling control,
electronic air cleaner, and humidifier.

Aesthetic removable cabinet hides and protects
burner and controls.

High-performance oil burner.
