installation, start-up,

355MAV

and operating instructions

DELUXE 4-WAY MULTIPOISE VARIABLE-CAPACITY DIRECT-VENT CONDENSING GAS FURNACE

A93040

NOTE: Read the entire instruction manual before starting the installation.

This symbol → indicates a change since the last issue. Index Page

DIMENSIONAL DRAWING........................................................3

SAFETY CONSIDERATIONS..................................................2-5

Clearances to Combustibles......................................................4

ELECTROSTATIC DISCHARGE (ESD) PRECAUTIONS........5

INTRODUCTION..........................................................................5

APPLICATIONS ......................................................................5-12

General......................................................................................5

Upflow Applications..............................................................5-8

Downflow Applications.........................................................8-9

Horizontal Left (Supply-Air Discharge) Applications.......9-11

Horizontal Right (Supply-Air Discharge) Applications...11-12

LOCATION ............................................................................13-14

General....................................................................................13

Low-Heat Only Installation....................................................13

Furnace Location Relative to Cooling Equipment................14

Hazardous Locations...............................................................14

INSTALLATION....................................................................14-16

Leveling Legs (If Desired).....................................................14

Installation In Upflow or Downflow Applications................14

Installation In Horizontal Applications.............................14-16

AIR DUCTS............................................................................16-19

General Requirements .......................................................16-17

Ductwork Acoustical Treatment.............................................17

Supply Air Connections..........................................................17

Return Air Connections..........................................................17

Filter Arrangement..................................................................17

Bottom Closure Panel........................................................17-18

Gas Piping..........................................................................18-19

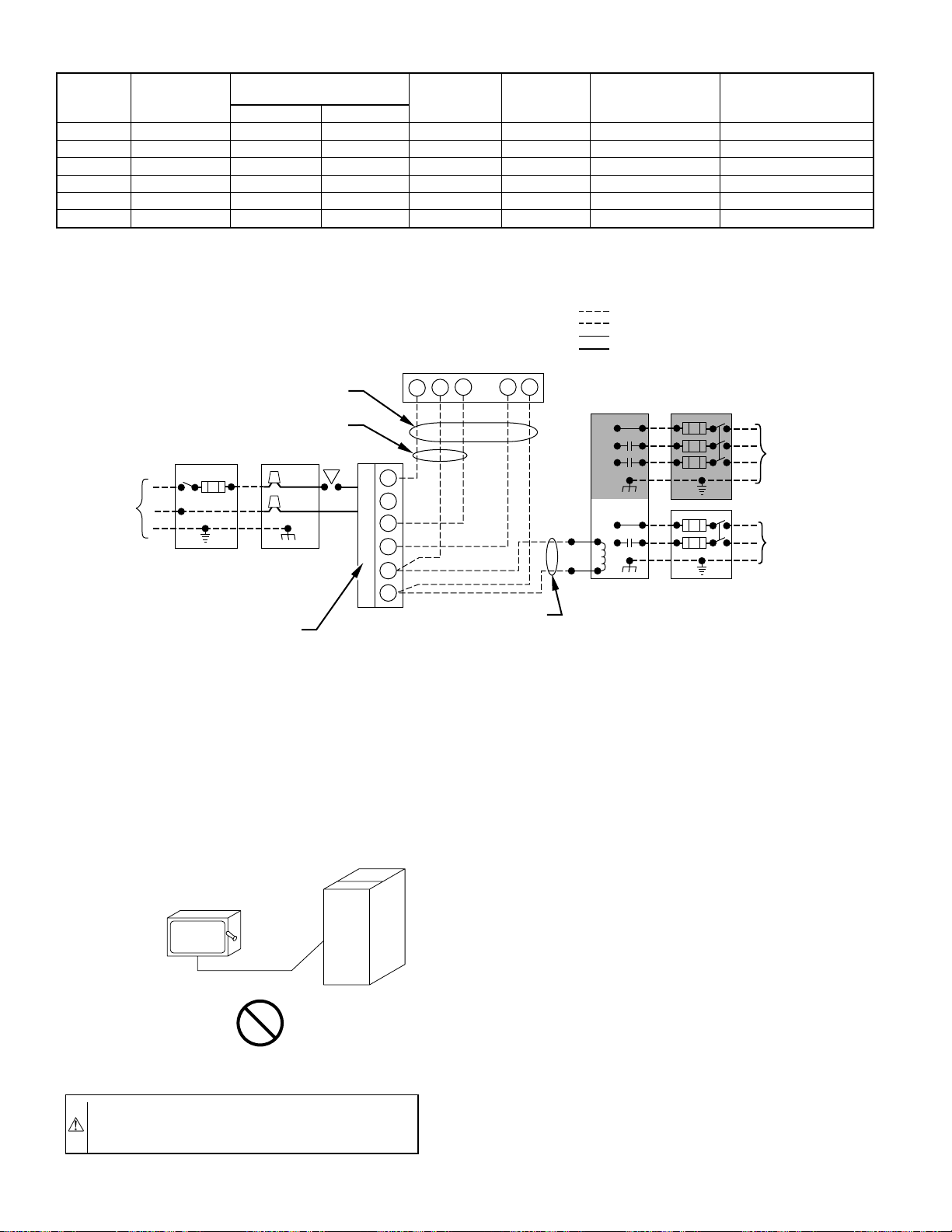

ELECTRICAL CONNECTIONS...........................................19-21

115-v Wiring...........................................................................19

24-v Wiring.............................................................................20

Accessories ........................................................................20-21

DIRECT VENTING ...............................................................21-31

Removal of Existing Furnaces from

Common Vent Systems.....................................................21

Combustion-Air and Vent Piping .....................................21-29

Concentric Vent and Combustion-Air Termination

Kit Installation...................................................................29

Multiventing and Vent Terminations................................29-31

CONDENSATE DRAIN..............................................................31

General....................................................................................31

Series H

Cancels: II 355M-40-9 II 355M-40-10

12-02

ama

CERTIFIED

As an ENERGY STAR® Partner, Bryant Heating & Cooling Systems has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

AIRFLOW

Application..............................................................................31

Condensate Drain Protection..................................................31

SEQUENCE OF OPERATION..............................................31-36

Single-Stage Thermostat and Two-Stage Heating

(Adaptive Mode)................................................................33-34

Two-Stage Thermostat and Two-Stage Heating....................34

Cooling Mode....................................................................34-35

Thermidistat Mode..................................................................35

Super-Dehumidify Mode...................................................35-36

Continuous Blower Mode.......................................................36

Heat Pump...............................................................................36

Component Test......................................................................36

START-UP PROCEDURES ..................................................36-45

General....................................................................................36

Select Setup Switch Positions...........................................36-39

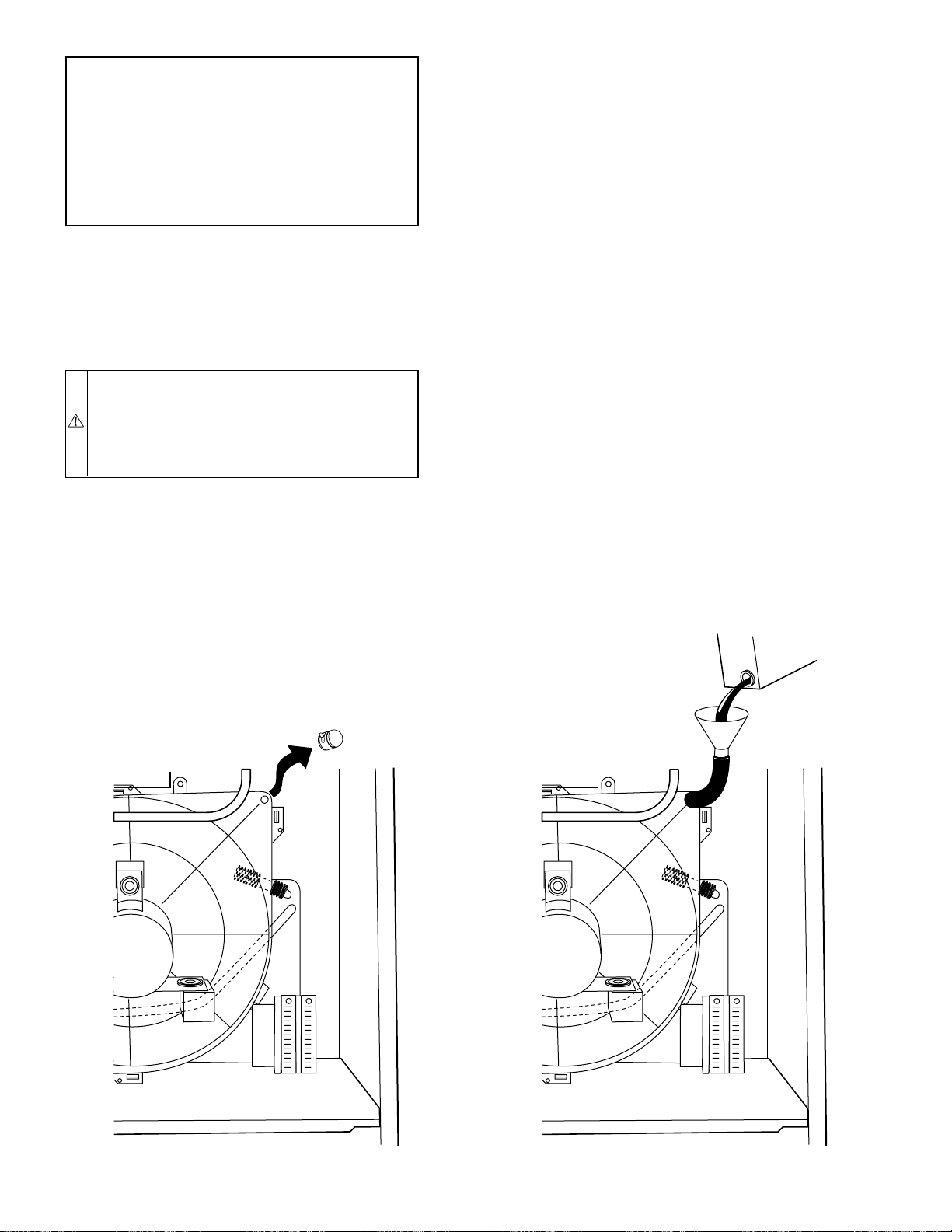

Prime Condensate Trap With Water......................................39

Purge Gas Lines......................................................................39

Adjustments .......................................................................39-45

Set Gas Input Rate ............................................................39-42

Set Temperature Rise..............................................................42

Set Thermostat Heat Anticipator ......................................42-45

CHECK SAFETY CONTROLS ............................................45-46

REGISTERED QUALITY SYSTEM

AIRFLOW

UPFLOW

HORIZONTAL

LEFT

Fig. 1—Multipoise Orientations

DOWNFLOW

AIRFLOW

HORIZONTAL

RIGHT

AIRFLOW

A93041

—1—

Check Primary Limit Control.................................................45

Check Pressure Switch......................................................45-46

CHECKLIST................................................................................46

SAFETY CONSIDERATIONS

CAUTION: Application of this furnace should be in-

doors with special attention given to vent sizing and material, gas input rate, air temperature rise, unit leveling, and unit sizing. Improper installation or misapplication of furnace can require excessive servicing or cause premature component failure.

WARNING: Improper installation, adjustment, alteration, service, maintenance, or use can cause carbon monoxide poisoning, explosion, tire, electrical shock, or other conditions which may cause personal injury or property damage. Consult a qualified installer, service agency, local gas supplier, or your distributor or branch for information or assistance. The qualified installer or agency must use only factory-authorized and listed kits or accessories when modifying this product. Failure to follow this warning could result in electrical shock, fire, personal injury, or death.

Installing and servicing heating equipment can be hazardous due to

→

gas and electrical components. Only trained and qualified personnel should install, repair, or service heating equipment.

Untrained personnel can perform basic maintenance functions such as cleaning and replacing air filters. All other operations must be performed by trained service personnel. When working on heating equipment, observe precautions in literature, on tags, and on labels attached to or shipped with unit and other safety precautions that may apply.

These instructions cover the minimum requirements and conform to existing national standards and safety codes. In some instances, these instructions exceed certain local codes and ordinances, especially those that may not have kept up with changing residential construction practices. We require these instructions as a minimum for a safe installation.

Wear safety glasses and work gloves. Have a fire extinguisher available during start-up and adjustment procedures and service calls.

Recognize safety information. This is the safety-alert symbol When you see this symbol on the unit and in instructions or manuals, be alert to the potential for personal injury.

Understand these signal words: DANGER, WARNING, CAUTION, and NOTE. These words are used with the safety-alert symbol. DANGER identifies the most serious hazards which will result in severe personal injury or death. WARNING signifies hazards which could result in personal injury or death. CAUTION is used to identify unsafe practices which would result in minor personal injury or product and property damage. NOTE is used to highlight suggestions which will result in enhanced installation, reliability, or operation.

closets, utility rooms, crawlspaces, and garages. The furnace is factory-shipped for use with natural gas. A C.S.A. listed gas conversion kit is required to convert furnace for use with propane gas.

See Fig. 3 for required clearances to combustibles. Maintain a 1-in. clearance from combustible materials to supply air

ductwork for a distance of 36 inches horizontally from the furnace. See NFPA 90B or local code for further requirements.

These furnaces SHALL NOT be installed directly on carpeting, tile, or any other combustible material other than wood flooring. In downflow installations, factory accessory floor base MUST be used when installed on combustible materials and wood flooring. Special base is not required when this furnace is installed on manufacturer’s Coil Assembly Part No. CD5 or CK5, or when Coil Box Part No. KCAKC is used. These furnaces are suitable for installation in a structure built on site or a manufactured building completed at final site. The design of this furnace line is NOT C.S.A. design-certified for installation in recreation vehicles or outdoors.

→

This furnace is designed for continuous return-air minimum temperature of 60 °F db or intermittent operation down to 55°Fdb such as when used with a night setback thermometer. Return-air temperature must not exceed 85°F db. Failure to follow these return air limits may affect reliability of heat exchangers, motors and controls. (See Fig. 4.)

These furnaces are shipped with the drain and pressure tubes connected for UPFLOW applications. Minor modifications are required when used in DOWNFLOW, HORIZONTAL RIGHT, or HORIZONTAL LEFT (supply-air discharge direction) applications as shown in Fig. 1. See details in Applications section.

This furnace must be installed with a direct-vent (combustion air and flue) system and a factory accessory termination kit. In a direct-vent system, all air for combustion is taken directly from the outside atmosphere and all flue products are discharged to the outside atmosphere. See furnace and factory accessory termination kit instructions for proper installation.

→

Never test for gas leaks with an open flame. Use a commercially available soap solution made specifically for the detection of leaks to check all connections as specified in the GAS PIPING section of these instructions.

→

Always install furnace to operate within the furnace’s intended temperature-rise range with a duct system which has an external static pressure within the allowable range as specified in the SET TEMPERATURE RISE section of these instructions.

→

When a furnace is installed so that the supply ducts carry air circulated by the furnace to areas outside the space containing the furnace, the return air must also be handled by a duct(s) sealed to the furnace casing and terminating outside the space containing the furnace.

→

A gas-fired furnace for installation in a residential garage must be installed as specified in the Hazardous Locations section and Fig.

→

The furnace is not to be used for temporary heating of buildings or structures under construction unless the furnace installation and operation complies with first CAUTION in the LOCATION section of these instructions.

CAUTION: Sheet metal parts may have sharp edges or burrs. Use care and wear appropriate protective clothing and gloves when handling parts. Failure to follow this caution could result in personal injury.

The 355MAV Multipoise Condensing Gas-Fired Furnaces are C.S.A. design-certified for natural and propane gases (see furnace rating plate) and for installation in alcoves, attics, basements,

—2—

⁄

A99112

⁄

19"

⁄

OUTLET

2-IN. COMBUSTION-

AIR CONN

⁄2-IN. DIA

GAS CONN

⁄8-IN. DIA

POWER CONN

⁄2-IN. DIA

THERMOSTAT ENTRY

2-IN. VENT CONN

⁄

SIDE INLET

" TYP

⁄

BOTTOM INLET

⁄

TYP

⁄

(DOWNFLOW &

OR ALTERNATE

TRAP LOCATION

OUTLET

AIRFLOW

HORIZONTAL RIGHT)

CONDENSATE DRAIN

-IN. DIA GAS CONN

⁄

TYP

⁄

TYP

⁄

TYP

⁄

TYP

⁄

CONDENSATE

INLET

(UPFLOW)

DRAIN LOCATION

DIMPLE LOCATORS

FOR HORIZONTAL

HANGING

x 12-in. rectangle.

see flex duct manufacturer’s recommendations for equivalent diameters.

a. For 800 CFM–16-in. round or 14

2. Minimum return-air opening at furnace:

-in. rectangle.

x 19

x 23

literature for specific use of single side inlets. The use of both side inlets, a

combination of 1 side and the bottom, or the bottom only will ensure adequate

c. For 1600 CFM–22-in. round or 14

d. For airflow requirements above 1800 CFM, see Air Delivery table in Product Data

b. For 1200 CFM–20-in. round or 14

DIMENSIONS (IN.)

Fig. 2—Dimensional Drawing

return air openings for airflow requirements above 1800 CFM.

(ALTERNATE

UPFLOW)

SIDE INLET

⁄

TYP

⁄

TYP

CONDENSATE

⁄

DRAIN LOCATION

(UPFLOW)

" TYP

⁄

SIDE INLET

NOTES: 1. Minimum return-air openings at furnace, based on metal duct. If flex duct is used,

042060 17-1/2 15-7/8 16

042080 21 19-3/8 19-1/2

060080 21 19-3/8 19-1/2

060100 21 19-3/8 19-1/2

042040* 24-1/2* 22-7/8* 23*

UNIT SIZE A D E

060120 24-1/2 22-7/8 23

* These dimensions reflect the wider casing for the Trophy (96.6 percent AFUE) furnace.

⁄8-IN. DIA

POWER CONN

CONDENSATE

DRAIN TRAP

CONDENSATE DRAIN

TRAP LOCATION

(DOWNFLOW &

HORIZONTAL LEFT)

⁄

⁄2-IN. DIA

2-IN. COMBUSTION-

AIR CONN

GAS CONN

2-IN. VENT CONN

⁄8-IN. DIA

ACCESSORY

ENTRY

⁄

⁄2-IN. DIA THERMOSTAT

LOCATION

POWER ENTRY

—3—

This forced air furnace is equipped for use with natural gas at altitudes 0 - 10,000 ft (0 - 3,050m), except 140 size furnaces are only approved for altitudes 0 - 7,000 ft.

INSTALLATION

(0 - 2,135m). An accessory kit, supplied by the manufacturer, shall be used to convert to propane gas use or may be required for some natural gas applications. This furnace is for indoor installation in a building constructed on site. This furnace may be installed in a manufactured (mobile) home when stated on rating plate and using factory authorized kit. This furnace may be installed on combustible flooring in alcove or closet at This furnace requires a special venting system. Refer to the installation instructions for parts list and method of installation. This furnace is for use with schedule-40 PVC, PVC-DWV, CPVC, or ABS-DWV pipe, and must not be vented in common with other gas-fired appliances. Construction through which vent/air intake pipes may be installed is maximum 24 inches (600 mm ), minimum 3/4 inches (19 mm) thickness (including roofing materials).

For upflow and downflow applications, furnace must be installed level, or pitched within 1/2" of level. For a horizontal application, the furnace must be pitched minimum 1/4" to maximum of 1/2" forward for proper drainage. See Installation Manual for IMPORTANT unit support details on horizontal applications.

Minimum Inches Clearance To Combustible Construction

LEVEL (0")

1/2" MAX

UPFLOW OR DOWNFLOW

FRONT

as described below.

MIN 1/4" TO 1/2" MAX

FRONT

HORIZONTAL

MINIMUM INCHES CLEARANCE TO COMBUSTIBLE CONSTRUCTION

ALL POSITIONS:

Mimimum front clearance for service 30 inches (762mm).

DOWNFLOW POSITIONS:

For installation on combustible floors only when installed on special base No.

†

KGASB0201ALL, Coil Assembly, Part No. CD5 or CK5, or Coil Casing, Part No. KCAKC .

HORIZONTAL POSITIONS:

Line contact is permissible only between lines formed by intersections of top and two sides of furnace jacket, and building joists, studs, or framing.

Clearance shown is for air inlet and air outlet ends. 120 size furnace requires 1 inch bottom clearance to combustible materials.

→ Fig. 3—Clearances to Combustibles

328068-201 REV. A LIT - TOP

This furnace is approved for UPFLOW, DOWNFLO W and HORIZONTAL installations.

Clearance arrows do not change with furnace orientation.

Clearance in inches.

TOP/PLENU

BOTTOM

†

Vent clearance to

combustibles 0".

MIN

A02250

A93042

Fig. 4—Return-Air Temperature

These furnaces are shipped with the following materials to assist in proper furnace installation. These materials are shipped in the main blower compartment.

Installer Packet includes:

Installation, Start-Up, and Operating Instructions Service and Maintenance Procedures

—4—

18-IN. MINIMUM

TO BURNERS

A93044

Fig. 5—Installation in a Garage

User’s Information Manual Warranty Certificate

Loose Parts Bag includes: Quantity

Pressure tube extension 1 Collector box or condensate trap extension tube 1 Inducer housing drain tube 1 1/2-in. CPVC street elbow 2 Drain tube coupling 1 Drain tube coupling grommet 1 Vent and combustion-air pipe support 2

Combustion-air pipe perforated disk assembly 1

Condensate trap hole filler plug 3

Vent and combustion-air intake hole filler plug 2

CODES AND STANDARDS

Follow all national and local codes and standards in addition to these instructions. The installation must comply with regulations

of the serving gas supplier, local building, heating, plumbing, and other codes. In absence of local codes, the installation must comply with the national codes listed below and all authorities having jurisdiction in Canada.

In the United States and Canada, follow all codes and standards for the following:

I. SAFETY

→

• US: National Fuel Gas Code (NFGC) NFPA 54-2002/ANSI Z223.1-2002 and the Installation Standards, Warm Air Heating and Air Conditioning Systems ANSI/NFPA 90B

→

• CANADA: National Standard of Canada, Natural Gas and Propane Installation Code (NSCNGPIC) CSA B149.1-00

II. GENERAL INSTALLATION

• US: NFGC and the NFPA 90B. For copies, contact the National Fire Protection Association Inc., Batterymarch Park, Quincy, MA 02269; or for only the NFGC contact the American Gas Association, 400 N. Capitol, N.W., Washington DC 2001

• CANADA: NSCNGPIC. For a copy, contact Standard Sales, CSA International, 178 Rexdale Boulevard, Etobicoke (Toronto), Ontario, M9W 1R3, Canada.

III. COMBUSTION AND VENTILATION AIR

• US: Section 8.3 of the NFGC, Air for Combustion and Ventilation

• CANADA: Part 7 of the NSCNGPIC, Venting Systems and Air Supply for Appliances

IV. DUCT SYSTEMS

• US and CANADA: Air Conditioning Contractors Association (ACCA) Manual D, Sheet Metal and Air Conditioning Contractors National Association (SMACNA), or American Society of Heating, Refrigeration, and Air Conditioning Engineers (ASHRAE) 2001 Fundamentals Handbook Chapter 34.

V. ACOUSTICAL LINING AND FIBROUS GLASS DUCT

• US and CANADA: current edition of SMACNA, NFPA 90B as tested by UL Standard 181 for Class I Rigid Air Ducts

VI. GAS PIPING AND GAS PIPE PRESSURE TESTING

→

• US: NFGC; chapters 5, 6, 7, and 12 and national plumbing codes

→

• CANADA: NSCNGPIC Parts 3, 4, 5, A, B, E, G, and H

VII. ELECTRICAL CONNECTIONS

• US: National Electrical Code (NEC) ANSI/NFPA 70-2002

• CANADA: Canadian Electrical Code CSA C22.1

ELECTROSTATIC DISCHARGE (ESD) PRECAUTIONS

CAUTION: Electrostatic discharge can affect electronic

components. Take precautions during furnace installation and servicing to protect the furnace electronic control. Precautions will prevent electrostatic discharges from personnel and hand tools which are held during the procedure. These precautions will help to avoid exposing the control to electrostatic discharge by putting the furnace, the control, and the person at the same electrostatic potential.

1. Disconnect all power to the furnace. Multiple disconnects may be required. DO NOT TOUCH THE CONTROL OR ANY WIRE CONNECTED TO THE CONTROL PRIOR TO DISCHARGING YOUR BODY’S ELECTROSTATIC CHARGE TO GROUND.

2. Firmly touch a clean, unpainted, metal surface of the furnace chassis which is close to the control. Tools held in a person’s hand during grounding will be satisfactorily discharged.

3. After touching the chassis, you may proceed to service the control or connecting wires as long as you do nothing that recharges your body with static electricity (for example; DO NOT move or shuffle your feet, DO NOT touch ungrounded objects, etc.).

4. If you touch ungrounded objects (recharge your body with static electricity), firmly touch furnace again before touching control or wires.

5. Use this procedure for installed and uninstalled (ungrounded) furnaces.

6. Before removing a new control from its container, discharge your body’s electrostatic charge to ground to protect the control from damage. If the control is to be installed in a furnace, follow items 1 through 5 before bringing the control or yourself into contact with the furnace. Put all used AND new controls into containers before touching ungrounded objects.

7. An ESD service kit (available from commercial sources) may also be used to prevent ESD damage.

INTRODUCTION

The model 355MAV 4-way multipoise, Gas-Fired, Category IV, direct-vent condensing furnace is available in model sizes ranging in input capacities of 40,000 to 120,000 Btuh.

APPLICATIONS

I. GENERAL

Some assembly and modifications are required for furnaces installed in any of the 4 applications shown in Fig. 1. All drain and pressure tubes are connected as shown in Fig. 7. See appropriate application instructions for these procedures.

CAUTION: Local codes may require a drain pan under entire furnace and condensate trap when a condensing furnace is used in an attic application or over a finished ceiling.

→

NOTE: In Canada, installations shall be in accordance with current NSCNGPIC and/or local codes.

II. UPFLOW APPLICATIONS

An upflow furnace application is where furnace blower is located below combustion and controls section of furnace, and conditioned air is discharged upwards.

A. Condensate Trap Location (Factory-Shipped Orientation)

The condensate trap is factory installed in the blower shelf and factory connected for UPFLOW applications. A factory-supplied tube is used to extend the condensate trap drain connection to the desired furnace side for field drain attachment. See Condensate Trap Tubing (Factory-Shipped Orientation) section for drain tube extension details. (See Fig. 6.)

B. Condensate Trap Tubing (Factory-Shipped Orientation)

NOTE: See Fig. 7 or tube routing label on main furnace door to

confirm location of these tubes.

—5—

BLOWER SHELF

CONDENSATE TRAP (INSIDE)

ALTERNATE DRAIN TUBE LOCATION

CONDENSATE TRAP

DRAIN TUBE LOCATION

UPFLOW APPLICATIONS

FURNACE DOOR

FIELD

DRAIN

CONN

EXTERNAL UPFLOW APPLICATIONS

SLOT FOR SCREW

HORIZONTAL

APPLICATION

(OPTIONAL)

WIRE TIE GUIDES (WHEN USED)

CONDENSATE TRAP

FURNACE

SIDE

FURNACE DOOR

FIELD

DRAIN

CONN

FURNACE SIDE

SIDE VIEW FRONT VIEW END VIEW FRONT VIEW

DOWNFLOW AND ALTERNATE

⁄4 OD

COLLECTOR BOX TO TRAP RELIEF PORT

⁄2 OD

INDUCER HOUSING DRAIN CONNECTION

⁄8 OD

COLLECTOR BOX DRAIN CONNECTION

SCREW HOLE FOR UPFLOW OR DOWNFLOW APPLICATIONS (OPTIONAL)

⁄2-IN. PVC OR CPVC

HORIZONTAL

APPLICATIONS

FRONT VIEW SIDE VIEW

Fig. 6—Condensate Trap

1. Collector Box Drain, Inducer Housing Drain, Relief Port, and Pressure Switch Tubes

These tubes should be factory attached to condensate trap and pressure switch ready for use in UPFLOW applications. These tubes can be identified by their connection location and also by a color label on each tube. These tubes are identified as follows: collector box drain tube (blue label), inducer housing drain tube (violet label or molded), relief port tube (green label), and pressure switch tube (pink label).

2. Condensate Trap Drain Tube The condensate trap drain connection must be extended for

field attachment by doing the following: a. Determine location of field drain connection. (See Fig. 2

or 7.)

NOTE: If internal filter or side filter/media cabinet is used, drain tube should be located to opposite side of casing from return duct attachment to assist in filter removal.

b. Remove and discard casing drain hole plug button from

desired side.

c. Install drain tube coupling grommet (factory-supplied in

loose parts bag) in selected casing hole.

d. Slide drain tube coupling (factory-supplied in loose parts

bag) through grommet so long end of coupling faces blower.

A93026

e. Cement 2 factory-supplied 1/2-in. street CPVC elbows to

rigid drain tube connection on condensate trap. (See Fig.

7.) These elbows must be cemented together and cemented to condensate trap drain connection.

NOTE: Failure to use CPVC elbows may allow drain to kink, preventing draining.

f. Connect larger diameter drain tube and clamp (factory-

supplied in loose parts bag) to condensate trap and clamp

securely. g. Route tube to coupling and cut to appropriate length. h. Attach tube to coupling and clamp securely.

C. Condensate Trap Location (Alternate Upflow Orientation)

An alternate location for the condensate trap is the left-hand side of casing. (See Fig. 2 and 8.) NOTE: If the alternate left-hand side of casing location is used, the factory-connected drain and relief port tubes must be disconnected and modified for attachment. See Condensate Trap Tubing (Alternate Upflow Orientation) section for tubing attachment. To relocate condensate trap to the left-hand side, perform the following:

1. Remove 3 tubes connected to condensate trap.

2. Remove trap from blower shelf by gently pushing tabs inward and rotating trap.

3. Install casing hole filler cap (factory-supplied in loose parts bag) into blower shelf hole where trap was removed.

—6—

PLUG

CAP

COLLECTOR BOX

DRAIN TUBE (BLUE

& WHITE STRIPED)

COLLECTOR BOX

TUBE (PINK)

PLUG

CAP

COLLECTOR BOX

DRAIN TUBE (BLUE

& WHITE STRIPED)

COLLECTOR BOX

TUBE (PINK)

COLLECTOR BOX

TUBE (GREEN)

INDUCER HOUSING

(MOLDED) DRAIN

TUBE (BEHIND

COLLECTOR BOX

DRAIN TUBE)

COLLECTOR BOX

DRAIN TUBE (BLUE)

COLLECTOR BOX

TUBE (GREEN)

FIELD-INSTALLED

FACTORY-SUPPLIED

DRAIN TUBE

COUPLING (LEFT

DRAIN OPTION)

FIELD-INSTALLED

FACTORY-SUPPLIED

DRAIN TUBE

FIELD-INSTALLED

FACTORY-SUPPLIED

⁄2 -IN. CPVC STREET

ELBOWS (2) FOR

LEFT DRAIN OPTION

FIELD-INSTALLED

FACTORY-SUPPLIED

COUPLING (RIGHT

CONDENSATE TRAP

DRAIN TUBE

DRAIN OPTION)

Fig. 7—Factory-Shipped Upflow Tube Configuration

(Shown With Blower Access Panel Removed)

→

WARNING: Casing hole filler cap must be installed in blower shelf hole when condensate trap is relocated. Failure to follow this warning could result in electrical shock, fire, personal injury or death.

4. Install condensate trap into left-hand side casing hole by inserting tube connection stubs through casing hole and rotating until tabs snap into locking position.

5. Fill unused condenstate trap casing holes with plastic filler caps (factory-supplied in loose parts bag).

D. Condensate Trap Tubing (Alternate Upflow Orientation)

NOTE: See Fig. 8 or tube routing label on main furnace door to

confirm location of these tubes.

1. Collector Box Drain Tube Connect collector box drain tube (blue label) to condensate

trap.

NOTE: On 17-1/2-in. wide furnaces ONLY, cut tube between corrugated sections to prevent kinks.

2. Inducer Housing Drain Tube a. Remove and discard LOWER (molded) inducer housing

drain tube which was previously connected to condensate trap.

A94213

COLLECTOR BOX

DRAIN TUBE (GREEN)

CONDENSATE

TRAP

INDUCER

HOUSING

DRAIN TUBE

(VIOLET)

A94214

Fig. 8—Alternate Upflow Tube Configuration and

Trap Location

b. Use inducer housing drain extension tube (violet label

and factory-supplied in loose parts bag) to connect LOWER inducer housing drain connection to conden-

sate trap. c. Determine appropriate length, cut, and connect tube. d. Clamp tube to prevent any condensate leakage.

3. Relief Port Tube a. Connect relief port tube (green label) to condensate trap.

b. Extend this tube (if required) by splicing to small

diameter tube (factory-supplied in loose parts bag).

c. Determine appropriate length, cut, and connect tube.

E. Condensate Trap Field Drain Attachment

Refer to Condensate Drain section for recommendations and procedures.

F. Pressure Switch Tubing

The LOWER collector box pressure tube (pink label) is factory connected to the pressure switch and should not require any modification.

NOTE: See Fig. 7 or 8 or tube routing label on main furnace door to check for proper connections.

—7—

COLLECTOR BOX

DRAIN TUBE (BLUE)

CAP

PLUG

COLLECTOR BOX

TUBE (GREEN)

COLLECTOR BOX

TUBE (PINK)

COLLECTOR BOX

DRAIN TUBE (BLUE

& WHITE STRIPED)

COLLECTOR BOX

EXTENSION TUBE

CONDENSATE

TRAP

INDUCER HOUSING

DRAIN TUBE (VIOLET)

COLLECTOR BOX TUBE (GREEN)

PLUG CAP

COLLECTOR BOX DRAIN TUBE (BLUE)

COLLECTOR BOX TUBE (PINK)

COLLECTOR BOX DRAIN TUBE (BLUE & WHITE STRIPED)

COLLECTOR BOX EXTENSION TUBE

INDUCER HOUSING DRAIN TUBE (VIOLET)

CONDENSATE TRAP

COLLECTOR BOX EXTENSION DRAIN TUBE

DRAIN TUBE COUPLING

A94215

Fig. 9—Downflow Tube Configuration

(Left-Hand Trap Installation)

G. Upper Collector Box and Inducer Housing (Unused) Drain Connections

UPPER COLLECTOR BOX DRAIN CONNECTION

Attached to the UPPER collector box drain connection is a factory-installed corrugated, plugged tube (blue and white striped label). This tube is plugged to prevent condensate leakage in this application. Ensure this tube is plugged.

NOTE: See Fig. 7 or 8 or tube routing label on main furnace door to check for proper connections.

UPPER INDUCER HOUSING DRAIN CONNECTION

Attached to the UPPER (unused) inducer housing drain connection is a cap and clamp. This cap is used to prevent condensate leakage in this application. Ensure this connection is capped.

NOTE: See Fig. 7 or 8 or tube routing label on main furnace door to check for proper connections.

H. Condensate Trap Freeze Protection

Refer to Condensate Drain Protection section for recommendations and procedures.

III. DOWNFLOW APPLICATIONS

A downflow furnace application is where furnace blower is located above combustion and controls section of furnace, and conditioned air is discharged downwards.

A. Condensate Trap Location

The condensate trap must be removed from the factory-installed blower shelf location and relocated in selected application location as shown in Fig. 2, 9, or 10.

To relocate condensate trap from the blower shelf to desired location, perform the following:

1. Remove 3 tubes connected to condensate trap.

2. Remove trap from blower shelf by gently pushing tabs inward and rotating trap.

Fig. 10—Downflow Tube Configuration

(Right-Hand Trap Installation)

→

3. Remove casing hole filler cap from casing hole. (See Fig. 2 and 10.)

4. Install casing hole filler cap (factory-supplied in loose parts bag) into blower shelf hole where trap was removed.

→

5. Install condensate trap into left-hand side casing hole by inserting tube connection stubs through casing hole and rotating until tabs snap into locking position.

6. Fill unused condenstate trap casing holes with plastic filler caps (factory-supplied in loose parts bag).

B. Condensate Trap Tubing NOTE: See Fig. 9 or 10 or tube routing label on main furnace

door to check for proper connections.

1. Collector Box Drain Tube a. Remove factory-installed plug from LOWER collector

box drain tube (blue and white striped label).

b. Install removed clamp and plug into UPPER collector

box drain tube (blue label) which was connected to condensate trap.

c. Connect LOWER collector box drain connection to

condensate trap. (1.) Condensate Trap Located on Left Side of Casing

(a.) Connect LOWER collector box drain tube

(blue and white striped label) to condensate trap. Tube does not need to be cut.

(b.) Clamp tube to prevent any condensate leakage.

A94216

—8—

(2.) Condensate Trap Located on Right Side of Casing

(a.) Install drain tube coupling (factory-supplied in

loose parts bag) into collector box drain tube (blue and white striped label) which was previously plugged.

(b.) Connect larger diameter drain tube (factory-

supplied in loose parts bag) to drain tube coupling, extending collector box drain tube for connection to condensate trap.

(c.) Route extended collector box drain tube di-

rectly from collector box drain to condensate

trap as shown in Fig. 10. (d.) Determine appropriate length and cut. (e.) Connect to condensate trap. (f.) Clamp tube to prevent any condensate leakage.

2. Inducer Housing Drain Tube a. Remove factory-installed cap and clamp from LOWER

inducer housing drain connection.

b. Remove and discard UPPER (molded) inducer housing

drain tube which was previously connected to condensate trap.

c. Install cap and clamp on UPPER inducer housing drain

connection where molded drain tube was removed.

d. Use inducer housing drain tube (violet label and factory-

supplied in loose parts bag) to connect LOWER inducer housing drain connection to the condensate trap.

e. Connect inducer housing drain connection to condensate

trap. (1.) Condensate Trap Located on Left Side of Casing

(a.) Determine appropriate length and cut. (b.) Connect tube to condensate trap. (c.) Clamp tube to prevent any condensate leakage.

(2.) Condensate Trap Located on Right Side of Casing

(a.) Route inducer housing drain tube (violet label)

directly from inducer housing drain to conden-

sate trap as shown in Fig. 8. (b.) Determine appropriate length and cut. (c.) Connect tube to condensate trap. (d.) Clamp tube to prevent any condensate leakage.

3. Relief Port Tube Refer to Pressure Switch Tubing section for connection

procedure.

C. Condensate Trap Field Drain Attachment

Refer to Condensate Drain section for recommendations and procedures.

D. Pressure Switch Tubing

One collector box pressure tube (pink label) is factory connected to the pressure switch for use when furnace is installed in UPFLOW or HORIZONTAL LEFT applications. This tube MUST be disconnected and used for the condensate trap relief port tube. The other collector box pressure tube (green label) which was factory connected to the condensate trap relief port connection MUST be connected to the pressure switch in DOWNFLOW or HORIZONTAL RIGHT applications. NOTE: See Fig. 9 or 10 or tube routing label on main furnace door to check for proper connections. Relocate tubes as described below.

1. Disconnect collector box pressure tube (pink label) attached to pressure switch.

2. Extend collector box pressure tube (green label) which was previously connected to condensate trap relief port connection by splicing to small diameter tube (factory-supplied in loose parts bag).

3. Connect collector box pressure tube (green label) to pressure switch connection labeled COLLECTOR BOX.

4. Extend collector box pressure tube (pink label) which was previously connected to pressure switch by splicing to remaining small diameter tube (factory-supplied in loose parts bag).

5. Route this extended tube (pink label) to condensate trap relief port connection.

6. Determine appropriate length, cut, and connect tube.

7. Clamp tube to relief port connection.

E. Condensate Trap Freeze Protection

Refer to Condensate Drain Protection section for recommendations and procedures.

IV. HORIZONTAL LEFT (SUPPLY-AIR DISCHARGE) APPLICATIONS

A horizontal left furnace application is where furnace blower is located to the right of combustion and controls section of furnace, and conditioned air is discharged to the left.

CAUTION: Local codes may require a drain pan under entire furnace and condensate trap when a condensing furnace is used in an attic application or over a finished ceiling.

NOTE: In Canada, installations shall be in accordance with current NSCNGPIC and/or local codes.

A. Condensate Trap Location

The condensate trap must be removed from the factory-installed blower shelf location and relocated in selected application location as shown in Fig. 2 or 11.

To relocate condensate trap from the blower shelf to desired location, perform the following:

1. Remove 3 tubes connected to condensate trap.

2. Remove trap from blower shelf by gently pushing tabs inward and rotating trap.

→

3. Remove casing hole filler cap from casing hole. (See Fig. 2 or 11.)

4. Install casing hole filler cap (factory-supplied in loose parts bag) into blower shelf hole where trap was removed.

→

5. Install condensate trap into left-hand side casing hole by inserting tube connection stubs through casing hole and rotating until tabs snap into locking position.

6. Fill unused condenstate trap casing holes with plastic filler caps (factory-supplied in loose parts bag).

B. Condensate Trap Tubing NOTE: See Fig. 11 or tube routing label on main furnace door to

check for proper connections.

1. Collector Box Drain Tube

—9—

a. Install drain tube coupling (factory-supplied in loose

parts bag) into collector box drain tube (blue label) which was previously connected to condensate trap.

b. Connect large diameter drain tube and clamp (factory-

supplied in loose parts bag) to drain tube coupling, extending collector box drain tube.

c. Route extended tube (blue label) to condensate trap and

cut to appropriate length.

d. Clamp tube to prevent any condensate leakage.

2. Inducer Housing Drain Tube a. Remove and discard LOWER (molded) inducer housing

drain tube which was previously connected to condensate trap.

b. Use inducer housing drain extension tube (violet label

and factory-supplied in loose parts bag) to connect LOWER inducer housing drain connection to conden-

sate trap. c. Determine appropriate length, cut, and connect tube. d. Clamp tube to prevent any condensate leakage.

3. Relief Port Tube a. Extend collector box tube (green label) which was

previously connected to condensate trap by splicing to small diameter tube (factory-supplied in loose parts bag).

b. Route extended collector box pressure tube to relief port

connection on condensate trap. c. Determine appropriate length, cut, and connect tube. d. Clamp tube to prevent any condensate leakage.

C. Condensate Trap Field Drain Attachment

Refer to Condensate Drain section for recommendations and procedures.

D. Pressure Switch Tubing

→

The LOWER collector box pressure tube (pink label) is factory connected to the High Pressure Switch for use when furnace is installed in UPFLOW applications. This tube MUST be disconnected, extended, rerouted, and then reconnected to the pressure switch in HORIZONTAL LEFT applications for 060 and 080 heating input furnaces.

NOTE: See Fig. 11 or tube routing label on main furnace door to check for proper connections.

→

Modify tube as described below.

1. Disconnect collector box pressure tube (pink label) attached to High Pressure Switch.

2. Use smaller diameter tube (factory-supplied in loose parts bag) to extend tube disconnected in item 1.

3. Route extended tube: a. Behind inducer housing.

b. Between blower shelf and inducer housing.

4. Determine appropriate length, cut, and reconnect tube to High Pressure Switch connection labeled COLLECTOR BOX.

E. Condensate Trap Freeze Protection

Refer to Condensate Drain Protection section for recommendations and procedures.

F. Construct a Working Platform

Construct working platform where all required furnace clearances are met. (See Fig. 3 and 12.)

PLUG

CAP

AUXILIARY "J" BOX

CONDENSATE

TRAP

COLLECTOR BOX

EXTENSION TUBE

COLLECTOR

BOX EXTENSION

DRAIN TUBE

DRAIN TUBE COUPLING

COLLECTOR BOX TUBE (PINK)

RELOCATE TUBE BETWEEN BLOWER SHELF AND INDUCER HOUSING FOR

060, AND 080 HEATING INPUT FURNACES

COLLECTOR BOX DRAIN TUBE (BLUE AND WHITE STRIPED)

→ Fig. 11—Horizontal Left Tube Configuration

COLLECTOR BOX TUBE (GREEN)

INDUCER HOUSING DRAIN TUBE (VIOLET)

COLLECTOR BOX DRAIN TUBE (BLUE)

A02288

—10—

MANUAL

SHUTOFF

GAS VALVE

COMBUSTION – AIR

SEDIMENT TRAP

INTAKE

⁄4″

CONDENSATE TRAP

VENT

30″ MIN WORK AREA

DRAIN

A 12-IN. MIN HORIZONTAL PIPE SECTION IS RECOMMENDED WITH SHORT (5 TO 8 FT) VENT SYSTEMS TO REDUCE EXCESSIVE CONDENSATE DROPLETS FROM EXITING THE VENT PIPE.

ACCESS OPENING FOR TRAP

NOTE: LOCAL CODES MAY REQUIRE A DRAIN PAN UNDER THE

FURNACE AND CONDENSATE TRAP WHEN A CONDENSING FURNACE IS INSTALLED ABOVE FINISHED CEILINGS.

Fig. 12—Attic Location and Working Platform

CAUTION: The condensate trap MUST be installed

below furnace. See Fig. 6 for dimensions. The drain connection to condensate trap must also be properly sloped to an open drain.

NOTE: Combustion-air and vent pipes are restricted to a minimum length of 5 ft. (See Table 7.)

NOTE: A 12-in. minimum offset pipe section is recommended with short (5 to 8 ft) vent systems. This recommendation is to reduce excessive condensate droplets from exiting the vent pipe. (See Fig. 12 or 35.)

V. HORIZONTAL RIGHT (SUPPLY-AIR DISCHARGE) APPLICATIONS

A horizontal right furnace application is where furnace blower is located to the left of combustion and controls section of furnace, and conditioned air is discharged to the right.

CAUTION: Local codes may require a drain pan under entire furnace and condensate trap when a condensing furnace is used in attic application or over a finished ceiling.

NOTE: In Canada, installations shall be in accordance with current NSCNGPIC Installation Codes and/or local codes.

NOTE: The auxiliary junction box (J-box) MUST be relocated to opposite side of furnace casing. (See Fig. 13.) See Electrical Connection section for J-box relocation.

A. Condensate Trap Location

The condensate trap must be removed from the factory-installed blower shelf location and relocated in selected application location as shown in Fig. 2 or 13.

To relocate condensate trap from the blower shelf to desired location, perform the following:

1. Remove 3 tubes connected to condensate trap.

2. Remove trap from blower shelf by gently pushing tabs inward and rotating trap.

3. Install casing hole filler cap (factory-supplied in loose parts bag) into blower shelf hole where trap was removed.

→

4. Install condensate trap into right-hand side casing hole by

→

inserting tube connection stubs through casing hole and rotating until tabs snap into locking position.

5. Fill unused condenstate trap casing holes with plastic filler caps (factory-supplied in loose parts bag).

B. Condensate Trap Tubing NOTE: See Fig. 13 or tube routing label on main furnace door to

check for proper connections.

1. Collector Box Drain Tube a. Remove factory-installed plug from LOWER collector

box drain tube (blue and white striped label).

b. Install removed clamp and plug into UPPER collector

box drain tube (blue label) which was previously connected to condensate trap.

c. Connect LOWER collector box drain tube (blue and

white striped label) to condensate trap. Tube does not need to be cut.

A93031

—11—

CAP

PLUG

COLLECTOR BOX DRAIN TUBE

(BLUE AND WHITE STRIPED)

INDUCER HOUSING

DRAIN TUBE (VIOLET)

COLLECTOR BOX

EXTENSION TUBE

→ Fig. 13—Horizontal Right Tube Configuration

d. Clamp tube to prevent any condensate leakage.

2. Inducer Housing Drain Tube a. Remove factory-installed cap and clamp from LOWER

inducer housing drain connection.

b. Remove and discard UPPER (molded) inducer housing

drain tube which was previously connected to condensate trap.

c. Install cap and clamp on UPPER inducer housing drain

connection where molded drain tube was removed.

d. Use inducer housing drain extension tube (violet label

and factory-supplied in loose parts bag) to connect LOWER inducer housing drain connection to condensate trap.

e. Determine appropriate length, cut, and connect tube to

condensate trap.

f. Clamp tube to prevent any condensate leakage.

3. Relief Port Tube Refer to Pressure Switch Tubing section for connection

procedure.

C. Condensate Trap Field Drain Attachment

Refer to Condensate Drain section for recommendations and procedures.

D. Pressure Switch Tubing

NOTE: See Fig. 13 or tube routing label on main furnace door to check for proper connections.

COLLECTOR BOX DRAIN TUBE (BLUE)

COLLECTOR BOX TUBE (GREEN)

COLLECTOR BOX TUBE (PINK) AUXILIARY "J" BOX RELOCATED HERE

CONDENSATE TRAP

A02289

Relocate tubes as described below.

1. Disconnect collector box pressure tube (pink label) attached to pressure switch.

2. Extend collector box pressure tube (green label) which was previously connected to condensate trap relief port connection by splicing to small diameter tube (factory-supplied in loose parts bag).

3. Connect collector box pressure tube (green label) to pressure switch connection labeled COLLECTOR BOX.

4. Use remaining small diameter tube (factory-supplied in loose parts bag) to extend collector box pressure tube (pink label) which was previously connected to pressure switch.

5. Route this extended tube (pink label) to condensate trap relief port connection.

6. Determine appropriate length, cut, and connect tube.

7. Clamp tube to relief port connection.

E. Condensate Trap Freeze Protection

Refer to Condensate Drain Protection section for recommendations and procedures.

F. Construct a Working Platform

Construct working platform where all required furnace clearances are met. (See Fig. 3 and 12.)

CAUTION: The condensate trap MUST be installed below furnace. See Fig. 4 for dimensions. The drain connection to condensate trap must also be properly sloped to an open drain.

NOTE: Combustion-air and vent pipes are restricted to a minimum length of 5 ft. (See Table 7.) NOTE: A 12-in. minimum offset pipe section is recommended with short (5 to 8 ft) vent systems. This recommendation is to reduce excessive condensate droplets from exiting the vent pipe. (See Fig. 12 or 35.)

—12—

LOCATION

I. GENERAL

→

This furnace must

• be installed so the electrical components are protected from water.

• not be installed directly on any combustible material other than wood flooring (refer to SAFETY CONSIDERATIONS).

• be located so combustion-air and vent pipe maximum lengths are not exceeded. Refer to Table 7.

• be located where available electric power and gas supplies meet specifications on the furnace rating plate.

• be attached to an air distribution system and be located as close to the center of the distribution system as possible. Refer to Air Ducts section.

• be provided with ample space for servicing and cleaning. Always comply with minimum fire protection clearances shown on the furnace clearance-to-combustibles label. (See Fig. 3.)

This furnace may be located in a confined space without special provisions for dilution or ventilation air.

→

NOTE: For upflow/downflow applications install furnace so that it is level or pitched forward within 1/2-in. for proper furnace operation. For horizontal applications pitch 1/4-in. minimum to 1/2-in. maximum forward to ensure proper condensate drainage from secondary heat exchangers. (See Fig. 14.)

WARNING: Do not install furnace on its back. Safety control operation will be adversely affected. Never connect return-air ducts to back of furnace. Failure to follow this warning could result in fire, personal injury, or death. (See Fig. 15.)

FRONT

B A C K

BACK

FRONT

A93043

Fig. 15—Prohibit Installation on Back

CAUTION: If these furnaces are installed in an uncon-

ditioned space where ambient temperatures may be 32°F or lower, freeze protection measures must be taken. (See Fig. 16.)

LEVEL (0″)

⁄2″ MAX

UPFLOW OR DOWNFLOW HORIZONTAL

FRONT

MIN

⁄2″ MAX

⁄4″

FRONT

Fig. 14—Proper Condensate Drainage

→

When a furnace is installed so that supply ducts carry air circulated by the furnace to areas outside the space containing the furnace, the return air shall also be handled by ducts sealed to furnace casing. The ducts terminate outside the space containing the furnace to ensure there will not be a negative pressure condition within equipment room or space.

CAUTION: Do not operate this furnace during con- struction. If the furnace is required for temporary heating of buildings or structures under construction, use clean outside air free of chlorine and fluorine compounds for combustion and ventilation. These compounds form acids that corrode the heat exchangers. These compounds are found in paneling and dry wall adhesives, paints, thinners, masonry cleaning materials, and many other solvents.

→

The furnace and its return air system shall be designed and installed so that negative pressure created by the air circulating fan cannot affect another appliance’s combustion air supply or act to mix products of combustion with circulating air, and that the air circulating fan of the furnace, if installed in an enclosure communicating with another fuel-burning appliance not of the direct-vent type, shall be operable only when any door or panel covering an opening in the furnace fan compartment or in a return air plenum on ducts is in the closed position.

A02146

32°F MINIMUM INSTALLED AMBIENT OR FREEZE PROTECTION REQUIRED

A93058

Fig. 16—Freeze Protection

II. LOW-HEAT ONLY INSTALLATION

This 355MAV furnace can be installed to operate in the low-heat only heating mode when sized using the low-heat heating capacity. This is accomplished by placing setup switch SW1-2 in the ON position to provide only low-heat operation. See Fig. 32 and Table

9. With this setup, high-heat operation will not occur. When the model no. on the furnace rating plate is followed by an

asterisk (*), the furnace has an alternate low-heat only efficiency rating as listed in the GAMA and CEC directories. This alternate rating will be listed as the furnace model number followed by an (-L) suffix.

—13—

CAUTION: The furnace can operate in the high-heat mode when certain fault conditions occur. The following precautions should be taken:

1. Size gas piping based on the high-heat input.

2. Check the high-heat input and adjust it per the main

literature instructions. NEVER assume the high-heat input rate is not important for low-heat-only installation.

III. FURNACE LOCATION RELATIVE TO COOLING EQUIPMENT

The cooling coil must be installed parallel with or on downstream side of furnace to avoid condensation in heat exchanger. When installed parallel with a furnace, dampers or other means used to control flow of air shall be adequate to prevent chilled air from entering furnace. If dampers are manually operated, they must be equipped with a means to prevent operation of either unit unless damper is in full-heat or full-cool position.

IV. HAZARDOUS LOCATIONS

4. Adjust outside nut to provide desired height, and tighten inside nut to secure arrangement.

NOTE: Bottom closure must be used when leveling legs are used. See Bottom Closure Panel section.

II. INSTALLATION IN UPFLOW OR DOWNFLOW APPLICATIONS

NOTE: This furnace is approved for use on combustible flooring

when special base (available from manufacturer) Part No. KGASB0201ALL is used. Special base in not required when this furnace is installed on manufacturer’s Coil Assembly Part No. CD5 or CK5, or Coil Box Part No. KCAKC is used.

1. Determine application being installed from Table 1.

2. Construct hole in floor per dimensions specified in Table 1 and Fig. 19.

3. Construct plenum to dimensions specified in Table 1 and Fig. 19.

4. If downflow subbase (KGASB) is used, install as shown in Fig. 20.

If coil assembly CD5 or CK5 or Coil Box KCAKC is used, install as shown in Fig. 21.

NOTE: Remove furnace perforated, discharge duct flanges when they interfere with mating flanges on coil on downflow subbase. To remove furnace perforated, discharge duct flange, use hand seamers, wide duct pliers or duct flange tool to bend flange back and forth until it breaks off. Be careful of sharp edges. (See Fig.

22.)

18-IN. MINIMUM

TO BURNERS

A93044

Fig. 17—Installation in a Garage

WARNING: When furnace is installed in a residential

garage, it must be installed so that burners and ignition sources are located a minimum of 18 in. above floor. The furnace must be located or protected to avoid physical damage by vehicles. When furnace is installed in a public garage, airplane hangar, or other building having a hazardous atmosphere, unit must be installed in accordance with requirements of National Fire Protection Association, Inc. (See Fig. 17.)

INSTALLATION

I. LEVELING LEGS (IF DESIRED)

When furnace is used in upflow position with side inlet(s), leveling legs may be desired. (See Fig. 18.) Install field-supplied, corrosion-resistant 5/16-in. machine bolts and nuts.

NOTE: The maximum length of bolt should not exceed 1-1/2 in.

1. Position furnace on its back. Locate and drill a 5/16-in. diameter hole in each bottom corner of furnace. (See Fig.

18.) Holes in bottom closure panel may be used as guide locations.

2. For each hole, install nut on bolt and then install bolt and nut in hole. (Install flat washer if desired.)

3. Install another nut on other side of furnace base. (Install flat washer if desired.)

WARNING: Do not bend duct flanges inward as shown in Fig. 22. This will affect airflow across heat exchangers and may cause limit cycling or premature heat exchanger failure. Remove duct flange completely or bend it inward a minimum of 210° as shown in Fig. 22.

III. INSTALLATION IN HORIZONTAL APPLICATIONS

These furnaces can be installed in either horizontal left or right discharge position. In a crawlspace, furnace can either be hung from floor joist or installed on suitable blocks or pad. Furnace can

⁄16″

1 3⁄4″

⁄4″

⁄16″

1 3⁄4″

⁄4″

A89014

Fig. 18—Leveling Legs

—14—

PLENUM

OPENING

FLOOR

OPENING

A96283

Fig. 19—Floor and Plenum Opening Dimensions

FURNACE

(OR COIL CASING

WHEN USED)

COMBUSTIBLE

FLOORING

DOWNFLOW

SUBBASE

SHEET METAL

PLENUM

FLOOR

OPENING

A96285

Fig. 20—Furnace, Plenum, and Subbase

Installed on a Combustible Floor

FURNACE

CASING

WIDTH

Upflow Applications 16 24-1/8 16-5/8 24-3/4

Downflow Applications on Non-Combustible Flooring 15-7/8 19 16-1/2 19-5/8

17-1/2

24-1/2

Downflow Applications on Combustible Flooring Using KGASB Subbase

Furnace with or without CD5 or CK5 Coil Assembly or KCAKC Coil Box

Downflow Applications on Combustible Flooring NOT Using KGASB Subbase

Furnace with CD5 or CK5 Coil Assembly or KCAKC Coil Box

Upflow Applications 19-1/2 24-1/8 20-1/8 24-3/4

Downflow Applications on Non-Combustible Flooring 19-3/8 19 20 19-5/8

Downflow Applications on Combustible Flooring Using KGASB Subbase

Furnace with or without CD5 or CK5 Coil Assembly or KCAKC Coil Box

Downflow Applications on Combustible Flooring NOT Using KGASB Subbase

Furnace with CD5 or CK5 Coil Assembly or KCAKC Coil Box

Upflow Applications 23 24-1/8 23-5/8 24-3/4

Downflow Applications on Non-Combustible Flooring 22-7/8 19 23-1/2 19-5/8

Downflow Applications on Combustible Flooring Using KGASB Subbase

Furnace with or without CD5 or CK5 Coil Assembly or KCAKC Coil Box

Downflow Applications on Combustible Flooring NOT Using KGASB Subbase

Furnace with CD5 or CK5 Coil Assembly or KCAKC Coil Box

TABLE 1—OPENING DIMENSIONS (IN.)

APPLICATION

FURNACE

CD5 OR CK5

COIL ASSEMBLY

OR KCAKC

COIL BOX

COMBUSTIBLE

FLOORING

SHEET METAL

PLENUM

FLOOR

OPENING

A96284

Fig. 21—Furnace, Plenum, and Coil

Assembly or Coil Box Installed

on a Combustible Floor

PLENUM OPENING FLOOR OPENING

ABCD

15-1/8 19 16-3/4 20-3/8

15-1/2 19 16-1/2 20

18-5/8 19 20-1/4 20-3/8

19 19 20 20

22-1/8 19 23-3/4 20-3/8

22-1/2 19 23-1/2 20

—15—

PERFORATED DISCHARGE DUCT FLANGE

CAUTION: The entire length of furnace MUST be supported when furnace is used in a horizontal position to ensure proper draining. When suspended, bottom brace supports sides and center blower shelf. When unit is supported from the ground, blocks or pad should support sides and center blower shelf area.

YES

210°

MIN

YES

Fig. 22—Duct Flanges

A93029

be suspended from each corner by hanger bolts and angle iron supports. (See Fig. 23.) Cut hanger bolts (4 each 3/8-in. all-thread rod) to desired length. Use 1 X 3/8-in. flat washers, 3/8-in. lockwashers, and 3/8-in. nuts on hanger rods as shown in Fig. 23. Dimples are provided for hole locations. (See Fig. 2.)

IV. AIR DUCTS A. General Requirements

The duct system should be designed and sized according to accepted national standards such as those published by: Air Conditioning Contractors Association (ACCA), Sheet Metal and Air Conditioning Contractors National Association (SMACNA) or American Society of Heating, Refrigerating and Air Conditioning Engineers (ASHRAE) or consult The Air Systems Design Guide- lines reference tables available from your local distributor. The duct system should be sized to handle the required system design CFM at the design static pressure.

ANGLE IRON OR EQUIVALENT

(B)

(A) ROD LOCATION

USING DIMPLE LOCATORS (SEE DIMENSIONAL DWG FOR LOCATIONS)

(A) PREFERRED ROD LOCATION (B) ALTERNATE ROD LOCATION

⁄

″

(B)

(A)

DRAIN

(A)

(B)

/8-IN. HEX NUT

& WASHER (4)

REQD PER ROD

NOTES:

(A)

1. A 1 In. clearance minimum between top of furnace and combustible material.

2. The entire length of furnace must be supported when furnace is used in horizontal position to ensure proper drainage.

(B)

ALTERNATE SUPPORT LOCATION FROM BACK

Fig. 23—Crawlspace Horizontal Application

/16-IN. MAX

⁄8-IN. ROD

ALTERNATE SUPPORT LOCATION 4-IN. MIN 8-IN. MAX

A93304

—16—

Secure ductwork with proper fasteners for type of ductwork used. Seal supply- and return-duct connections to furnace with code approved tape or duct sealer.

Flexible connections should be used between ductwork and furnace to prevent transmission of vibration. Ductwork passing through unconditioned space should be insulated to enhance system performance. When air conditioning is used, a vapor barrier is recommended.

Maintain a 1-in. clearance from combustible materials to supply air ductwork for a distance of 36 in. horizontally from the furnace. See NFPA 90B or local code for further requirements.

→

For a furnace not equipped with a cooling coil, the outlet duct shall be provided with a removable access panel. This opening shall be accessible when the furnace is installed and shall be of such a size that the heat exchanger can be viewed for possible openings using light assistance or a probe can be inserted for sampling the air stream. The cover attachment shall prevent leaks.

B. Ductwork Acoustical Treatment

Metal duct systems that do not have a 90 degree elbow and 10 ft of main duct to the first branch take-off may require internal acoustical lining. As an alternative, fibrous ductwork may be used if constructed and installed in accordance with the latest edition of SMACNA construction standard on fibrous glass ducts. Both acoustical lining and fibrous ductwork shall comply with NFPA 90B as tested by UL Standard 181 for Class 1 Rigid air ducts.

C. Supply Air Connections

UPFLOW FURNACES

Connect supply-air duct to 3/4-in. flange on furnace supply-air outlet. The supply-air duct attachment must ONLY be connected to furnace supply-/outlet-air duct flanges or air conditioning coil casing (when used). DO NOT cut main furnace casing to attach supply side air duct, humidifier, or other accessories. All accessories MUST be connected external to furnace main casing.

DOWNFLOW FURNACES

Connect supply-air duct to supply-air opening on furnace. The supply-air duct attachment must ONLY be connected to furnace supply\outlet or air conditioning coil casing (when used), when installed on non-combustible material. When installed on combustible material, supply-air duct attachment must ONLY be connected to an accessory subbase or factory approved air conditioning coil casing. DO NOT cut main furnace casing to attach supplyside air duct, humidifier, or other accessories. All accessories MUST be connected external to furnace main casing. Supply air opening duct flanges must be modified per Fig. 22

HORIZONTAL FURNACES

Connect supply-air duct to supply air opening on furnace. The supply-air duct attachment must ONLY be connected to furnace supply/outlet or air conditioning coil casing (when used). DO NOT cut main furnace casing to attach supply side air duct, humidifier, or other accessories. All accessories MUST be connected external to furnace main casing.

D. Return Air Connections

→

WARNING: Never connect return-air ducts to the back of the furnace. Return-air duct connections on furnace side(s) permitted in upflow applications only. A failure to follow this warning could result in fire, personal injury, or death.

UPFLOW FURNACES

The return-air duct must be connected to bottom , sides (left or right), or a combination of bottom and side(s) of main furnace casing. Bypass humidifier may be attached into unused side return air portion of the furnace casing. DO NOT connect any portion of return-air duct to back of furnace casing.

DOWNFLOW AND HORIZONTAL FURNACES

The return-air duct must be connected to return-air opening provided. DO NOT cut into casing sides or back to attach any portion of return-air duct. Bypass humidifier connections should be made at ductwork or coil casing sides exterior to furnace.

E. Filter Arrangement

WARNING: Never operate unit without a filter or with

filter access door removed. Failure to follow this warning can cause fire, personal injury, or death.

The air filter arrangement will vary due to application, furnace orientation, and filter type. The filter may be installed in an external Filter/Media cabinet (if provided) or the furnace blower compartment. Factory supplied washable filters are shipped in the blower compartment.

If a factory-supplied external Filter/Media cabinet is provided, instructions for its application, assembly, and installation are packaged with the cabinet. The Filter/Media cabinet can be used with the factory-supplied washable filter or a factory-specified high-efficiency disposable filter (see cabinet instructions).

If installing the filter in the furnace blower compartment, determine location for filter and relocate filter retaining wire, if necessary. See Table 2 to determine correct filter size for desired filter location. Table 2 indicates filter size, location, and quantity shipped with this furnace. See Fig. 2 for location and size of bottom and side return-air openings.

TABLE 2—FILTER INFORMATION

AIR FILTER LOCATED IN BLOWER COMPARTMENT

Furnace

Casing

Width (In.)

17-1/2 (1)16X25X1† (1)16X25X1† Cleanable

21 (1)16X25X1* (1)20X25X1† Cleanable

24-1/2 (1or2)16X25X1* (1)24X25X1† Cleanable

* Filters may be field modified by cutting filter material and support rods (3) in

filters. Alternate sizes can be ordered from your distributor or dealer.

† Factory-provided with furnace.

Filter Size (In.)

Side Return Bottom Return

Filter Type

Framed

CAUTION: Use care when cutting support rods in filters to protect against flying pieces and sharp rod ends. Wear safety glasses, gloves, and appropiate protective clothing. Failure to follow this caution could result in personal injury.

CAUTION: For airflow requirements above 1800 CFM, see Air Delivery table in Product Data literature for specific use of single side inlets. The use of both side inlets, a combination of 1 side and the bottom, or the bottom only will ensure adequate return air openings for airflow requirements above 1800 CFM.

NOTE: Side return-air openings can ONLY be used in UPFLOW configurations. Install filter(s) as shown in Fig. 24.

For bottom return-air applications, filter may need to be cut to fit some furnace widths. Install filter as shown in Fig. 25.

NOTE: Remove and discard bottom closure panel when bottom inlet is used.

F. Bottom Closure Panel

These furnaces are shipped with bottom closure panel installed in bottom return-air opening. This panel MUST be in place when side return air is used.

—17—

To remove bottom closure panel, perform following:

1. Tilt or raise furnace and remove 2 screws holding front filler panel. (See Fig. 26.)

2. Rotate front filler panel downward to release holding tabs.

3. Remove bottom closure panel.

WASHABLE

FILTER

FILTER RETAINER

Fig. 24—Filter Installed for Side Inlet

171⁄2-IN. WIDE CASINGS ONLY:

INSTALL FIELD-SUPPLIED FILTER FILLER STRIP UNDER FILTER.

21-IN. WIDE CASINGS ONLY:

SUPPORT RODS (3) EXTEND 1/4" ON EACH SIDE OF FILTER AND REST ON CASING FLANGE

A93045

4. Reinstall front filler panel and screws.

G. Gas Piping

Gas piping must be installed in accordance with national and local codes. Refer to NFGC in the U.S. Canadian installations must be made in accordance with NSCNGPIC and all authorities having jurisdiction. Gas supply line should be a separate line running directly from meter to furnace, if possible. Refer to Table 3 for recommended gas pipe sizing. Risers must be used to connect to furnace and to meter. Support all gas piping with appropriate straps, hangers, etc. Use a minimum of 1 hanger every 6 ft. Joint compound (pipe dope) should be applied sparingly and only to male threads of joints. Pipe dope must be resistant to propane gas.

TABLE 3—MAXIMUM CAPACITY OF PIPE*

NOMINAL

IRON

PIPE SIZE

(IN.)

1/2 0.622 175 120 97 82 73 3/4 0.824 360 250 200 170 151

1 1.049 680 465 375 320 285 1-1/4 1.380 1400 950 770 660 580 1-1/2 1.610 2100 1460 1180 990 900

* Cubic ft of gas per hr for gas pressures of 0.5 psig (14-in. wc) or less, and a

pressure drop of 0.5-in. wc (based on a 0.60 specific gravity gas). Ref: Table 9-2 NFPA 54-2002.

INTERNAL

DIAMETER

(IN.)

LENGTH OF PIPE (FT)

10 20 30 40 50

CAUTION: Connect gas pipe to furnace using a backup wrench to avoid damaging gas controls.

3″

/2″

WARNING: Gas valve shutoff switch MUST be facing forward or tilted upward. Failure to follow this warning

1″

→

could result in property damage or death.

WARNING: Never purge a gas line into a combustion chamber. Never test for gas leaks with an open flame. Use a commercially available soap solution made specifically for the detection of leaks to check all connections. A failure to follow this warning could result in fire, explosion, personal injury, or death.

WASHABLE FILTER

FILTER SUPPORT

FILTER RETAINER

Fig. 25—Bottom Filter Arrangement

A00290

—18—

BOTTOM CLOSURE PANEL

FRONT FILLER PANEL

Fig. 26—Removing Bottom Closure Panel

A93047

WARNING: Use proper length of pipe to avoid stress on gas control manifold. Failure to follow this warning could result in a gas leak resulting in fire, explosion, personal injury, or death.

Install a sediment trap in riser leading to furnace. Trap can be installed by connecting a tee to riser leading to furnace so straight-through section of tee is vertical. Then connect a capped nipple into lower end of tee. Capped nipple should extend below level of gas controls. Place a ground joint union between gas control manifold and manual gas shutoff valve. (See Fig. 27.)

WARNING: Blower access door switch opens 115-v power to furnace control. No component operation can occur. Do not bypass or close switch with panel removed. Failure to follow this warning could result in personal injury or death.

CAUTION: Furnace control must be grounded for proper operation or control will lock out. Control is grounded through green/yellow wire connected to gas valve and burner box screw.

GAS SUPPLY

MANUAL SHUTOFF VALVE (REQUIRED)

SEDIMENT TRAP

UNION

Fig. 27—Typical Gas Pipe Arrangement

CAUTION: If a flexible connector is required or al-

lowed by authority having jurisdiction, black iron pipe shall be installed at furnace gas control valve and extend a minimum of 2 in. outside furnace casing.

An accessible manual shutoff valve MUST be installed external to furnace casing and within 6 ft of furnace. A 1/8-in. NPT plugged tapping, accessible for test gage connection, MUST be installed immediately upstream of gas supply connection to furnace and downstream of manual shutoff valve.

NOTE: The gas valve inlet pressure tap connection is suitable to use as test gage connection providing test pressure DOES NOT exceed maximum 0.5 psig (14-in. wc) stated on gas valve. (See Fig. 62.)

→

Piping should be pressure and leak tested in accordance with NFGC in the United States or NSCNGPIC in Canada, local, and national plumbing and gas codes before the furnace has been connected. If pressure exceeds 0.5 psig (14-in. wc), gas supply pipe must be disconnected from furnace and capped before pressure test.

If test pressure is equal to or less than 0.5 psig (14-in. wc), turn off electric shutoff switch located on gas valve before test. It is recommended that ground joint union be loosened before pressure testing. After all connections have been made, purge lines and check for leakage at furnace prior to placing it into service.

→

The gas supply pressure shall be within the maximum and minimum inlet supply pressures marked on the rating plate with the furnace burners ON at HI-HEAT and OFF.

A93324

I. 115-V WIRING

Before proceeding with electrical connections, make certain that voltage, frequency, and phase correspond to that specified on furnace rating plate. Also, check to be sure that service provided by power supply is sufficient to handle load imposed by this equipment. Refer to rating plate or Table 4 for equipment electrical specifications.

Make all electrical connections in accordance with National Electrical Code (NEC) ANSI/NFPA 70-2002 and any local codes or ordinances that might apply. For Canadian installations, all electrical connections must be made in accordance with Canadian Electrical Code CSA C22.1 or authorities having jurisdiction.

→

Field-supplied wiring shall conform with the limitations of 63°F (33°C) rise.

Use a separate, branch electrical circuit containing a properly sized fuse or circuit breaker for this furnace. See Table 4 for wire size and fuse specifications. A disconnecting means must be located within sight from and readily accessible to furnace.

NOTE: Proper polarity must be maintained for 115-v wiring. If polarity is incorrect, furnace control status code indicator light will flash rapidly and furnace will NOT operate.

WARNING: The cabinet MUST have an uninterrupted or unbroken ground according to NEC ANSI/NFPA 70-2002 and Canadian Electrical Code CSA C22.1 or local codes to minimize personal injury if an electrical fault should occur. This may consist of electrical wire or conduit approved for electrical ground when installed in accordance with existing electrical codes. Do not use gas piping as an electrical ground. Failure to follow this warning could result in electric shock, fire, or death.

J-BOX RELOCATION

1. Remove 2 screws holding auxiliary J-box. (See Fig. 30.)

2. Rotate J-box 180° and attach box to left side, using holes provided.

CAUTION: If manual disconnect switch is to be mounted on furnace, select a location where a drill or fastener will not contact electrical or gas components.

ELECTRICAL CONNECTIONS

See Fig. 28 for field wiring diagram showing typical field 115-v and 24-v wiring. Check all factory and field electrical connections for tightness.

—19—

TABLE 4—ELECTRICAL DATA

UNIT SIZE

042040 115—60—1 127 104 8.9 14 31 15 042060 115—60—1 127 104 8.9 14 31 15 042080 115—60—1 127 104 8.9 14 31 15 060080 115—60—1 127 104 13.8 12 32 20 060100 115—60—1 127 104 13.8 12 32 20 060120 115—60—1 127 104 13.8 12 32 20

* Permissible limits of voltage range at which unit will operate satisfactorily. † Unit ampacity = 125 percent of largest operating component’s full load amps plus 100 percent of all other potential operating components’ (EAC, humidifier, etc.) full load

amps. ‡ Length shown is as measured 1 way along wire path between unit and service panel for maximum 2 percent voltage drop. ** Time-delay type is recommended.

115-V

SINGLE

PHASE

VOLTS— HERTZ—

PHASE

115-V

FIELD-SUPPLIED

DISCONNECT

SWITCH

OPERATING

VOLTAGE RANGE

Maximum* Minimum*

NOTE 5

FIVE

WIRE

THREE-WIRE

AUXILIARY J-BOX

FURNACE CONTROL

CENTER

HEATING

ONLY

24-V

TERMINAL

BLOCK

MAXIMUM

UNIT

AMPS

WCR GY

W/W1

NOTE

Y/Y2

NOTE 1

NOTES:

MINIMUM

WIRE

SIZE

THERMOSTAT TERMINALS

TWO WIRE

Connect Y or Y/Y2 terminal as shown for proper cooling operation. Proper polarity must be maintained for 115-v wiring. Use W2 with 2-stage thermostat when zoning. If any of the original wire, as supplied, must be replaced, use same type or equivalent wire. Some thermostats require a "C" terminal connection as shown.

MAXIMUM WIRE

LENGTH (FT)‡

FIELD 24-V WIRING FIELD 115-, 208/230-, 460-V WIRING FACTORY 24-V WIRING FACTORY 115-, 208/230-, 460-V WIRING

FIELD-SUPPLIED

DISCONNECT

GND

CONDENSING

UNIT

MAXIMUM FUSE OR

CKT BKR AMPS**

208/230- OR

THREE PHASE

GND

208/230-V

SINGLE

PHASE

GND

460-V

Fig. 28—Heating and Cooling Application Wiring Diagram

II. 24-V WIRING

Make field 24-v thermostat connections at 24-v terminal block on furnace control. Y wire from thermostat MUST be connected to Y/Y2 terminal on furnace control, as shown in Fig. 28, for proper

ELECTRIC

DISCONNECT

SWITCH

COPPER

WIRE ONLY

ALUMINUM

WIRE

A93033

Fig. 29—Disconnect Switch and Furnace

CAUTION: Do not connect aluminum wire between

disconnect switch and furnace. Use only copper wire. (See Fig. 29.)

—20—

cooling operation. The 24-v terminal block is marked for easy connection of field wiring. (See Fig. 32.) The 24-v circuit contains a 3-amp, automotive-type fuse located on furnace control. (See Fig. 32.) Any electrical shorts of 24-v wiring during installation, service, or maintenance may cause fuse to blow. If fuse replacement is required, use only a fuse of identical size (3 amp) and type. The furnace control will flash status code 24 when fuse needs replacement. NOTE: Use AWG No. 18 color-coded copper thermostat wire for lengths up to 100 ft. For wire lengths over 100 ft, use AWG No. 16 wire.

→

NOTE: For additional thermostat connection diagrams, reference Fig. 50-57.

III. ACCESSORIES

1. Electronic Air Cleaner (EAC) The furnace control EAC terminals are energized with 115v

(1.0-amp maximum) during blower operation.

→

Connect an accessory Electronic Air Cleaner (if used) using 1/4-in. female quick connect terminals to the two male 1/4-in. quick-connect terminals on the control board marked EAC-1 and EAC-2. The terminals are rated for 115VAC,

1.0 amps maximum and are energized during blower motor operation. (See Fig. 32.)

A98325

2. Humidifier (HUM)

→

Connect an accessory 24 VAC, 0.5 amp maximum humidifier (if used) to the 1/4-in. male quick-connect HUM terminal and C thermostat strip. The HUM terminal is energized when blower is energized in heating. (See Fig. 32.)

OM-24V screw terminal on the control board

WARNING: DO NOT connect furnace control HUM terminal to HUM (humidifier) terminal on Thermidistat™, Zone Controller or similar device. See Thermidistat™, Zone Controller, thermostat, or controller manufacturer’s instructions for proper connection.

ALTERNATE

FIELD

LOCATION

FACTORY INSTALLED LOCATION

The 355MAV furnaces require a dedicated (one 355MAV furnace only) direct-vent system. In a direct-vent system, all air for

DIRECT VENTING

combustion is taken directly from outdoor atmosphere, and all flue gases are discharged to outdoor atmosphere.

I. REMOVAL OF EXISTING FURNACES FROM COMMON VENT SYSTEMS

→

When an existing Category I furnace is removed or replaced, the original venting system may no longer be sized to properly vent the remaining attached appliances. An improperly sized Category I venting system could cause the formation of condensate in the furnace and vent, leakage of condensate and combustion products, and spillage of combustion products into the living space, etc.

A00212

Fig. 30—Relocating J-Box

WARNING: CARBON MONOXIDE POISONING HAZARD

Failure to follow the steps outlined below for each appliance connected to the venting system being placed into operation could result in carbon monoxide poisoning or death. The following steps shall be followed for each appliance connected to the venting system being placed into operation, while all other appliances connected to the venting system are not in operation:

1. Seal any unused openings in venting system.

2. Inspect the venting system for proper size and horizontal pitch, as required in the National Fuel Gas Code, ANSI Z223.1/NFPA 54 or the CSA B149.1, Natural Gas and Propane Installation Code and these instructions. Determine that there is no blockage or restriction, leakage, corrosion and other deficiencies, which could cause an unsafe condition.

3. As far as practical, close all building doors and windows and all doors between the space in which the appliance(s) connected to the venting system are located and other spaces of the building.

4. Close fireplace dampers.

5. Turn on clothes dryers and any appliance not connected to the venting system. Turn on any exhaust fans, such as range hoods and bathroom exhausts, so they are operating at maximum speed. Do not operate a summer exhaust fan.

6. Follow the lighting instructions. Place the appliance being inspected into operation. Adjust the thermostat so appliance is operating continuously.

7. Test for spillage from draft hood equipped appliances at the draft hood relief opening after 5 minutes of main burner operation. Use the flame of a match or candle.

8. If improper venting is observed during any of the above tests, the venting system must be corrected in accordance with the National Fuel Gas Code, ANSI Z223.1/NFPA 54 and/or CSA B149.1, Natural Gas and Propane Installation Code.

9. After it has been determined that each appliance connected to the venting system properly vents when tested as outlined above, return doors, windows, exhaust fans, fireplace dampers and any other gas-fired burning appliance to their previous conditions of use.

Vent system or vent connectors may need to be resized. For any other appliances when resizing vent systems or vent connectors, system or connector must be sized to approach minimum size as determined using appropriate vent sizing table found in the NFGC or NSCNGPIC.

II. COMBUSTION-AIR AND VENT PIPING A. General

→

Combustion-air and vent pipe, fittings, primers, and solvents must conform to American National Standards Institute (ANSI) standards and American Society for Testing and Materials (ASTM) standards. See Table 5 for approved materials for use in the U.S.A. See Table 7 for maximum pipe lengths and Fig. 37, 38, 39, 40, and 41 for exterior piping arrangements.

In Canada, construct all combustion-air and vent pipes for this unit of CSA or ULC listed schedule-40 PVC, PVC-DWV or ABSDWV pipe and pipe cement. SDR pipe is NOT approved in Canada.

NOTE: Furnace combustion-air and vent pipe connections are sized for 2-in. pipe. Any pipe size change should be made outside furnace casing in vertical pipe. (See Fig. 33.) This allows proper drainage of vent condensate.

Combustion-air and vent pipes must terminate together in same atmospheric pressure zone, either through roof or sidewall (roof termination preferred), using accessory termination kit. See Table 5 for required clearances.

NOTE: Slope combustion-air and vent pipes a minimum of 1/4 in. per linear ft with no sags between hangers.

—21—

SCHEMATIC DIAGRAM

TO 115VAC FIELD-DISCONNECT SWITCH

CONNECTION DIAGRAM

EQUIPMENT

FRS

SW1-7,8

GROUND

ILK

RED RED

RED

BLU

HPS

SELECTION

OFF OFF OFF

BLOWER OFF DELAY

PL10

NOTE #8

RED

SEC

HSI

PL2

HSIR

FUSED OR CIRCUIT

SWITCH (WHE N RE Q’D)

BREAKER DISCONNECT

ORN

(WHEN USED)LGPS

LPS

GRY

BRN

GRN/YEL

120

SEC

150

78 78

327971-101 REV. A

SEC2

TRAN

24VAC

IDM

PL11

IHI/LOR

PL1-9

PL1-11

PL1-7

PCB

CPU

IDR

NOTE #5

GND

NEUTRAL

NOTE #2

GRN/YEL

FSE

WHT

YEL

GRN/YEL

BRN

NOTE #3

SEC

180

SEC

7 8

OFF

FU2

ORN

WHT BLK

IDM

YEL

BLK

BRN

WHT

2 - 3

1 - 4

PIN RESISTANCE K

PLUG

MODEL

PL4 - MODEL PLUG CHA R T

SIZE

MODEL

BLWM

PL13

PL12

IND

NOTE #7

PL12

123 4

PL3

HSI

5.1

008

HK70EZ

040

ILK

PL10

BLK

WHT

BLK

HSI

PL2

RED GRN YEL

PL3

BLU

120

150

180

220

5.1

009

010

011

012

060

100

120 013

5T-080

3.5T080

115VAC

EAC-2

PL14

EAC-1

EAC

BLWM

BLK

1 2 3

OFF

1 2 3

OFF

1 2 3

OFF

PL1

1 2 3

OFF

1 2 3

OFF

1 2 3

OFF

1 2 3

PL8

OFF

1 2 3

OFF

SIZE

A/C OR CF AIRFLOW SELECTION CHART BASED ON 350 CFM/TON

MODEL

SW4

OAT

PRINTED CIRCIUT BOARD

FSE

SEC1

FU1

NOTE #6

PL1-6

FRS LS

YEL

PL14

RED

GRN

YEL BLU

PL13

IND

BLK

NOTE #7 PL12

BLK

EAC-1

122512251225

1750

210017501400

1750

1050

1225

875

1050

875

700

875 1050 1225 1400

700

525

700

DEF.

1. Default A/C airflow when A/C switches are in OFF position

2. Default cont. fan airflow when CF switches are in OFF position

120

040,060,

3.5T080 5T080,100

PL9

PL7

PL1-8

HUMR

HUM

GRN/YEL

PL12

NEUTRAL - L2

COMM

HUM

AB CD

LPS

NOTE #8

PL1-2

PL1-12

PL1-4

HPSR

ACR

ACRDJ

COMMR

W/W1

PRINTED CIRCIUT BOARD

TRAN

RED

WHT

BLU

WHT

NOTE #11

EAC-2

SEC-1

SEC-2

FUSE 3-AMP

CODE

LEDS

STAT US

W/W1DHUM G om

24V

ACRDJ

W2 Y/Y2 RY1

SW1

PL4

LGPS

DHUM

HPS

PL1-3

PL1-10

(WHEN USED)

GVR

CPU

Y/Y2

JUNCTION

TERMINAL

IND Inductor (N ote #7)

LED Light Emitting Diode for Status Codes

LGPS Low Gas Pressure Switch, SPST (N.O.)

LPS Low-Heat Pressure Switch, SPST (N.O.)

LS Limit Switch, Auto-Reset, SPST (N.C.)

A/C Air Conditioning (Adjustable Airflow -CFM)

ACR Air Conditioning Relay, SPST (N.O.)

ACRDJ Air Conditioning Relay Defeat Jumper

BLWM Blower Motor (ECM)

CF Continuous Fan (Adjustable Airflow -CFM)

LEGEN

PL1-5

PL1-1

NOTE #3

PCB

NOTE #5

90 seconds or 5 seconds when dehumidify call is active.

auto-reset after three hours.

7. Inductor is used with 3/4 hp and 1 hp ECM Blower motors.

8. Factory connected when (LGPS) not used.

9. Blower off-delay, gas heating selections are (90, 120, 150, 180) seconds, cooling or heat pump

10. Igni tio n lockout will occur after fou r c o nsecutiv e unsuc c e s s fu l tr ia ls f o r ignition. C ontrol will

11. Any of the 5 wires shown within the NEUTRAL L2 box can be connected to any terminal within the box.

FIELD WIRING

SCREW TERMINAL

EQUIPMENT

GROUND

SPST (N.O.)

SW1-3 Manual Switch, Low-Heat Rise Adj. SPST (N.O.)

SW1-4 Manual Switch, Comfort/Efficiency Adjustment,

SW1-5 Manual Switch, Cooling CFM/Ton, SPST (N.O.)

SW1-6 Manual Switch, Component Test, SPST (N.O.)

SW1-7,8 Manual Switches, Blower Off-Delay, SPST(N.O.)

SW4-1 Manual Switch, Twinning Main (OFF) / Sec. (ON)

SW4-2&3 FOR FUTURE USE

HSI Hot Surface Igniter (115VAC)

HSIR Hot Surface Igni ter Relay, SPST (N.O.)

HUM 24VAC Humidifier Connection (0.5 Amp Max.)

HUMR Humidifier Relay, SPST (N.O.)

IDM Inducer Draft Motor, 2-Speed, Shaded Pole

IDR Induc e r Motor Relay, SP ST (N.O.)

IHI/LOR Inducer Motor Speed Change Relay, SPDT

ILK Blower Door Interlock Switch, SPST (N.O.)

CONTROL TERMINAL

COM

FACTORY POWER

PCB Printed Circuit Board

PL1 12-Circuit Connector

PL2 4-Circuit HSI & IDM Connector

COMMR Communication Relay, SPDT

CPU Microprocessor / Circuitry

DHUM DHUM Connection (24VAC )

1. If any of the original equipment wire is replaced use wire rated for 105°C.

2. Use only copper wire between the disconnect sw itch and the furnace junction box (JB ).

3. This wire must be co nn ected to furnac e s hee t m etal for con trol to prove flame .

4. Symbols are electrical representation only.

5. Solid lines inside PCB are printed circuit board conductors and are not included in legend.

NOTES:

WIRING (115VAC)

FACTORY CONTROL

WIRING (24VAC)

PL3 4-Circuit ECM BLWM Connecto r

PL4 4-Circuit Model Plug Connector

PL7 4-Circuit Communication Connector

PL9 2-Circuit OA T C onnector

PL10 2-Circuit HSI Connector

(115VAC 1.0 Amp Max.)

EAC-1 Electronic Air Cleaner Connection

EAC-2 Electronic Air Cleaner Connection (Common)

FRS Flame Rollout Switch, Man. Reset, SPST(N.C.)

FSE Flame-Proving Sensor Electrode

6. Replace only with a 3 amp fuse.

FIELD CONTROL

WIRING (24VAC)

CONDUCTOR ON

CONTROL

PL11 IDM Connector (12-Circuit)

PL12 1-Circuit Inductor Splice Connector

PL13 16-Circuit ECM Blower Ctrl. Connector

PL14 5-Circuit ECM Blower Power Connector

SW1-1 Manual Switch, Status Code Recall, SPST (N.O.)

SW1-2 Manual Switch, Low-Heat Only, SPST(N.O.)

Factory Installed

FUSE Fuse, 3 Amp, Automotive Blade Type ,

GV Gas Valve

GVR Gas Valve Relay, DPST (N.O.)

HPS High-Heat Pressure Switch, SPST (N.O.)

HPSR High-Heat Pressure Switch Relay, SPST (N.C.)

A02291

electronic control circuits.

12. Blower motor (BLWM) and Inducer motor (IDM) are locked-rotor overload protected by redundant

PLUG RECEPTACLE

→Fig. 31—Unit Wiring Diagram

TRAN Transformer, 115VAC / 24VAC

—22—

MODEL PLUG CONNECTOR

SW1 SETUP

SWITCHES AND

BLOWER OFF-

DELAY

AIR CONDITIONING

(A/C) AIRFLOW

SETUP SWITCHES

24-V THERMOSTAT

TERMINALS

STATUS AND COMM

LED LIGHTS

3-AMP FUSE

COMMUNICATION

CONNECTOR

CONTINUOUS FAN

(CF) AIRFLOW

SETUP SWITCHES

FUTURE

APPLICATIONS

HUMIDIFIER

TERMINAL (24-VAC

0.5 AMP MAX.

ACRDJ – AIR

CONDITIONING

RELAY DISABLE

JUMPER

FLASH

UPGRADE

CONNECTOR

(FACTORY

ONLY)

PL3 – ECM BLOWER

HARNESS

CONNECTOR

TRANSFORMER 24-VAC

CONNECTIONS

115-VAC (L2) NEUTRAL

CONNECTIONS

TABLE 5—APPROVED COMBUSTION-AIR AND VENT PIPE, FITTING AND CEMENT MATERIALS

ASTM SPECIFICATION

(MARKED ON MATERIAL)

D1527 ABS Pipe —— Schedule-40 D1785 PVC Pipe —— Schedule-40

D2235 For ABS —— D2241 PVC Pipe —— SDR-21 & SDR-26

D2466 PVC — Fittings — Schedule-40 D2468 ABS — Fittings — Schedule-40

D2564 For PVC —— D2661 ABS Pipe Fittings — DWV at Schedule-40 IPS sizes

D2665 PVC Pipe Fittings — DWV

F438 CPVC — Fittings — Schedule-40 F441 CPVC Pipe —— Schedule-40 F442 CPVC Pipe —— SDR

F493 For CPVC —— F628 ABS Pipe ——Cellular Core DWV at Schedule-40 IPS sizes

F656 For PVC —— Primer For PVC F891 PVC Pipe —— Cellular Core Schedule-40 & DWV

EAC-1 TERMINAL

(115-VAC 1.0 AMP MAX.)

PL1 – LOW VOLTAGE MAIN

HARNESS CONNECTOR

115-VAC (L1) LINE

VOLTAGE CONNECTIONS

PL2 – HOT SURFACE

IGNITER & INDUCER

MOTOR CONNECTOR

→ Fig. 32—Control Center

MATERIAL PIPE FITTINGS SOLVENT CEMENT AND PRIMERS DESCRIPTION

Solvent

Cement

Solvent

Cement

Solvent

Cement

For ABS

For PVC

For CPVC

A02278

—23—

Furnace combustion-air and vent pipe connections must be attached as shown in Fig. 34. Combustion-air intake plug fitting and inducer housing alternate vent cap may need to be relocated in some applications.

CAUTION: When combustion-air pipe is installed above a suspended ceiling, pipe must be insulated with 3/8-in. thick Armaflex-type insulation. Combustion-air pipe should also be insulated when it passes through a warm, humid space.

CAUTION: When vent pipe is exposed to temperatures below freezing, such as when it passes through an unheated space or when a chimney is used as a raceway, pipe must be insulated as shown in Table 8 with Armaflex-type insulation.

CAUTION: Combustion air must not be taken from inside structure because that air is frequently contaminated by halogens, which include fluorides, chlorides, bromides, and iodides. These elements are found in aerosols, detergents, bleaches, cleaning solvents, salts, air fresheners, adhesives, paint, and other household products. Locate combustion-air inlet as far as possible from swimming pool and swimming pool pump house. Excessive exposure to contaminated combustion air will result in safety and performance related problems.

WARNING: Solvent cements are combustible. Keep away from heat, sparks, and open flame. Use only in well ventilated areas. Avoid breathing in vapor or allowing contact with skin or eyes. Failure to follow this warning could result in fire, property damage, personal injury, or death.

WARNING: All combustion-air and vent pipes must be airtight and watertight. Pipes must also terminate exactly as shown in Fig. 37, 38, 39, 40, or 41. Failure to follow this warning could result in property damage, personal injury, or death.

FURNACE

NOT IN HORIZONTAL SECTION

PIPE DIAMETER

TRANSITION IN

VERTICAL SECTION

TABLE 6—COMBUSTION-AIR AND VENT PIPE

TERMINATION CLEARANCES

LOCATION

Above grade level or above anticipated snow depth

Dryer/Water heater vent See Note 5 See Note 5 From plumbing vent stack 33 From any mechanical fresh air intake See Note 4 See Note 6 For furnaces with an input capacity of

100,000 Btuh or less—from any nonmechanical air supply (windows or doors which can be opened) or combustion-air opening

For furnaces with an input capacity greater than 100,000 Btuh —from any non-mechanical air supply (windows or doorswhich can be opened) or combustion-airopening

From service regulator vent, electric and gas meters, and relief equipment

Above grade when adjacent to public walkway

† 18 in. above roof surface NOTES:

1. If installing 2 adjacent furnaces, refer to Multiventing and Vent Terminations section for proper vent configurations.

2. When locating combustion-air and vent terminations, consideration must be given to prevailing winds, location, and other conditions which may cause recirculation of the appliance’s own flue products or the flue products of adjacent vents. Recirculation can cause poor combustion, inlet condensate problems, and accelerated corrosion of heat exchangers.

3. Vent termination can not terminate less than 2 ft horizontal and 7 ft above public walkway or where condensate vapor or droplets may be a hazard.

4. Vent termination must be at least 3 feet above any forced draft inlets within 10 feet horizontal. Vent termination must be at least 3 feet horizontal from other direct vent appliances intake unless otherwise specified by manufacturer.

5. 3 ft radius of furnace vent air-intake terminal and 1 ft horizontally from vertical centerline of furnace vent air-intake terminal.

6. Above a meter/regulator within 3 feet horizontally of vertical centerline of meter/regulator vent outlet to a maximum vertical distance of 15 feet.

CLEARANCE (FT)

U.S.A. Canada

11†

See Note 6 See Note 6

See Note 3 See Note 3

A93034

Fig. 33—Combustion-Air and Vent Pipe Diameter

Transition Location and Elbow Configuration

NOTE: Select 1 vent pipe connection and

Select 1 vent pipe connection and 1 combustion-air pipe connection.

AIR

COMBUSTION-

AIR

VENT

COMBUSTION-

AIR

FLOW

HORIZONTAL-LEFT DISCHARGE HORIZONTAL-RIGHT DISCHARGE

FLOW

COMBUSTION-

AIR

UPFLOW DOWNFLOW

AIR

VENT

NOTE:

1 combustion-air pipe connection.

VENT

COMBUSTION-

AIR

FLOW

COMBUSTION-

VENT

COMBUSTION-

AIR

FLOW

A96187

Fig. 34—Combustion-Air and Vent Pipe Connections

—24—

NOTE: The minimum combustion-air and vent pipe length (each) for these furnaces is 5 ft. Short pipe lengths (5-8 ft) may discharge water droplets. These droplets may be undesirable, and a 12-in. minimum offset pipe section is recommended, as shown in Fig. 35, to reduce excessive droplets from exiting vent pipe outlet.

B. Combustion-Air and Vent Pipe Diameter

Determine combustion-air and vent pipe diameter.

1. Using Table 7, individually determine the smallest combustion-air and vent pipe diameters. Pick the larger of these 2 pipe diameters and use this diameter for both combustion-air and vent pipes.

2. When installing vent systems of short pipe length, use the smallest allowable pipe diameter. Do not use pipe size greater than required or incomplete combustion, flame disturbance, or flame sense lockout may occur.

NOTE: Do not count elbows or pipe sections in terminations or within furnace. See shaded areas in Fig. 37, 38, 39, 40, and 41.

EXAMPLE: An 042080 size furnace located in Indianapolis, elevation 650 ft above sea level, could be installed in an application requiring 3 elbows and 17 ft of vent pipe, along with 5 elbows and 16 ft of combustion-air pipe. Table 6 indicates this application would allow a 1-1/2-in. diameter vent pipe, but require a 2-in. diameter combustion air pipe (1-1/2-in. pipe is good for 20 ft with 3 elbows, but only 10 ft with 5 elbows). Therefore, 2-in. diameter pipe must be used for both vent and combustion-air pipes since larger required diameter must always be used for both pipes. If same installation were in Albuquerque, elevation 5250 ft above sea level, installation would require 2-in. vent pipe and combustion-air pipe. At 5001- to 6000-ft elevation, 1-1/2in. pipe is not allowed with 5 elbows, but 2-in. pipe is good for 68 ft with 5 elbows.

C. Combustion-Air and Vent Pipe Attachment NOTE: All pipe joints must be cemented except attachment of

combustion-air pipe to inlet housing connection since it may be necessary to remove pipe for servicing.

1. Attach combustion-air pipe as follows:

VENT PIPE

HORIZONTAL TO ROOF HORIZONTAL TO SIDEWALL

12″ MIN

COMBUSTION-AIR PIPE

12″ MIN

VENT PIPE

COMBUSTION-AIR PIPE COMBUSTION-AIR PIPE

COMBUSTION-AIR PIPE

VENT PIPE

12″ MIN

VENT PIPE

VERTICAL TO SIDEWALLVERTICAL TO ROOF

NOTE: A 12 In. minimum offset pipe section is recommended with

short (5 to 8 ft) vent systems. This recommendation is to reduce excessive condensate droplets from exiting the vent pipe.

Fig. 35—Short Vent (5 to 8 Ft) System

—25—

A96230

ALTITUDE

0 to 2000

Altitude

2001 to 3000

Altitude

3001 to 4000

Altitude

4001 to 5000‡

Altitude

5001 to 6000‡

See notes on next page.

UNIT

SIZE

042040

042060 042080

060080 060100

060120

Unit

Size

042040

042060 042080

060080 060100

060120

Unit

Size

042040

042060 042080

060080 060100

060120

Unit

Size

042040

042060 042080

060080 060100

060120

Unit

Size

042040

042060 042080

060080 060100

060120

TABLE 7—MAXIMUM ALLOWABLE PIPE LENGTH (FT)

TERMINATION

TYPE

2 Pipe or 2-In.

Concentric

2 Pipe or 2-In.

Concentric

2 Pipe or 2-In.

Concentric

2 Pipe or 2-In.

Concentric

2 Pipe or 3-In.

Concentric

Termination

Type

2 Pipe or 2-In.

Concentric

2 Pipe or 2-In.

Concentric

2 Pipe or 2-In.

Concentric

2 Pipe or 2-In.

Concentric

2 Pipe or 3-In.

Concentric

Termination

Type

2 Pipe or 2-In.

Concentric

2 Pipe or 2-In.

Concentric

2 Pipe or 2-In.

Concentric

2 Pipe or 2-In.

Concentric

2 Pipe or 3-In.

Concentric

Termination

Type

2 Pipe or 2-In.

Concentric

2 Pipe or 2-In.

Concentric

2 Pipe or 2-In.

Concentric

2 Pipe or 2-In.

Concentric

2 Pipe or 3-In.

Concentric

Termination

Type

2 Pipe or 2-In.

Concentric

2 Pipe or 2-In.

Concentric

2 Pipe or 2-In.

Concentric

2 Pipe or 2-In.

Concentric

2 Pipe or 3-In.

Concentric

PIPE DIAMETER

(IN.)*

1-1/2 50 45 40 35 30 25

2 707070707070

1-1/2 50 45 40 35 30 25

2 707070707070

1-1/2 30 25 20 15 10 5

2 707070707070

2 454035302520 2-1/2 70 70 70 70 70 70 2-1/2 10 NA NA NA NA NA

3 353015NANANA

3† 70 70 70 70 70 70

Pipe Diameter

(In.)*

1-1/2 45 40 35 30 25 20

2 707070707070 1-1/2 45 40 35 30 25 20

2 707070707070 1-1/2 26 21 16 11 6 NA

2 707070707070

2 403530252015 2-1/2 70 70 70 70 70 70

3 312612NANANA

3† 63 62 62 61 61 61

Pipe Diameter

(In.)*

1-1/2 42 37 32 27 22 17

2 707070707070 1-1/2 42 37 32 27 22 17

2 707070707070 1-1/2 25 20 15 10 5 NA

2 707070707070

2 383328231813 2-1/2 70 70 70 70 70 70

3 292410NANANA

3† 59 59 58 57 57 56

Pipe Diameter

(In.)*

1-1/2 40 35 30 25 20 15

2 707070707070 1-1/2 40 35 30 25 20 15

2 707070707070 1-1/2 23 18 13 8 NA NA

2 707070707068

2 363126211611 2-1/2 70 70 70 70 70 70

3† 56 55 54 53 52 52

Pipe Diameter

(In.)*

1-1/2 37 32 27 22 17 12

2 707070707070 1-1/2 37 32 27 22 17 12

2 707070707070 1-1/2 22 17 12 7 NA NA

2 707070706863

2 3328231813 8 2-1/2 70 70 70 70 70 70

3† 53 52 50 49 48 47

123456

NUMBER OF 90° ELBOWS

Number of 90° Elbows

—26—

TABLE 7—MAXIMUM ALLOWABLE PIPE LENGTH (FT) Continued

ALTITUDE

UNIT SIZE

042040

042060

6001 to 7000‡

042080 060080

060100

060120

Altitude

Unit

Size

042040

042060

7001 to 8000‡

042080 060080

060100

060120

Altitude

Unit

Size

042040

042060

8001 to 9000‡

042080 060080

060100

060120

Altitude

Unit

Size

042040

042060

9001 to 10000‡

042080 060080

060100

060120

* Disk usage—Unless otherwise stated, use perforated disk assembly (factory-supplied in loose parts bag).

† Wide radius elbow. ‡ Vent sizing for Canadian installations over 4500 ft (1370m) above sea level are subject to acceptance by the local authorities having jurisdiction. NA—Not Allowed; pressure switch will not make.

NOTES:

1. Do not use pipe size greater than those specified in table or incomplete combustion, flame disturbance, or flame sense lockout may occur.

2. Size both the combustion-air and vent pipe independently, determine the smallest diameter allowed by the tablefor each pipe, then use the larger diameter for both pipes.

3. Assume two 45° elbows equal one 90° elbow. Long radius elbows are desirable and may be required in some cases.

4. Elbows and pipe sections within the furnace casing and at the vent termination should not be included in vent length or elbow count.

5. The minimum pipe length is 5 ft for all applications.

TERMINATION

TYPE

2 Pipe or 2-In.

Concentric

2 Pipe or 2-In.

Concentric

2 Pipe or 2-In.

Concentric

2 Pipe or 2-In.

Concentric

2 Pipe or 3-In.

Concentric

Termination

Type

2 Pipe or 2-In.

Concentric

2 Pipe or 2-In.

Concentric

2 Pipe or 2-In.

Concentric

2 Pipe or 2-In.

Concentric

2 Pipe or 3-In.

Concentric

Termination

Type

2 Pipe or 2-In.

Concentric

2 Pipe or 2-In.

Concentric

2 Pipe or 2-In.

Concentric

2 Pipe or 2-In.

Concentric

2 Pipe or 3-In.

Concentric

Termination

Type

2 Pipe or 2-In.

Concentric

2 Pipe or 2-In.

Concentric

2 Pipe or 2-In.

Concentric

2 Pipe or 2-In.

Concentric

2 Pipe or 3-In.

Concentric

PIPE DIAMETER

(IN.)*

123456

1-1/2 35 30 25 20 15 10

2 70706867 66 64

1-1/2 35 30 25 20 15 10

2 70706867 66 64

1-1/2 20 15 10 5 NA NA

2 70706867 62 57 2 31262116 11 6

2-1/2 70 70 68 67 66 64

3† 49 48 47 45 44 43

Pipe Diameter

(In.)*

123456

1-1/2 32 27 22 17 12 7

2 66656362 60 59

1-1/2 32 27 22 17 12 7

2 66656362 60 59

1-1/2 18 13 8 NA NA NA

2 66656362 57 52 2 29241914 9 NA

2-1/2 66 65 63 62 60 59

3† 46 44 43 41 40 38

Pipe Diameter

(In.)*

123456

1-1/2 30 25 20 15 10 5

2 62605856 55 53

1-1/2 30 25 20 15 10 5

2 62605856 55 53

1-1/2 17 12 7 NA NA NA

2 62605856 51 46 2 27221712 7 NA

2-1/2 62 60 58 56 55 53

3† 43 41 39 37 35 34

Pipe Diameter

(In.)*

123456

1-1/2 27 22 17 12 7 NA

2 57555351 49 47

1-1/2 27 22 17 12 7 NA

2 57555351 49 47

1-1/2 15 10 5 NA NA NA

2 57555351 46 41 2 241914 9 NANA

2-1/2 57 55 53 51 49 47

3† 39 37 35 33 31 29

NUMBER OF 90° ELBOWS

Number of 90° Elbows

—27—

a. Determine location of combustion-air intake pipe con-

nection to combustion-air intake housing as shown in Fig. 34 for application.

b. Reposition combustion-air intake housing plug fitting in

appropriate unused intake housing connection.

c. Insert perforated disk assembly (factory supplied) in

intake housing where combustion-air intake pipe will be connected.

d. Install pipe support (factory-supplied in loose parts bag)

into selected furnace casing combustion-air pipe hole. Pipe support should be positioned to bottom of casing hole.

e. Insert 2-in. diameter pipe into intake housing.

NOTE: A 2-in. diameter pipe must be used within the furnace casing. Make all pipe diameter transitions outside furnace casing.

f. Install casing hole filler cap (factory-supplied in loose

parts bag) in unused combustion-air pipe casing hole.

g. Drill a 1/8-in. hole in 2-in. combustion-air pipe using

hole in intake housing as a guide.

h. Install a field-supplied No. 6 or No. 8 sheet metal screw

into combustion-air pipe.

NOTE: DO NOT OVERTIGHTEN SCREW. Breakage of intake housing or fitting may cause air leakage to occur.

NOTE: Do not attach combustion-air intake pipe permanently to combustion-air intake housing since it may be necessary to remove pipe for service of igniter or flame sensor.

COMBUSTION-AIR INTAKE HOUSING PLUG FITTING

The combustion-air intake plug fitting must be installed in unused combustion-air intake housing. This fitting must be attached by using RTV sealant, or by drilling a 1/8-in. hole in fitting, using hole in intake housing as a guide. Install a field-supplied No. 6 or No. 8 sheet metal screw.

NOTE: DO NOT OVERTIGHTEN SCREW. Breakage of intake housing or fitting may cause air leakage to occur.

A plugged drain connection has been provided on this fitting for use when moisture is found in combustion-air intake pipe and combustion box.

NOTE: Moisture in combustion-air intake may be result of improper termination. Ensure combustion-air intake pipe termination is similar to that shown in Fig. 37, 38, 39, 40, or 41 so it will not be susceptible to areas where light snow or other sources of moisture could be pulled in.

If use of this drain connection is desired, drill out fitting’s tap plug with a 3/16-in. drill and connect a field-supplied 3/8-in. tube. This tube should be routed to open condensate drain for furnace and A/C (if used), and should be trapped. (See Fig. 36.)

2. Attach vent pipe as follows: a. Determine location of vent pipe connection to inducer

housing as shown in Fig. 34 for application.

b. Reposition elastomeric (rubber) inducer housing outlet

cap and clamp to appropriate unused inducer housing connection. Tighten clamp.

WARNING: Inducer housing outlet cap must be installed and fully seated against inducer housing. Clamp must be tightened to prevent any condensate leakage. Failure to follow this warning could result in electrical shock, fire, personal injury, or death.

c. Install pipe support (factory-supplied in loose parts bag)

into selected furnace casing vent pipe hole. Pipe support should be positioned to bottom of casing hole.

WARNING: Vent pipe must be installed and fully seated against inducer housing internal stop. Clamp must be tightened to prevent any condensate leakage. Failure to follow this warning could result in electrical shock, fire, personal injury, or death.

NOTE: A 2-in. diameter pipe must be used within the furnace casing. Make all pipe diameter transitions outside furnace casing.

d. Be certain that mating surfaces of inducer housing

connection, elastomeric coupling, and 2-in. diameter vent pipe are clean and dry. Assemble the elastomeric (rubber) vent coupling (with 2 loose clamps) onto inducer housing connection. Insert the 2-in. diameter vent pipe through the elastomeric (rubber) coupling and fully into inducer housing connection until it bottoms on the internal stop. Tighten both clamps to secure the pipe to inducer housing. Tighten the clamp screws to 15 in.-lb. of torque.

e. Install casing hole filler cap (factory-supplied in loose

parts bag) in unused combustion-air pipe casing hole.

3. Working from furnace to outside, cut pipe to required length(s).

4. Deburr inside and outside of pipe.

5. Chamfer outside edge of pipe for better distribution of primer and cement.

6. Clean and dry all surfaces to be joined.

7. Check dry fit of pipe and mark insertion depth on pipe.

NOTE: It is recommended that all pipes be cut, prepared, and preassembled before permanently cementing any joint.

8. After pipes have been cut and preassembled, apply generous layer of cement primer to pipe fitting socket and end of pipe to insertion mark. Quickly apply approved cement to end of pipe and fitting socket (over primer). Apply cement in a light, uniform coat on inside of socket to prevent buildup of excess cement. Apply second coat.

9. While cement is still wet, twist pipe into socket with 1/4 turn. Be sure pipe is fully inserted into fitting socket.

10. Wipe excess cement from joint. A continuous bead of cement will be visible around perimeter of a properly made joint.

11. Handle pipe joints carefully until cement sets.

COMBUSTION – AIR

3/8" ID TUBE

3/16"

DRILL

4″

TRAP

TO OPEN

MIN

DRAIN

Fig. 36—Air Intake Housing Plug Fitting Drain

INTAKE HOUSING

BURNER BOX

COMBUSTION – AIR PIPE

A93035

—28—

12. Support combustion-air and vent piping a minimum of every 5 ft (3 ft for SDR-21 or -26 PVC) using perforated metal hanging strap.

13. Slope combustion-air and vent pipes downward toward furnace a minimum of 1/4 in. per linear ft with no sags between hangers.

14. Use appropriate methods to seal openings where vent and combustion-air pipes pass through roof or sidewall.

III. CONCENTRIC VENT AND COMBUSTION-AIR TERMINATION KIT INSTALLATION

NOTE: If these instructions differ from those packaged with

termination kit, follow kit instructions. Combustion-air and vent pipes must terminate outside structure. A

factory accessory termination kit must be installed in 1 of the installations shown in Fig. 37, 38, 39, 40, or 41. Four termination kits are available.

1. The 2-in. termination bracket kit is for 1-in., 1-1/2 in., and 2-in. diameter 2-pipe termination systems.

2. The 3-in. termination bracket kit is for 2-1/2 in. and 3-in. diameter 2-pipe termination systems.

3. The 2-in. concentric vent/air termination kit is for 1-in., 1-1/2 in., 2-in., and 2-1/2 in. diameter pipe systems when single penetration of wall or roof is desired.

4. The 3-in. concentric vent/air termination kit is for 2-1/2 in. and 3-in. diameter pipe systems when single penetration of wall or roof is desired.

NOTE: Shaded parts in Fig. 37, 38, 39, 40, and 41 are considered to be terminations. These components should NOT be counted when determining pipe diameter. Roof termination is preferred since it is less susceptible to damage, has reduced chances to take in contaminants, and has less visible vent vapors. (See Fig. 37 or

38.) Sidewall termination may require sealing or shielding of building surfaces with a corrosive resistance material due to corrosive combustion products of vent system.

A. Extended Exposed Sidewall Pipes

Sidewall combustion-air and vent pipe terminations may be extended beyond area shown in Fig. 40 or 41 in outside ambient by insulating pipes as indicated in Table 8.

1. Determine combustion-air and vent pipe diameters, as stated above, using total pipe length and number of elbows.

2. Using winter design temperature (used in load calculations), find appropriate temperature for your application and furnace model.

3. Determine required insulation thickness for exposed pipe lengths.

NOTE: Pipe length (ft) specified for maximum pipe lengths located in unconditioned spaces cannot exceed total allowable pipe length as specified in Table 7.

B. Two-Pipe Termination Kit

1. Determine location for termination. Consideration of the following should be made when

determining an appropriate location for termination kit. a. Comply with all clearance requirements as stated in

Table 6.

b. Termination kit should be positioned where vent vapors

will not damage plants/shrubs or air conditioning equipment.

c. Termination kit should be positioned so it will not be

affected by wind eddy (such as inside building corners) or accumulation of airborne leaves or light snow, or allow recirculation of flue gases.

d. Termination kit should be positioned where it will not be

damaged by or subjected to foreign objects, such as stones, balls, etc.

e. Termination kit should be positioned where vent vapors

are not objectionable.

2. Cut 2 holes, 1 for each pipe, of appropriate size for pipe size being used.

3. Loosely install elbow in bracket and place assembly on combustion-air pipe.

Roof terminations—Loosely install pipe coupling on prop- erly cut vent pipe. Coupling must be positioned so bracket will mount as shown in Fig. 37.

For applications using combustion-air pipe option indicated by dashed lines in Fig. 37, install 90° street elbow into 90° elbow, making U-fitting. A 180° U-fitting may be used.

Sidewall terminations—Install bracket as shown in Fig. 40 or 41.

For applications using vent pipe option indicated by dashed lines in Fig. 40, rotate vent elbow 90° from position shown in Fig. 40.

4. Disassemble loose pipe fittings. Clean and cement using same procedures as used for system piping.

5. Check required dimensions as shown in Fig. 37, 40, or 41.

C. Concentric Vent/Air Termination Kit

1. Determine location for termination. Consideration of the following should be made when

determining an appropriate location for termination kit. a. Comply with all clearance requirements as stated in

Table 6.

b. Termination kit should be positioned where vent vapors

will not damage plants/shrubs or air conditioning equipment.

c. Termination kit should be positioned so it will not be

affected by wind eddy (such as inside building corners) or accumulation of airborne leaves or light snow, or allow recirculation of flue gases.

d. Termination kit should be positioned where it will not be

damaged by or subjected to foreign objects, such as stones, balls, etc.

e. Termination kit should be positioned where vent vapors

are not objectionable.

2. Cut one 4-in. diameter hole for 2-in. kit, or one 5-in. diameter hole for 3-in. kit.

3. Loosely assemble concentric vent/air termination components together using instructions in kit.

4. Slide assembled kit with rain shield REMOVED through hole.

NOTE: Do not allow insulation or other materials to accumulate inside of pipe assembly when installing it through hole.

Roof terminations—Locate assembly through roof to ap- propriate height as shown in Fig. 38.

Sidewall terminations—Locate assembly through sidewall with rain shield positioned no more than 1-in. from wall as shown in Fig. 38.

5. Disassemble loose pipe fittings. Clean and cement using same procedures as used for system piping.

6. Check required dimensions as shown in Fig. 38 or 39.

IV. MULTIVENTING AND VENT TERMINATIONS

When 2 or more 355MAV Furnaces are vented near each other, each furnace must be individually vented. NEVER common vent or breach vent 355MAV furnaces. When 2 or more 355MAV

—29—

VERTICAL SEPARATION

BETWEEN COMBUSTION

MAXIMUM OF 24 IN. ABOVE ROOF.

AIR AND VENT 8 3/4″ FOR 3″ KIT 6 3/4″ FOR 2″ KIT

MAINTAIN 12 IN. MINIMUM

CLEARANCE ABOVE HIGHEST

ANTICIPATED SNOW LEVEL.

COUPLING

VENT

ROOF

18″ MAXIMUM

BRACKET

COMBUSTION AIR

Fig. 37—Roof Termination (Preferred)

VENT

COMBUSTION AIR

MAINTAIN 12 IN. (18 IN. FOR CANADA) MINIMUM CLEARANCE ABOVE HIGHEST ANTICIPATED SNOW LEVEL. MAXIMUM OF 24 IN. ABOVE ROOF.

Fig. 38—Concentric Vent and Combustion-Air Roof

Termination (Preferred)

OVERHANG OR ROOF

A93054

A87224

OVERHANG OR ROOF

12″ MINIMUM

1″ MAXIMUM

COMBUSTION-AIR

VENT

MAINTAIN 12 IN. CLEARANCE ABOVE HIGHEST ANTICIPATED SNOW LEVEL OR GRADE, WHICHEVER IS GREATER.

Fig. 39—Concentric Vent and Combustion-Air Side

Termination

OVERHANG OR ROOF

A93055

12″ MINIMUM

VENT

BRACKET

90°

COMBUSTION-AIR

12 IN. SEPARATION BETWEEN BOTTOM OF COMBUSTION AIR AND BOTTOM OF VENT

MAINTAIN 12 IN. CLEARANCE ABOVE HIGHEST ANTICIPATED SNOW LEVEL OR GRADE, WHICHEVER IS GREATER.

Fig. 40—Sidewall Termination of 12 in. or More

A87225

—30—

12″ MINIMUM

VENT

BRACKET

COUPLING

90°

COMBUSTION-AIR (ELBOW PARALLEL TO WALL)

12 IN. SEPARATION BETWEEN BOTTOM OF COMBUSTION AIR AND BOTTOM OF VENT

MAINTAIN 12 IN. CLEARANCE ABOVE HIGHEST ANTICIPATED SNOW LEVEL OR GRADE, WHICHEVER IS GREATER.

Fig. 41—Sidewall Termination of Less than 12 in.

A87226

TABLE 8—MAXIMUM ALLOWABLE EXPOSED VENT PIPE LENGTH (FT) WITH INSULATION IN WINTER DESIGN

TEMPERATURE AMBIENT*

UNIT SIZE

042040

042060

042080 060080

060100

060120

* Pipe length (ft) specified for maximum pipe lengths located in unconditioned spaces. Pipes located in unconditioned space cannot exceed total allowable pipe length as

specified in Table 7.

† Insulation thickness based on R value of 3.5 per in.

WINTER DESIGN

TEMPERATURE

(°F)

20 2 2137425057

0 2 10 22 25 30 35

-20 2 5 14 17 21 25 20 2 3055617070

0 2 16 33 38 46 53

-20 2 9 23 26 33 38 20 2 3765707070

0 2 20 39 45 55 63

-20 2 1127313945 20 2-1/2 41 70 70 70 70

0 2-1/2 21 42 48 59 68

-20 2-1/2 11 28 33 41 49 20 3 4970707070

0 3 26 51 58 70 70

-20 3 1535405059

furnaces are vented near each other, 2 vent terminations may be installed as shown in Fig. 42, 43, 44, 45, or 46, but next vent termination must be at least 36 in. away from first 2 terminations.

MAXIMUM PIPE

DIAMETER

(IN.)

INSULATION THICKNESS (IN.)†

0 3/8 1/2 3/4 1

Outdoor draining of the furnace is permissible if allowed by local codes. Caution should be taken when freezing ambient may freeze

drain pipe and prohibit draining. It is important that vent terminations be made as shown to avoid recirculation of flue gases. Dimension "A" in Fig. 42, 43, 44, 45, and 46 represents distance between pipes or rain shields, as touching or 2-in. maximum separation.

WARNING: Caution should be taken to prevent draining where slippery conditions may cause personal injuries. Excessive condensate draining may cause saturated soil conditions which may result in damage to plants.

CONDENSATE DRAIN

I. GENERAL

Condensate trap is shipped installed in the blower shelf and factory connected for UPFLOW applications. Condensate trap must be RELOCATED for use in DOWNFLOW and HORIZONTAL applications.

Condensate trap MUST be used for all applications. An external trap is not required when connecting the field drain to

this condensate trap. The field drain connection (condensate trap or drain tube coupling)

is sized for 1/2-in. CPVC, 1/2-in. PVC, or 5/8-in. ID tube connection.

Drain pipe and fittings must conform to ANSI standards and ASTM D1785, D2466, or D2846. CPVC or PVC cement must conform to ASTM D2564 or F493. Primer must conform to ASTM F656. In Canada, use CSA or ULC certified schedule 40 CPVC or PVC drain pipe, fittings, and cement.

When a condensate pump is required, select a pump which is approved for condensing furnace applications. To avoid condensate spillage, select a pump with an overflow switch.

Furnace condensate is mildly acidic, typically in the pH range of

3.2 to 4.5. Due to corrosive nature of this condensate, a condensate

III. CONDENSATE DRAIN PROTECTION

Freezing condensate left in condensate trap and drain line may

cause cracks, and possible water damage may occur. If freeze

protection is required, use condensate freeze protection accessory

or equivalent 3 to 6 watt per ft at 120v and 40°F self-regulating,

shielded, and waterproof heat tape. See Installation Instructions

supplied with accessory or heat tape manufacturer’s recommenda-

tions.

1. Fold heat tape in half and wrap on itself 3 times.

2. Locate heat tape between sides of condensate trap back. (See Fig. 49.)

3. Use wire ties to secure heat tape in place. Wire ties can be positioned in notches of condensate trap sides. (See Fig.

49.)

4. Wrap field drain pipe with remaining heat tape, approximately 1 wrap per ft.

5. When using field-supplied heat tape, follow heat tape manufacturer’s instructions for all other installation guidelines.

SEQUENCE OF OPERATION

pH neutralizing filter may be desired. Check with local authorities to determine if a pH neutralizer is required.

II. APPLICATION

The furnace, A/C, and humidifier drains may be combined and

CAUTION: Furnace control must be grounded for proper operation, or control will lock out. Control is grounded through green/yellow wire routed to gas valve and burner box screw.

drained together. The A/C drain must have an external, fieldsupplied trap prior to the furnace drain connection. All drain connections (furnace, A/C, or humidifier) must be terminated into an open or vented drain as close to the respective equipment as possible to prevent siphoning of the equipment’s drain.

See Fig. 48 for example of possible field drain attachment using 1/2-in. CPVC or PVC tee for vent and A/C or humidifier drain connection.

Using schematic diagram, follow sequence of operation through different modes. (See Fig. 31.) Read and follow wiring diagram carefully.

NOTE: If a power interruption occurs during a call for heat (W/W1 or W/W1-and-W2), the control will start a 90-second blower-only ON period two seconds after power is restored, if the

—31—

A96128

Fig. 42—Rooftop Termination (Dimension "A" is Touching or 2-In. Maximum Separation)

VENT

COMBUSTION AIR

A93056

Fig. 43—Concentric Vent and Combustion-Air Roof

Termination (Dimension "A" is Touching or

2-In. Maximum Separation)

VENT

1″ MAXIMUM (TYP)

COMBUSTION AIR

VENT

A93057

Fig. 44—Concentric Vent and Combustion-Air Side

Termination (Dimension "A" is Touching or

2-In. Maximum Separation)

VENT

COMBUSTION AIR

Fig. 45—Sidewall Termination of 12 in. or Less

(Dimension "A" is Touching or 2-In.

Maximum Separation)

A96129

—32—

COMBUSTION AIR

Fig. 46—Sidewall Termination of More Than 12 in.

(Dimension "A" is Touching or 2-In.

Maximum Separation)

A96130

thermostat is still calling for gas heating. The amber LED light will flash code 12 during the 90-second period, after which the LED will be ON continuous, as long as no faults are detected. After the 90-second period, the furnace will respond to the thermostat normally.

The blower door must be installed for power to be conducted through the blower door interlock switch ILK to the furnace

CONDENSATE TRAP

WIRE TIE(S)

32°F MINIMUM INSTALLED AMBIENT OR FREEZE PROTECTION REQUIRED

Fig. 47—Freeze Protection

CAUTION: Unit must not be installed, operated, and

then turned and left off in an unoccupied structure during cold weather when temperature drops to 32°F or below unless drain trap and drain line have adequate freeze protection. See Service and Maintenance Instructions for winterizing procedure. (See Fig. 47.)

OPEN STAND

PIPE FOR

A/C OR

HUMIDIFIER

DRAIN

TEE

TO OPEN DRAIN

Fig. 48—Example of Field Drain Attachment

A93058

A94054

(3 WRAPS MINIMUM)

HEAT TAPE

Fig. 49—Condensate Trap Heat Tape

A93036

control CPU, transformer TRAN, inducer motor IDM, blower motor BLWM, hot-surface igniter HSI, and gas valve GV.

I. SINGLE-STAGE THERMOSTAT AND TWO-STAGE HEATING (ADAPTIVE MODE)

See Fig. 28 or 57 for thermostat connections NOTE: Low-heat-only switch, SW1-2, selects either the low-

heat-only operation mode when ON, (see item 2. below) or adaptive heating mode when OFF, in response to a call for heat. (See Fig. 32.) When the W2 thermostat terminal is energized, it will always cause high-heat operation when the R to W circuit is closed, regardless of the setting of the low-heat only switch.

This furnace can operate as a two-stage furnace with a single-stage thermostat because furnace control CPU includes a programmed adaptive sequence of controlled operation, which selects low-heat or high-heat operation. This selection is based upon the stored history of the length of previous gas heating periods of the single-stage thermostat.

The furnace will start up in either low- or high-heat. If the furnace starts up in low-heat, the furnace control CPU determines the low-heat on time (from 0 to 16 minutes) which is permitted before switching to high-heat.

If power is interrupted, the stored history is erased. When this happens, the control CPU will initially select low-heat for up to 16 minutes and then switch to high-heat, as long as the thermostat continues to call for heat. Subsequent selection is based on stored history of thermostat cycle times.

The wall thermostat ″calls for heat″, closing the R to W circuit. The furnace control CPU performs a self-check, verifies the low-heat and high-heat pressure switch contacts LPS and HPS are open.

1. Inducer Prepurge Period-The furnace control CPU turns on inducer motor IDM and slowly increases the inducer motor speed. When the low-heat pressure switch LPS closes, inducer motor RPM is noted by the furnace control CPU, and a 25-sec. prepurge period begins. The RPM is used to evaluate vent system resistance. This evaluation is then used to determine the required RPM necessary to operate the inducer motor during the low-heat prepurge period and low-heat mode.

NOTE: The heat cycle can start in either high-or low-heat. If a high-heat cycle is initiated, the furnace control CPU will deenergize the high-heat pressure switch relay HPSR to close the NC contact and continues to increase the inducer motor speed after the

—33—

low-heat pressure switch LPS closes. When the high-heat pressure switch closes, inducer motor RPM is noted by the furnace control CPU before the 25-sec prepurge period begins. The RPM is used to evaluate vent system resistance. This evaluation is then used to determine the required RPM necessary to operate the inducer motor in high-heat mode.

2. Ignitor Warm-Up-At end of the prepurge period, the Hot

Surface Igniter HSI is energized for a 17-sec igniter warm-up period.

3. Trial-For-Ignition Sequence-When the igniter warm-up

period is completed the main gas valve relay contacts GVR closes to energize the gas valve solenoid GV-M. The gas valve solenoid GV-M permits gas flow to the burners where it is ignited. After 5 seconds, the igniter HSI is de-energized and a 2-second Flame-Proving period begins.

If the furnace control CPU selects high-heat operation, the high-heat gas valve solenoid GV-HI is also energized.

4. Flame-Proving-When burner flame is proved at the flame-

proving sensor electrode FSE, the furnace control CPU begins the blower-ON delay period and continues to hold the gas valve GV-M open. If the burner flame is not proved within two seconds, the control CPU will close the gas valve GV-M, and the furnace control CPU will repeat the ignition sequence for up to three more Trials-For-Ignition before going to Ignition-Lockout. Lockout will be reset automatically after three hours, by momentarily interrupting 115 vac power to the furnace, or by interrupting 24 vac power at SEC1 or SEC2 to the furnace control CPU (not at W/W1, G, R, etc.).

If flame is proved when flame should not be present, the furnace control CPU will lock out of Gas-Heating mode and operate the inducer motor IDM on high speed until flame is no longer proved.

5. Inducer Speed Change-If the cycle starts in low-heat, the

furnace control CPU reduces the inducer speed slightly after flame sense. If cycle starts in high-heat, the furnace control CPU increases the inducer speed 15 seconds after flame sense. The reduction in speed in low-heat is to optimize combustion for maximum efficiency.

6. Blower-On delay-If the burner flame is proven, the

blower-ON delay for low-heat and high-heat are as follows: Low-heat-60 seconds after the gas valve GV-M is opened,

the BLWM is turned ON at low-heat airflow. High-heat-35 seconds after gas valve GV-M is opened, the

BLWM is turned ON at high-heat airflow. Simultaneously, the humidifier terminal HUM and elec-

tronic air cleaner terminal EAC-1 are energized and remain energized throughout the heating cycle.

7. Switching From Low- To High- Heat- If the furnace

control CPU switches from low-heat to high-heat, the furnace control CPU will de-energize the the high-heat pressure switch relay HPSR to close the NC contact and slowly increase the inducer motor speed until the high-heat pressure switch HPS closes. When the high-heat pressure switch HPS closes, the high-heat gas valve solenoid GV-HI is energized and the inducer motor RPM is noted by the furnace control CPU. The RPM is used to evaluate vent system resistance. This evaluation is then used to determine the required RPM necessary to operate the inducer motor in high-heat mode. The blower motor BLWM will transition to high-heat airflow five seconds after the furnace control CPU switches from low-heat to high-heat.

8. Switching From High- To Low- Heat-The furnace control

CPU will not switch from high-heat to low-heat while the thermostat R-to-W circuit is closed when using a singlestage thermostat.

9. Blower-Off delay- When the thermostat is satisfied, the R

to W circuit is opened, de-energizing the gas valve GV-M, stopping gas flow to the burners, and de-energizing the humidifier terminal HUM. The inducer motor IDM will remain energized for a 15-second post-purge period. The blower motor BLWM and air cleaner terminal EAC-1 will remain energized at low-heat airflow or transition to lowheat airflow for 90, 120, 150, or 180 seconds (depending on selection at blower-OFF delay switches). The furnace control CPU is factory-set for a 120-second blower-OFF delay.

II. TWO-STAGE THERMOSTAT AND TWO-STAGE HEATING

See Fig. 56 for thermostat connections NOTE: In this mode, the low-heat only switch SW1-2 must be

ON to select the low-heat only operation mode in response to closing the thermostat R-to-W1 circuit. Closing the thermostat R-to-W1-and-W2 circuits always causes high-heat operation, regardless of the setting of the low-heat-only switch. The wall thermostat ″calls for heat″, closing the R to W1 circuit for low-heat or closing the R to W1-and-W2 circuits for high-heat. The furnace control performs a self-check and verifies the lowheat and high-heat pressure switch contacts LPS and HPS are open.

The start-up and shutdown functions and delays described in item

1. above apply to 2-stage heating mode as well, except for switching from low- to high-heat and vice versa.

1. Switching From Low- To High- Heat-If the thermostat R

to W1 circuit is closed and the R to W2 circuit closes, the furnace control CPU will de-energize the high-heat pressure switch relay HPSR to close the NC contact and slowly increase the inducer motor speed until the high-heat pressure switch HPS closes. When the high-heat pressure switch closes, the high-heat gas valve solenoid GV-HI is energized and the inducer motor RPM is noted by the furnace control CPU. The RPM is used to evaluate vent system resistance. This evaluation is then used to determine the required RPM necessary to operate the inducer motor in high-heat mode. The blower motor BLWM will transition to high-heat airflow five seconds after the R to W2 circuit closes.

2. Switching From High- To Low- Heat- If the thermostat R

to W2 circuit opens, and the R to W1 circuit remains closed, the furnace control CPU will energize the high-heat pressure switch relay HPSR to open the NC contact and slowly decrease the inducer motor speed to the required low-heat RPM. When the high-heat pressure switch HPS opens, the high-heat gas valve solenoid GV-HI is de-energized. When the inducer motor IDM reduces pressure sufficiently, the high-heat pressure switch HPS will open. The gas valve solenoid GV-M will remain energized as long as the low-heat pressure switch LPS remains closed. The blower motor BLWM will transition to low-heat airflow five seconds after the R to W2 circuit opens.

III. COOLING MODE

The thermostat “calls for cooling”

1. Single-Speed Cooling

(See Fig. 28 for thermostat connections.) The thermostat closes R-to-G-and-Y circuits. The R-to-Y

circuit starts the outdoor unit, and R-to-G-and-Y/Y2 circuits start the furnace blower motor BLWM on cooling airflow. Cooling airflow is based on the A/C selection shown in Fig.

58. The electronic air cleaner terminal EAC-1 is energized with

115-v when blower motor BLWM is operating.

—34—

When the thermostat is satisfied, the R-to-G-and-Y circuits are opened. The outdoor unit will stop, and furnace blower motor BLWM will continue operating at cooling airflow for an additional 90 sec. Jumper Y/Y2 to DHUM to reduce the cooling off-delay to 5 seconds. (See Fig. 32.)

2. Single-Stage Thermostat and Two-Speed Cooling

(Adaptive Mode)

(See Fig. 57 for thermostat connections.) This furnace can operate a two-speed cooling unit with a

single-stage thermostat because the furnace control CPU includes a programmed adaptive sequence of controlled operation, which selects low-cooling or high-cooling operation. This selection is based upon the stored history of the length of previous cooling period of the single-stage thermostat.

NOTE: The air conditioning relay disable jumper ACRDJ must be connected to enable the adaptive cooling mode in response to a call for cooling. (See Fig. 32.) When in place the furnace control CPU can turn on the air conditioning relay ACR to energize the Y/Y2 terminal and switch the outdoor unit to high-cooling.

The furnace control CPU can start up the cooling unit in either low- or high-cooling. If starting up in low-cooling, the furnace control CPU determines the low-cooling ontime (from 0 to 20 minutes) which is permitted before switching to high-cooling.

If the power is interrupted, the stored history is erased and the furnace control CPU will select low-cooling for up to 20 minutes and then energize the air conditioning relay ACR to energize the Y/Y2 terminal and switch the outdoor unit to high-cooling, as long as the thermostat continues to call for cooling. Subsequent selection is based on stored history of the thermostat cycle times.

The wall thermostat ″calls for cooling″, closing the R to G-and-Y circuits. The R to Y1 circuit starts the outdoor unit on low-cooling speed, and the R to G-and-Y1 circuits starts the furnace blower motor BLWM at low-cooling airflow which is the true on-board CF selection as shown in Fig. 58.

If the furnace control CPU switches from low-cooling to high-cooling, the furnace control CPU will energize the air conditioning relay ACR. When the air conditioning relay ACR is energized the R to Y1-and-Y2 circuits switch the outdoor unit to high-cooling speed, and the R to G-and-Y1and-Y/Y2 circuits transition the furnace blower motor BLWM to high-cooling airflow. High-cooling airflow is based on the A/C selection shown in Fig. 58.

NOTE: When transitioning from low-cooling to high-cooling the outdoor unit compressor will shut down for 1 minute while the furnace blower motor BLWM transitions to run at high-cooling airflow.

The electronic air cleaner terminal EAC-1 is energized with 115 vac whenever the blower motor BLWM is operating.

When the thermostat is satisfied, the R to G-and-Y circuit are opened. The outdoor unit stops, and the furnace blower BLWM and electronic air cleaner terminal EAC-1 will remain energized for an additional 90 seconds. Jumper Y1 to DHUM to reduce the cooling off-delay to 5 seconds. (See Fig. 32.) (See Fig. 32.)

3. Two-Stage Thermostat and Two-Speed Cooling

(See Fig. 56 for thermostat connections)

NOTE: The air conditioning relay disable jumper ACRDJ must be disconnected to allow thermostat control of the outdoor unit staging. (See Fig. 32.)

The thermostat closes the R to G and-Y1 circuits for low-cooling or closes the R to G and-Y1-and-Y2 circuits for high-cooling. The R to Y1 circuit starts the outdoor unit on

low-cooling speed, and the R to G-and-Y1 circuit starts the furnace blower motor BLWM on low-cooling airflow which is the true on-board CF selection as shown in Fig. 58 . The R to Y1-and-Y2 circuits start the outdoor unit on high-cooling speed, and the R to G-and-Y/Y2 circuits start the furnace blower motor BLWM at high-cooling ariflow. High-cooling airflow is based on the A/C selection shown in Fig. 58.

The electronic air cleaner terminal EAC-1 is energized with 115 vac whenever the blower motor BLWM is operating.

When the thermostat is satisfied, the R to G-and-Y1 or R to G-and-Y1-and-Y2 circuits are opened. The outdoor unit stops, and the furnace blower BLWM and electronic air cleaner terminal EAC-1 will remain energized for an additional 90 seconds. Jumper Y1 to DHUM to reduce the cooling off-delay to 5 seconds. (See Fig. 32.)

IV. THERMIDISTAT MODE

See Fig. 50-53 for Thermidistat connections. The dehumidification output, DHUM on the Thermidistat should be connected to the furnace control thermostat terminal DHUM. When there is a dehumidify demand, the DHUM input is activated, which means 24 vac signal is removed from the DHUM input terminal. In other words, the DHUM input logic is reversed. The DHUM input is turned ON when no dehumidify demand exists. Once 24 vac is detected by the furnace control on the DHUM input, the furnace control operates in Thermidistat mode. If the DHUM input is low for more than 48 hours, the furnace control reverts back to non-Thermidistat mode. The cooling operation described in item 3. above applies to operation with a Thermidistat. The exceptions are listed below:

a. Low cooling-When the R to G-and-Y1 circuit is closed

and there is a demand for dehumidification, the furnace blower motor BLWM will drop the blower airflow to 86% of low-cooling airflow which is the true on-board CF selection as shown in Fig. 58.

b. High cooling-When the R to G-and Y/Y2 circuit is

closed and there is a demand for dehumidification, the furnace blower motor BLWM will drop the blower airflow to 86% of high-cooling airflow. High-cooling airflow is based on the A/C selection shown in Fig. 58.

c. Cooling off-delay-When the ″call for cooling″ is satis-

fied and there is a demand for dehumidification, the cooling blower-off delay is decreased from 90 seconds to 5 seconds.

V. SUPER-DEHUMIDIFY MODE

Super-Dehumidify mode can only be entered if the furnace control is in Thermidistat mode and there is a demand for dehumidification. The cooling operation described in item 3. above also applies to operation with a Thermidistat. The exceptions are listed below:

a. Low cooling-When the R to Y1 circuit is closed, R to G

circuit is open, and there is a demand for dehumidification, the furnace blower motor BLWM will drop the blower airflow to 65% of low-cooling airflow for a maximum of 10 minutes each cooling cycle or until the R to G circuit closes or the demand for dehumidification is satisfied. Low-cooling airflow is the true on-board CF selection as shown in Fig. 58.

b. High cooling-When the R to Y/Y2 cicuit is closed, R to

G circuit is open, and there is a demand for dehumidifiation, the furnace blower motor BLWM will drop the blower to 65% of high-cooling airflow for a maximum of 10 minutes each cooling cycle or until the R to G circuit closes or the demand for dehumidification is satisfied. High-cooling airflow is based on the A/C selection shown in Fig. 58.

—35—

c. Cooling off-delay-When the ″call for cooling″ is satis-

fied and there is a demand for dehumidification, the cooling blower-off delay is decreased from 90 seconds to 5 seconds.

VI. CONTINUOUS BLOWER MODE

When the R to G circuit is closed by the thermostat, the blower motor BLWM will operate at continuous-blower airflow. Continuous blower airflow selection is initially based on the CF selection shown in Fig. 58. Factory default is shown in Fig. 58. Terminal EAC-1 is energized as long as the blower motor BLWM is energized.

During a call for heat, the blower BLWM will transition the blower motor BLWM to continuous blower airflow, low-heat airflow, or the midrange airflow, whichever is lowest. The blower motor BLWM will remain ON until the main burners ignite then shut OFF and remain OFF for the blower-ON delay (60 seconds in low-heat and 35 seconds in high-heat) allowing the furnace heat exchangers to heat more quickly, then restarts at the end of the blower-ON delay period at low-heat or high-heat airflow respectively.

The blower motor BLWM will revert to continuous-blower airflow after the heating cycle is completed. In high-heat, the furnace control CPU will drop the blower motor BLWM to low-heat airflow during the selected blower-OFF delay period before transitioning to continuous-blower airflow.

When the thermostat ″calls for high-cooling″, the blower motor BLWM will operate at high-cooling airflow. When the thermostat is satisfied, the blower motor BLWM will operate an additional 90 seconds at high-cooling airflow before transitioning back to continuous-blower airflow.

When the R to G circuit is opened, the blower motor BLWM will continue operating for an additional 5 seconds, if no other function requires blower motor BLWM operation.

Continuous Blower Speed Selection from Thermostat

To select different continuous-blower speeds from the room thermostat, momentarily turn off the FAN switch or pushbutton on the room thermostat for 1-3 seconds after the blower motor BLWM is operating. The furnace control CPU will shift the continuous-blower airflow from the factory setting to the next highest CF selection airflow as shown in Fig. 58. Momentarily turning off the FAN switch again at the thermostat will shift the continuous-blower airflow up one more increment. If you repeat this procedure enough, you will eventually shift the continuous-blower airflow to the lowest CF selection as shown in Fig. 58. The selection can be changed as many times as desired and is stored in the memory to be automatically used following a power interruption.

VII. HEAT PUMP

See Fig. 52-55 for thermostat connections. When installed with a heat pump, the furnace control automatically

changes the timing sequence to avoid long blower off times during demand defrost cycles. Whenever W/W1 is energized along with Y1 or Y/Y2, the furnace control CPU will transition to or bring on the blower motor BLWM at cooling airflow, low-heat airflow, or the midrange airflow, whichever is the lowest. The blower motor BLWM will remain on until the main burners ignite, then shut OFF and remain OFF for 25 seconds before coming back on at heating airflow. When the W/W1 input signal disappears, the furnace control begins a normal inducer post-purge period while changing the blower airflow. If Y/Y2 input is still energized, the furnace control CPU will transition the blower motor BLWM airflow to cooling airflow. If Y/Y2 input signal disappears and the Y1 input is still energized, the furnace control CPU will transition the blower motor BLWM to low-cooling airflow. If both the Y1 and Y/Y2 signals disappear at the same time, the blower motor BLWM

will remain on at low-heat airflow for the selected blower-OFF delay period. At the end of the blower-OFF delay, the blower motor BLWM will shut OFF unless G is still energized, in which case the blower motor BLWM will operate at continuous blower airflow.

VIII. COMPONENT TEST

The furnace features a component test system to help diagnose a system problem in the case of a component failure. To initiate the component test procedure, ensure that there are no thermostat inputs to the control and all time delays have expired. Turn on setup switch SW1-6 (See Fig. 32.)

NOTE: The component test feature will not operate if the control is receiving any thermostat signals or until all time delays have expired.

The component test sequence is as follows:

a. The furnace control CPU turns the inducer motor IDM

ON at medium speed and keeps it ON through step c.

b. After waiting 15 seconds, the furnace control CPU turns

the hot surface igniter ON for 15 seconds, then OFF.

c. The furnace control CPU then turns the blower motor

BLWM ON at midrange airflow for 15 seconds, then OFF.

d. After shutting the blower motor BLWM OFF, the

furnace control CPU shuts the inducer motor IDM OFF.

NOTE: The EAC terminals are energized when the blower is operating.

After the component test is completed, 1 or more status codes (11, 25, 41, or 42) will flash. See Service Label on blower access panel or Service/Status Code Instructions for explanation of status codes.

NOTE: To repeat component test, turn setup switch SW1-6 to OFF and then back ON.

START-UP PROCEDURES

I. GENERAL

1. Furnace must have a 115-v power supply properly connected and grounded.

NOTE: Proper polarity must be maintained for 115-v wiring. If polarity is incorrect, control status indicator light flashes rapidly and furnace does not operate.

2. Thermostat wire connections at terminals R, W/W1, G, and Y/Y2 must be made at 24-v terminal block on furnace control.

3. Natural gas service pressure must not exceed 0.5 psig (14-in. wc), but must be no less than 0.16 psig (4.5-in. wc).

4. Blower access panel must be in place to complete 115-v electrical circuit to furnace.

CAUTION: These furnaces are equipped with a manual reset limit switch in burner box. This switch opens and shuts off power to the gas valve if an overheat condition (flame rollout) occurs in burner enclosure. Correct inadequate combustion-air supply or improper venting condition before resetting switch. DO NOT jumper this switch.

Before operating furnace, check flame rollout manual reset switch for continuity. If necessary, press button to reset switch.

II. SELECT SETUP SWITCH POSITIONS A. Air Conditioning (A/C) Setup Switches

The air conditioning setup switches are used to match furnace airflow to cooling unit used.

—36—

→ Fig. 50—Two-Stage Furnace with Single-Speed

Air Conditioner

A00275

A00277

→ Fig. 52—Two-Stage Furnace with Single-Speed Heat

Pump (Dual Fuel)

→

Fig. 51—Two-Stage Furnace with Two-Speed

Air Conditioner

A00276

→ Fig. 53—Two-Stage Furnace with Two-Speed Heat Pump

(Dual Fuel)

—37—

A00278

→ Fig. 54—Dual Fuel Thermostat with Two-Stage

Furnace and Single-Speed Heat Pump

A00279

A00281

→ Fig. 56—Two-Stage Thermostat With Two-Stage

Furnace and Two-Speed Air Conditioner

A00280

→ Fig. 55—Dual Fuel Thermostat With Two-Stage

Furnace and Two-Speed Heat Pump

To set the desired cooling airflow:

1. Remove main furnace door and blower access door.

2. Locate A/C setup switches on frunace control. (See Fig.

32.)

3. Determine air conditioning tonnage used.

4. Use Fig. 58 or wiring schematic to determine proper setup position of A/C switches. (See Fig. 31 and 59.)

NOTE: Excessive airflow caused by improper A/C switch setup may cause condensate blow off in cooling mode.

5. Replace main furnace door and blower access door.

NOTE: EAC-1 terminal is energized whenever blower operates. HUM terminal is only energized when blower is energized in heating.

—38—

See note 2

→ Fig. 57—Single-Stage Thermostat With Two-Stage

Furnace and Two-Speed Air Conditioner

B. Continuous Fan (CF) Setup Switches

→

The CF setup switches are used to select desired airflow when thermostat is in continuous fan mode or to select low-cooling airflow for two-speed cooling units. This setup feature allows continuous fan airflow or low-cooling airflow to be adjusted. To set desired continuous fan airflow or low-cooling airflow:

1. Remove main furnace door and blower access door.

2. Locate CF setup switches on furnace control. (See Fig. 32.)

3. Determine desired continuous fan airflow or low-cooling airflow.

4. Use Fig. 58 or wiring schematic to determine proper setup position of CF switches. (See Fig. 31 and 59.)

5. Replace main furnace door and blower access panel.

A02348

C. Setup Switches (SW1)

The furnace control has 8 setup switches that may be set to meet the application requirements. Position these setup switches for the appropriate requirement.

1. Remove main furnace door and blower access panel.

2. Locate setup switches on furnace control. (See Fig. 32.)

3. See Table 9 for setup switch description. (See Fig. 31 and

59.)

4. Replace main furnace door and blower access panel.

NOTE: If a bypass humidifier is used, setup switch SW1-3 (Low HEAT Rise Adjust) should be in ON position. This compensates for the increased temperature in return air resulting from bypass.

→

NOTE: If modulating dampers are used, blower motor automatically compensates for modulating dampers.

III. PRIME CONDENSATE TRAP WITH WATER

CAUTION: Condensate trap must be PRIMED or

proper draining may not occur. The condensate trap has 2 internal chambers which can ONLY be primed by pouring water into the inducer drain side of condensate trap.

1. Remove upper inducer housing drain connection cap. (See Fig. 60.)

2. Connect field-supplied 1/2-in. ID tube to upper inducer housing drain connection.

3. Insert field-supplied funnel into tube.

4. Pour 1 quart of water into funnel/tube. Water should run through inducer housing, overfill condensate trap, and flow into open field drain. (See Fig. 61.)

5. Remove funnel and tube from inducer housing and replace drain connection cap and clamp.

IV. PURGE GAS LINES

If not previously done, purge the lines after all connections have been made and check for leaks.

WARNING: Never purge a gas line into a combustion chamber. Never test for gas leaks with an open flame. Use a commercially available soap solution made specifically for the detection of leaks to check all connections. Failure to follow this warning could result in fire, explosion, personal injury, or death.

V. ADJUSTMENTS A. Set Gas Input Rate

Furnace gas input rate on rating plate is for installations at altitudes up to 2000 ft. In the U.S.A., the input rating for altitudes above 2000 ft must be reduced by 2 percent for each 1000 ft above sea level. In Canada, the input rating must be derated by 5 percent for altitudes of 2000 ft to 4500 ft above sea level.

→

Adjust manifold pressure to obtain input rate. Furnace input rate must be within ±2 percent of input on furnace rating plate.

1. Determine natural gas orifice size and manifold pressure for correct input. a. Obtain average heat value (at installed altitude) from

local gas supplier. b. Obtain average specific gravity from local gas supplier. c. Verify furnace model. Table 11 can only be used for

model 355MAV Furnaces. d. Find installation altitude in Table 11.

NOTE: For Canada altitudes of 2000 to 4500 ft, use U.S.A. altitudes of 2001 to 3000 ft in Table 11.

Notes for Fig. 50-57:

1. Heat pump MUST have a high pressure switch for dual fuel applications.

2. Refer to outdoor equipment Installation Instructions for additional information and setup procedure.

3. Select the ″ZONE″ position on the two-speed heat pump control.

4. Outdoor Air Temperature Sensor must be attached in all dual fuel applications.

5. Dip switch No.1 on Thermidistat should be set in OFF position for air conditioner installations. This is factory default.

6. Dip switch No. 1 on Thermidistat should be set in ON position for heat pump installations.

7. Dip switch No. 2 on Thermidistat should be set in OFF position for single-speed compressor operation.

This is factory default.

8. Dip switch No. 2 on Thermidistat should be set in ON position for two-speed compressor operation.

9. Configuration Option No. 10 ″Dual Fuel Selection″ must be turned ON in all dual fuel applications.

10. NO connection should be made to the furnace HUM terminal when using a Thermidistat.

11. Optional connection. If wire is connected, dip switch SW1-2 on furnace control should be set in ON position

to allow Thermidistat/Thermostat to control furnace staging.

12. Optional connection. If wire is connected, ACRDJ jumper on furnace control should be removed to allow Thermidistat/Thermostat to control outdoor unit staging.

13. Furnace must control its own high-stage heating operation via furnace control algorithm. This is factory default.

14. The RVS Sensing terminal ″L″ should not be connected. This is internally used to sense defrost operation.

15. DO NOT SELECT the ″FURNACE INTERFACE″ or ″BALANCE POINT″ option on the two-speed heat pump control board. This is controlled internally by the Thermidistat/Dual Fuel Thermostat.

16. Dip switch D on Dual Fuel Thermostat should be set in OFF position for single-speed compressor operation. This is factory default.

17. Dip switch D on Dual Fuel Thermostat should be set in ON position for two-speed compressor operation.

—39—

e. Find closest natural gas heat value and specific gravity in

Table 11.

f. Follow heat value and specific gravity lines to point of

intersection to find orifice size and low- and high-heat manifold pressure settings for proper operation.

EXAMPLE: (0—2000 ft altitude) Heating value = 1050 Btu/cu ft Specific gravity = 0.62 Therefore: Orifice No. 45

Manifold pressure: 3.8-in. wc for high heat

1.6-in. wc for low heat * Furnace is shipped with No. 45 orifices. In this example, all main burner orifices are the correct size and do not need to be changed to obtain proper input rate.

g. Check and verify burner orifice size in furnace. NEVER

ASSUME ORIFICE SIZE; ALWAYS CHECK AND VERIFY.

2. Adjust manifold pressure to obtain input rate.

a. Remove burner enclosure front.

NOTE: Manifold pressure MUST always be measured with the burner box cover REMOVED.

b. Remove regulator seal caps that conceal adjustment

screws for low- and high-heat gas valve regulators. (See Fig. 62.)

c. Turn setup switch SW1-2 on control center to ON

position. (See Fig. 32.) This keeps furnace locked in low-heat operation.

d. Jumper R and W/W1 thermostat connections on furnace

control to start furnace.

e. Turn low-heat adjusting screw (3/32 hex Allen wrench)

counterclockwise (out) to decrease input rate or clockwise (in) to increase input rate.

NOTE: DO NOT set low-heat manifold pressure less than 1.3-in. wc or more than 1.7-in. wc for natural gas. If manifold pressure is outside this range, change main burner orifices to obtain manifold pressure in this range.

CAUTION: DO NOT bottom-out gas valve regulator adjusting screw. This can result in unregulated manifold pressure and result in excess overfire and heat exchanger failures.

NOTE: If orifice hole appears damaged or it is suspected to have been redrilled, check orifice hole with a numbered drill bit of correct size. Never redrill an orifice. A burr-free and squarely aligned orifice hole is essential for proper flame characteristics.

f. Turn setup switch SW1-2 to OFF position after complet-

ing low-heat adjustment.

AIR CONDITIONING AIRFLOW 040,060 & 042080

TONS (12,000 BTU/HR) (CFM)

1-1/2 525 X

2 700 X X X

2-1/2 875 X X X

3 1050 X X X

3-1/2 1225 X X X

4 1400 X X 5 1750 X 6 2100 X

X-INDICATES AN ALLOWABLE SELECTION.

MODEL

SIZE

040, 060,

042080

060080, 100 DEF 700 875 1050 1225 1400 175011750

120 DEF 700 87521050 1225 1400 175012100

1.DEFAULT A/C AIRFLOW WHEN A/C SWITCHES ARE IN OFF POSITION

2.DEFAULT CONT. FAN AIRFLOW WHEN CF SWITCHES ARE IN OFF POSITION

DEF 5252700 875 105011225 1225 1225

MODEL

A/C OR CF AIRFLOW SELECTION CHART

BASED ON 350 CFM/TON

060080 & 100

MODEL

→ Fig. 58—A/C or CF Airflow Selection Chart

Based on 350CFM/Ton

120 MODEL

A02335

—40—

→

TABLE 9—FURNACE SETUP SWITCH DESCRIPTION

SETUP

SWITCH NO.

SW1-1 Status Code Recovery OFF

SW1-2 Adaptive Heat Mode OFF

SW1-3

SW1-4 Comfort/Efficiency Adjustment ON SW1-5 CFM per ton adjust OFF Turn ON for 400 CFM per ton. Turn OFF for 350 CFM per ton. SW1-6 Component Self-Test OFF

SW1-7 Blower OFF delay ON or OFF SW1-8 Blower OFF delay ON or OFF

SWITCH

NAME

Low Heat

Rise Adjust

NORMAL

POSITION

OFF

DESCRIPTION

Turn ON to retrieve up to 7 stored status codes for troubleshooting

assistance when R thermostat lead is disconnected.

Allows 2-stage operation with a single stage thermostat.

Turn ON when using 2 stage thermostat to allow Low Heat opera-

tion when R to W/W1 closes and High Heat operation when R to

Turn ON to increase Low Heat airflow by 18 percent. This compen-

sates for increased return air temperature caused with bypass hu-

Turn ON to decrease Low Heat airflow by 7 percent and High Heat

airflow 8 percent for maximum comfort. On 040 unit will decrease

Low-Heat Airflow 11 percent and High-Heat Airflow 10 percent.

Turn ON to initiate Component Self-Test for troubleshooting assis-

Control blower Off Delay time. Used in conjunction with SW1-8. See Control blower Off Delay time. Used in conjunction with SW1-7. See

tance when R thermostat lead is disconnected.

Turn OFF when Self-Test is completed.

OF USE

W/W1 and W2 close.

midifier.

Table 10. Table 10.

TABLE 10—BLOWER OFF DELAY SETUP SWITCH

POSITION

DESIRED HEATING

MODE BLOWER

OFF DELAY (SEC)

90 OFF OFF 120 ON OFF 150 OFF ON 180 ON ON

SETUP SWITCH (SW1-7 AND SW1-8) POSITION

SW1-7 SW1-8

g. Jumper R and W/W1 and W2 thermostat connections on

furnace control. (See Fig. 32.) This keeps furnace locked

in high-heat operation.

h. Turn high-heat adjusting screw (3/32 hex Allen wrench)

counterclockwise (out) to decrease input rate or clock-

wise (in) to increase rate.

NOTE: DO NOT set high-heat manifold pressure less than 3.2-in. wc or more than 3.8-in. wc for natural gas. If manifold pressure is outside this range, change main burner orifices to obtain manifold pressures in this range.

i. When correct input is obtained, replace caps that conceal

gas valve regulator adjustment screws. Main burner flame should be clear blue, almost transparent. (See Fig.

64.)

j. Remove jumpers R-to-W/W1 and R-to-W2.

3. Verify natural gas input rate by clocking gas meter.

NOTE: Be sure all pressure tubing, combustion-air and vent pipes, and burner enclosure front are in place when checking input by clocking gas meter.

a. Calculate high-altitude adjustment (if required).

OFF

A95198

UNITED STATES At altitudes above 2000 ft, this furnace has been approved for a 2 percent derate for each 1000 ft above sea level. See Table 12 for derate multiplier factor and example.

EXAMPLE: 100,000 BTUH HIGH-HEAT INPUT FURNACE IN-

STALLED AT 4300 FT.

Furnace Input Rate

at Sea Level

100,000 X 0.91 = 91,000

Derate

Multiplier

Factor

Furnace Input Rate

at Installation

Altitude

CANADA At installation altitudes from 2000 to 4500 ft, this furnace must be derated 5 percent by an authorized Gas Conversion Station or Dealer. To determine correct input rate for altitude, see example above and use 0.95 as derate multiplier factor.

b. Reinstall burner box cover.

NOTE: Clocking gas input rate MUST always be performed with the burner box cover INSTALLED.

c. Check that gas valve adjustment caps are in place for

proper input to be clocked.

d. Obtain average heat value (at altitude) from local gas

supplier.

NOTE: Be sure heating value of gas used for calculations is correct for your altitude. Consult local gas utility for altitude adjustment of gas heating value.

e. Check and verify orifice size in furnace. NEVER AS-

SUME THE ORIFICE SIZE. ALWAYS CHECK AND

VERIFY. f. Turn off all other gas appliances and pilots. g. Turn setup switch SW1-2 to ON position. (See Fig. 32.)

This keeps furnace locked in low-heat operation. h. Jumper R-to-W/W1 i. Let furnace run for 3 minutes in low-heat operation. j. Measure time (in sec) for gas meter to complete 1

revolution. Note reading. k. Refer to Table 13 for cubic ft of gas per hr. l. Multiply gas rate cu ft/hr by heating value (Btu/cu ft). m. Turn setup switch SW1-2 to OFF position and jumper R

and W/W1 and W2 thermostat connections. (See Fig.

32.) This keeps furnace locked in high-heat operation. Repeat items i through l for high-heat operation.Fig. 59—Example of Setup Switch in OFF Position

—41—

EXAMPLE: (High-heat operation at 0—2000 ft altitude) Furnace input from rating plate is 100,000 Btuh Btu heating input = Btu/cu ft X cu ft/hr Heating value of gas = 975 Btu/cu ft Time for 1 revolution of 2-cu ft dial = 70 sec Gas rate = 103 cu ft/hr (from Table 13) Btu heating input = 103 X 975 = 100,425 Btuh In this example, the orifice size and manifold pressure adjustment is within ±2 percent of the furnace input rate.

NOTE: Measured gas inputs (high heat and low heat) must be within ±2 percent of that stated on furnace rating plate when installed at sea level or derated per that stated above when installed at higher altitudes.

n. Remove jumper across R, W/W1, and W2 thermostat

connections to terminate call for heat.

B. Set Temperature Rise

→

CAUTION: Temperature rise must be within limits specified on unit rating plate. Operation is within a few degrees of midpoint of rise range when setup switch SW1-4 is OFF. Failure to follow this caution may result in overheating the heat exchangers or condensing flue gas in heat exchanger areas not designed for condensate.

Furnace must operate within ranges of temperature rise specified on the furnace rating plate. Determine air temperature rise as follows:

1. Place thermometers in return and supply ducts as near furnace as possible. Be sure thermometers do not see heat exchanger so that radiant heat does not affect readings. This practice is particularly important with straight-run ducts.

2. When thermometer readings stabilize, subtract return-air temperature from supply-air temperature to determine air temperature rise.

NOTE: Temperature rise can be determined for low-heat operation by placing setup switch SW1-2 on furnace control in ON position. For high-heat operation, place setup switch SW1-2 in OFF position and jumper R-W2 on furnace control. DO NOT forget to return setup switch to OFF position and remove R-W2 jumper upon completion of testing. (See Fig. 32 for switch and terminal location.)

3. This furnace is capable of automatically providing proper airflow to maintain the temperature rise within the range specified on furnace rating plate. If temperature rise is outside this range, proceed as follows: a. Check gas input for low- and high-heat operation.

b. Check derate for altitude if applicable. c. Check all return and supply ducts for excessive restric-

tions causing static pressure greater than 0.5-in. wc.

d. Ensure Low Heat Rise Adjust switch SW1-3 on furnace

control is in ON position when a bypass humidifier is used. (See Fig. 32 for switch location.)

e. Check Troubleshooting Guide for Variable-Speed

2-Stage Electronic Condensing Furnaces Series H and later.

C. Set Thermostat Heat Anticipator

When using a non-electronic thermostat, the thermostat heat anticipator must be set to match the amp draw of components in the R-W/W1 circuit. Accurate amp draw measurements can be obtained only at the thermostat subbase terminals R and W.

→

The thermostat and anticipator should NOT be in the circuit while measuring current. If thermostat has no subbase, the thermostat must be disconnected from R and W/W1 wires during current measurement.

Fig. 60—Inducer Housing Drain Tube

A99118

A99119

Fig. 61—Filling Condensate Trap

—42—

TABLE 11 - ORIFICE SIZE* AND MANIFOLD PRESSURES FOR GAS INPUT RATE

(TABULATED DATA BASED ON 20,000 BTUH HIGH-HEAT / 13,000 BTUH LOW-HEAT PER BURNER,

ALTITUDE

RANGE

(ft)

0 950 44 3.6 / 1.5 44 3.8 / 1.6 43 3.4 / 1.4 43 3.5 / 1.5

to 1000 44 3.3 / 1.4 44 3.4 / 1.4 44 3.5 / 1.5 44 3.6 / 1.5

2000 1050 45 3.6 / 1.5 45 3.7 / 1.6 45 3.8 / 1.6 44 3.3 / 1.4

U.S.A

Altitudes 825 43 3.6 / 1.5 43 3.7 / 1.6 43 3.8 / 1.6 42 3.2 / 1.4

2001 850 43 3.4 / 1.4 43 3.5 / 1.5 43 3.6 / 1.5 43 3.7 / 1.6

to 3000 875 44 3.7 / 1.5 44 3.8 / 1.6 43 3.4 / 1.4 43 3.5 / 1.5

or 900 44 3.5 / 1.5 44 3.6 / 1.5 44 3.7 / 1.6 44 3.8 / 1.6

Canada 925 44 3.3 / 1.4 44 3.4 / 1.4 44 3.5 / 1.5 44 3.6 / 1.5

Altitudes 950 45 3.7 / 1.6 44 3.2 / 1.4 44 3.3 / 1.4 44 3.4 / 1.4

U.S.A. and Canada U.S.A. and CanadaU.S.A. OnlyU.S.A. OnlyU.S.A. OnlyU.S.A. Only

2001 975 45 3.6 / 1.5 45 3.7 / 1.6 45 3.8 / 1.6 44 3.2 / 1.4

to 4500 1000 45 3.4 / 1.4 45 3.5 / 1.5 45 3.6 / 1.5 45 3.7 / 1.6

3001 800 43 3.5 / 1.5 43 3.6 / 1.5 43 3.8 / 1.6 42 3.2 / 1.3

to 850 44 3.6 / 1.5 44 3.7 / 1.6 44 3.8 / 1.6 43 3.4 / 1.5

4000 900 44 3.2 / 1.3 44 3.3 / 1.4 44 3.4 / 1.4 44 3.5 / 1.5

4001 775 43 3.5 / 1.5 43 3.6 / 1.5 43 3.7 / 1.6 43 3.8 / 1.6

to 825 44 3.5 / 1.5 44 3.6 / 1.5 44 3.7 / 1.6 43 3.4 / 1.4

5000 875 45 3.8 / 1.6 44 3.2 / 1.4 44 3.3 / 1.4 44 3.4 / 1.5

5001 750 43 3.4 / 1.4 43 3.5 / 1.5 43 3.6 / 1.5 43 3.8 / 1.6

to 800 44 3.4 / 1.5 44 3.6 / 1.5 44 3.7 / 1.6 44 3.8 / 1.6

6000 850 45 3.7 / 1.6 45 3.8 / 1.6 44 3.2 / 1.4 44 3.4 / 1.4

6001 700 43 3.6 / 1.5 43 3.7 / 1.6 43 3.8 / 1.6 42 3.3 / 1.4

to 750 44 3.6 / 1.5 44 3.7 / 1.6 44 3.8 / 1.6 43 3.5 / 1.5

7000 800 45 3.8 / 1.6 44 3.3 / 1.4 44 3.4 / 1.4 44 3.5 / 1.5

AVG. GAS SPECIFIC GRAVITY OF NATURAL GAS

HEA T V ALUE 0.58 0.60 0.62 0.64

AT ALTITUDE Orifice Mnfld Press Orifice Mnfld Press Orifice Mnfld Press Orifice Mnfld Press

(Btu/cu ft) No. High/Low No. High/Low No. High/Low No. High/Low

900 43 3.5 / 1.5 43 3.6 / 1.5 43 3.8 / 1.6 42 3.2 / 1.3 925 44 3.8 / 1.6 43 3.5 / 1.5 43 3.6 / 1.5 43 3.7 / 1.6

975 44 3.4 / 1.5 44 3.6 / 1.5 44 3.7 / 1.6 44 3.8 / 1.6

1025 45 3.8 / 1.6 44 3.2 / 1.4 44 3.3 / 1.4 44 3.4 / 1.5

1075 45 3.4 / 1.4 45 3.5 / 1.5 45 3.7 / 1.5 45 3.8 / 1.6 1100 45 3.3 / 1.4 45 3.4 / 1.4 45 3.5 / 1.5 45 3.6 / 1.5

800 43 3.8 / 1.6 42 3.2 / 1.4 42 3.3 / 1.4 42 3.5 / 1.5

775 43 3.7 / 1.6 42 3.2 / 1.3 42 3.3 / 1.4 42 3.4 / 1.4

825 44 3.8 / 1.6 43 3.4 / 1.4 43 3.5 / 1.5 43 3.7 / 1.5

875 44 3.4 / 1.4 44 3.5 / 1.5 44 3.6 / 1.5 44 3.7 / 1.6

925 45 3.7 / 1.5 45 3.8 / 1.6 44 3.2 / 1.4 44 3.3 / 1.4 950 45 3.5 / 1.5 45 3.6 / 1.5 45 3.7 / 1.6 45 3.8 / 1.6 750 43 3.7 / 1.6 43 3.8 / 1.6 42 3.2 / 1.4 42 3.3 / 1.4

800 44 3.7 / 1.6 43 3.4 / 1.4 43 3.5 / 1.5 43 3.6 / 1.5

850 44 3.3 / 1.4 44 3.4 / 1.4 44 3.5 / 1.5 44 3.6 / 1.5

900 45 3.6 / 1.5 45 3.7 / 1.6 45 3.8 / 1.6 44 3.2 / 1.4 925 45 3.4 / 1.4 45 3.5 / 1.5 45 3.6 / 1.5 45 3.7 / 1.6 725 43 3.6 / 1.5 43 3.8 / 1.6 42 3.2 / 1.4 42 3.3 / 1.4

775 44 3.7 / 1.5 44 3.8 / 1.6 43 3.4 / 1.4 43 3.5 / 1.5

825 44 3.2 / 1.4 44 3.3 / 1.4 44 3.4 / 1.5 44 3.6 / 1.5

875 45 3.5 / 1.5 45 3.6 / 1.5 45 3.7 / 1.6 45 3.8 / 1.6 900 45 3.3 / 1.4 45 3.4 / 1.4 45 3.5 / 1.5 45 3.6 / 1.5 675 42 3.2 / 1.3 42 3.3 / 1.4 42 3.4 / 1.4 42 3.5 / 1.5

725 44 3.8 / 1.6 43 3.5 / 1.5 43 3.6 / 1.5 43 3.7 / 1.6

775 44 3.4 / 1.4 44 3.5 / 1.5 44 3.6 / 1.5 44 3.7 / 1.6

825 45 3.6 / 1.5 45 3.7 / 1.6 45 3.8 / 1.6 44 3.3 / 1.4 850 45 3.4 / 1.4 45 3.5 / 1.5 45 3.6 / 1.5 45 3.7 / 1.6

DERATED 2%/1000 FT ABOVE SEA LEVEL)

* Orifice numbers shown inBOLD are factory-installed.

—43—

TABLE 11 - ORIFICE SIZE* AND MANIFOLD PRESSURES FOR GAS INPUT RATE

(TABULATED DATA BASED ON 20,000 BTUH HIGH-HEAT / 13,000 BTUH LOW-HEAT PER BURNER,

DERATED 2%/1000 FT ABOVE SEA LEVEL)

ALTITUDE

RANGE

(ft)

7001 675 43 3.5 / 1.5 43 3.7 / 1.6 43 3.8 / 1.6 42 3.2 / 1.4

to 725 44 3.5 / 1.5 44 3.6 / 1.5 44 3.8 / 1.6 43 3.4 / 1.4

U.S.A. Only

8000 775 45 3.7 / 1.6 44 3.2 / 1.3 44 3.3 / 1.4 44 3.4 / 1.4

8001 650 43 3.5 / 1.5 43 3.6 / 1.5 43 3.8 / 1.6 42 3.2 / 1.3

to 700 44 3.5 / 1.5 44 3.6 / 1.5 44 3.7 / 1.6 44 3.8 / 1.6

U.S.A. OnlyU.S.A. Only

9000 750 45 3.7 / 1.5 45 3.8 / 1.6 44 3.2 / 1.4 44 3.3 / 1.4

9001 625 43 3.5 / 1.5 43 3.6 / 1.5 43 3.7 / 1.6 43 3.8 / 1.6

to 675 44 3.4 / 1.4 44 3.5 / 1.5 44 3.7 / 1.5 44 3.8 / 1.6

10000 725 45 3.6 / 1.5 45 3.7 / 1.6 45 3.8 / 1.6 44 3.3 / 1.4

AVG. GAS SPECIFIC GRAVITY OF NATURAL GAS

HEA T V ALUE 0.58 0.60 0.62 0.64

AT ALTITUDE Orifice Mnfld Press Orifice Mnfld Press Orifice Mnfld Press Orifice Mnfld Press

(Btu/cu ft) No. High/Low No. High/Low No. High/Low No. High/Low

650 43 3.8 / 1.6 42 3.2 / 1.4 42 3.4 / 1.4 42 3.5 / 1.5

700 44 3.8 / 1.6 43 3.4 / 1.4 43 3.5 / 1.5 43 3.6 / 1.5

750 44 3.3 / 1.4 44 3.4 / 1.4 44 3.5 / 1.5 44 3.6 / 1.5

800 45 3.5 / 1.5 45 3.6 / 1.5 45 3.7 / 1.6 44 3.2 / 1.4 825 45 3.3 / 1.4 45 3.4 / 1.4 45 3.5 / 1.5 45 3.6 / 1.5 625 43 3.8 / 1.6 42 3.2 / 1.4 42 3.3 / 1.4 42 3.4 / 1.5

675 44 3.7 / 1.6 43 3.4 / 1.4 43 3.5 / 1.5 43 3.6 / 1.5

725 44 3.2 / 1.4 44 3.4 / 1.4 44 3.5 / 1.5 44 3.6 / 1.5

775 45 3.4 / 1.5 45 3.6 / 1.5 45 3.7 / 1.6 45 3.8 / 1.6 600 43 3.8 / 1.6 42 3.2 / 1.4 42 3.3 / 1.4 42 3.4 / 1.4

650 44 3.7 / 1.6 44 3.8 / 1.6 43 3.4 / 1.5 43 3.6 / 1.5

700 44 3.2 / 1.3 44 3.3 / 1.4 44 3.4 / 1.4 44 3.5 / 1.5

* Orifice numbers shown inBOLD are factory-installed.

—44—

Fig. 65 illustrates an easy method of obtaining thermostat amp draw measurements. The amp reading should be taken after blower motor has started and furnace is operating in low-heat.

1. To operate furnace in low-heat, turn setup switch SW1-2 to ON position (See Fig. 32) and connect ammeter leads across thermostat subbase R-W.

2. See thermostat manufacturer’s instructions for adjusting the heat anticipator and for varying heating cycle length.

NOTE: When using an electronic thermostat, set cycle rate for 3 cycles per hr.

3. Return setup switch SW1-2 to OFF position and replace thermostat on subbase.

LOW-FIRE ADJUSTMENT ALLEN SCREW (UNDER CAP)

HIGH-FIRE ADJUSTMENT ALLEN SCREW (UNDER CAP)

A97386

INLET PRESSURE TAP

BURNER ENCLOSURE REFERENCE

PRESSURE TAP

ON/OFF SWITCH

MANIFOLD

PRESSURE

TAP

Fig. 62—Redundant Automatic Gas Valve

CHECK SAFETY CONTROLS

→

This section covers the safety controls that must be checked before the installation is complete. The flame sensor, gas valve, and pressure switches were all checked in the Start-up procedure section as part of normal operation.

I. CHECK PRIMARY LIMIT CONTROL

This control shuts off the gas control system and energizes the air-circulating blower motor if furnace overheats.

1. The recommended method of checking this limit control is to gradually block off return air after furnace has been operating for a period of at least 5 minutes.

2. As soon as limit control has shut off burners, a 33 status code will appear on furnace control.

3. The return-air opening should be quickly unblocked to permit normal air circulation.

By using this method to check the limit control, it can be established that the limit is functioning properly and the furnace will operate safely if there is a restricted return-air duct or motor failure. If the limit control does not function during this test, the cause must be determined and corrected.

II. CHECK PRESSURE SWITCHES

This control proves operation of the draft inducer. Check switch operation as follows:

1. Turn off 115-v power to furnace.

2. Remove control access door and disconnect inducer motor 12-pin wire harness at inducer motor.

3. Turn on 115-v power to furnace.

4. Set thermostat to ″call-for-heat.″ When pressure switches are functioning properly, status code 42 will flash on furnace control approximately 20 sec after thermostat

BURNER FLAME

BURNER

ORIFICE

A93059

Fig. 63—Burner Orifice

CAUTION: DO NOT redrill orifices. Improper drilling

(burrs, out-of-round holes, etc.) can cause excessive burner noise and misdirection of burner flames. This can result in flame impingement of burners and heat exchangers, causing failures. (See Fig. 63.)

—45—

MANIFOLD

A89020

Fig. 64—Burner Flame

TABLE 12—ALTITUDE DERATE MULTIPLIER FOR U.S.A.

ALTITUDE

(FT)

0—2000 0 1.00 2001—3000 4—6 0.95 3001—4000 6—8 0.93 4001—5000 8—10 0.91 5001—6000 10—12 0.89 6001—7000 12—14 0.87 7001—8000 14—16 0.85 8001—9000 16—18 0.83

9001—10,000 18—20 0.81

* Derate multiplier factors are based on midpoint altitudes for altitude ranges.

%OF

DERATE

DERATE MULTIPLIER

FACTOR

switch is closed. If either a status code 31 or 32 is flashed when inducer motor is disconnected, the furnace will shut itself down immediately. Determine the reason pressure switches did not function properly and correct the condition.

5. Turn off 115-v power to furnace.

TABLE 13—GAS RATE CU FT/HR

SECONDS

FOR 1

REVOLUTION

10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49

SIZE OF TEST DIAL

1 cu ft2cu ft5cu ft 360

720

327

655

300

600

277

555

257

514

240

480

225

450

212

424

200

400

189

379

180

360

171

343

164

327

157

313

150

300

144

288

138

277

133

267

129

257

124

248

120

240

116

232

113

225

109

218

106

212

103

206

100

200

195

189

185

180

176

172

167

164

160

157

153

150

147

1800 1636 1500 1385 1286 1200 1125 1059 1000

947 900 857 818 783 750 720 692 667 643 621 600 581 563 545 529 514 500 486 474 462 450 439 429 419 409 400 391 383 375 367

SECONDS

FOR 1

REVOLUTION

50 51 52 53 54 55 56 57 58 59 60 62 64 66 68 70 72 74 76 78 80 82 84 86 88 90 92 94 96

98 100 102 104 106 108

110 112 116 120

SIZE OF TEST DIAL

cu ft2cu ft5cu ft

72 71 69 68 67 65 64 63 62 61 60 58 56 54 53 51 50 48 47 46 45 44 43 42 41 40 39 38 38 37 36 35 35 34 33

33 32 31 30

144 141 138 136 133 131 129 126 124 122 120 116 112 109 106 103 100

97 95 92 90 88 86 84 82 80 78 76 75 74 72 71 69 68 67

65 64 62 60

360 355 346 340 333 327 321 316 310 305 300 290 281 273 265 257 250 243 237 231 225 220 214 209 205 200 196 192 188 184 180 178 173 170 167

164 161 155 150

6. Reconnect inducer motor wire harness. Reinstall furnace access door.

7. Turn on 115-v power to furnace.

8. Reset thermostat to desired temperature.

CHECKLIST

1. Put away tools and instruments. Clean up debris.

2. Verify flame rollout manual reset switch has continuity.

3. Verify that blower and main access doors are properly installed.

4. Cycle test furnace with room thermostat.

5. Check operation of accessories per manufacturer’s instructions.

6. Review User’s Manual with owner.

7. Leave literature packet near furnace.

THERMOSTAT SUBBASE TERMINALS WITH THERMOSTAT REMOVED (ANITICIPATOR, CLOCK, ETC., MUST BE OUT OF CIRCUIT.)

HOOK-AROUND AMMETER

R Y W G

10 TURNS

FROM UNIT 24-V CONTROL TERMINALS

EXAMPLE:

5.0 AMPS ON AMMETER 10 TURNS AROUND JAWS

0.5 AMPS FOR THERMOSTAT

ANTICIPATOR SETTING

Fig. 65—Amp Draw Check with Ammeter

A96316

—46—

LOAD CALCULATION

____________ Heating Load (Btuh)

____________ Cooling Load (Btuh)

____________ Furnace Model Selection

CHECKLIST—INSTALLATION

________ Unit Level or Pitched Forward

________

Condensate Drain

Internal Tubing Connections Free of Kinks and Traps

COMBUSTION AND VENT PIPING

Termination Location

________ Roof or Sidewall

________ Termination Kit — 2 Pipe or Concentric

________ Combustion-Air Pipe Length

________ Combustion-Air Pipe Elbow Quantity

________ Vent Pipe Length

________ Vent Pipe Elbow Quantity

________ Pipe Diameter Determined from Sizing Table

________ Pipe Sloped To Furnace

Pipe Insulation

________ Over Ceilings

________ Low-Ambient Exposed Pipes

________

________ Condensate Trap Primed before Start-Up

________ Heat Tape Installed if Required

________

________ Temperature Rise Adjusted

________ Anticipator Setting Adjusted or

________ Cycle Rate (3 Cycles per Hr) Selected

________ Primary Limit

________ Pressure Switches

External Drain Connection Leak Tight and Sloped

CHECKLIST—START-UP

Gas Input Rate (Set Within 2 percent of Rating Plate)

Thermostat Anticipator

Safety Controls Check Operation

—47—

—48—

Printed in U.S.A. 355m4010 Catalog No. 5335-516

Bryant 355MAV User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
