brother MFC-L2560DW Quick Setup Guide
(For U.K.) (For Others)
HL‑L2380DW / DCP‑L2560DW / MFC‑L2720DW /
MFC‑L2740DW
Not all models are available in all countries.
The latest manuals are available at the Brother
Solutions Center: solutions.brother.com/manuals.

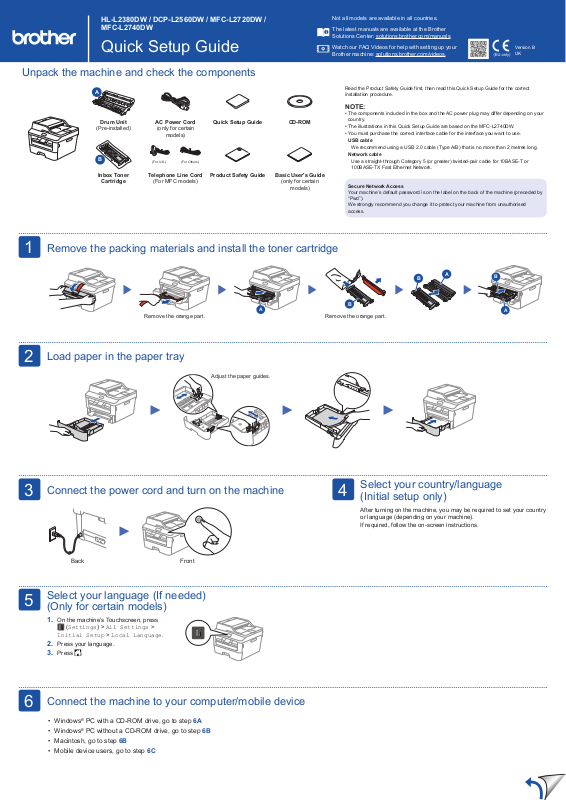

Quick Setup Guide
Unpack the machine and check the components
A
Drum Unit
(Pre‑installed)
B
Inbox Toner
Cartridge
AC Power Cord
(only for certain
models)
Telephone Line Cord
(For MFC models)
Quick Setup Guide CD‑ROM
Product Safety Guide
Basic User's Guide
(only for certain
models)
Watch our FAQ Videos for help with setting up your
Brother machine: solutions.brother.com/videos.
Read the Product Safety Guide first, then read this Quick Setup Guide for the correct
installation procedure.
NOTE:
•The components included in the box and the AC power plug may differ depending on your
country.
•The illustrations in this Quick Setup Guide are based on the MFC‑L2740DW.
•You must purchase the correct interface cable for the interface you want to use.
USB cable
We recommend using a USB 2.0 cable (Type A/B) that is no more than 2 metres long.
Network cable
Use a straight‑through Category 5 (or greater) twisted‑pair cable for 10BASE‑T or
100BASE‑TX Fast Ethernet Network.
Secure Network Access
Your machine’s default password is on the label on the back of the machine (preceded by
“Pwd”).
We strongly recommend you change it to protect your machine from unauthorised
access.
Version B
UK
1
2
Remove the packing materials and install the toner cartridge
A
Remove the orange part. Remove the orange part.
Load paper in the paper tray
Adjust the paper guides.
B
B
A
B
A
3
5
Connect the power cord and turn on the machine
Back Front
Select your language (If needed)
(Only for certain models)
1. On the machine’s Touchscreen, press
(Settings) > All Settings >
Initial Setup > Local Language.
2. Press your language.
3. Press .
4
Select your country/language
(Initial setup only)
After turning on the machine, you may be required to set your country
or language (depending on your machine).
If required, follow the on‑screen instructions.
6
Connect the machine to your computer/mobile device
• Windows® PC with a CD‑ROM drive, go to step 6A
• Windows
• Macintosh, go to step 6B
• Mobile device users, go to step 6C
®
PC without a CD‑ROM drive, go to step 6B
6A
Configuration using the CD‑ROM (Windows®)
NOTE:
If the Brother screen does not appear automatically, go to Computer (My Computer).
(For Windows
Double‑click the CD‑ROM icon, and then double‑click start.exe.
®
8: click the (File Explorer) icon on the taskbar, and then go to Computer.)
Connection Type
For USB Connection
For Wired Network Connection
Connect a network cable first.
Follow the on‑screen
instructions until the
Connection Type screen
appears.
Follow the on‑screen
instructions to continue
installation.
Finish
Wireless Network Connection
[Recommended]
Select this option if you have a USB cable to
use temporarily for wireless setup.
Select this option if you do not have a USB cable.
For Wireless Network Connection
We recommend preparing a USB cable
to use temporarily during the wireless
setup.
NOTE:
If connection is unsuccessful, repeat this step.
Follow the on‑screen
instructions to continue
installation.
Finish
6B
6C
NOTE:
If connection is unsuccessful, repeat this step.
Configuration without using the CD‑ROM (Windows® without CD‑ROM drive or Macintosh)
Download the full driver and software package from the Brother Solutions Center.
(For Windows®) solutions.brother.com/windows
(For Macintosh) solutions.brother.com/mac
After you download the driver and software package, follow the on‑screen instructions until the Connection Type screen appears. Refer to 6A Configuration using the CD-ROM
(Windows®).
Wireless setup for mobile devices
Connect the machine and wireless LAN access point/router from the machine’s control panel.
On the machine’s control panel, press
> Setup Wizard > Yes.
Select the specified SSID, and then enter the
Network key.
Wireless setup is now complete.
NOTE:
Before you can use your machine with your mobile device, download “Brother iPrint&Scan.”
Print and scan using your mobile device
Download “Brother iPrint&Scan” to start using your machine with mobile devices.
solutions.brother.com/ips
